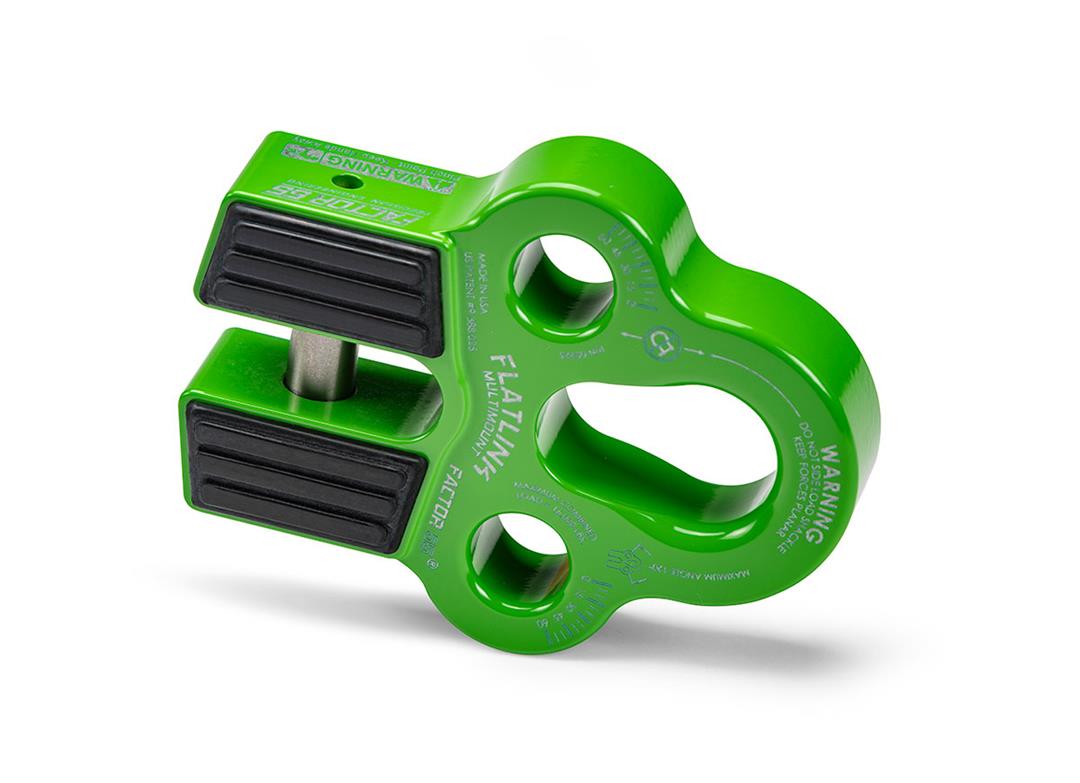

FlatLink Multimount Winch Shackle Green Factor 55

The Flatlink Multimount is designed for difficult off-camber vehicle recovery scenarios where two different winch pull directions are often necessary. Two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point.

This arrangement eliminates any shackle side loading forces at the MultiMount interface (shackles are free to rotate and align to the load directions.

This product is compatible with Closed System Winching, a technique that uses rigging comprised entirely of closed-link hardware. With Closed System Winching you get the extra security and confidence needed to tackle the most demanding winch recoveries.

• FlatLink Multimount Winch Shackle Green
• Multiple shackle interface for bridle and off-camber towing
• Lightweight - Precision CNC machined 6000 series aluminum
• No splicing required - titanium double shear pin design
• Designed for both steel cables and synthetic winch ropes
• Integrated EPDM rubber pads for fairlead protection
• Foldable - 1.75 inch thick (Compatible with all fairlead license plate mounting brackets)
• Oval opening connects to either the pin or bow end of common 3/4 inch screw pin shackles and pin ends of 7/8 inch and 1 inch screw pin shackles
• 5/8 inch diameter 6AI-4V titanium double shear pin
• For rope and cable diameters up to 3/8 inch
• Fits over most OEM tow hooks
• 2 inch thick when folded flat
• Max load: 16,000 lbs., Ultimate Strength: 40,000 pounds
• Weight: 32 oz
• Made In USA
• Check out the Factor 55 Truck/SUV Catalog
• Warning: Keep forces in line. Do Not Side Load Shackle
