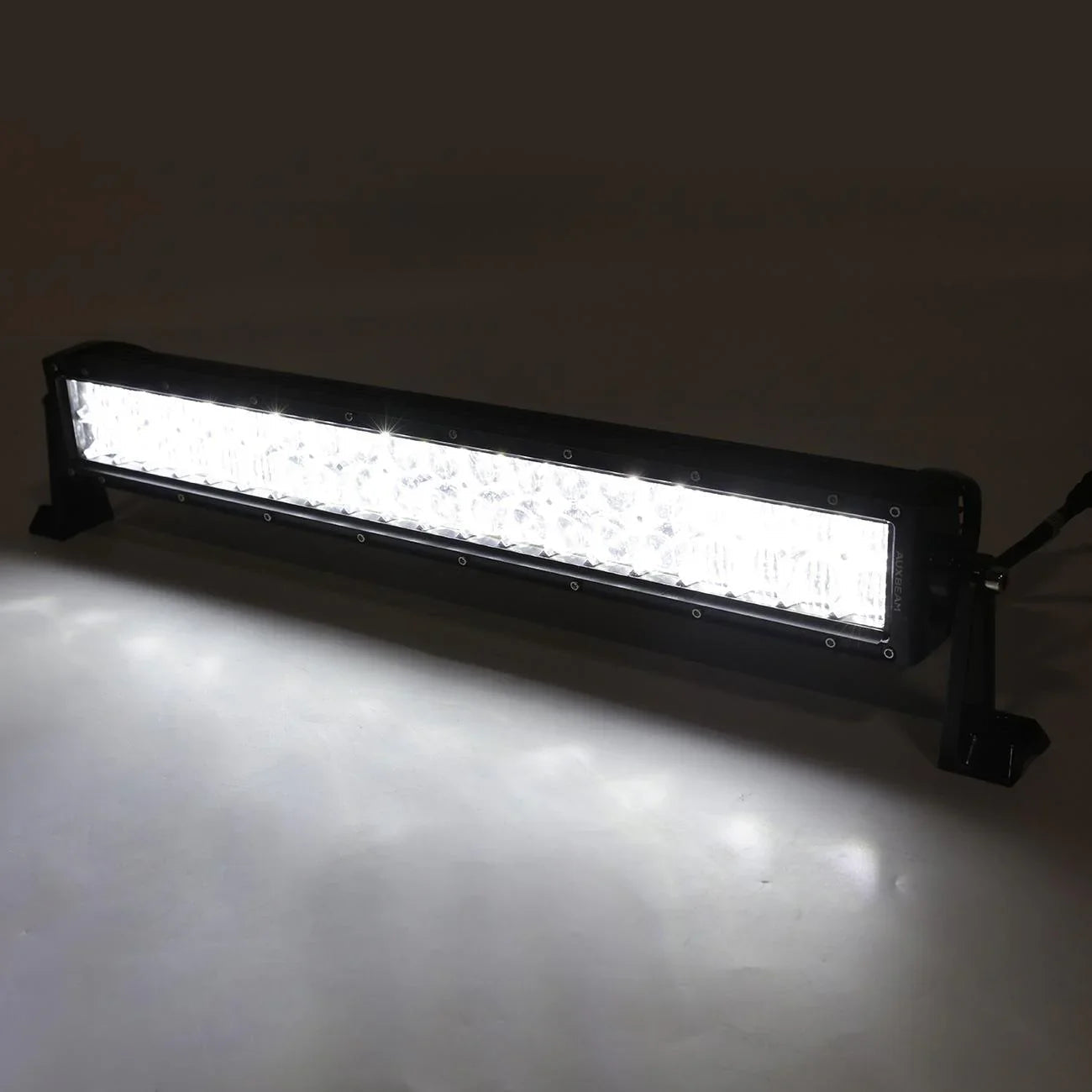

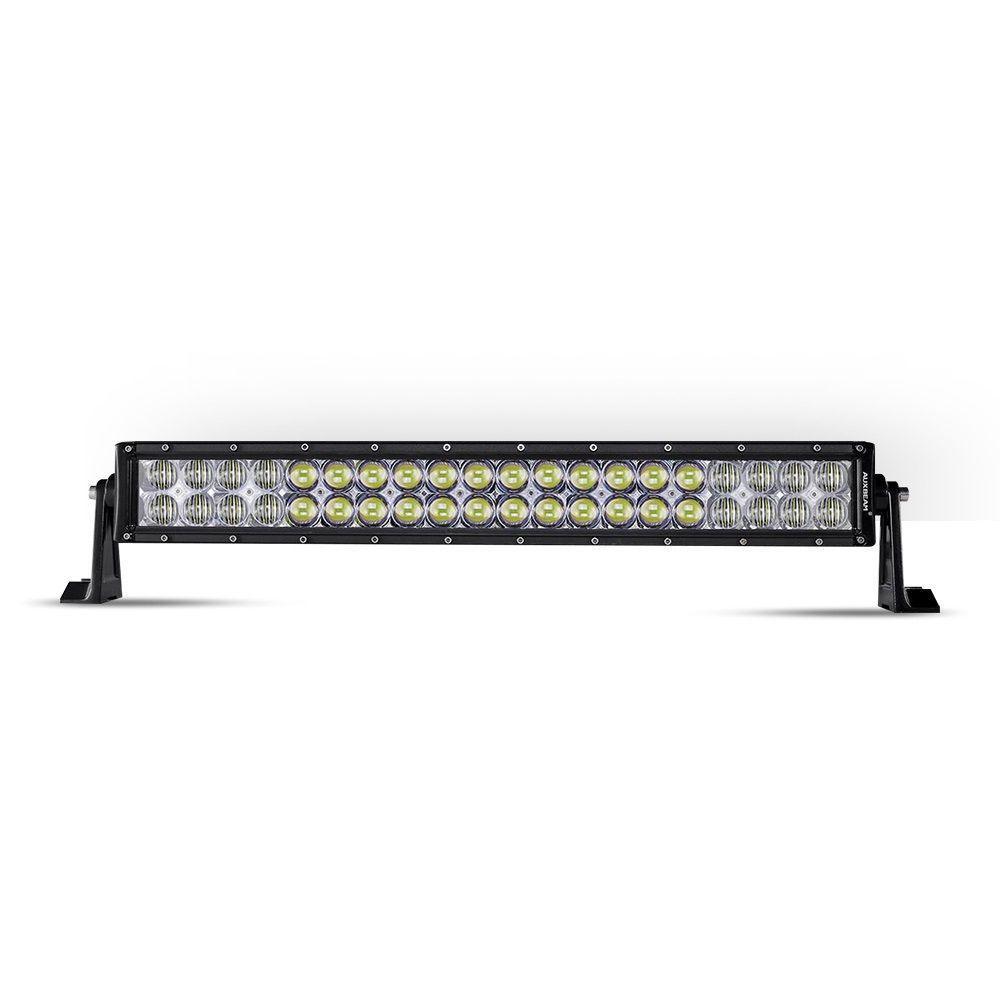

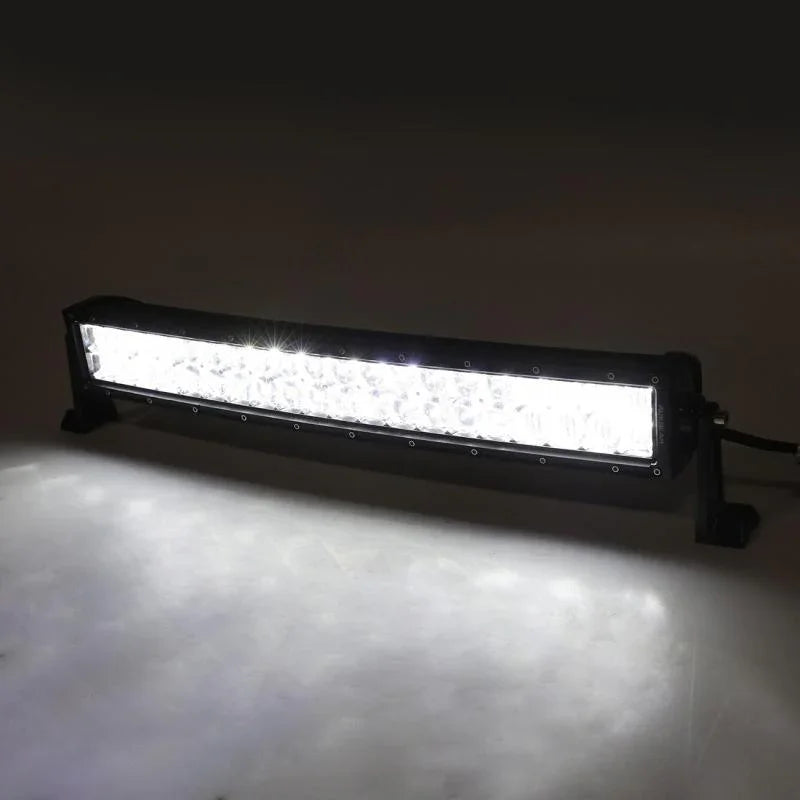

22 inch V-Series RGB Color Changing Straight/Curved Off Road Led Light Bar
Series: V-Series RGB Multicolor
Introduction:
V series adopt evolutional 5D optic tech (Dual reflector cup + projector lens) be used for project more effective light to faraway and surround areas without foggy light/dark zone.

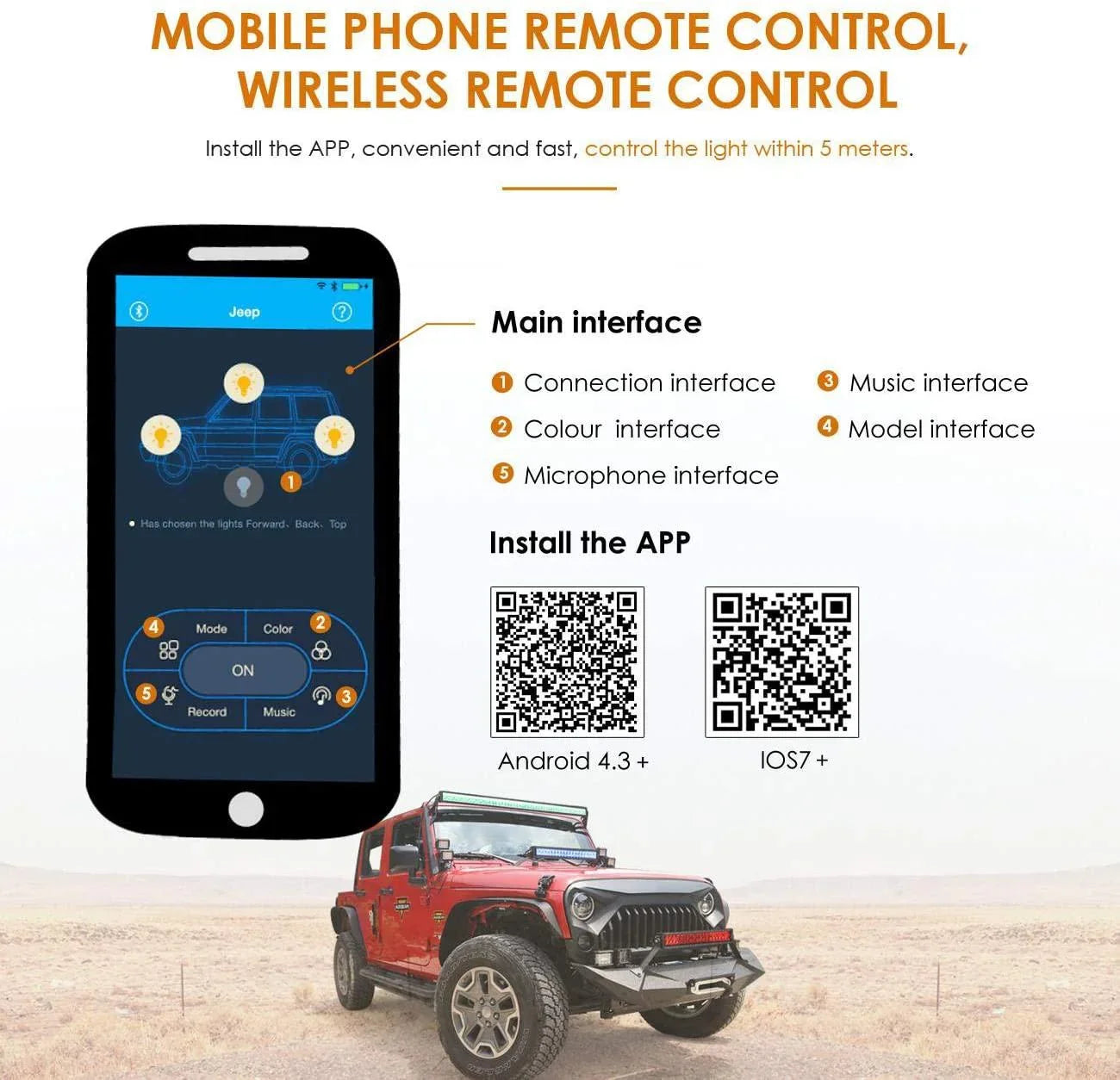

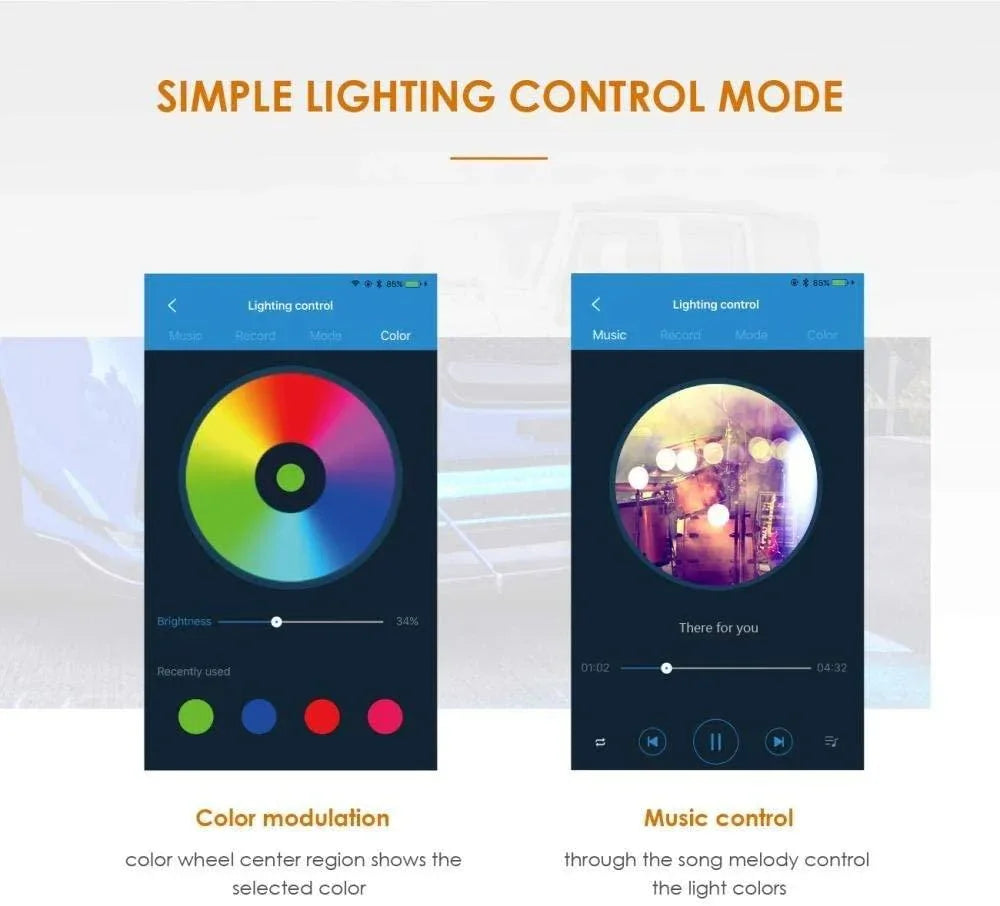

Personalized cool show RGB light & strobe settings are controlled via Bluetooth APP on Android or iPhone,make you enjoy happiness and wild adventure.
LATEST APP UPDATED
The OLD BLUETOOTH APP HAVE BEEN UPDATED. The new Bluetooth APP connection solves the STUCK PROBLEM caused by the old APP control.
The connection signal will become more stable and the control becomes smoother.
If there is a problem that Bluetooth cannot be connected or the rgb coloring cannot be changed, please confirm whether you have downloaded the LATEST APP.
(The latest QR code can be found in the pictures and videos)
Specifications:
LED Type: 2525 chips

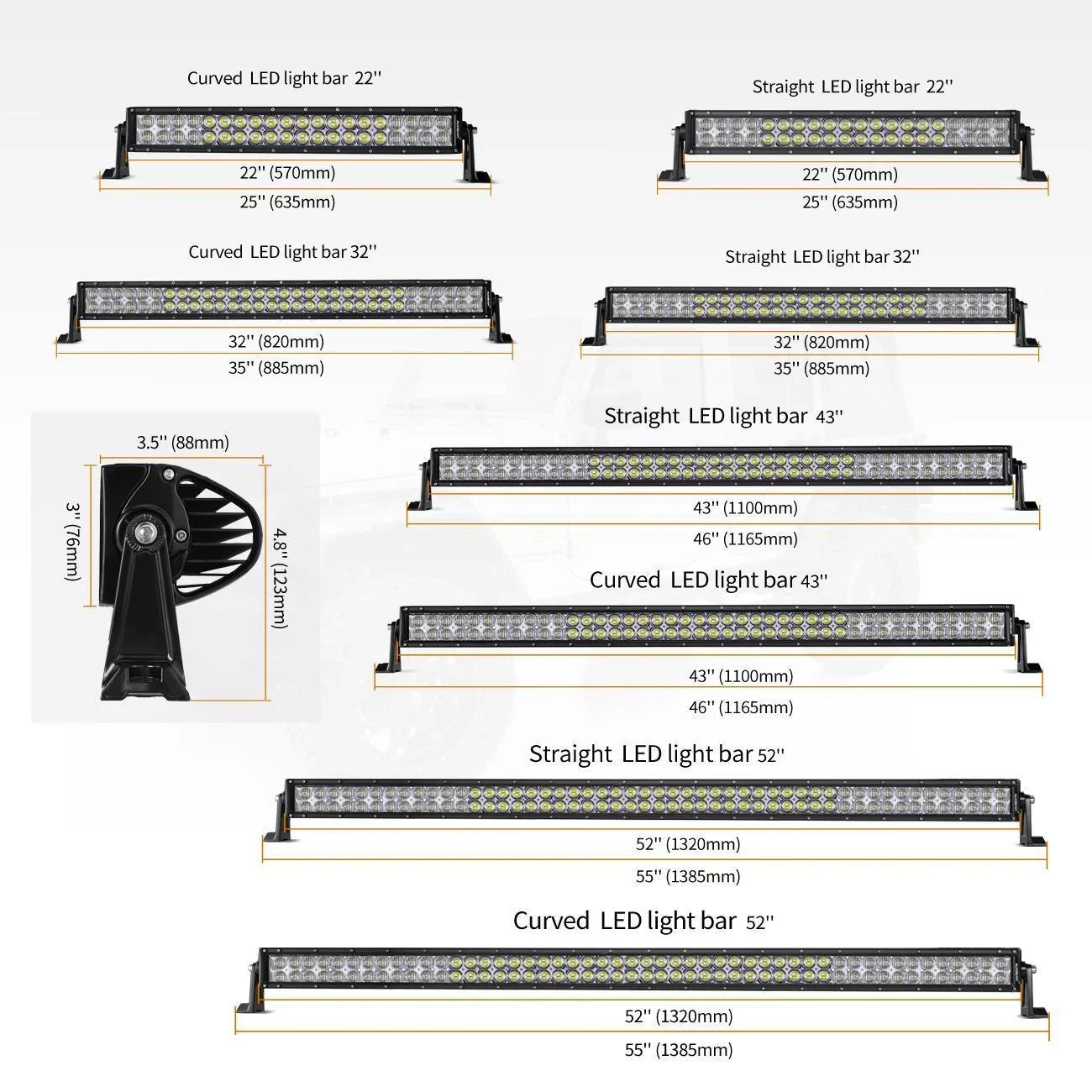

Size/LED Power/Dimention(inch):
| 22" Straight |
120W-40pcs*3W 25*4.8*3.5(with bracket) 22*3*3.5(without bracket) |
12000LM |
| 22" Curved |
120W-40pcs*3W; 25*4.8*3.5(with bracket) 22*3*3.5(without bracket) |
12000LM |
Pcs/Set: 1

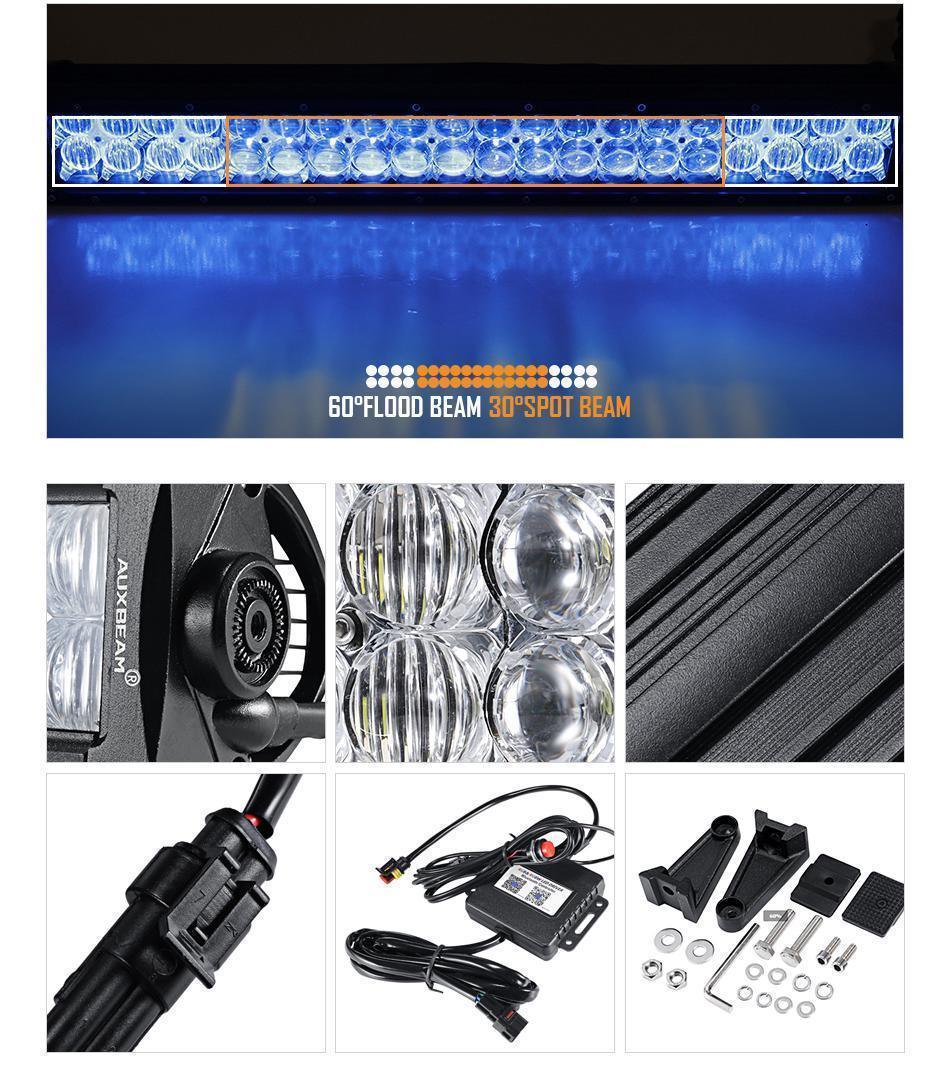

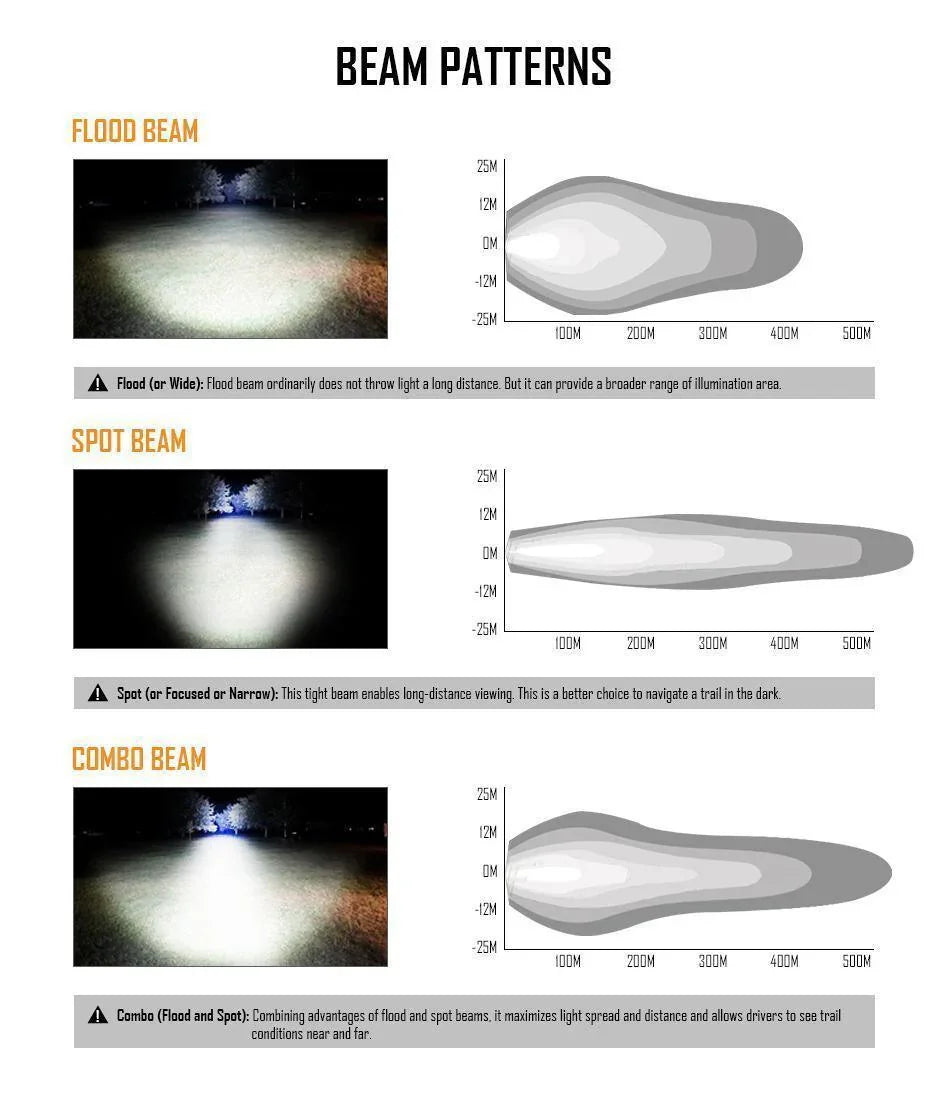

Beam Type: Spot(30 degree) & Flood(60 degree) Combo

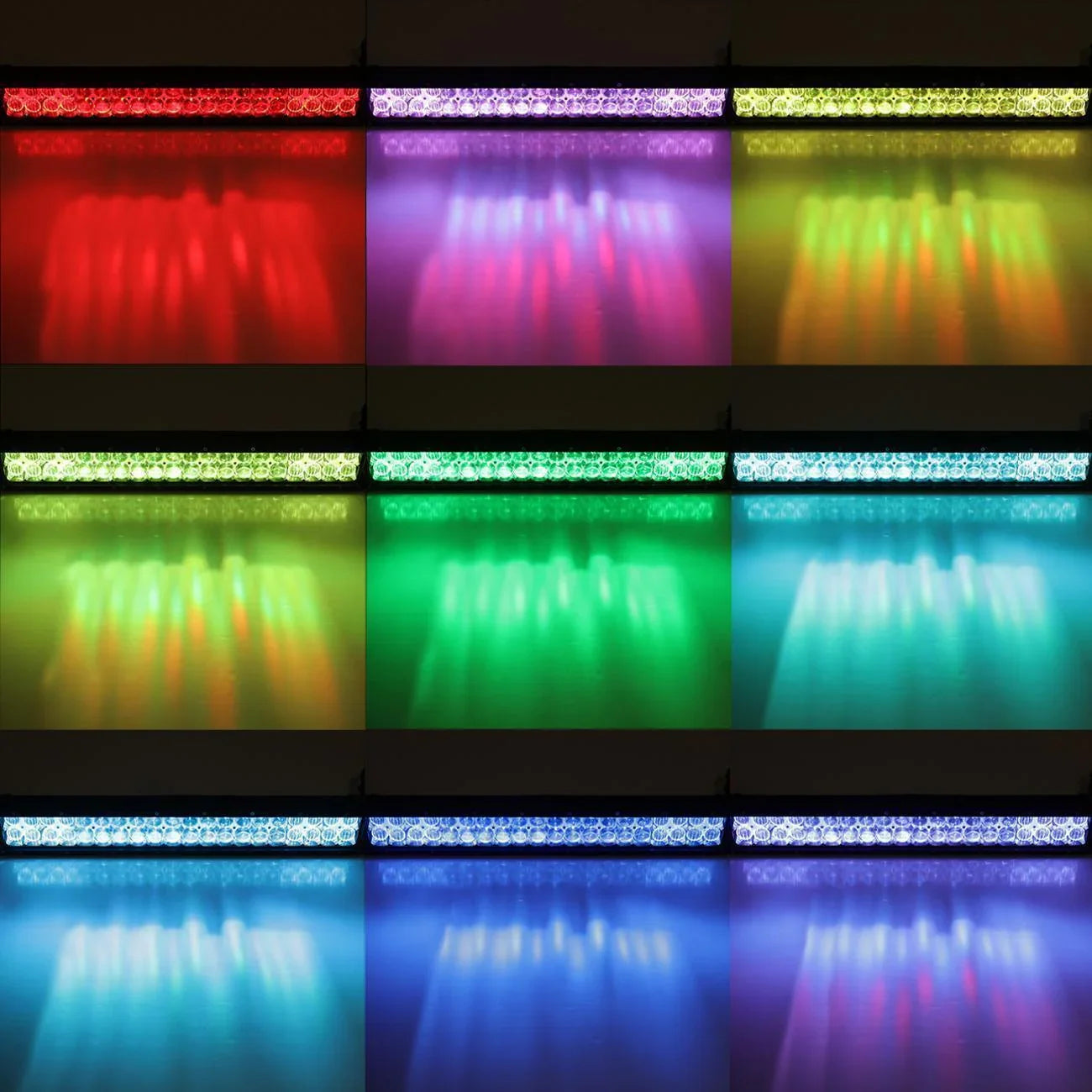

Color temperature: 6500K Cool White with RGB multicolor
Operating Voltage: 9-32V
Material: Black Diecast aluminum alloy housing
Mounting Bracket: Diecast aluminum alloy
Waterproof rate: IP67
Working Temperature:-40~85 degree Celsius
Lifespan: 50,000 Hours
Features:

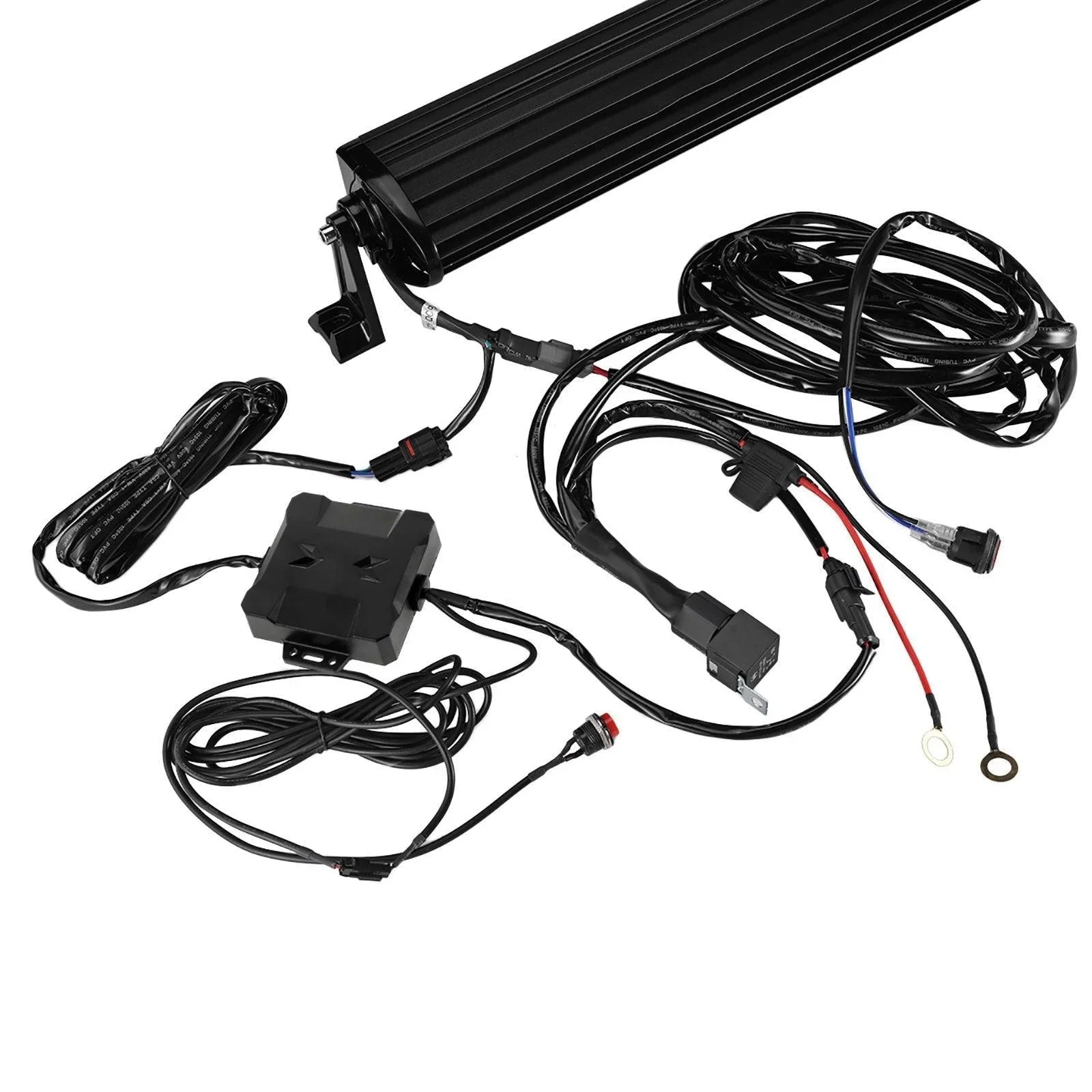

Comes with a control box harness kit with switch and a wiring harness kit. Durable wiring meets your needs for mounting your lights anywhere on the vehicles.

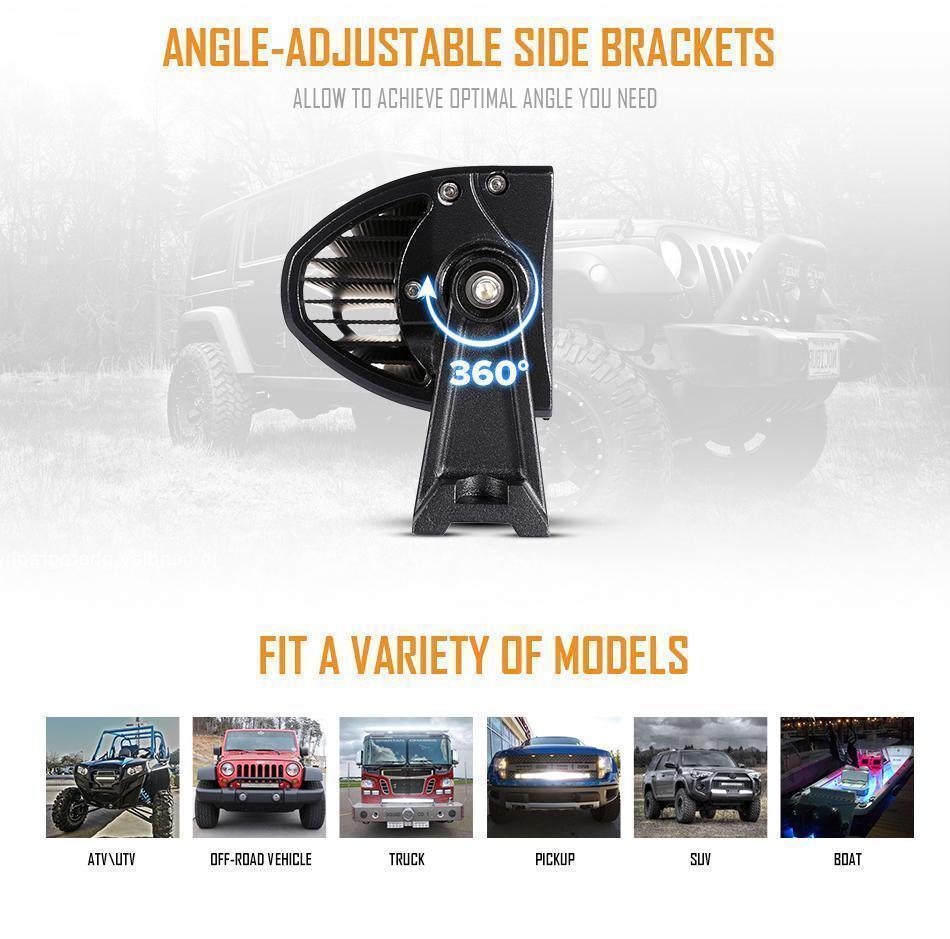

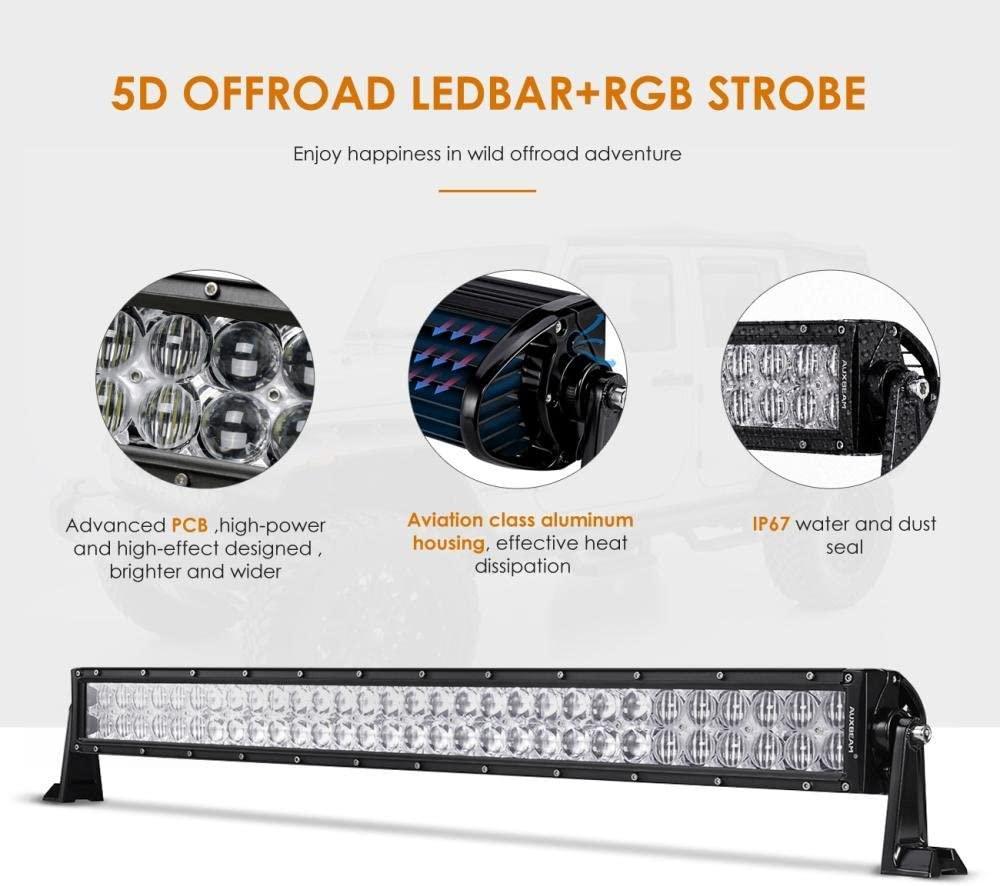

Black extruded aluminum profile, high transmission PC lens, 360 angle rotating metal side brackets;
IP67 rated waterproof & dustproof, durable enough to withstand any harsh environments, about 50,000 hours life time
Wide range of applications:
Off-Road vehicles-ATVs, SUV, truck, Fork lift, trains, boat;
Specialized vehicles-Fire engine, police cars, rescue vehicle, Communication vehicle, military command vehicle etc;
Engineering vehicles-Excavator, dozer, road roller, bulldozer, crane and mining truck etc.

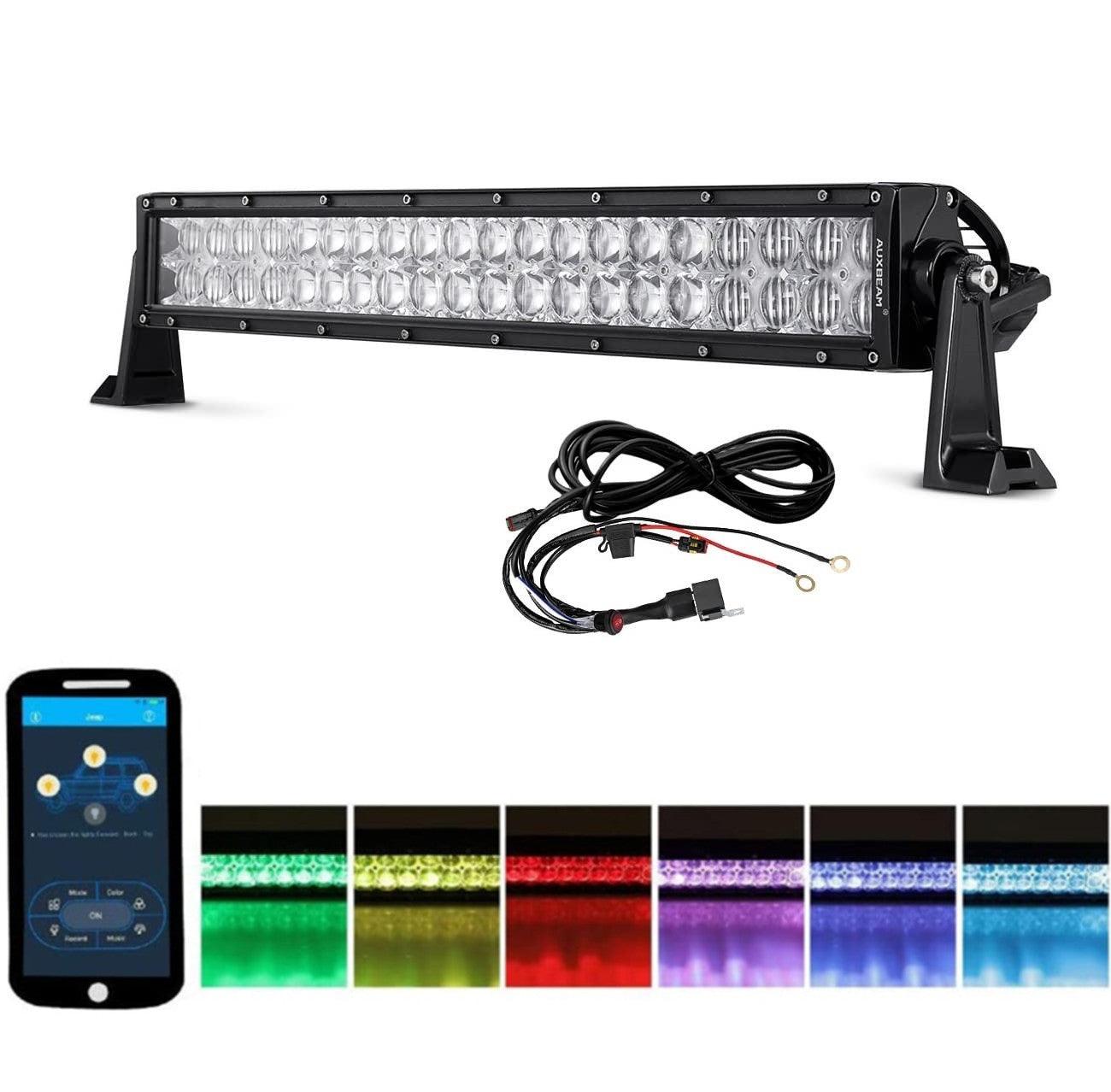

Package Included:
RGB LED light bar *1

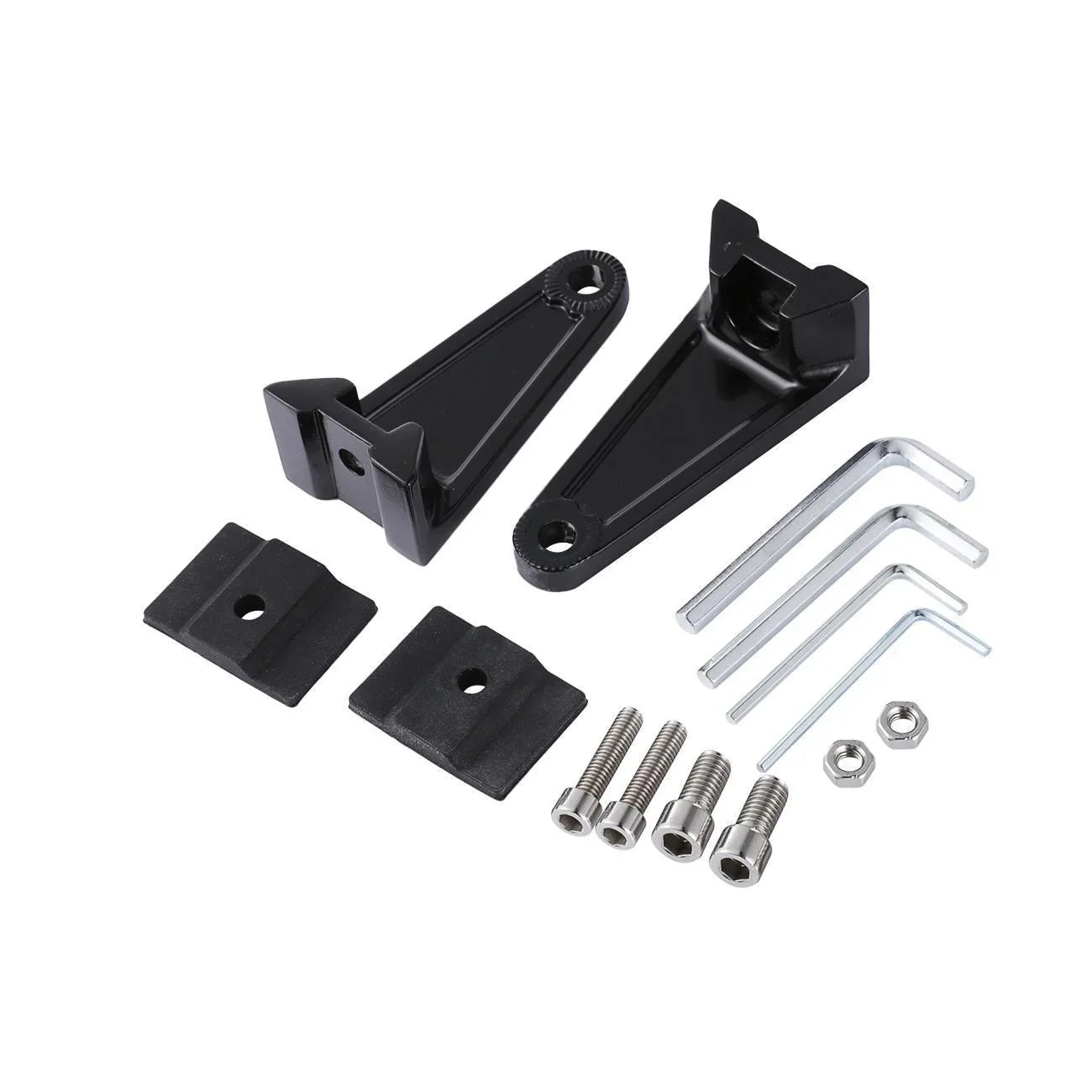

Side brackets(rubber pads included) *2

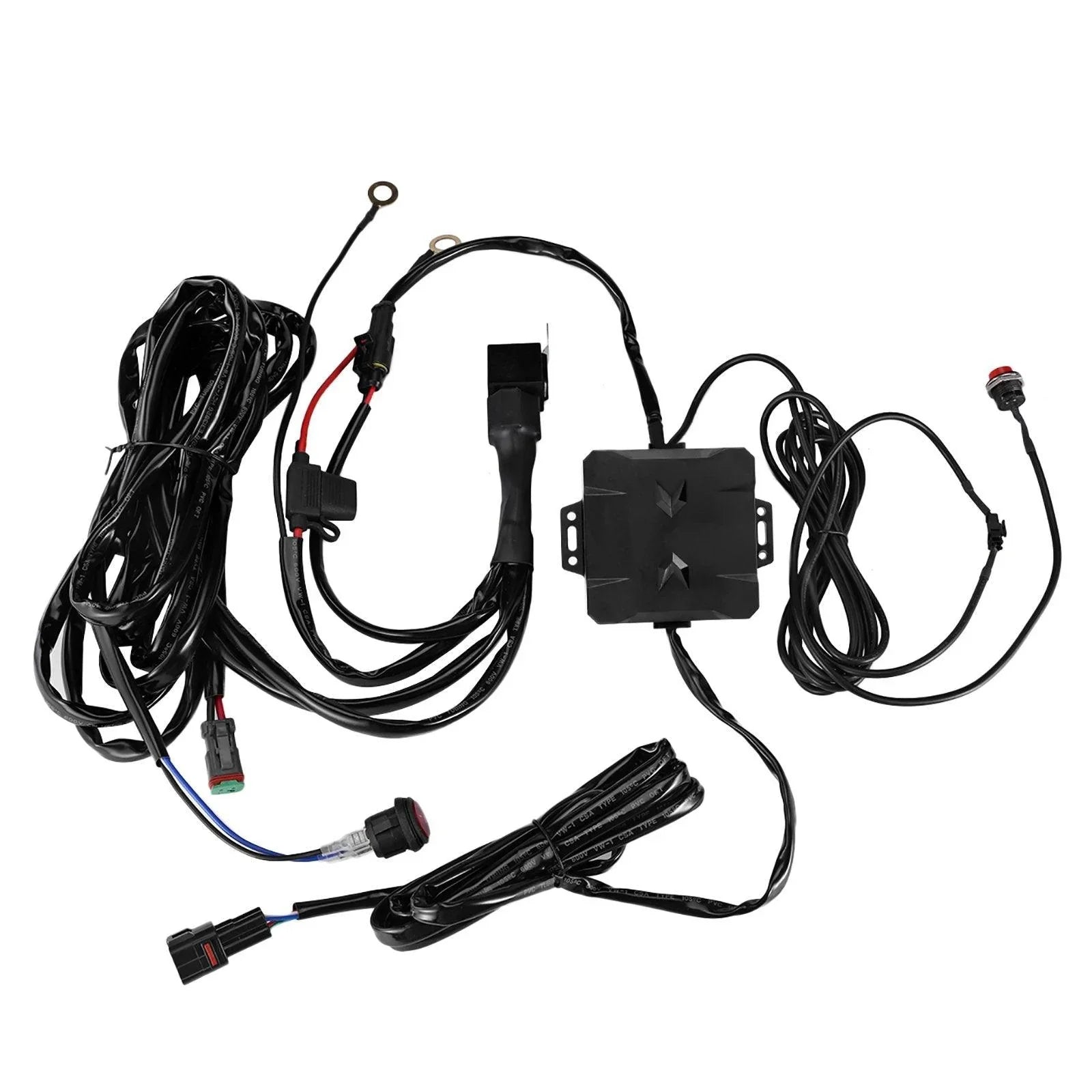

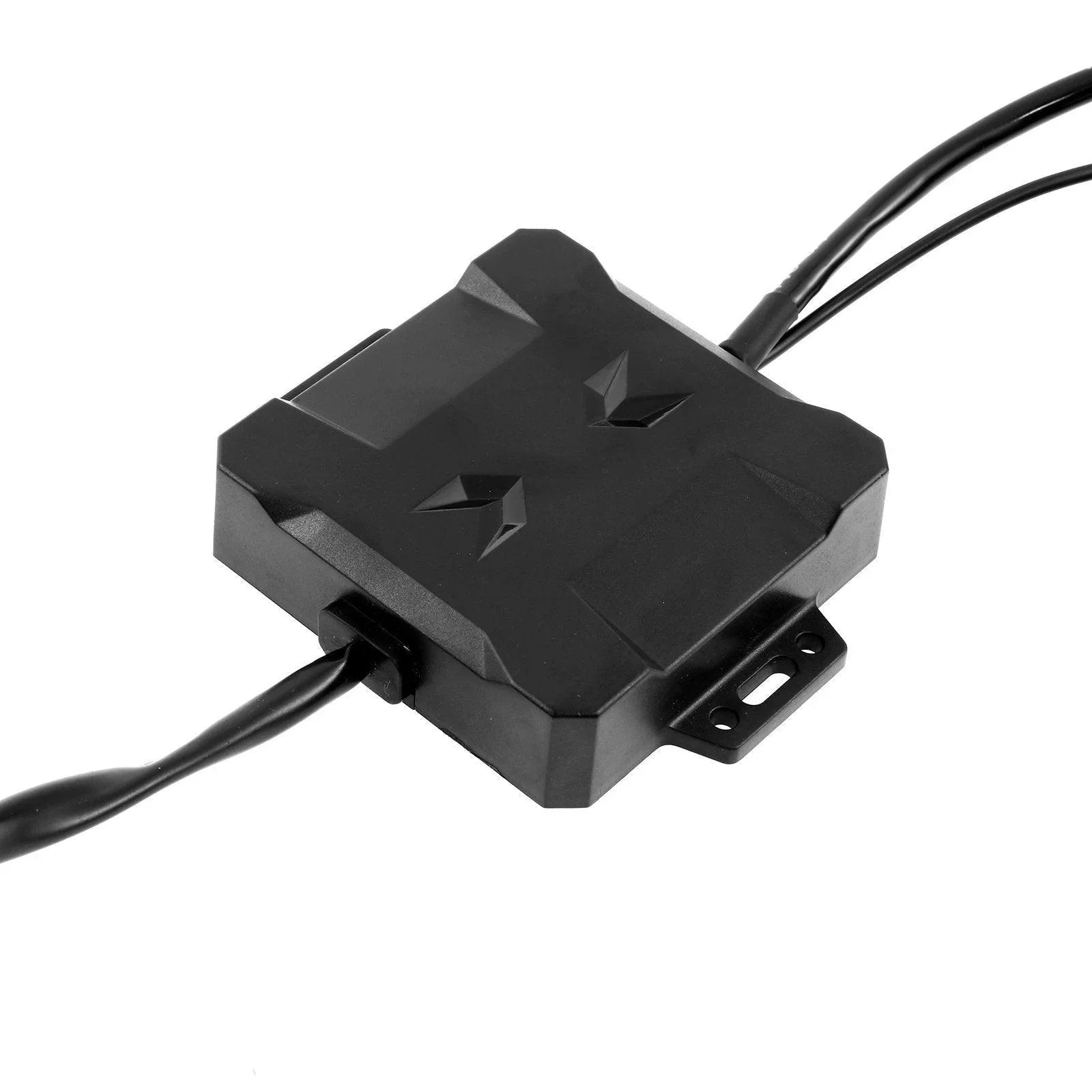

RGB control box harness kit with switch *1
Wiring harness kit with relay and fuse *1
Necessary mounting hardware like bolts,washers,nuts included
Maverick's Note: We recommend these lights for offroad use only. Many Auxbeam lighting harnesses do not have a high-beam trigger. To ensure legal operation, please have an auto electrician add a high beam trigger wire to the harness, and check your local Transport Agency for the requirements for your state.
