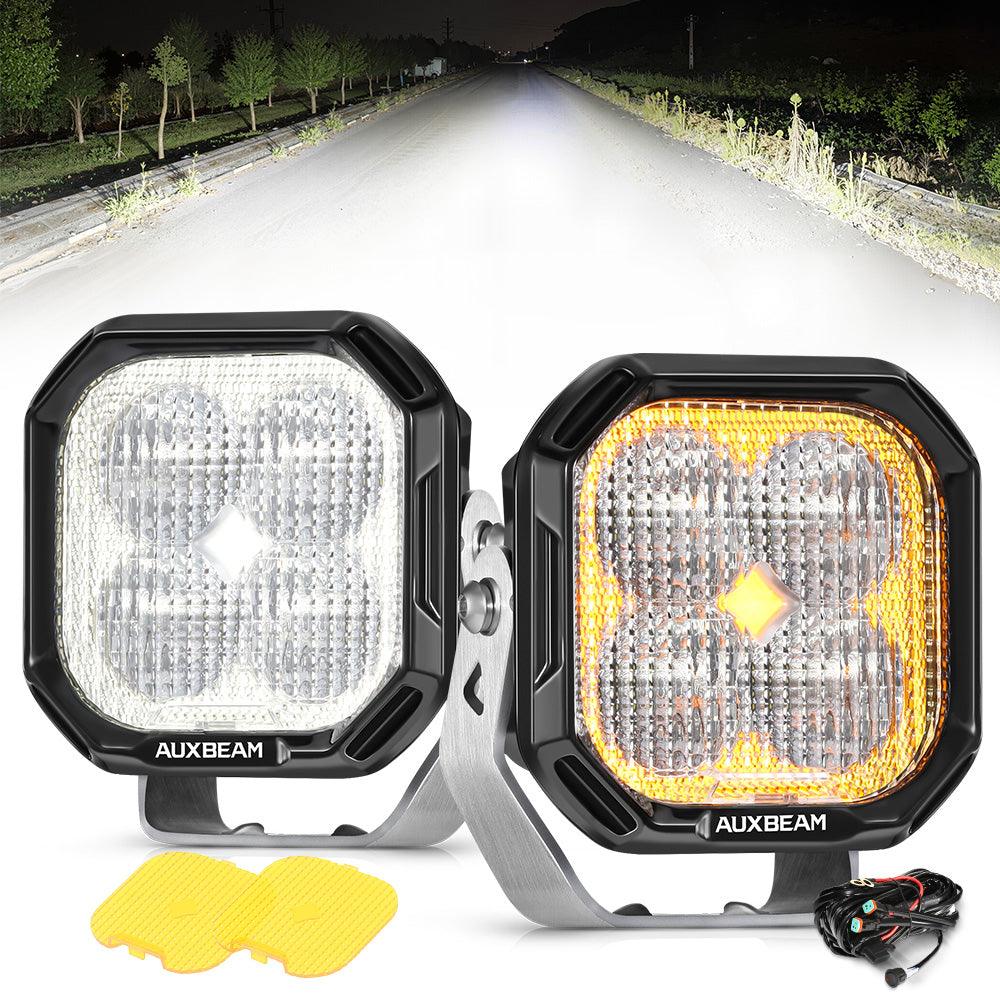

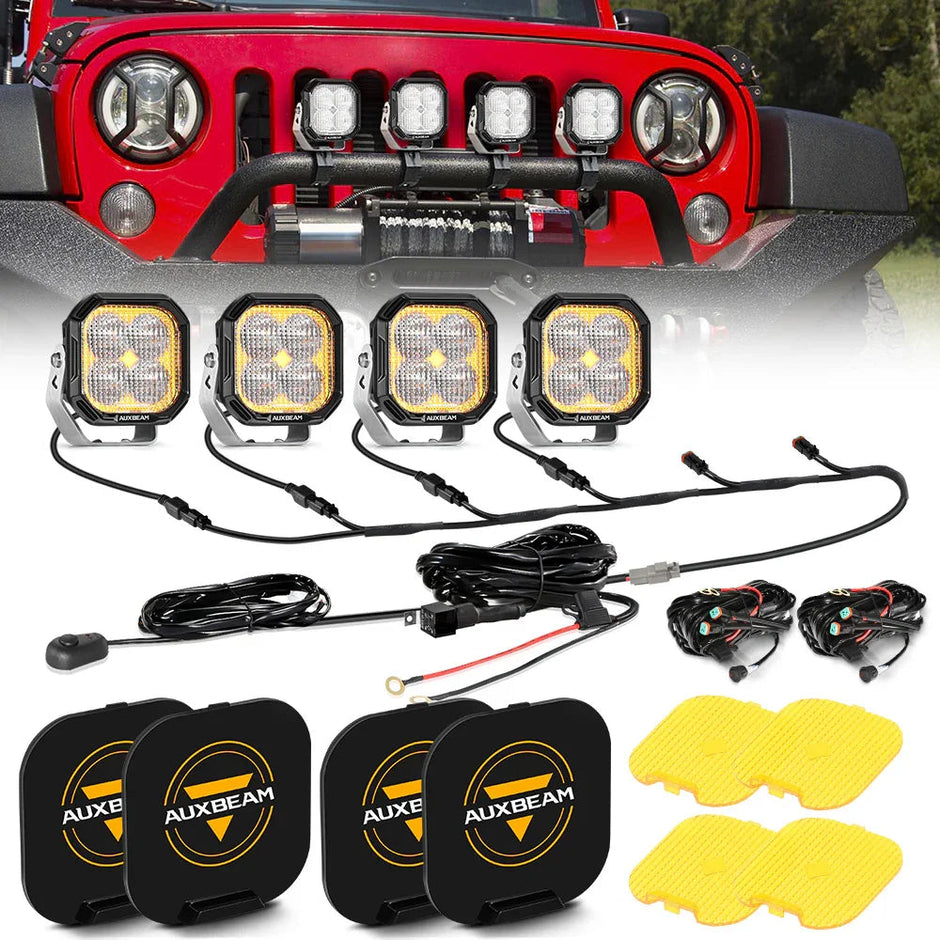

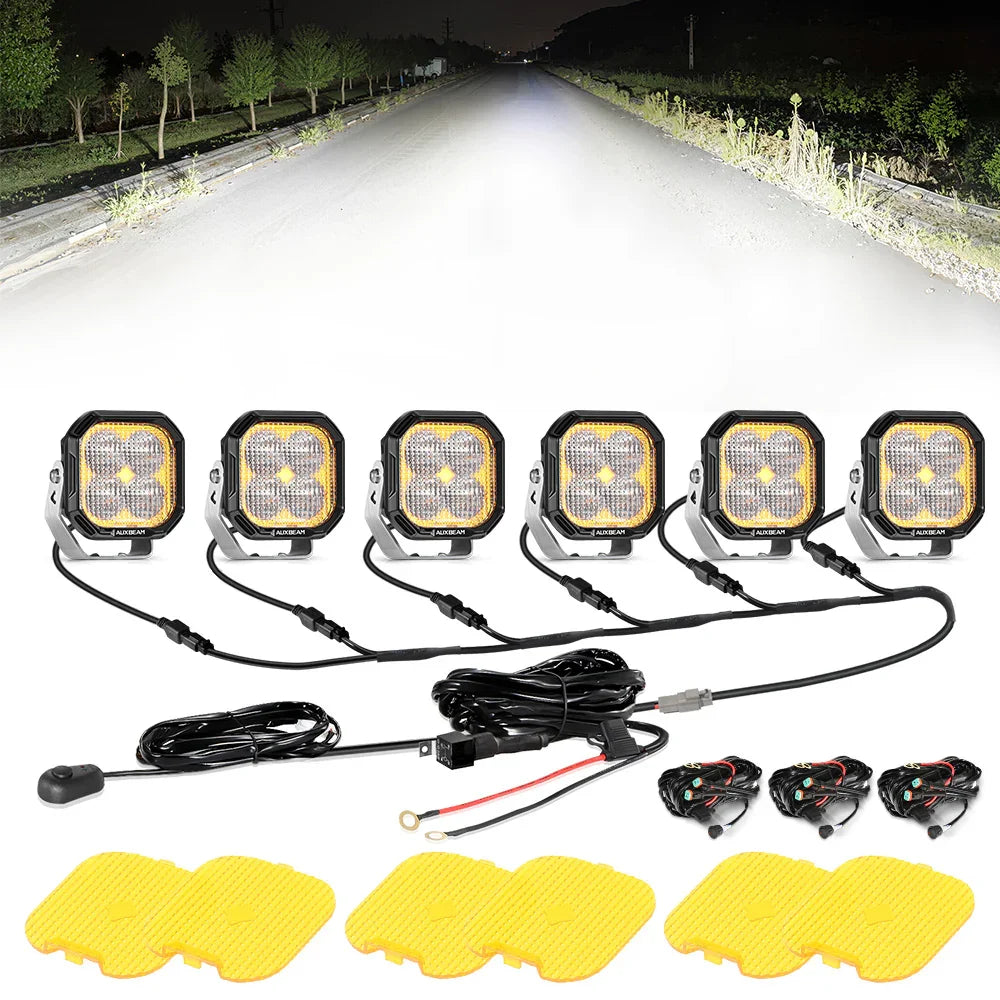

Color Play Series 3 Inch 100W Flood LED Pod Lights Off Road Lights with White DRL & Amber Turn Signal Lights

Features:

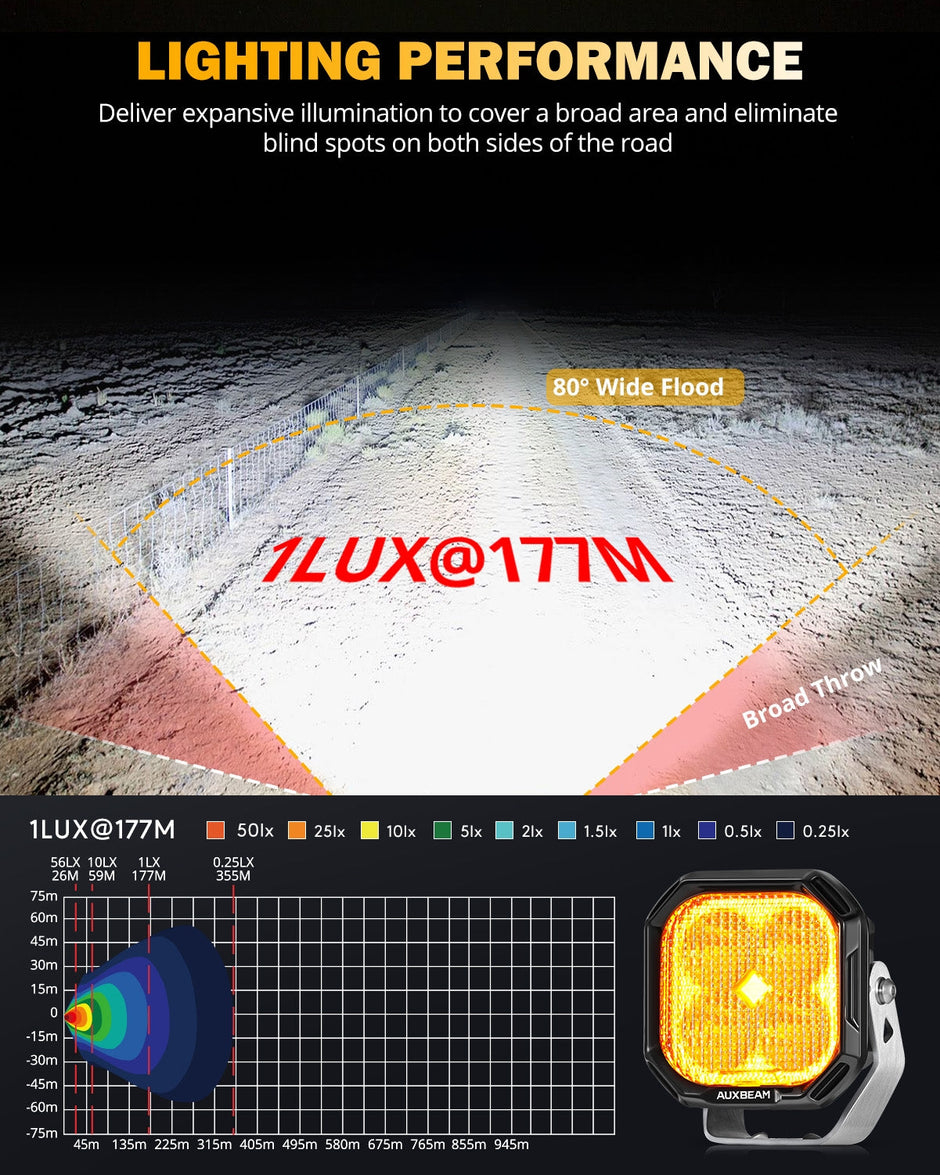

RUSTED DRIVING VISION: Multi-function led pod lights feature two types of LEDs. With a powerful 100W output, they deliver 11600 lumens and a lighting distance of 1lux@177M. The floodlight feature emits a wide, diffused beam that covers a larger area. This is perfect for low-speed driving, illuminating a broader field of vision, and enhancing peripheral visibility.
MULTI-MODEL INNOVATIVE DESIGN: In addition to white lights for daily driving, we've included white&amber daytime running lights (DRL). These DRL enhance the lighting atmosphere and can synchronize with the headlights or marker lights to function as turn signals, providing added safety. We also offer yellow cover for a customizable, high-penetration color temperature, ideal for low-visibility conditions.
HIGH QUALITY DURABILITY: We meticulously select materials, using hardened PC lenses, 304 stainless steel bracket and aluminum alloy housings that offer anti-scratch and anti-corrosion properties, along with efficient heat dissipation. Additionally, our strips undergo rigorous testing before leaving the factory, are triple waterproof, meet international IP68 certification standards, and boast a service life of over 50,000 hours.

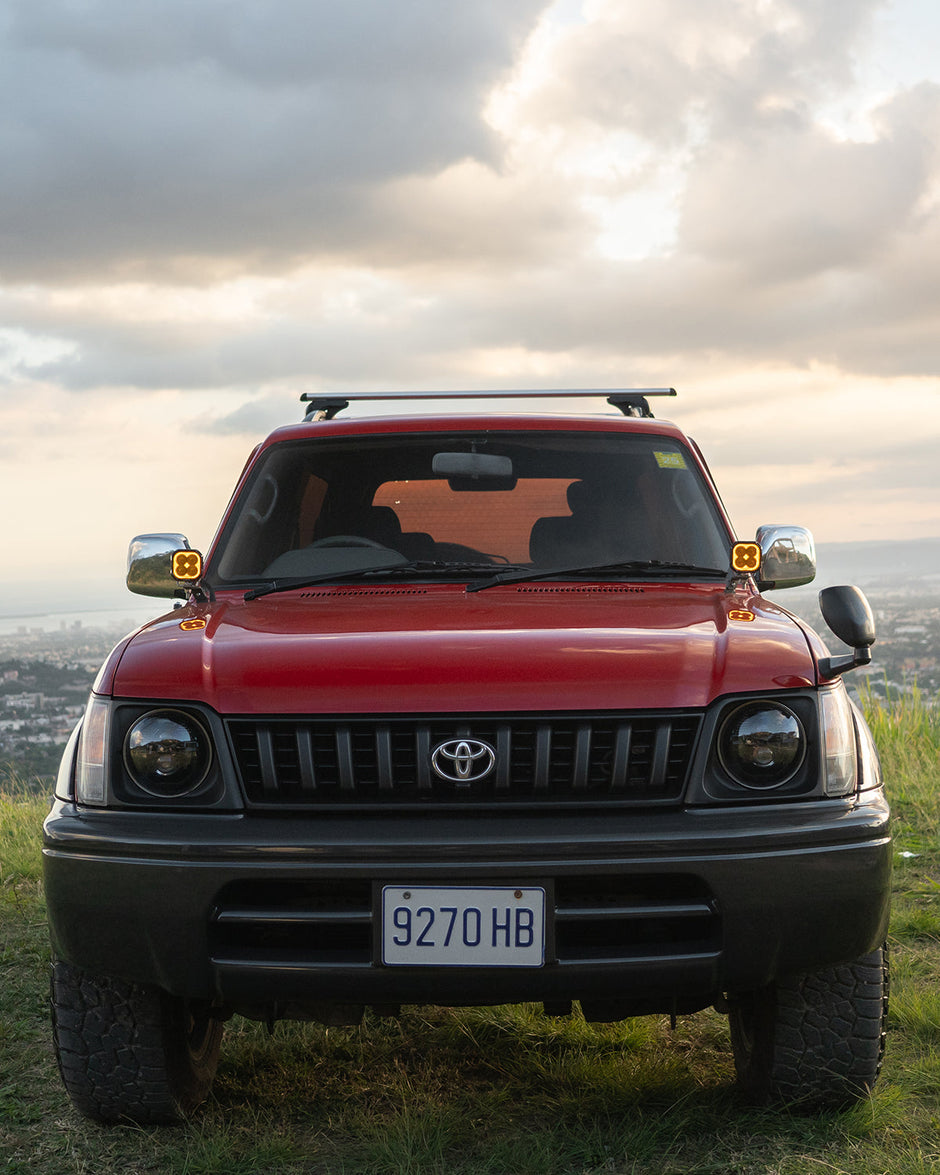

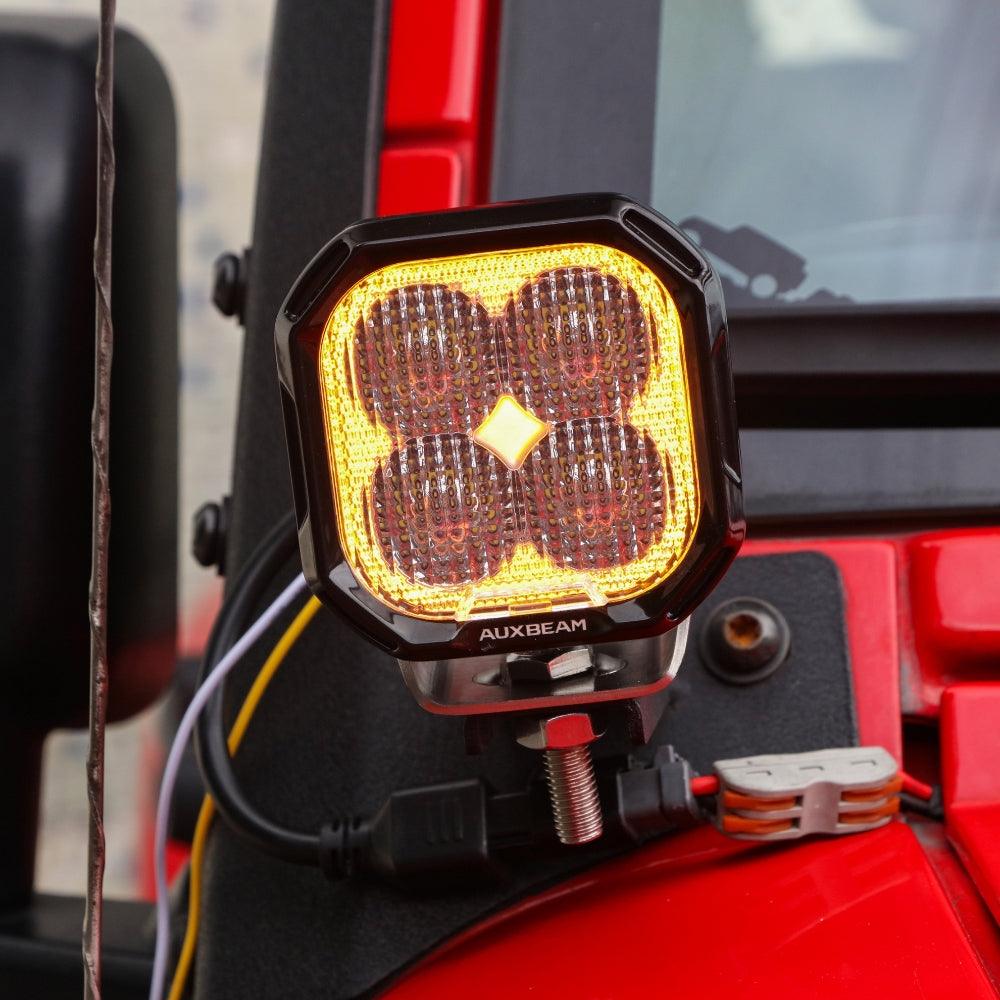

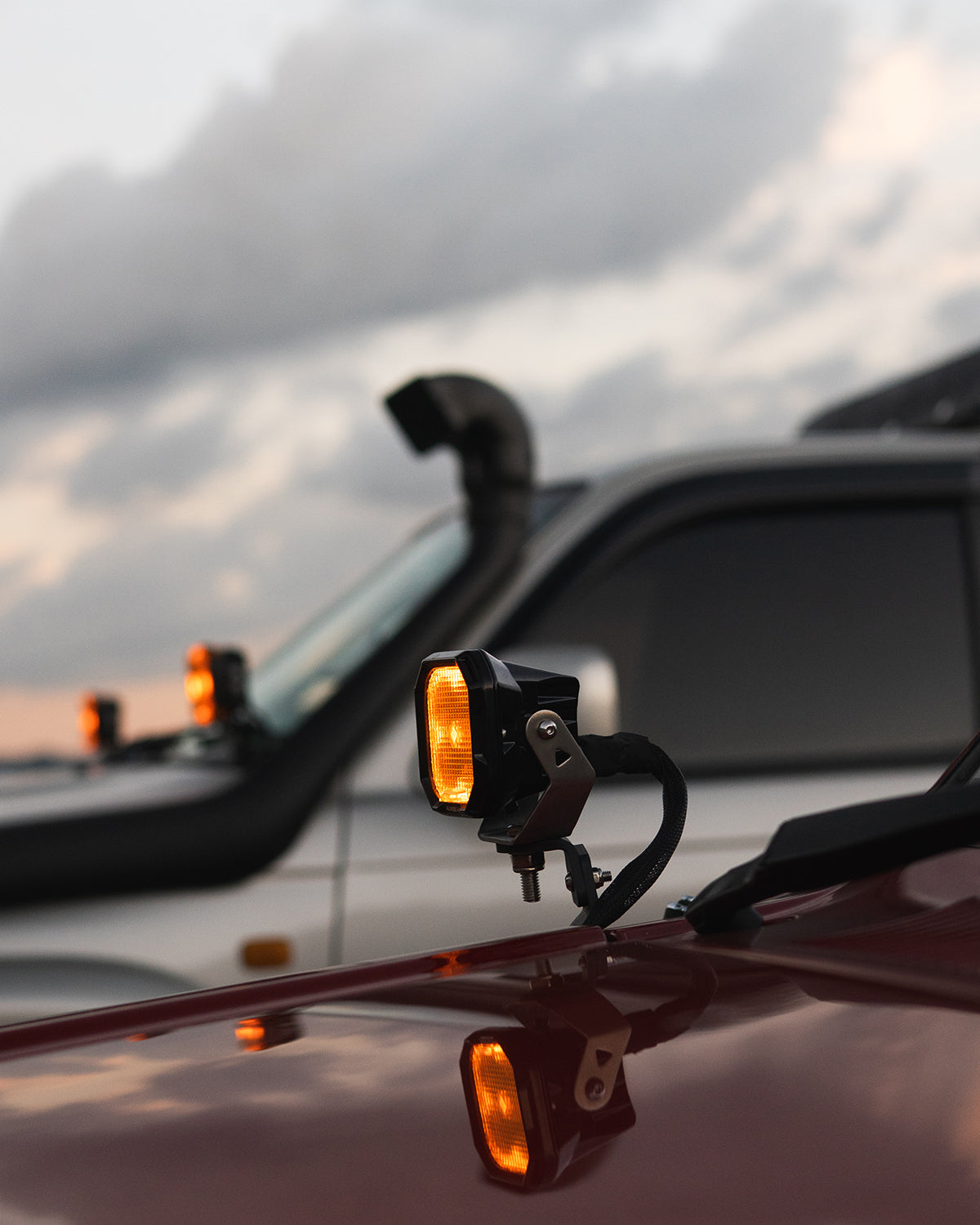

EASY TO INSTALLATION: Enjoy a hassle-free, plug-and-play installation. Our kit includes a 2-lead DT plug wiring harness with a fuse relay and switch, making it quick to connect and easy to mount on A-posts, bumpers, roof racks, or pre-existing bolt holes.Say goodbye to tedious installation processes!

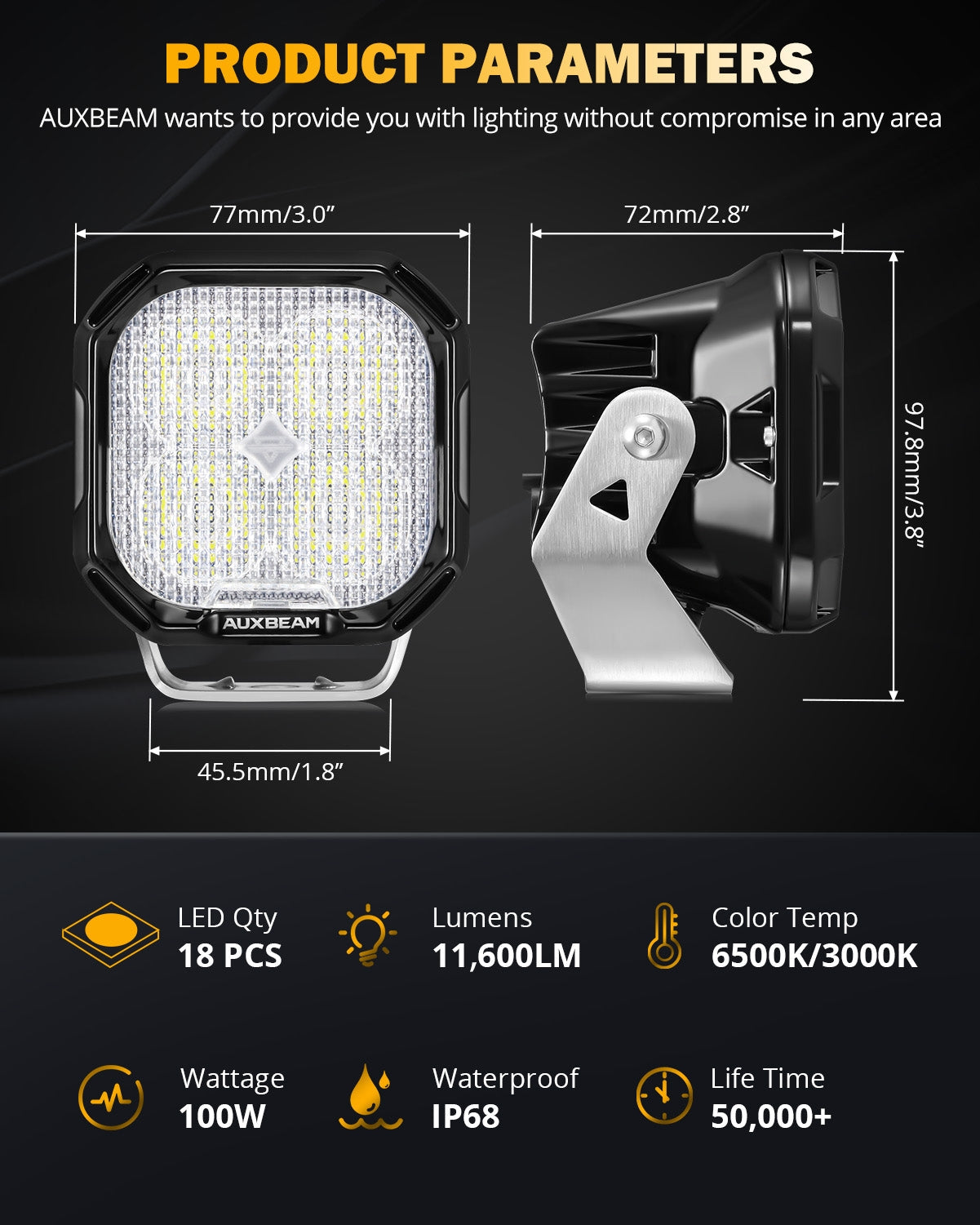

Specification:

Size: 3 Inch
Power/Pair: 100W [(Main Light 40W+White DRL 5W+Amber Turn Light 5W)*2]
Beam Angle: 80°
Light Pattern: Flood Beam（with Flood Light Inner Cover）
Total Lumens: 11600LM (9600LM+DRL 1000LM+Turn 1000LM)

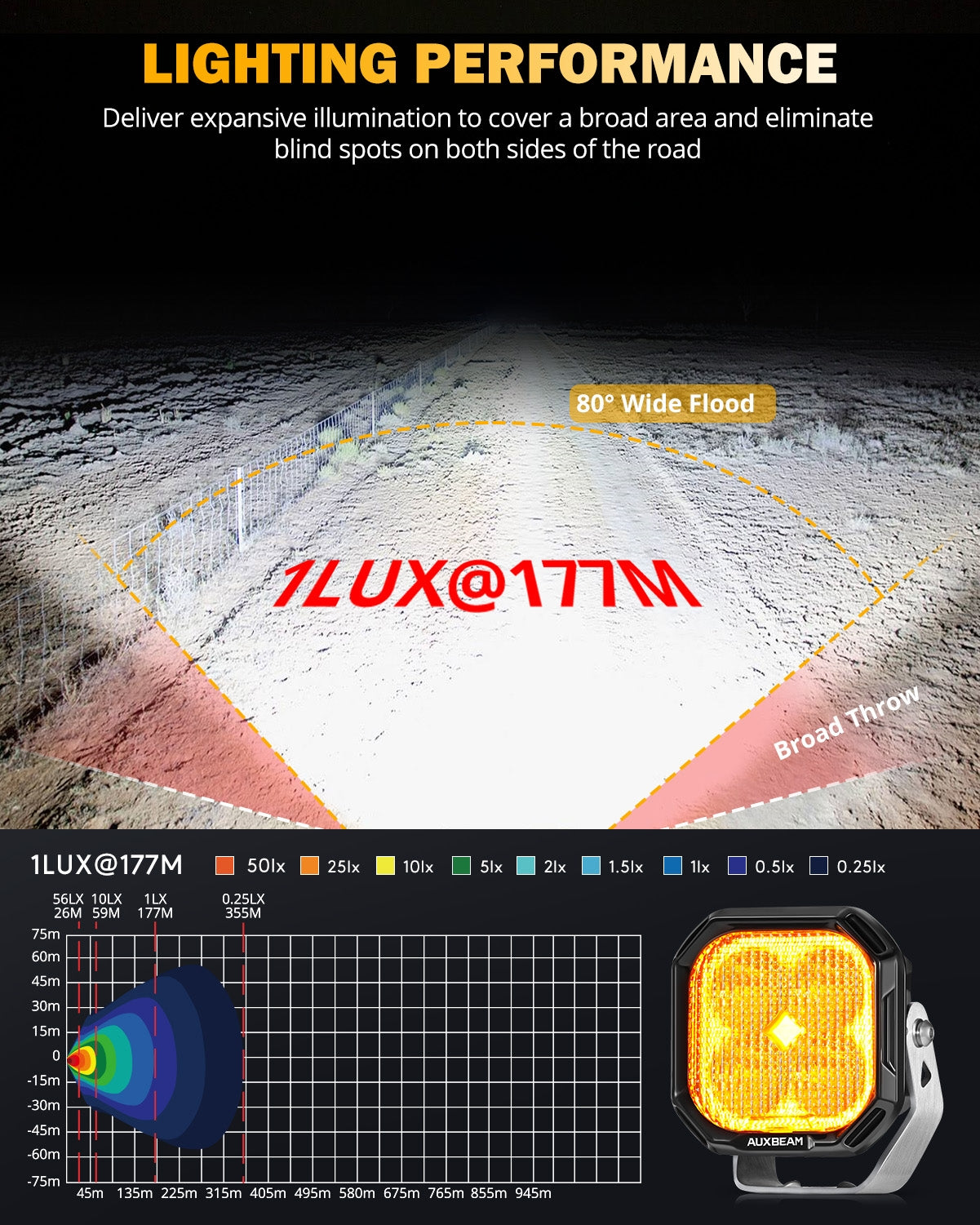

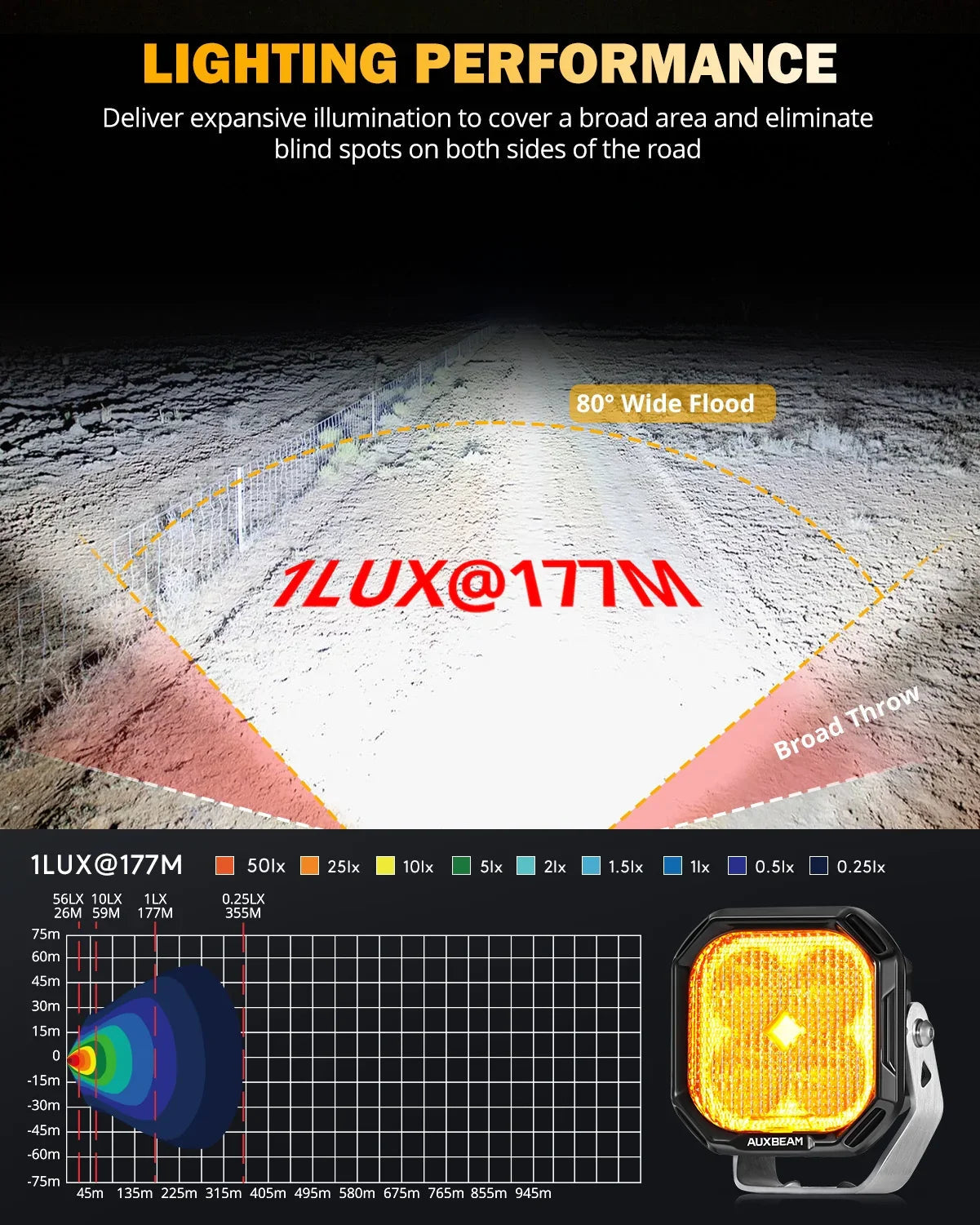

Lighting Distance: 1 Lux@177M
Lamp Bead Model: Luminus SST25+3030 SMD (White&Amber)
Lamp Bead Amount: 4 PCS SST25+14 PCS 3030 Double Color
Housing Material: Aluminum Alloy
Bracket Material: 304 Stainless Steel
Lens Material: PC
Light Inner Color: Clear White&Amber
Color Temperature: 6500K/3000K
Life Time: 50000+ hours
Waterproof Rate: IP68
Working Voltage: 10V-30V (Wiring harness Relay is 12V Only，can be replaced with 24V)

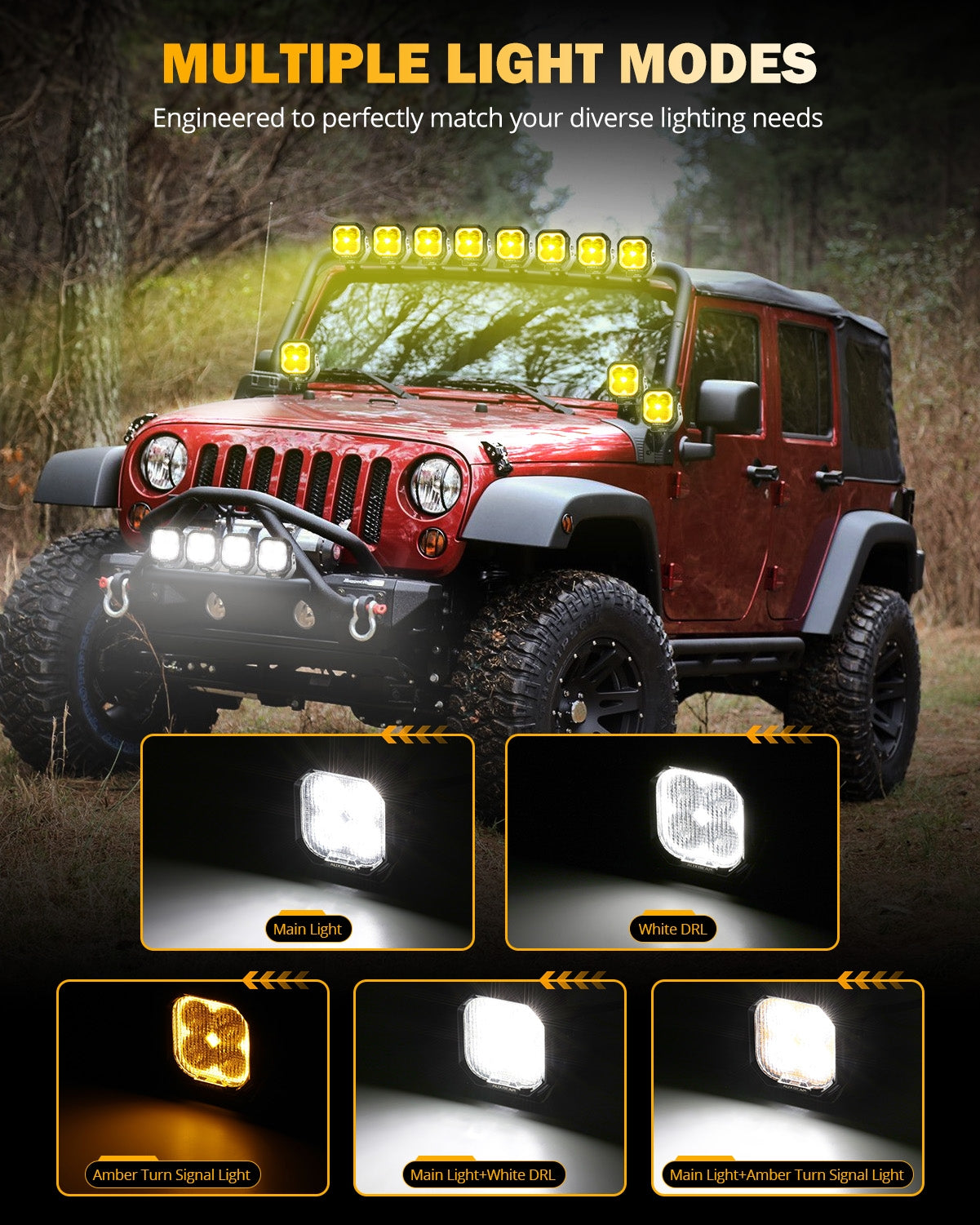

5 Types of Lighting Effects:

1.Main Light
2. White DRL
3. Amber Turn Signal Light
4. Main Light + White DRL
5. Main Light + Amber Turn Signal Light

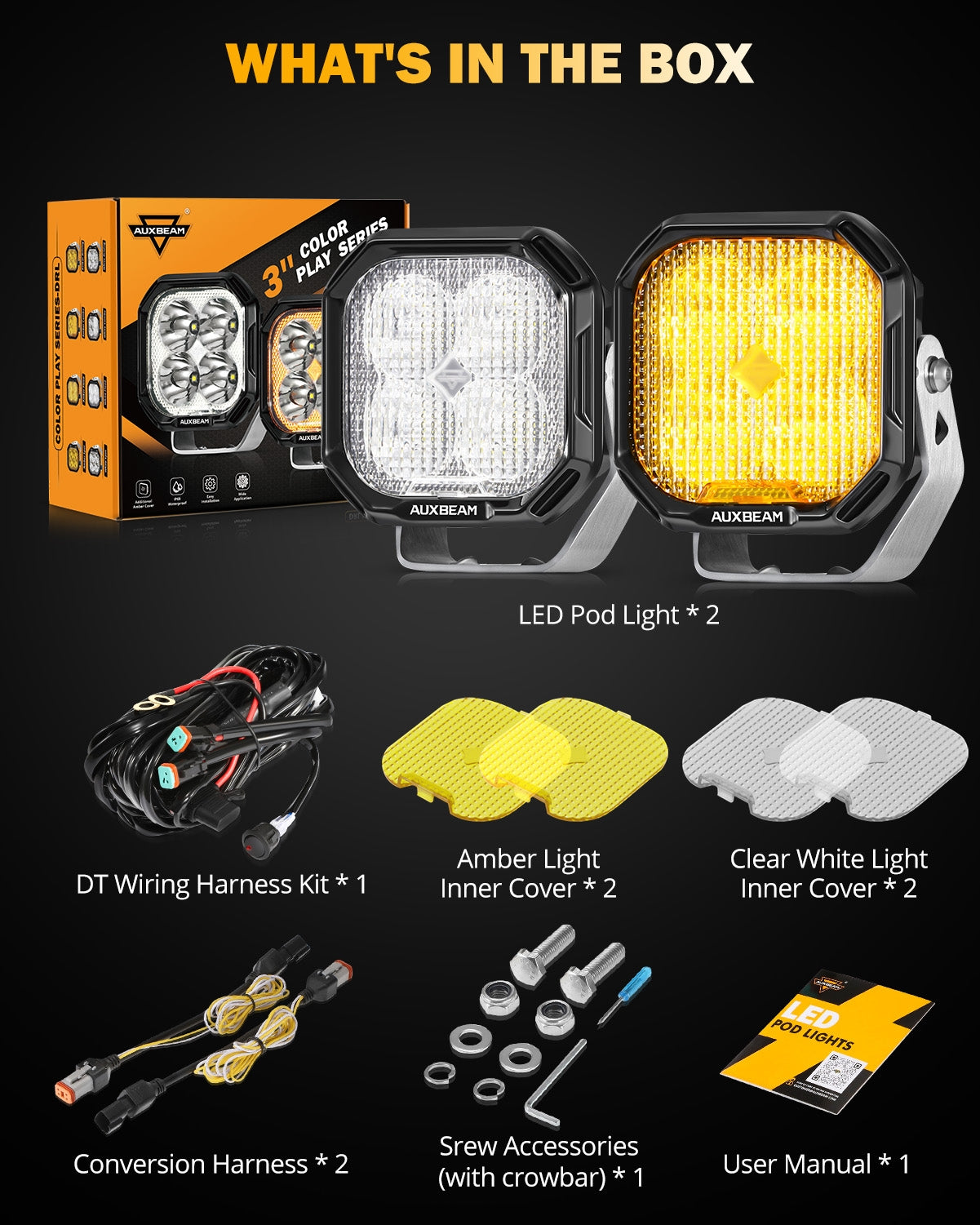

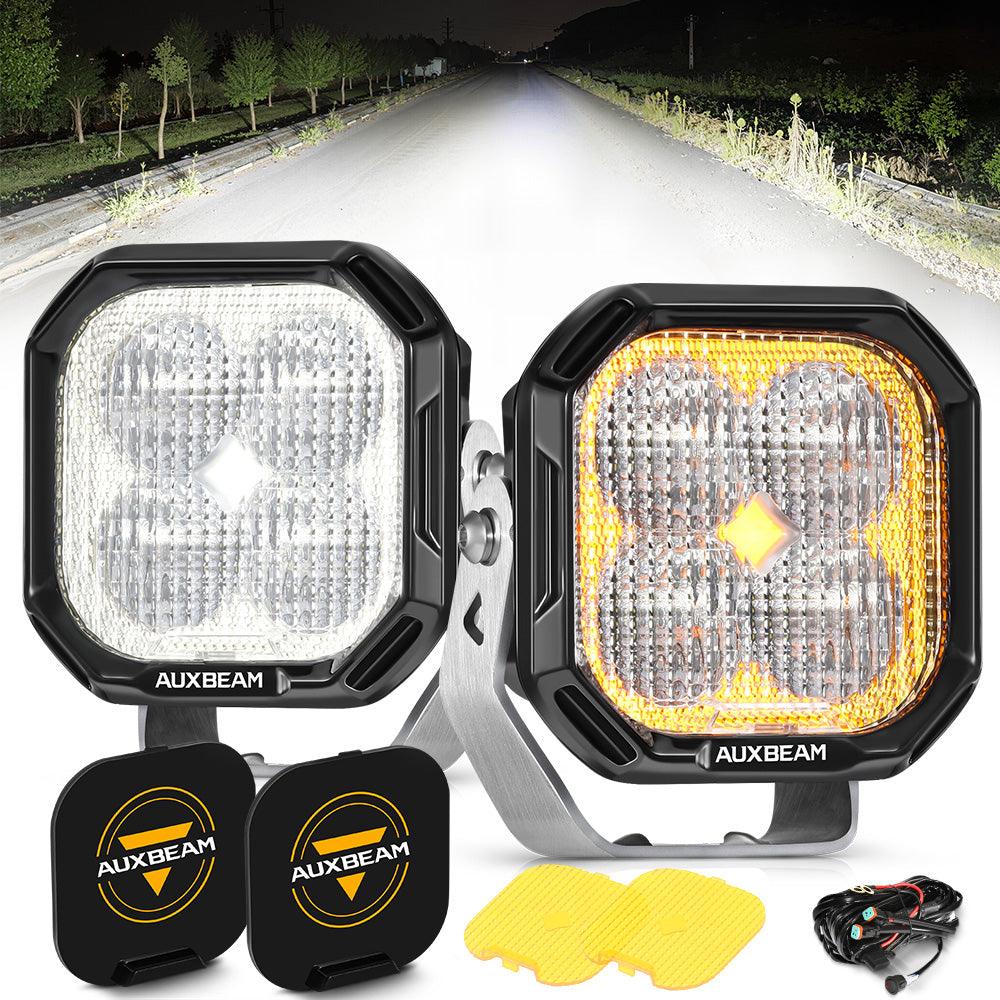

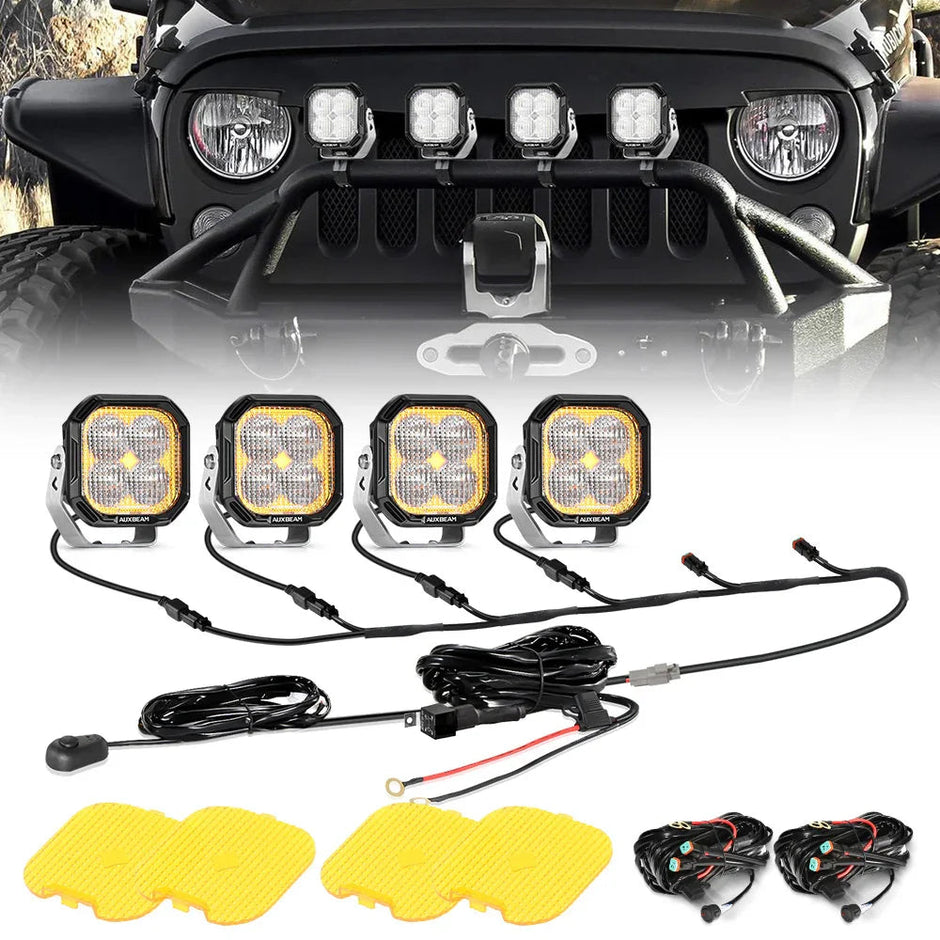

Packing Included:

2 X LED Pod Lights（With 4 Pin DT Male Plug）
2 X 4 Pin DT Female Plug to 2 Pin DT Male Plug Adapter with White&Amber Light Cords
2 X Clear White Spot Light Inner Cover
2 X Amber Spot Light Inner Cover
1 X Wiring Harness 2 Leads（With 2 Pin DT Female Plug）
1 X Srew Accessories（with crowbar）
1 X Operating Manual

Tip：The crowbar is used to remove the inner cover.

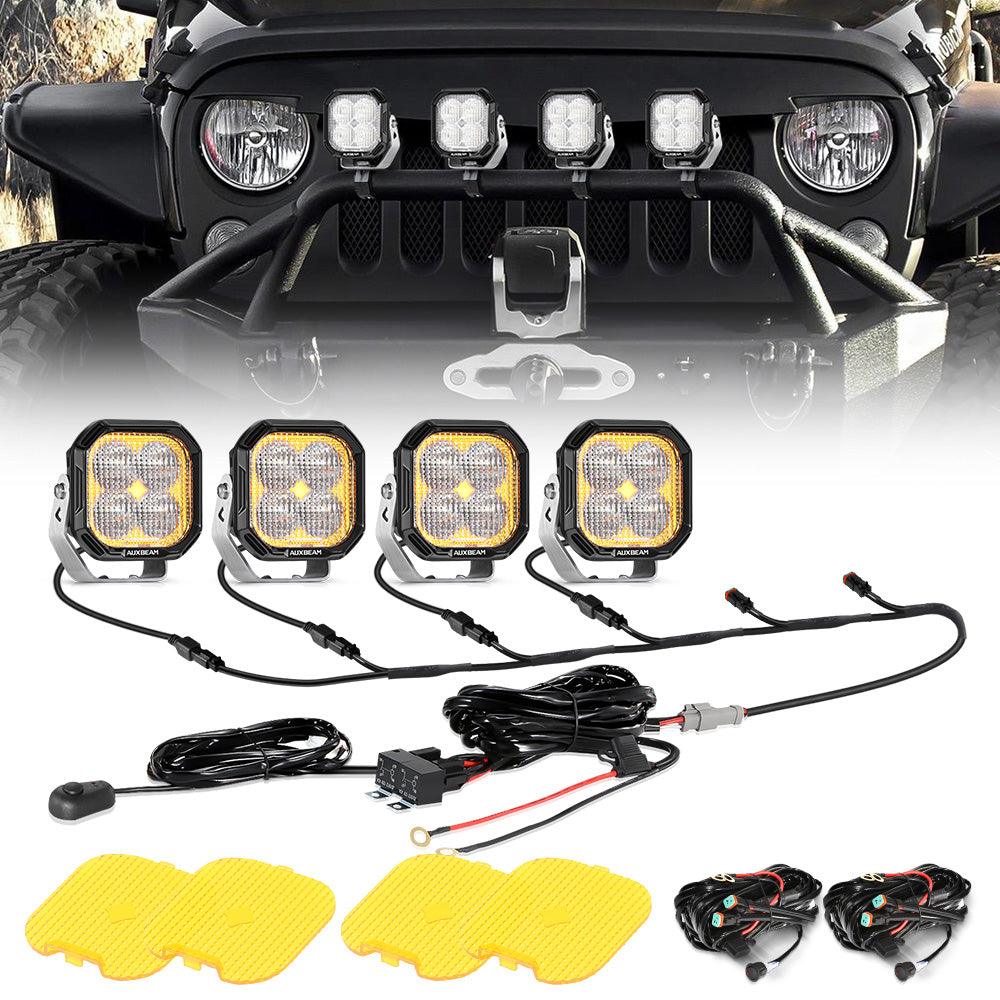

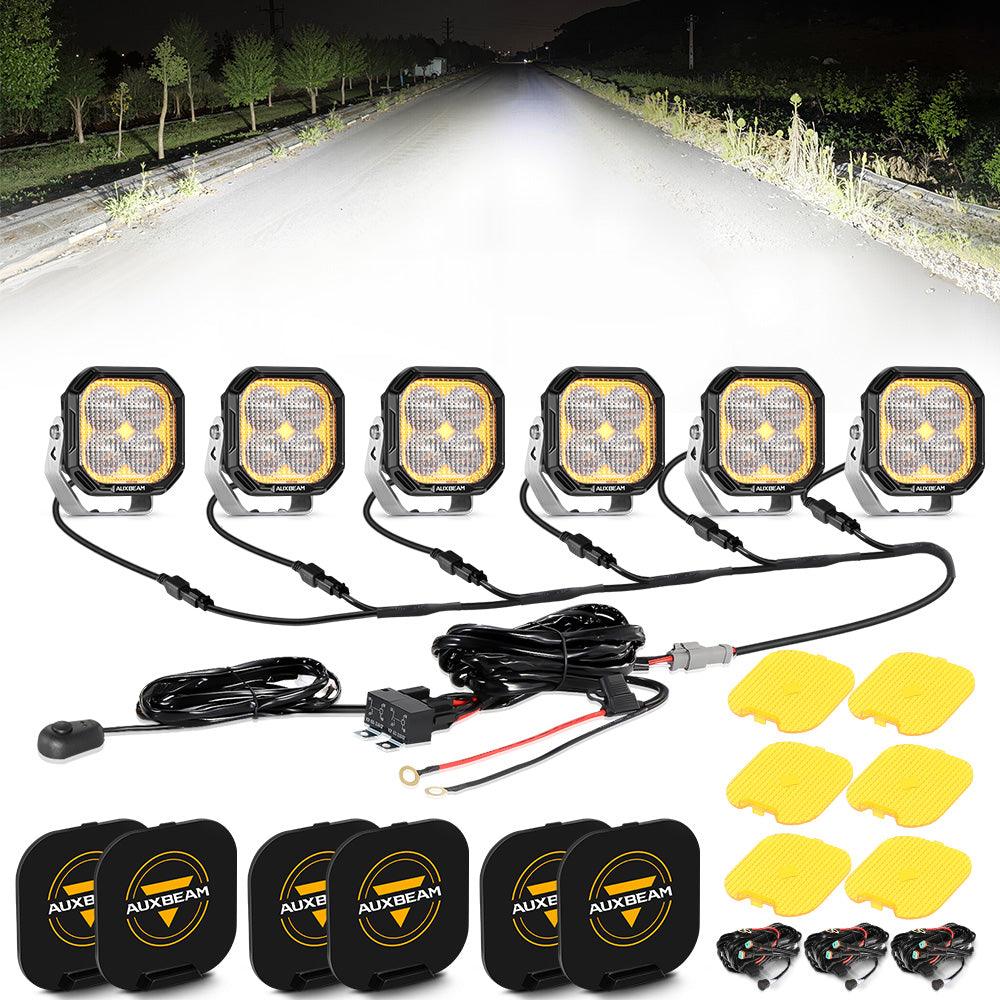

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

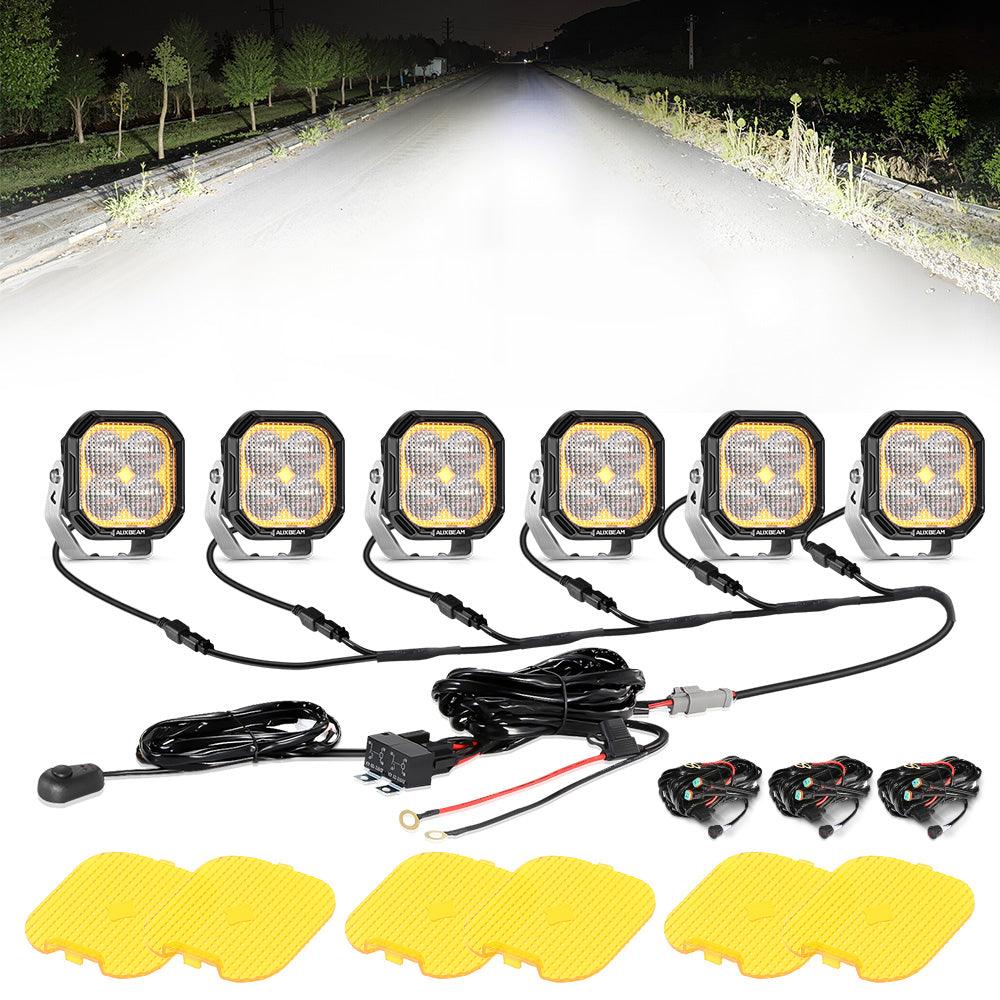

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

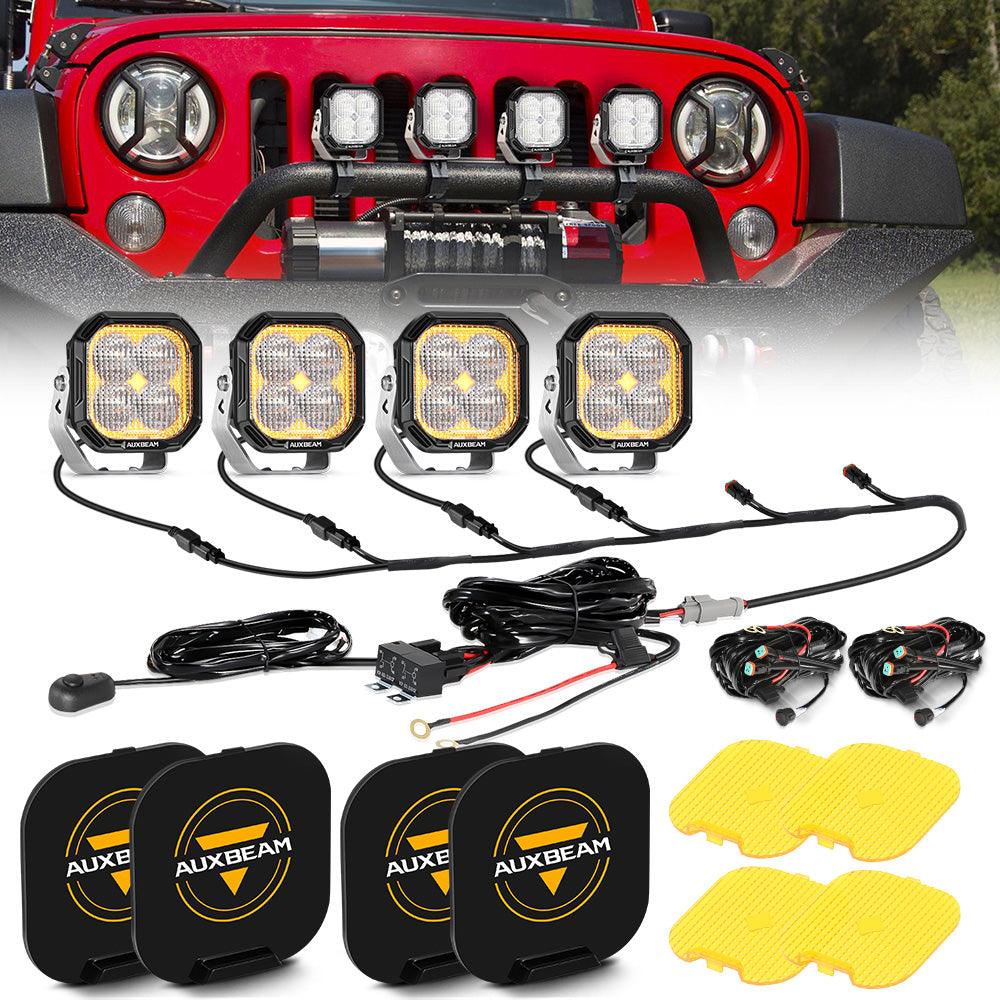

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

3-Pod Lights (A maximum of three pod lights can be installed):
ZD000675/ZD000858

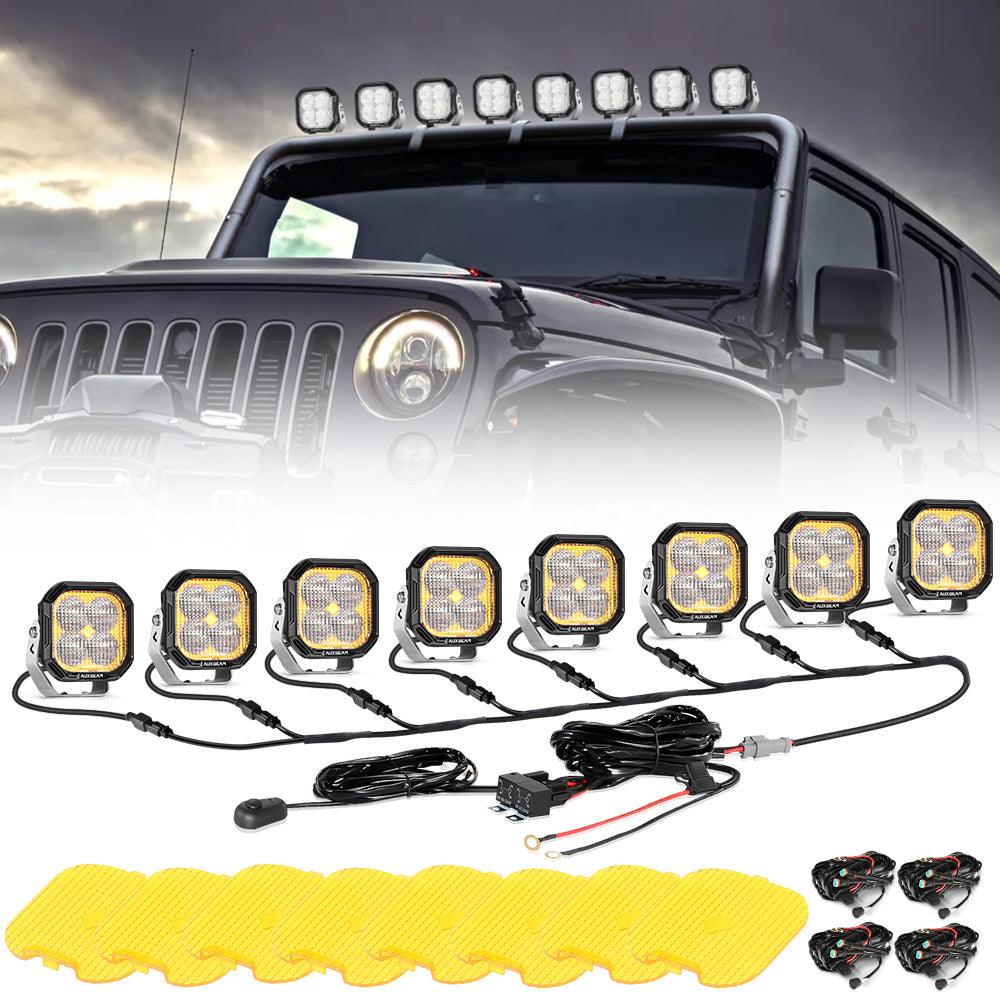

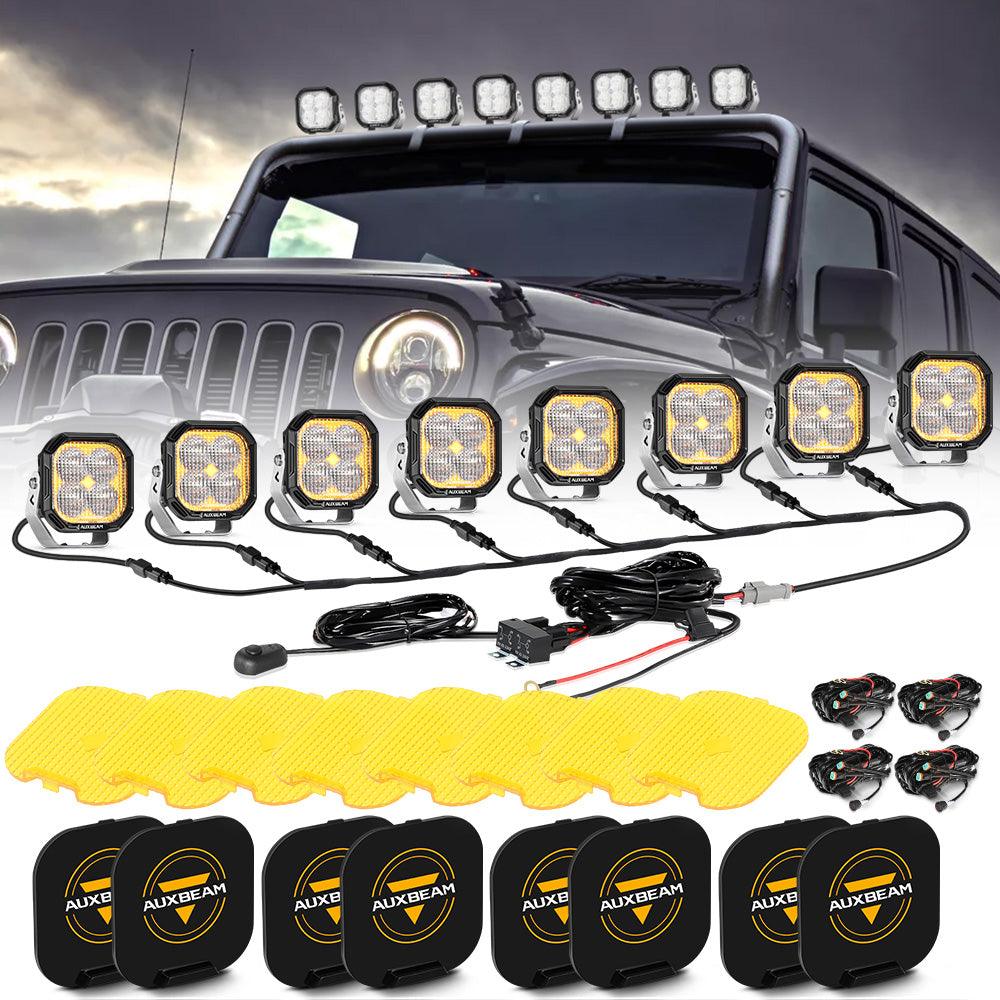

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

6-Pod Lights (A maximum of six pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000675/ZD000858

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 6 in 1 2PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire and a DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
