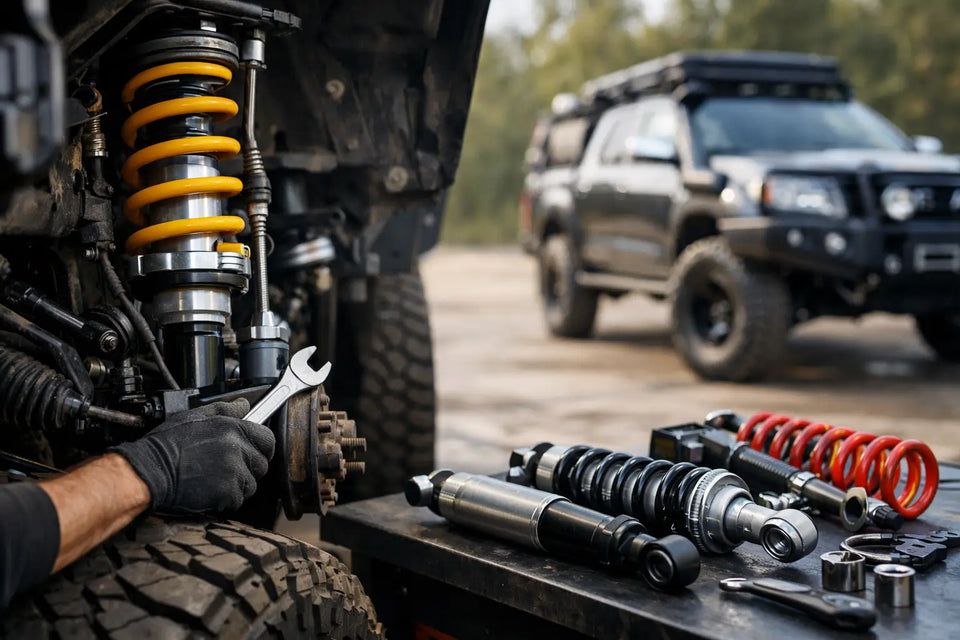

4WD Suspension Tuning Guide for Real Builds

A suspension lift that looks tough in the driveway can be a liability on corrugations, under brakes or with a loaded camper behind it. This 4wd suspension tuning guide is for owners building a vehicle to work properly in Australian conditions - not sit high for photos. The right tune keeps tyres on the ground, controls body movement, carries your real load and protects the rest of the vehicle when the track gets rough.

Suspension tuning is not just choosing a lift height. Springs, shock valving, ride height, wheel alignment, tyre pressures, payload and bump-stop control all work together. Get one part wrong and a premium suspension package can feel average. Get the combination right and the vehicle becomes more stable, more predictable and far less punishing over long distances.

Start With the Vehicle You Actually Drive

Be honest about how the 4WD is used for most of its kilometres. A Ranger carrying drawers, a fridge, long-range fuel, rear bar and tools needs a different rear spring rate from a lightly loaded daily driver that sees occasional fire trails. The same applies to a Prado towing a caravan, a Wrangler built for slow rock work, or a Ram hauling serious touring gear.

Write down permanent weight first. That includes steel bars, winch, second battery, fridge slide, canopy, drawer system, roof rack, spare wheel carrier, recovery gear and any underbody protection. Then add variable load: passengers, water, food, camping equipment, tools, towing ball weight and the gear that always somehow stays in the boot after a trip.

Do not select springs for the empty vehicle if it spends every trip loaded. Equally, do not fit heavy constant-load springs to a wagon that only carries 200 kg a few weekends each year. Over-springing makes an unloaded vehicle ride harshly, reduce grip on chopped-up tracks and transfer unnecessary shock through the chassis and cabin.

Springs Carry Weight, Shocks Control It

This is the point where plenty of builds go sideways. Springs support the vehicle and establish ride height. Shock absorbers control the speed at which the suspension moves. A spring does not make a shock better, and a high-end shock cannot compensate for a completely unsuitable spring rate.

A heavier spring rate can hold added accessory weight and reduce sag, but it will not automatically improve handling. If the shocks cannot control that higher-rate spring, the vehicle can bounce, pitch and become unsettled over corrugations. If damping is too firm, the tyres skip across sharp bumps instead of following the terrain. Too soft, and the vehicle wallows, bottoms out and feels vague when changing direction.

For a serious touring build, matched springs and shocks from a proven suspension manufacturer are the sensible starting point. Component-by-component bargain builds are rarely a bargain once the vehicle rides badly, wears tyres or needs to be pulled apart again.

Compression and rebound matter

Compression damping controls how readily the shock compresses when the wheel hits a bump. More compression control can help manage bottoming and body roll, especially on a loaded vehicle. Too much, though, produces a sharp ride and can make the front end deflect off rocks, potholes and corrugation edges.

Rebound damping controls how quickly the suspension extends again. Insufficient rebound lets the vehicle pogo after a bump. Excessive rebound can stop the wheel returning quickly enough between repeated hits, causing the suspension to pack down and lose usable travel. Corrugated roads expose poor rebound control fast.

Adjustable shocks can be valuable because one vehicle may run empty during the week, loaded for a Cape trip and towing on school holidays. They are not a licence to randomly wind knobs until the ride feels different. Make small adjustments, test on a familiar section of road, and change one end or one setting at a time.

Set Ride Height for Travel, Not Bragging Rights

More lift is not automatically more capability. Excess ride height can reduce down-travel, alter steering geometry, increase CV angles on independent front suspension vehicles and make a heavily loaded 4WD feel less settled. It can also create engineering, insurance and compliance problems depending on the vehicle and state.

Measure ride height on level ground from a repeatable chassis or suspension reference point, not from the guard lip alone. Check it with normal operating weight on board. A ute that sits level empty may squat badly with a loaded canopy and ball weight. A wagon that appears slightly nose-down may be correctly set up once passengers, fridge and touring kit are aboard.

You need usable up-travel before the bump stops engage and enough droop for the tyres to maintain contact over uneven ground. If the suspension is sitting too close to the bump stops at rest, it will crash through rough terrain. If it is topped out too often, ride quality and traction suffer.

Check bump stops and brake lines

Bump stops are not throwaway rubber blocks. They are the final control point when the suspension reaches full compression, protecting shocks, chassis and body from hard impacts. Lifted or heavily modified vehicles may need appropriately sized or progressive bump-stop solutions to prevent tyre-to-body contact and shock damage at full compression.

At full droop, inspect brake lines, ABS wires, diff breather hoses and sway-bar links. Nothing should be tight, stretched or acting as a limiting strap. A suspension system is only as good as the supporting hardware around it.

Align It After Every Meaningful Change

A lift, new control arms, different tyre size or added weight can alter alignment behaviour. Front-end alignment is not an optional finishing touch. It is part of the suspension tune.

Caster is especially important on many IFS utes and wagons. Adequate positive caster helps straight-line stability and steering self-centring, which matters when the vehicle has larger all-terrain tyres, a bar and winch up front. Camber affects tyre contact and wear, while toe has a major influence on steering response and how quickly tyres disappear.

Ask for an alignment suited to the vehicle's ride height and intended use, rather than a generic quick-service setting. If factory adjustment range cannot deliver suitable numbers after a lift, quality upper control arms or other vehicle-specific correction components may be required. Do not ignore wandering, steering kickback, uneven tyre wear or a steering wheel that will not return properly. Those are setup issues, not normal lifted-4WD behaviour.

Tune Around Tyres, Sway Bars and Load

Tyres are part of the suspension system. A high-load-rated light-truck construction tyre with stiff sidewalls can transform how much damping a vehicle needs compared with a passenger construction all-terrain. Pressure makes an even bigger difference. Excessive pressure on corrugations makes the whole vehicle skate and hammer, while pressures that are too low for speed and load build heat and risk damage.

Use pressure appropriate to the tyre, terrain, vehicle mass and speed. There is no single magic number for every wagon and ute. Start with a sensible cold-road baseline, reduce pressure for rough tracks and sand as required, and keep speed in line with the tyre's heat and load demands.

Sway bars deserve the same practical approach. They improve on-road body control and stability, particularly with roof loads or towing. Disconnecting or reducing sway-bar influence can improve axle articulation off-road on some vehicles, but it can also change handling substantially. Any disconnect system must be correctly secured and reconnected before road driving. No shortcuts.

For towing, set the suspension around the loaded tow vehicle and realistic ball weight. A weight-distribution hitch, where appropriate for the vehicle and trailer combination, may help restore front axle load and stability. It does not replace correctly rated rear springs, sound shock control or sensible loading.

A Practical 4WD Suspension Tuning Checklist

Before spending money on more parts, work through these five checks:

• Weigh the vehicle in touring trim, including people, fuel, water and typical cargo.
• Confirm that spring rates suit permanent accessory weight, not wishful future plans.
• Inspect shock condition, bushings, mounts, bump stops and full-travel clearances.
• Get a proper alignment after lift or steering-suspension changes.
• Test changes methodically on the same road and track, then record what improved and what did not.

Pay attention to symptoms. Repeated bottoming points to inadequate up-travel, excessive load, weak springs or insufficient compression control. A bouncing rear end over dips often suggests poor rebound control. Nose dive can be caused by soft front springing, tired shocks or an overloaded rear changing the vehicle's attitude. A harsh ride may come from too much spring rate, excessive tyre pressure, overly firm damping or all three.

Build for the Long Haul

A proper suspension tune is not finished when the lift kit is fitted. Recheck ride height after springs settle, inspect fasteners after the first hard trip and monitor tyre wear across the first few thousand kilometres. If the vehicle gains a bar, canopy, drawers or a tow rig later, reassess it. Added mass changes the job your suspension has to do.

Maverick Overland backs gear built for hard-use 4WDs, but the best parts still need to suit the whole build. Choose proven components, fit them correctly and tune with real weights rather than marketing numbers. Your reward is not just more clearance. It is a 4WD that stays composed when the road ends and the load is on.
