4x4 Switch Panel Installation Guide

A messy accessory loom under the dash is fine until you are corrugations deep, chasing a lighting fault with a torch in your mouth. A proper 4x4 switch panel installation guide matters because touring gear only earns its keep when it works first go - spotties, compressor, camp lights, rear work lights and anything else you rely on after dark or off-grid.

A switch panel is not just a tidy way to add buttons. Done properly, it simplifies power distribution, reduces random wiring hacks, and gives you one controlled system for the accessories that actually matter. Done badly, it creates voltage drop, electrical noise, blown fuses and a fault-finding job nobody wants on the side of a track.

Why a switch panel makes sense in a serious 4WD

Older-style installs often end up with separate switches, relays and fuse holders scattered through the engine bay and cabin. That works, but it gets ugly fast once you add driving lights, a UHF, an air compressor, a fridge feed, scene lighting or a winch isolator trigger. A modern switch panel consolidates that mess into a cleaner, more serviceable setup.

The real win is control. You know what each circuit does, where it is fused and how it is triggered. On a touring rig, that matters more than aesthetics. If you are building a vehicle to handle remote work, weekend tracks or long-haul overlanding, electrical reliability is not optional.

That said, not every switch panel suits every build. A weekend Hilux with a pair of spotties and an air compressor does not need the same system as a Wrangler or Ranger carrying dual batteries, camp lighting, a fridge setup and multiple external accessories. Buy for your use case, not for the biggest screen or the flashiest labels.

4x4 switch panel installation guide - what to plan before you touch a tool

Start with the load list. Write down every accessory you want the panel to control now, plus anything you are likely to add in the next 12 months. Be honest here. If you know a light bar, rear dust light and rock lights are coming, plan for them now rather than buying a panel that is already at capacity.

Then check current draw. Every circuit has a limit, and quality switch panels are only as good as the way you assign loads. A low-draw camp light is easy. A high-draw compressor or large light setup may need a dedicated relay path or a heavier circuit, depending on the system. This is where cheap generic panels fall over. They might look similar on a screen, but the internals, switching logic and protection quality are not in the same league.

Mounting location is the next decision. The control face needs to be easy to reach from the driver’s seat without blocking airbags, factory controls or visibility. The power module needs a secure, dry mounting point in the engine bay or another protected area, with enough room for cable routing and service access. If the module is jammed beside a hot component or exposed to direct spray, you are building trouble into the vehicle.

Also plan your cable runs before drilling anything. Firewall access, grommet size, engine bay heat, steering shafts, sharp edges and bonnet clearance all matter. Good installs look clean because they were thought through before the first fastener went in.

Choosing the right panel for Australian conditions

A proper 4x4 switch panel installation guide has to be realistic about conditions here. Dust, vibration, heat, water crossings and endless corrugations punish electronics. That means your panel should have sealed or well-protected components, proper circuit protection, decent wire quality and mounting hardware that will not shake loose after a few thousand kilometres.

It also pays to choose a system with clear labelling options and programmable outputs if your build needs them. Backlight control, ignition-triggered functions and momentary or latching modes can make a setup far more usable. For example, a compressor may suit a latching switch, while a rear locker override or air horn trigger may need momentary operation. It depends on the accessory and how you use the vehicle.

If your build is vehicle-specific and dash space is tight, low-profile switch faces or OE-style integration can make a big difference. On some utes and wagons, a clean fit is easy. On others, packaging is everything.

Tools and materials that make the job cleaner

You do not need a workshop full of gear, but you do need the right basics. A quality crimping tool, heat shrink, proper terminals, split conduit, cable ties, mounting hardware, a step drill, a multimeter and a fuse plan are non-negotiable. If you are twisting wires together and wrapping them in cheap tape, stop there.

The difference between a tidy electrical install and a future headache usually comes down to the small stuff. Use marine-grade or high-quality automotive cable where appropriate. Protect every run that passes through metal. Leave service loops where they help. Label wires while the system is open. The hour you spend doing that now saves plenty later.

Installing the switch panel step by step

Begin by disconnecting the battery. That should be obvious, but it still gets skipped. Modern vehicles are full of sensitive electronics, and one careless short can get expensive fast.

Mount the power module first. Pick a location that is away from exhaust heat and direct water splash, but still close enough to the battery for an efficient main power run. Keep the module level and secure. If the bracket flexes, the wiring will cop the movement.

Run the main positive feed to the battery exactly as the manufacturer specifies, with the correct fuse protection near the battery. Do not guess the fuse size. Do not oversize it because you think bigger is safer. Bigger is how wiring gets cooked before protection steps in.

Next, establish a solid earth. Poor grounding causes half the weird electrical issues people blame on the accessory itself. Use a clean chassis earth point or a dedicated negative return, depending on the system design. Bare metal contact, proper fastening and corrosion protection matter here.

Once the module is mounted, route the control cable through the firewall. Use an existing grommet if possible. If you need to drill, do it properly and fit a suitable grommet. A cable rubbing through on metal is not bad luck - it is a bad install.

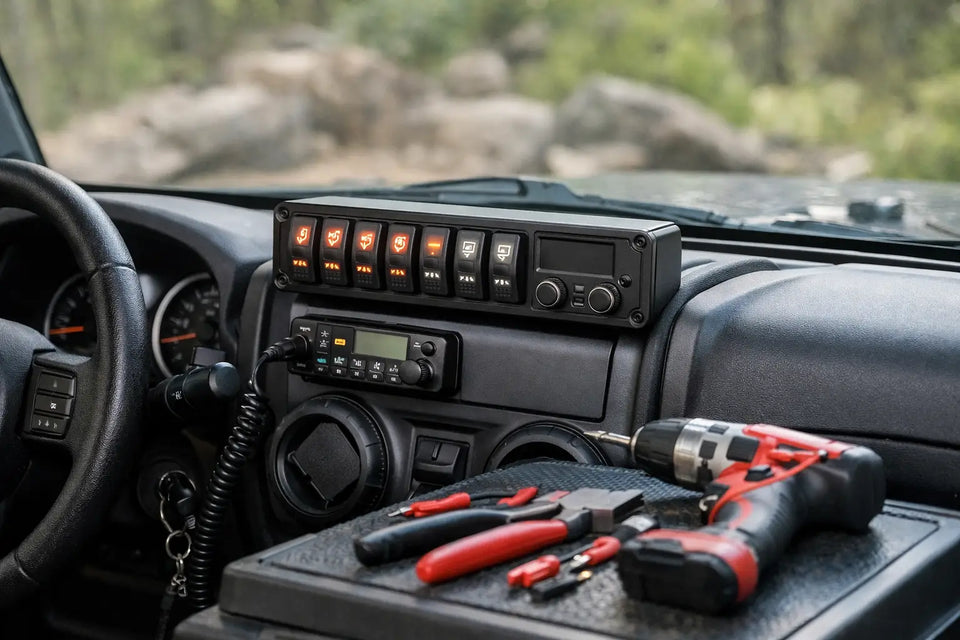

Mount the switch controller in the cabin where it is visible and easy to operate. Test seating position, reach and sight lines before final fixing. If you have to lean forward or take your eyes off the track to use it, the location is wrong.

Then wire each accessory one by one. This is where patience counts. Match each output to the accessory draw and intended function. Keep cable runs neat, supported and protected. Separate signal wiring from high-heat areas and moving parts. If an accessory needs its own relay or dedicated heavy supply, follow that requirement rather than forcing everything through the panel for the sake of simplicity.

Before finalising trims and covers, test every circuit. Check switching, illumination, fuse protection and voltage at the accessory. Turn loads on individually, then together if the system allows it. Look for flicker, heat, strange resets or delayed operation. Any of those can point to a grounding issue, poor crimp or overloaded circuit.

Common mistakes that ruin an otherwise good setup

The first is underestimating load. Plenty of installs look neat but fail because the panel is asked to run accessories beyond its rated output. The second is poor cable management. Wires stretched tight, unsupported looms and unprotected firewall passes are all asking for failures.

Another common mistake is choosing switch location based only on appearance. The cleanest mount is not always the best one if it blocks another function or is awkward to use while driving. The last big one is mixing low-grade electrical hardware into an otherwise premium build. A serious touring setup deserves better than bargain-bin connectors.

When to DIY and when to hand it to an auto sparky

If you are confident with 12V wiring, can read a wiring diagram and know how to test for voltage drop, a switch panel install is a realistic DIY job. If that sentence already sounds like too much, pay a professional. There is no shame in that. On newer vehicles loaded with factory electronics, safety systems and tight packaging, a clean professional install is often the smarter move.

The trade-off is cost versus control. DIY can save money and gives you total understanding of the system. A good auto sparky gives you speed, cleaner integration and fewer risks. For many builds, especially where multiple premium accessories are involved, that is money well spent.

A switch panel should make your 4WD more dependable, not more complicated. Build it once, wire it properly and leave the trackside fault-finding to the blokes who bought the cheap gear.
