How to Improve 4WD Articulation Properly

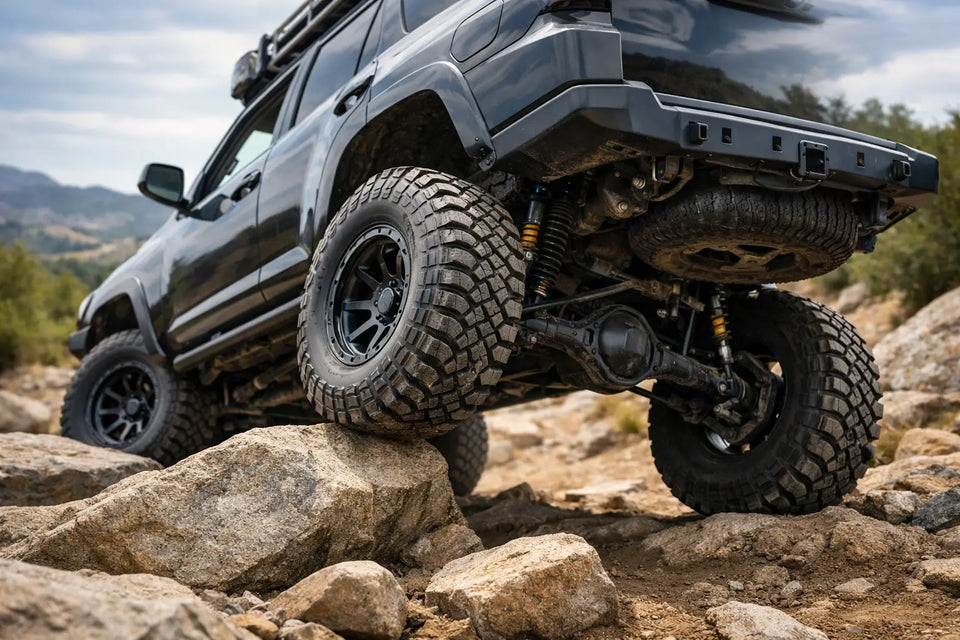

One wheel hanging in the air while the opposite tyre is still planted is where a 4WD’s setup gets exposed. If you want to know how to improve 4wd articulation, don’t start by chasing the biggest lift or bolting on whatever promises more flex. Start by understanding what is limiting wheel travel, what the vehicle can safely use, and whether the rest of the build is ready for it.

More articulation can keep tyres on the ground, preserve traction and reduce the need to attack an obstacle with momentum. But it is only useful when the suspension, steering, brake lines, driveshafts, tyres and body clearance all work together. A flexy rig that binds a CV, rubs a tyre through the guard or handles poorly on the highway is not a capable touring rig. It is an expensive problem waiting for the next hard track.

What 4WD articulation actually means

Articulation is the ability of an axle or independent suspension to move through its available travel as the vehicle crosses uneven terrain. When one wheel compresses into the guard, the wheel on the other side can extend downward. That extension, often called droop, matters just as much as compression.

The goal is not maximum movement for a photo on a ramp. The goal is to keep the tyre in contact with the ground while maintaining predictable steering, stable load control and component reliability. On a rutted climb, washed-out fire trail or slow rocky ledge, that contact patch is what gives your lockers, tyre pressures and drivetrain something to work with.

Solid-axle vehicles such as many Wranglers can often achieve significant articulation with the right suspension geometry and sway-bar setup. Independent front suspension vehicles, including many modern utes and wagons, have more mechanical limits. They can still be made far more capable, but the approach must respect CV angles, upper control arm clearance and available shock travel.

Find the real limit before buying parts

Most articulation gains are lost because owners replace one component without checking the system around it. Before changing suspension, inspect the current setup at full bump and full droop. A workshop with a hoist, ramp or controlled cross-axle test can identify what is actually stopping movement.

Look for shock absorbers topping out before the suspension reaches its natural limit, coils unseating at droop, tyres contacting guards or chassis rails, brake lines pulled tight, and sway bars resisting movement. On IFS vehicles, check CV boot stretch, ball joint angles and contact between the upper control arm, coilover and chassis. On coil-sprung solid axles, inspect driveshaft slip, universal joint angles and spring retention.

This inspection also separates a traction issue from an articulation issue. If the suspension is moving but the tyre has poor grip, the answer may be tyre pressure, tyre construction or differential locking rather than more travel. No gimmicks, just diagnosis.

Choose suspension for usable travel, not lift height

A quality suspension system is the foundation of better articulation, but a lift alone does not create it. In fact, a poorly matched lift can reduce down-travel by moving the vehicle higher in the shock’s operating range. You might gain ground clearance yet leave the wheel hanging sooner than before.

The right setup uses springs and shock absorbers matched to the vehicle’s actual weight. That means accounting for a steel bar, winch, drawer system, long-range tank, canopy, rooftop tent, rear bar or regular towing load. Springs that are too firm can restrict compliance over corrugations and rough terrain. Springs that are too soft can blow through travel, bottom out and make the vehicle vague when loaded.

Shock length and valving are critical. Longer-travel shocks can increase droop where geometry permits, while appropriate bump-stop spacing prevents destructive bottom-outs at compression. Good dampers also control the extra movement. Without that control, more travel can mean more body roll, axle hop and instability on fast dirt.

For a touring ute that carries weight every week, a correctly valved, load-matched suspension package will usually outperform an ultra-soft flex setup designed around occasional rock crawling. Build for the tracks and load you actually run.

Do not ignore bump stops

Bump stops are often treated as an afterthought, yet they determine how safely the suspension uses its final inches of compression. Properly sized bump stops stop tyres smashing guards, shocks bottoming internally and suspension components colliding under load.

If you fit larger tyres, increased wheel offset or longer shocks, revisit bump-stop requirements. The aim is to use as much up-travel as possible without contact, not to add a random spacer and hope for the best. This is particularly important on IFS platforms where clearance at full compression can be tight.

Improve sway-bar control without compromising road safety

Sway bars resist body roll by linking suspension movement from side to side. That is useful on-road, especially in a tall, loaded 4WD, but it can restrict articulation off-road because one wheel’s movement influences the other.

Some vehicles use disconnecting sway bars or aftermarket quick-disconnect links to free up front axle movement at low speed. They can be highly effective on suitable solid-axle platforms, but they must be reconnected before road driving. Leaving a sway bar disconnected on the highway is not a badge of honour. It is unsafe.

For many utes and wagons, the smarter option is ensuring sway-bar links are the correct length for the lift and are not binding through the suspension cycle. A link that is too short, too long or contacting another component can limit travel before the shock or spring reaches its intended range.

Electronic disconnect systems can be excellent where engineered for the vehicle, but they do not replace sound suspension geometry. If the rest of the system is at its limit, disconnecting the bar merely lets another weak point take the load.

Tyres, wheels and clearance are part of articulation

Your suspension may have the travel, but tyre clearance decides whether you can use it. Larger-diameter tyres, wider tyres and aggressive wheel offsets can contact the guards, mudflaps, body mounts, inner liners or control arms during steering and compression.

Test clearance at full steering lock and full compression, not while the vehicle is parked level in the driveway. A tyre can look fine at static ride height then carve up a liner on the first cross-axle rut. This is where careful wheel selection matters. More poke is not automatically more capability.

Tyre pressure also affects practical articulation. Lower pressures allow the carcass to conform to rocks, roots and uneven surfaces, increasing the effective contact patch. However, pressure needs to suit tyre construction, load, terrain and speed. Drop too far without bead retention or appropriate tyre sidewalls and you risk rolling a bead or damaging a tyre.

Protect the parts that see the extra movement

More travel changes angles and loading. On solid axles, increased droop can expose worn universal joints, inadequate driveshaft slip or poor pinion angles. On IFS, the common concerns are CV operating angles, boot life, ball joint range and front differential movement.

A modest, well-engineered lift with sensible droop limits is often more reliable than forcing maximum extension from factory components. If your build needs more than a moderate increase in travel, supporting upgrades may include corrected control arms, differential drop solutions where appropriate, extended brake lines, longer sway-bar links, spring retainers and upgraded driveshaft components.

Do not fit parts simply because another rig uses them. A Ranger with a canopy and drawers has different demands from a lightly loaded weekend ute. A Wrangler on 37-inch tyres needs a different conversation again. Vehicle-specific fitment and intended use matter more than internet folklore.

Use lockers and driving technique to make articulation count

Articulation helps maintain tyre contact, but it does not guarantee traction. Open differentials send torque to the wheel with least resistance. If a wheel unloads, it can spin even when the suspension is working well. A rear locker, and where suitable a front locker, can turn controlled wheel placement into forward progress.

Use them with mechanical sympathy. Drive slowly, choose a line that keeps the chassis clear, and avoid unnecessary wheelspin. Momentum can carry a vehicle through an obstacle, but it can also snap traction, damage driveline parts and turn a manageable climb into a recovery.

This is why the best off-road builds are balanced. Quality suspension, suitable tyres, correct pressures, reliable recovery points and thoughtful driving work as one package. Maverick Overland’s approach is the right one for serious builds: proven gear selected for function, not catalogue noise.

How to improve 4WD articulation legally and safely

Suspension modifications can affect vehicle height, handling, insurance and road legality. Requirements vary by state and territory, and substantial changes may require engineering approval. Check the applicable rules before committing to a lift, wheel-and-tyre package or major suspension alteration.

After any suspension work, get a proper wheel alignment and re-check it after the system settles. Also inspect brake hoses, ABS wiring, steering stops, driveline hardware and fastener torque after the first few off-road trips. Articulation tests should be controlled, slow and done with a spotter where possible. Never put yourself underneath a vehicle supported only by a jack.

The hard truth is that articulation is earned through correct engineering, not purchased with one flashy part. Build enough travel for the terrain, control it properly, protect the components around it and let tyre placement do the work. When your 4WD stays composed with a wheel deep in a rut and the load on board, that is capability worth having.
