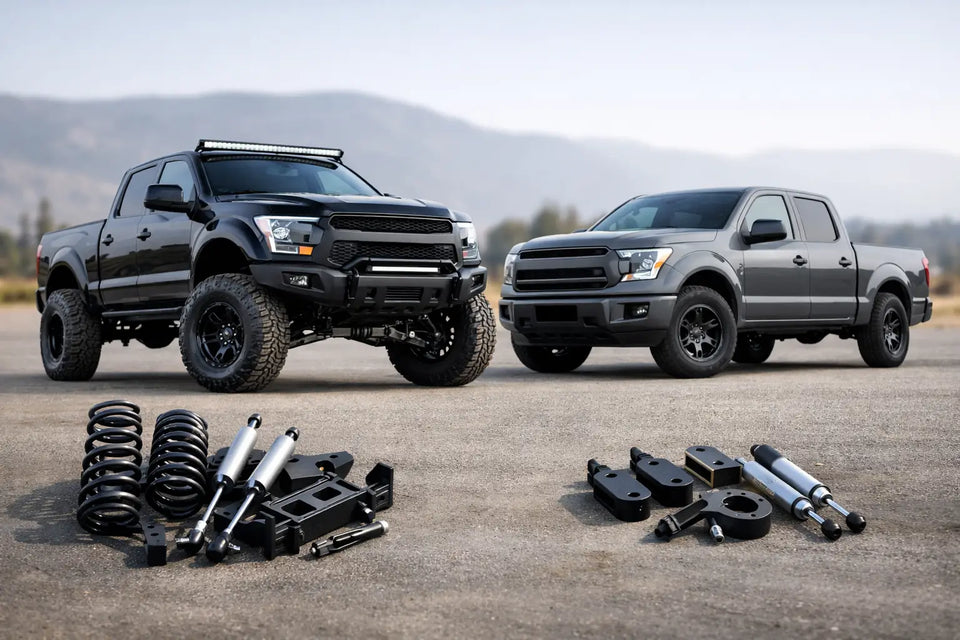

Lift Kit vs Levelling Kit: Choose the Right Setup

A loaded touring ute that sits on the bump stops is not fixed by fitting bigger tyres. Nor does every 4WD need a full suspension overhaul just because the nose sits lower than the rear. The lift kit vs levelling kit decision comes down to what your rig carries, where it goes and whether you need real suspension performance or simply a more balanced stance.

For serious Australian 4WD use, suspension is not a cosmetic add-on. It controls how the vehicle carries bar work, winches, drawers, fridges, rooftop tents, tools and towing loads. Get it right and the vehicle stays composed on corrugations, tracks straighter under brakes and has the clearance to work. Get it wrong and you can end up with poor ride, unhappy CVs, limited wheel travel and a build that looks tough in the car park but struggles on the track.

Lift Kit vs Levelling Kit: The Core Difference

A levelling kit raises the front of the vehicle to reduce or remove the factory nose-down rake. Most utes leave the factory with the rear sitting higher because they are designed to carry payload. Once you add a bull bar, winch, recovery gear or a second battery, that front-end rake can become more obvious. A levelling kit generally uses front strut spacers, taller front springs or adjustable coilovers to bring the front up closer to the rear.

A lift kit raises the vehicle more comprehensively. Depending on the platform and kit, it may include matched front and rear springs, shocks or struts, control arms, bushings, diff-drop components and correction hardware. The aim is not just height. A proper lift package is designed to manage suspension travel, spring rate, damping and driveline angles across the whole vehicle.

The distinction matters. A front-only levelling solution can be the right answer for an unloaded or lightly accessorised ute. It is not automatically the right answer for a Ranger, Hilux, Ram, Silverado or Jeep carrying touring weight every week.

What a Levelling Kit Is Good At

Levelling kits make sense when the vehicle is otherwise close to standard and the goal is modest. If your 4WD has a steel bar and winch up front, but the rear remains largely unladen, correcting the factory rake can restore a cleaner, more practical ride height.

They can also create clearance for a slightly larger tyre, provided wheel offset, guard clearance and full suspension compression have been checked. That last part matters. Tyres do not only move up and down. They steer, flex and travel rearward through the wheel arch. A tyre that clears while parked may still contact guards, liners or body mounts at full lock on uneven ground.

A quality levelling kit can be a cost-effective option where the original dampers and springs are still suitable for the vehicle's actual weight. But spacer-only kits have limits. They raise the body relative to the suspension without increasing the shock's usable travel. On an independent-front-suspension vehicle, too much spacer lift can push upper control arm and CV angles beyond a sensible working range.

That does not mean every spacer kit is rubbish. It means the kit needs to suit the vehicle, the lift height and the intended use. No gimmicks, no guessing.

The trade-off with factory rake

Factory rake is not a manufacturing mistake. It is load capacity built into the vehicle's stance. Flatten it completely when empty, then load a canopy, drawers, fridge and towball weight into the rear, and the 4WD may squat more than you expect.

For a work ute that regularly hauls tools or a touring vehicle towing a camper, retaining some rake can be the smarter call. A vehicle should sit correctly at its normal operating weight, not just look level outside the workshop.

When a Full Lift Kit Is the Better Investment

A full lift kit is built for owners who expect more from the vehicle. Think remote touring, hard tracks, sustained corrugations, loaded overlanding, regular towing and heavier accessories. In these situations, the suspension needs to carry weight and control it, not merely hold the body higher.

Matched springs are selected around front and rear loads. A front spring rate suited to a bar and winch helps maintain ride height without harshness. Rear springs can be chosen for constant canopy and drawer weight, intermittent loads, or a more heavily loaded touring setup. Good dampers then control the spring movement, reducing the pitching, bucking and float that wears drivers out on long dirt runs.

More height can improve approach, departure and breakover angles, but clearance is only one part of off-road capability. Wheel travel, tyre choice, wheel alignment, traction and driver judgement still do the heavy lifting. A tall 4WD on stiff suspension is not necessarily more capable than a lower vehicle with quality dampers and tyres that can work.

A properly engineered lift may also include components that restore geometry. Upper control arms can assist with alignment and ball-joint angle on some IFS platforms. Diff drops may reduce front CV angles at certain lift heights. Extended brake lines, sway-bar links and bump-stop changes may be required depending on the vehicle and the kit. These are not flashy extras. They are the details that separate a complete suspension system from a parts-bin lift.

Height Is Not the Same as Load Capacity

One of the most expensive assumptions in 4WD modification is that taller springs increase legal payload. They do not. A lift kit does not automatically increase GVM, axle ratings or towing capacity.

If your build has grown into a heavy touring rig, weigh it. Do it with the people, fuel, recovery gear, water, fridge, tools and accessories you actually travel with. Check front and rear axle loads as well as total vehicle mass. It is common for a vehicle to be under its total GVM while exceeding an individual axle rating.

Spring selection should be based on that real weight. Over-springing a lightly loaded vehicle creates a choppy, skittish ride. Under-springing a permanently equipped 4WD leaves it sagging, unstable and constantly working through the wrong part of its suspension travel. If you need a genuine capacity increase, look at an approved GVM upgrade package and understand the registration requirements in your state or territory.

Tyres, Alignment and Geometry After a Lift

Larger tyres are usually part of the plan, and they are often the most meaningful way to gain clearance under the diffs. A suspension lift raises the chassis and body, but it does not raise the differential housings. Tyre diameter does.

That said, chasing tyre size without checking the entire combination creates problems. Wheel offset can increase scrub radius and put extra load through steering and wheel bearings. Oversized tyres can affect gearing, braking performance, speedometer accuracy and fuel use. On modern vehicles, they can also interfere with driver-assistance systems if calibration and alignment are ignored.

After any suspension height change, get a proper wheel alignment. Ask for the alignment printout and confirm caster, camber and toe are within suitable specifications for the vehicle. A 4WD that wanders, chews tyre shoulders or fails to self-centre after a lift is telling you something is wrong.

Australian Legal and Insurance Considerations

Suspension modifications are subject to state and territory rules, and the acceptable lift can depend on vehicle type, tyre size and the total increase in ride height. Engineering certification may be required once changes exceed local limits or alter safety-critical systems.

Do not treat legal compliance as an afterthought. A vehicle that is unroadworthy can create insurance trouble and put you in a bad position after a crash. Speak with a qualified installer or engineer before committing to a significant lift, especially if the build combines suspension changes, larger tyres, GVM work, wheel-track changes and barwork.

Also consider practical clearance. A higher vehicle may no longer fit the garage, car park or ferry deck you use. It can be harder to load roof gear, and extra height raises the centre of gravity. For touring families, getting kids, dogs and recovery gear in and out of the vehicle is part of the real-world decision.

How to Choose the Right Setup

Choose a levelling kit when your main issue is front-end sag or factory rake, your accessory load is modest, and you want a conservative improvement without rebuilding the whole suspension. It suits owners who mostly drive on-road, hit occasional tracks and are not carrying constant heavy weight.

Choose a full lift kit when the vehicle has serious accessories, carries touring loads, tows regularly or sees demanding terrain. Spend the money on a matched, vehicle-specific system with spring rates that suit your actual build. The best setup is rarely the tallest one. It is the one that remains controlled after three hours of corrugations, stays predictable under brakes and still has useful travel when the track gets ugly.

Before ordering anything, write down the vehicle, current accessories, planned accessories, usual payload, towing weight, tyre target and intended use. That is the information that leads to correct fitment advice. At Maverick Overland, the focus is proven gear for rigs that are built to leave the bitumen, not just pose beside it.

Build for the trip you actually take. If that trip includes a loaded vehicle, rough roads and a long way from help, choose suspension that earns its place every kilometre.
