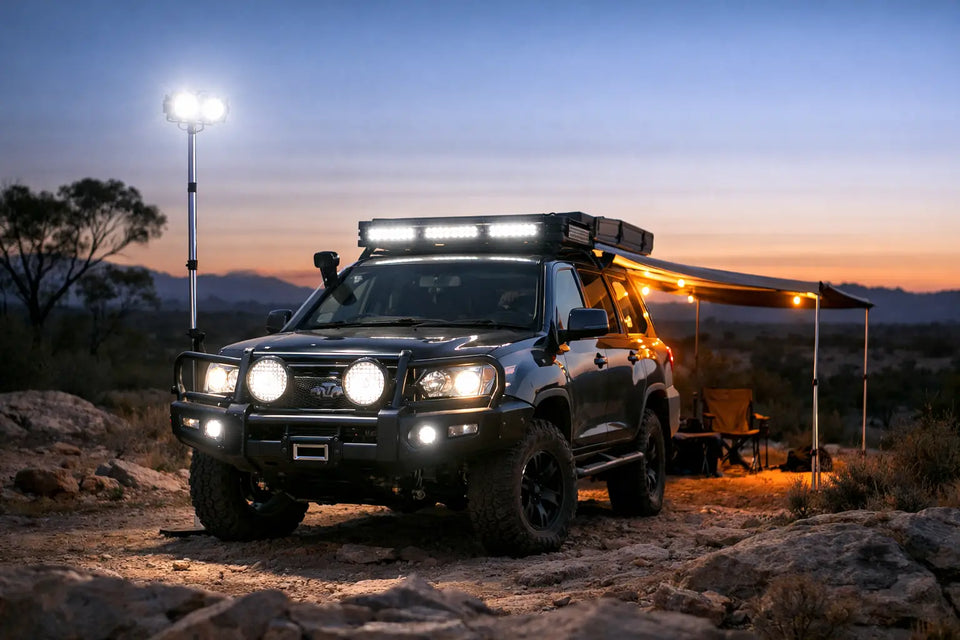

Overland Lighting Setup Guide for Australian 4WDs

A decent set of driving lights can turn a late run across the High Country or a long haul into the centre into a far less tiring job. A bad lighting build does the opposite: glare off the bonnet, shadows where you need vision, flat batteries and wiring that quits when the corrugations start. This overland lighting setup guide is built for 4WD owners who want useful light, not a front bar covered in decorative hardware.

Overland lighting setup guide: start with the job

Before choosing a light bar, spotlights or camp lights, be honest about where and when the vehicle works. A touring wagon doing long sealed and gravel highways needs reach. A ute running tight bush tracks needs broad usable light at lower speeds. A vehicle set up for remote camps needs controlled area lighting that will not flatten the auxiliary battery or ruin everyone else's night vision.

There is no single perfect beam pattern. The right setup is usually a combination of forward distance, shoulder coverage and task lighting, selected around the vehicle's actual use. Throwing the biggest claimed lumen figure at the problem is not a plan. Beam control, real-world build quality, mounting position and wiring matter more than a number printed on a box.

Think in layers. Your legal high-beam driving lights handle distance. Low-mounted fog lights, where compliant and correctly aimed, can help with poor-weather contrast. Work lights cover camp, recovery and load-area jobs. Each layer should have a clear role.

Choose beam patterns before chasing output

Spot beams for long-range travel

Spot beams project a tight, concentrated beam far down the road. They suit open country, highway touring and wide station tracks where roos, cattle and wandering stock can appear well beyond standard high-beam range. On a big touring route, distance buys reaction time.

The trade-off is limited spread. A pair of pure spots can leave the shoulders dark, especially on winding roads or narrow tracks. If your driving includes plenty of bends, creek crossings or wooded trails, spot-only lighting can feel fast on paper and ordinary behind the wheel.

Flood and spread beams for track awareness

Flood patterns put light across a wider section of ground. They are useful for slow, technical driving, turning into campsites and seeing the edges of a rough track. But wide light is not a replacement for driving lights at speed. It runs out of reach quickly and, when mounted high or aimed poorly, can create reflection from dust, rain and vegetation.

A spread or driving beam sits between the two. For many Australian tourers, a pair of quality driving lights with a combined spot and spread pattern is the most sensible starting point. It delivers forward reach while filling enough of the shoulders to make a real difference on unfamiliar roads.

Light bars have a place, not every place

A quality LED light bar is compact and can produce a useful broad beam, particularly across the front of a bullbar or in a grille-mounted position. It can suit vehicles with limited mounting space, provided airflow, radar sensors, cameras and recovery access are not compromised.

Do not assume a roof-mounted bar is automatically better. High mounting can throw a lot of light into airborne dust, mist and rain, making the view ahead worse. It also adds wind noise and can create bonnet glare. For most touring builds, bar-mounted driving lights at the front of the vehicle remain the hard-working option.

Mounting matters more than most builds admit

A light only works as well as the structure holding it. Bullbar tabs, grille mounts and vehicle-specific brackets need to be strong enough to resist vibration without cracking, sagging or allowing the light to shake out of aim. Corrugations expose weak brackets quickly.

Keep lights low enough to manage glare but high enough to clear vulnerable areas and maintain a clean beam. Check that the lights do not block the grille, interfere with bonnet opening, obstruct recovery points or sit in the path of a winch rope. On modern vehicles, also consider front-facing cameras, adaptive cruise sensors and parking systems before drilling anything.

Weight is another factor. Oversized lights mounted far forward can stress thin tabs and increase vibration. Premium lights and proper brackets cost more than generic options, but they stay aimed, stay sealed and survive the work. That is the difference between useful gear and another failure point on the track.

Wire it for heat, vibration and serviceability

Cheap wiring is a false economy. Lighting circuits live near engine heat, water, dust, vibration and moving components. Use a properly rated harness, quality relays or a suitable switching system, sealed connectors, correctly sized cable and fusing placed close to the power source.

Run the harness away from exhaust components, sharp edges, steering shafts and pinch points. Use abrasion protection where wiring passes through metal or around the engine bay, then secure it at regular intervals. Cable ties alone can become brittle or cut into insulation over time. P-clips, conduit and sensible routing make a big difference.

Your switching method should match the job. Driving lights generally need to operate with high beam and should be isolated when high beam is off. Work lights need a dedicated switch, ideally with the option to operate independently when parked. If the vehicle has a modern CAN-bus electrical system, avoid improvised trigger wiring. A vehicle-compatible interface or professional installation can save fault codes and expensive diagnosis later.

Separate high-draw camp lighting from the cranking battery where practical. Work lights, fridge loads and charging gear add up quickly when you are stopped for multiple nights. An auxiliary battery system, fused distribution and a voltage monitor make the setup easier to manage and easier to troubleshoot.

Aim the lights where they earn their keep

Even premium lights are useless if they are aimed at the treetops or the first ten metres of road. Set driving lights on a level surface after the vehicle is loaded roughly as it will be for touring. That means fuel, drawers, canopy gear, fridge and any usual rear load are accounted for. Suspension height and load angle change beam aim.

Start conservatively. The beams should reach down the road without blasting excessive light upward or creating an intense hot spot directly in front of the vehicle. Test the setup on a quiet road or track, then fine-tune after a real drive. Look for dark gaps between factory headlights and auxiliary lights, uneven left-to-right coverage and reflections from the bonnet, aerials or barwork.

For work lights, control is everything. A rear-facing camp light should illuminate the tailgate or canopy area without lighting up every campsite nearby. Side scene lights are excellent for cooking, packing and repairs, but they should be switched off when not needed. Use amber or low-output lighting where preserving night vision matters.

Keep legal road use separate from off-road capability

Australian lighting rules vary by state and territory, and vehicle requirements can depend on mounting location, quantity, beam operation and whether a light is used on public roads. Driving lights should be installed and operated in line with applicable road rules, typically linked to high beam rather than used as independent forward-facing road lights.

Roof lights, rear-facing lights and certain scene lights are often best treated as off-road or camp equipment. Cover them or isolate them where required. If you are unsure, check your local regulations and use a qualified installer who understands the vehicle and the rules. A capable touring setup should not create unwanted attention on the road or compromise other drivers.

Build for the next trip, not the driveway photo

Plan for the full electrical picture before adding more lights. A winch, compressor, fridge, UHF, battery charger and camp lighting all compete for space, wiring routes and battery capacity. Leave room for future circuits, label fuses and switches, and carry a few basic spares such as fuses, connectors and heat-shrink.

For serious builds, Maverick Overland backs the same principle across every category: choose proven gear that suits the vehicle, mount it properly and install it to handle the conditions it will actually see. Start with a clean, purposeful lighting package, then test it on a real night drive. The track will tell you what the catalogue cannot.
