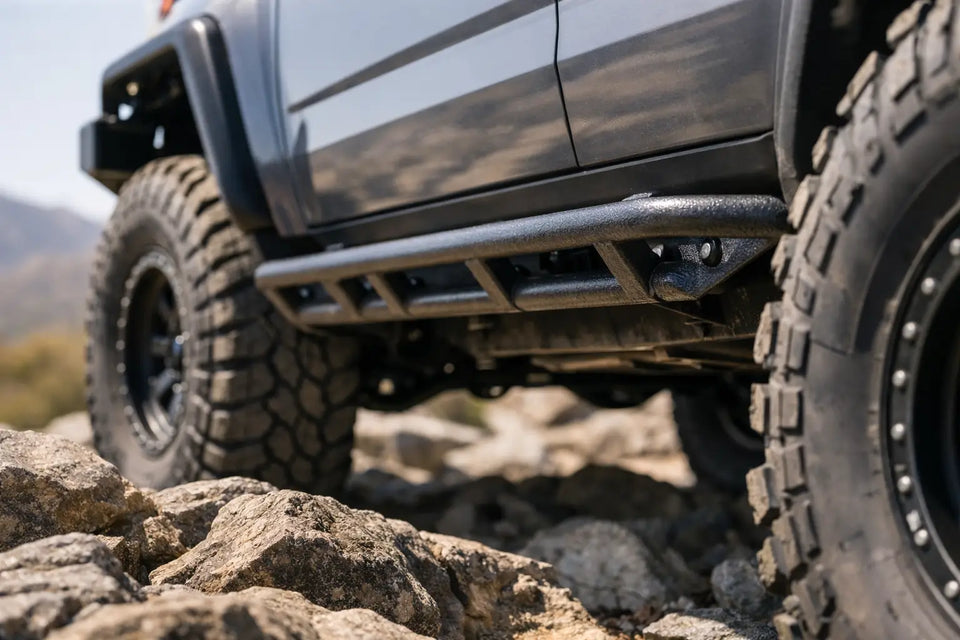

Rock Sliders Explained for Serious 4WD Builds

A hard hit on a rock ledge rarely finds the bullbar first. It finds the sill panel, the lower edge of a door, or the pinch weld beneath the cab - exactly where repairs become expensive and trail progress stops. Rock sliders explained properly means understanding that these are not decorative side steps. They are structural side protection built to carry the weight of your 4WD when the track gets tight, off-camber and rough.

For a touring rig that sees station tracks, a weekend ute on rocky climbs, or a dedicated Jeep or Bronco build, sliders are one of the most worthwhile protection upgrades you can make. But only if they are genuinely vehicle-specific, properly mounted and built for impact. Cheap tubes bolted to thin sheet metal are not rock sliders. They are damage waiting for the first proper hit.

What rock sliders actually do

Rock sliders sit below and alongside a vehicle's sills. Their job is to create a strong, sacrificial contact point between the terrain and the body. When a rock, rut wall or ledge reaches the side of the vehicle, the slider takes the load and lets the vehicle slide, pivot or rest without crushing the sill.

The sill area is a poor place to take an impact. It is structural, often close to wiring, trim and door apertures, and can be difficult to straighten properly once bent. A damaged sill can affect door alignment, compromise weather sealing and hurt resale value. On many modern 4WDs, factory side steps offer minimal protection because they are designed primarily as an access aid. They may bend, fold into the body or tear away under a serious load.

A proper slider transfers the force into strong mounting locations on the chassis or body structure. That distinction matters. The tube is visible, but the mounts, brackets, hardware and load path determine whether the system protects the vehicle or simply becomes part of the damage.

Rock sliders explained: the design details that matter

A quality rock slider is usually built from heavy-wall steel tube, plate steel, or a combination of both. Steel remains the standard for hard-use side protection because it handles abrasion and concentrated impacts well, and it can be repaired if the vehicle has a bad day on the tracks.

The outer rail is the part that contacts terrain first. Many designs add an angled or kicked-out outer tube, giving the vehicle a wider contact point. This can help push the body away from rocks and tree stumps, while also offering a stable spot to stand when accessing a roof rack, canopy or rooftop tent.

That outer rail is useful, but it comes with a trade-off. A wide slider can improve protection and access, yet it may reduce clearance in tight gaps or make the vehicle more vulnerable to trees on narrow tracks. The best choice depends on how you use the vehicle. A tourer carrying kids and roof gear may value a practical step surface. A rig built for technical rock work may prioritise a tighter profile and maximum clearance.

Mounting is where strength starts

The most capable sliders mount directly to the chassis where the platform allows it, or to engineered structural mounting points on body-on-frame and unibody vehicles. They use multiple mounting brackets to spread the load across the vehicle rather than concentrating it at one point.

Avoid treating bolt count as the entire story. More bolts do not automatically mean more strength. Bracket design, tube bracing, mounting location and the quality of the supplied hardware all matter. So does fitment. A slider made specifically for a Ranger is not interchangeable with one for a Hilux, Prado, Wrangler or Ram. Each chassis, body shape, fuel line route and mounting point differs.

Vehicle-specific engineering also matters around side airbags, factory steps, emissions components, jacking points and door clearance. If the supplier cannot clearly confirm fitment for your exact vehicle variant, wheelbase and model year, do not guess.

Slider shape affects how your vehicle moves over terrain

Round tube is common because it slides well over rocks and does not hang up as easily as a square edge. Plate-style sliders can provide a flatter, more secure standing area, but their design must still prevent them from catching on obstacles.

The angle of the slider matters too. A unit tucked close to the sill generally gives better clearance, while a lower step-style design can be more comfortable for daily access. Neither approach is automatically right. If your 4WD spends most of its time towing, touring and carrying gear, practical access has real value. If your weekend involves sandstone shelves, washouts and aggressive breakover angles, tight and high is usually the smarter call.

Sliders are not side steps

This is the mistake that catches plenty of owners out. Side steps help people get into the vehicle. Rock sliders protect the vehicle against the ground. Some premium rock sliders do both, but a product should not be called a slider simply because it has a tube under the door.

Factory steps are often light-gauge aluminium or thin steel with plastic tread inserts. They are fine for boots, but they are not intended to support a vehicle dropping onto a rock. Even aftermarket nerf bars and cosmetic steps can look tough while offering little resistance to side loading.

A real slider should be able to take a controlled vehicle load at a jacking point when the manufacturer specifies that use. That does not mean you should lift your 4WD anywhere along any tube with a jack. Use only the designated points, a stable base and safe lifting practices. But the ability to support that load is a useful indicator that the system has been engineered beyond looks.

When rock sliders make sense

If your 4WD leaves bitumen for rutted tracks, creek crossings, rocky access roads or remote touring routes, sliders make sense well before you consider extreme rock crawling. Australian tracks have a habit of changing after rain, after grading and after a convoy of heavily loaded vehicles has chewed them up. One unexpected washout can put the sill directly onto the terrain.

They are especially valuable on long-wheelbase utes and wagons, where the central section of the vehicle can belly out over crests. They also earn their keep on vehicles with low sills, wide doors or expensive body panels. The cost of quality sliders can look significant until you compare it with panel repairs, paintwork, replacement trims and downtime.

That said, not every vehicle needs the heaviest setup available. If your vehicle is mainly a daily driver that occasionally sees maintained forest roads, a bulky slider may add unnecessary weight and compromise convenience. Build for the terrain you actually drive, not for a social media spec sheet.

What to check before buying

Start with exact fitment. Confirm the make, model, year, body style and relevant variant details. A change in wheelbase, battery layout, factory step option or facelift can alter compatibility. For newer platforms, also check whether the slider works with factory sensors and any underbody accessories already fitted.

Then look at ground clearance, the outer rail position and whether the design includes a usable step. Consider how it will work with your tyres, suspension lift and intended track width. Wider tyres and increased wheel track can throw more mud and stones towards the slider, so a durable finish matters.

Powder coat is common and looks tidy, but it will eventually cop scratches on real tracks. That is normal. Textured finishes can provide better boot grip but are harder to clean. Smooth coatings slide more easily over obstacles. Bare steel is not practical for most Australian conditions unless you are prepared to maintain and repaint it regularly.

Weight deserves an honest look. Sliders add mass low on the vehicle, which is better than loading weight high on a roof rack, but it still affects your overall build. Add up the bullbar, winch, dual batteries, drawers, canopy, water, long-range tank and passengers before making suspension decisions. A heavily accessorised 4WD needs suspension matched to its real, constant load - not a catalogue estimate.

Installation is not the place to cut corners

Most vehicle-specific sliders can be fitted without welding, but that does not make installation casual. The vehicle needs to be safely supported, mounting surfaces checked, bolts torqued correctly and clearances verified with the doors fully open. On some models, factory steps, trim or brackets must be removed first.

After installation, recheck bolt torque after the first few trips and after any heavy impact. Inspect the tubes, brackets and mounts for movement, cracked coating or contact with brake lines, wiring and body panels. Sliders are built to be used, but regular inspection is part of owning hard-use gear.

Maverick Overland backs the principle that protection gear should be selected by fitment and function first. The right slider should suit your platform and your tracks, not just fill the visual gap below the doors.

A set of properly engineered rock sliders changes how you approach rough ground. You still pick lines, use a spotter and drive with mechanical sympathy. But when the track reaches for the sill, you have a purpose-built defence underneath the vehicle - and that is far better than trusting a cosmetic step to save the day.
