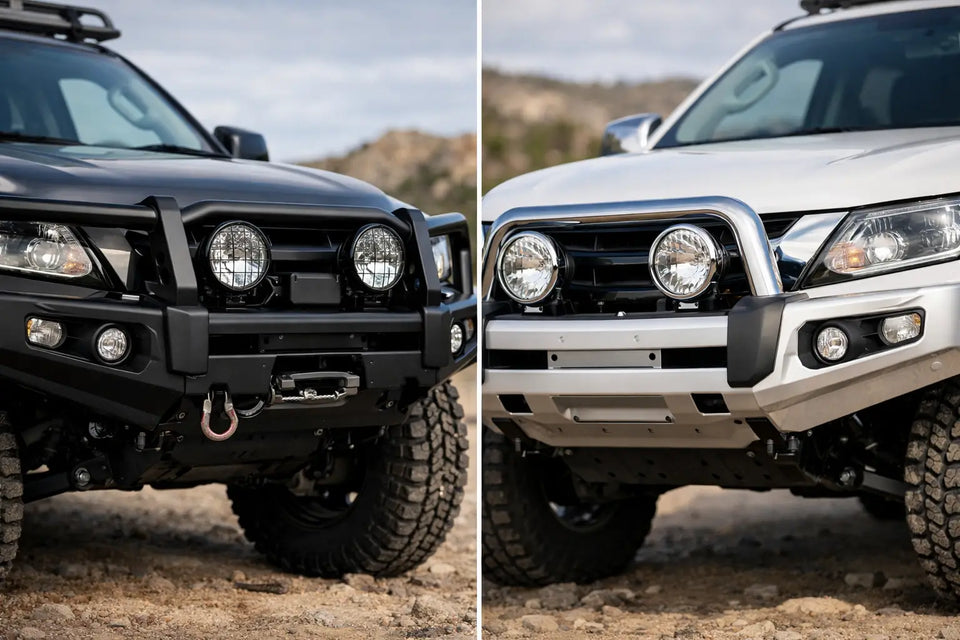

Steel Bumper vs Alloy Bumper for Australian 4WDs

A front bar is not a dress-up part when your 4WD is carrying a winch, meeting scrub on a tight track or coping with long kilometres of corrugations. The steel bumper vs alloy bumper decision affects front-axle weight, recovery setup, animal-strike protection, suspension choice and how the vehicle behaves off-road. Choose on the job your rig has to do, not on a spec-sheet slogan.

For most Australian builds, steel remains the hard-use default. Alloy has a serious place too, especially where weight is the limiting factor. Neither material gets a free pass if the bar design, mounting system and engineering are poor.

Steel bumper vs alloy bumper: the real differences

First, clear up the language. In the 4WD world, an alloy bumper normally means an aluminium-alloy bar. It is not automatically weak, and a steel bar is not automatically indestructible. Material is only one part of the equation. Tube diameter, plate thickness, folds, gussets, weld quality, chassis mounts and winch cradle all matter.

Steel has higher stiffness and usually tolerates concentrated knocks better for a given section size. That matters when the corner of a bar hits a bank, a rock pushes hard into a wing, or a recovery load is being managed through a properly engineered winch cradle. A quality steel bar can be made compact and highly protective without becoming excessively bulky.

Aluminium alloy is far lighter. Depending on the bar, vehicle and accessories, changing materials can save a meaningful amount from the nose of the vehicle. That is valuable on a touring wagon or ute already carrying a winch, dual batteries, driving lights, underbody protection and a loaded canopy. Less mass ahead of the front axle can help steering response, braking feel and suspension compliance.

The compromise is that aluminium generally needs more material and intelligent shaping to achieve comparable stiffness. It can dent or deform differently under impact, and repairs can be more specialised. A well-built alloy bar is capable gear. A thin, badly supported one is not made better by a shiny finish.

When steel is the right call

Steel suits vehicles built for repeated hard contact and serious accessory loads. If your trips involve steep rutted climbs, rocky high-country tracks, remote station roads, or regular work in roo-prone country, steel gives you a bigger margin when the trip stops being gentle.

It is also the logical choice for many winch-equipped builds. The winch itself is heavy, and the forces involved in a proper recovery are substantial. The important point is not that the bumper has a recovery point cut into it. Recovery loads must be transferred through rated, vehicle-specific chassis mounting and a properly designed cradle or recovery system. Never assume a decorative eye, brush bar tube or generic shackle tab is suitable for snatching.

Steel is often easier to repair in regional areas. A competent fabricator can straighten, reinforce or reweld a damaged steel bar more readily than an aluminium one, provided the damage has not compromised mounts, airbag systems or the bar's compliance. The finish may need attention afterwards, but the practical repair pathway is there.

The downside is weight. A steel bumper with a winch, synthetic rope, recovery hardware and a pair of serious lights can add a lot to the front axle. If you fit it to factory springs, do not be surprised when the vehicle sits nose-down and bottoms out over washouts. Budget for suspension that is valved and sprung for your actual constant load, not the load you hope to carry once a year.

Steel also needs its coating maintained. Stone chips, salt air, red dirt and mud trapped behind mounting points eventually find weaknesses in powder coat or paint. Inspect the bar after trips, clean out packed debris and touch up exposed steel before surface rust turns into a bigger job.

Where an alloy bumper earns its place

Alloy is the smart option when every kilogram matters. That can include independent-front-suspension wagons with limited payload, lighter touring builds, performance-focused utes and vehicles where a heavy front end compromises ride quality. Reducing mass can also leave more room in your payload calculation for water, fuel, tools and family gear.

For touring, an alloy bar can deliver useful frontal protection, winch provision and lighting mounts without starting the build with a major weight penalty. It makes particular sense when you are building a capable long-distance vehicle rather than a rig designed to lean on its bar through technical terrain every other weekend.

Aluminium has good natural corrosion resistance, but do not mistake that for zero maintenance. Salt, mud and trapped moisture still cause problems, especially where dissimilar metals meet. Steel bolts, brackets and chassis interfaces need correct isolation and protective treatment to reduce galvanic corrosion. Check fasteners and concealed mounting areas as part of routine servicing.

Damage behaviour needs honest consideration. Aluminium does not rust like bare steel, but it can gouge, crack or take a set after a hard impact. Specialist alloy welding is available, though not always in the town where a damaged bar becomes your problem. If remote repairability is high on your list, that may shift the decision back toward steel.

Weight is more than the number printed on the box

Comparing bumper weights without counting the rest of the system leads to bad decisions. A 20 kg saving can disappear quickly once you add a winch, winch rope, hawse, lights, aerial brackets and recovery gear. More importantly, that mass sits forward of the axle, where it has greater effect on handling than the same weight placed low and central in the vehicle.

Before ordering, work through the full build weight. Include passengers, fuel, water, fridge, drawer system, canopy equipment, roof load, tow-ball download and tools. Then check axle ratings and gross vehicle mass, not just the headline payload figure. A front bar should make the vehicle more capable, not push it outside the limits that keep it safe and legal.

Suspension must follow the build, not lead it. Springs selected for a loaded steel-bar setup can leave an alloy-bar vehicle riding high and harsh. Conversely, fitting a heavy steel bar after suspension has been installed for an empty front end will quickly expose the mismatch.

Fitment, safety and compliance are non-negotiable

A bumper for a modern 4WD has to work with more than the chassis rails. Airbag sensors, radar, cameras, parking sensors, adaptive cruise systems and cooling airflow can all be affected. Vehicle-specific fitment is not marketing fluff. It is the difference between a bar that integrates properly and a pile of brackets that creates faults, warning lights or unsafe behaviour.

For Australian road use, check that the bar is appropriate for your vehicle and intended registration requirements. Designs, approvals and state expectations can vary, particularly for imported platforms, modified vehicles and changes affecting pedestrian protection or safety systems. If the vehicle has radar or camera equipment, confirm exactly what relocation brackets, sensor provisions or calibration work are required.

Approach angle deserves attention too. A bar that sits high and tight can improve clearance, but only if it does not compromise cooling, winch access, number plate placement or recovery access. Do not buy by photos alone. Check listed vehicle fitment, model year, trim level, flare compatibility, sensor compatibility and whether the bar suits your planned winch.

Match the bar to the work

Choose steel if your priority is maximum impact tolerance, hard-track durability, frequent winching and straightforward repair options. It is the no-excuses choice for a 4WD expected to carry weight and take hits, provided the suspension and axle capacity support it.

Choose alloy if reducing front-end mass is central to the build and the vehicle will spend more time touring, towing or covering long distances than pushing through severe terrain. Buy a properly engineered unit, not a lightweight imitation that saves kilos by skipping the structure that matters.

Maverick Overland backs the same approach used for every serious upgrade: start with vehicle fitment, define the job, then select proven gear that supports the whole build. The right bumper is the one that still works after the winch is fitted, the suspension is loaded, the tracks get rough and the trip is a long way from home.

Before you commit, stand back from the bar itself and look at the vehicle you are building. The best choice is the material that leaves your 4WD properly balanced, legally equipped and ready for the terrain you will actually drive.
