6-LED Pod Light Power Wiring Harness Kit with 3 PIN DT Plug

Recommend Fit for Our Pod Light SKU:

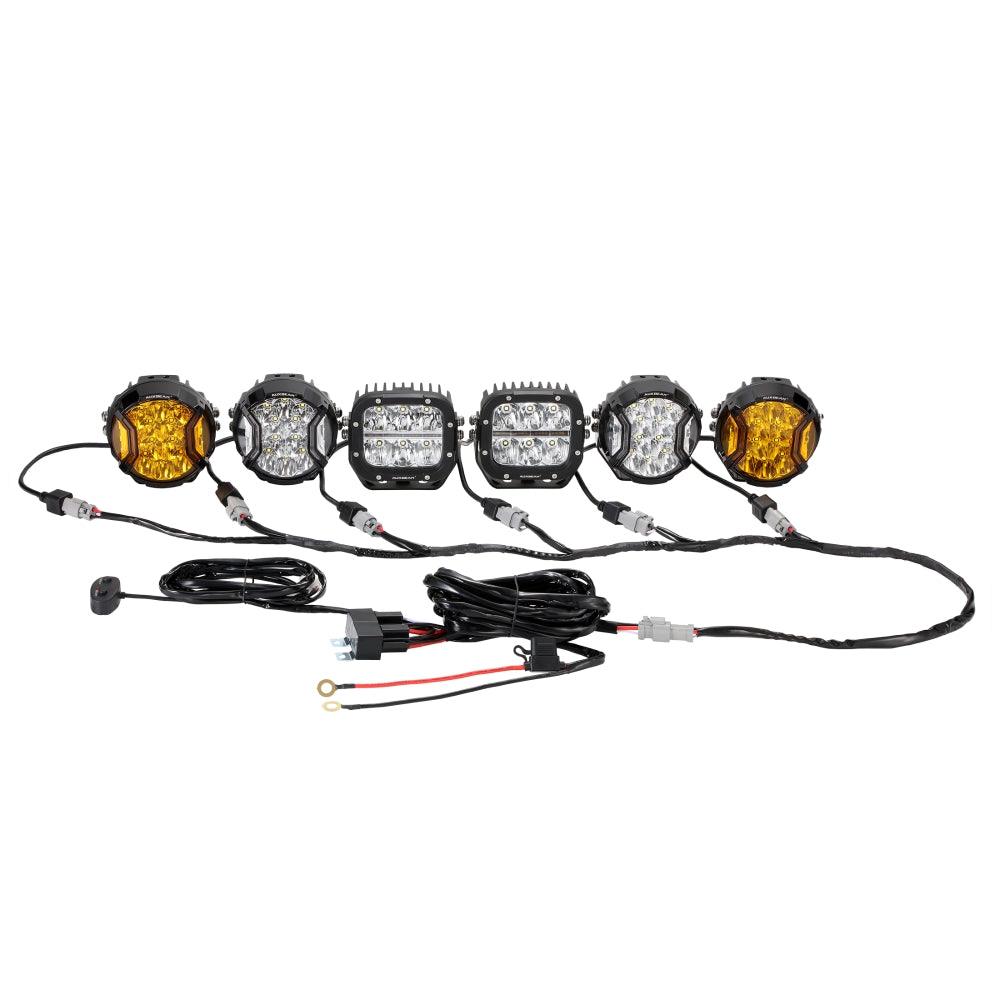

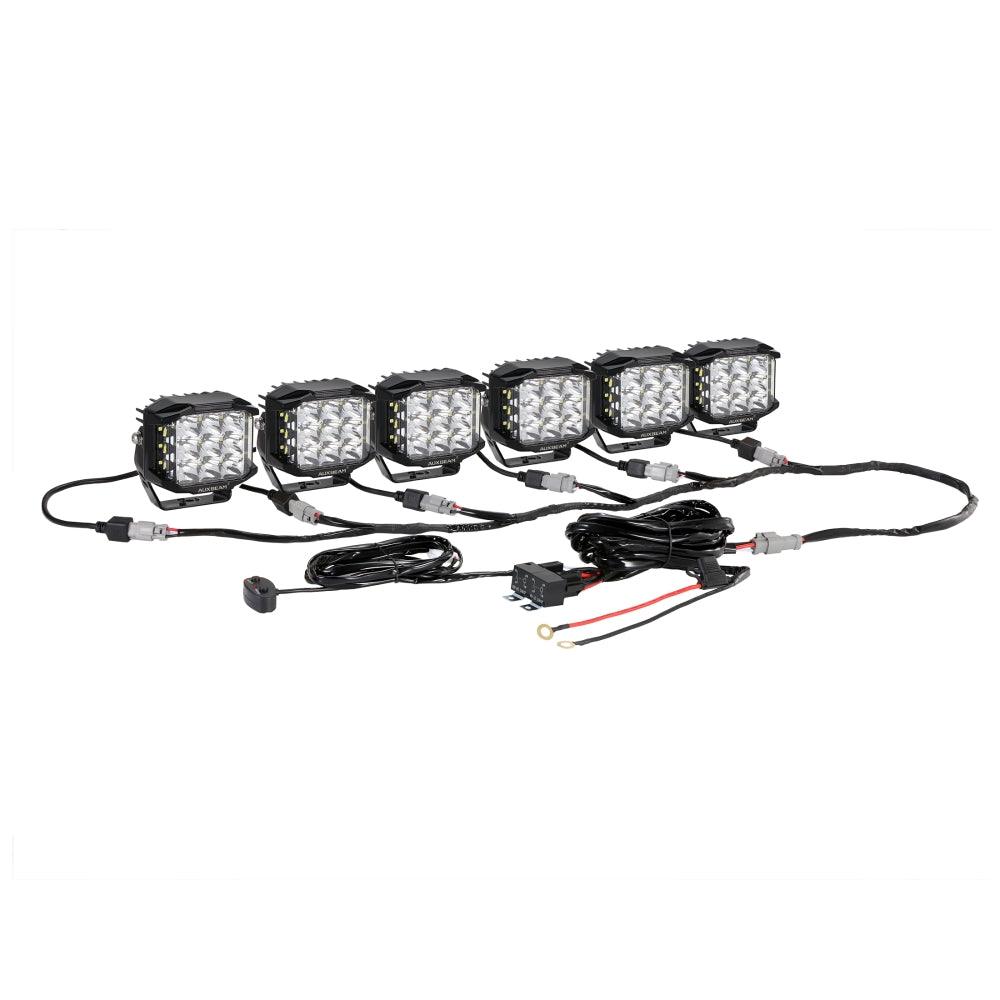

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753/ZD000879/ZD000880/ZD000881
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891
Other Product: ZD000752

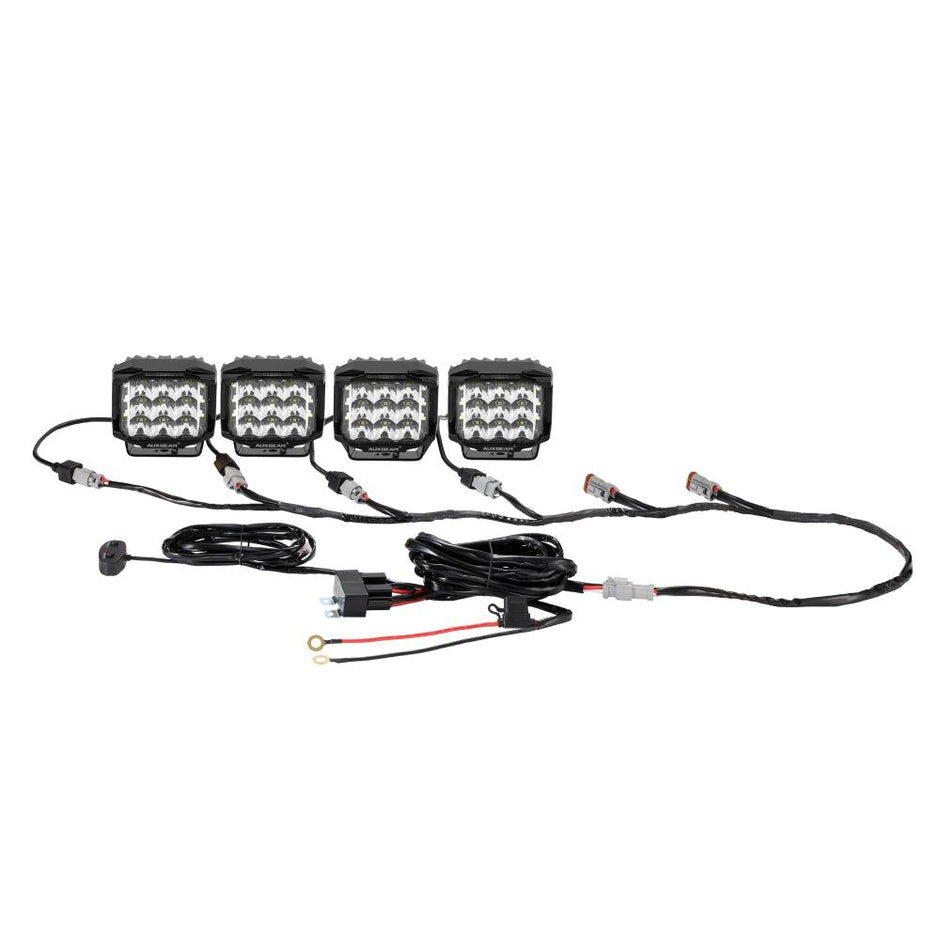

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
V-ULTRA Series: ZD000889/ZD000890
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

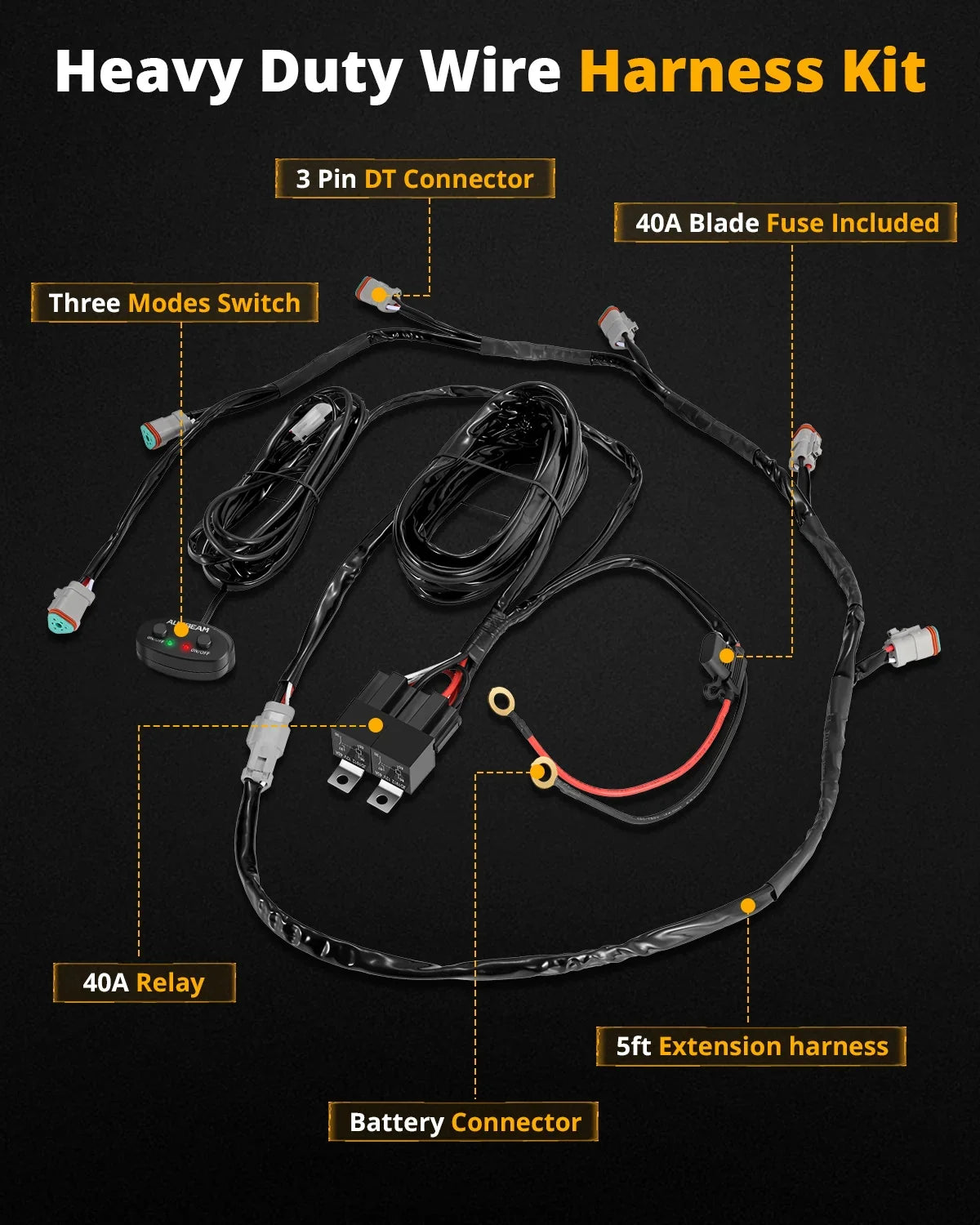

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug, 40A fuse and relays. Built-in blade fuse to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG（4mm²） main wire&18AWG（0.75 mm²）DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters，it can effectively overload the MAX 40A current, that is, the load power is 384W, DRL power Max 6A（72W）in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.
Tips: We recommend professional installation of LED wiring harness kits, please let professional installers connect the wiring harness kits.

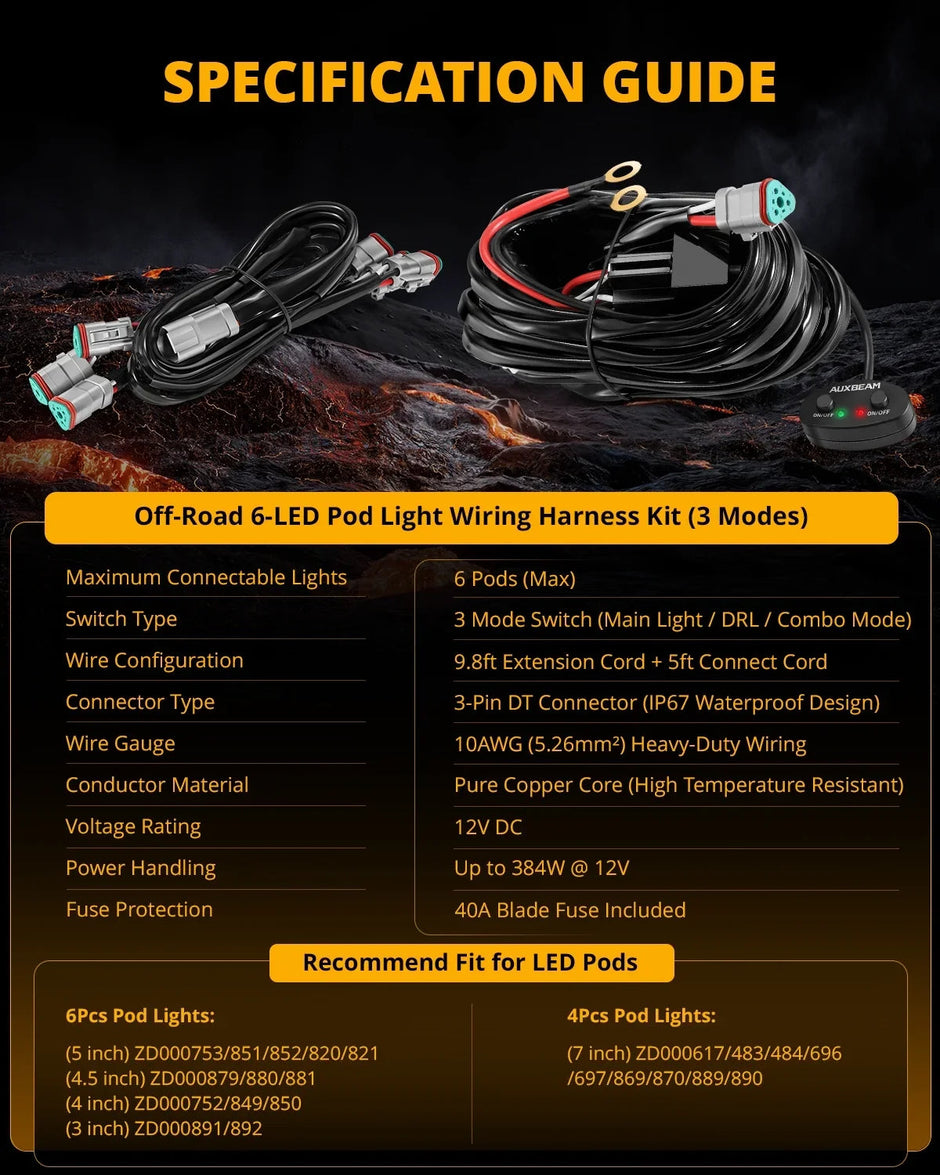

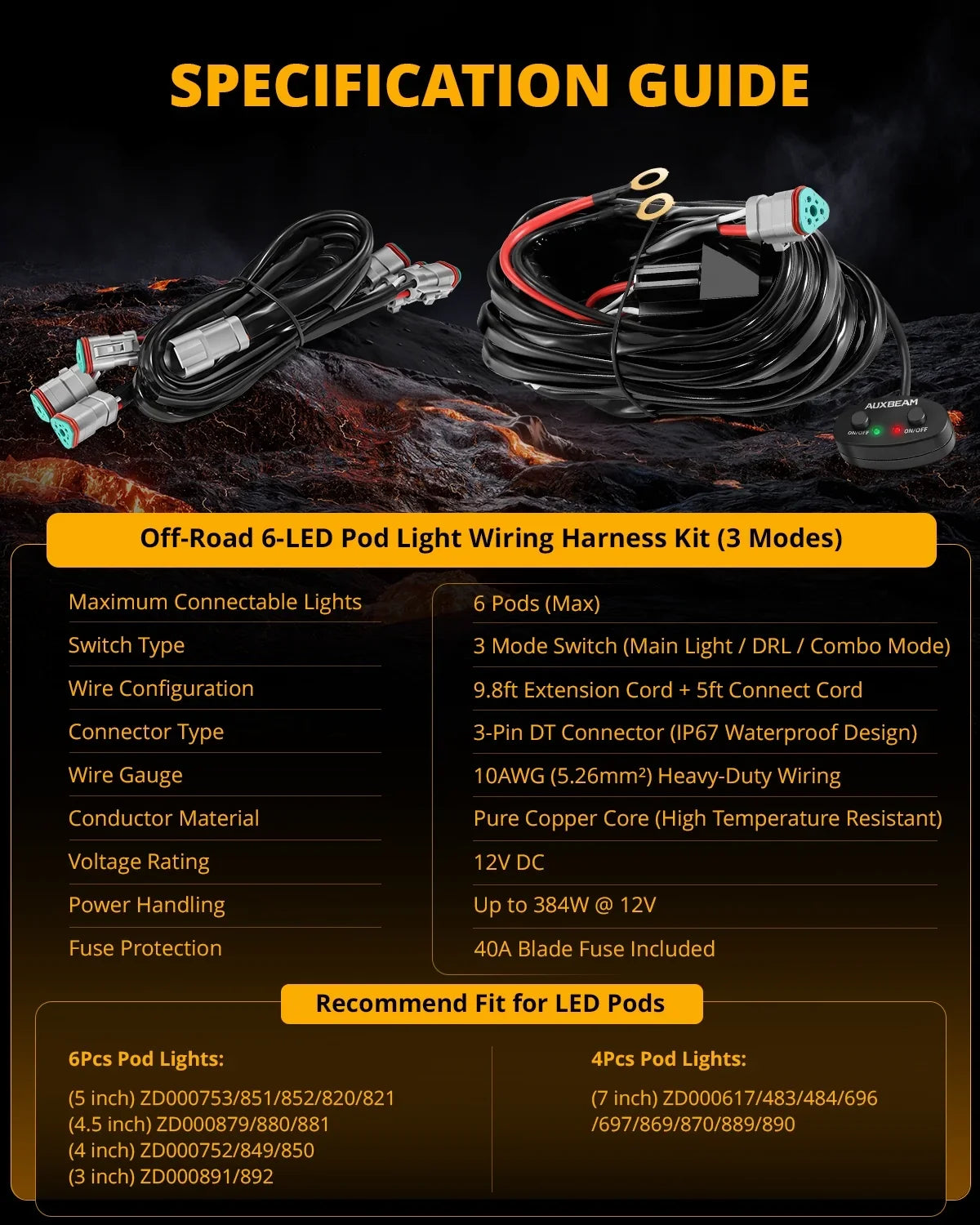

Specification:

Connect Number Light: Max 6 Pods

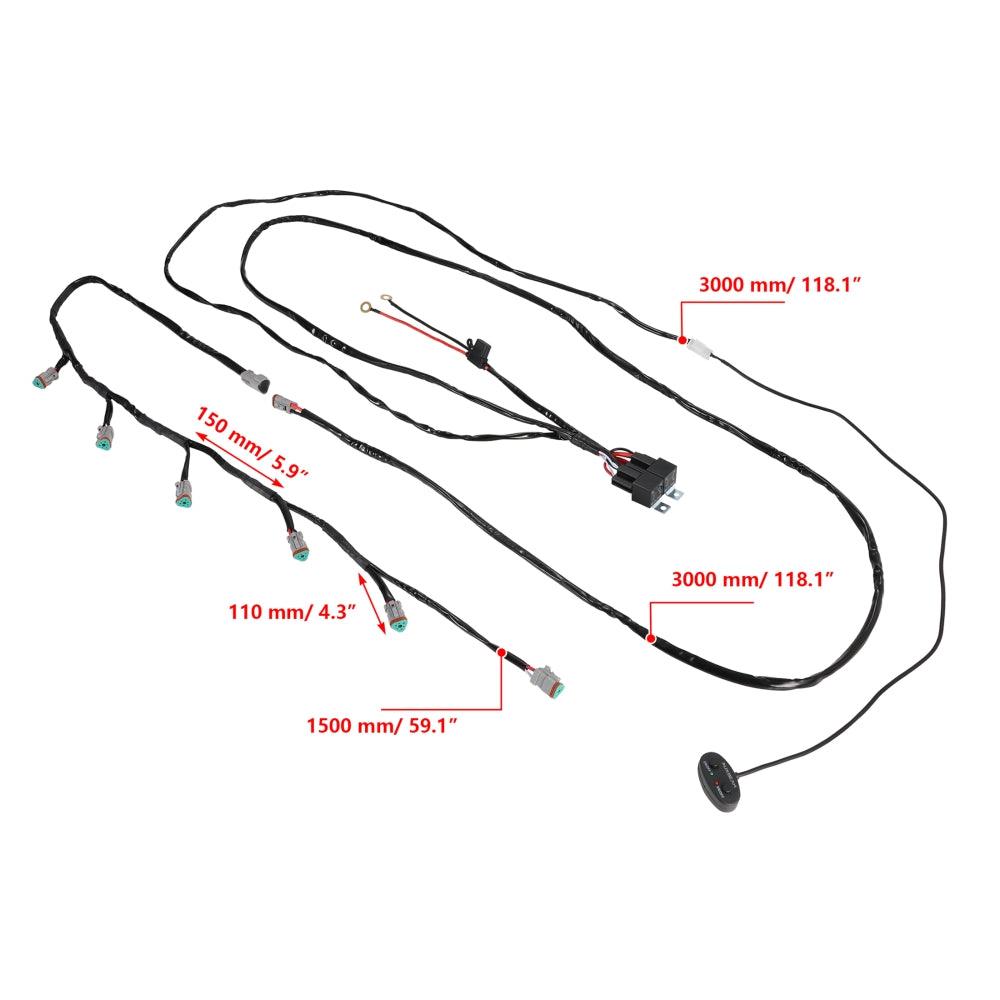

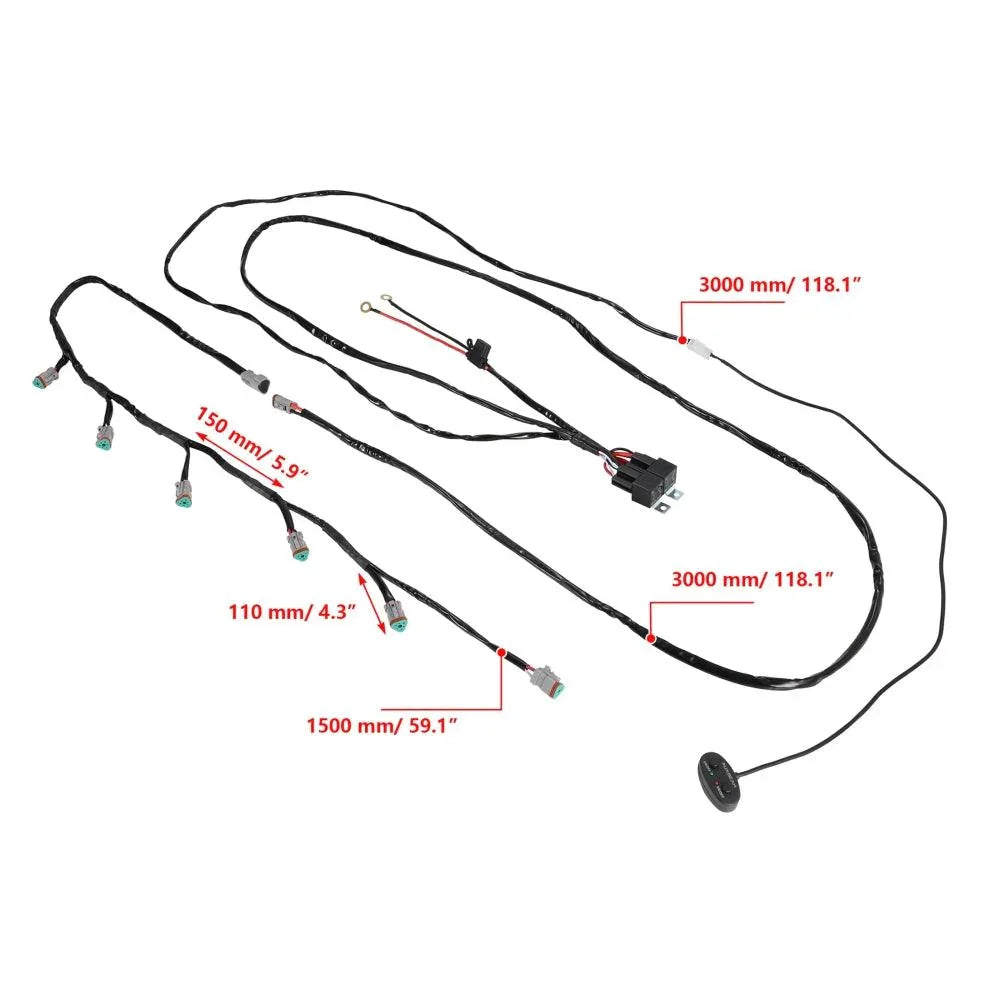

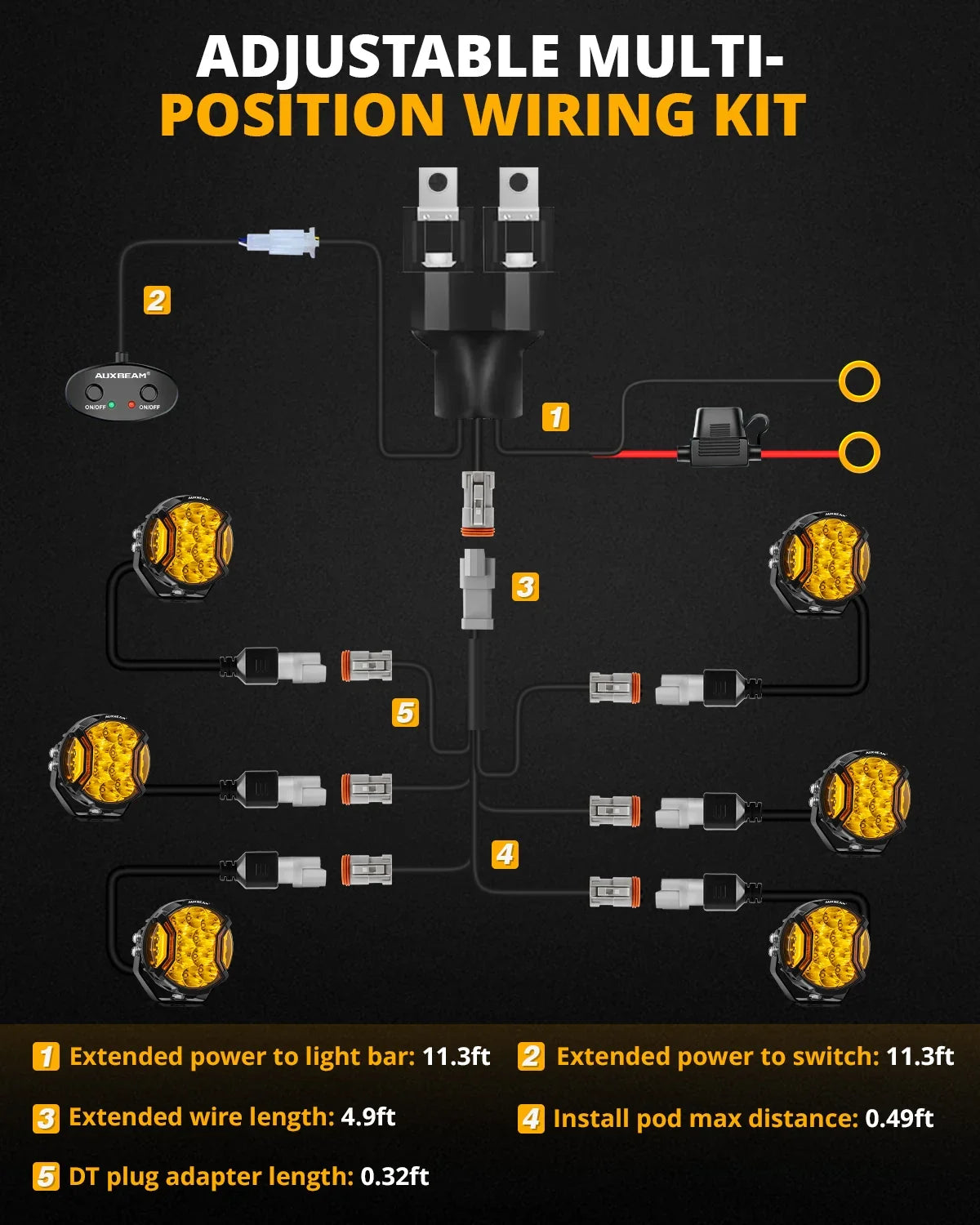

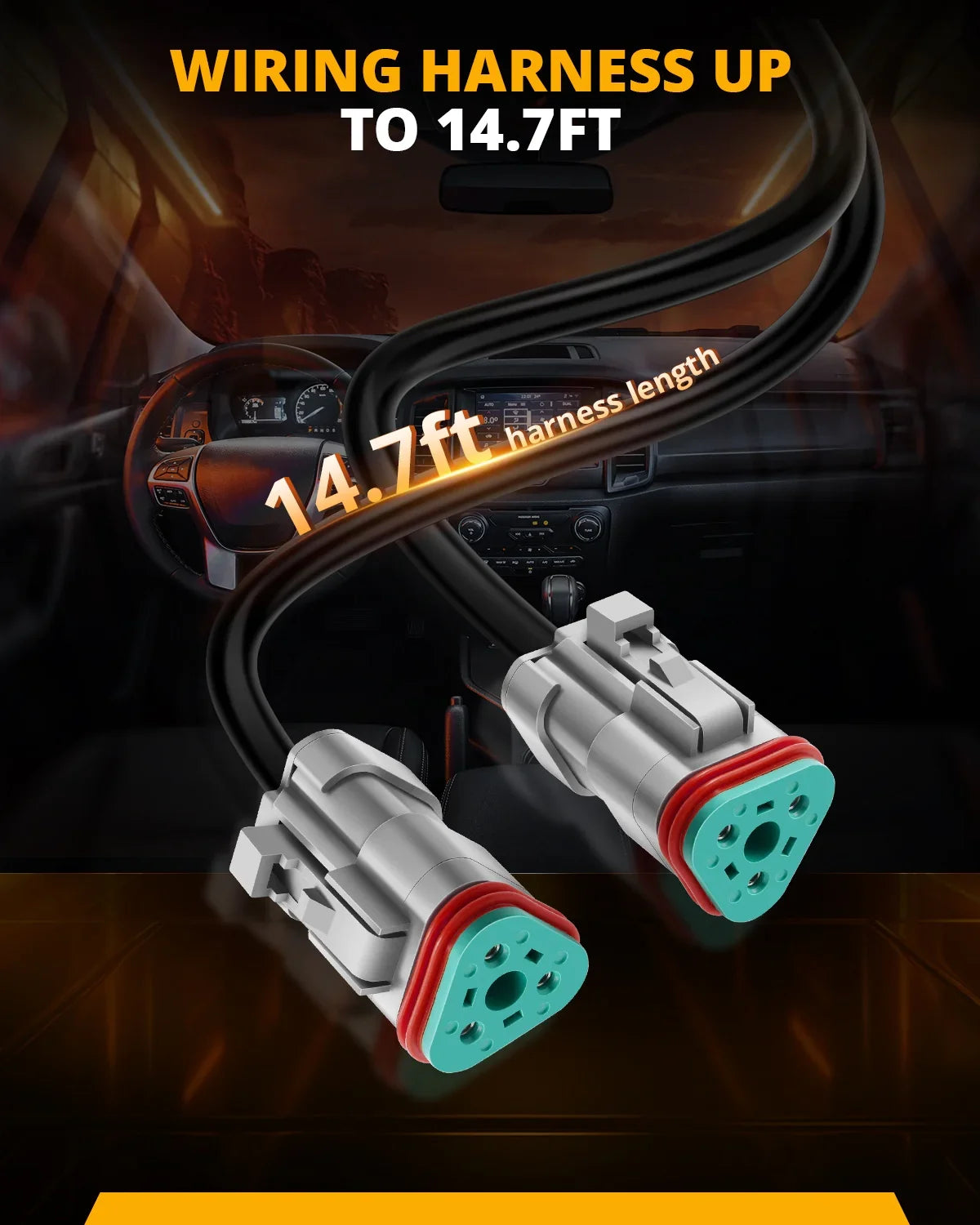

Wire Length: 3M Extension Cord +1.5M Connect Cord

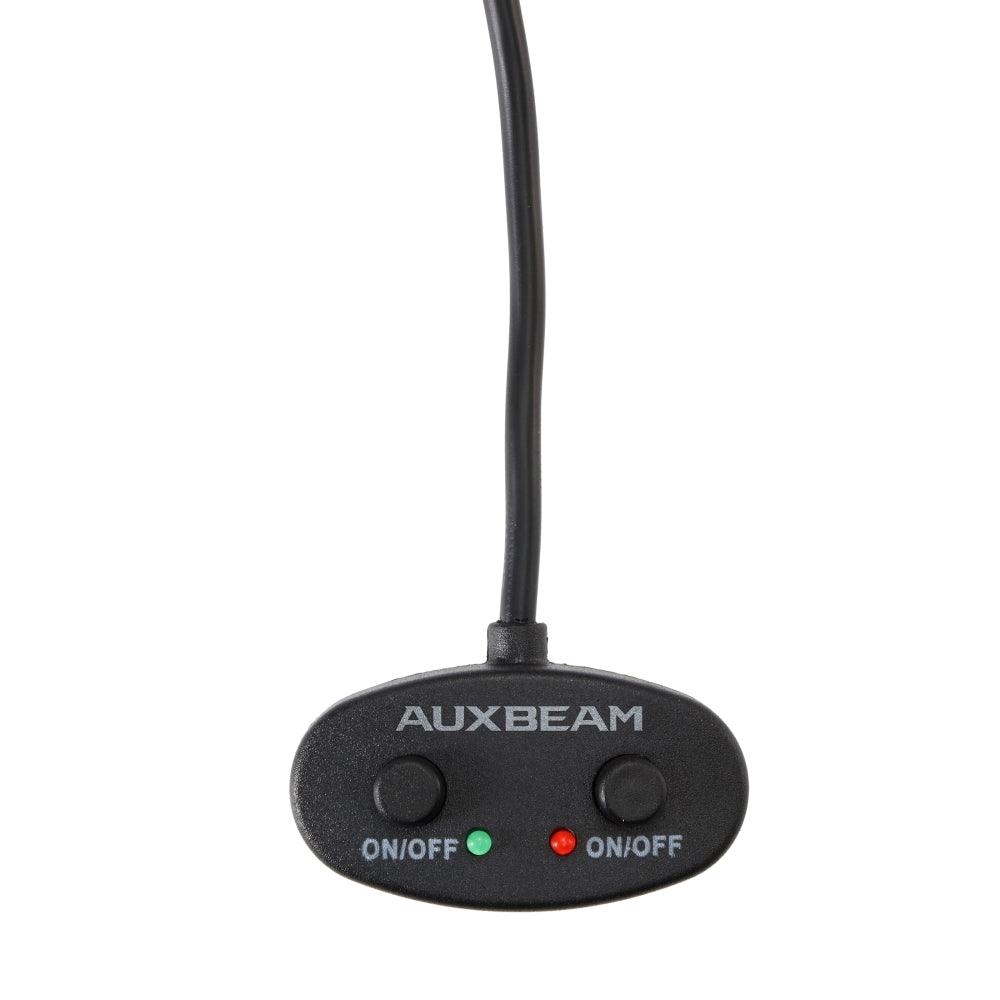

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm

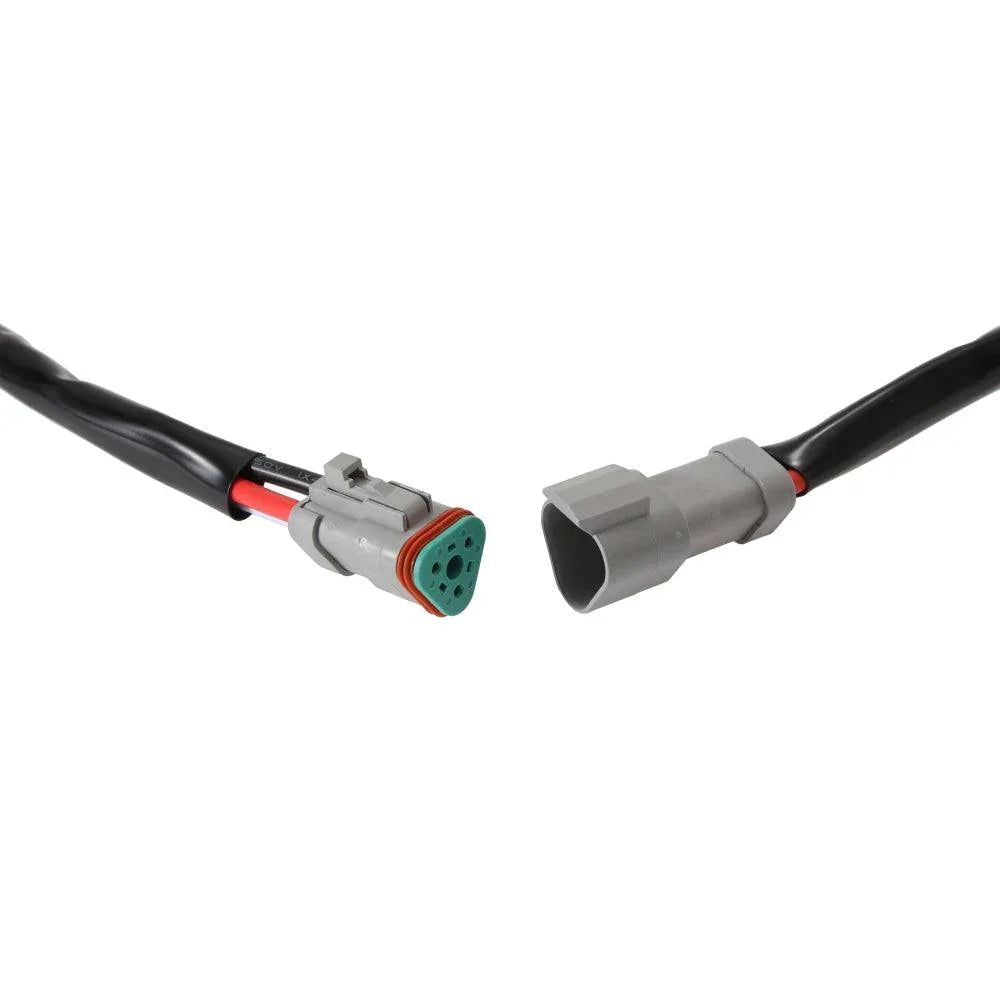

DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Leads Power: Max 384W (Current 40A) (DRL 72W&6A)

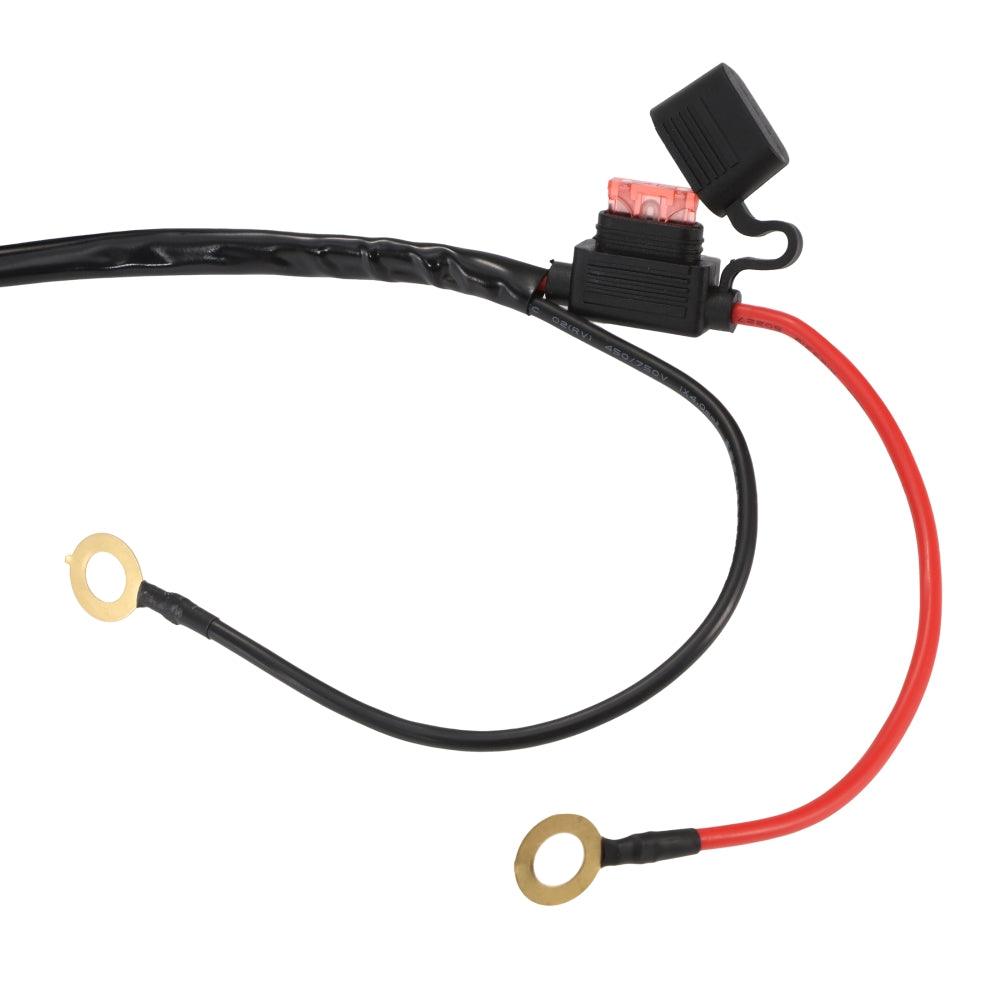

Fuse Size: 40A

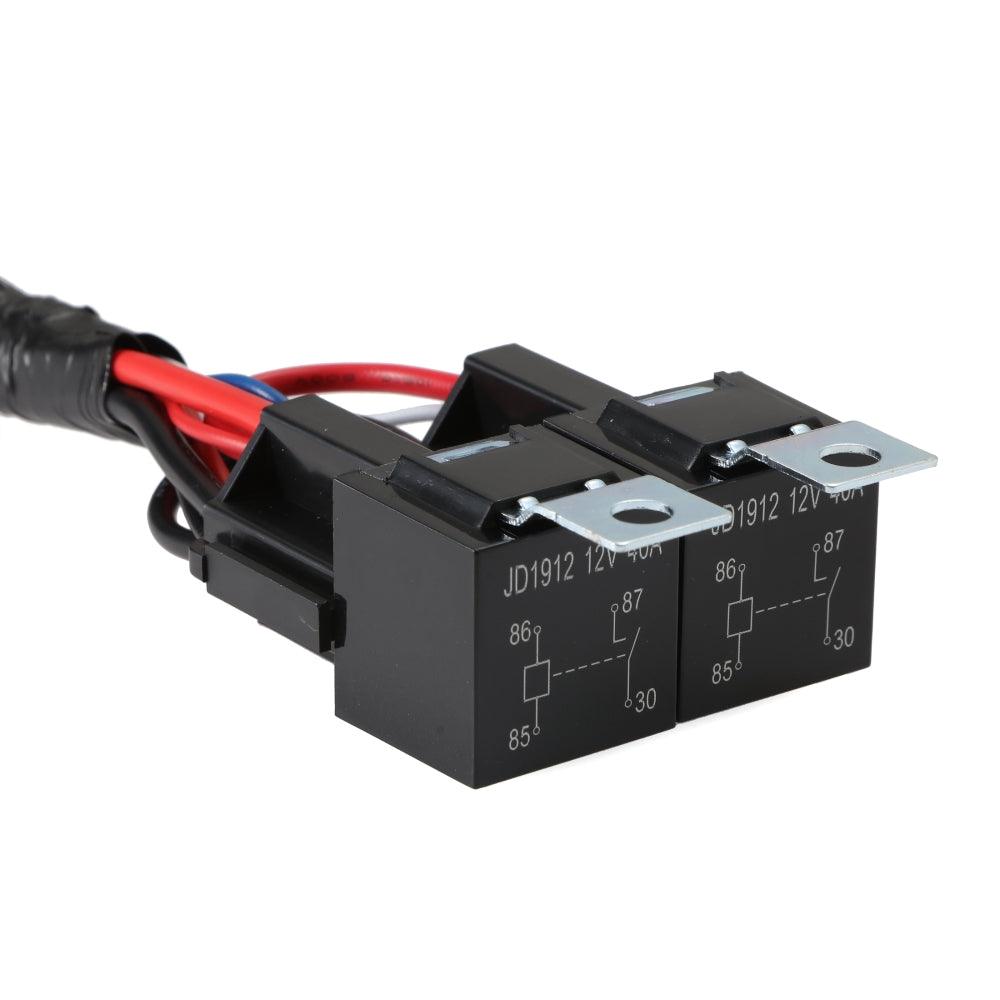

Delay: Double 12V delay

Packing Included:

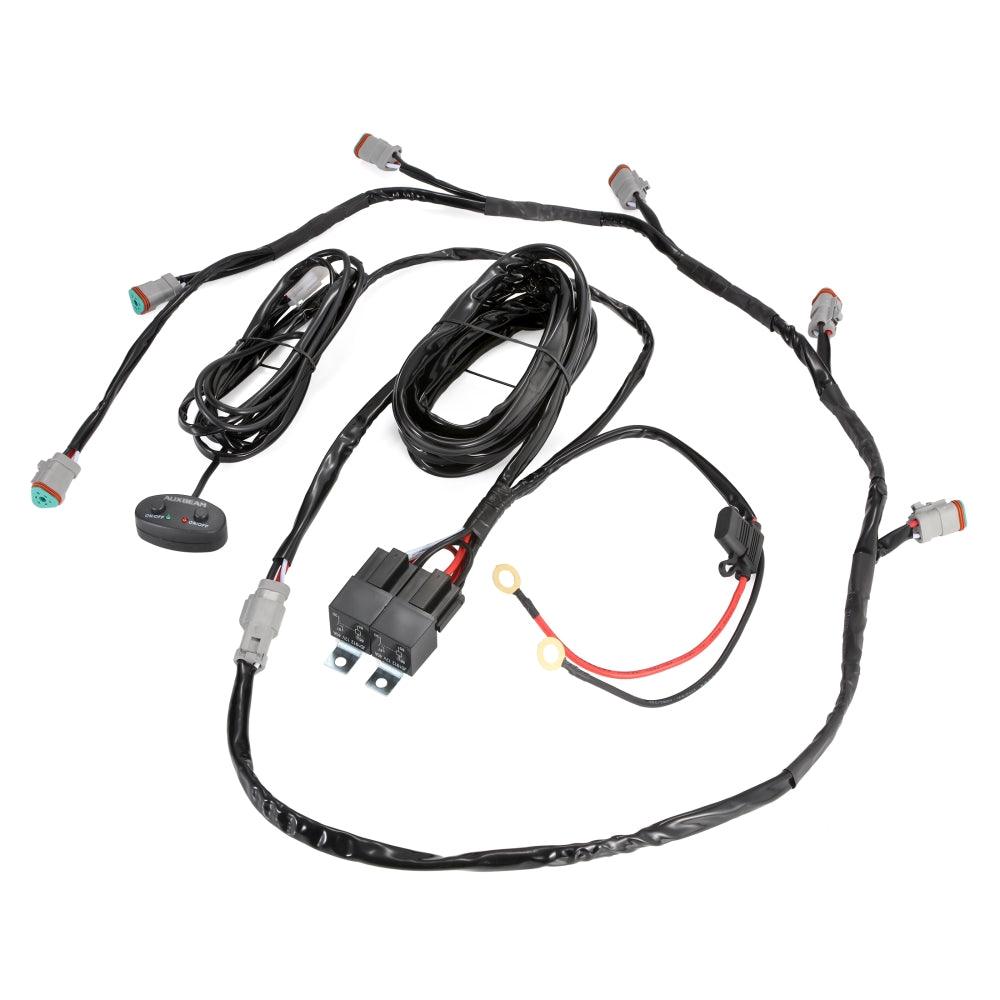

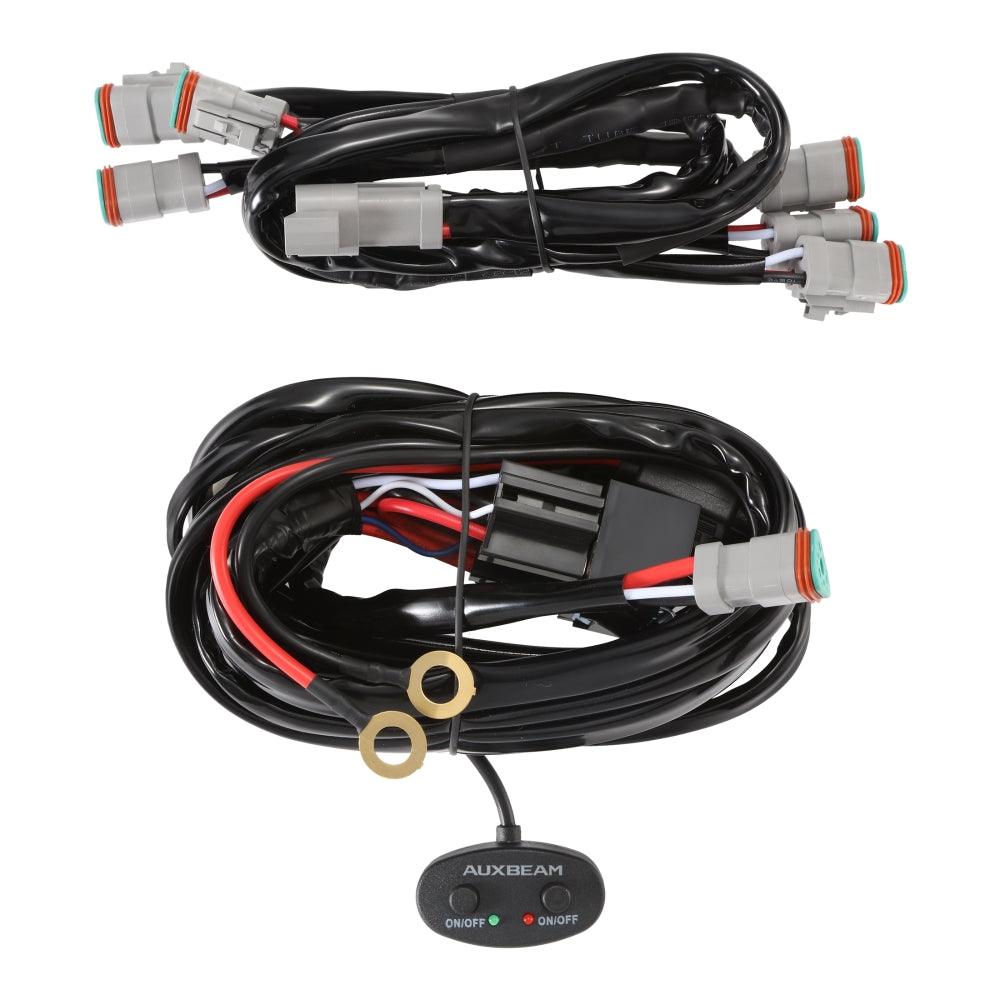

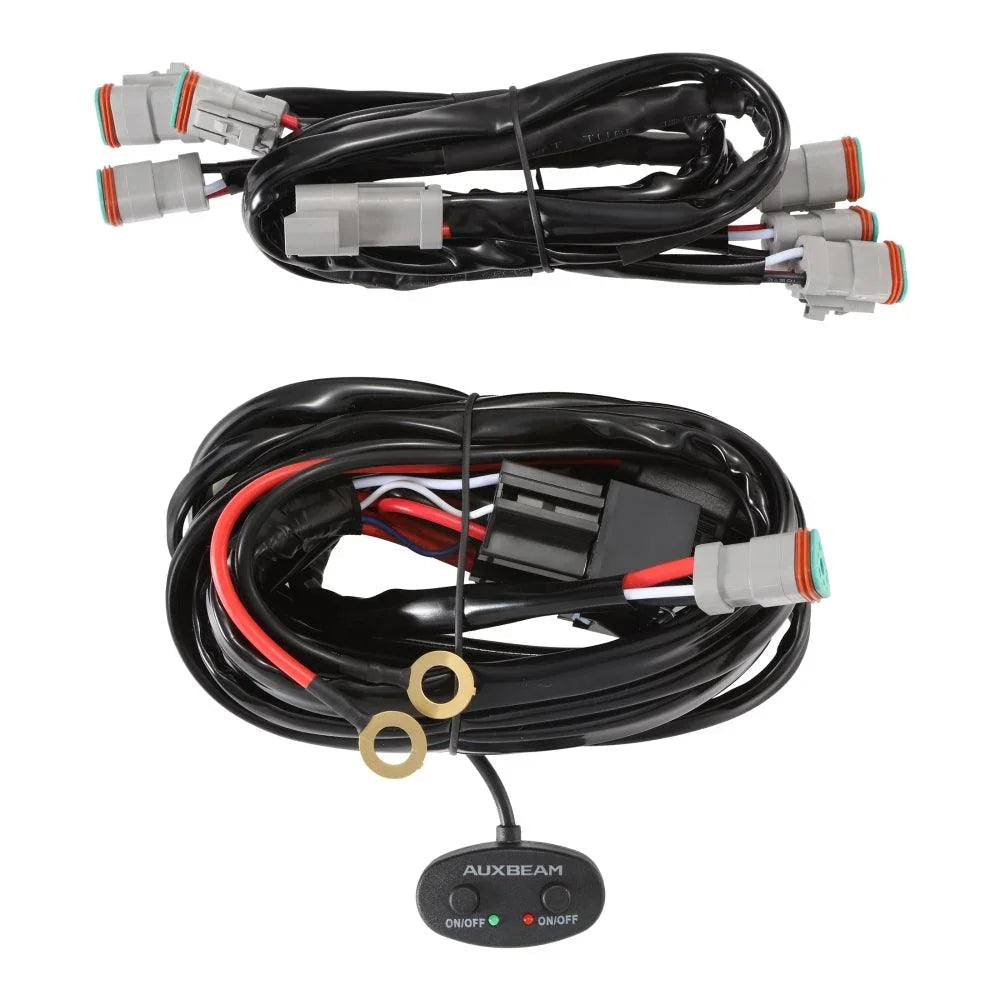

1 x 6-Pod Power Harness (Pod lights not included)
