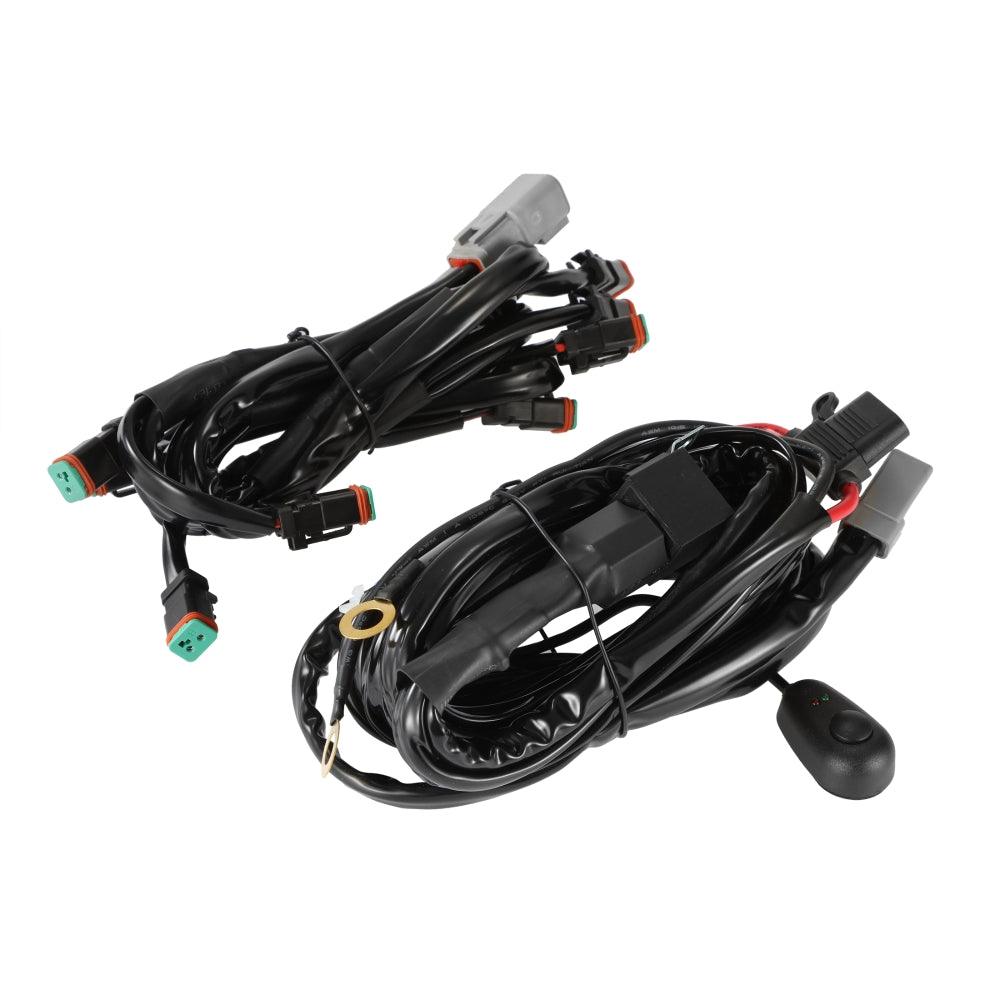

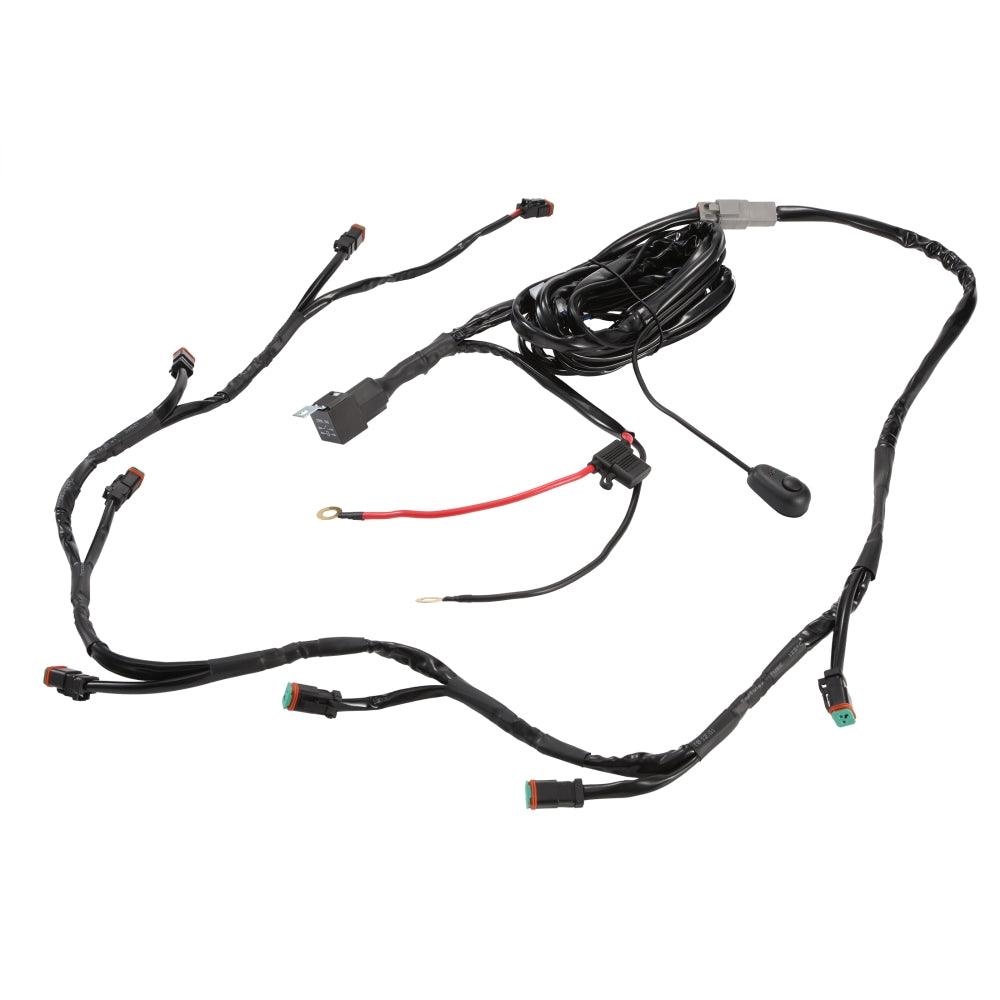

8-LED Pod Light Power Wiring Harness Kit with 2 PIN DT Plug

Recommend Fit for Our Pod Light SKU:

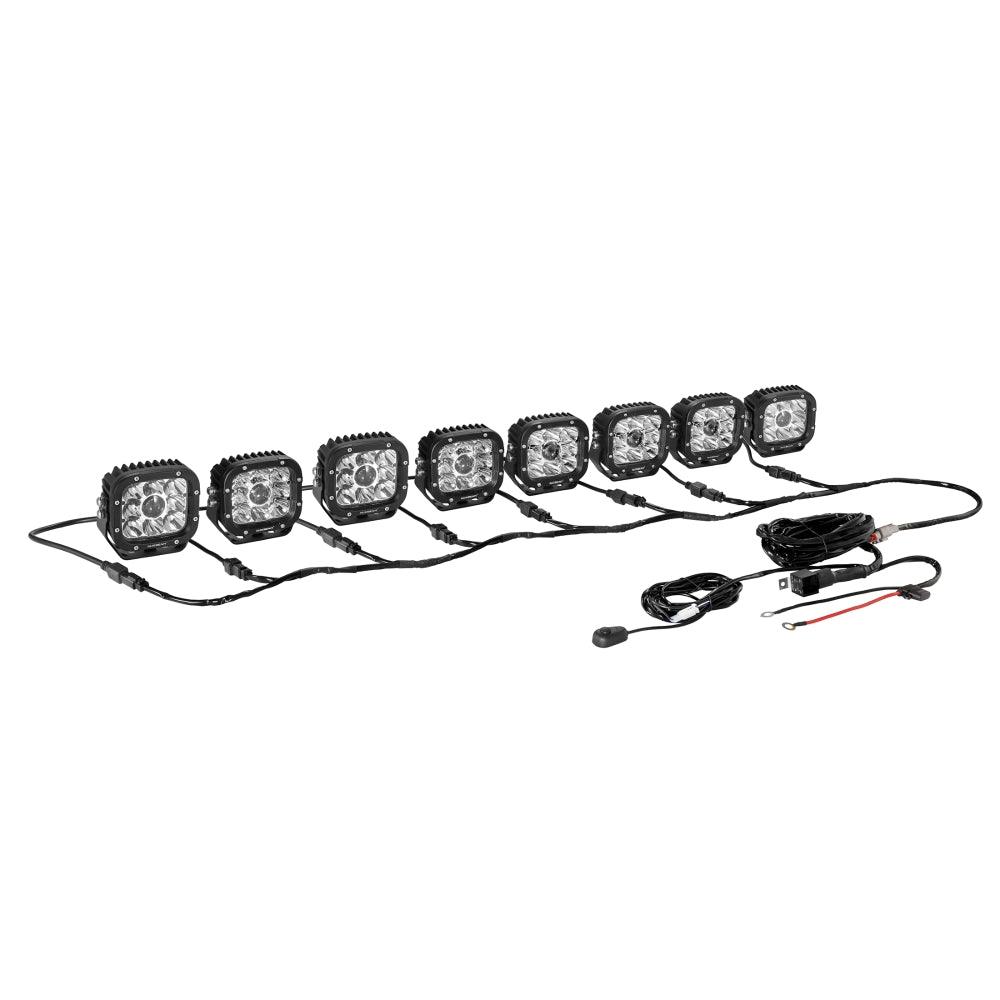

8-Pod Lights (A maximum of eight pod lights can be installed):
COLOR PLAY Series: ZD000865/ZD000866/ZD000867
XP-ULTRA Series: ZD000692/ZD000676/817/818/819
CUBE-Z Series: ZD000860/ZD000861/ZD000862
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
Other Product: ZD000668/ZD000669/ZD000683/ZD000618

6-Pod Lights (A maximum of six pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000675/ZD000858

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 8 in 1 2PIN DT Plug 50A fuse and 60A relay. Built-in blade fuse to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring  harness is included in a 3.5-meter 10AWG（5mm²） main wire and a DT-adapter plug with a total length of 2 meters，it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 8-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.
Tips: We recommend professional installation of LED wiring harness kits, please let professional installers connect the wiring harness kits.

Specification:

Connect Number Light：Max 8 Pods

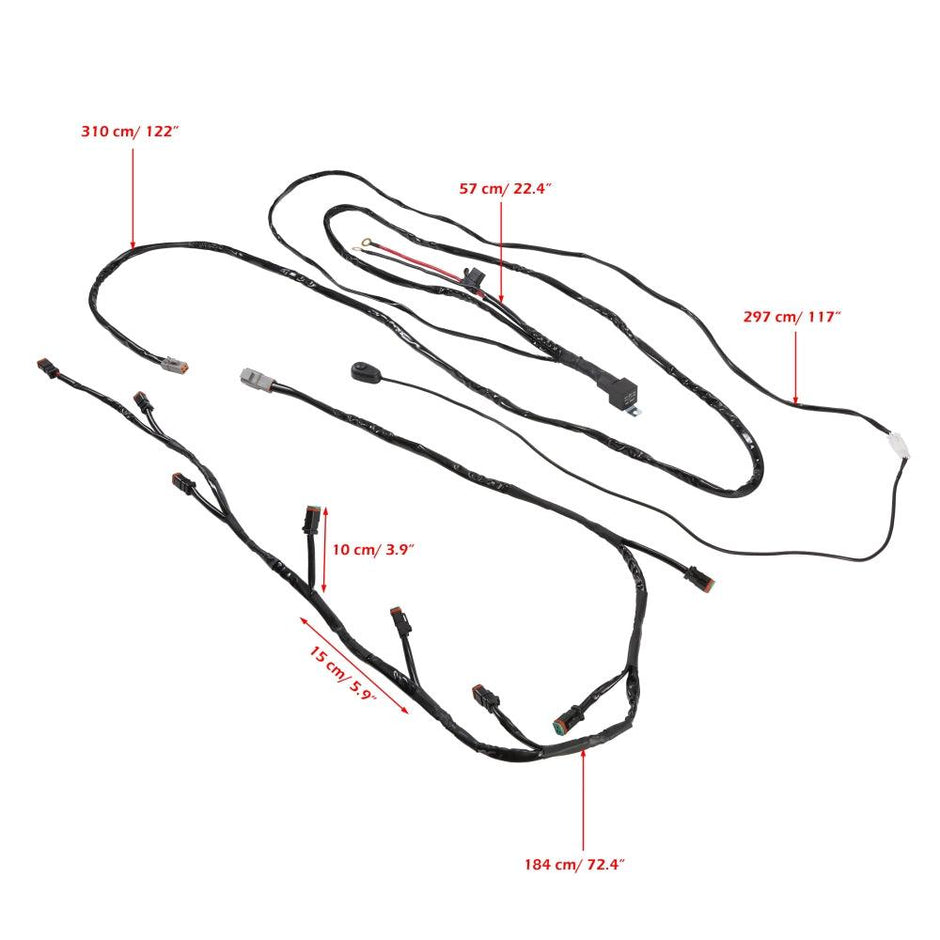

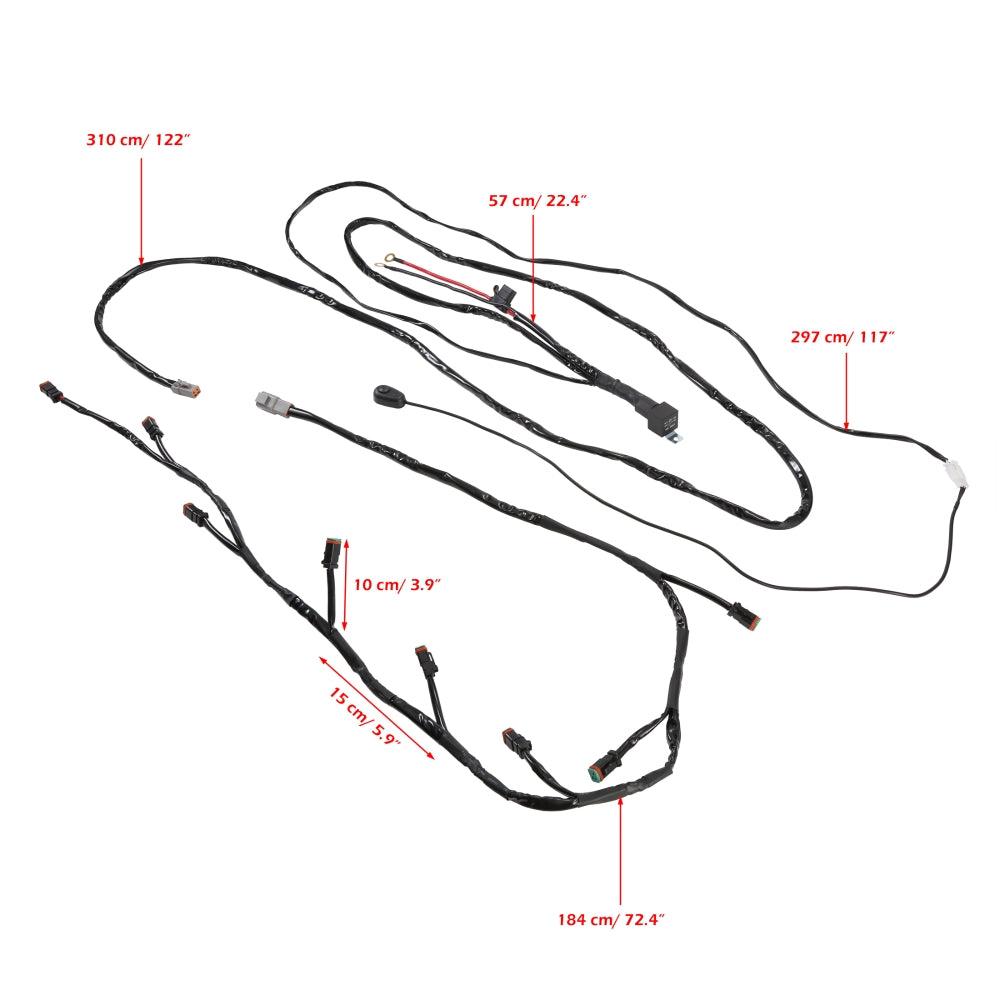

Wire Length: 3.5M Extension Cord +2M Connect Cord

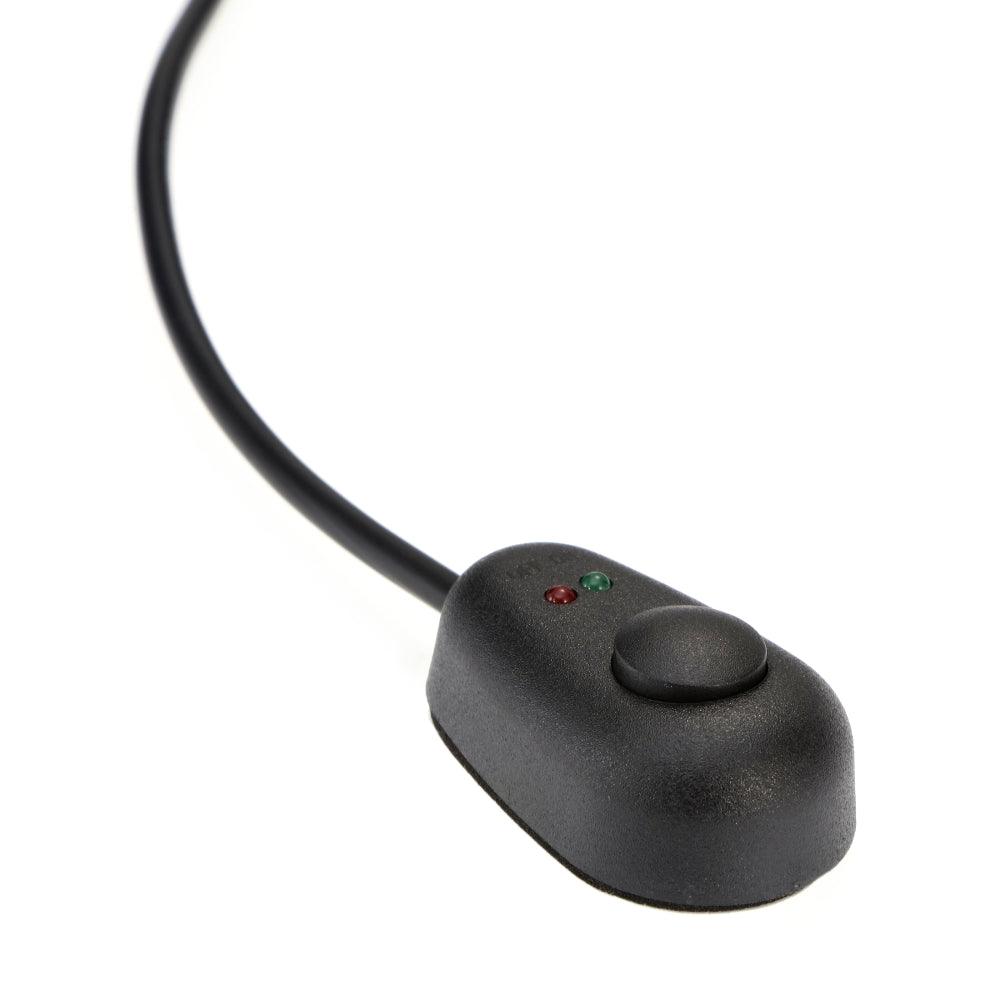

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm

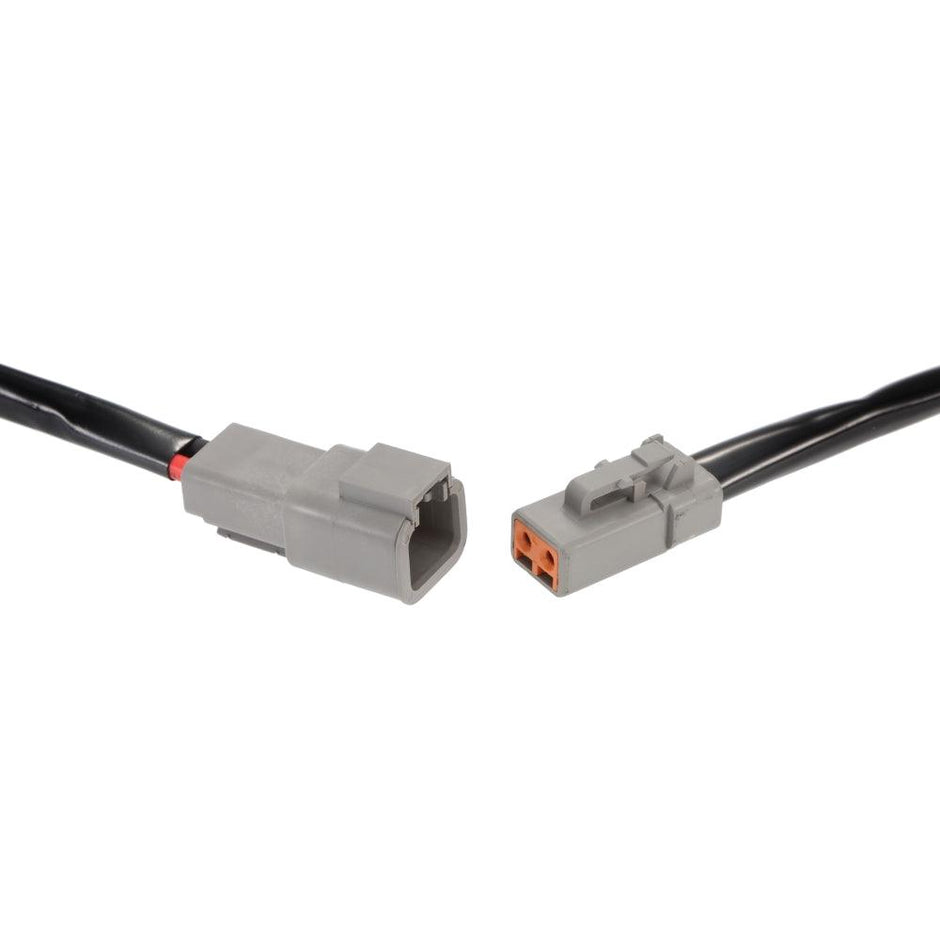

DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5mm² Copper Wire
Working Voltage: 12V (Replaceable 24V Relay)
Leads Power: Max 480W (Current 40A)
Fuse Size: 50A
Relay Size: 60A

Packing Included:

1 x 8-Pod Power Harness (Pod lights not included)
