AR-800 RGB Switch Panel with APP+12 Inch 5D-PRO LED Light Bar, Toggle/ Momentary/ Pulsed Mode Supported

Name: AR-800 RGB Switch Panel with APP+12 Inch 5D-PRO LED Light Bar, Toggle/ Momentary/ Pulsed Mode Supported
Brand: Auxbeam
SKU: GP00012145
Price: 646.99 AUD
Availability: InStock

No reviews

Auxbeam GP00012145

TYPE:

🔥Switch Panel(with Extension Cable)+LED Light Bar

Switch Panel(with Extension Cable)

12 Inch LED Light Bar

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Sale price $646.99 --45% Regular price $445.99

Regular price $646.99

Unit price / per

Tax included. Shipping calculated at checkout.

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

AR-800 RGB Switch Panel with APP+12 Inch 5D-PRO LED Light Bar, Toggle/ Momentary/ Pulsed Mode Supported

Sale price $646.99 Regular price $445.99

Regular price $646.99

Unit price / per

Description

We do some big upgrades on switch panel! The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. Change the backlight color and lighting modes to have fun programming with Auxbeam latest RGB switch panel

Specification:

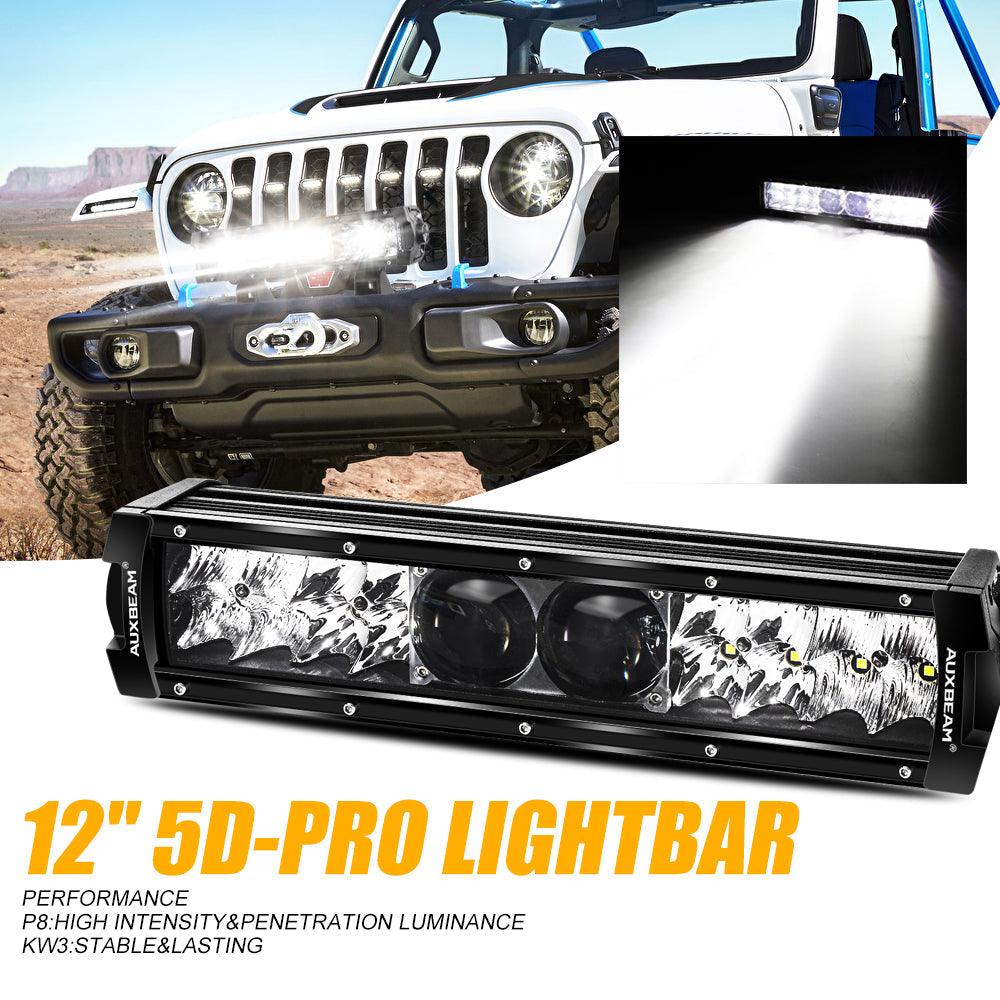

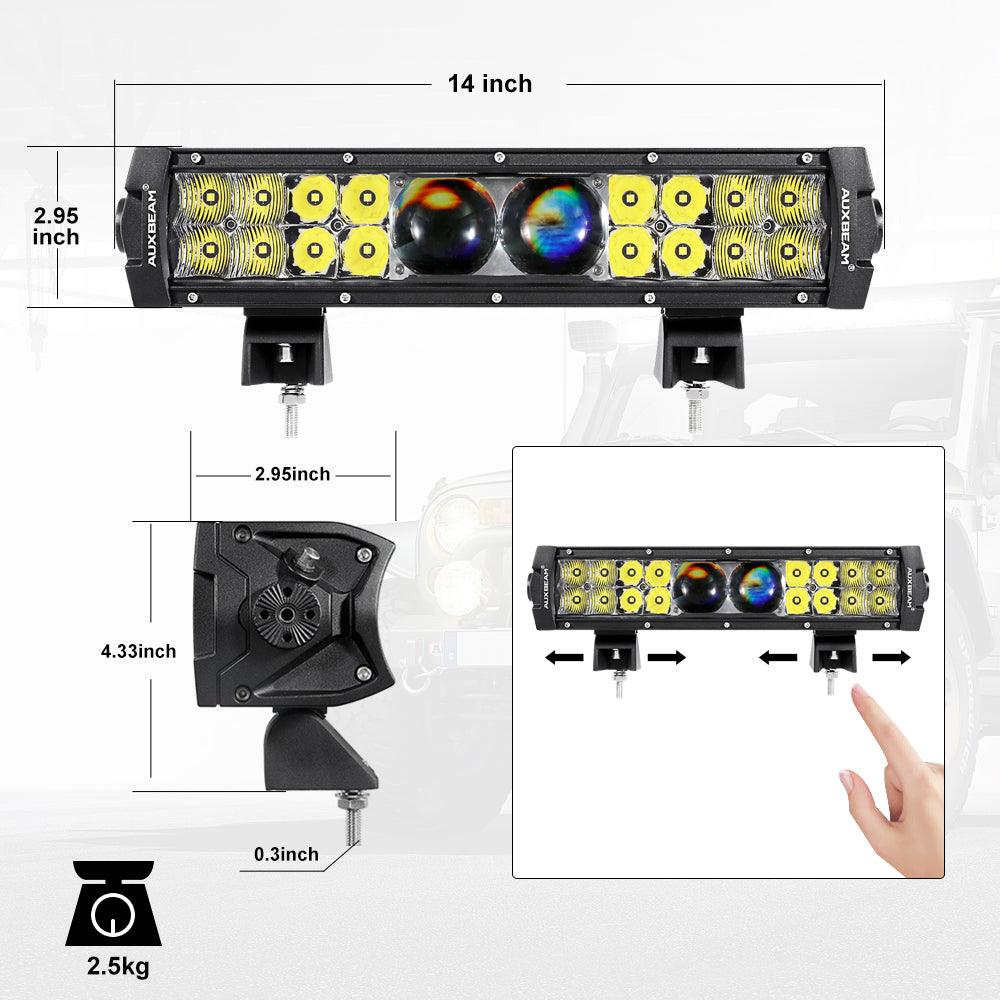

▶12 Inch 5D-PRO LED Light Bar

Size: 12"

Input voltage: 10-30V

Wattage: 100W

Lumens: 12000LM

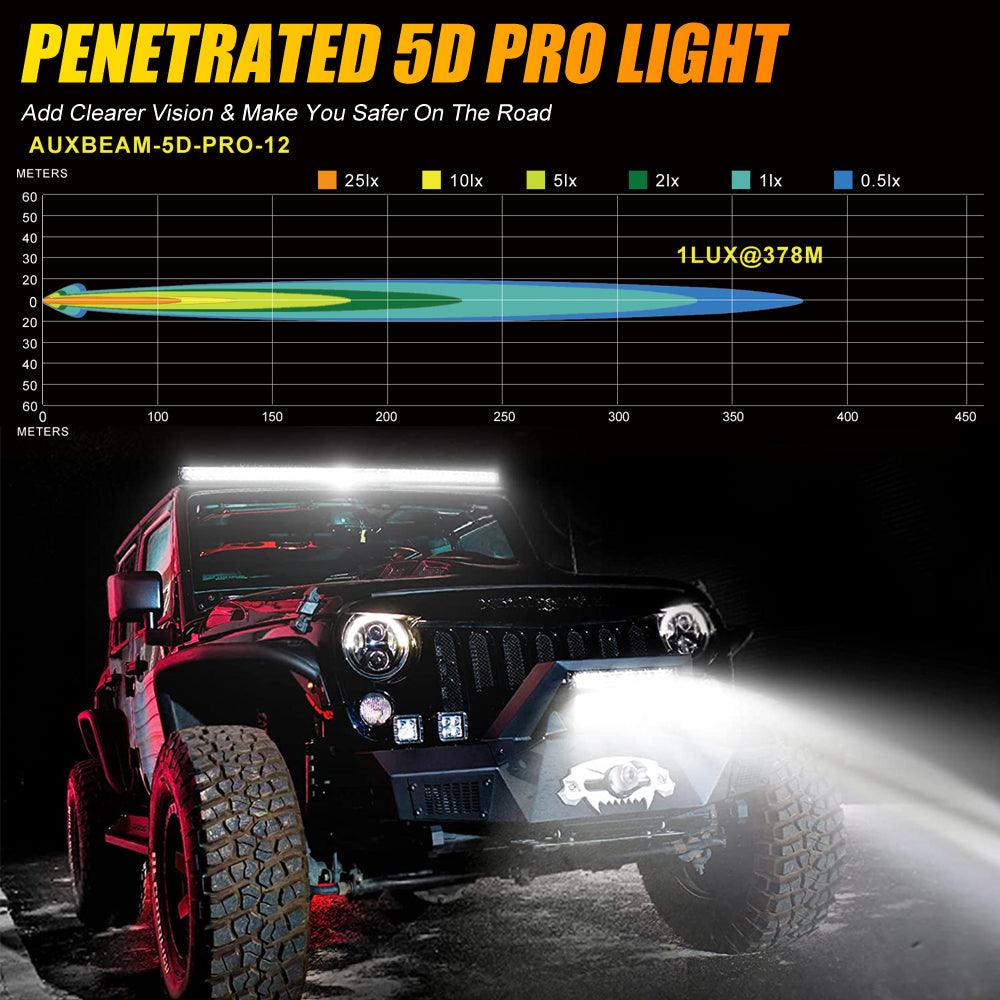

Lighting Distance: 1LUX@378M

LED Type: KW3+P8 chips

LED Chips Quantity: KW3*2+P8*16

Beam Type: Combo with 5D Projectors
Color temperature: 6500K
Waterproof rate: IP68

Light color: White
Body color: BLACK
PCS/SET: 1Pcs

▶AR-800 RGB Switch Panel with Bluetooth APP

Working voltage: DC 12-24V

Max current: 60A

Rated voltage: 12V 20A / 24V 10A

Operating at 12 Volts: max power rating of 720W

Operating at 24 Volts: max power rating of 1200W

Switch operation: On-Off

Operating temperature: -40°C - +105°C

Waterproof rating: IP65

Features:

▶12 Inch 5D-PRO LED Light Bar

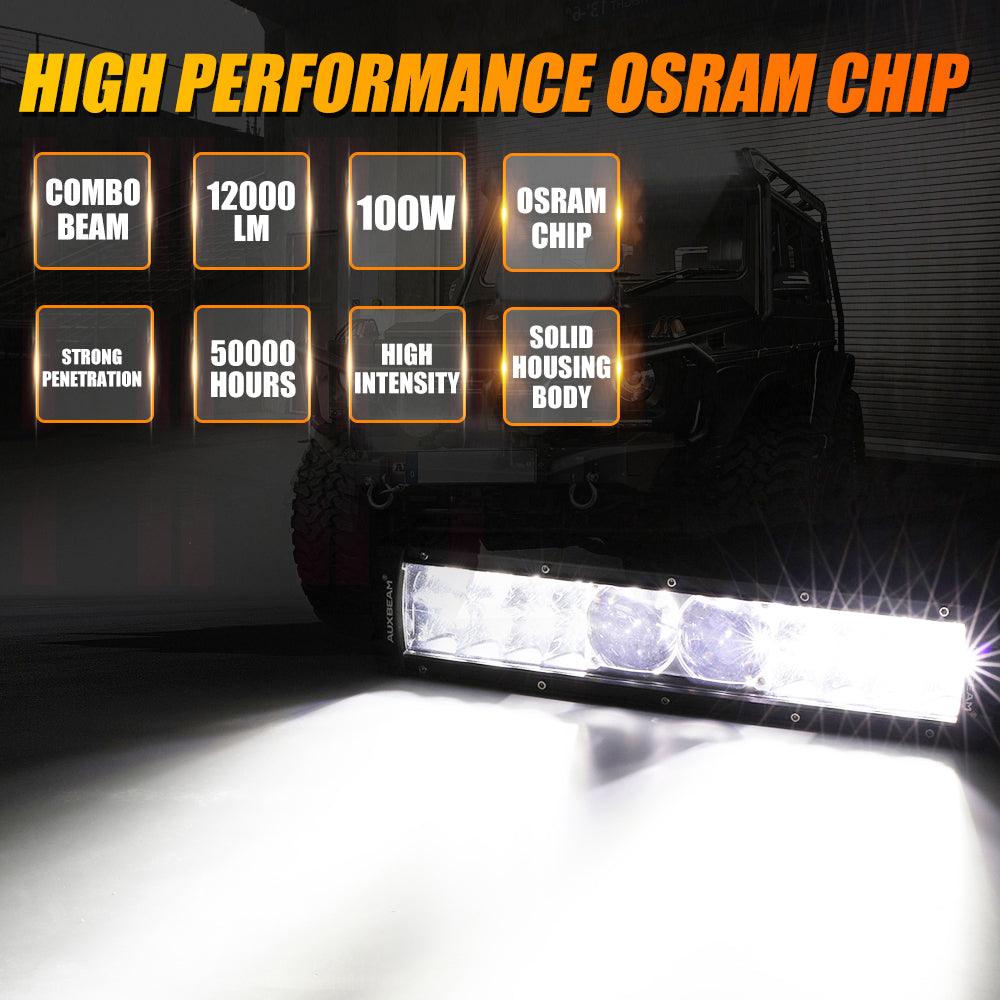

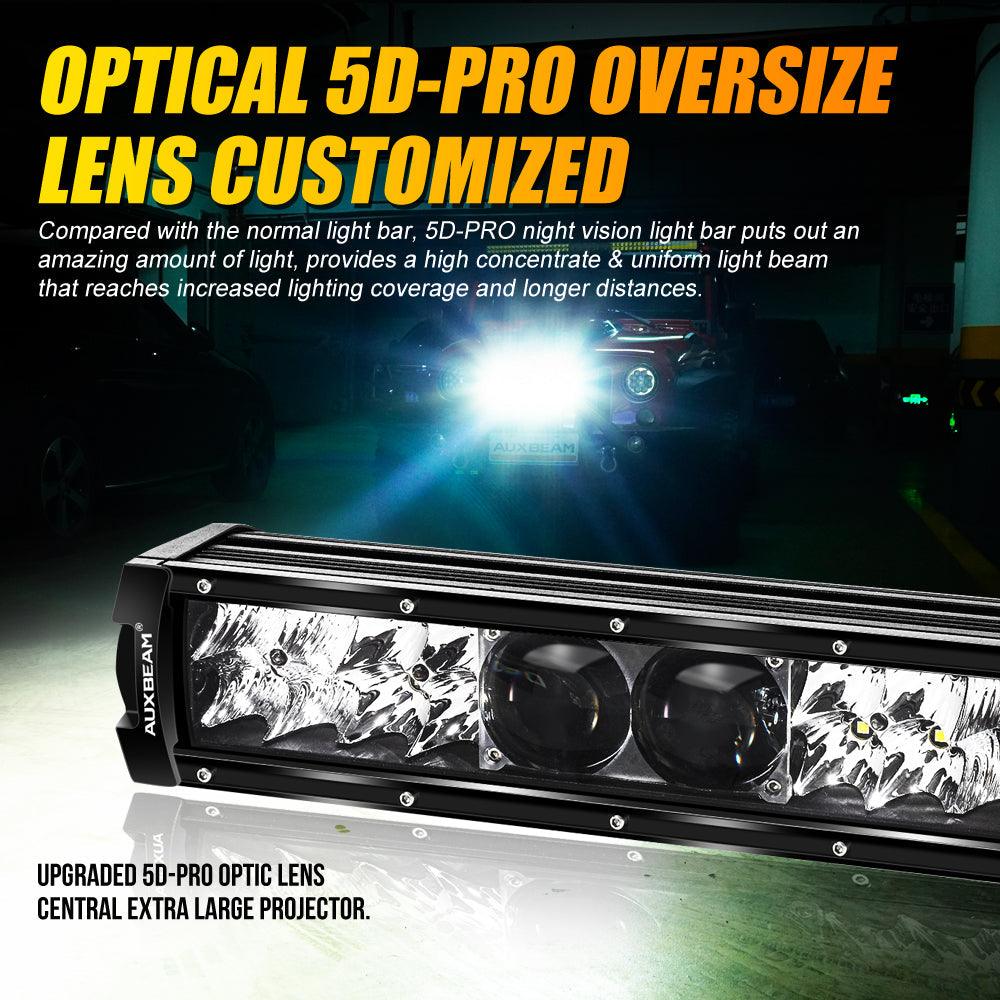

Newest upgraded Design. High-intensity OSRAM P8+KW3 LED chips, central extra large projector, spot beam & flood reflector combo on both sides.
The night vision light bar puts out an amazing amount of light and provides a high concentration of light beams that reach increased lighting coverage and longer distances for better visibility. Luminance improves 300%-400% compared with the ordinary light bar.
Made of premium die-aluminum alloy material, the solid housing body effectively prevents the light bar from breaking when driving at high speeds.
All-weather, IP68 waterproof, can withstand any harsh environment. High-efficiency cooling system for maximum component longevity.

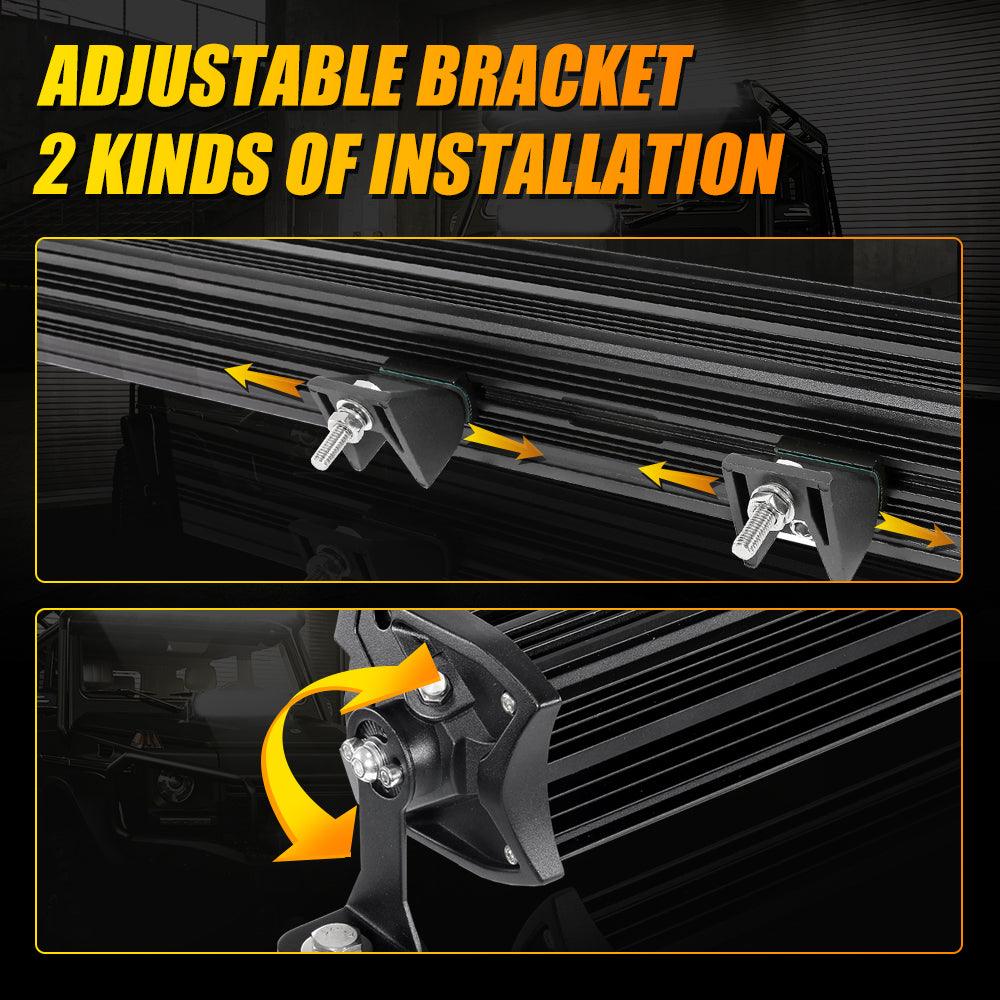

2 kinds of bracket installation, the light bar can be adjusted at any time according to the environment.

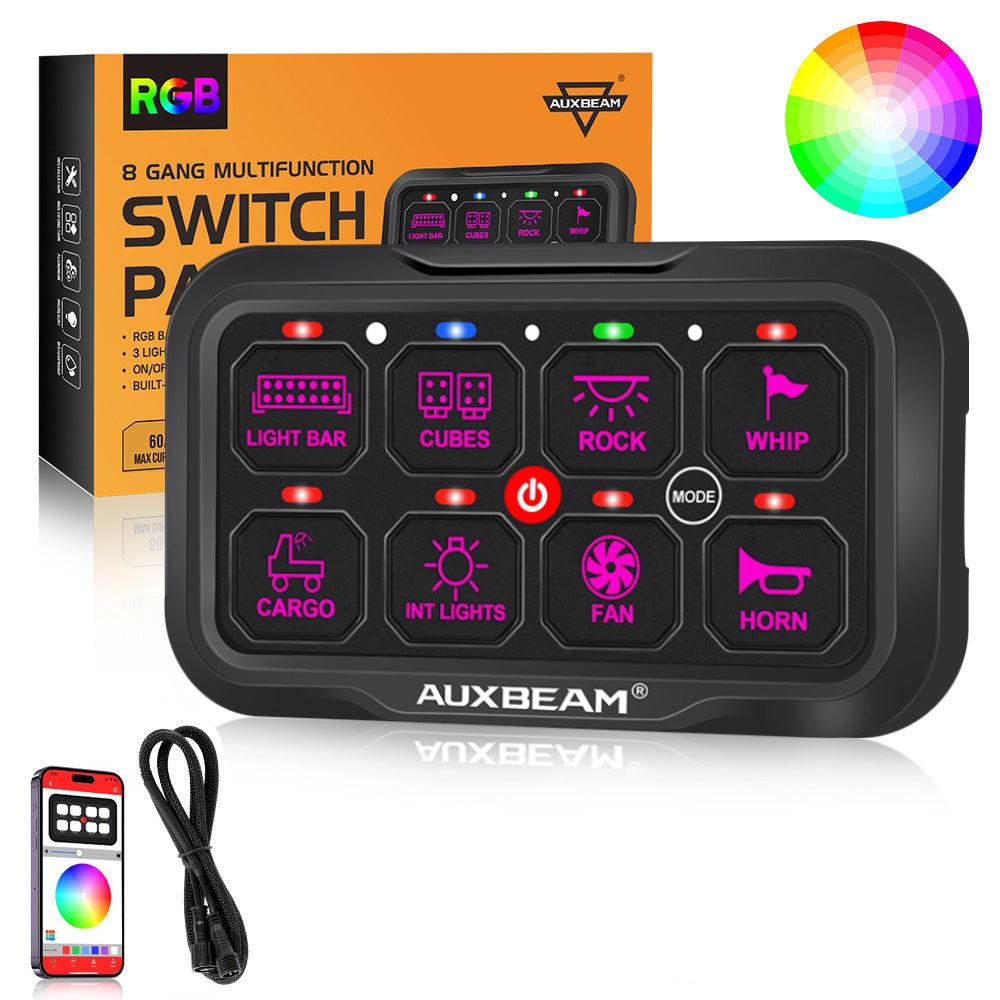

▶AR-800 RGB Switch Panel

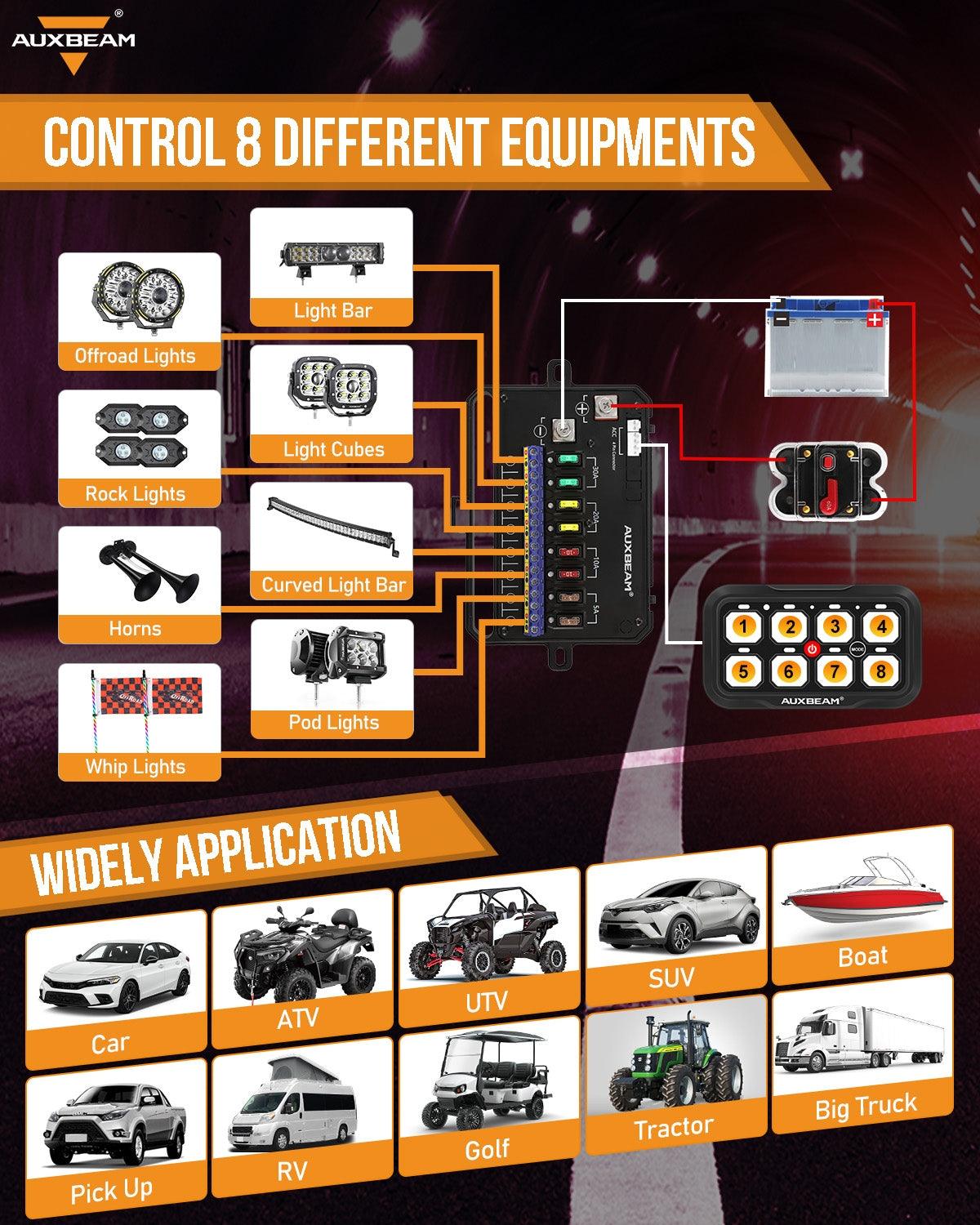

8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.

● RED-Toggle, Constant light mode (Great for things like fog lights or driving.

● BLUE-Momentary, Press & hold the button to turn on, then release the button o turn off, just like pressing the horn button.

● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

RGB backlight color. Adjust backlight color and brightness to match your vehicle.
Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
DIY button icon on APP. 200 default icons or use your own photos from the phone album.
Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

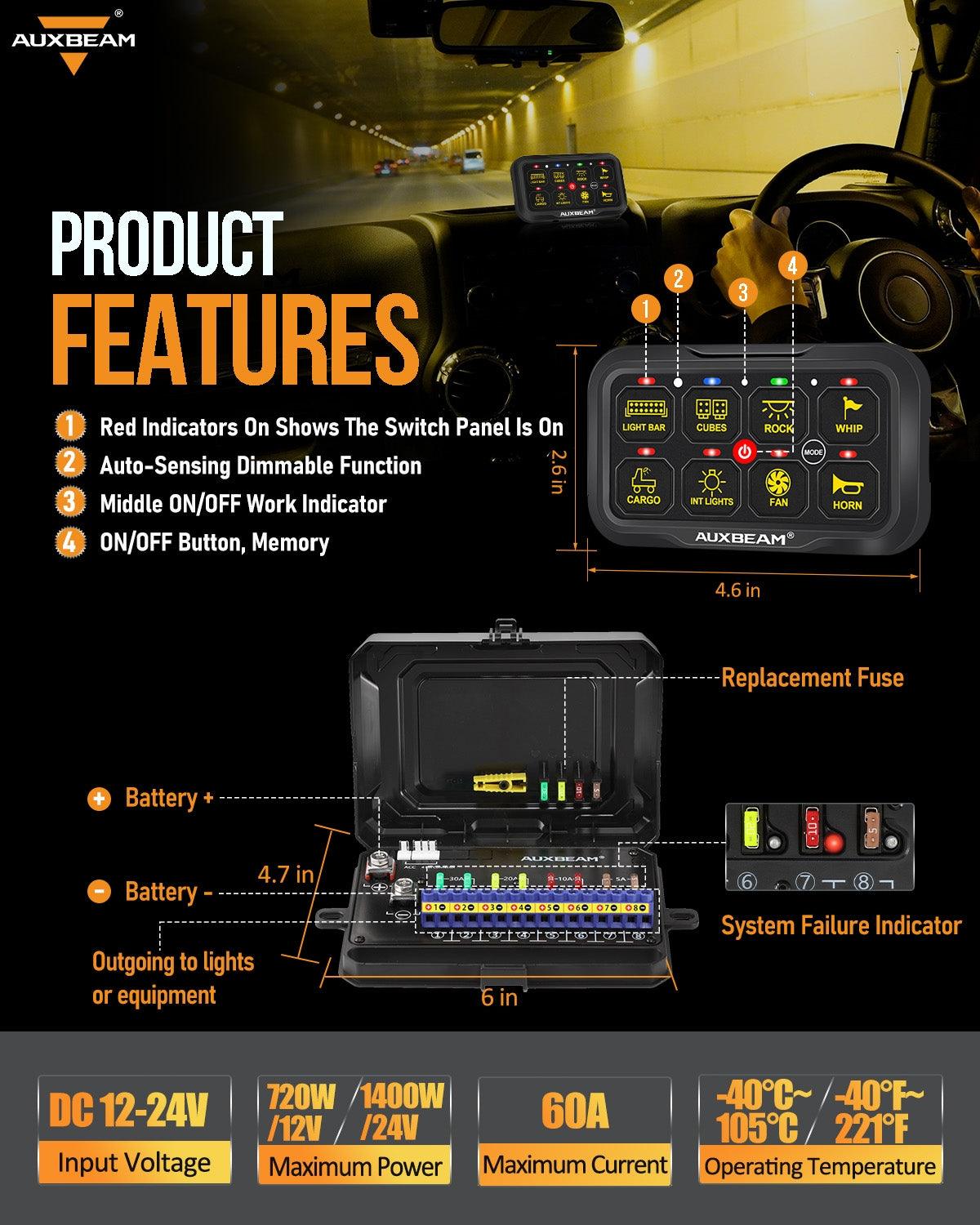

Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

▶47 Inch Extension Cable

There is a 4-pin aviation video cable, a cable for transmitting video and power.
It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
Power input DC 12V - DC 24V.
Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.

Bluetooth Connection Requirements:

Compatible with IOS & Android devices
IOS 9.0 or newer version, Android 4.5 newer version
Download the “Switch panel” app from Apple store or Google Play Store (free download). Scan QR code on the instructions.
If your Android device can not connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.

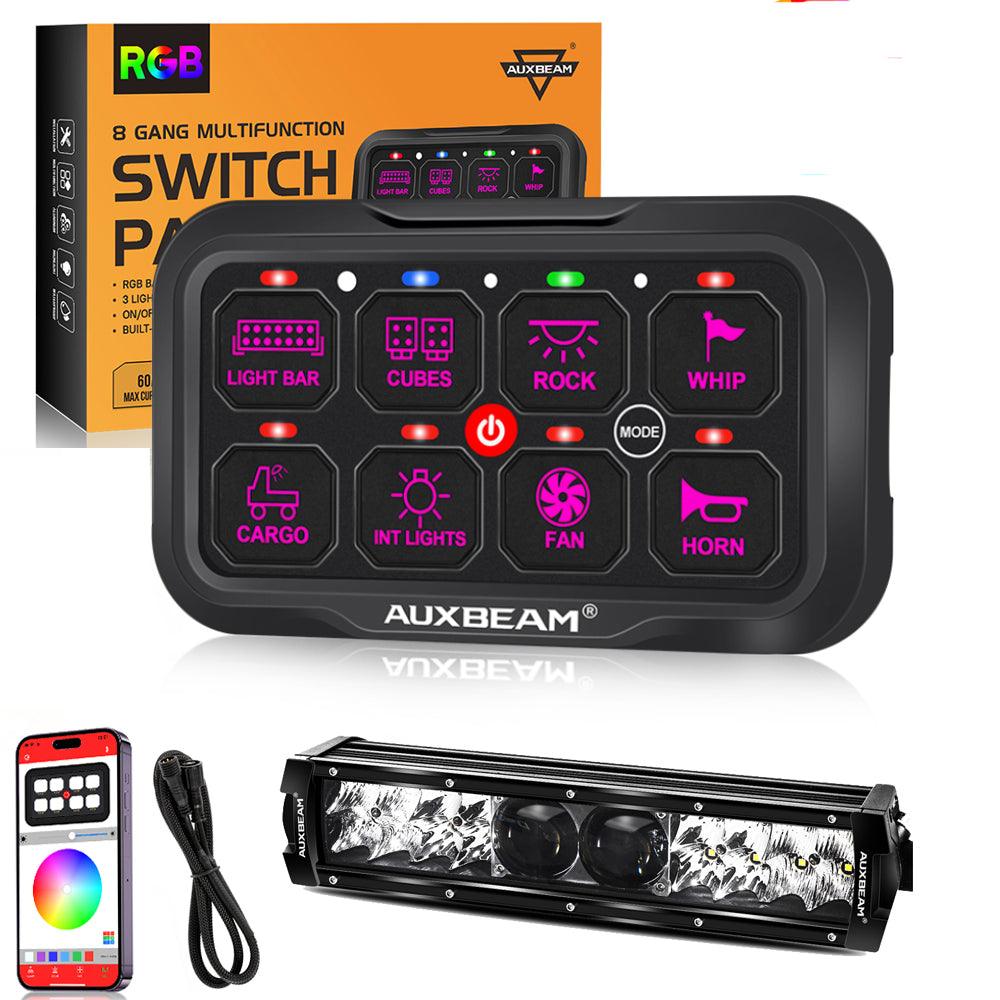

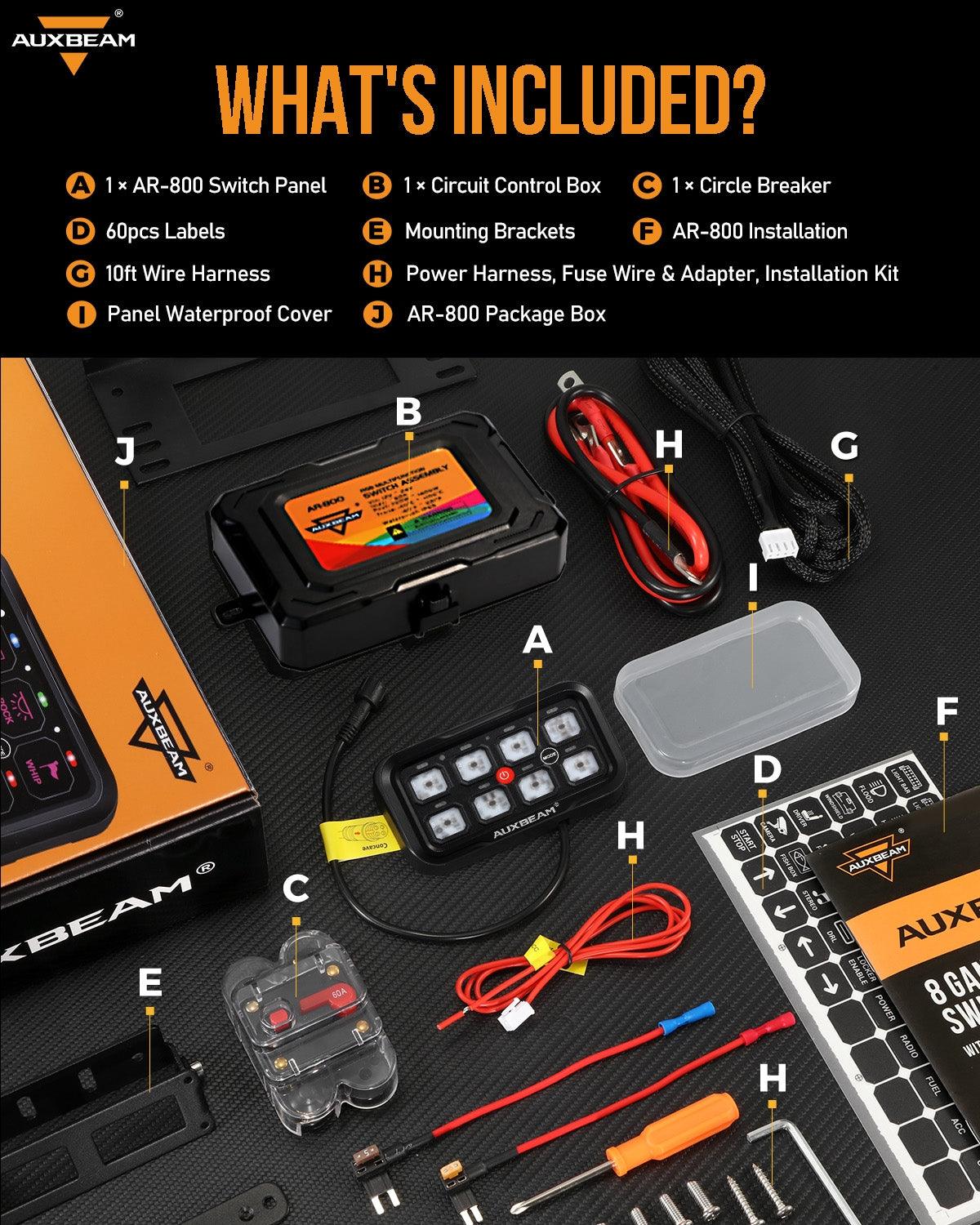

Package Included:

8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)*1
Installation Instructions*1
47Inch Extension Cable*1

LED Light Bar*1

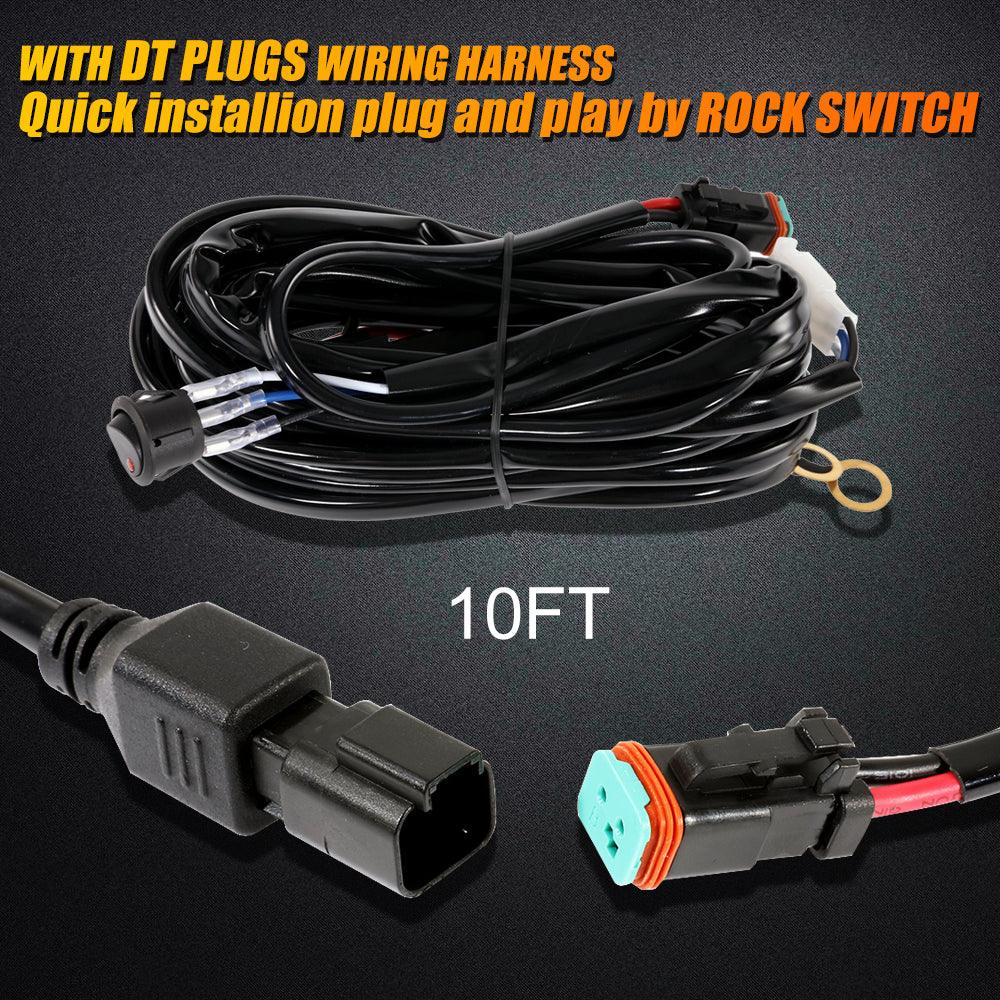

DT Wiring Harness*1

Guideline for connecting the red cables:

The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
