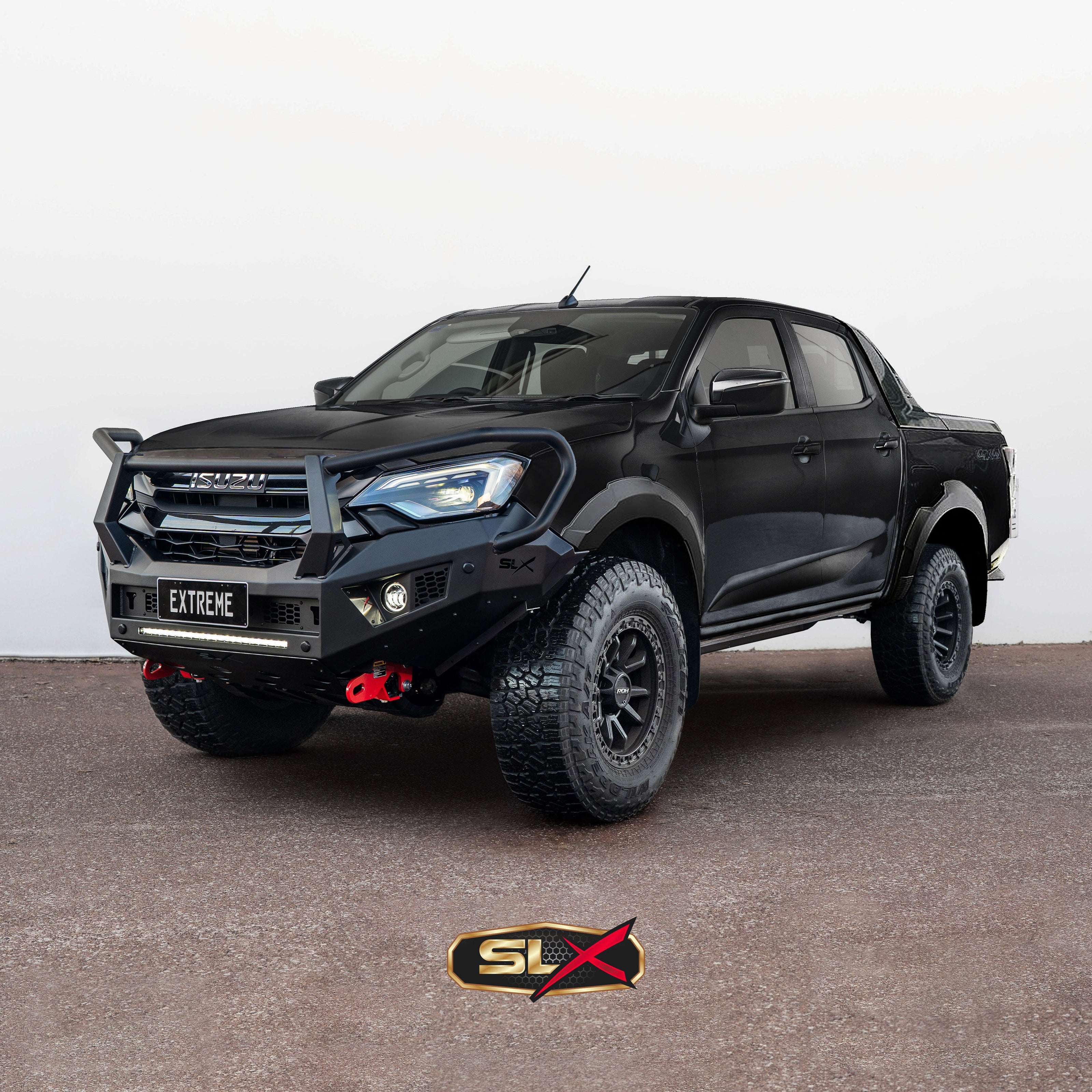

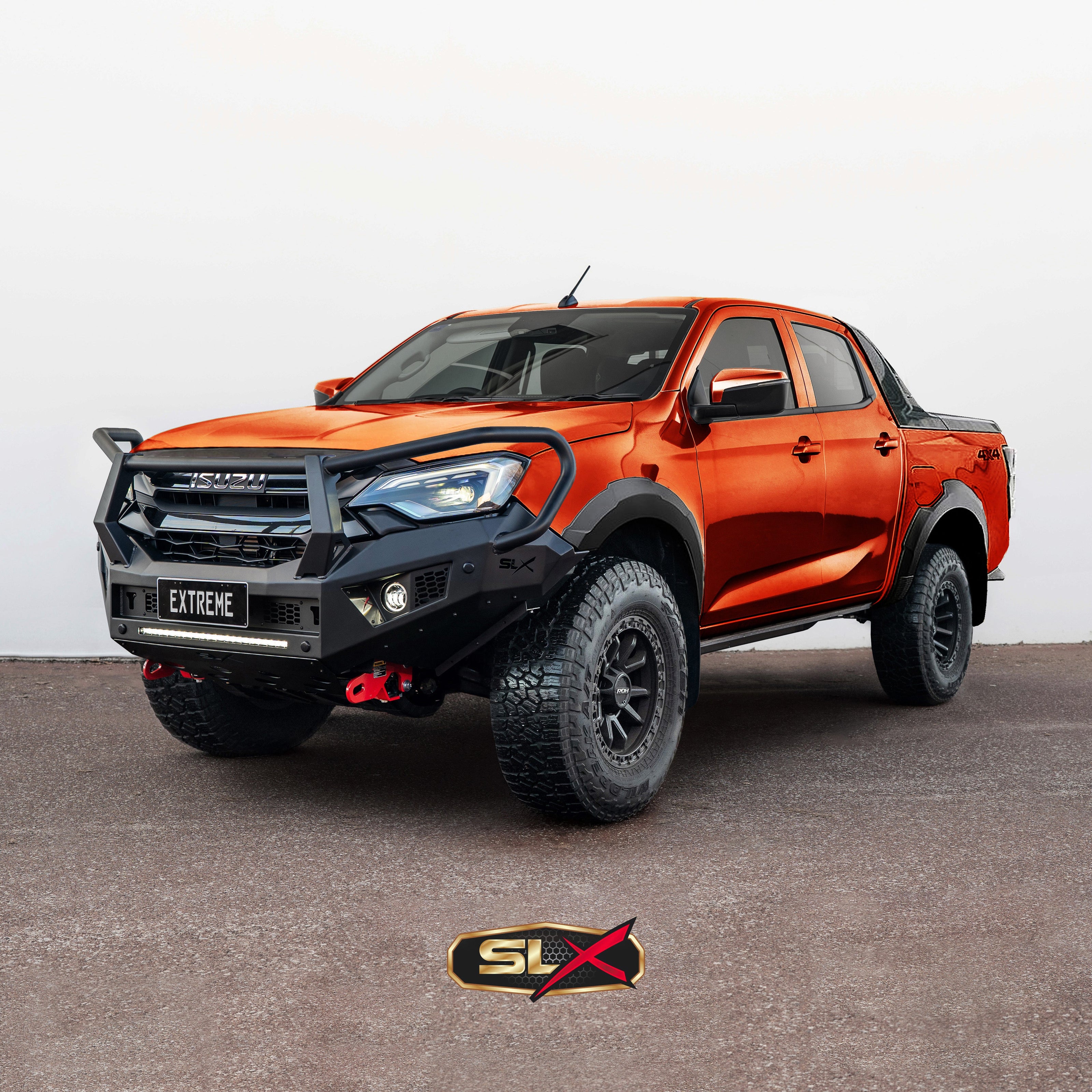

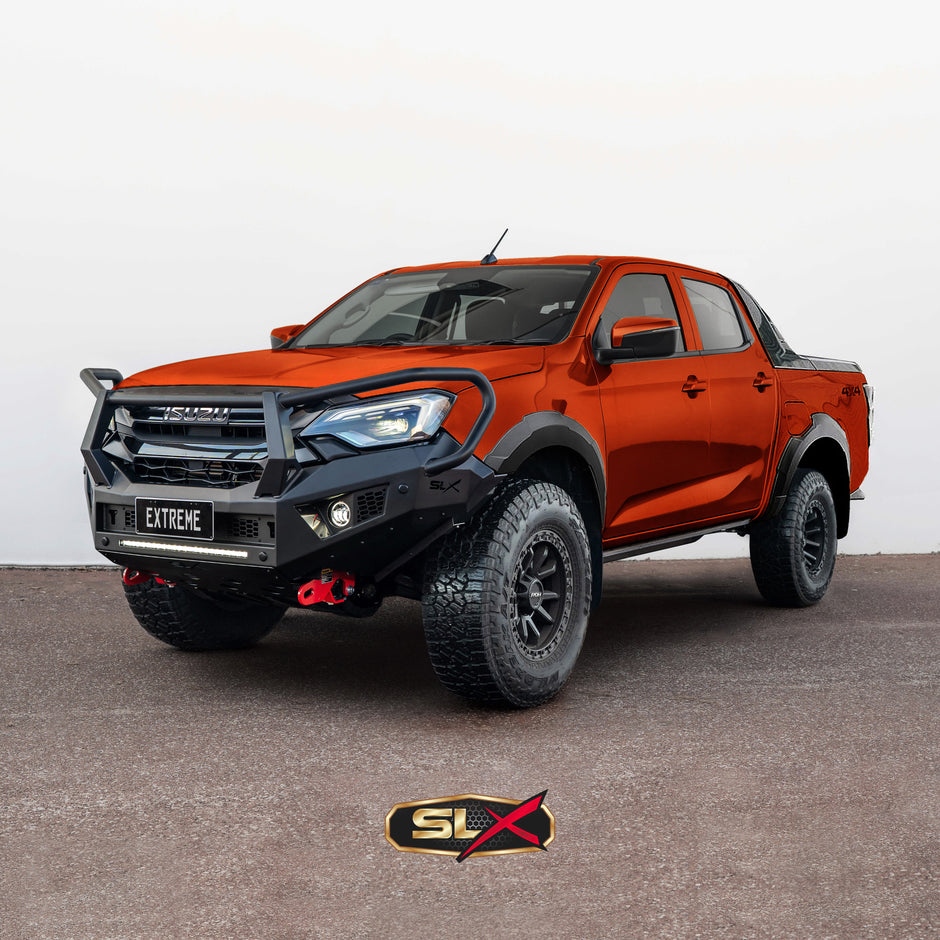

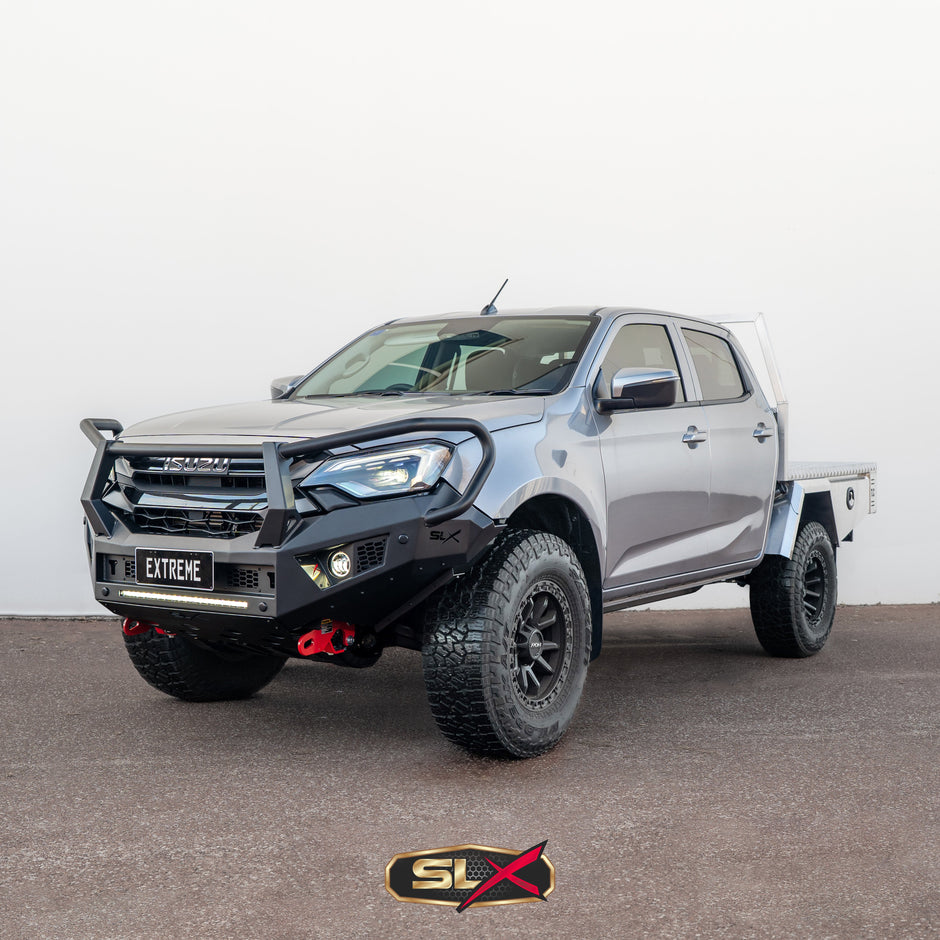

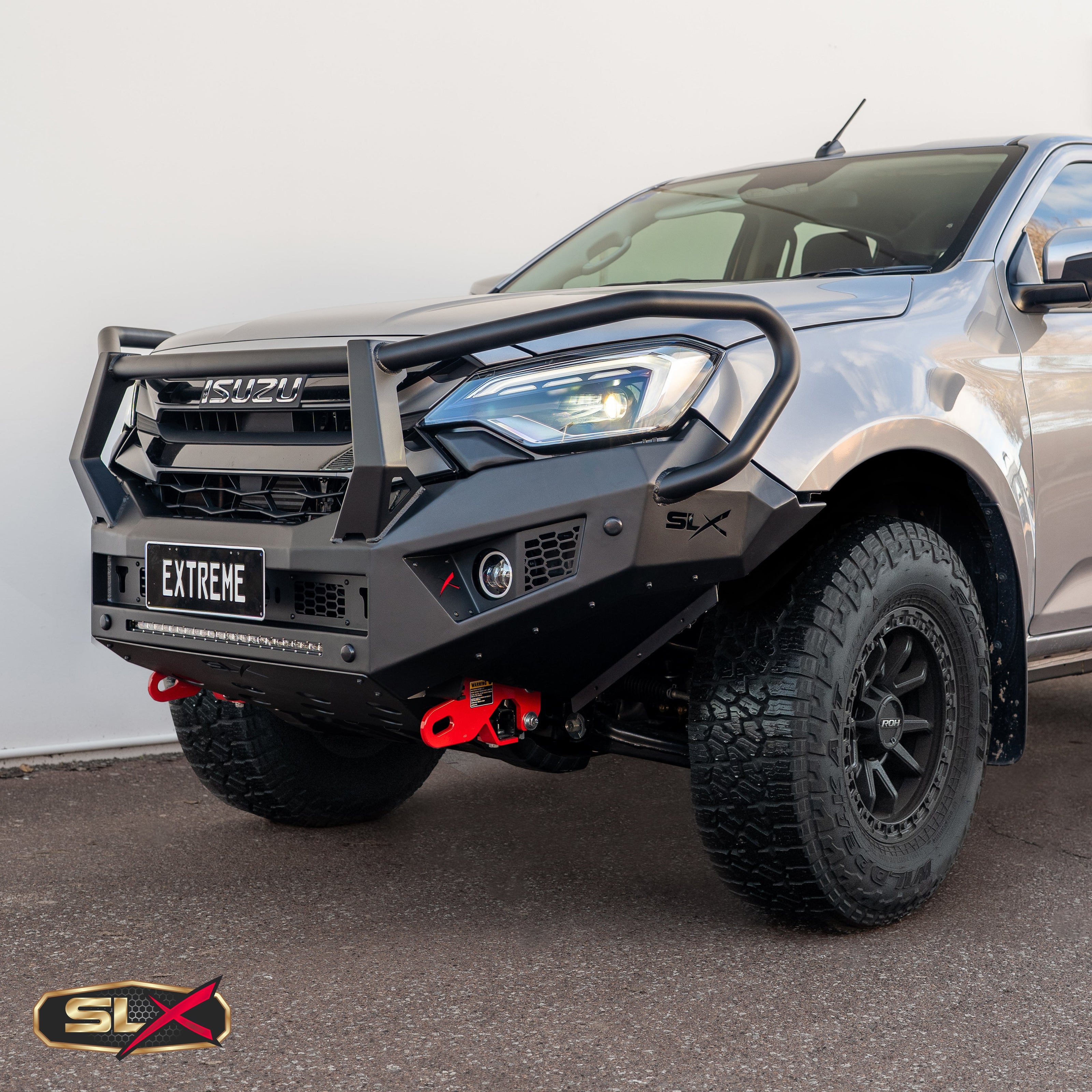

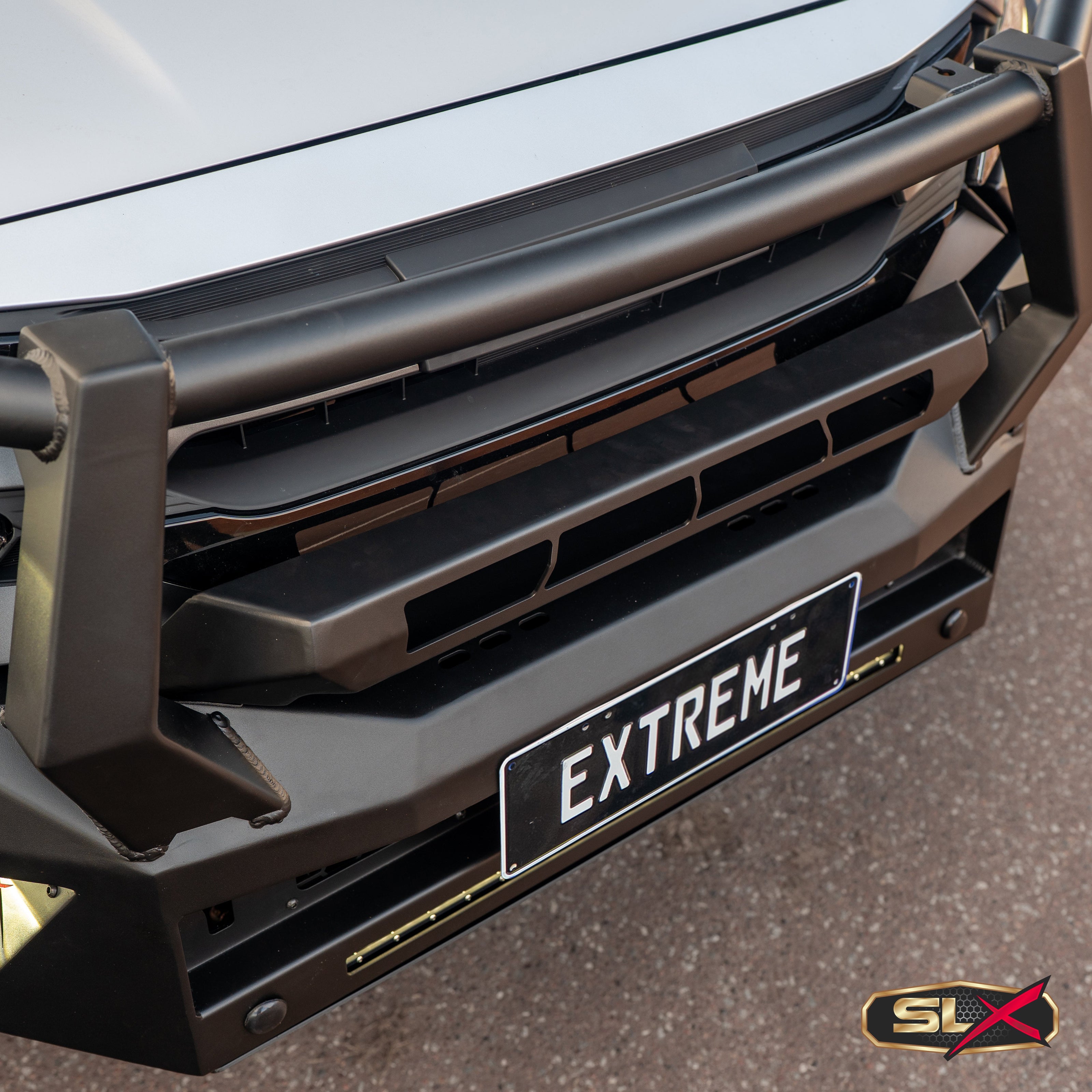

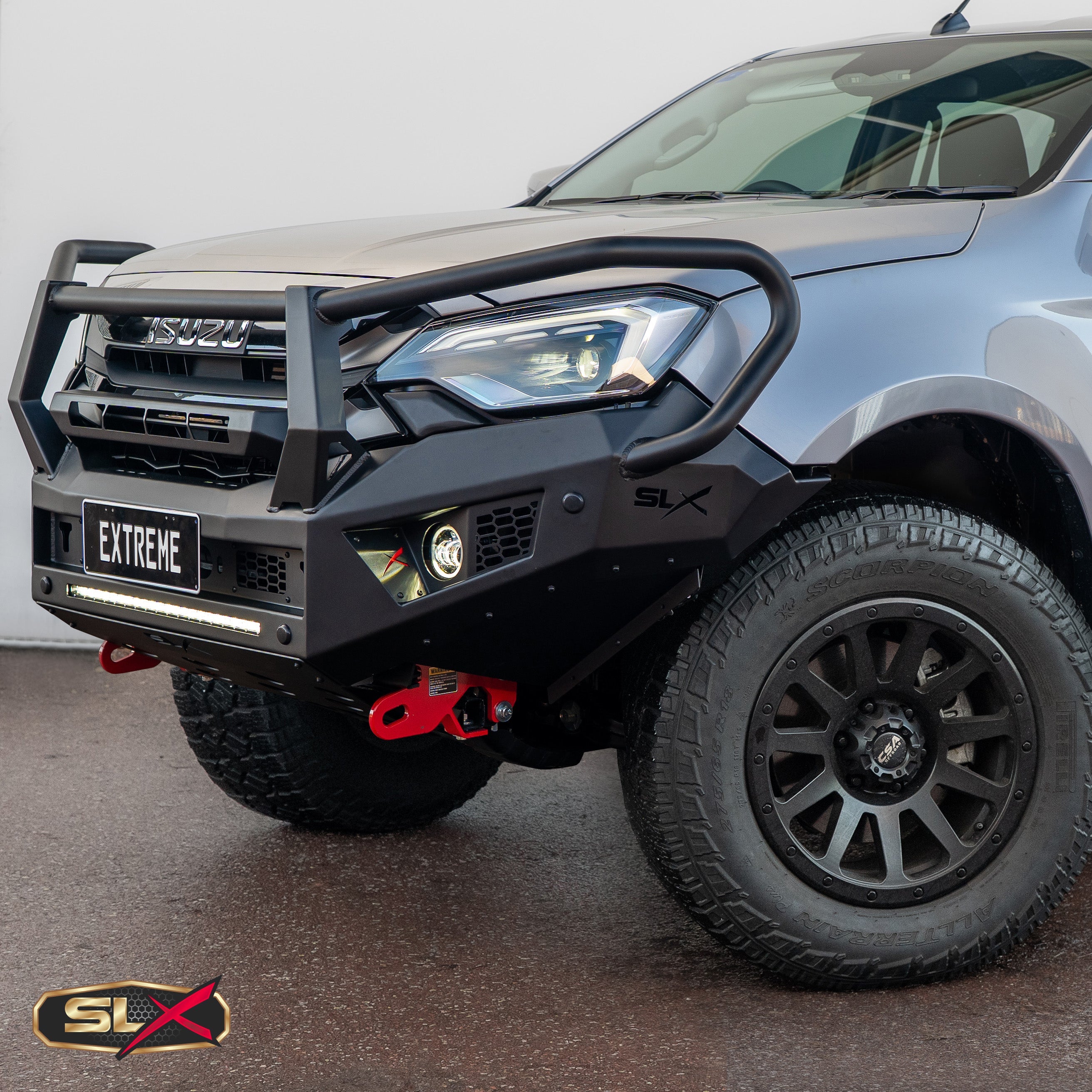

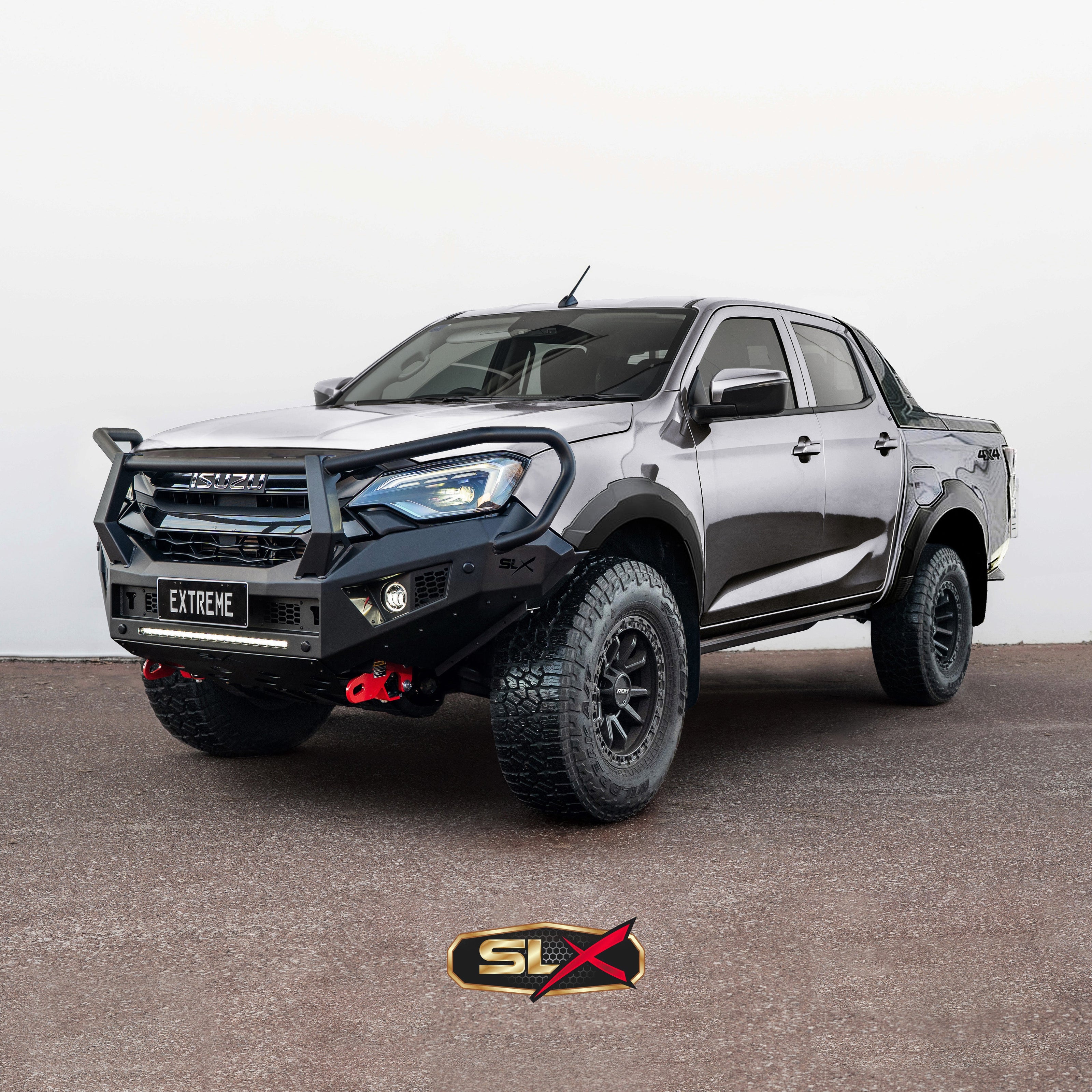

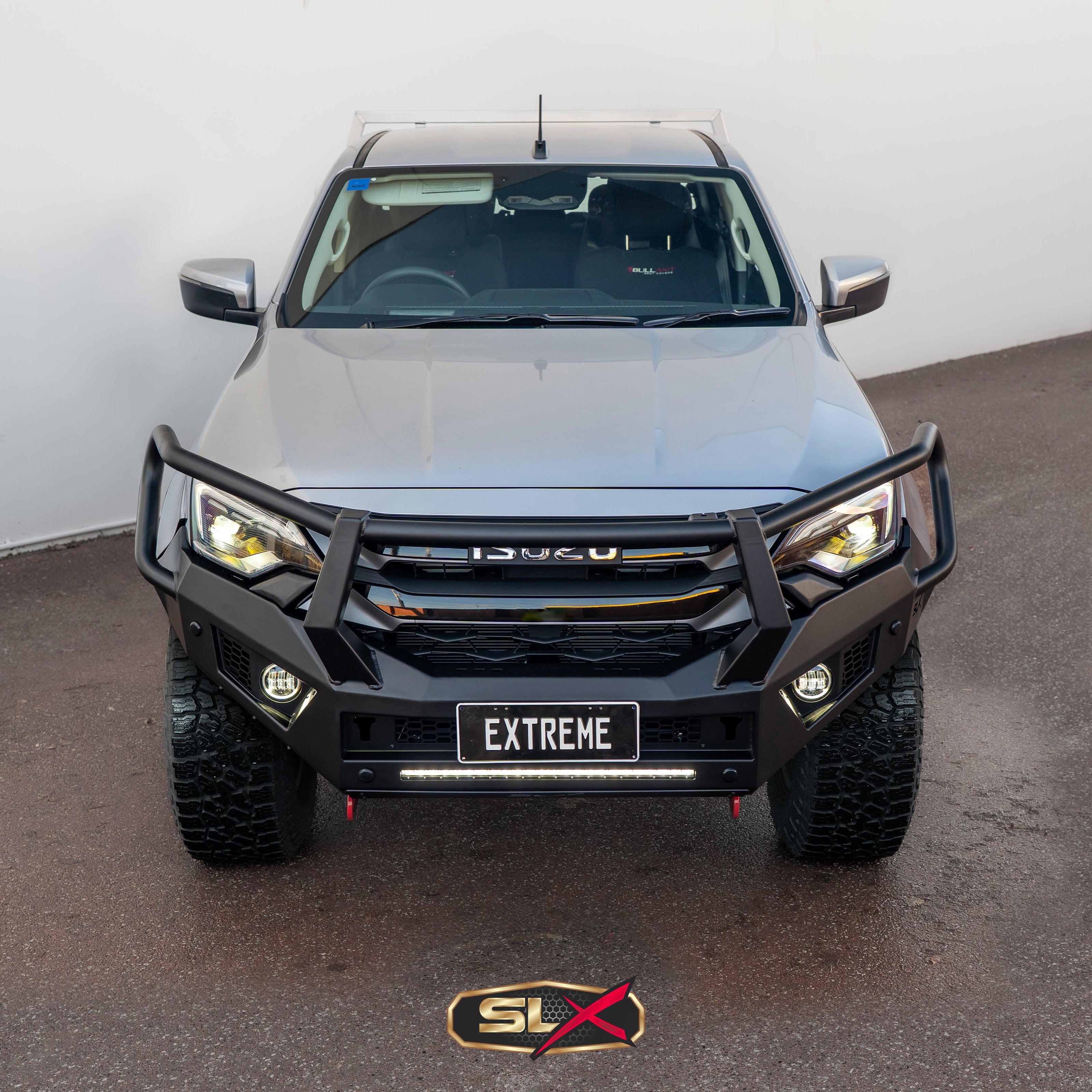

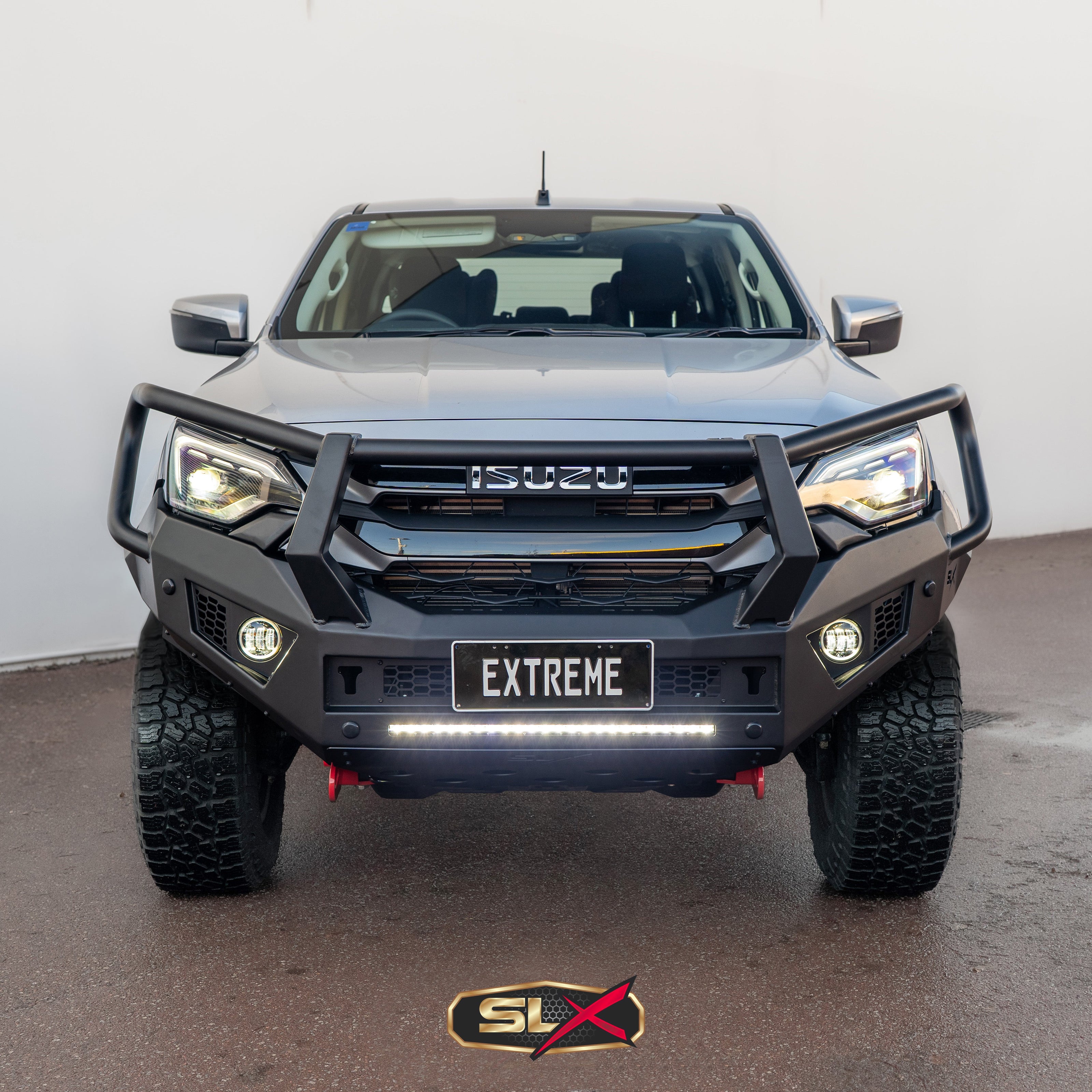

EXTREME SERIES BULLBAR Suits Isuzu Dmax BLADE 03/2024 on Triple Loop
- Isuzu D-Max2024+
Before you order
Not sure it fits? Ask us.
Send your year, model and engine. We'll confirm the part number before you buy.
Pay later
Afterpay & Zip
Split it into instalments
Delivery
Australia-wide
Usually 3β7 business days
Genuine
US & Canadian brands
Not copies or knock-offs
Support
Real people, no bots
20+ years fitting this gear
Aussie owned. 25 years in the auto trade.
About us
Normally ships within 3β8 business days
SUITS BLADE
COMES WITH EXTRA BASH PLATE AND FLARE END CAPS.
Your existing led bar gets relocated higher in your grill.
INCLUDES - FITS ALL LOW MOUNT WINCHES EVEN RUNVA 13XP
- Chassis mounted 4.5T Recovery points includedΒ
- 4mm bash plate steel
- Winch Cradle

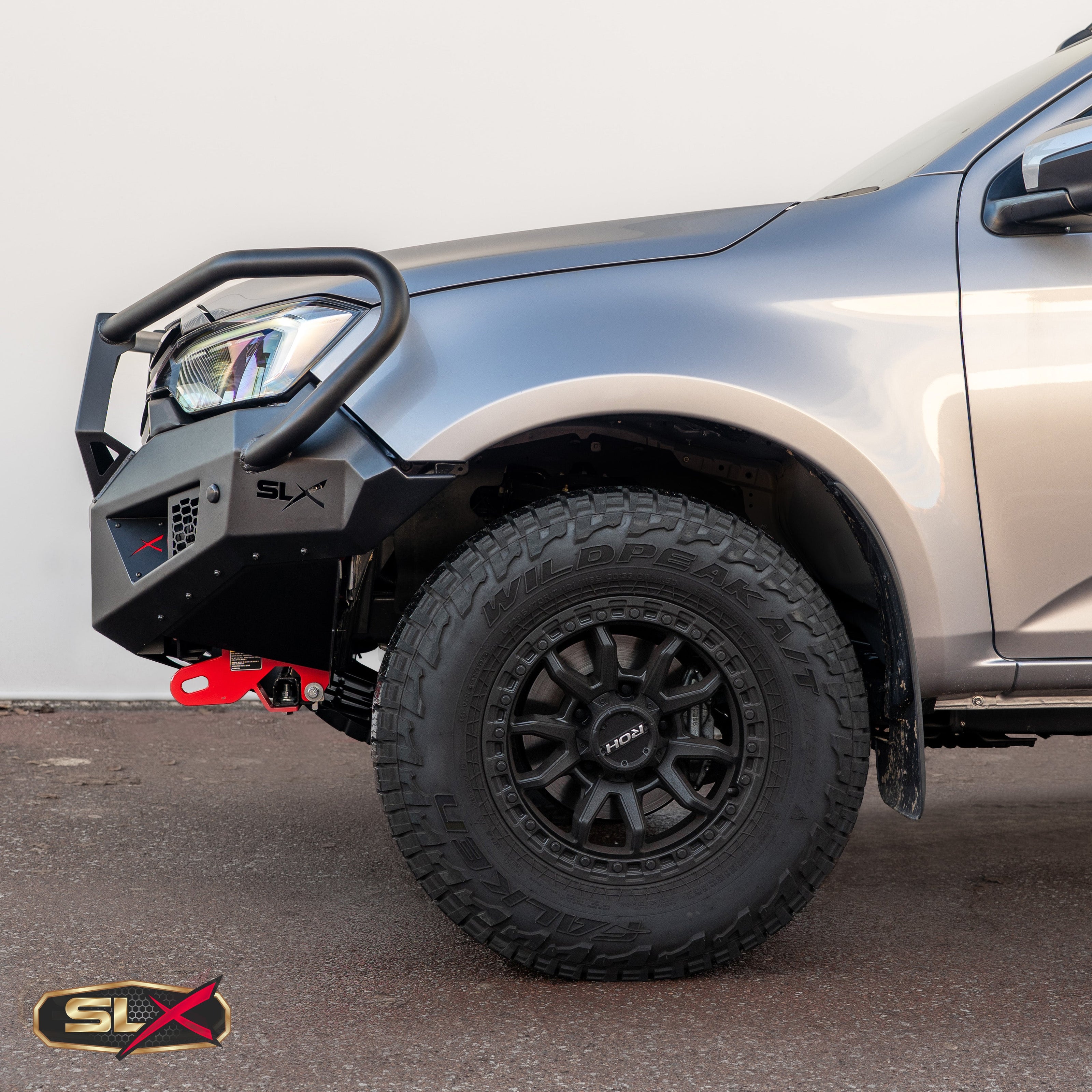

- Under wing Side bash plates
- Removable mesh vents centre
- Removable metal loop included which can hold a 21.5inch LED bar provisionΒ . IE Stedi ST3K 21.5inch ( not included)Β
- Spot light holes cutout in top of bar if not running led bar metal loop
-

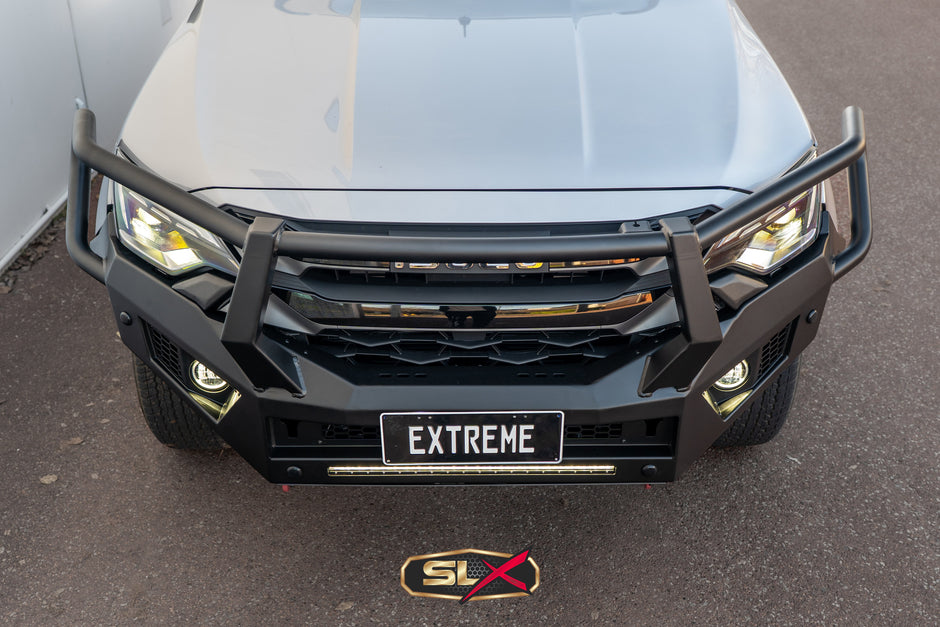

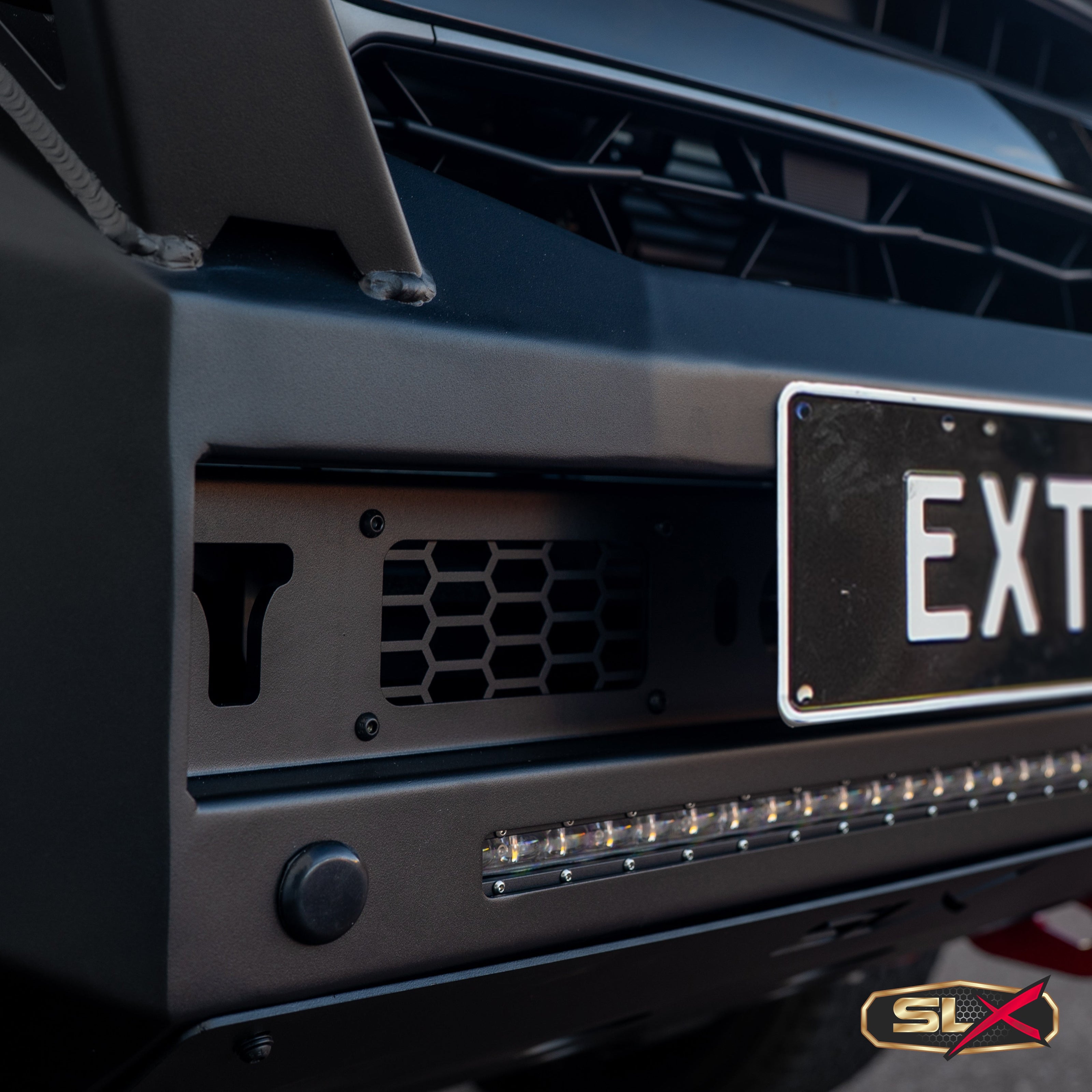

Cutout under number plate for 25inch single row 120w LED bar ( LED bar not included)
The 25inch led bar can be purchased from SLX website, the Loop LED bar 21.5inch suits a stedi brand or similar mounting hole led bar.
Spot light allocation on top of bar for 3 hole mounting system spotlights.
Sensor cut outs - we provide all sensor housing components.
Only 120mm from front of grill to front of the bullbar.
Can suit upto 12,000lb Low mount Winch.

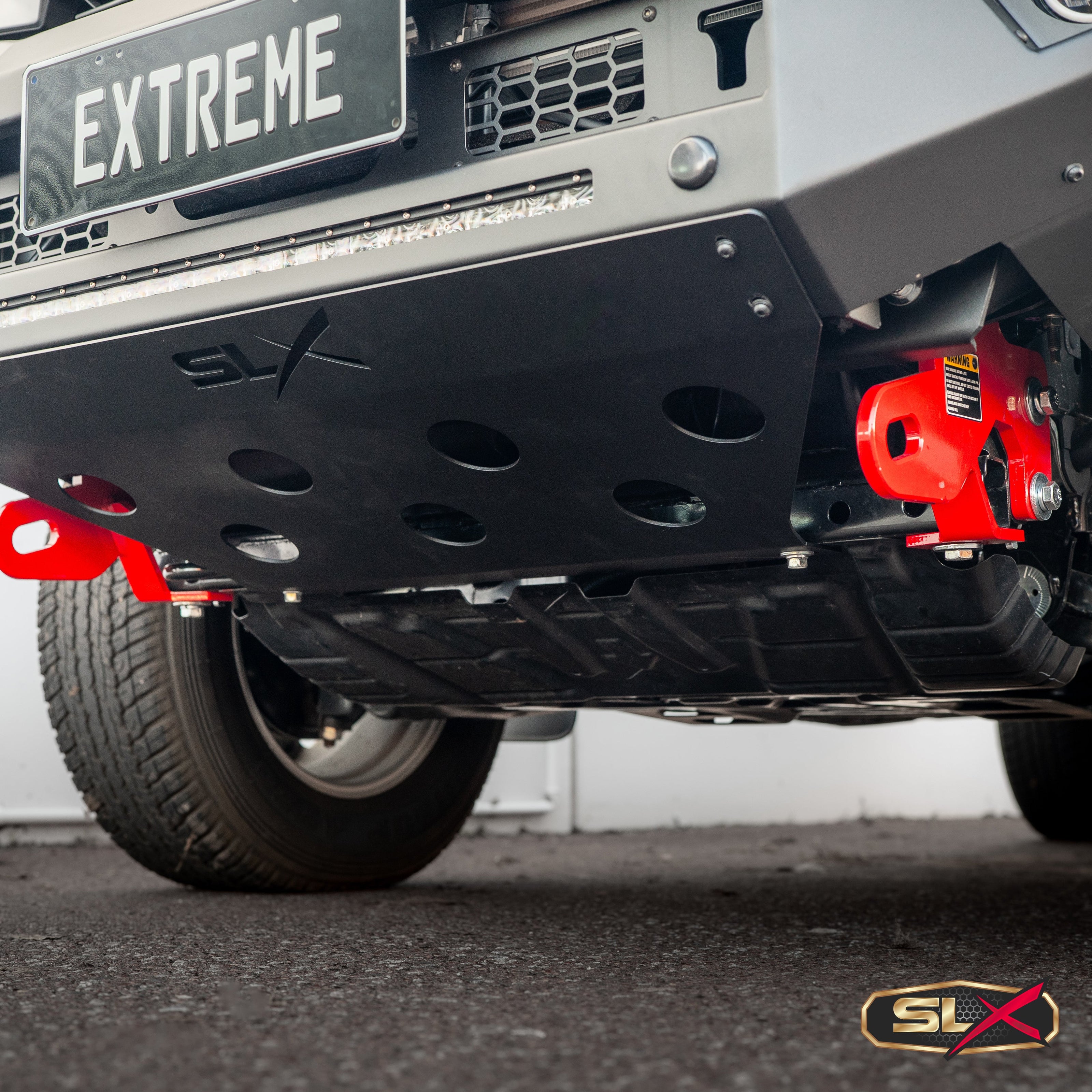

INCLUDES BASH PLATE
- Made from 8mm steel main winch cradle & 3mm side wings reinforced
- ADR69 compliant and airbag compatible Tested by ASE
- Meets AS4876.1 2002
- Suits most low mount winches upto 12,000LB
- Powder coated in texture black or can be colour matched(Additional Cost)

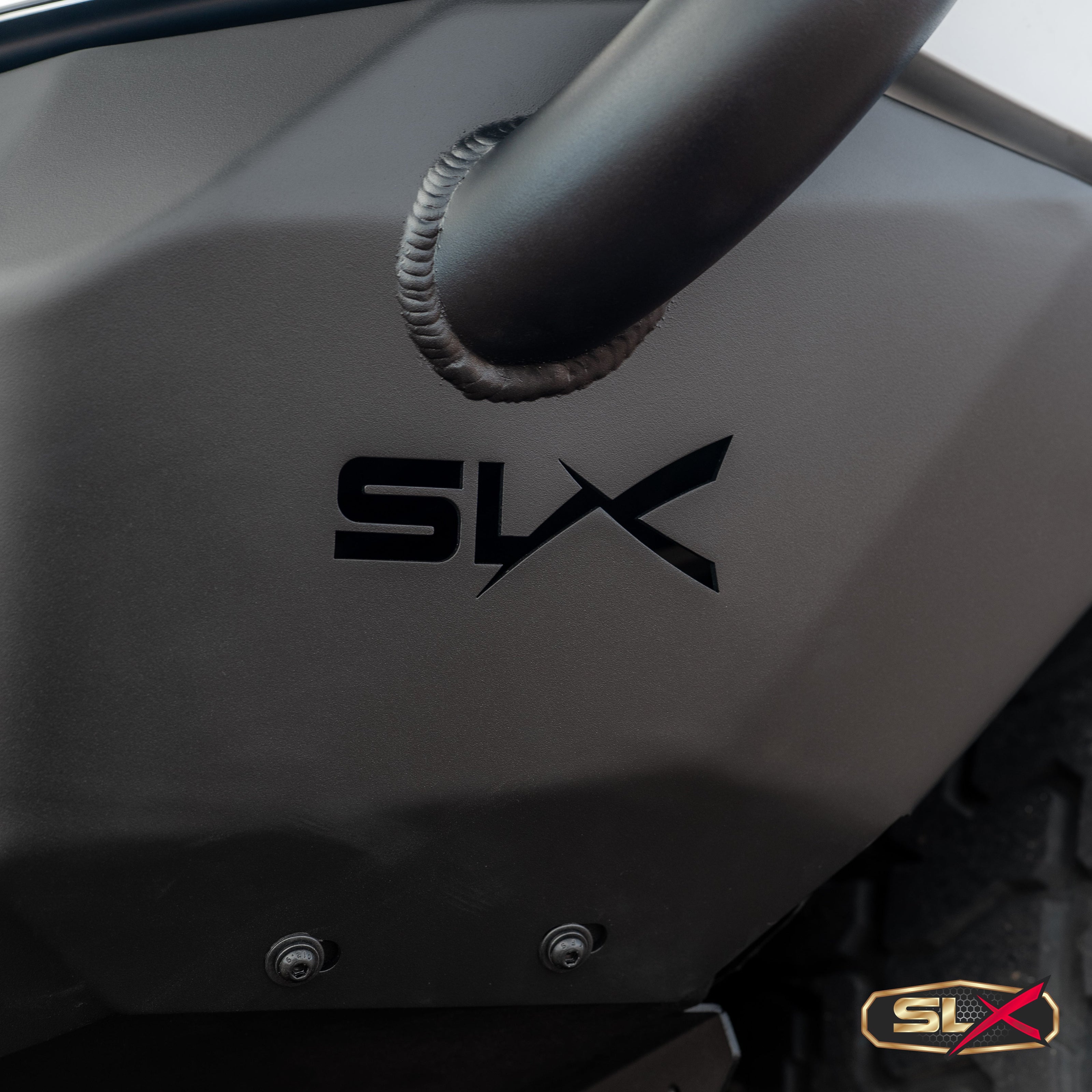

- Bash Plate lazer cut logo back to mounting points under the bar
- Suits 25inch LED bar
- Standard with antenna cutout in bar.
- Itβs a complete bumper replacement making install time frame 4Hr
Designed in Australia by Shoreline 4x4 is a WA company Family owned and operated business since 2008
Our bars meet & exceed the ADR design guidelines,Β Shoreline 4x4 has completed impact testing in Adelaide passing with our unique ADR impact bracket, which is compatible with each models air bag system.
Complies with Australian standards such as
Β AS4876.1 2002
Section 5 to ADR 92/00 External projectionsΒ
Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions
Β
Section 5 of ADR 93/00 Forward Field of View
Β
Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions
Β
Benefits
Designed with maximum airflow to all radiators and intercoolers
All bars are completely sensor & safety compatible with factory systems.
Features
Solid Manufacturing β 1 piece fully welded bar for maximum toughness
Low profile design- our frontal protection bars are only 80-120mm depending on the model from the front of the grill.

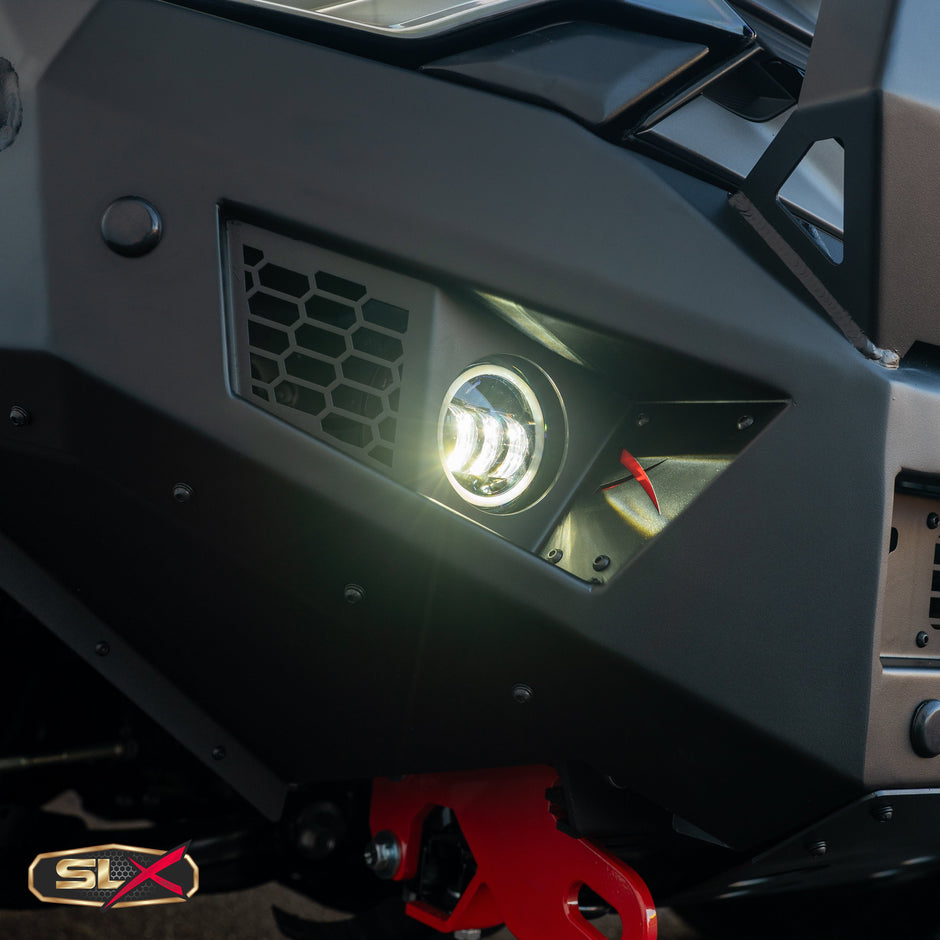

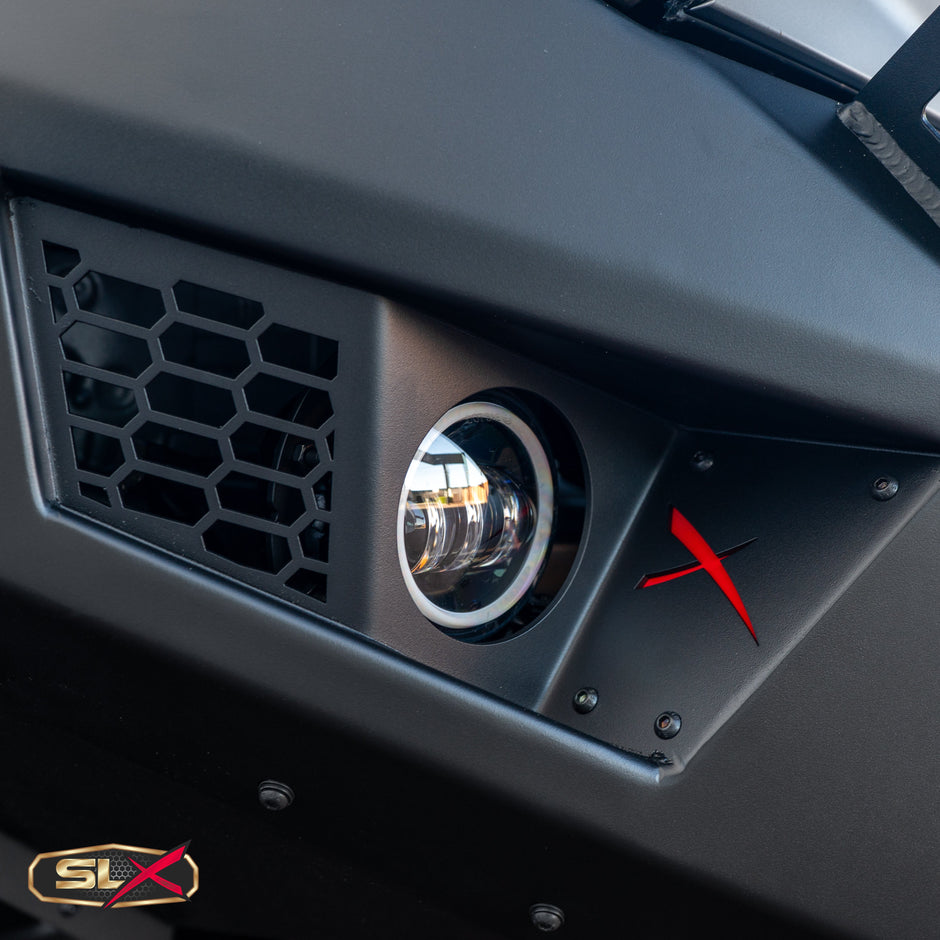

Loaded with features- our bars include recovery points, bash plates to cross member, under wing bash plates, winch cradles, LED bar provisions & LED lights.
Longevity β Our bars are made with premium 400SS grade steel, after manufacture they are acid washed zinc primed and powder coated in semi gloss matt black.
Protection β 3 bash plates included, front and side under wing.

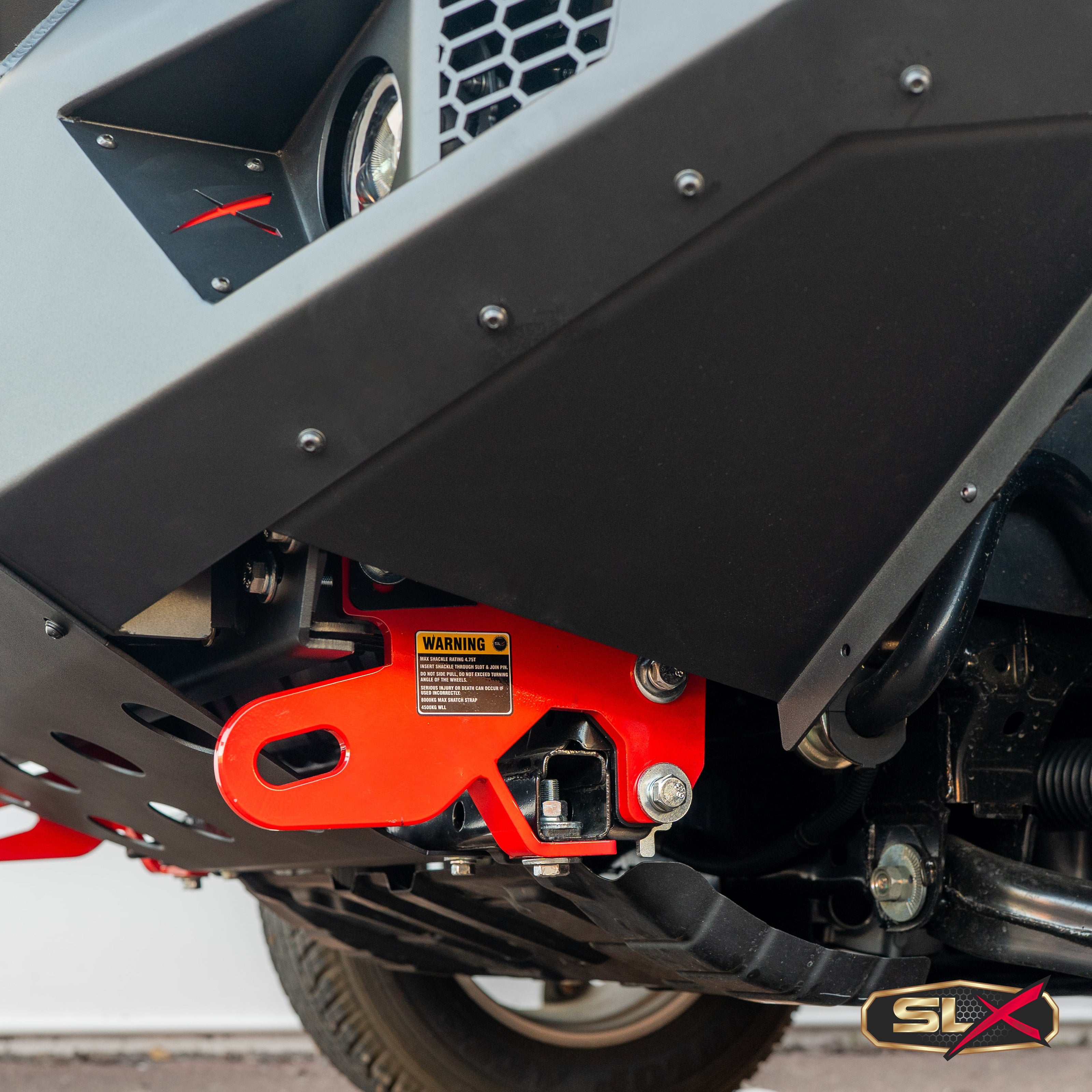

Recovery Points β Our recovery points are rated toΒ 4500kg
Complete bar & Winch Cradle: 61kgs
Bash Plates : 7kg
Recovery Points: 7kgs
Total Weight of product (with recovery points): 75kgs
Removal of misc parts when fitting: 20kgs
Total weight added to vehicle: 55kgs
Optional LED bar Bracket 4kg
