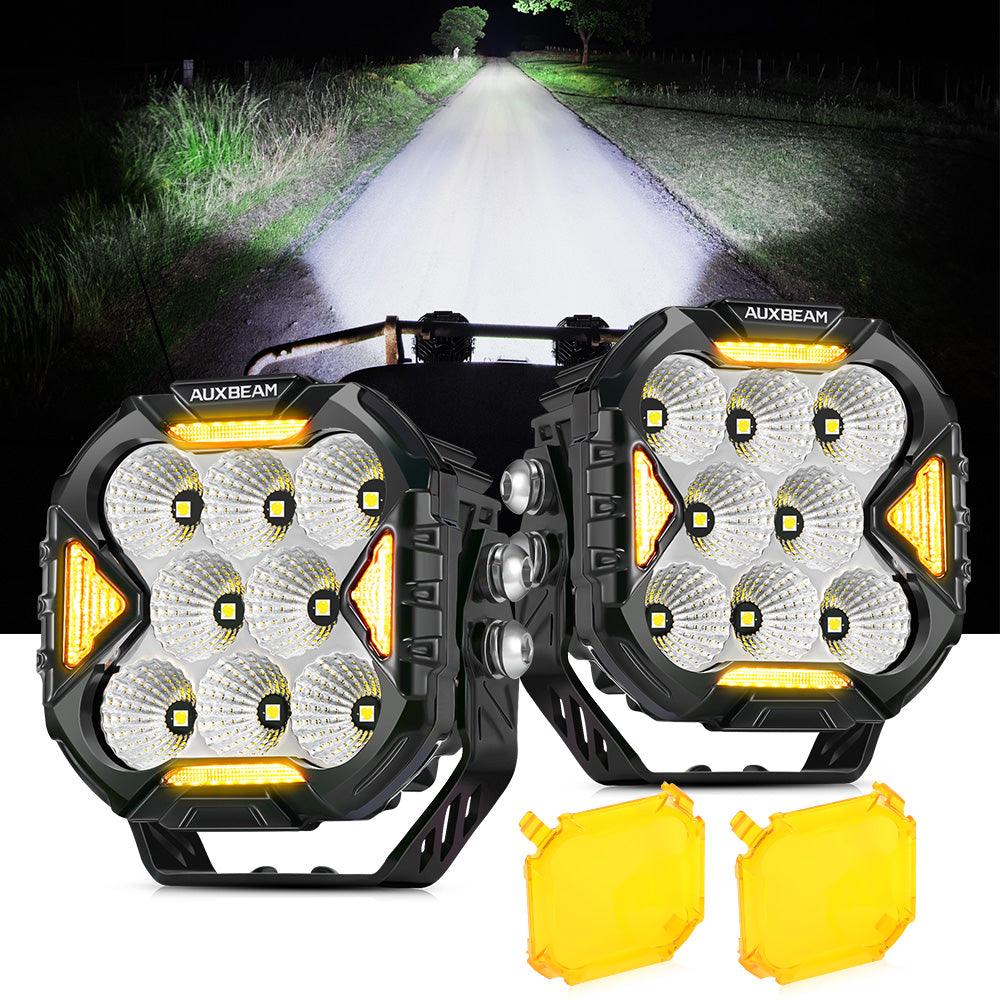

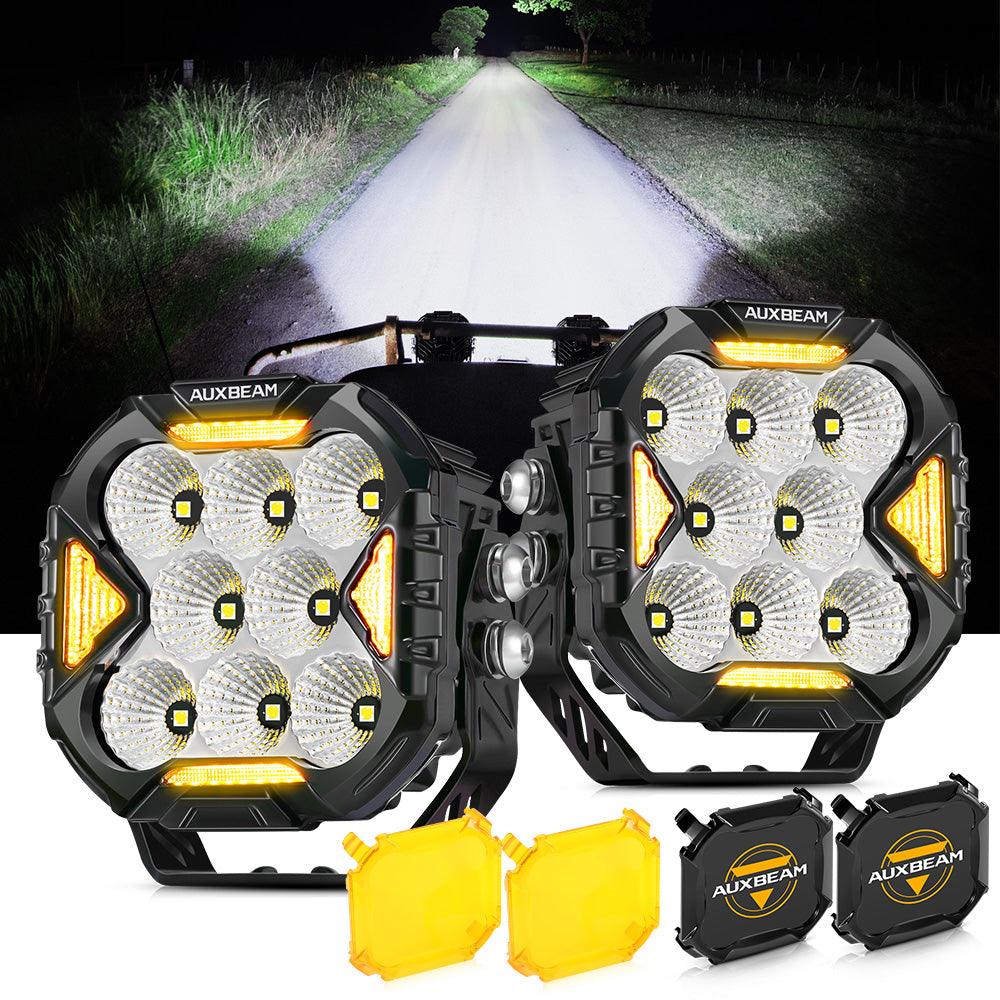

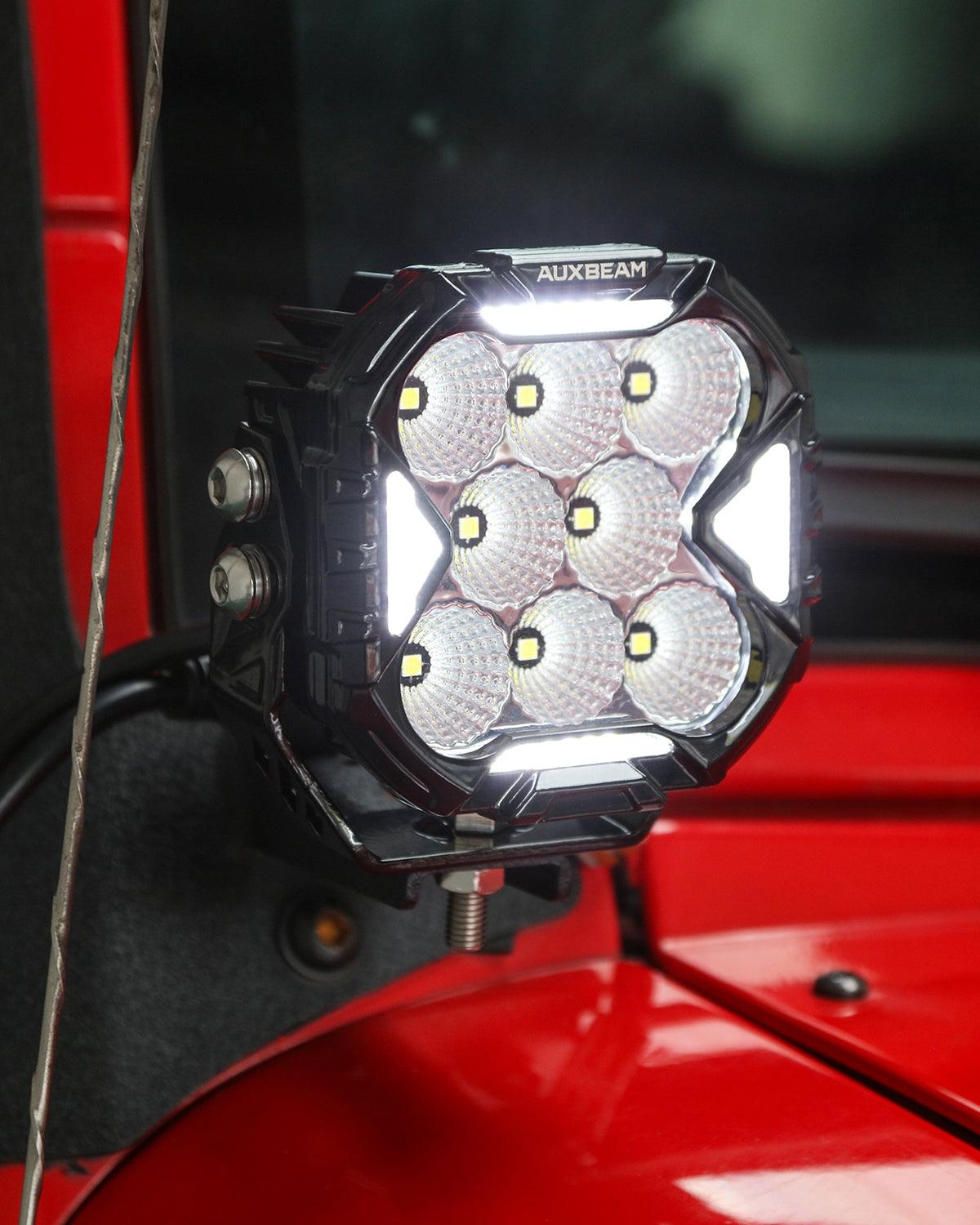

CUBE-Z Series 4 Inch Flood LED Pod Lights Off Road Lights with White DRL & Amber Turn Signal Lights

Features:

TRUSTED DRIVING VISION: Multi-function led pod lights feature two types of LEDs: P8 and 3030 SMD chips. With a powerful 112W output, they deliver 12,800 lumens and a lighting distance of 1lux@376M (1234 feet). They provide intense, natural light with a 6500K white beam and a 3000K yellow beam, ensuring a farther and wider illumination range for safe night driving.
DRIVING & COMBO BEAM: The upper spotlight gives you a narrow focus and a powerful beam for long distances, while the lower floodlight emits a wide-dispersed beam that covers a larger area. With our LED driving lights, you get the best of both worlds. Mixed beam mode ensures you have a focused spotlight for long distances and a wide floodlight for close visibility.
MULTI-MODEL INNOVATIVE DESIGN: In addition to white lights for daily driving, we've included white&amber daytime running lights (DRL). These DRL enhance the lighting atmosphere and can synchronize with the headlights or marker lights to function as turn signals, providing added safety. We also offer yellow cover for a customizable, high-penetration color temperature, ideal for low-visibility conditions.

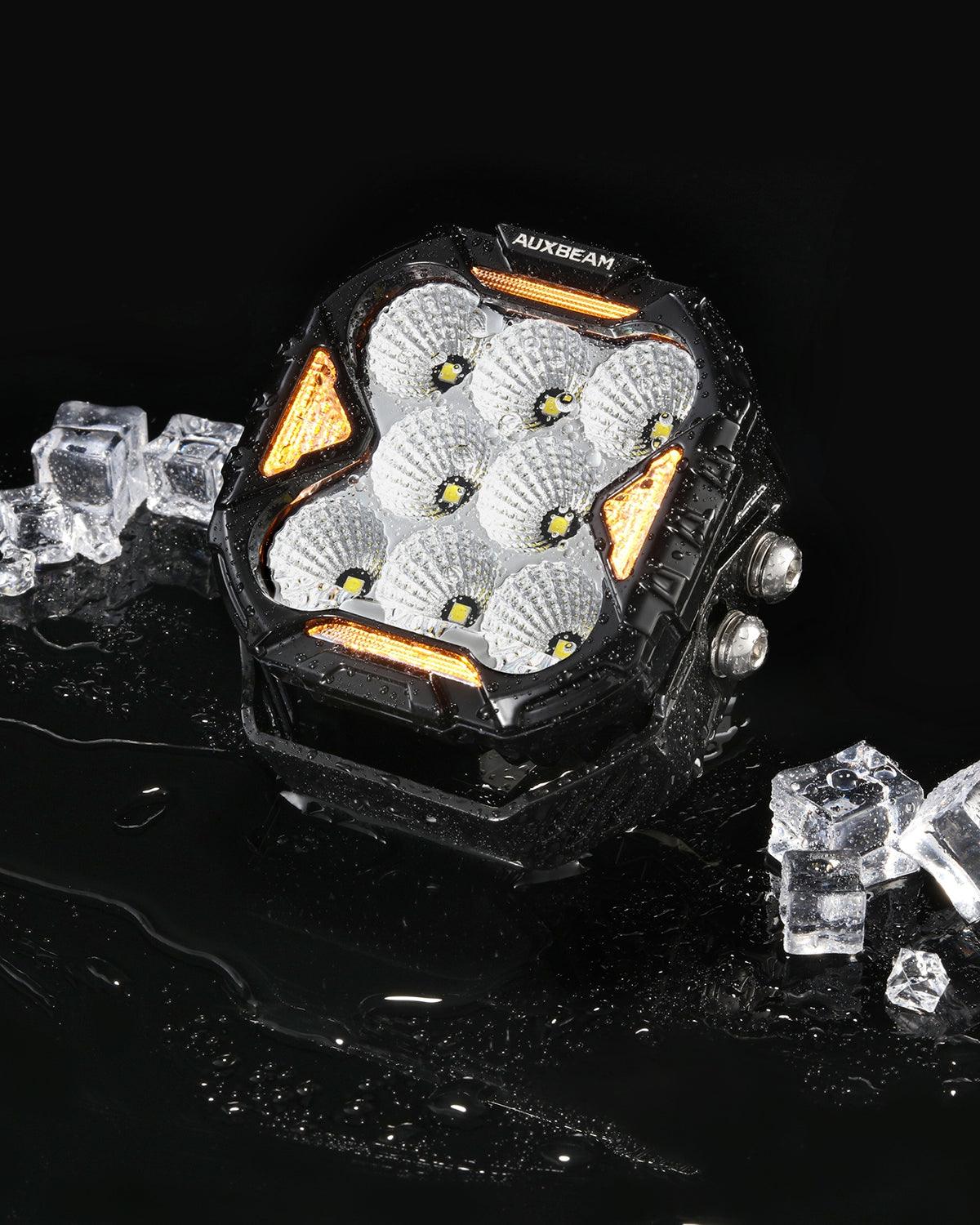

HIGH QUALITY DURABILITY: We meticulously select materials, using hardened PC lenses and aluminum alloy housings that offer anti-scratch and anti-corrosion properties, along with efficient heat dissipation. Additionally, our strips undergo rigorous testing before leaving the factory, are triple waterproof, meet international IP68 certification standards, and boast a service life of over 50,000 hours.
EASY TO INSTALLATION: Enjoy a hassle-free, plug-and-play installation. Our kit includes a 2-lead DT plug wiring harness with a fuse relay and switch, making it quick to connect and easy to mount on A-posts, bumpers, roof racks, or pre-existing bolt holes. Say goodbye to tedious installation processes!

5 Types of Lighting Effects:

1. Main Light
2. White DRL
3. Amber Turn Signal Light
4. Main Light +White DRL
5.Main Light + Amber Turn Signal Light

Specification:

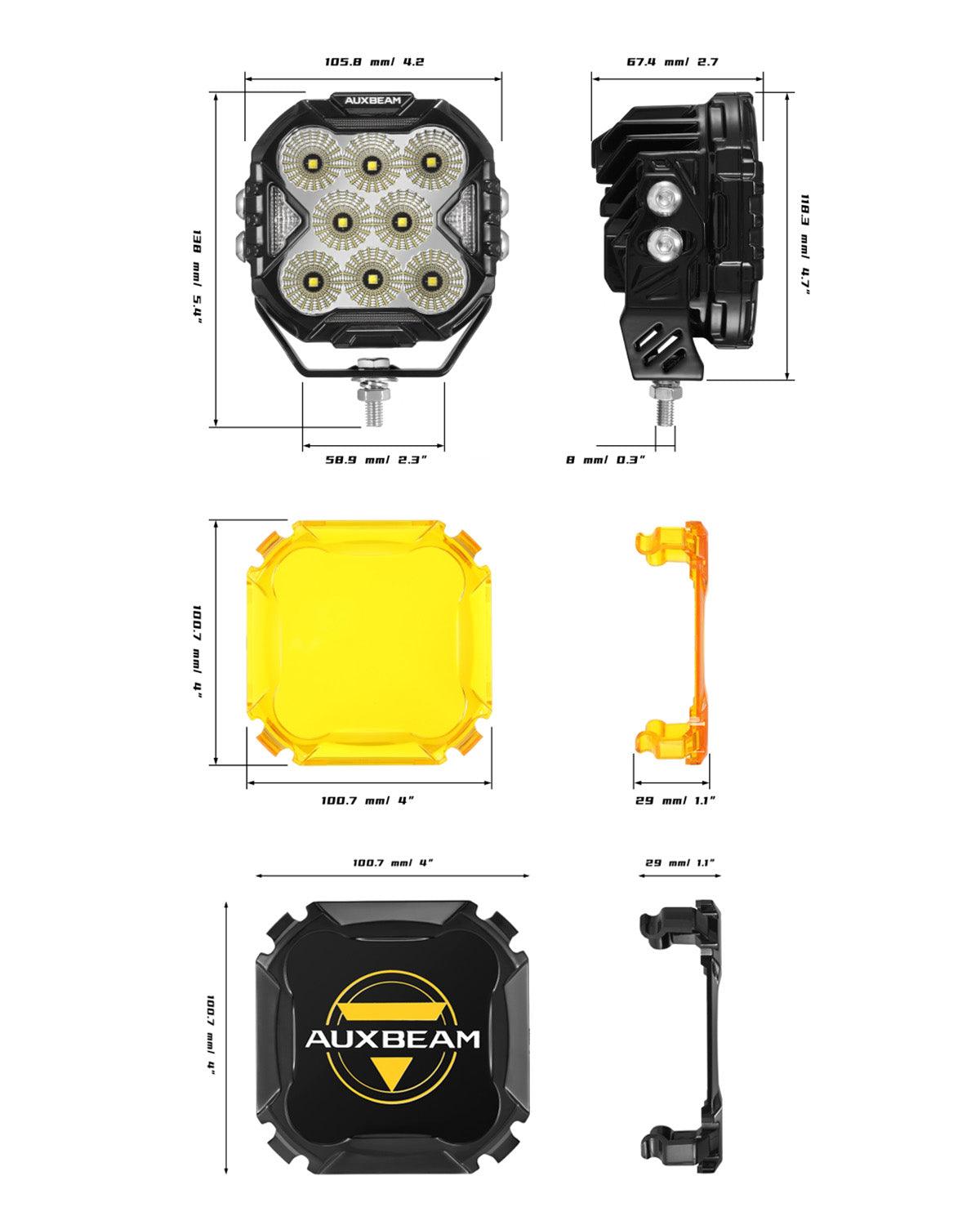

Size: 4 Inch
Light Beam: Flood
Quantity: 2Pcs
Power/Set: 112W (Main Light 40W+White DRL 8W+Amber Turn Light 8W)*2
Total Lumens: 12800LM (9600LM+DRL 1600LM+Turn 1600LM)
Lighting Distance: 1lux@236M
Housing Material: Aluminum Alloy
Lens Material: PC
Lamp Beads Model:  P8+3030 SMD (White&Amber)
Light Color: White&Amber
Color Temperature: 6500K/3000K
Life Time: 50000+ hours
Housing Color: Bright Black
Waterproof Rate: IP68
Working Voltage: 10V-30V (Wiring harness Relay is 12V Only，can be replaced with 24V)

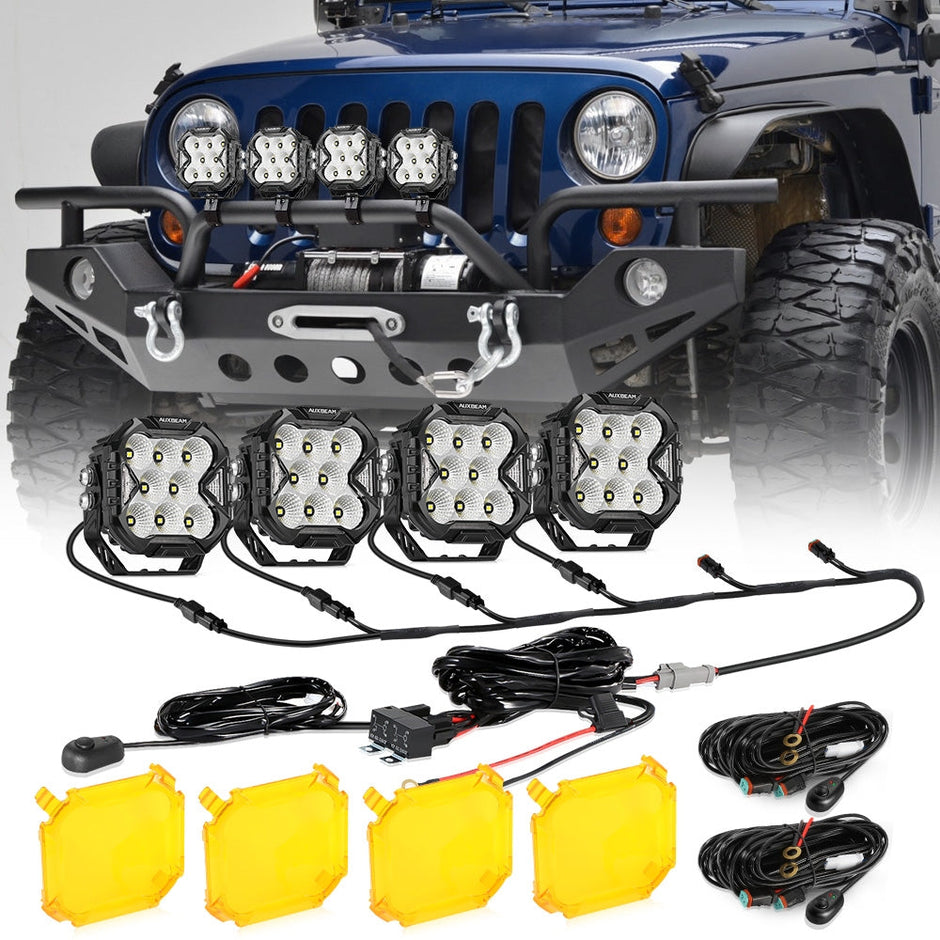

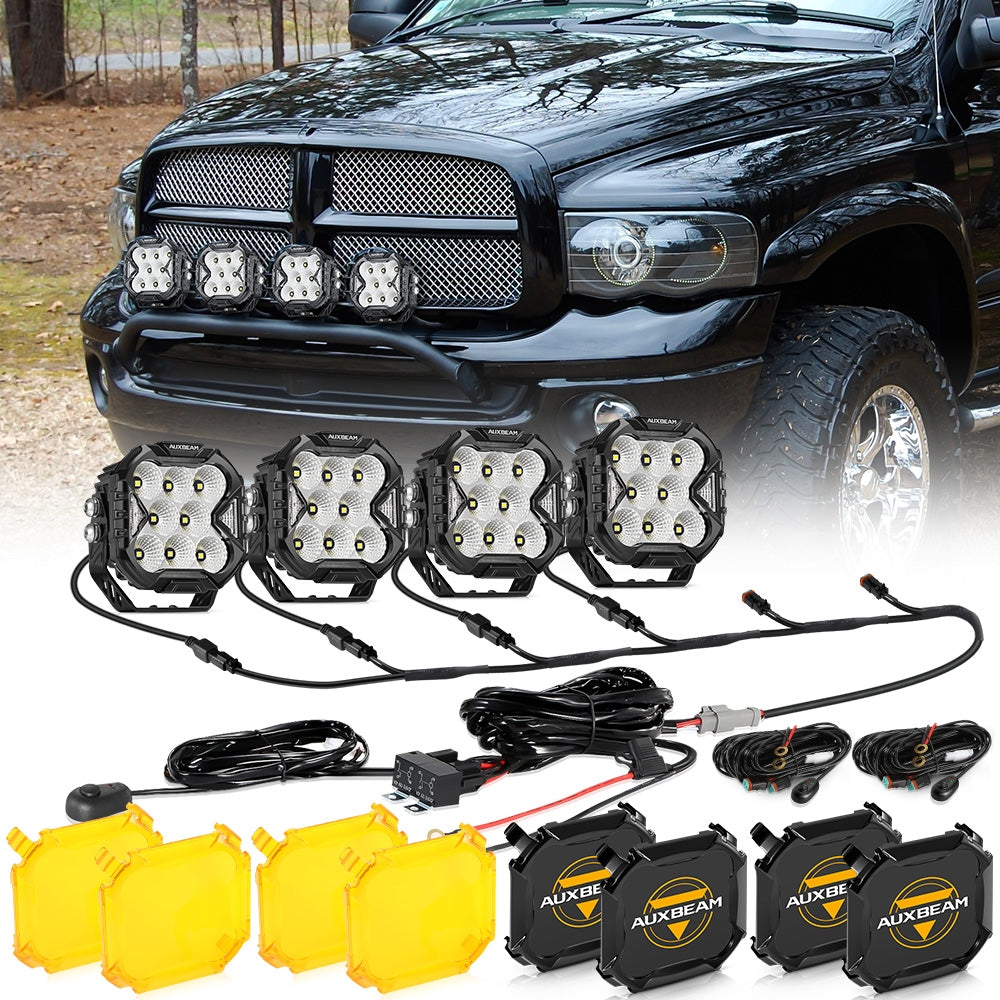

Packing Included:

2 X LED Driving Pod Lights（With 4 Pin DT Male Plug）
2 X 4 Pin DT Female Plug to 2 Pin DT Male Plug Adapter with White&Amber Light Cords

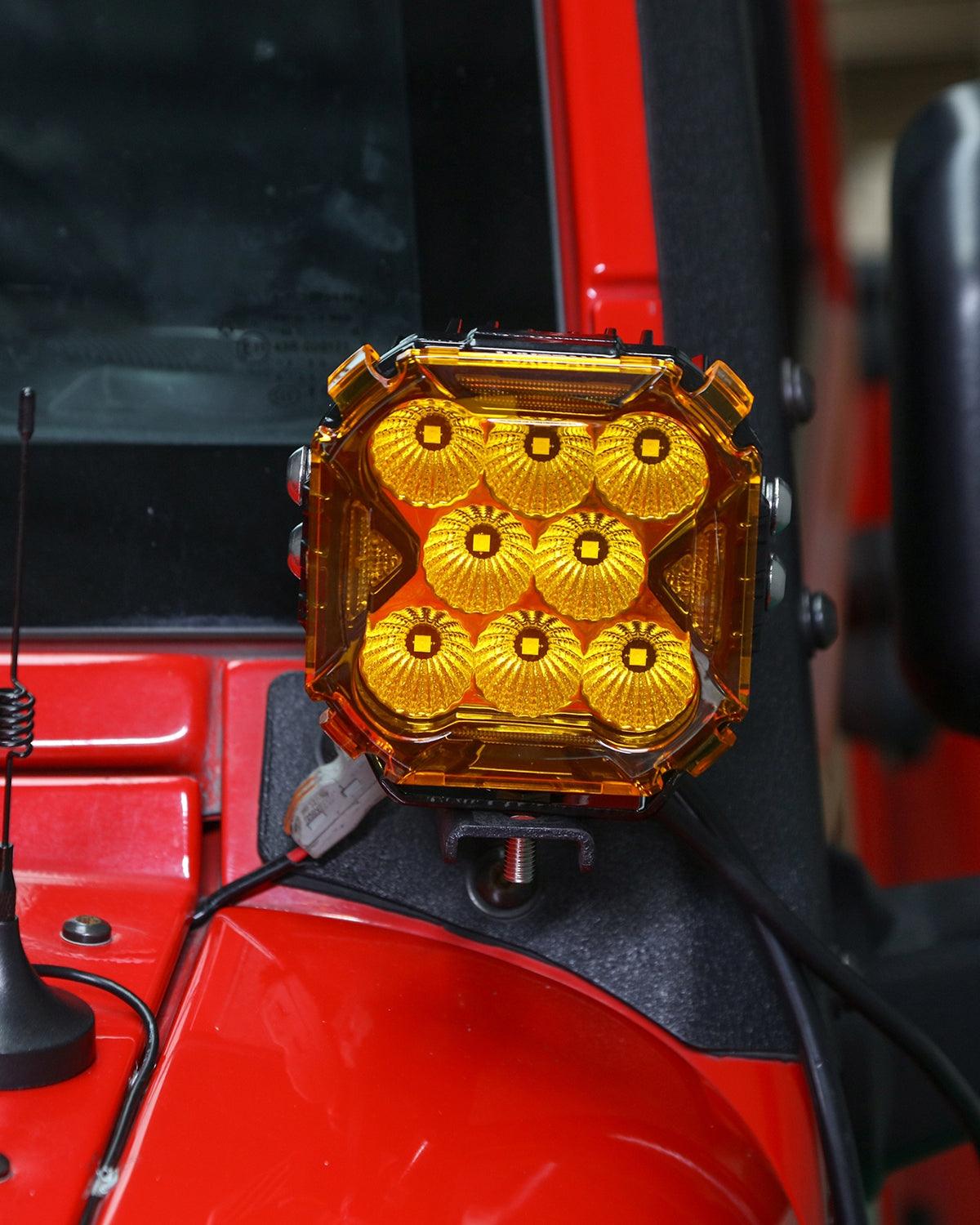

2 X Amber Light Covers
1 X Wiring Harness 2 Leads（With 2 Pin DT Female Plug）
1 X Srew Accessories
1 X Operating Manual

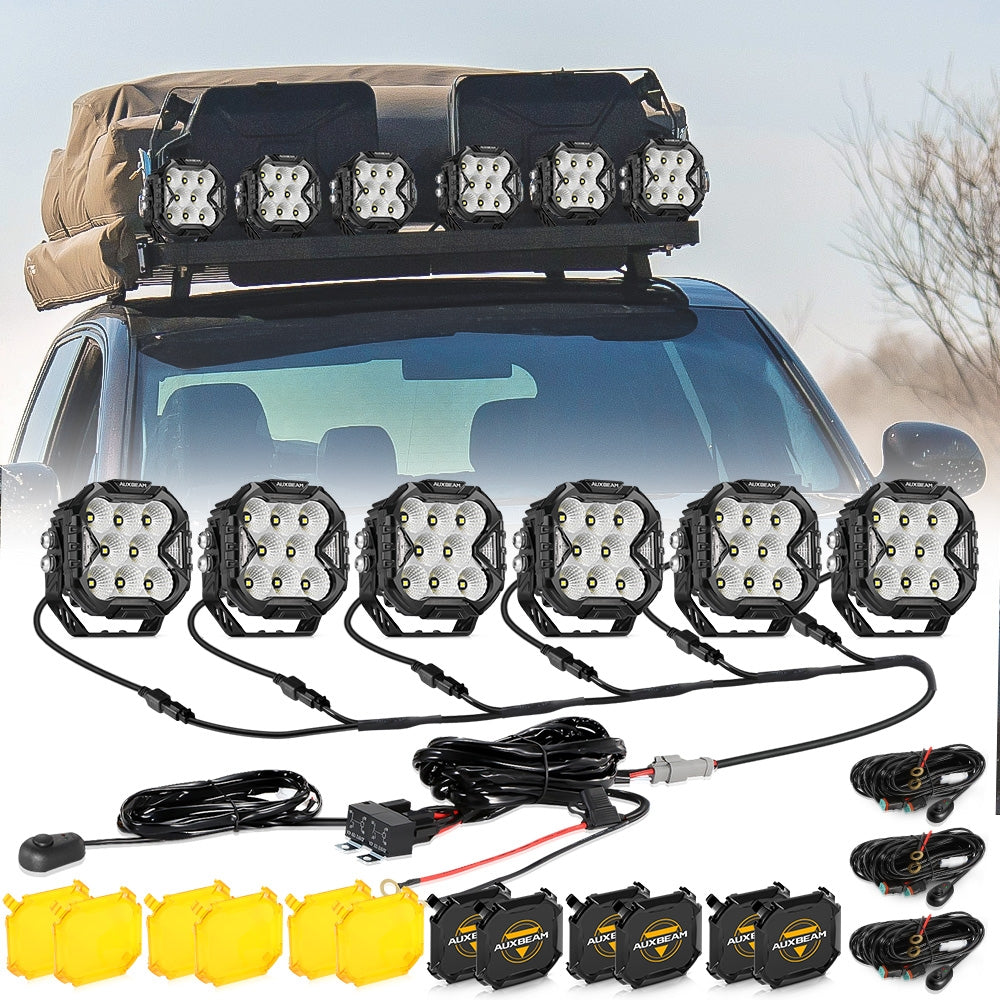

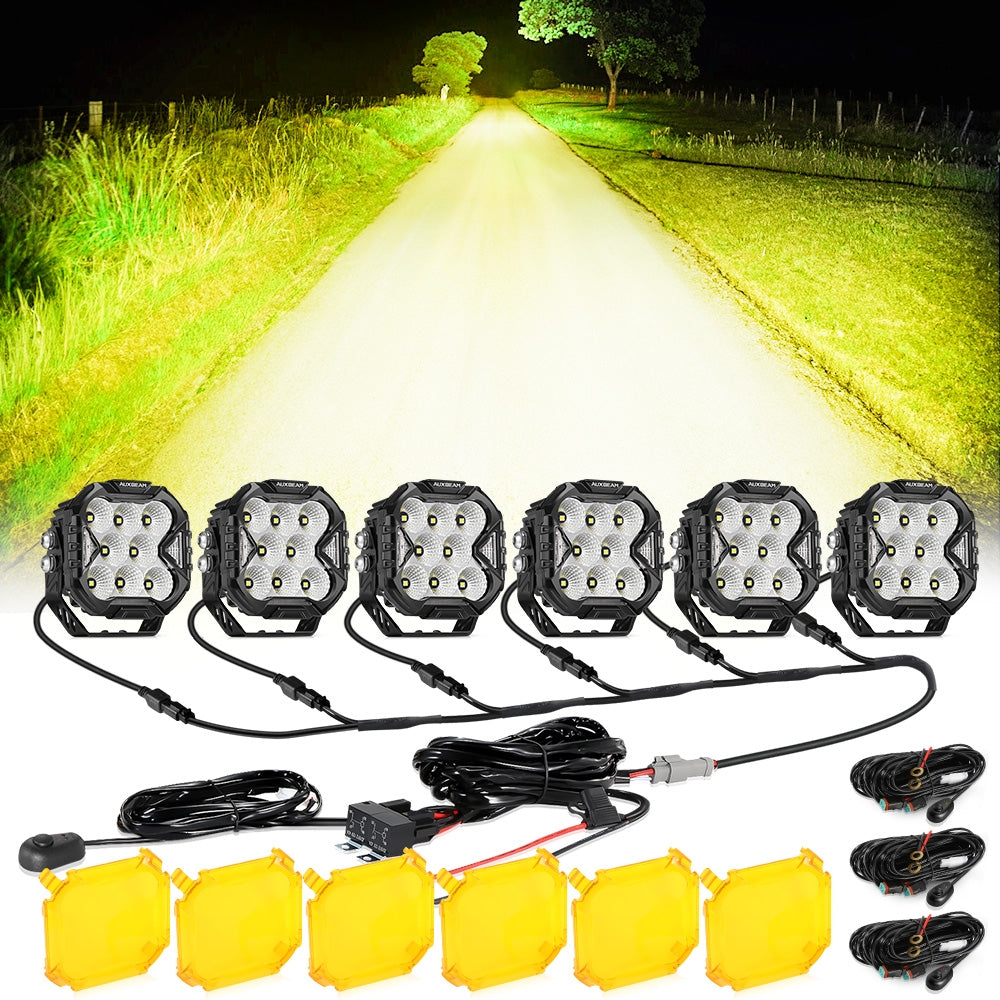

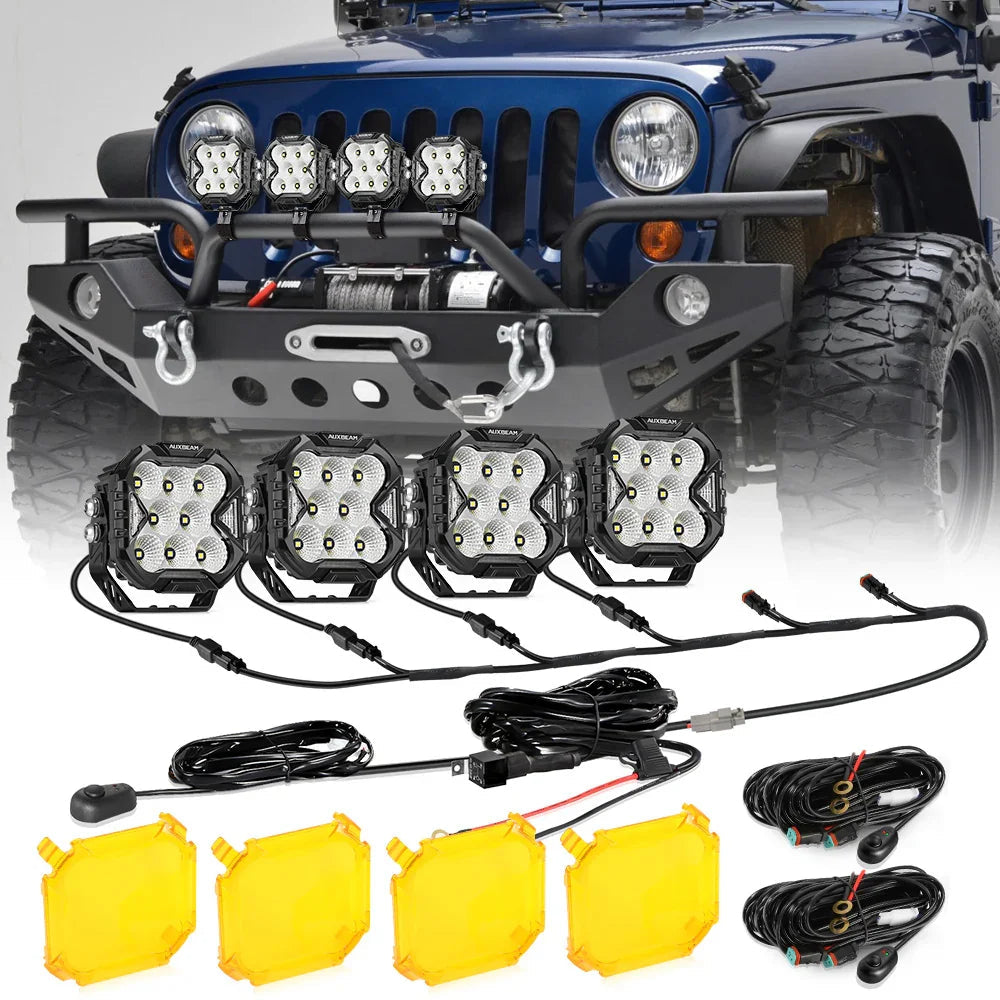

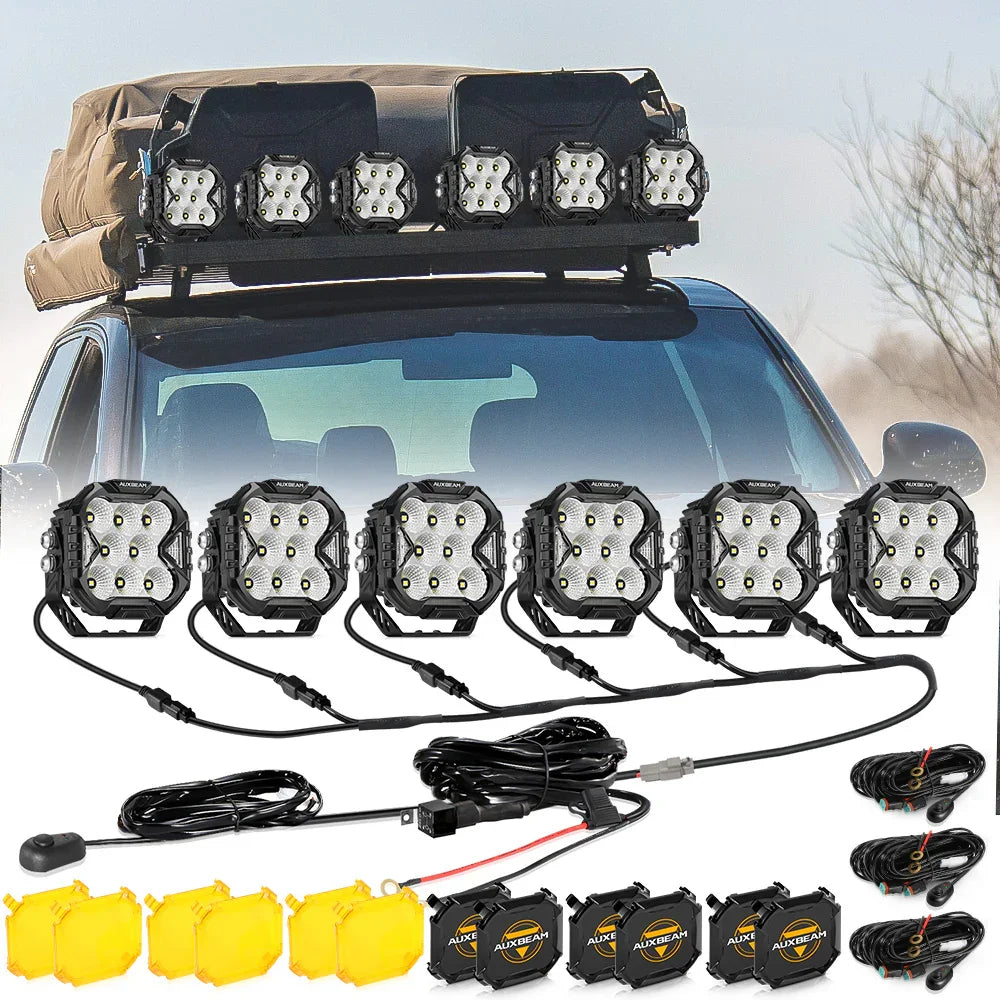

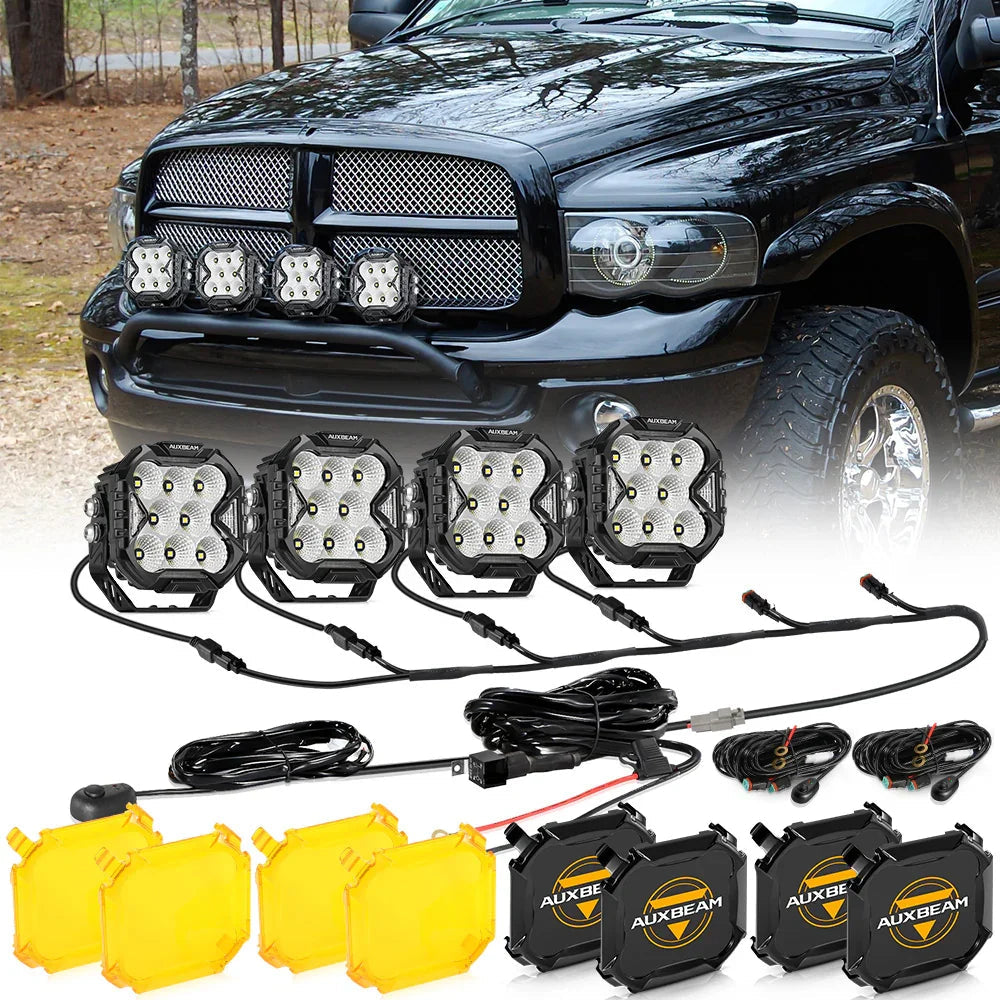

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

3-Pod Lights (A maximum of three pod lights can be installed):
ZD000675/ZD000858

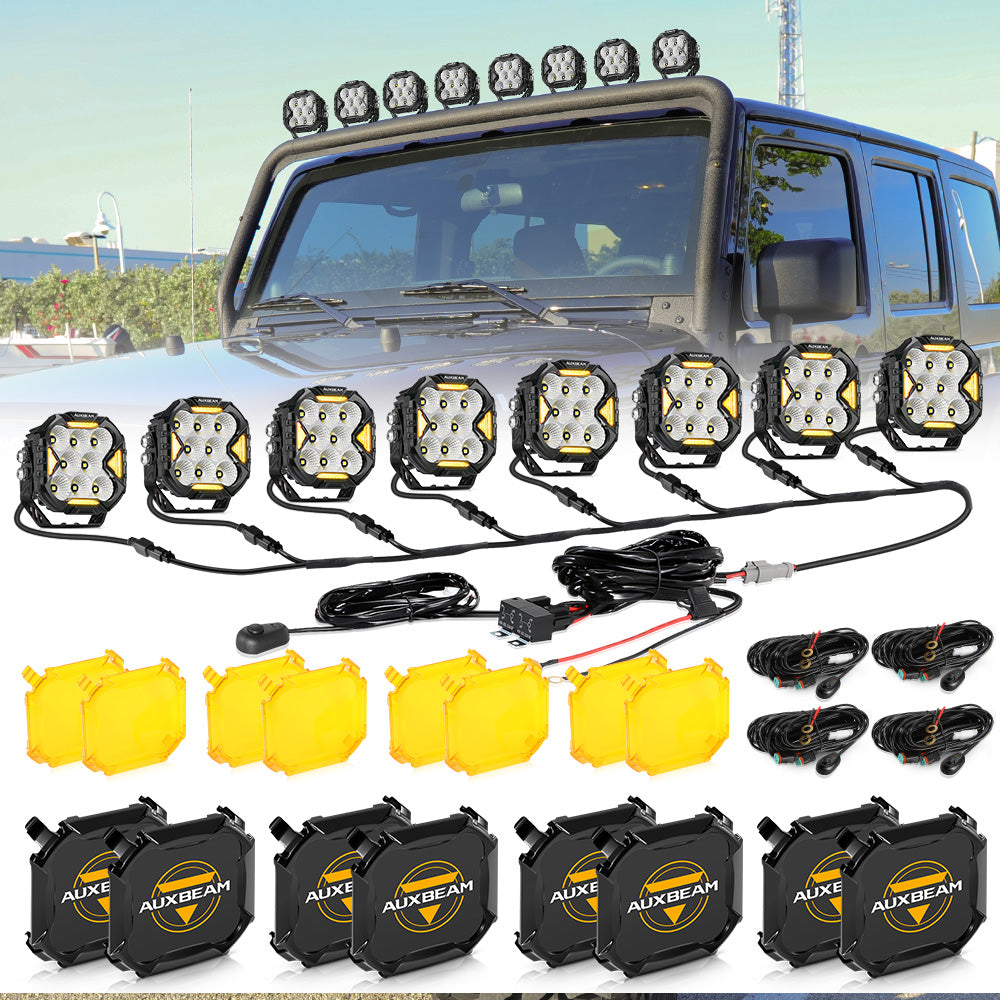

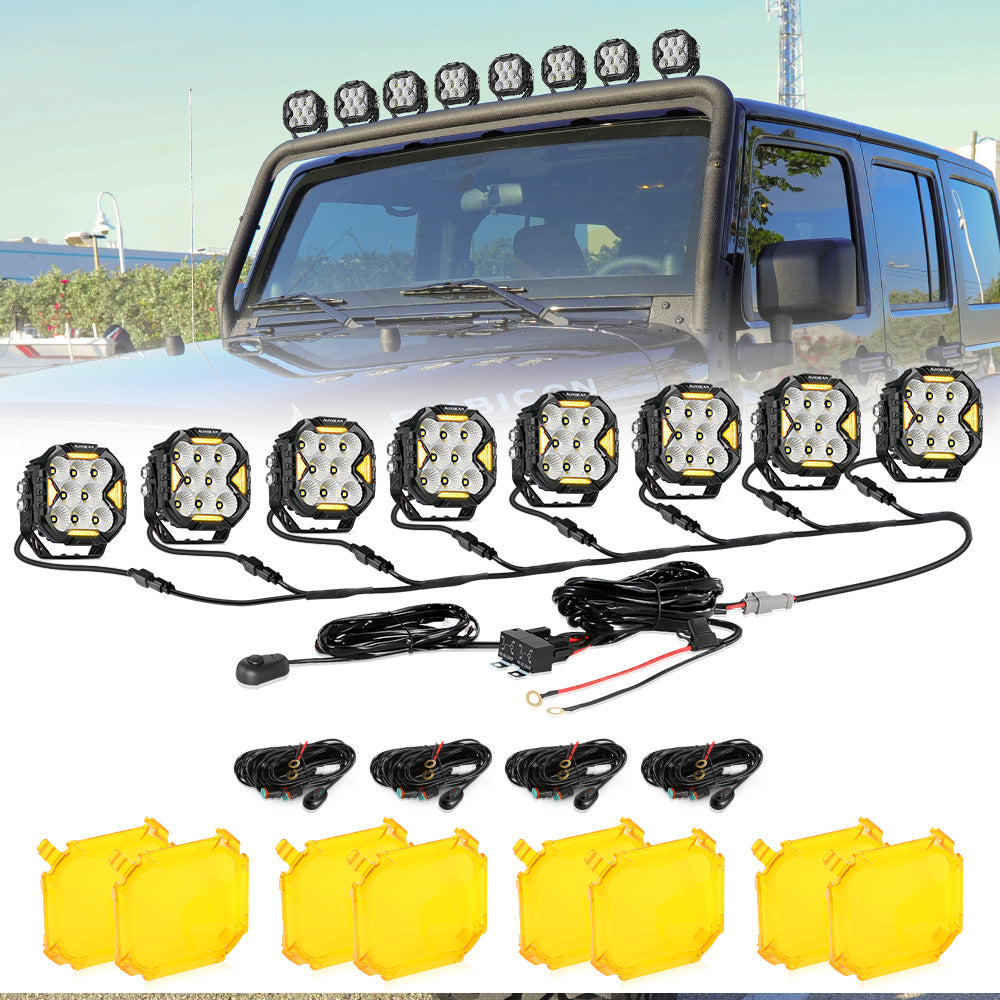

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

6-Pod Lights (A maximum of six pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000675/ZD000858

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 6 in 1 2PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire and a DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
