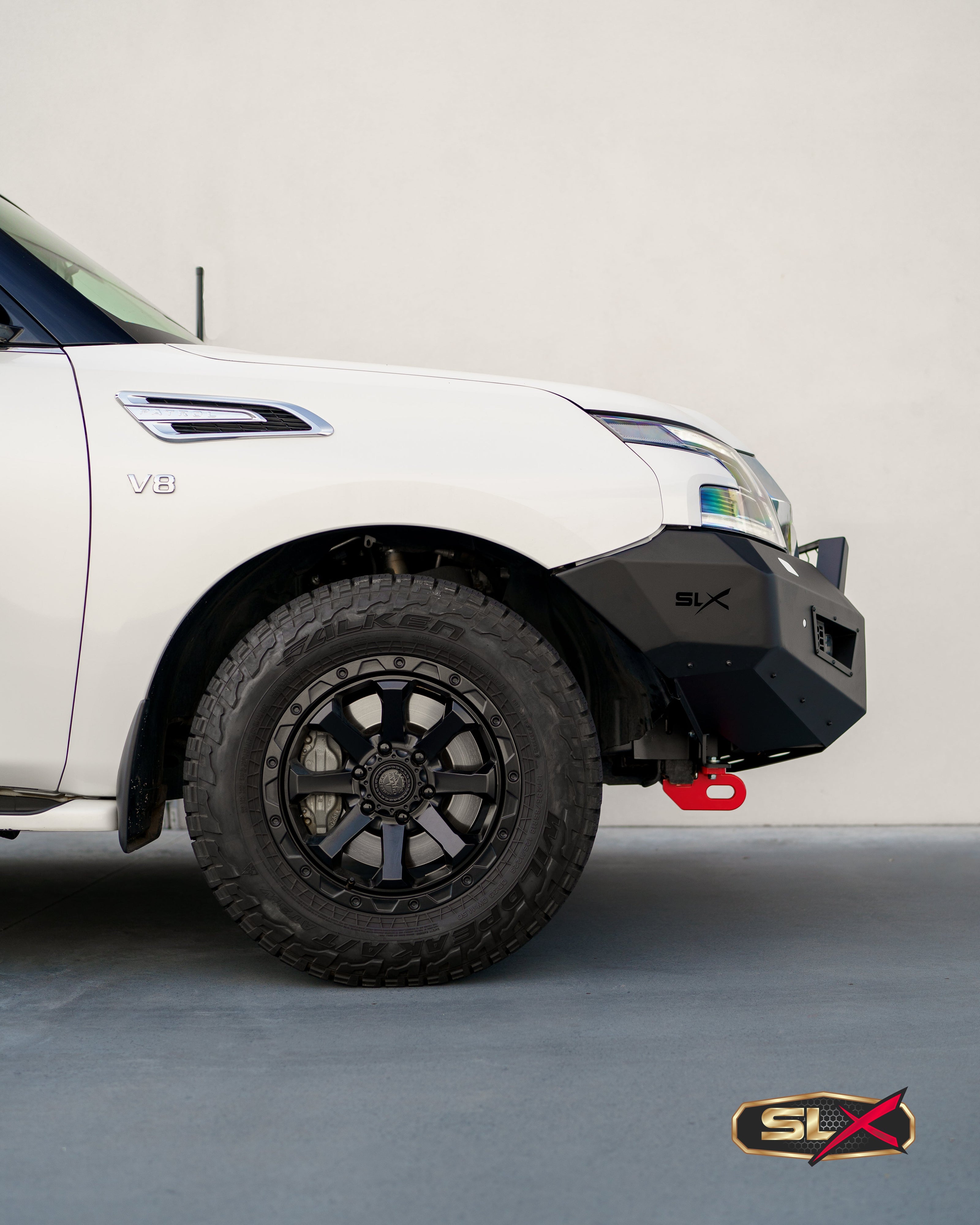

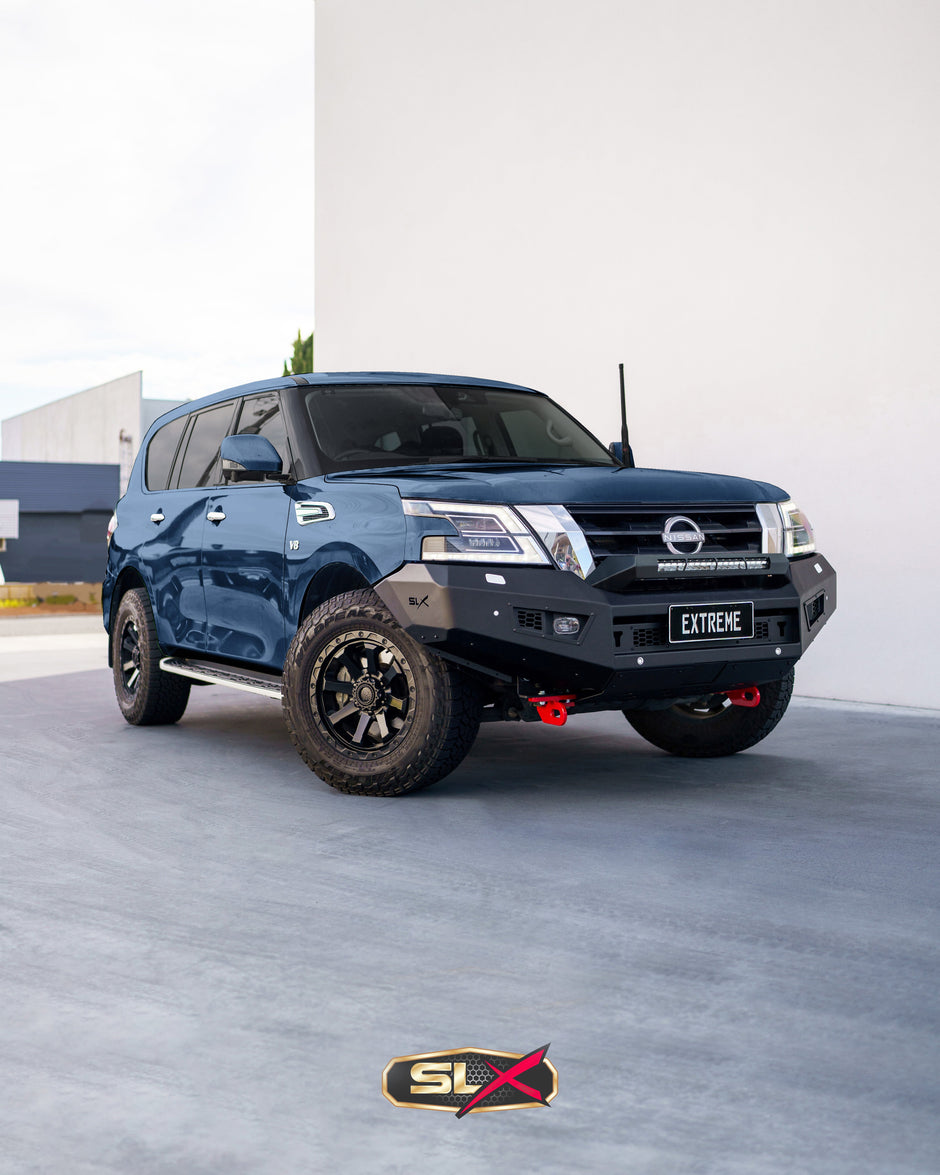

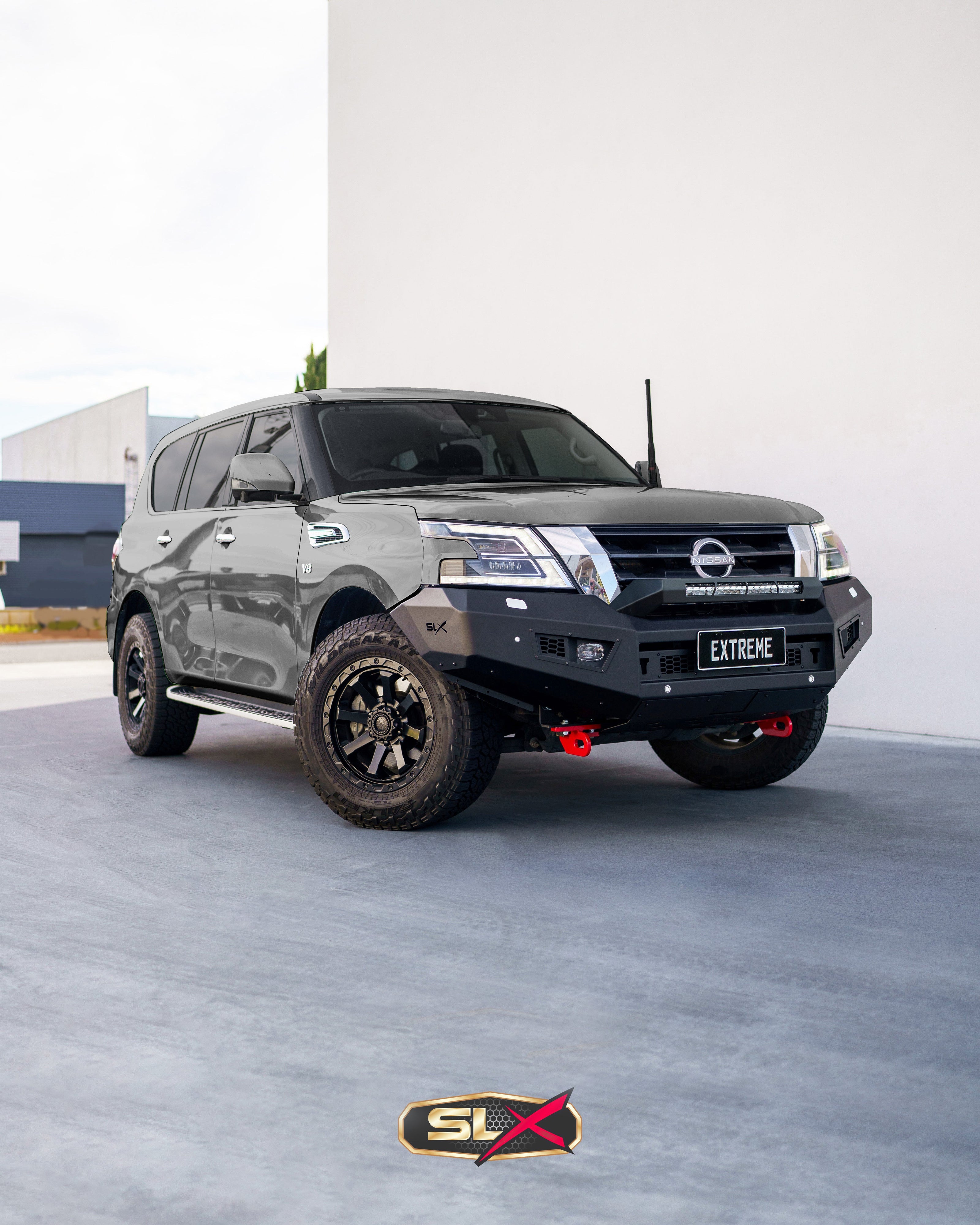

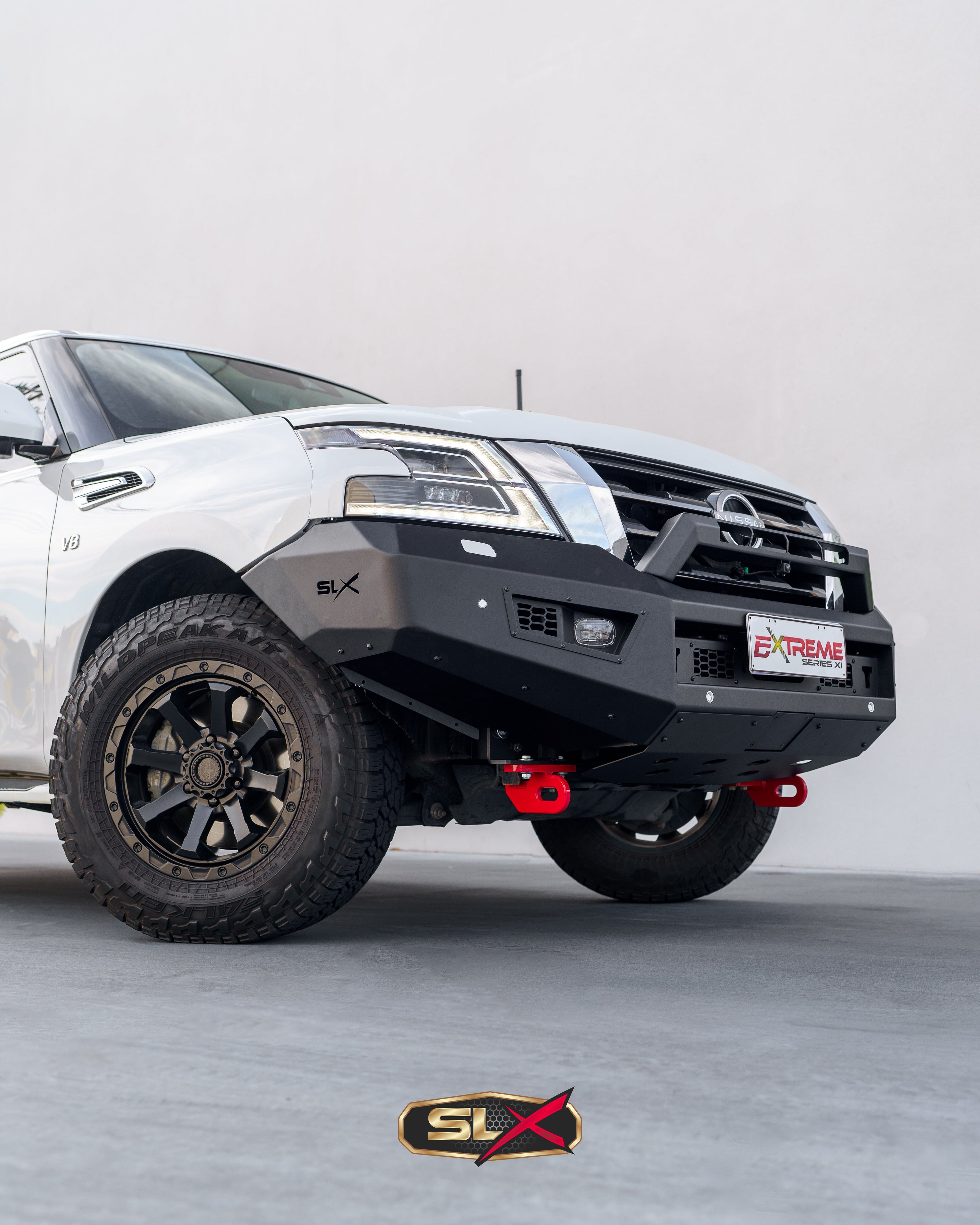

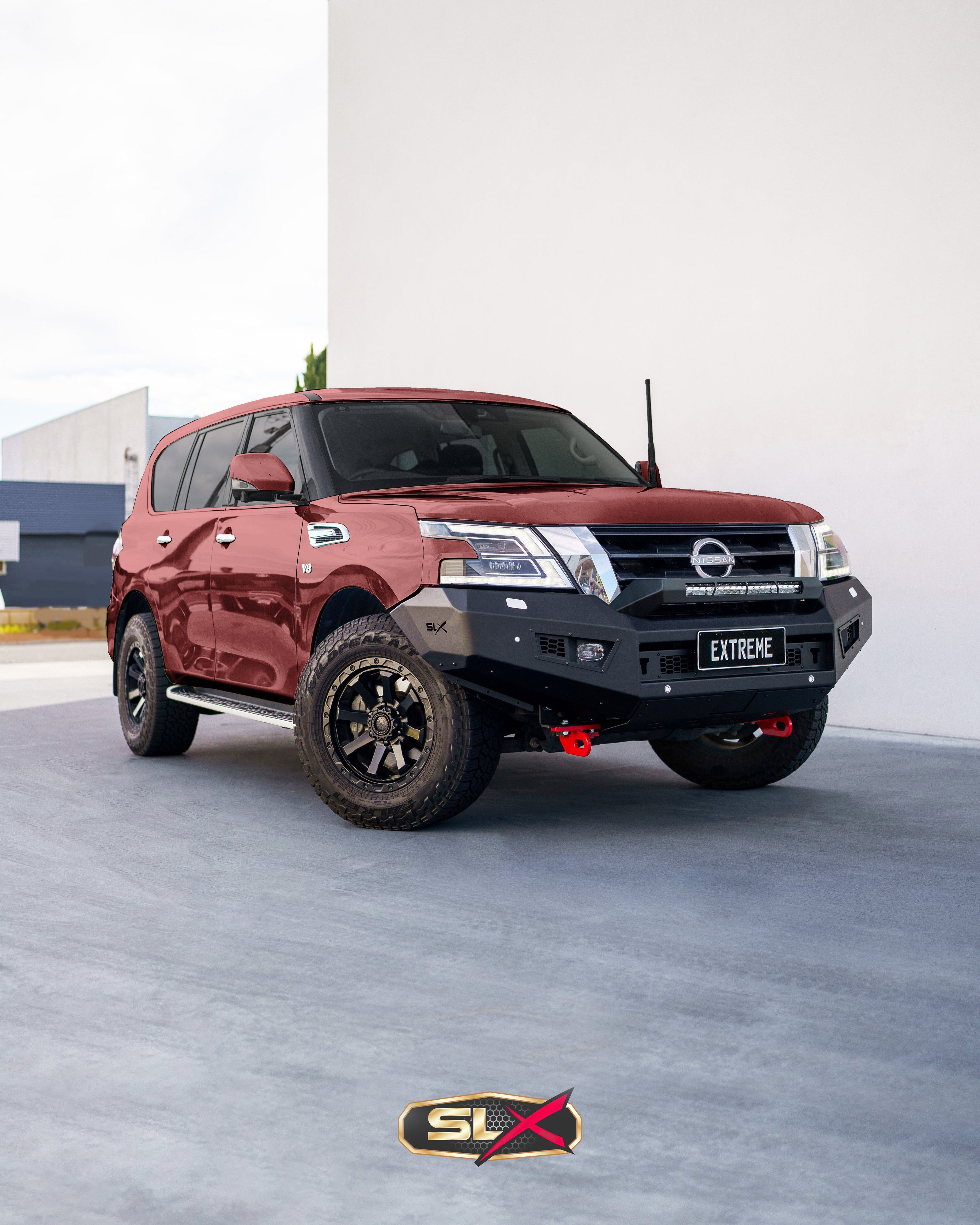

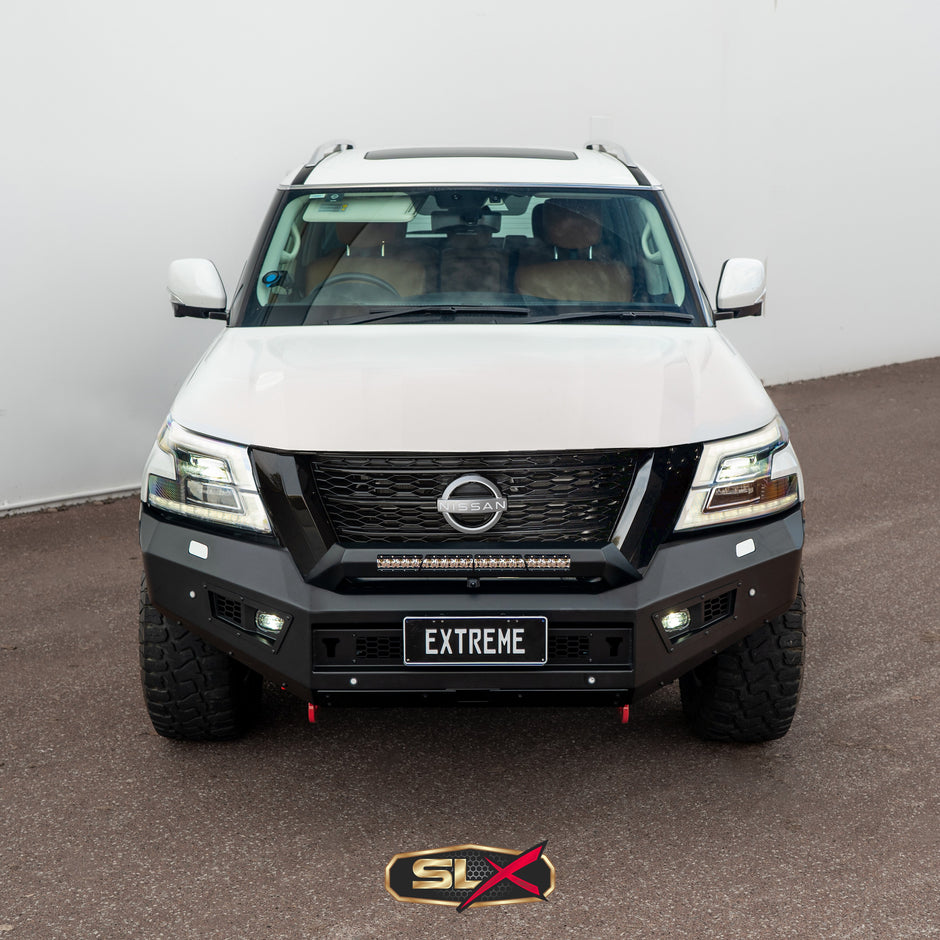

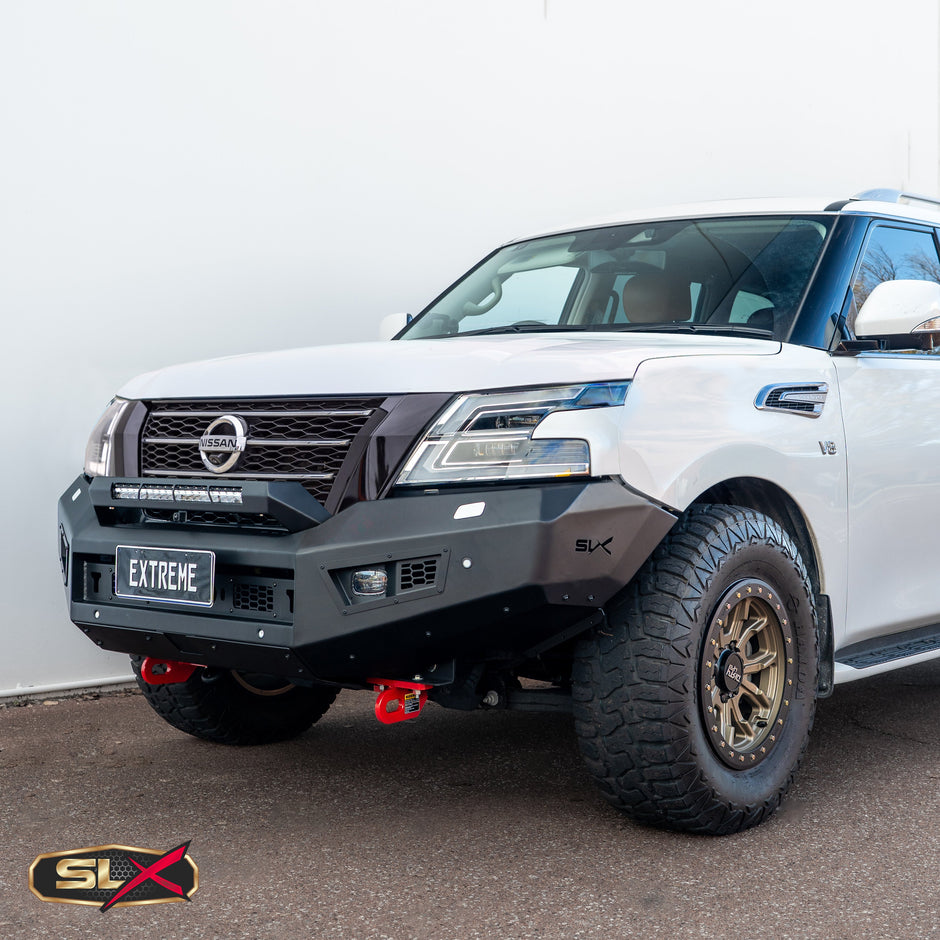

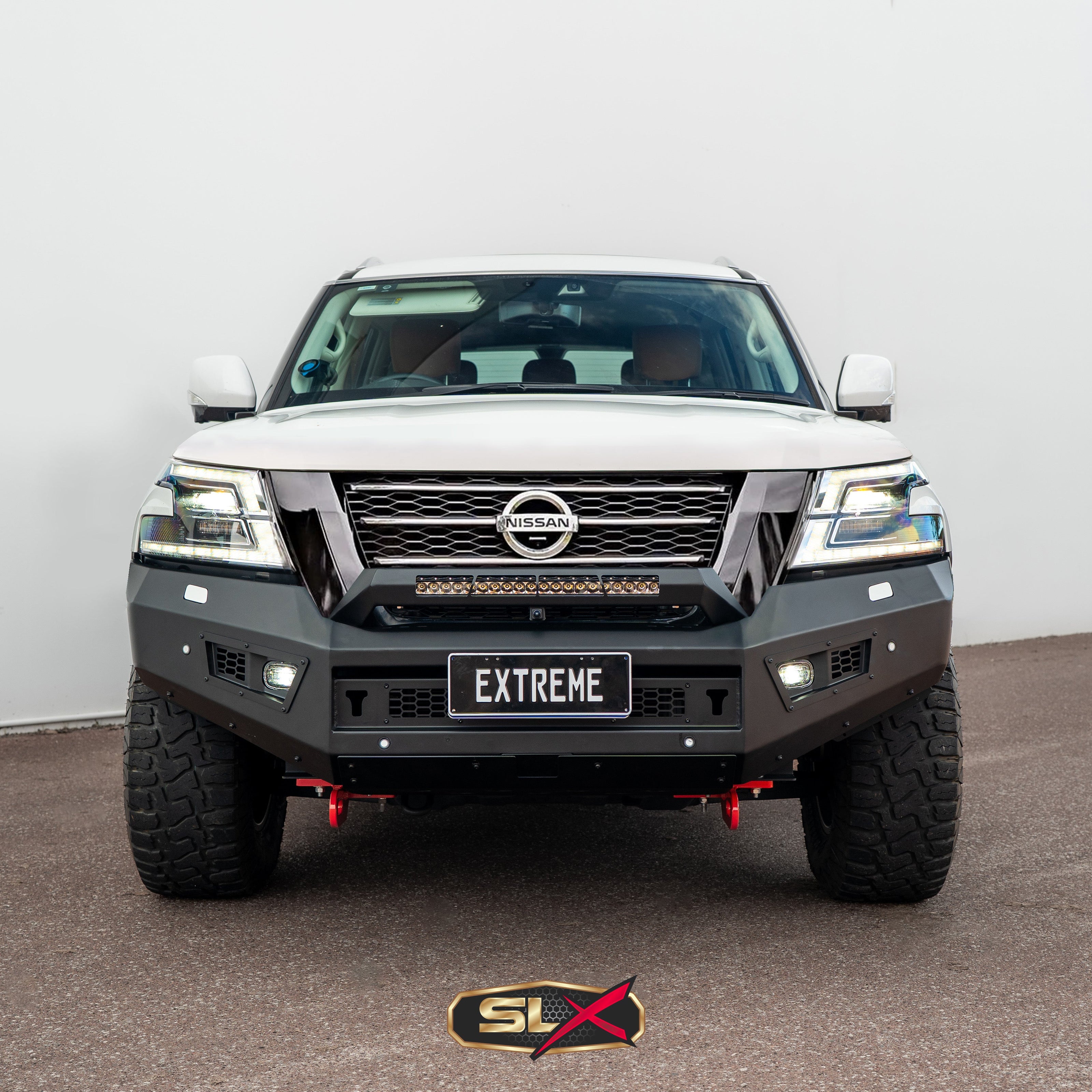

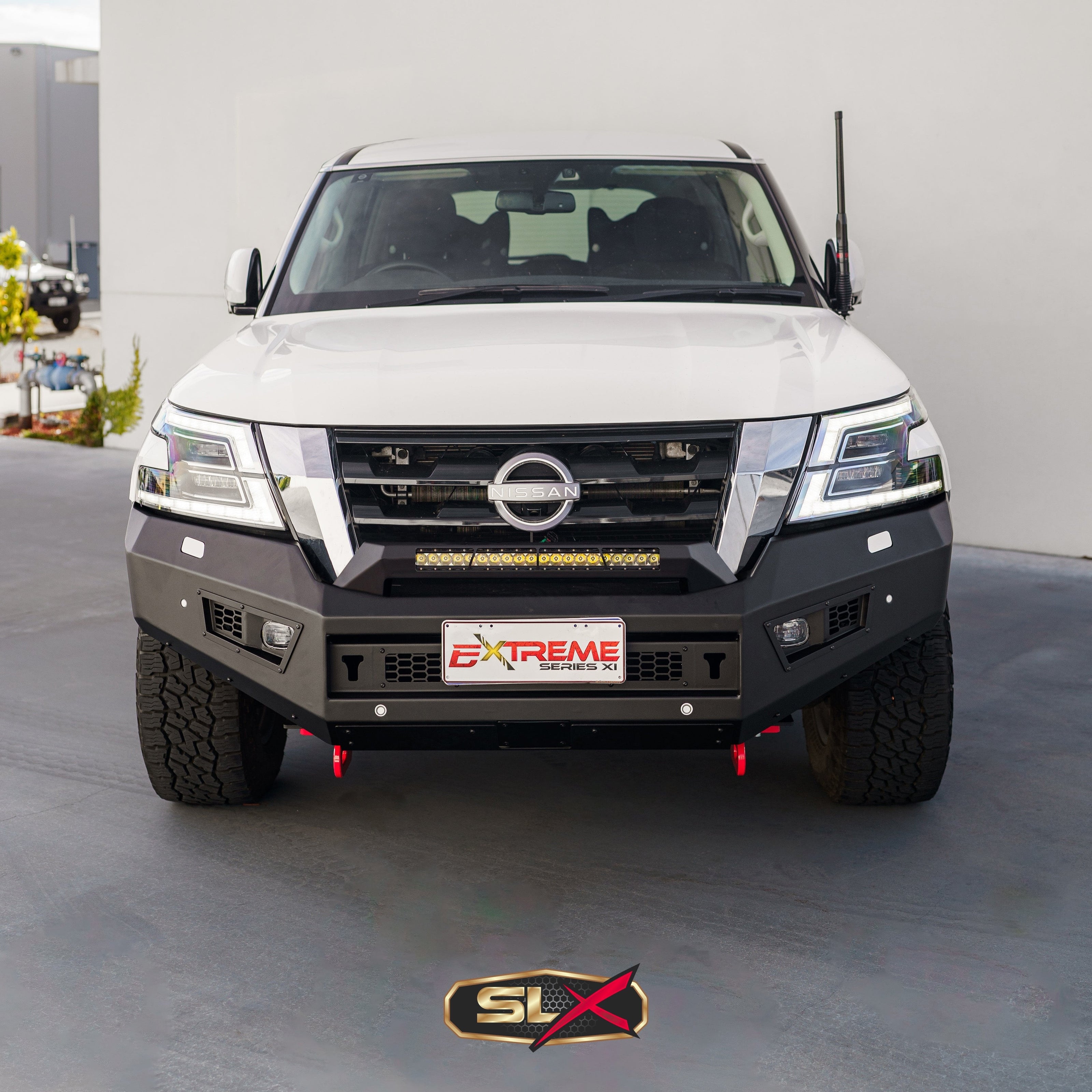

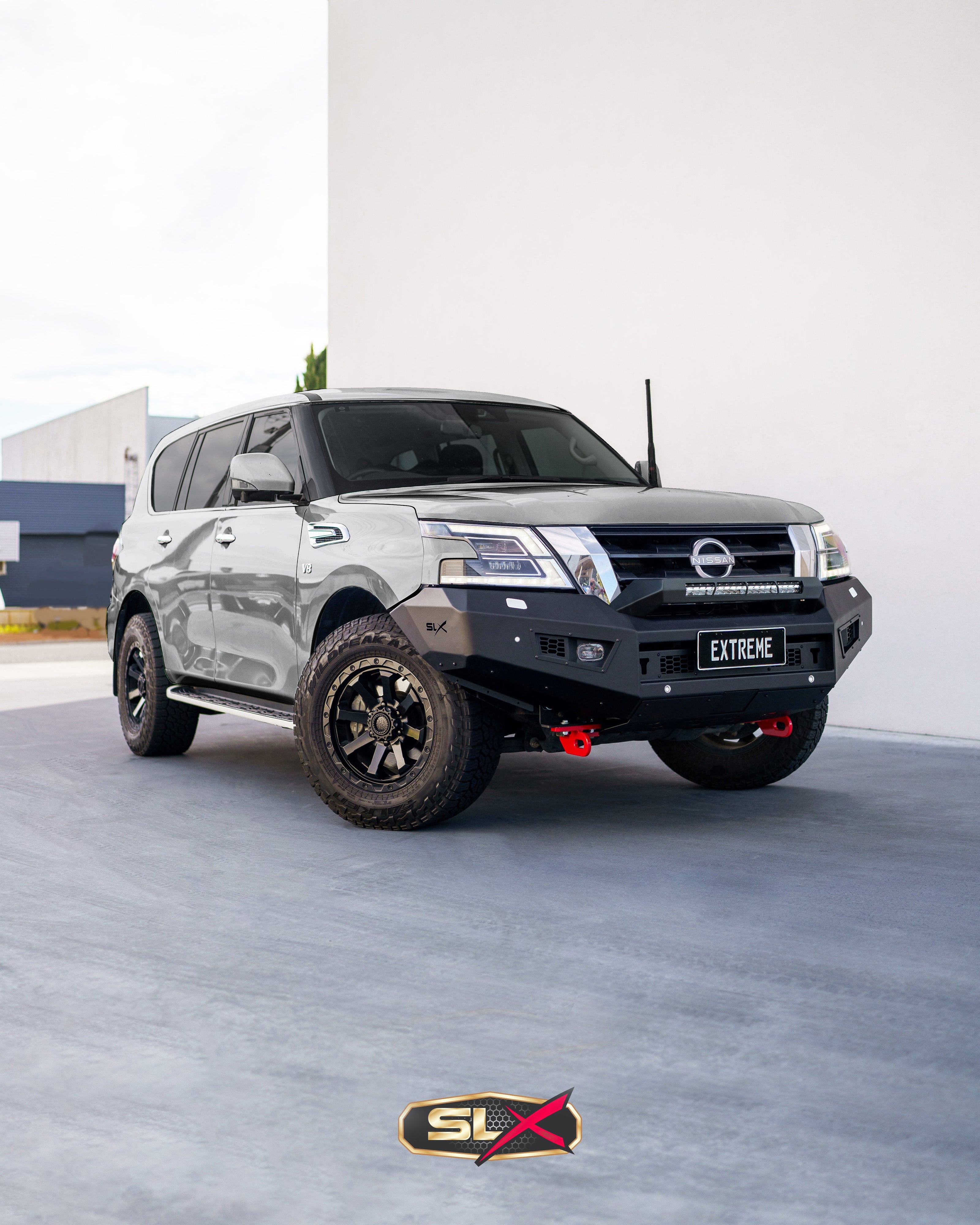

SLX Extreme Series Bullbar – Nissan Y62 Patrol S5 | Black GEN-X
FITS
- Nissan Patrol
Normally ships within 3–8 business days
INCLUDES BASH PLATE AND LED FOG LIGHTS (DRL )
Please note : the bar comes standard with the metal removable loop, the lower version in the photos
- Chassis mounted 4.5T Recovery points included
- 4mm bash plate steel
- Winch Cradle
- Under wing Side bash plates
- IP67 FOG LIGHT DRL LED
-
Suits 21.5inch LED bar (Our brand, or you get get a stedi 21.5inch) goes into the removable loop
- Removable mesh vents centre
- removable loop with 21.5inch LED bar provision .
The price for led bar is our SLX 120W - See Lighting for further details.

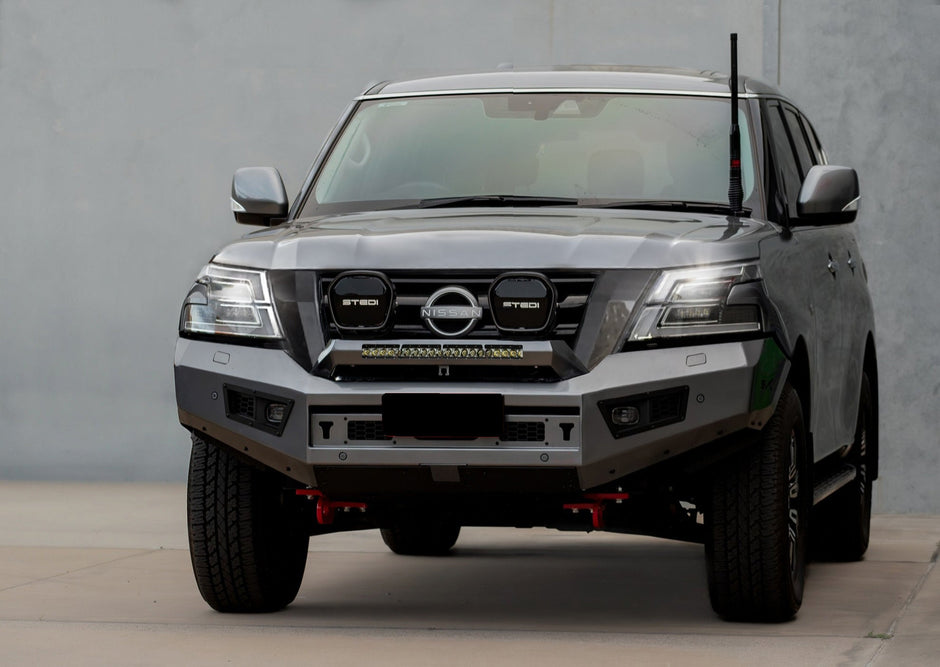

also suits Stedi ST3K 21.5inch
Spot light allocation on top of bar for 3 hole mounting system spotlights.
Sensor cut outs
Radar brackets.
Washer jet cutouts all standard
Extras can add but not included standard
21.5inch LED Bar
Can suit upto 12,000lb Low mount Winch.

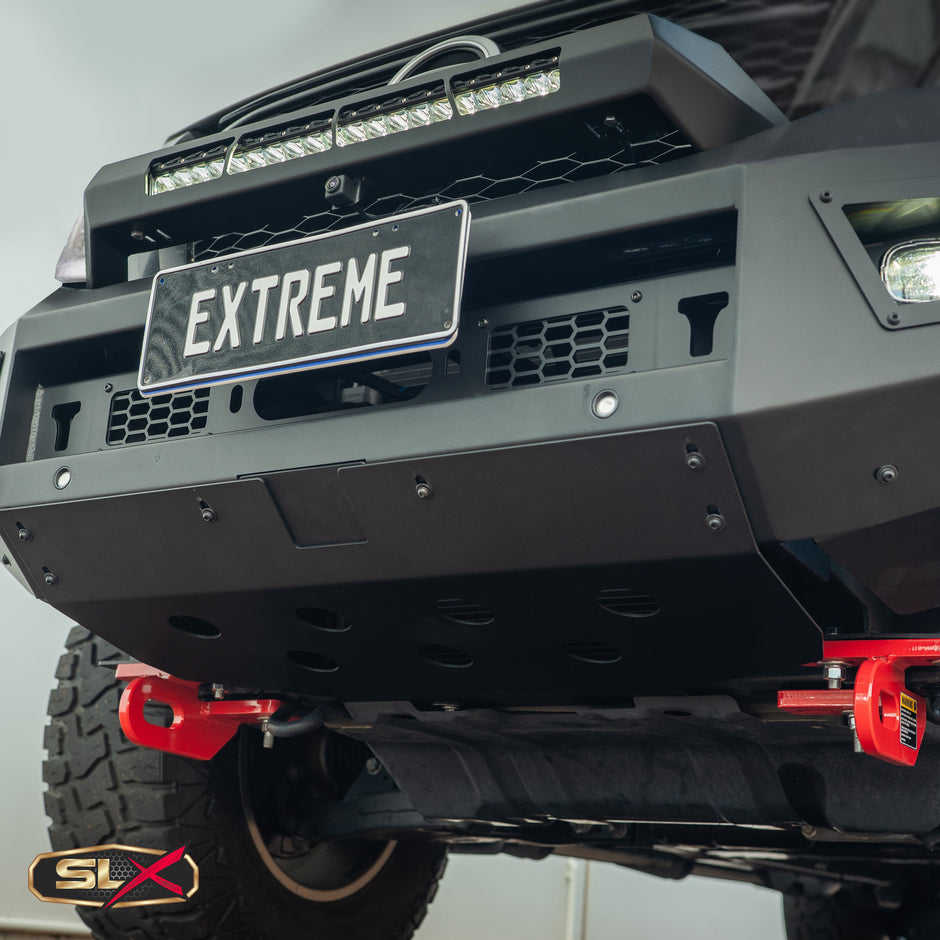

INCLUDES BASH PLATE
- Made from 8mm steel main winch cradle & 3mm side wings reinforced
- ADR69 compliant and airbag compatible Tested by ASE
- Meets AS4876.1 2002
- Suits most low mount winches upto 12,000LB
- Powder coated in texture black or can be colour matched(Additional Cost)
- Bash Plate lazer cut logo back to mounting points under the bar
- Suits 25inch LED bar
- Standard with antenna cutout in bar.
- It’s a complete bumper replacement making install time frame 4Hr
Designed in Australia by Shoreline 4x4 is a WA company Family owned and operated business since 2008
Our bars meet & exceed the ADR design guidelines, Shoreline 4x4 has completed impact testing in Adelaide passing with our unique ADR impact bracket, which is compatible with each models air bag system.
Complies with Australian standards such as
AS4876.1 2002
Section 5 to ADR 92/00 External projections
Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions
Section 5 of ADR 93/00 Forward Field of View
Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions
Complete bar & Winch Cradle: 46kgs
Bash Plates : 10kg
Recovery Points: 7kgs
Total Weight of product (with recovery points): 63kgs
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 40kgs
Optional LED bar Bracket 4kg
