SLX Extreme Series Bullbar – Nissan Y62 Patrol S5 | Triple Loop
- Nissan Patrol Y622013+
Before you order
Not sure it fits? Ask us.
Send your year, model and engine. We'll confirm the part number before you buy.
Pay later
Afterpay & Zip
Split it into instalments
Delivery
Australia-wide
Usually 3–7 business days
Genuine
US & Canadian brands
Not copies or knock-offs
Support
Real people, no bots
20+ years fitting this gear
Aussie owned. 25 years in the auto trade.
About us
Normally ships within 3–8 business days

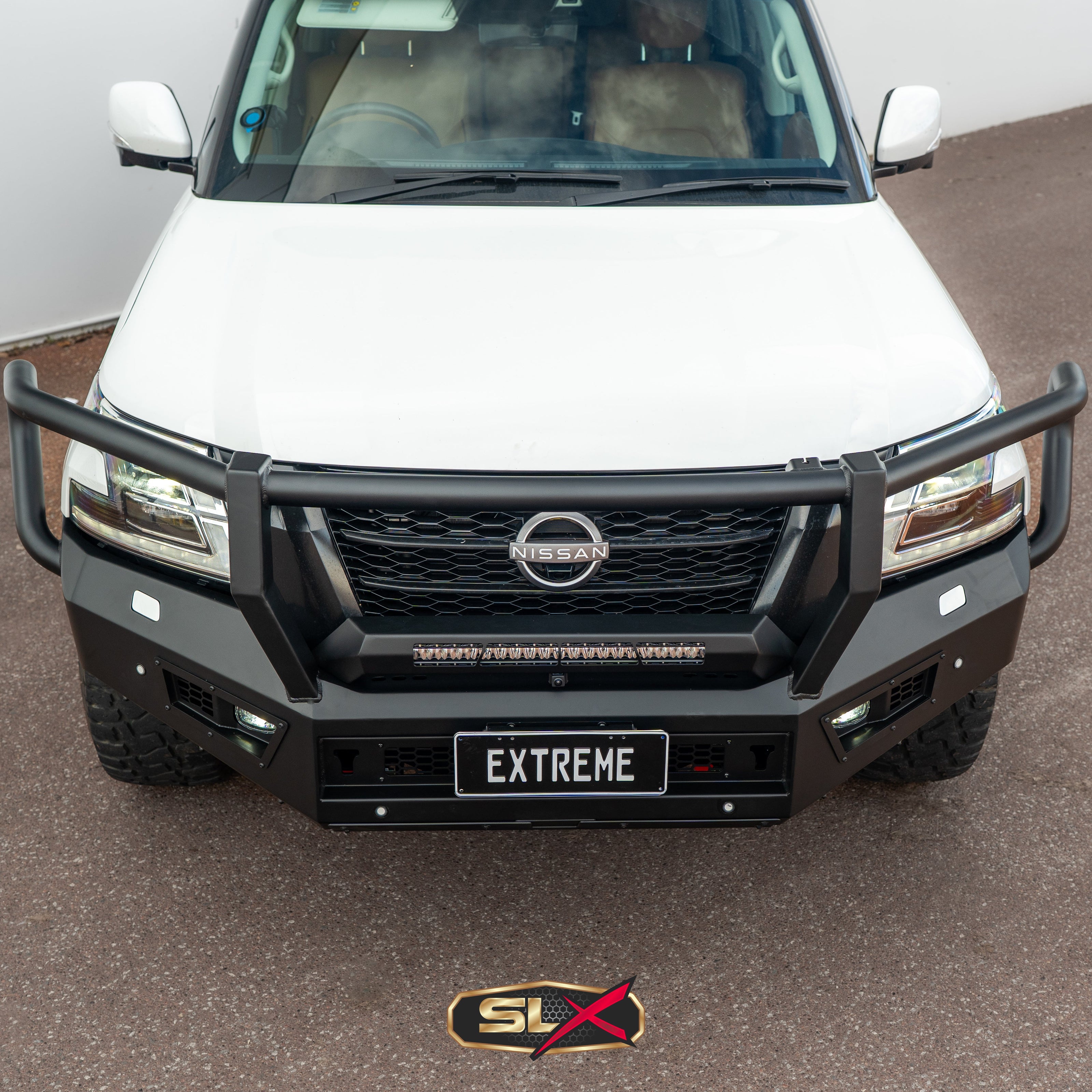

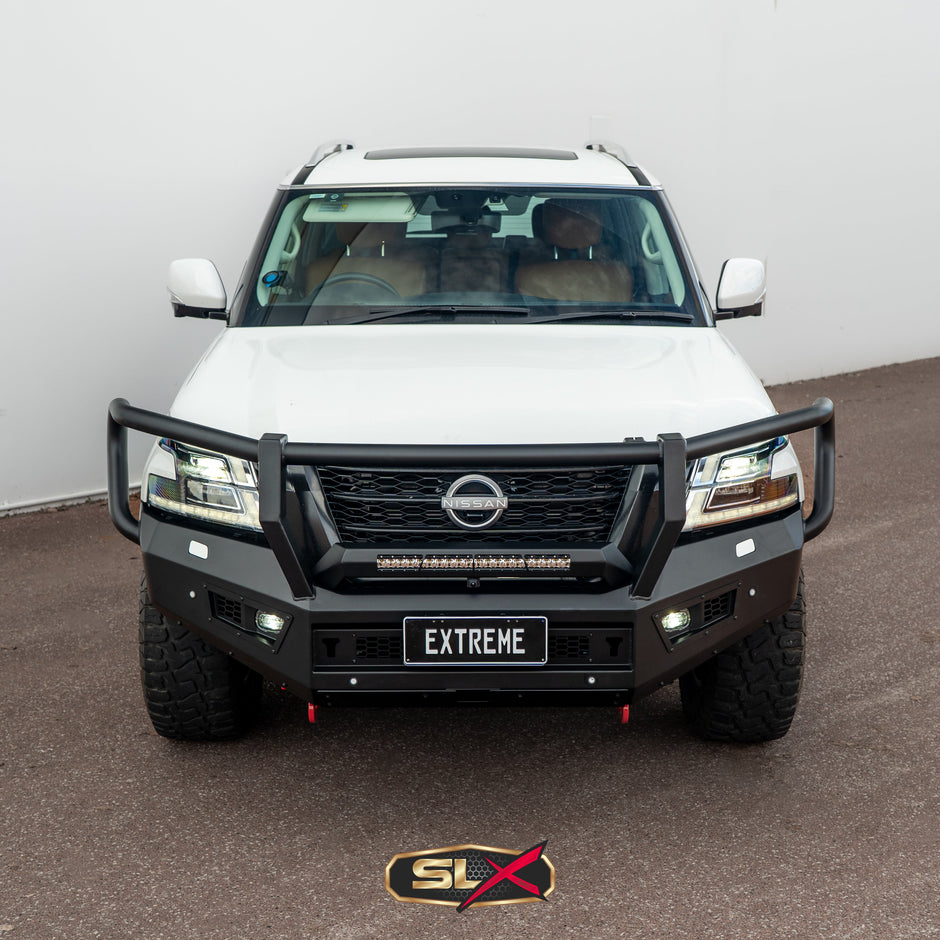

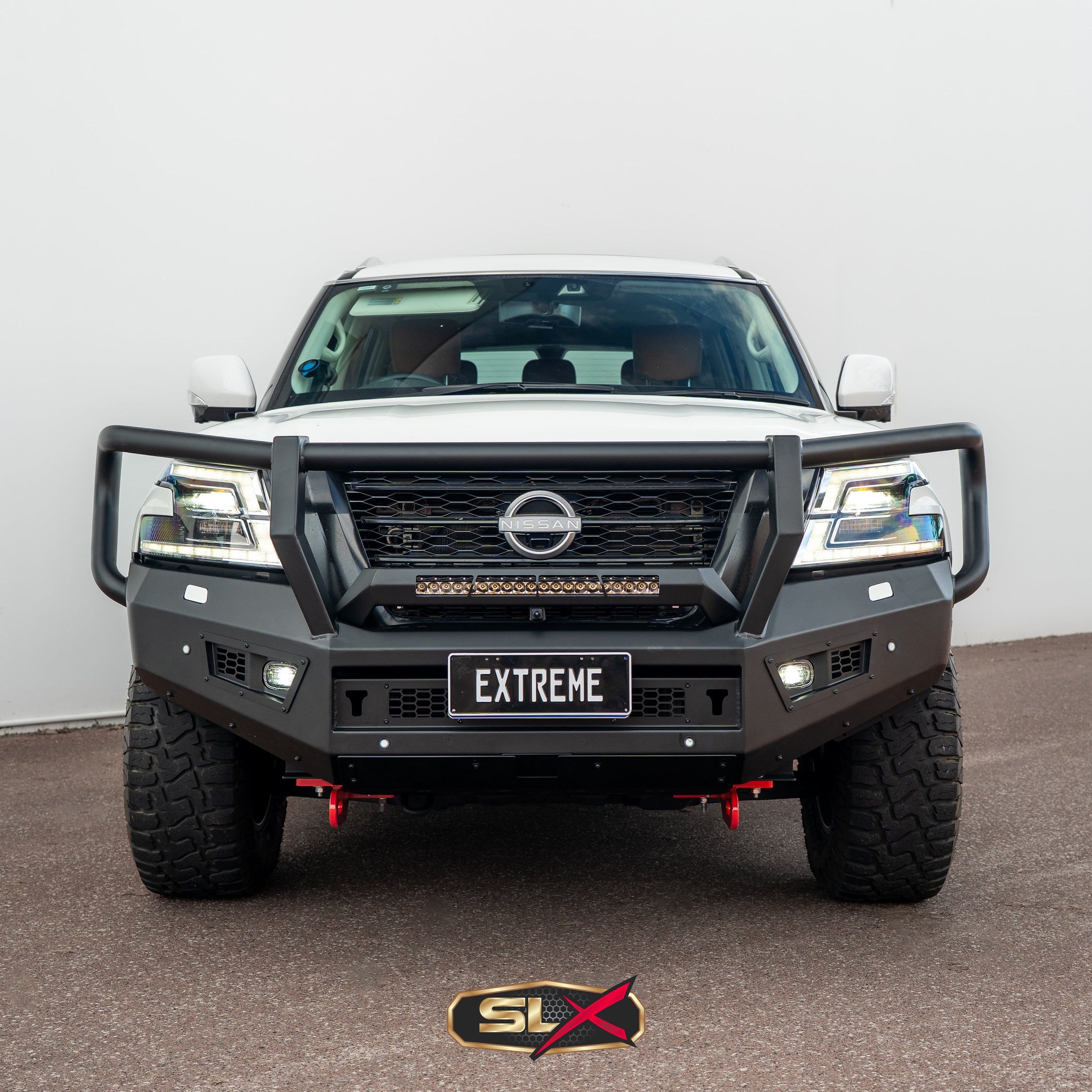

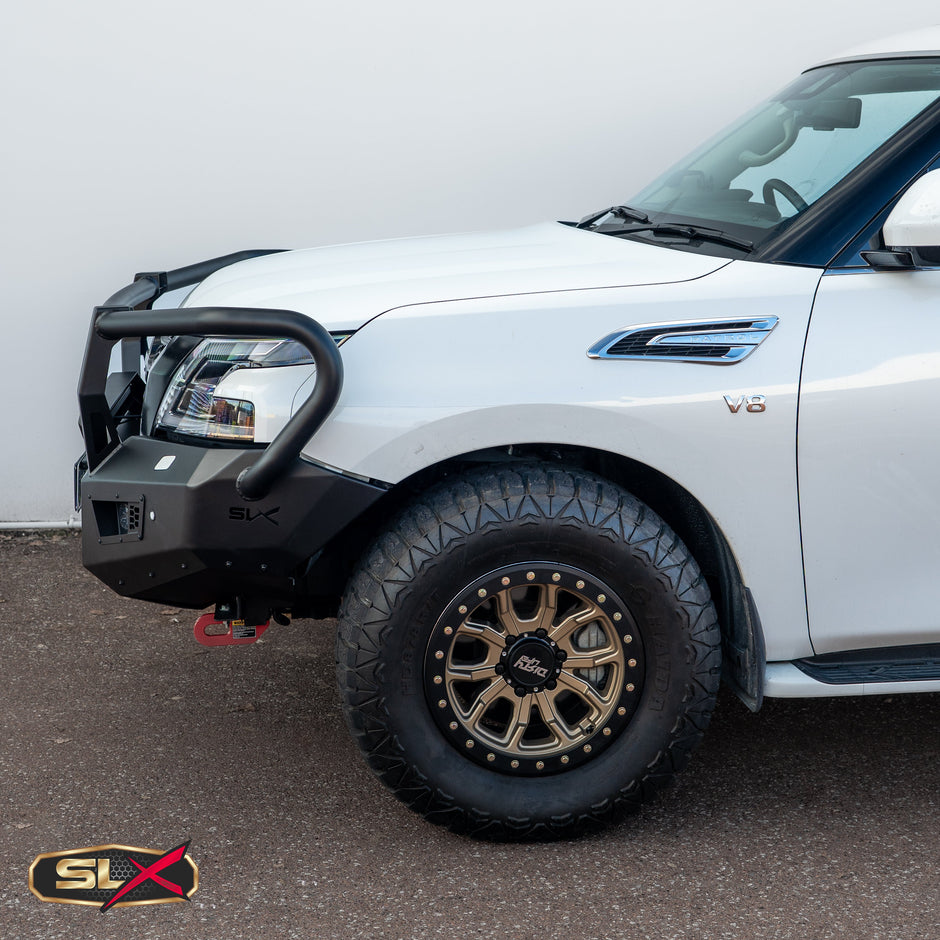

Note The Loop outter top edges have now been brought in closer to the car, approx 65mm gap now down from 100mm, thats why some images loop looks wider, we will update images when stock arrives march.
INCLUDES

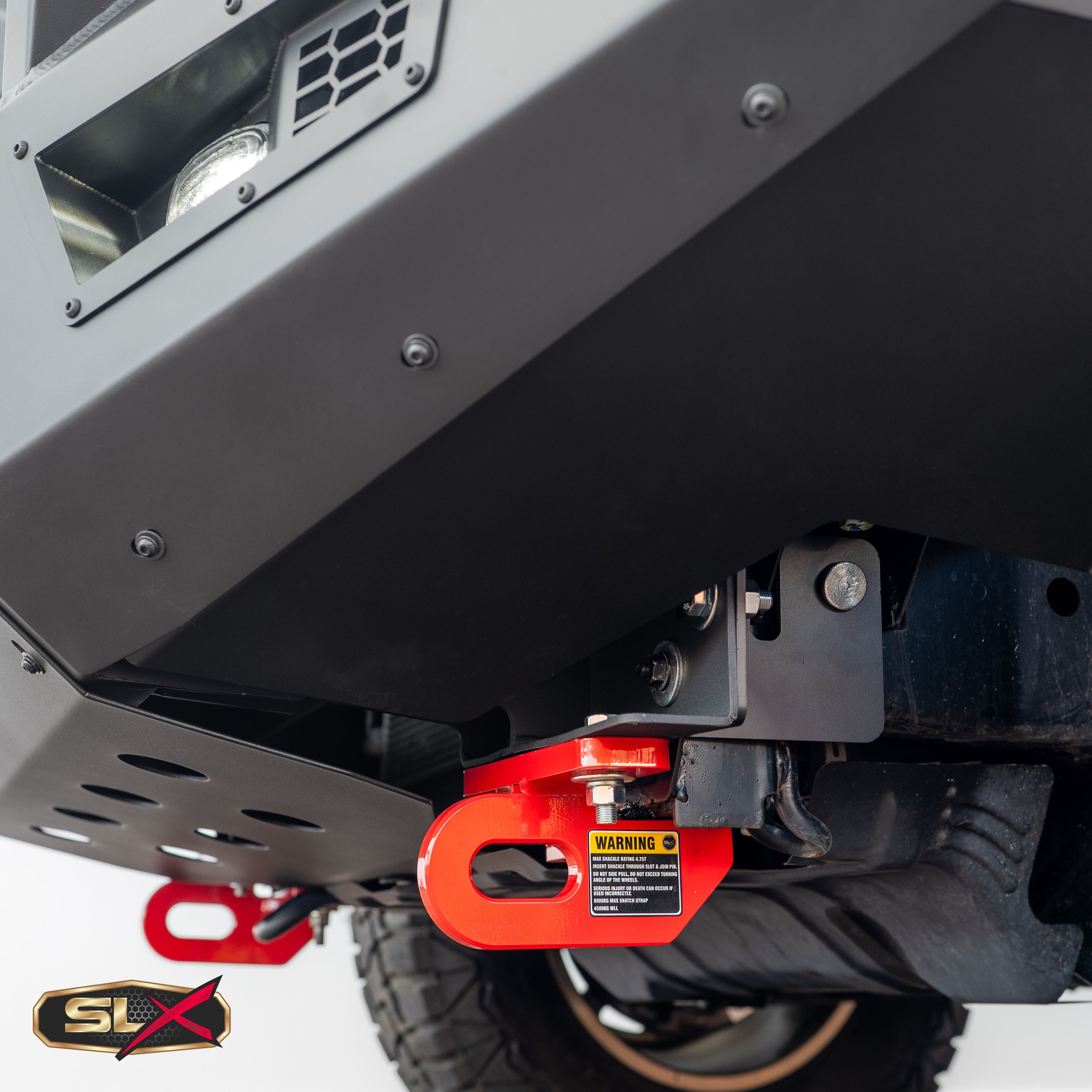

- Chassis mounted 4.5T Recovery points included
- 4mm bash plate steel
- Winch Cradle
- Under wing Side bash plates
-

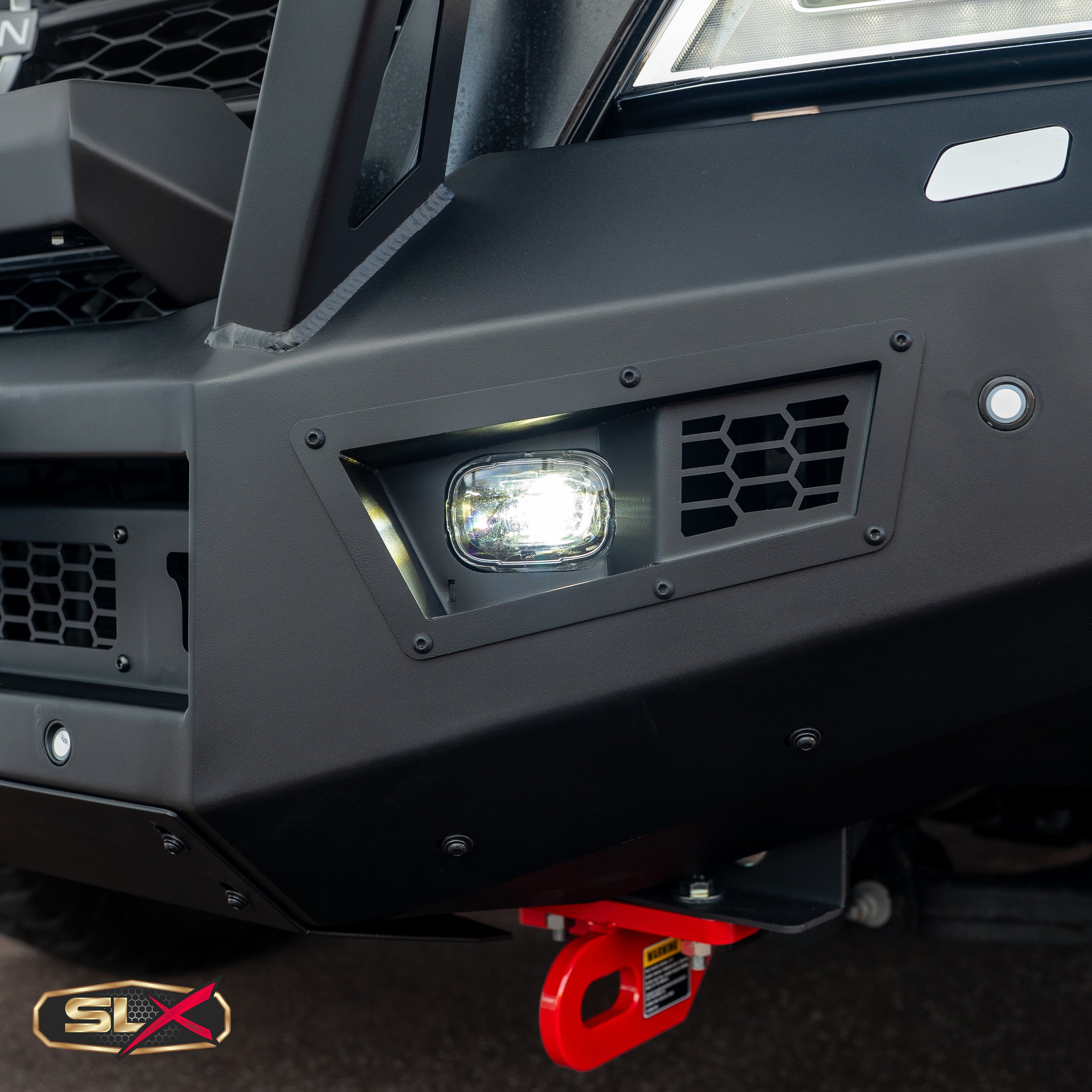

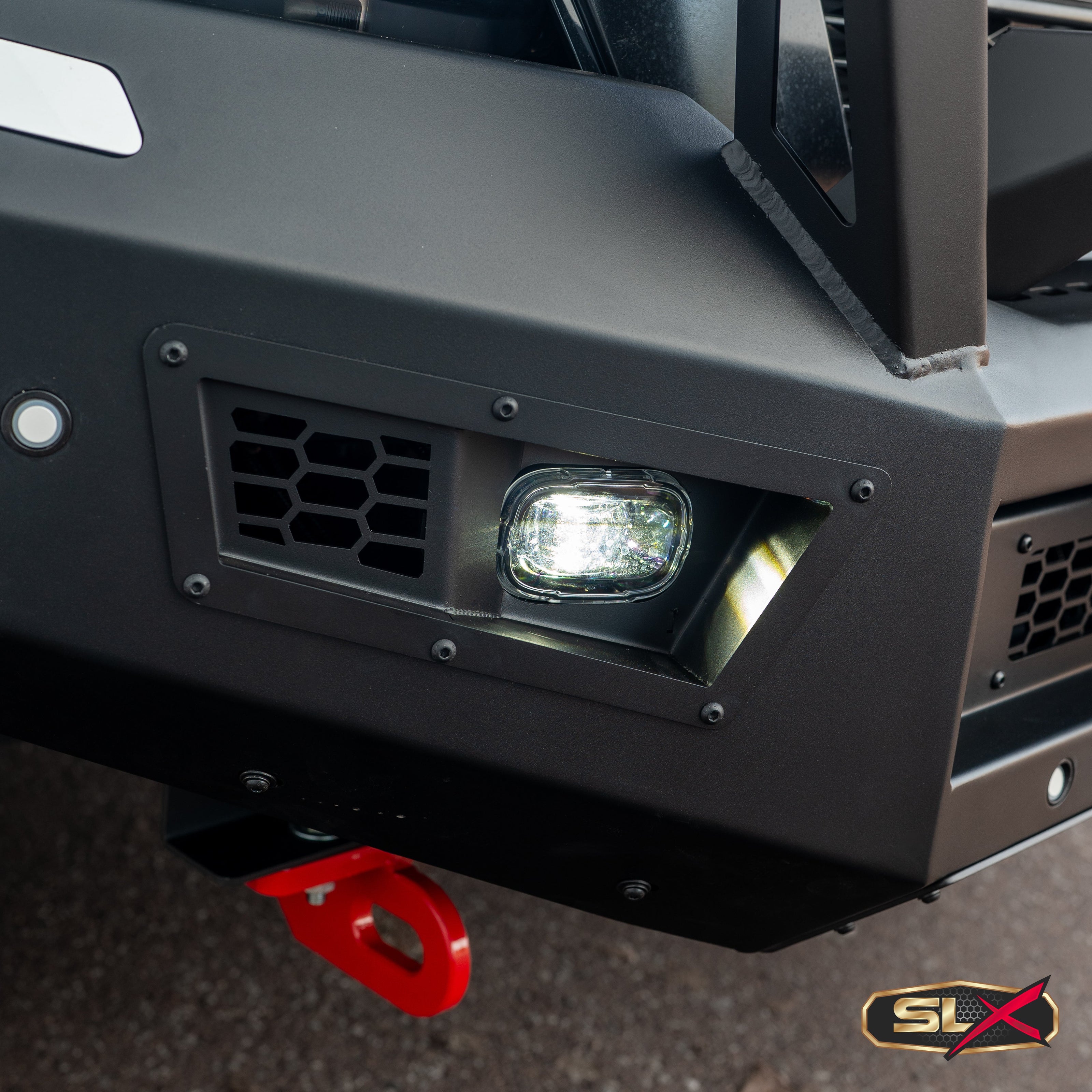

Re-Use Factory Fog light
- Removable mesh vents centre

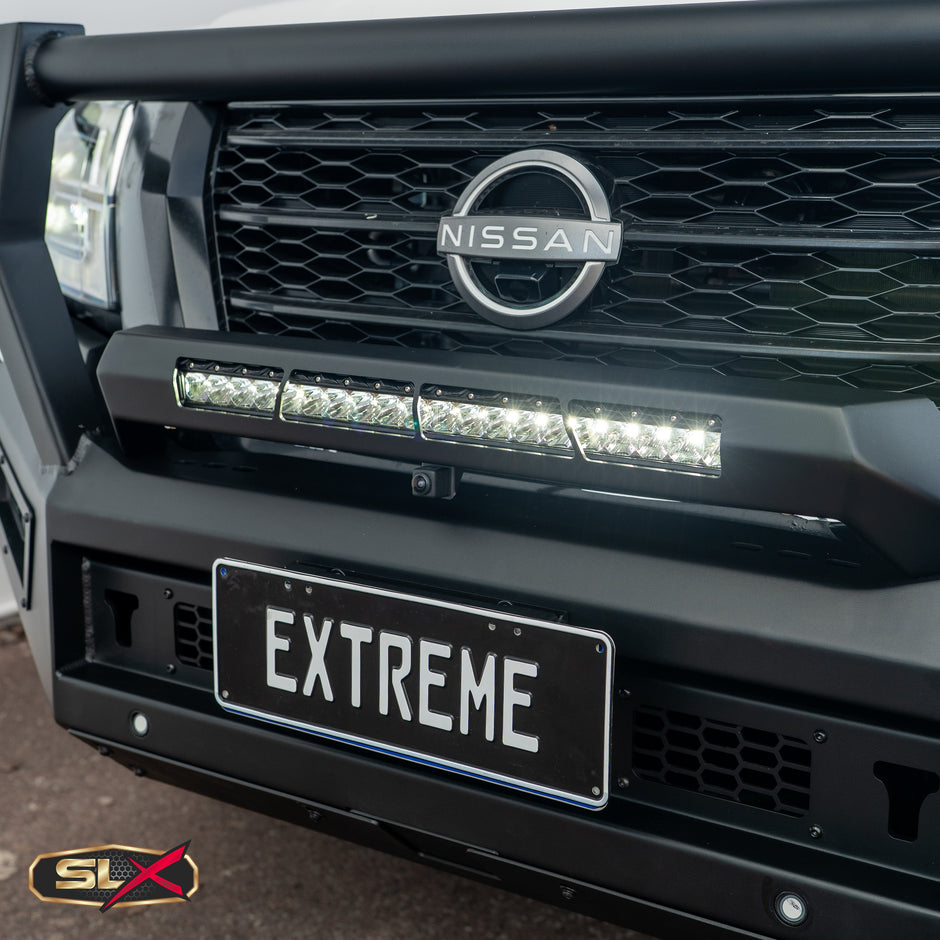

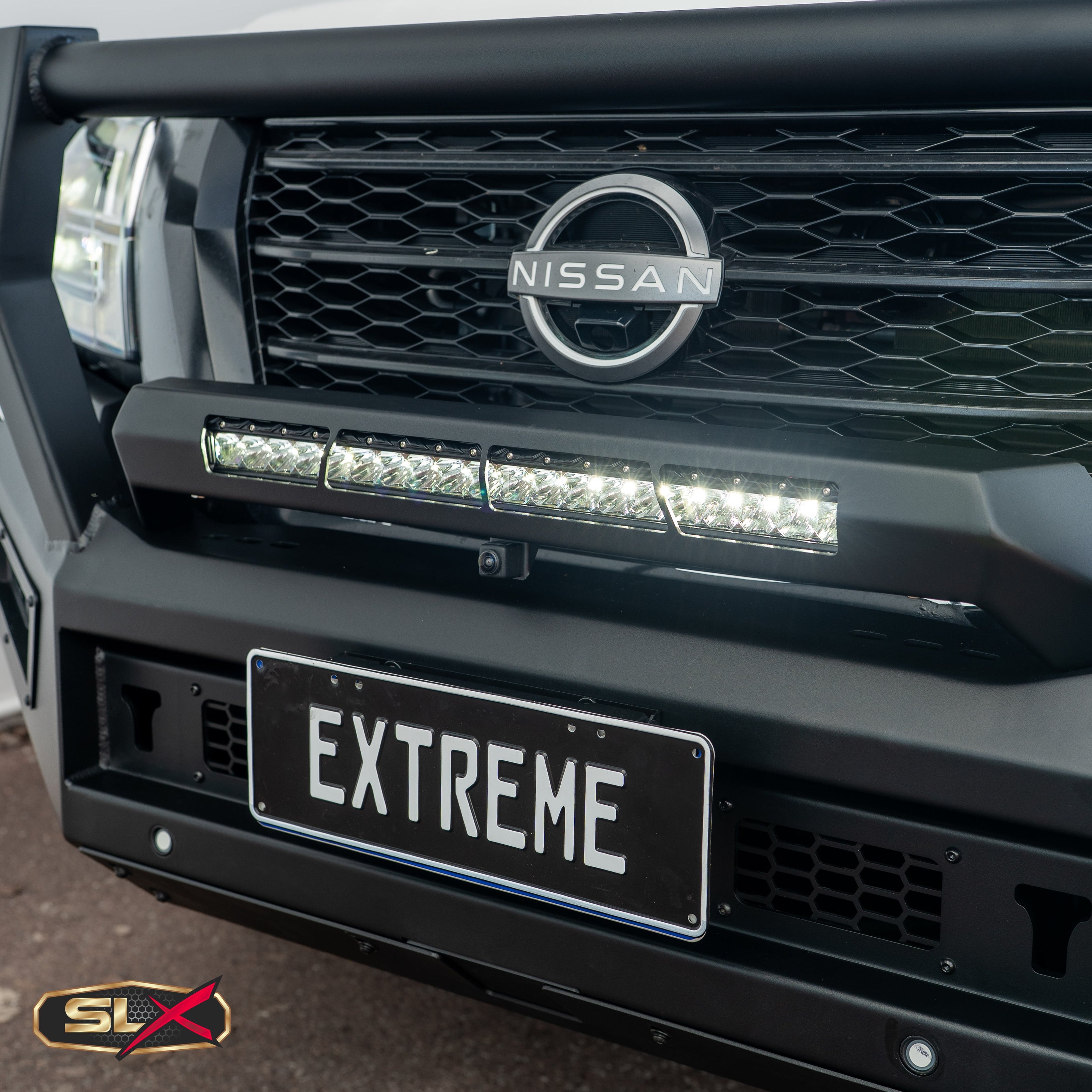

- removable loop with 21.5inch LED bar provision . IE Stedi ST3K 21.5inch
- Spot light holes cutout in top of bar if not running led bar metal loop
Spot light allocation on top of bar for 3 hole mounting system spotlights.
Sensor cut outs
Radar brackets.
Washer jet cutouts all standard
Can suit upto 12,000lb Low mount Winch.
INCLUDES BASH PLATE
- Made from 8mm steel main winch cradle & 3mm side wings reinforced
- ADR69 compliant and airbag compatible Tested by ASE
- Meets AS4876.1 2002
- Suits most low mount winches upto 12,000LB
- Powder coated in texture black or can be colour matched(Additional Cost)
- Bash Plate lazer cut logo back to mounting points under the bar
- Suits 21.5inch LED bar (Our brand, or you get get a stedi 21.5inch) goes into the removable loop
- Standard with antenna cutout in bar.
- It’s a complete bumper replacement making install time frame 4Hr
Designed in Australia by Shoreline 4x4 is a WA company Family owned and operated business since 2008
Our bars meet & exceed the ADR design guidelines, Shoreline 4x4 has completed impact testing in Adelaide passing with our unique ADR impact bracket, which is compatible with each models air bag system.
Complies with Australian standards such as
AS4876.1 2002
Section 5 to ADR 92/00 External projections
Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions
Section 5 of ADR 93/00 Forward Field of View
Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions
Complete bar & Winch Cradle: 61kgs
Bash Plates : 10kg
Recovery Points: 7kgs
Total Weight of product (with recovery points): 78kgs
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 55kgs
Optional LED bar Bracket 4kg
