Suspension Lift Kit 23-24 Ford F-250 Super Duty 4" Lift Skyjacker (F23451KS-B)

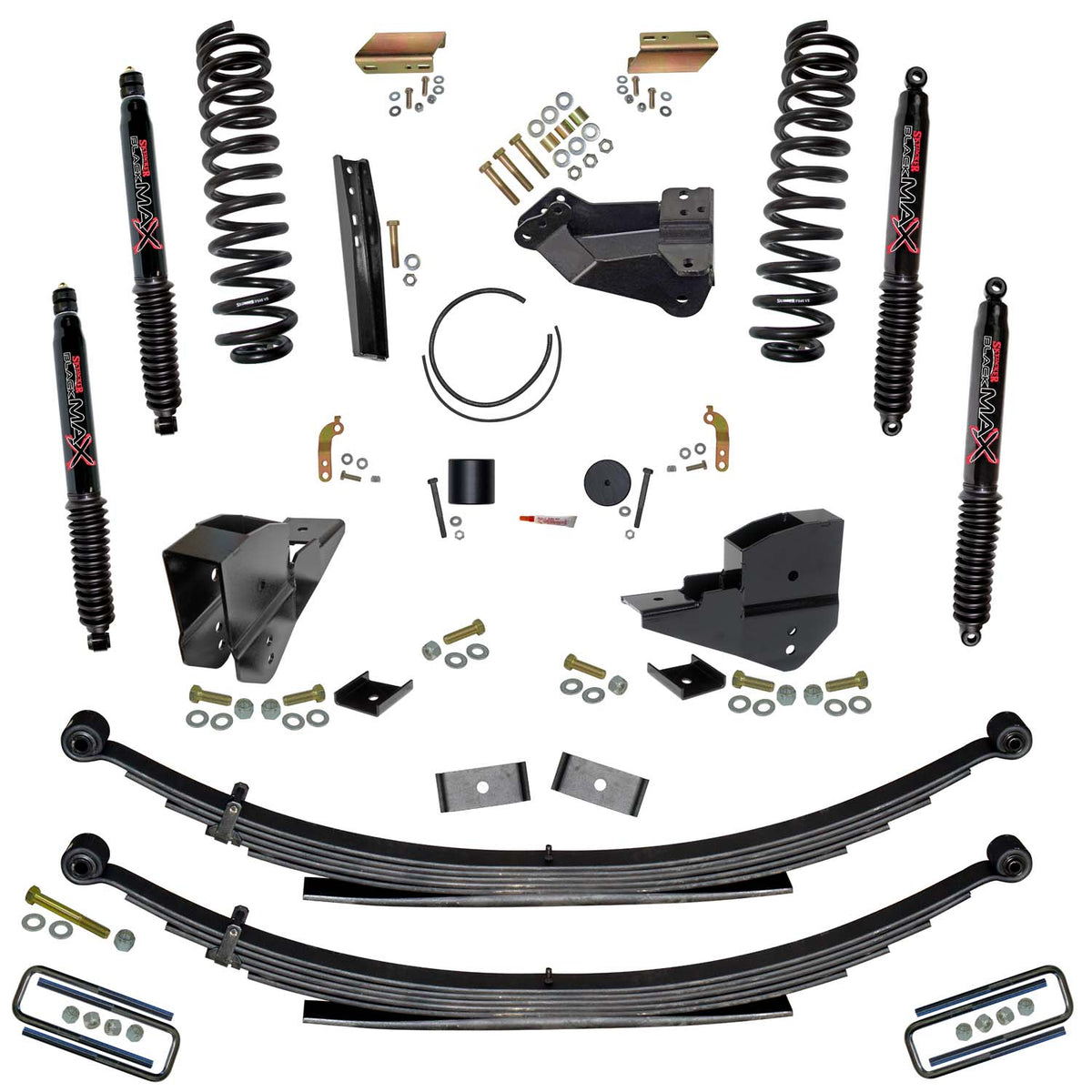

4 Inch Lift Kit with Front Coils, Rear Leaf Springs, and Black MAX Shocks Skyjacker

Overview

If you think that your Ford looks equally good clean as it does covered in off-road grime. You need to take your Super Duty to the next level. With Skyjacker's lift kit, you can reap the benefits of On-Road Refinement and Off-Road Readiness. Skyjacker's legendary Softride® technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. The process starts with 5160H chromium alloy material, a presetting process and advanced method of shot peening. Compressing the spring completely down to where the coils touch (solid height) is preset. This takes any fatigue or stress off the spring and eliminates sagging. Radius arm drop brackets lower the OEM radius arms mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. Skyjacker Softride® leaf springs are individually shot-peened with hard steel pellets at very high velocities. Softride® springs also have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon® wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. Shocks are a key link in-between the chassis and the moving parts of your suspension. Black MAX Shocks have specific valving and stroke for this application. Black MAXs Advanced Foam-Cell technology increases performance and style to deliver a smooth, comfortable ride.

Features

• 35s Improve Your Off-Road Stance And Gain Ground Clearance
• Ultra Heavy-duty Track Bar Bracket Keeps The Axle Centered
• Black MAX Has Nitrogen Gas Charged/Twin-Tube Construction
• Black MAX Valve Tuned Specific With 30 Percent More Fluid
• Proper Caster Maintains Factory Handling And Ride Quality
• Skyjacker Softride Technology Enhanced Spring Performance
• Bump Stop Spacers Keep Suspension Travel Safely In Check
• Black MAX Engineered With Advanced Foam-cell Technology
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Black Max Shocks Have 180 Degrees Directional Mounting
• Yields More Lift In The Front For A More Level Stance
• Skyjacker Softride Technology Heightened Leaf Springs

Specifications

• Lift height: 4.0 Inch
• Position: Front|Rear
• Drive: 4WD
• Series: Black Max
• Sold as: Kit
• Weight: 0.5 kg

Fitment

• 2023–2024 Ford F-250 Super Duty
• 2023–2024 Ford F-350 Super Duty

About Skyjacker

Skyjacker Suspensions have been engineering lift and suspension systems for over 45 years. Their kits are built to keep factory ride quality while adding height, clearance and articulation, and ship with the mounting hardware and instructions needed to fit them properly.
