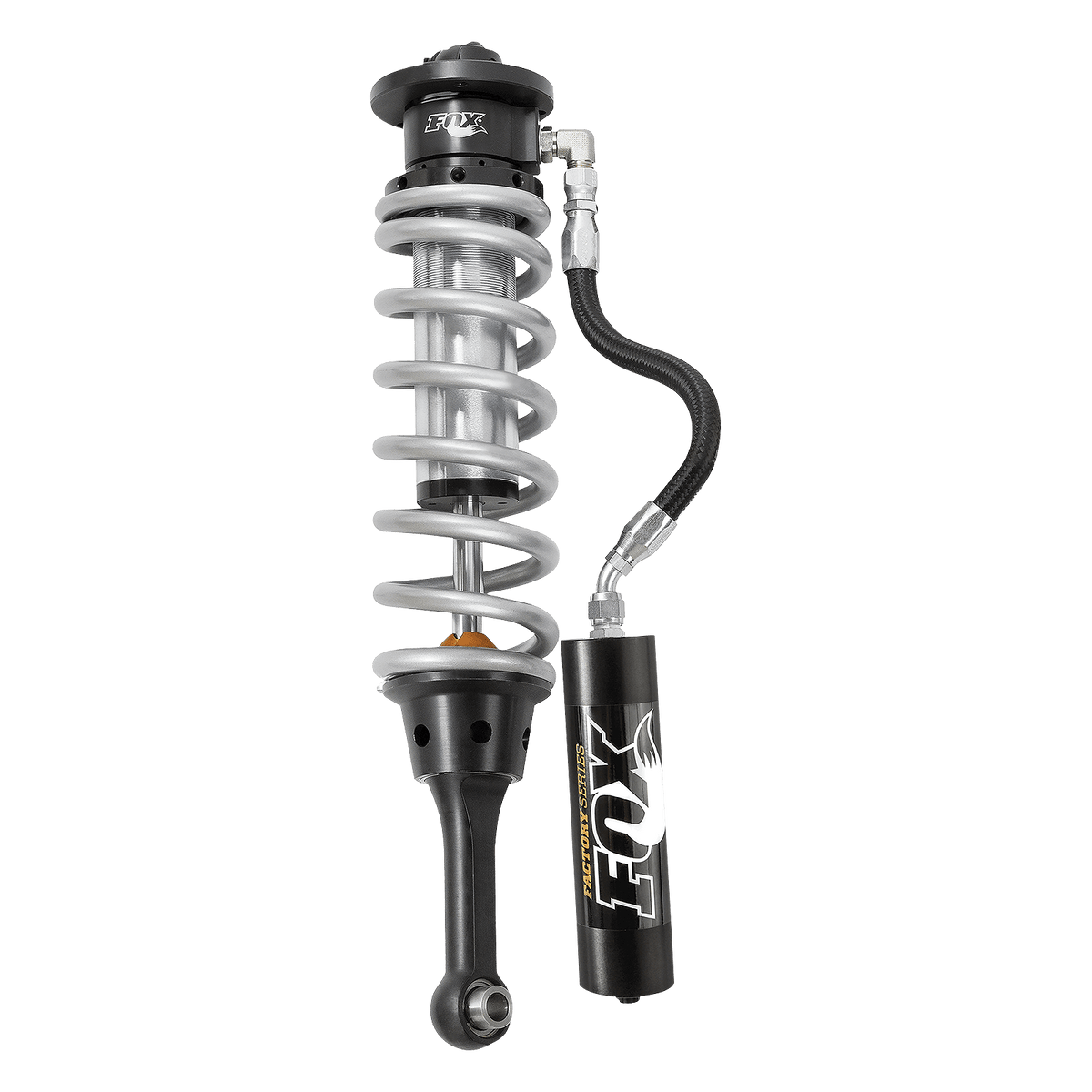

10-13 Ford Raptor Front Coilover Internal Bypass Factory Race 3.0 Remote Reservoir 7.6 Inch 0-2 Inch Lift Fox Offroad Shocks
FITS
- F 150
Normally ships within 3–8 business days
At FOX, racing has always been the cornerstone of our product development. Our 3.0 Factory Race Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel Travel, increases oil capacity, and adds 60 percent more damping area over the stock FOX SVT shocks.
They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.
These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum Components and race-bred internal Valving.
They are designed to bolt right on to your factory mounts. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box.
Large 2.5 inch remote Reservoirs with a large -10 hose increasing the shocks cooling capabilities. The Factory Race Series 3.0 Coil-over Internal Bypass shocks utilize all of the same Components from our race winning Trophy Truck shocks with Eibach springs, stainless steel shock Shafts, PTFE-lined spherical Bearings, proprietary racing oil and high-temp Viton Seals.
Part Number
883-02-046
Features
- Performance Tuned For Vehicle Specific Application
- Durable Zinc Plated Seamless Alloy Body
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
- Series Factory Race
- Travel 7.53
- Front Lift Height 0-2
- Body 3.0 inch Smooth bore and honed seamless alloy Body
- Body Plating Zinc-plated for long lasting finish
- Reservoir 2.5 inch Smooth bore and honed seamless alloy Reservoir
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft 7/8 inch 17-4 H900 stainless steel hard-chrome plated
- Piston 6061-T6 hard-anodized, high flow aluminum Piston
- Valving Application specific Valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal Optional high temperature Viton Seals
- Bearings PTFE-lined, heat-treated, alloy steel spherical
- Extended Length 27.97
- Compressed Length 20.44
- Top Mount TM
- Bottom Mount Eyelet
