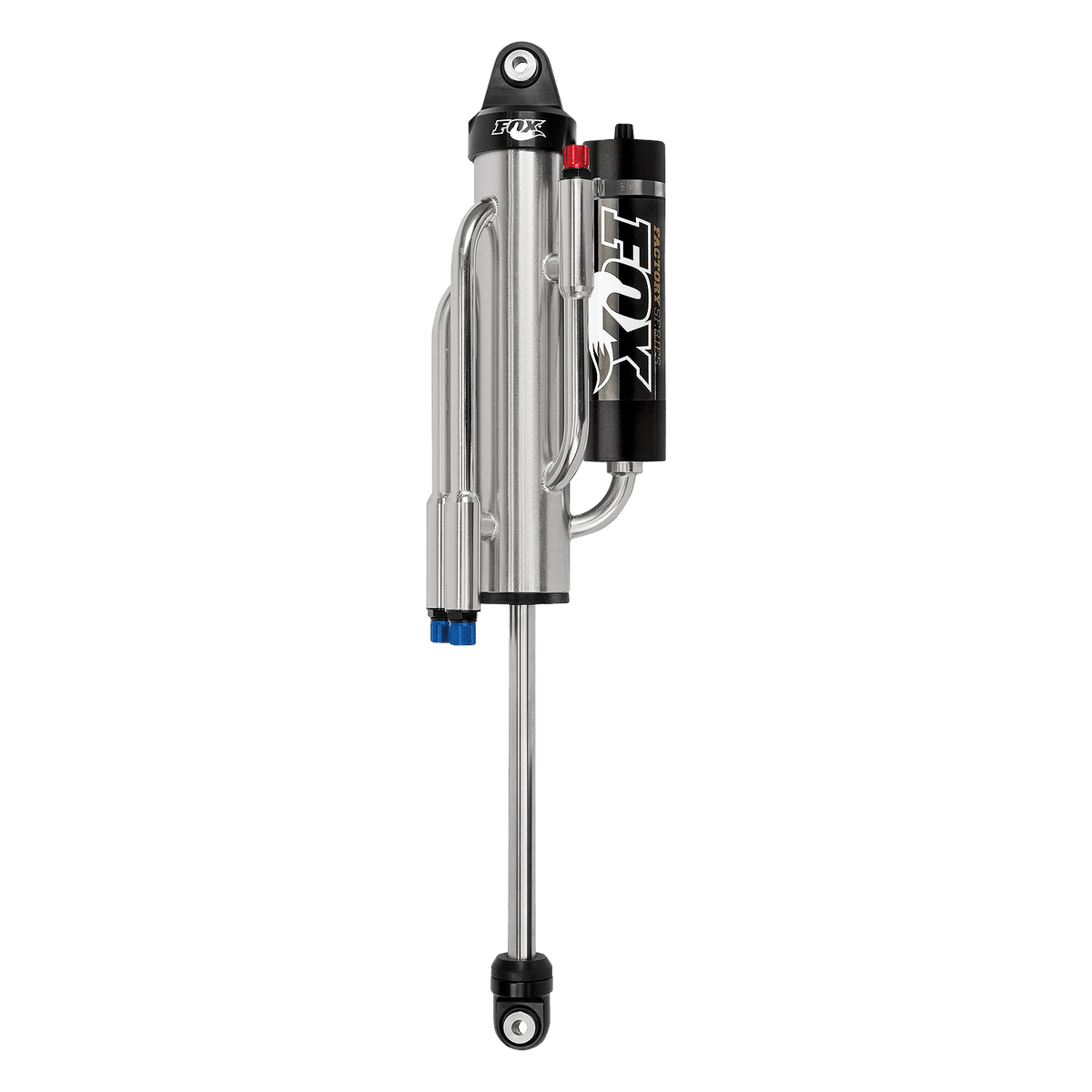

10-Up Ford Raptor Rear External Bypass Factory Race 3.0 Piggback 11.5 Inch 0-1 Inch Lift QAB Fox Offroad Shocks
- Ford F-150 Raptor2010+
Before you order
Not sure it fits? Ask us.
Send your year, model and engine. We'll confirm the part number before you buy.
Pay later
Afterpay & Zip
Split it into instalments
Delivery
Australia-wide
Usually 3–7 business days
Genuine
US & Canadian brands
Not copies or knock-offs
Support
Real people, no bots
20+ years fitting this gear
Aussie owned. 25 years in the auto trade.
About us
Normally ships within 3–8 business days
At FOX, racing has always been the cornerstone of our product development. Our Factory Race Series 3.0 External Bypass, position-sensitive shocks maximize the entire wheel Travel, increases oil capacity, and adds 60 percent more damping area over the stock FOX SVT shocks.
The Factory Series 3.0 Bypass shocks were developed with three independently owner tunable bypass zones for complete ride control regardless of terrain conditions. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.
These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum Components and race-bred internal Valving. They are designed to bolt right on to your factory mounts. Large 2.5 inch remote Reservoirs increasing the shocks cooling capabilities.
The Factory Race Series 3.0 External Bypass shocks utilize all of the same Components from our race winning Trophy Truck shocks with steel shock Shafts, PTFE-lined spherical Bearings, proprietary racing oil and high-temp Viton Seals.
Pair these shocks with aftermarket leaf springs and bump stop kits to unleash the SVT Raptors true off-road capabilities.
Features
- Performance Tuned For Vehicle Specific Application,
- Durable Zinc Plated Seamless Alloy Body,
- Quick Adjust Bypass Knobs For Easy Adjustments,
- External Reservoir System Dissipates Heat Fast
- Series Factory Race
- Travel 11.42
- Rear Lift Height 0-1
- Body 3.0 Inch Smooth bore and honed seamless alloy Body
- Body Plating Zinc-plated for long lasting finish
- Reservoir 2.5 Inch Smooth bore and honed seamless alloy Reservoir
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft 7/8 Inch 17-4 H900 stainless steel hard-chrome plated
- Piston 6061-T6 hard-anodized, high flow aluminum Piston
- Valving Application specific Valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal High temperature Viton Seals
- Bearings PTFE-lined, heat-treated, alloy steel spherical
- Extended Length 29.35
- Compressed Length 17.93
- Top Mount Eyelet
- Bottom MountEyelet
