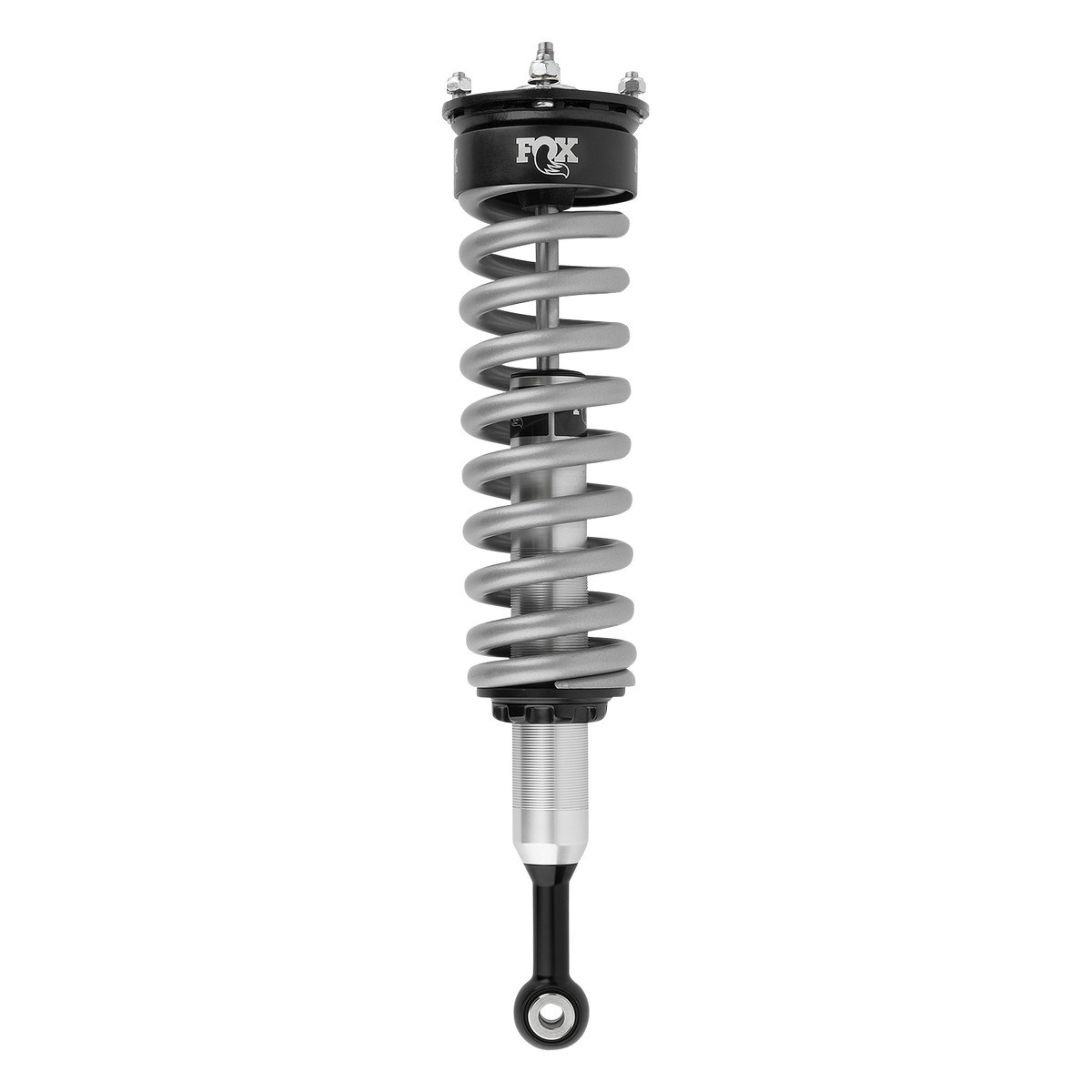

12-Up Isuzu D-Max Front Coilover PS 2. Fox Offroad Shocks
- Isuzu D-Max2012+
- Universal fit for other vehicles
Before you order
Not sure it fits? Ask us.
Send your year, model and engine. We'll confirm the part number before you buy.
Pay later
Afterpay & Zip
Split it into instalments
Delivery
Australia-wide
Usually 3–7 business days
Genuine
US & Canadian brands
Not copies or knock-offs
Support
Real people, no bots
20+ years fitting this gear
Aussie owned. 25 years in the auto trade.
About us
Normally ships within 3–8 business days
Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of Features that set it apart. The precision, metal impact extruded aluminum Body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear.
Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal Reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision Valving.
The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Features
- Performance Tuned For Vehicle Specific Application, Aluminum Body Dissipates Heat Faster Than Steel, IFP Separates Oil From High-Pressure Nitrogen Gas, Black Anodized CNC Machined Aluminum Components
- Series Performance
- Travel 5.14
- Front Lift Height 0-2
- Body 2.0 inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece Body resists rust over time
- Body Plating Clear-anodized for a durable finish
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft 5/8 Inch hard chrome plated heat-treated alloy steel
- Piston Race-developed high-flow Piston design
- Valving Application specific Valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal
- Bearings Large diameter, heavy-duty spherical
- Extended Length 19.34/li>
- Compressed Length 14.2
- Top Mount TM
- Bottom Mount Eyelet
