Suspension Lift Kit 07-17 Jeep Wrangler 3.5" Lift Skyjacker (JK35BKXLT)

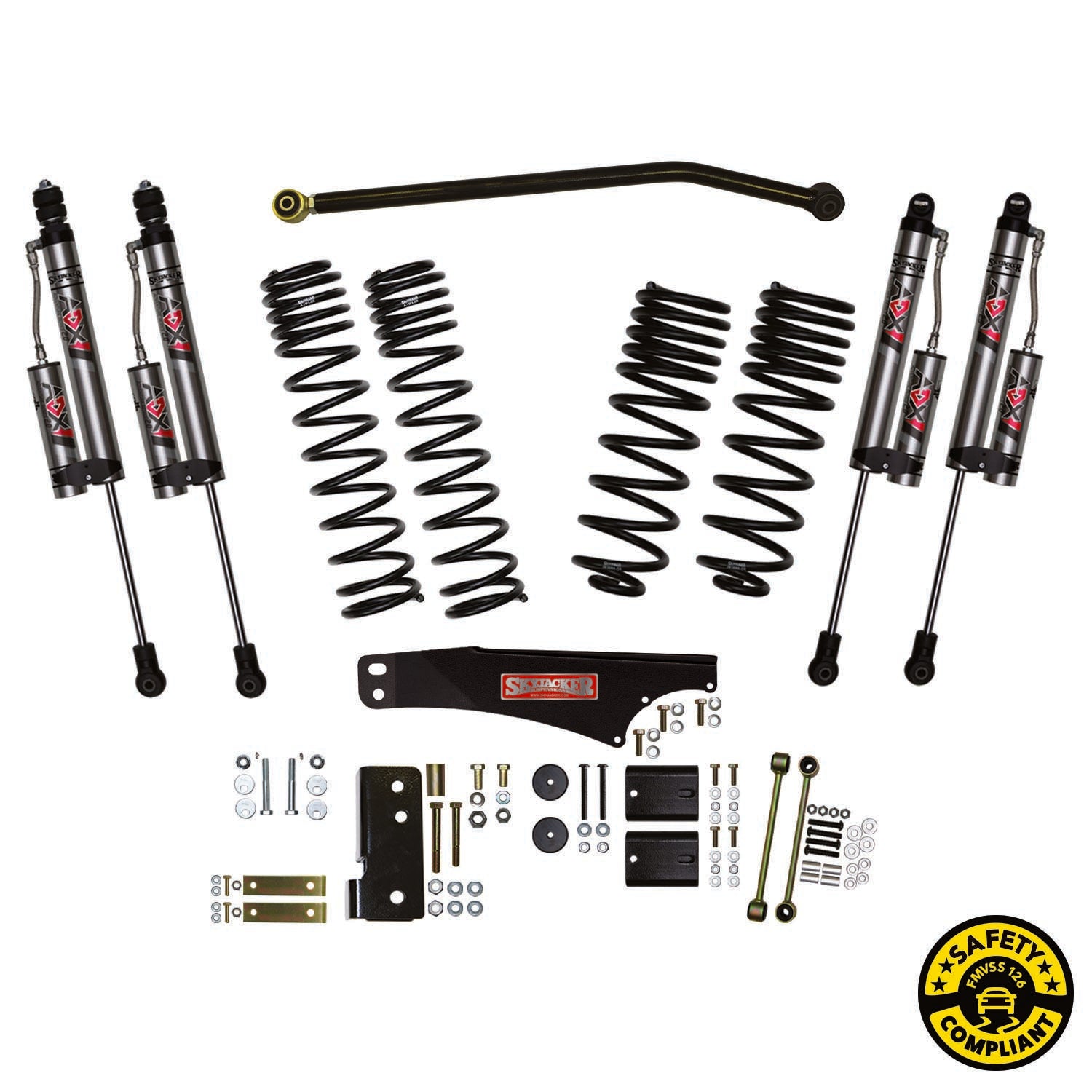

3.5 Inch Suspension Lift System With ADX 2.0 Remote Reservoir Shocks Skyjacker

Overview

Skyjacker specifically engineered a progressive 2-stage dual rate long travel coil. First Flex Rate stage delivers a comfortable ride with the ability to flex\expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain. Second Ride Rate stage only engages after compression past Flex Rate. Shocks are a key link in-between the chassis and the moving parts of your suspension. Their key role is to optimize your suspension by keeping your tires in contact with the terrain. Skyjackers ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system. Engineered for higher speed applications, remote reservoir shocks still perform at crawl. The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents the gas and oil from mixing or foaming (cavitation). The replacement Front Adjustable Track Bar includes Skyjacker installed pressed-in HD OEM style rubber bushing and an adjustable 3/4- in. Heavy-Duty Rod End, Jam Nut and Alignment Bushings. Front and Rear Bump Stop Spacers bolt onto the axle bump pads and keep the suspension travel safely in check. Rear Extended Length Sway Bar End Links allow full articulation as the suspension drops (full droop). Rear Track Bar Lower Axle Mount Bracket mounts directly to the rear axle housing to correct the track bar angle. Dana 44 Rear Track Bar Mount Brace strengthens the factory mount that is prone to failure. The track bar bracket and brace create better handling with less side-to-side sway. Eccentric alignment cam bolts correct caster and pinion angles (front lower axle and rear upper front). Comes complete with Bushings and High-Grade Mounting Hardware.

Features

• Consistent Controlled Stability With Smooth Riding Comfort
• Engineered For Long Lasting Comfort/Ride
• ADX 2.0 Aluminum Monotube Provides Better Heat Dissipation
• ADX 2.0 Teflon Banded Piston True Reaction Adds Stability
• IFP Technology Provides Quickest Shock Reaction Time Ever
• Aggressive Look/Unparalleled Performance/Impressive Ride
• Flex Stage/Ride Stage Dual Rate Long Travel Coil Springs
• ADX 2.0 Reacts Quicker To Improve Handling And Stability
• Improve Your Off Road Stance And Gain Ground Clearance
• Yields More Lift In The Front For A More Level Stance
• Works With OEM Electronic Stability Control System
• Clears 34 With Ample Room For Off Road Action

Specifications

• Lift height: 3.5 Inch
• Position: Front|Rear
• Drive: 4WD
• Series: ADX 2.0
• Sold as: Kit
• Shocks included: Yes
• Hardware included: Yes
• Weight: 52.9 kg

Fitment

• 2007–2017 Jeep Wrangler
• 2018 Jeep Wrangler JK

About Skyjacker

Skyjacker Suspensions have been engineering lift and suspension systems for over 45 years. Their kits are built to keep factory ride quality while adding height, clearance and articulation, and ship with the mounting hardware and instructions needed to fit them properly.

Genuine USA import, supplied in Australia by Maverick Overland. Fitment support included — tell us your vehicle, lift height and tyre size and we'll confirm the right part before you order.
