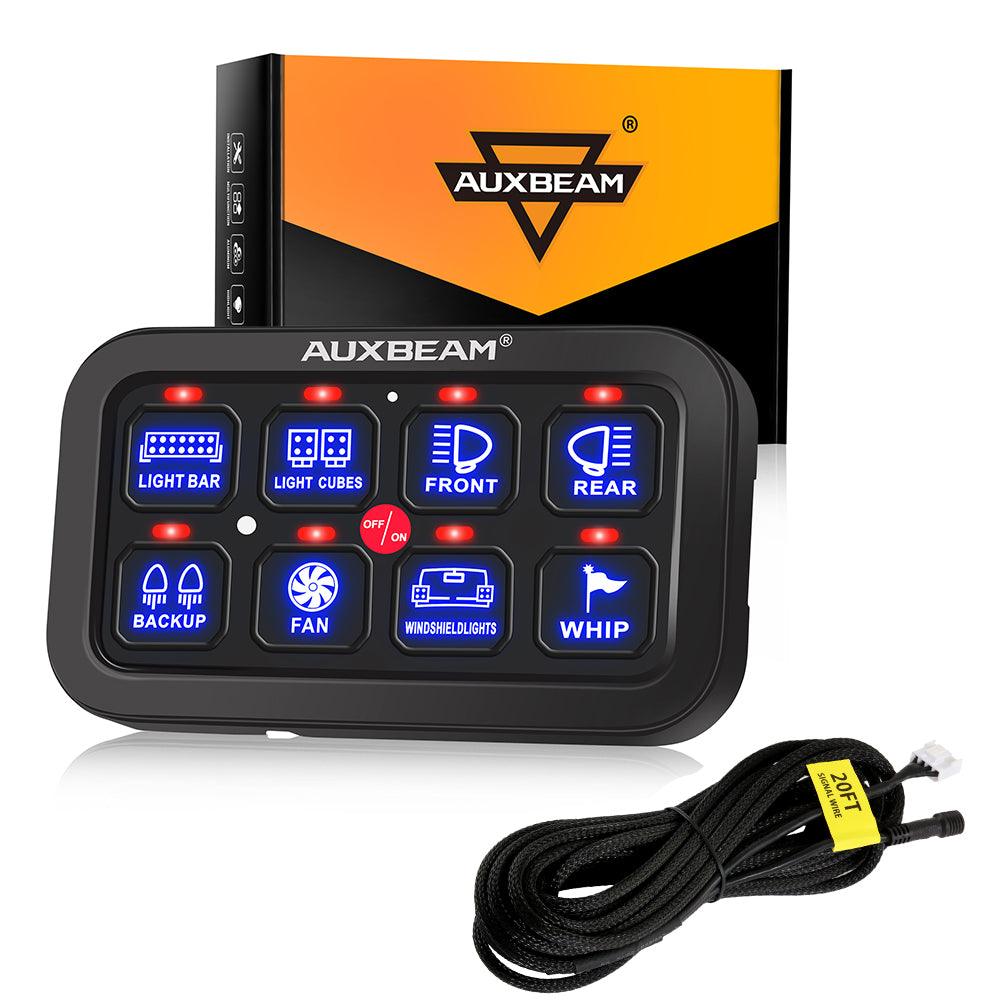

BA80 8 Gang LED Switch Panel Kit Automatic Dimmable Universal(One-Sided Outlet) Blue
Auxbeam
QP002559
Increments of 1
Minimum of 1
Maximum of
Sale price
$319.99
--50%
Regular price
$212.99
Regular price
$319.99
Unit price
per
Tax included.
Shipping calculated at checkout.
BA80 8 Gang LED Switch Panel Kit Automatic Dimmable Universal(One-Sided Outlet) Blue
Sale price
$319.99
Regular price
$212.99
Regular price
$319.99
Unit price
per
Couldn't load pickup availability
Description
🔥Get 15% off on the ON-OFF control switch panel! Use code SW15 at checkout.

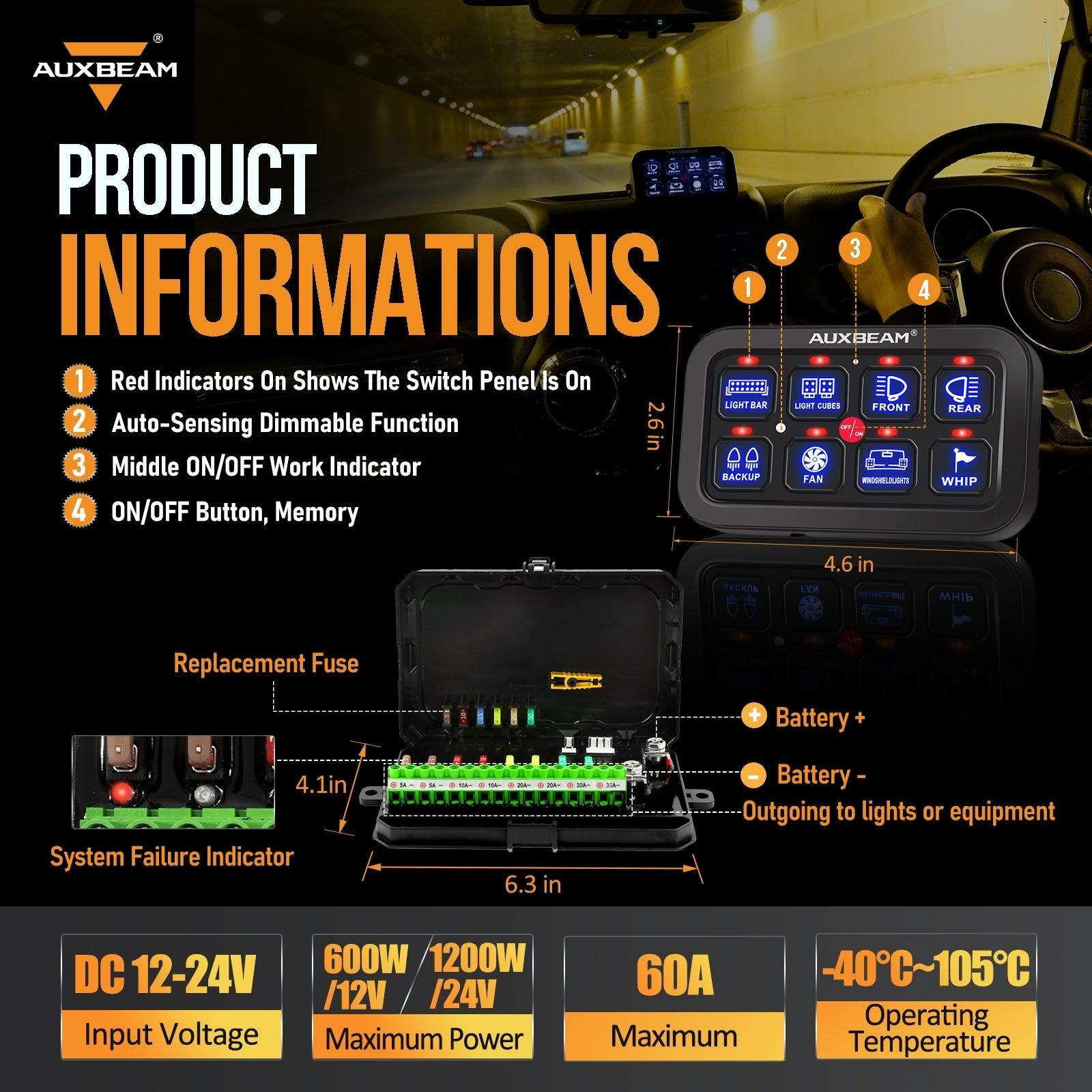

Specification :
Working voltage: DC 12-24V
Rated voltage: 12V 20A / 24V 10A
Switch operation: On-Off
Operating at 12 Volts: max power rating of 600W
Operating at 24 Volts: max power rating of 1200W
Max current: 60A
Operating temperature: -40°C ~ +105°C
Waterproof rating: IP65
Features :

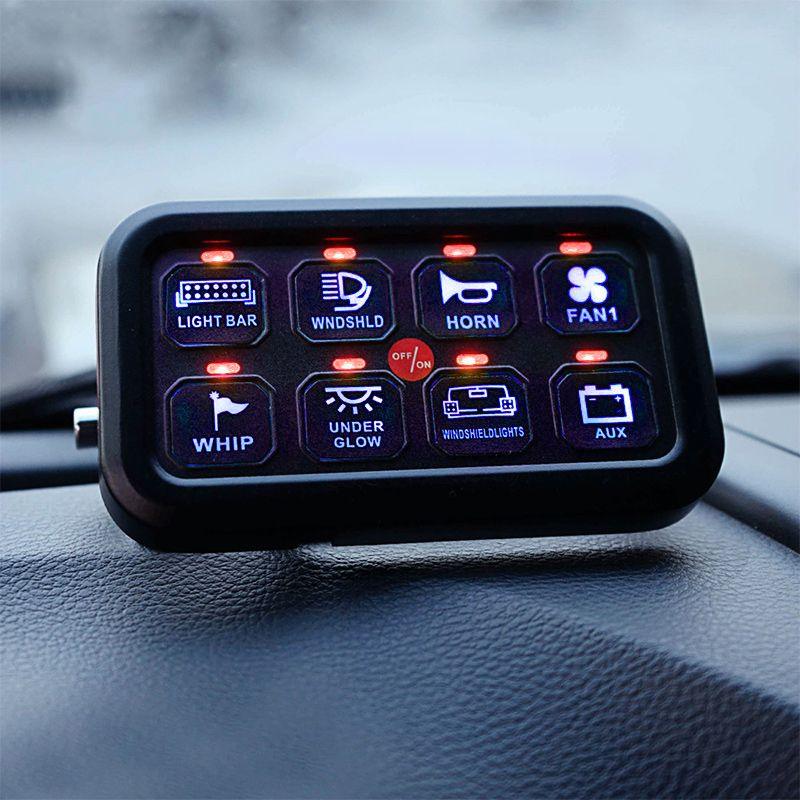

▶8 Gang Switch Panel
- 8 Gang on-off control switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
- Blue Backlight. Adopt capacitive sensing technology with blue indicator light display. Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

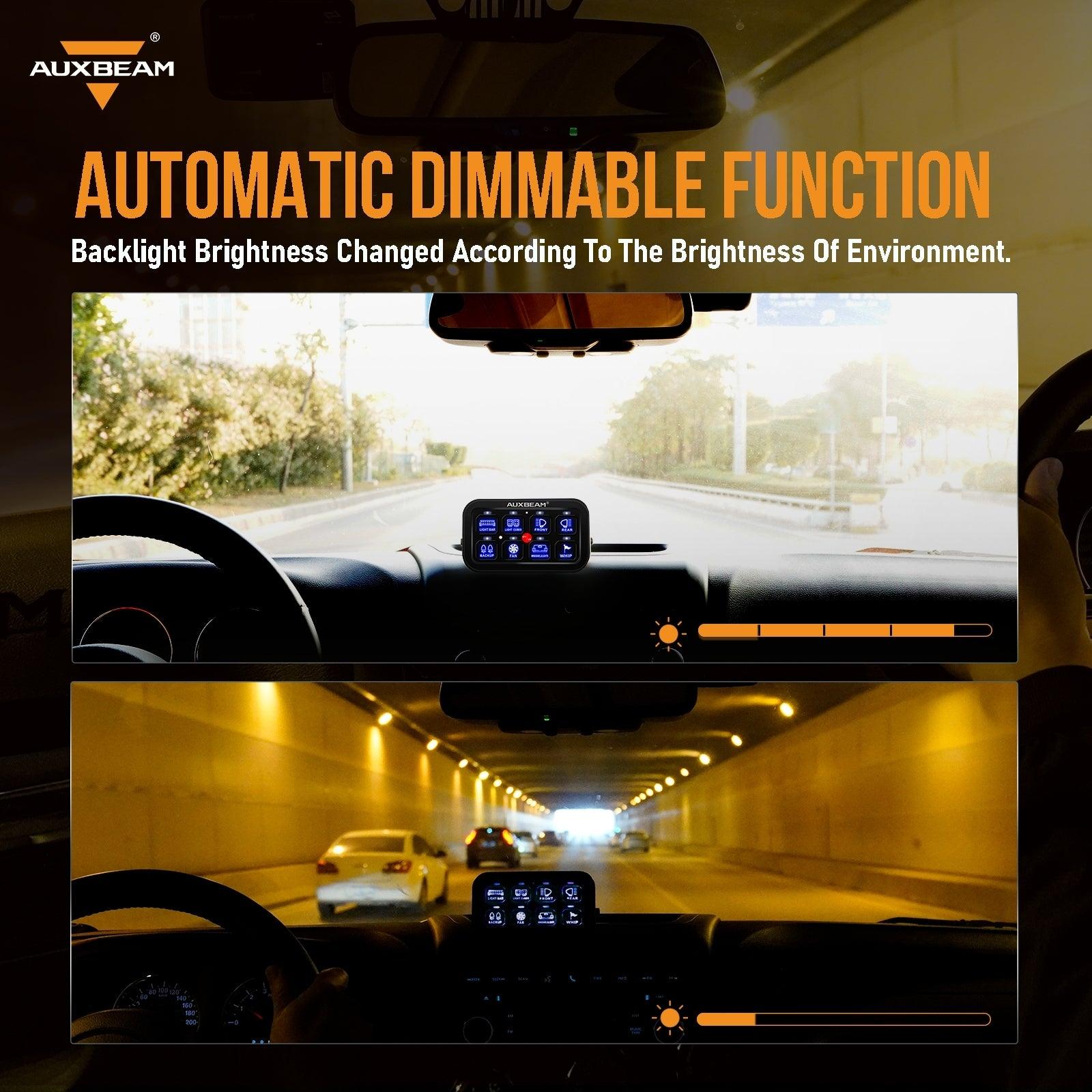

- Backlight brightness automatic dimmable. The switch backlights will automatically be at full brightness in daylight and other bright places for easy visibility. At night or in tunnel, the switch panel backlights will automatically dim to reduce the impact on the driver's vision.
- Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.

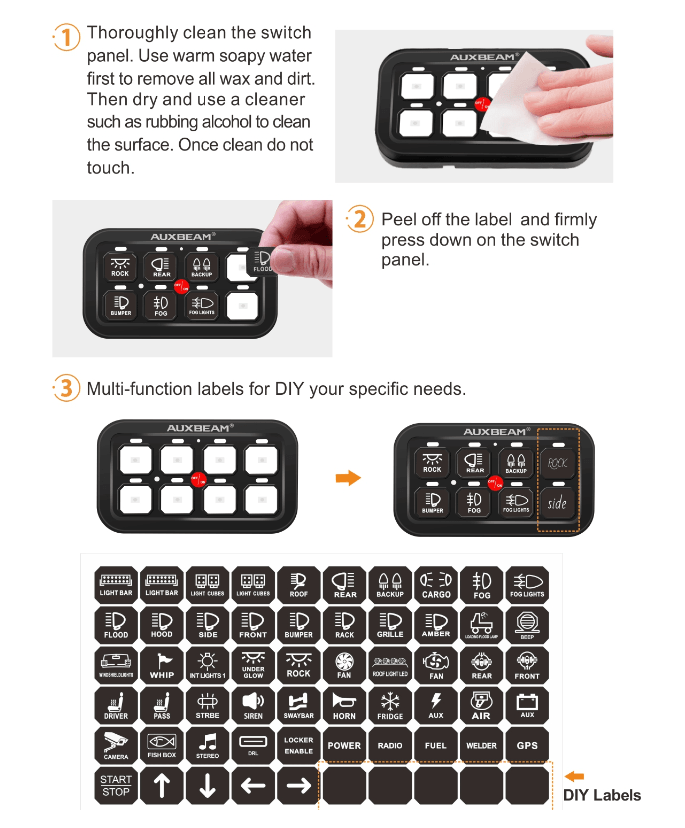

- Customize your own switch panel with universal stickers. Use the provided switch labels to indicate what’s connected to that switch.

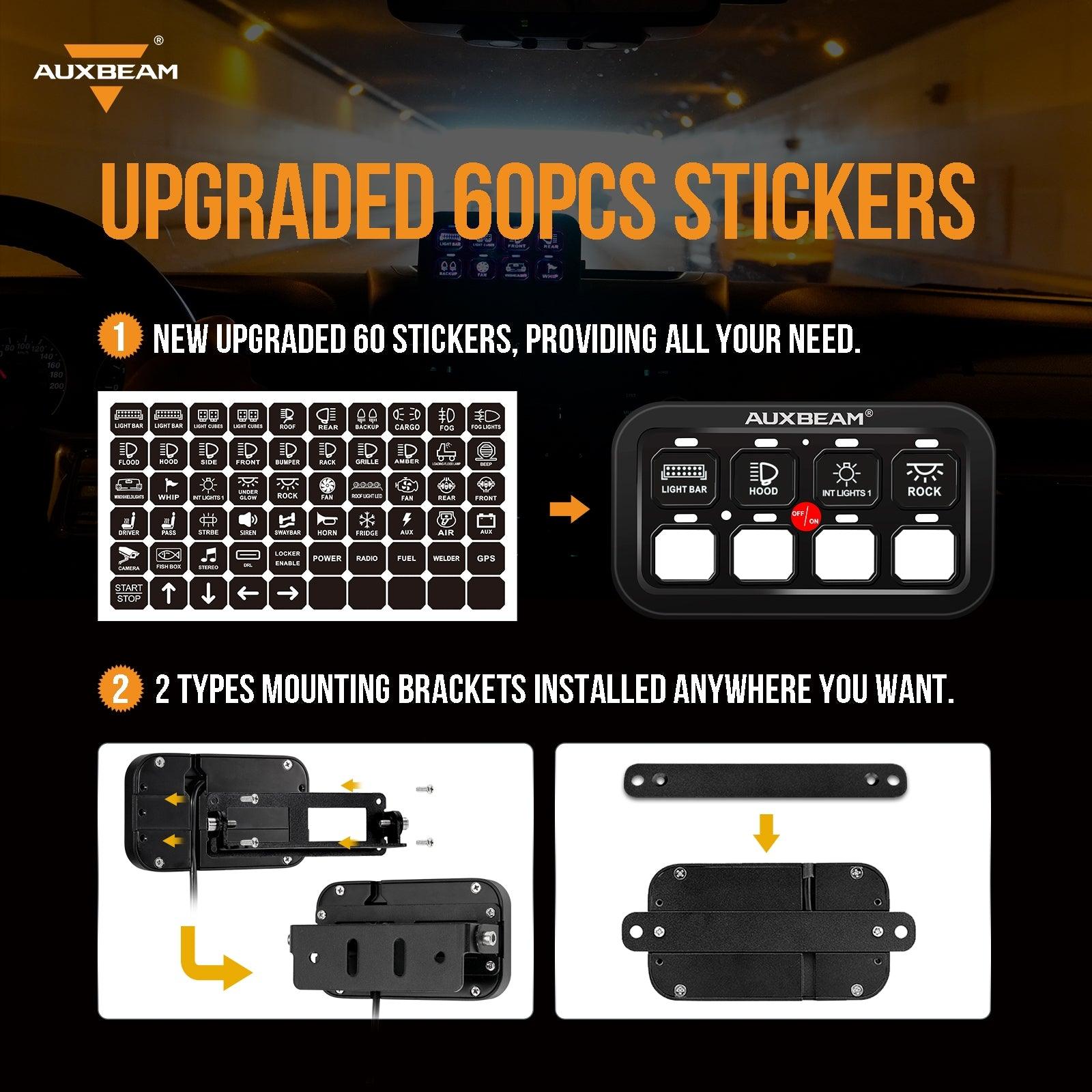

- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
▶3.94FT Inch Extension Cable
- There is a 4-pin aviation video cable, a cable for transmitting video and power.
- It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
- Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
- Power input DC 12V - DC 24V.
- Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.
▶20FT Inch Extension Cable
- Auxbeam Extension Cable. This 20-feet, 4-pin wiring harness extension features a Play and Plug design, allowing for effortless installation of extension wires. With ample length, it provides sufficient reach to extend your wiring harness to the desired location for installation of the controller box
- Premium Made. Auxbeam switch panel extension boasts an especially thick hard wire, which not only enhances its strength and longevity, but also provides superior protection against EMI and RF interference, including automotive circuit interference
- Wide Application. The Auxbeam cable extension has a broad range of applications and can be utilized to extend control over any vehicle electrical appliance for your modification needs. This includes, but is not limited to UTVs, trucks, trailers, buses, motorhomes, and long-distance parking aid sectors
- No Splicing. This extender eliminates the need for splicing of new wires, as it allows for easy extension of existing wires. It is compatible with power input ranging from DC 12V to DC 24V, and features a professional CCTV/monitor 4-pin connector that can be used to connect a rearview camera, DVD player, TV box, or other similar devices

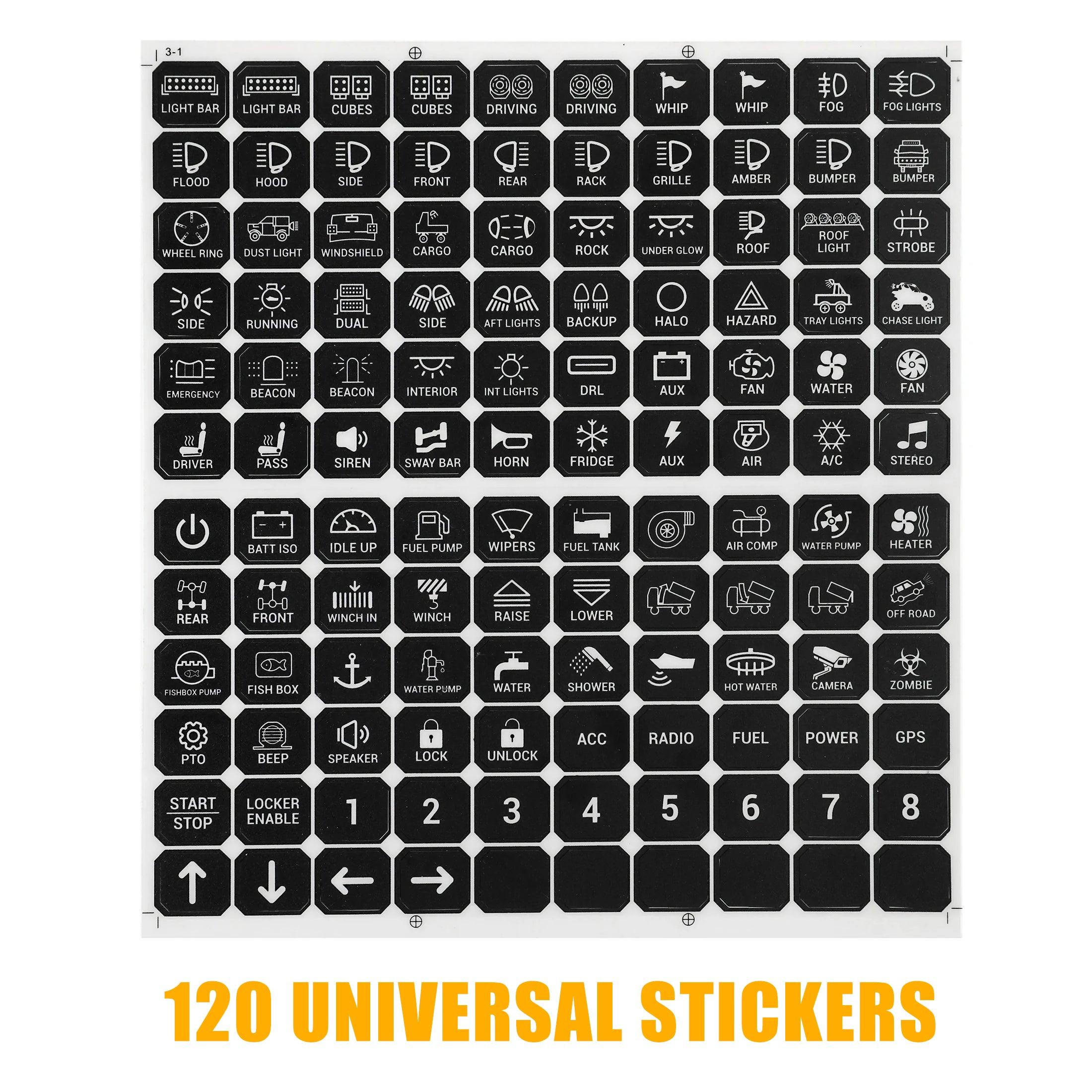

120 Universal Stickers works with QP008526(AR-800), QP002559(BA80), QP002983(GA80), QP006231(GB80), QP006232(BB80), QP006237(BC60), QP006238(GC60)

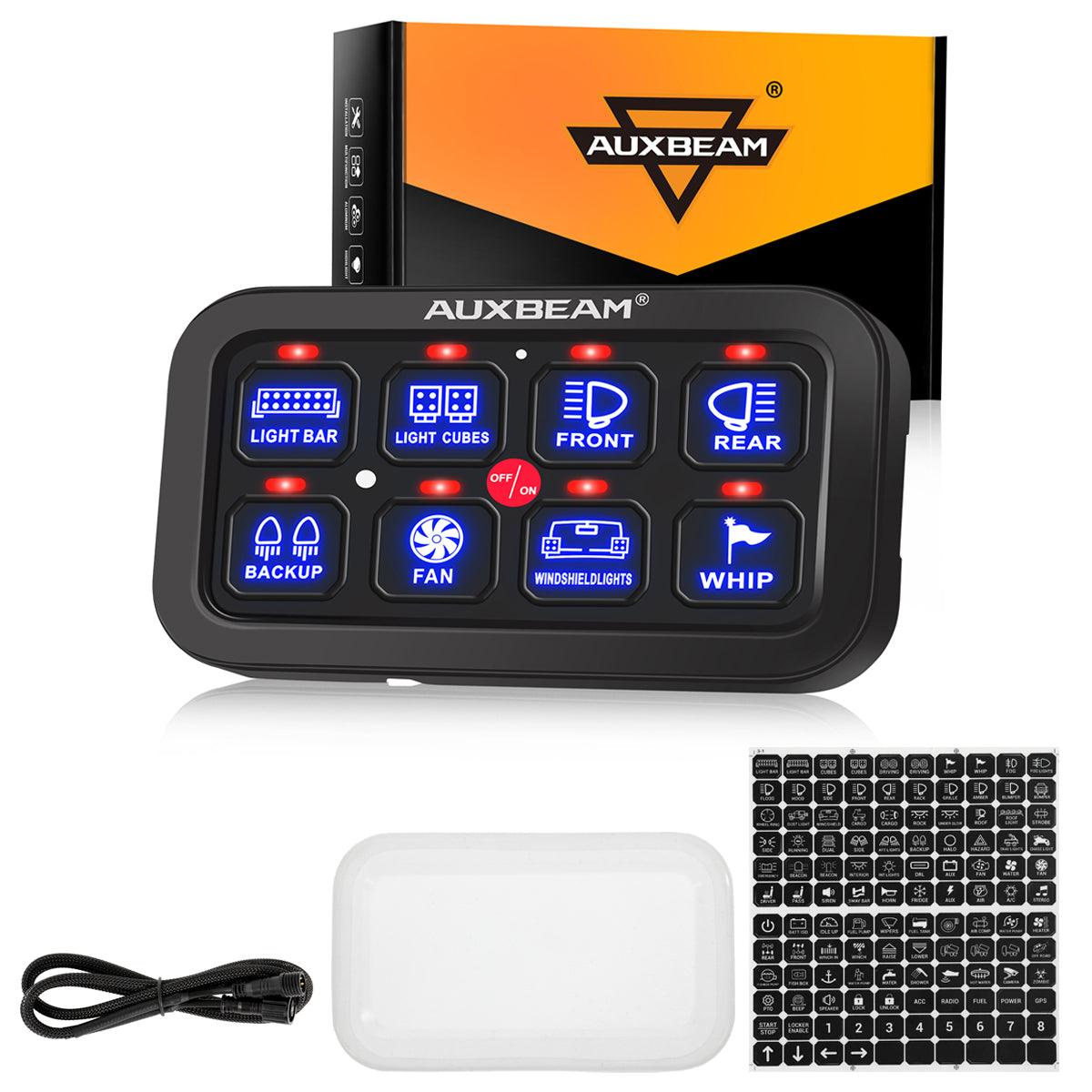

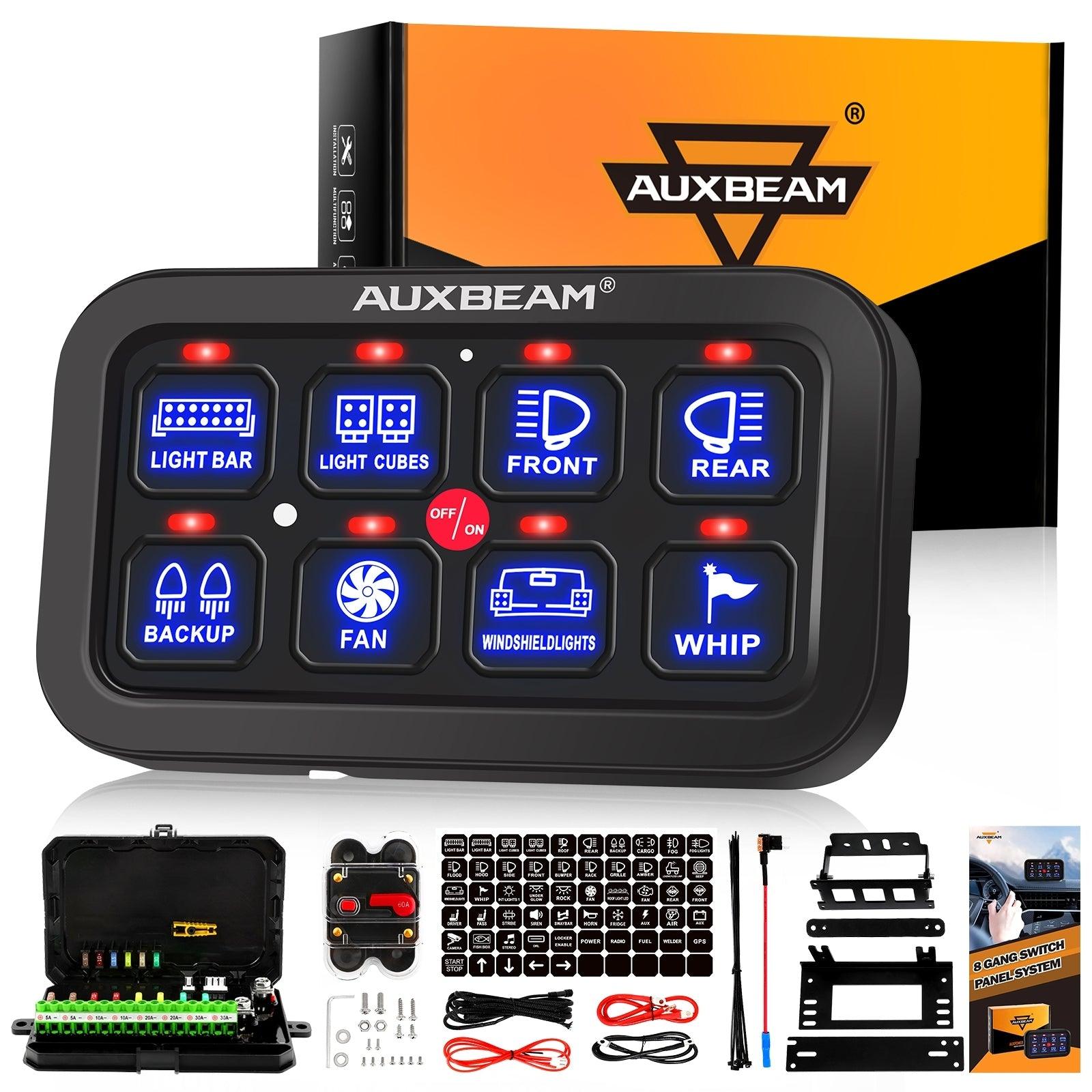

Package Included :

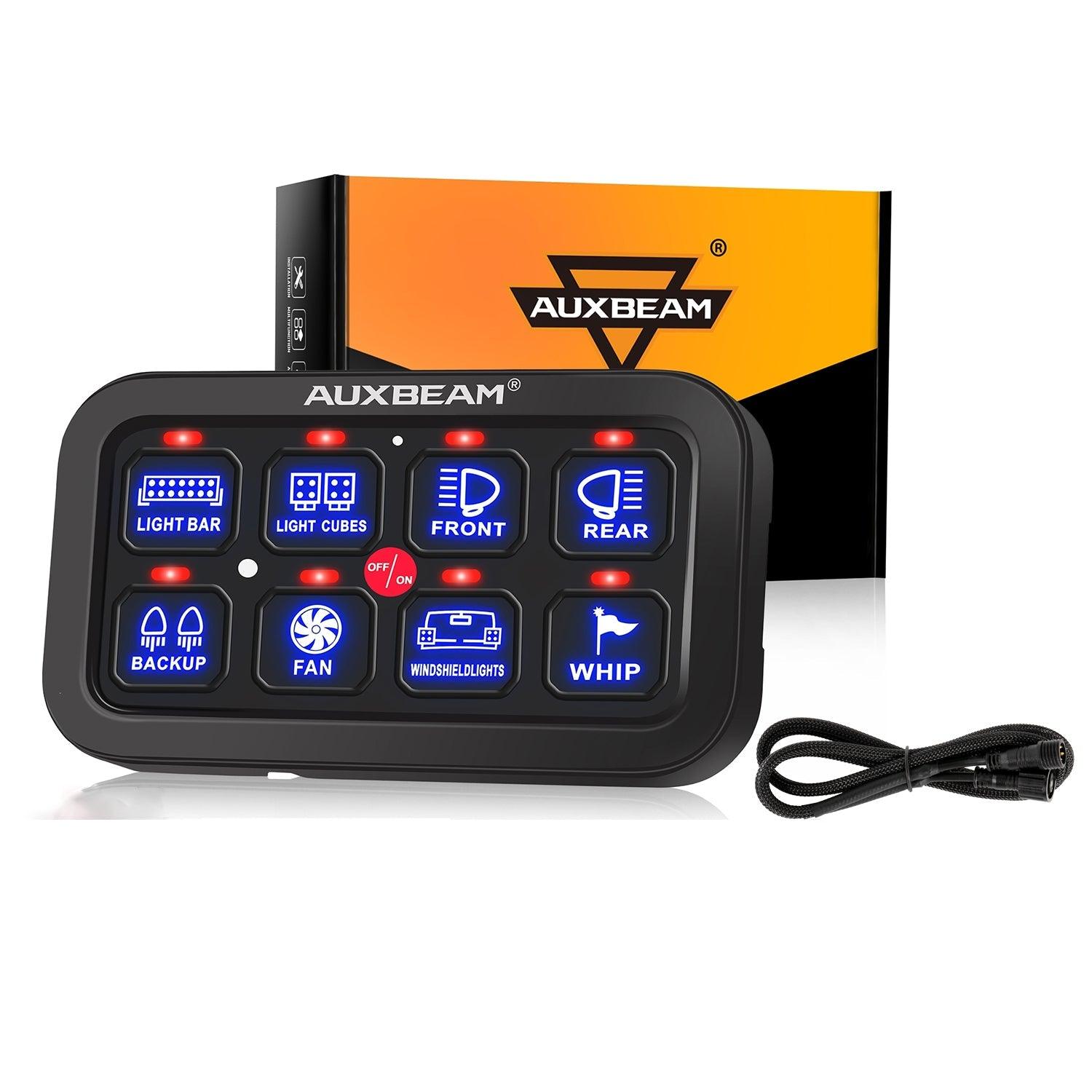

1 Set of 8 Gang on-off Control Switch Panel
1*Extension Cable (OPTIONAL)
1pcs*120 Universal Stickers(OPTIONAL)

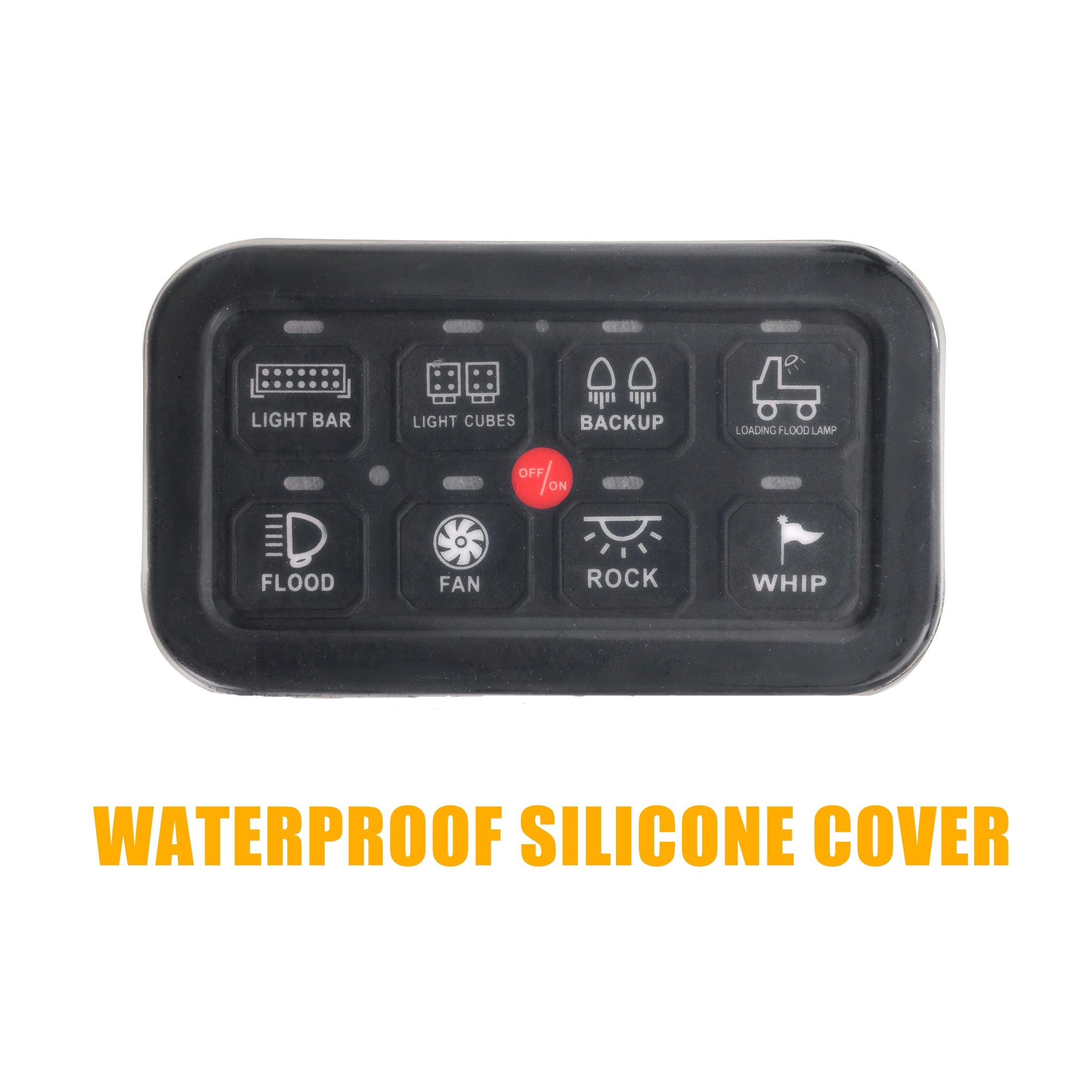

1*Waterproof Silicone Cover(OPTIONAL)
Installation Guide :

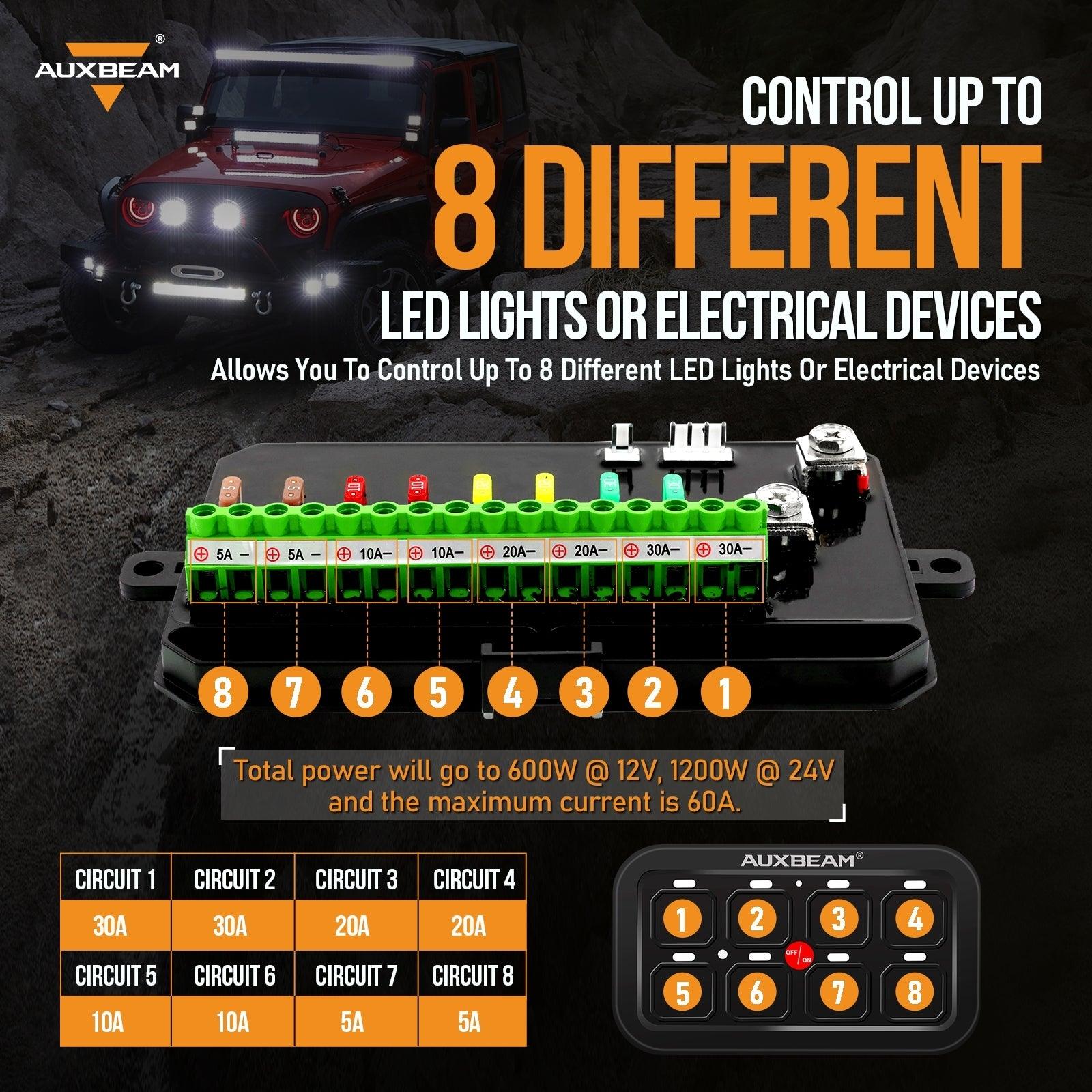

* Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.
The maximum output current of circuit 1 & 2 is 30A, the maximum output current of circuit 3-8 is 20A.
* The recommended connection method is gradually decreasing the current
from circuit 1 to circuit 8.
* Make sure all the lamps are connected before connecting the power cable.

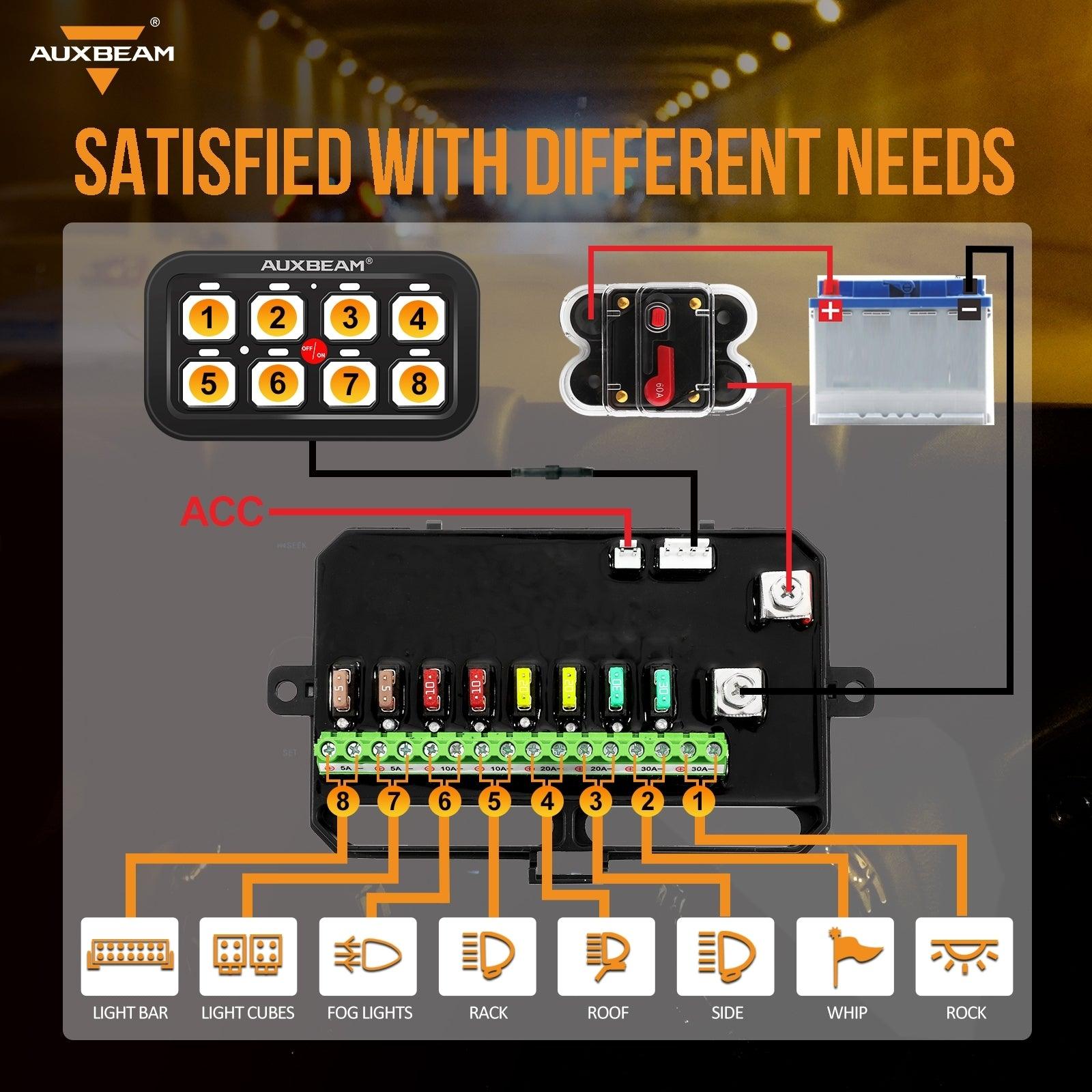

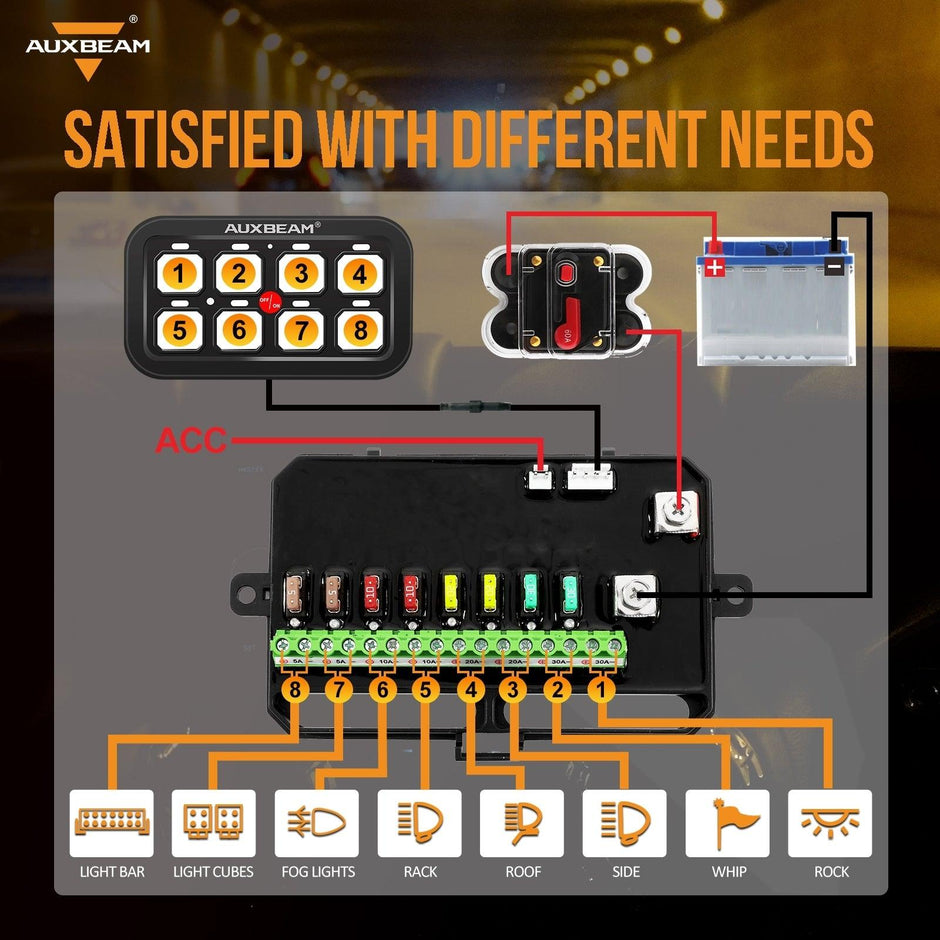

Guideline for connecting the red control cables:
The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
