RB120 RGB Switch Panel, Toggle/ Momentary/ Pulsed Mode Supported (Two-Sided Outlet)
Auxbeam
QP011082
Increments of 1
Minimum of 1
Maximum of
Sale price
$394.99
--51%
Regular price
$259.99
Regular price
$394.99
Unit price
per
Tax included.
Shipping calculated at checkout.
RB120 RGB Switch Panel, Toggle/ Momentary/ Pulsed Mode Supported (Two-Sided Outlet)
Sale price
$394.99
Regular price
$259.99
Regular price
$394.99
Unit price
per
Couldn't load pickup availability
Description
RB120 Series RGB switch panel is now available!

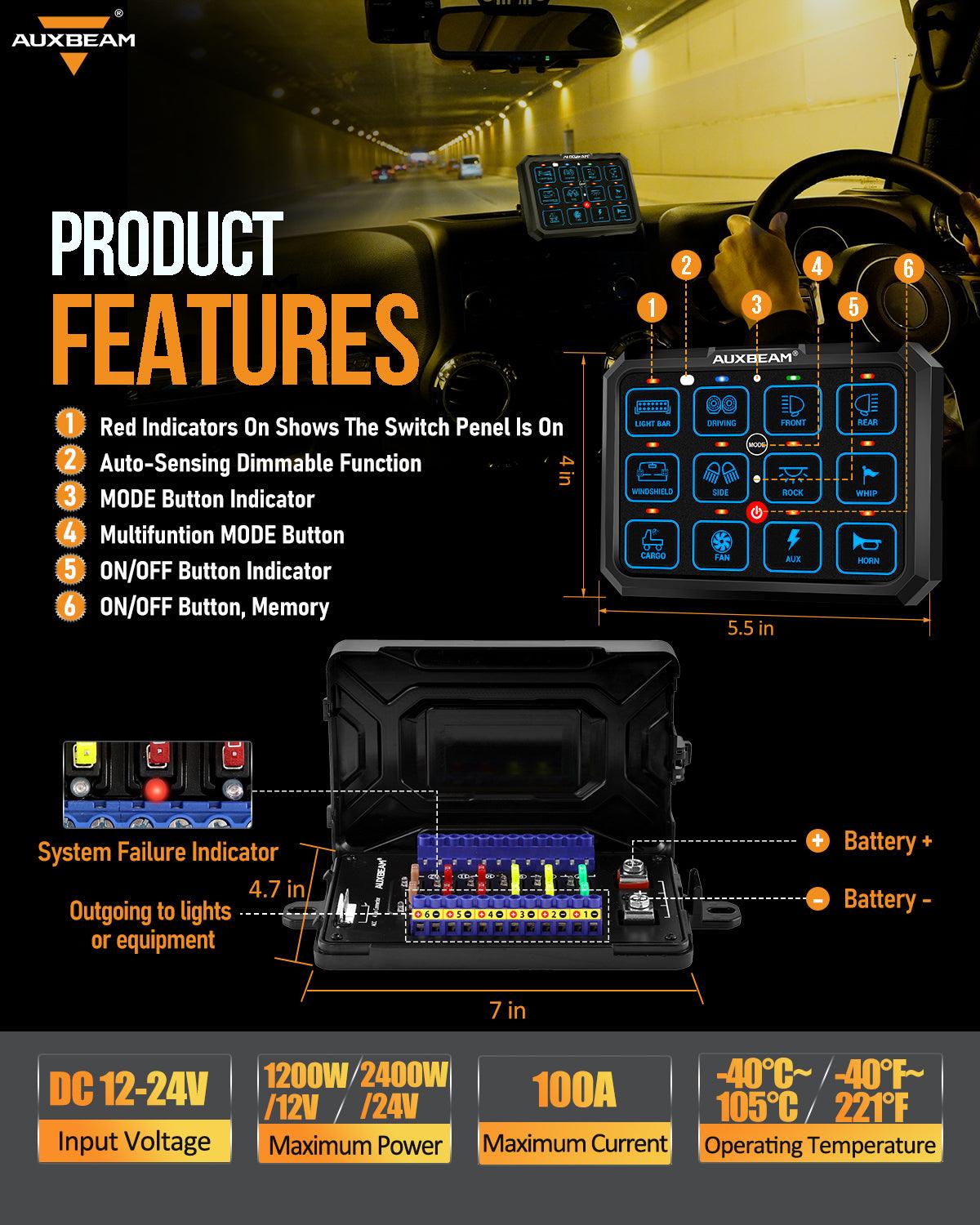

★Upgraded Functions:
✔ RGB backlight - Unlimited color options match dash lighting and vehicle
✔ 3 mode setting - Toggle/ Momentary/ Pulsed
✔Manual backlit off - Turn off the backlight when it's daytime or when it's not necessary
✔ DIY switch panel - Use the provided 60pcs switch labels to indicate what’s connected to that switch.
✔ Waterproof cover - Protect the switch panel from rain & snow weather or water
Specification:
Voltage Input: DC 12-24V
Max Current: 120A
Rated Voltage: 12V 20A / 24V 10A
Max Power: 1200W/12V, 2400W/24V
Waterproof Rating: IP65
Operating Temperature: -40°C ~105℃/-40℉~221℉
Features:

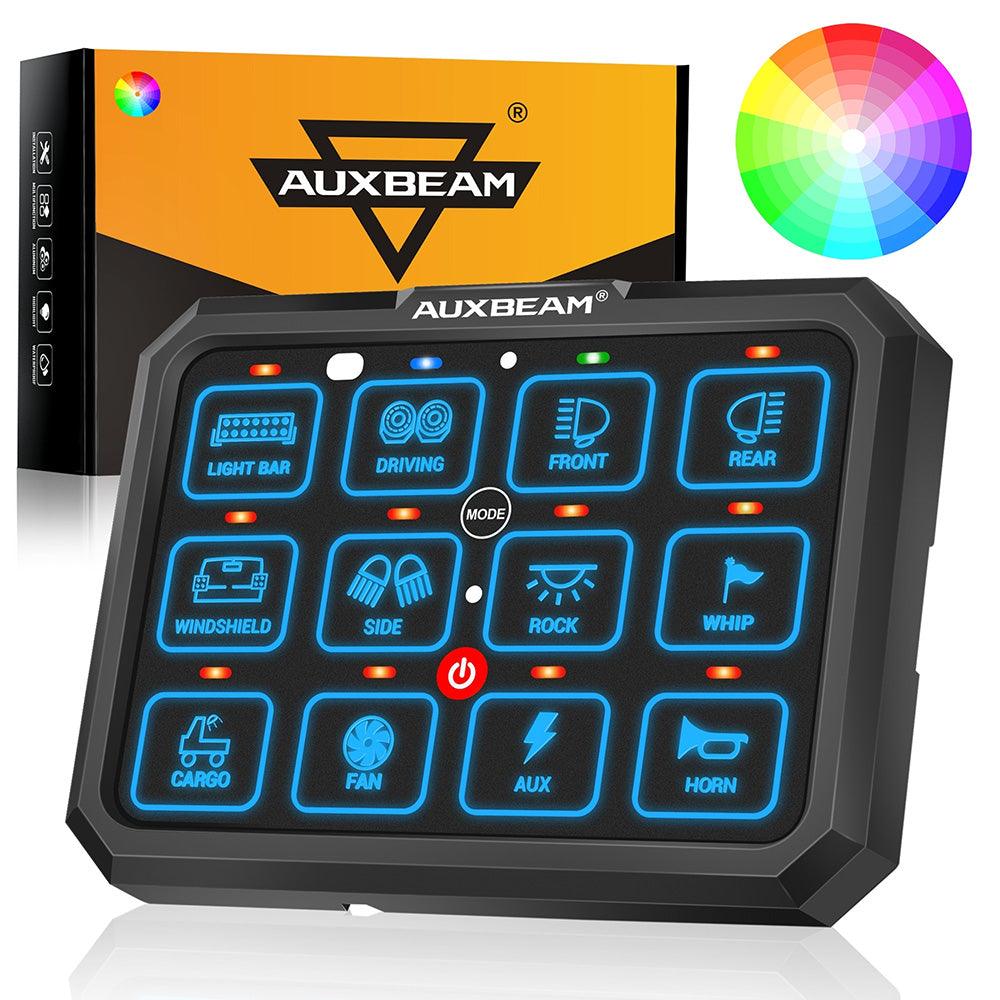

▶RB120 RGB Switch Panel
- 3 Modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode (Great for things like fog lights or driving.
● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
RGB backlight color. Adjust backlight color and brightness to match your vehicle.
- Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.

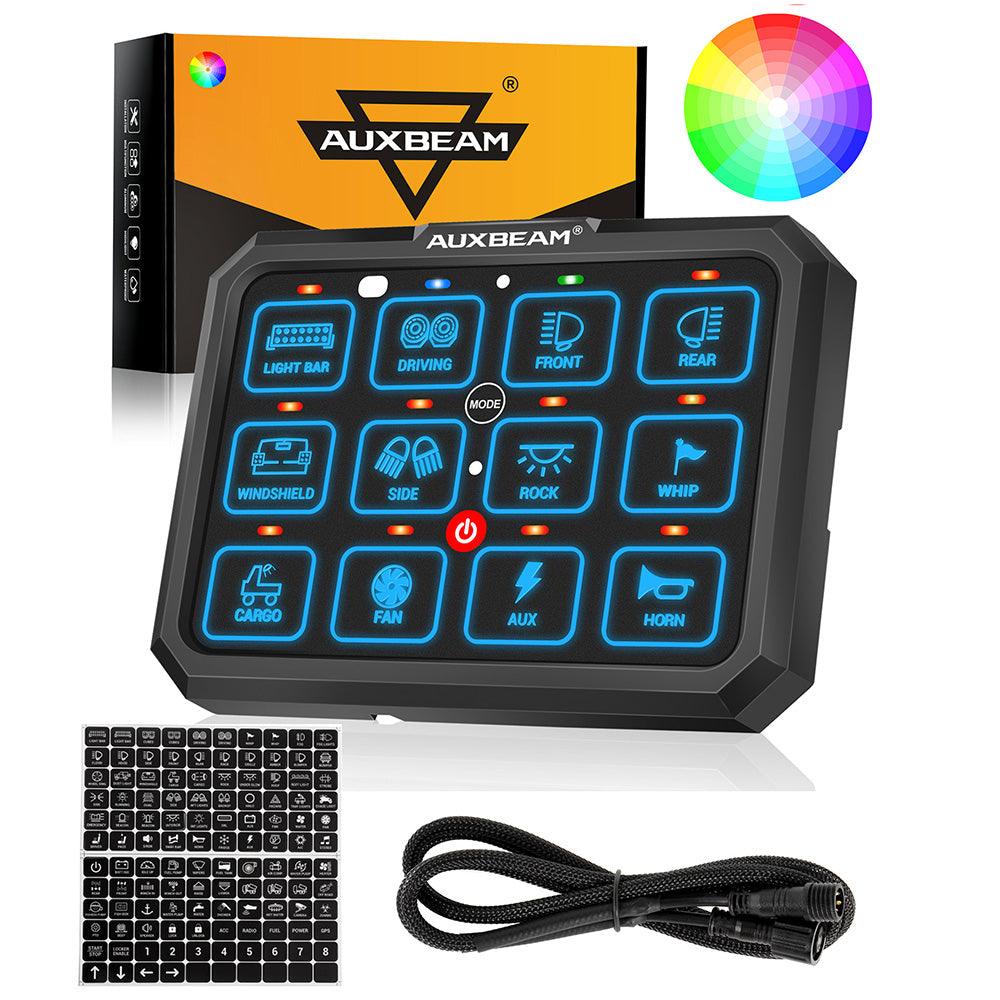

- Customize your own switch panel with 120 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

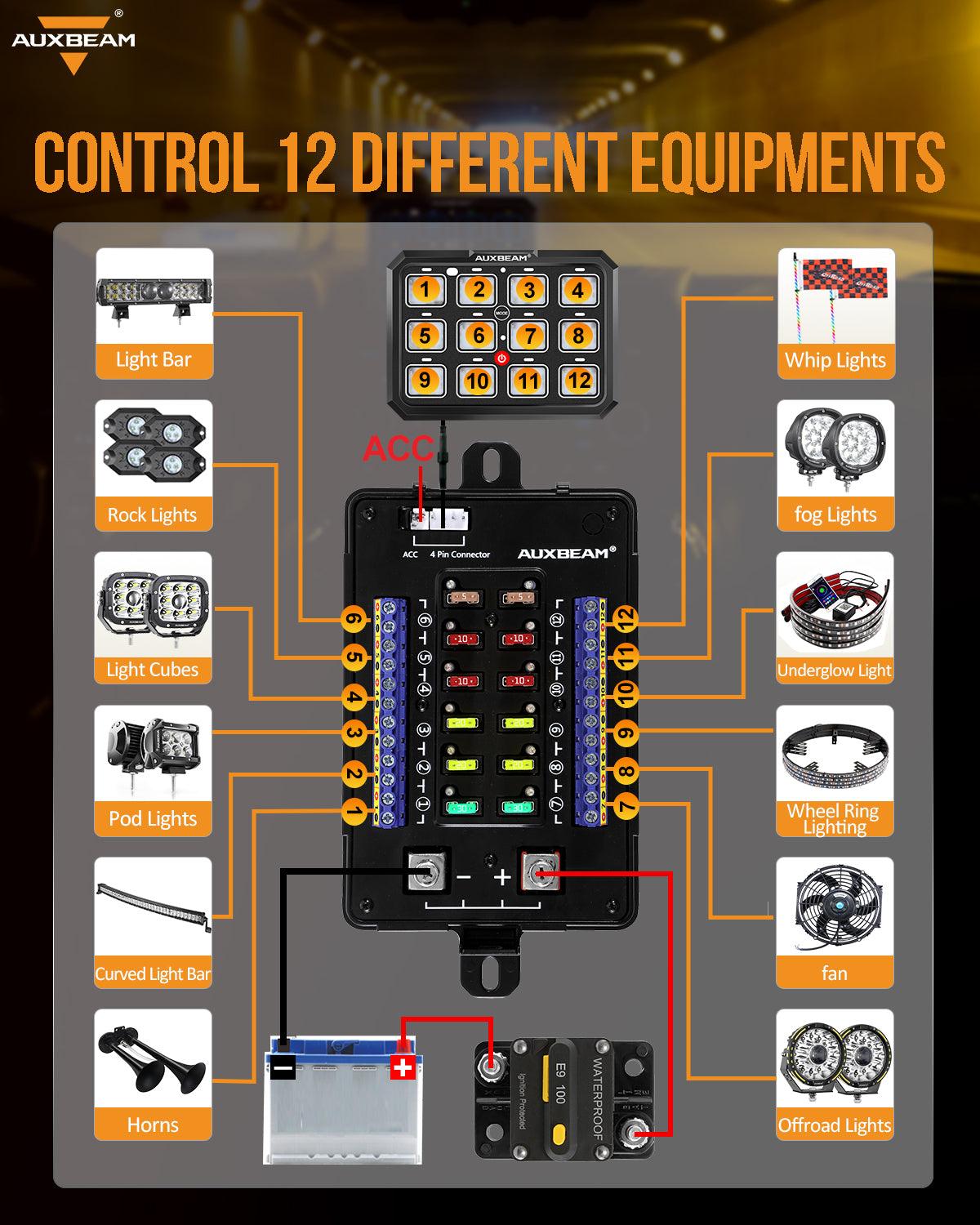

- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
▶3.94FT Extension Cable
- There is a 4-pin aviation video cable, a cable for transmitting video and power.
- It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
- Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
- Power input DC 12V - DC 24V.
- Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.

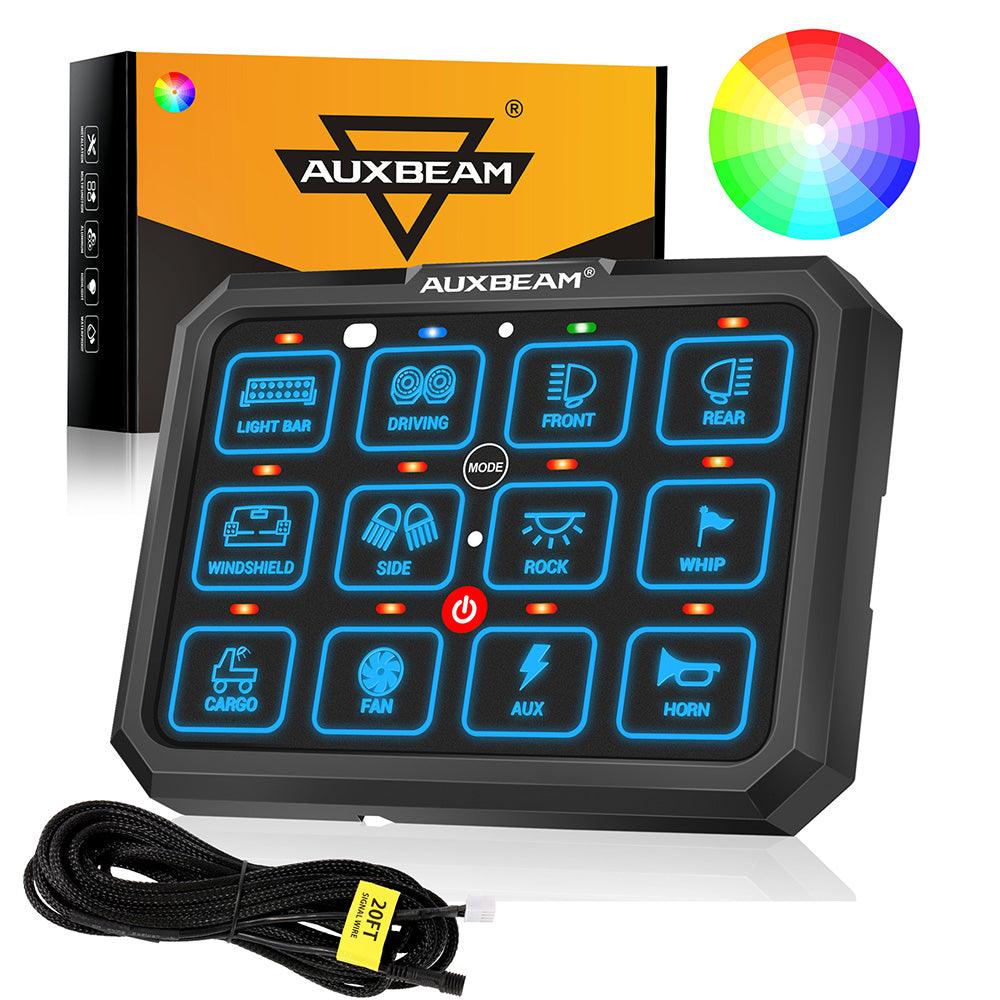

▶20FT Extension Cable
- Auxbeam Extension Cable. This 20-feet, 4-pin wiring harness extension features a Play and Plug design, allowing for effortless installation of extension wires. With ample length, it provides sufficient reach to extend your wiring harness to the desired location for installation of the controller box
- Premium Made. Auxbeam switch panel extension boasts an especially thick hard wire, which not only enhances its strength and longevity, but also provides superior protection against EMI and RF interference, including automotive circuit interference
- Wide Application. The Auxbeam cable extension has a broad range of applications and can be utilized to extend control over any vehicle electrical appliance for your modification needs. This includes, but is not limited to UTVs, trucks, trailers, buses, motorhomes, and long-distance parking aid sectors
- No Splicing. This extender eliminates the need for splicing of new wires, as it allows for easy extension of existing wires. It is compatible with power input ranging from DC 12V to DC 24V, and features a professional CCTV/monitor 4-pin connector that can be used to connect a rearview camera, DVD player, TV box, or other similar devices

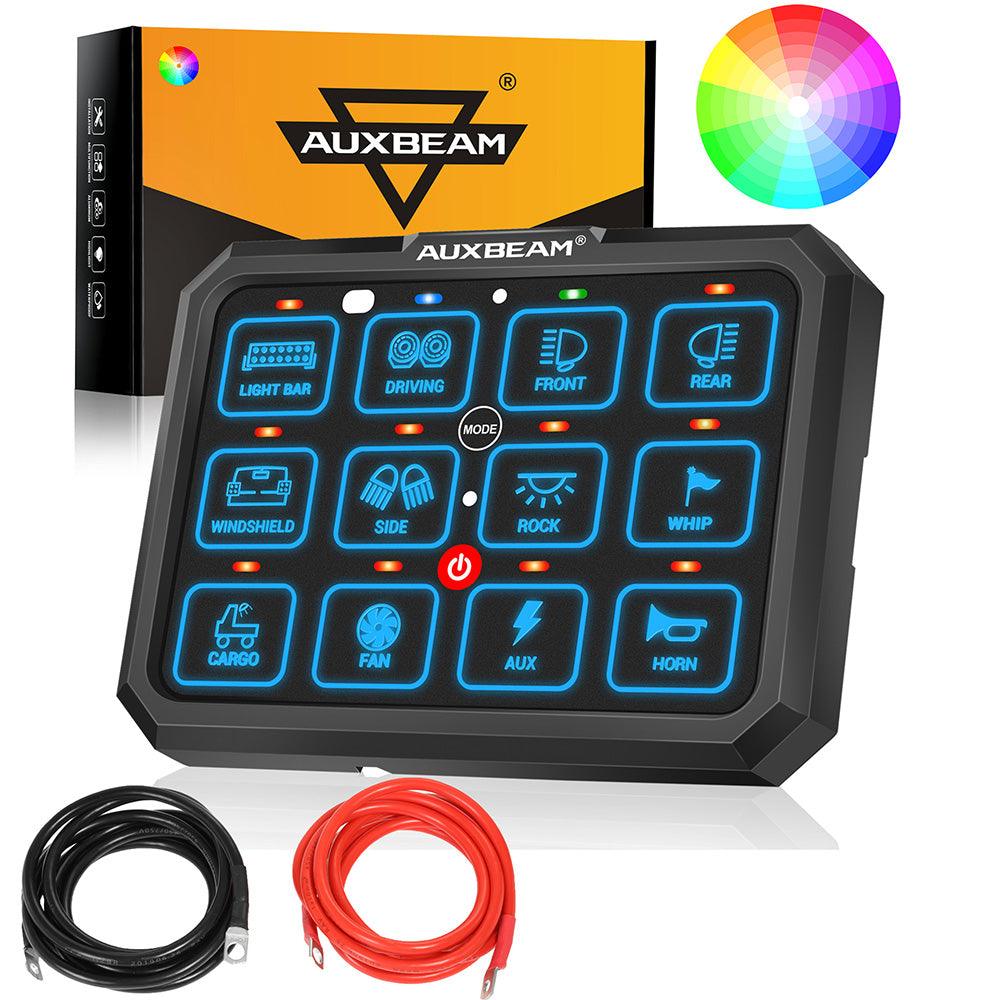

▶7FT Electric Wire
- 10㎡/7AWG red and black large wire with 6M and 8M tinned copper wire lugs.
- Copper cable lugs are made of solid copper with tin plated caps for corrosion protection.
- The package comes with red and black cables with each cable end sealed with heat shrink tubing for heat insulation.
Package Included:
1 x Switch Panel (all necessary hardware and wiring harness is included)
1 x Installation Instructions
