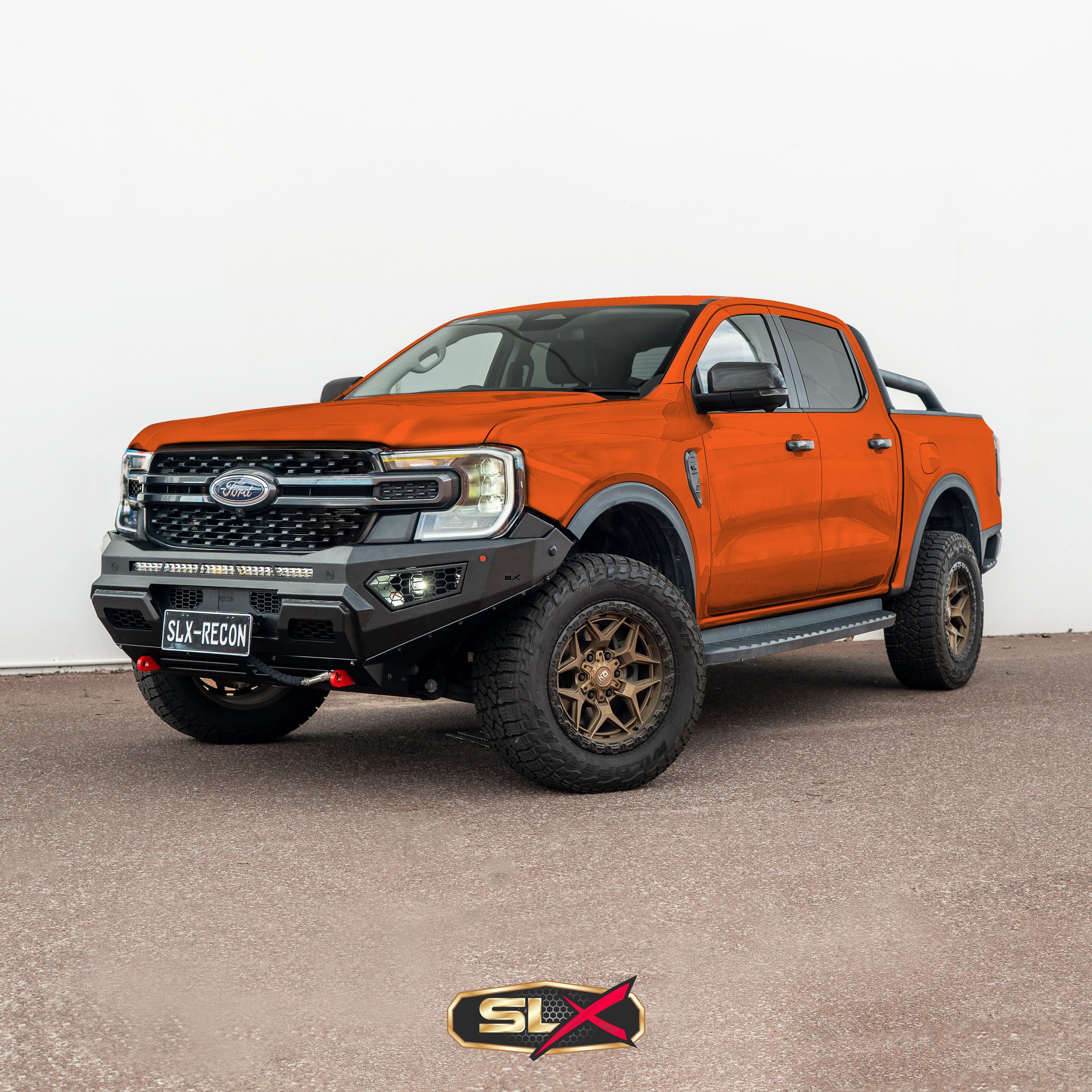

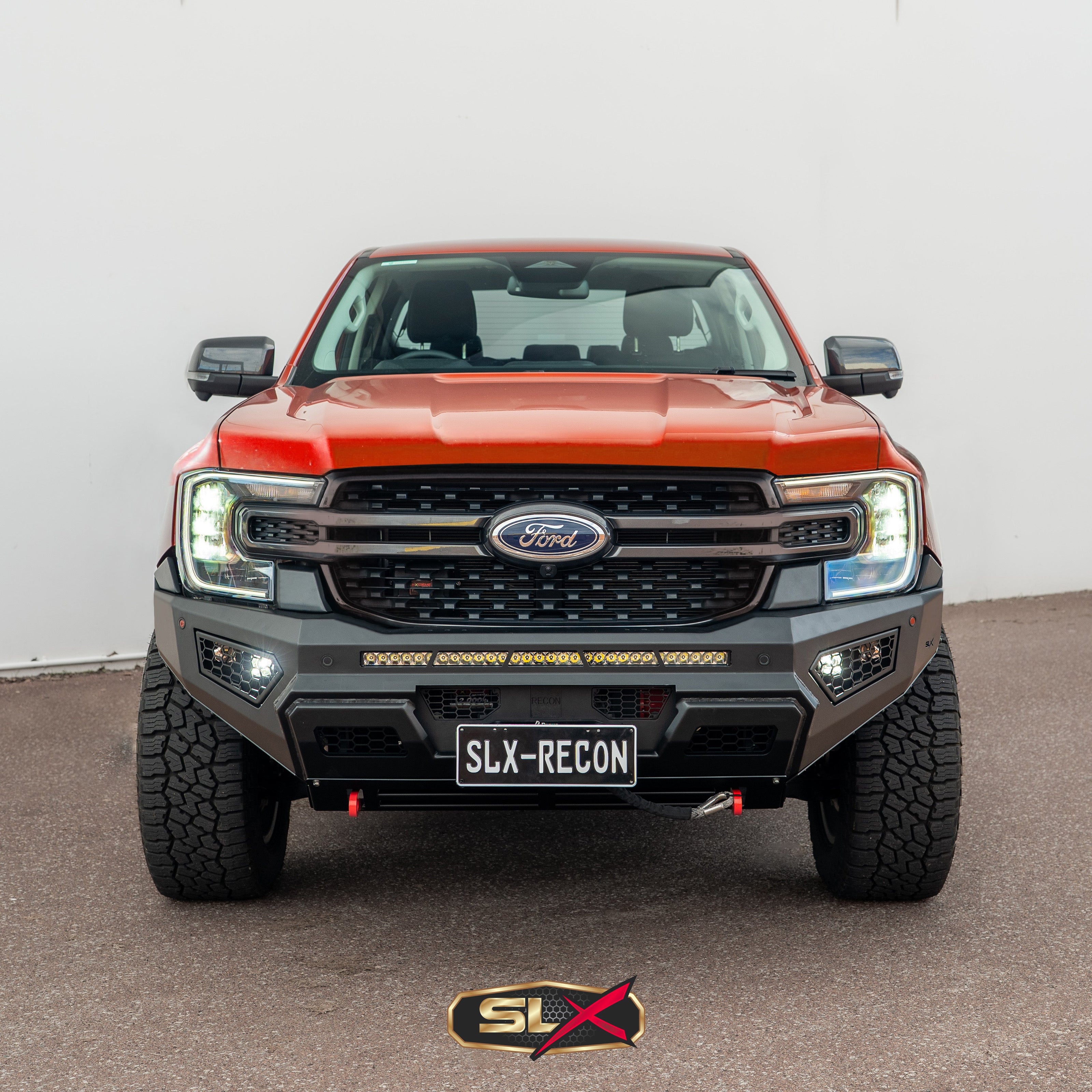

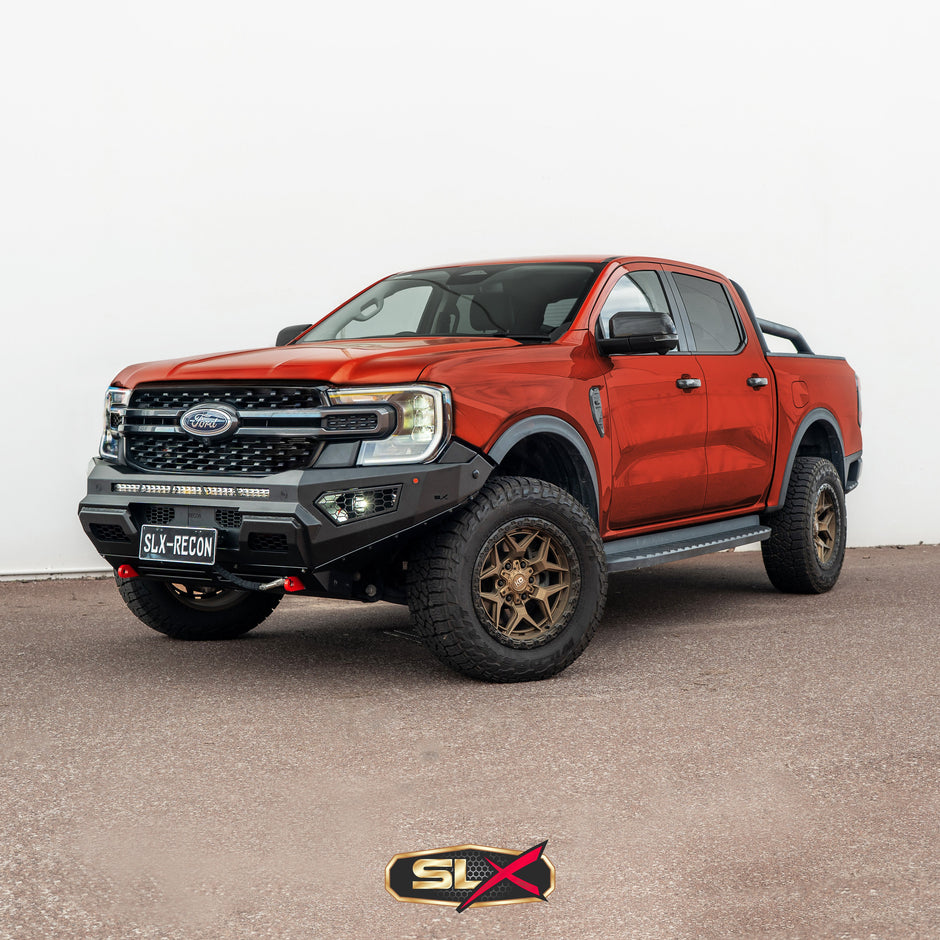

SLX Recon Bull Bar Suitable For Ford Ranger Ranger RA (Next Gen) 2022 on

Shoreline 4x4 presents the SLX RECON bull bar.

Quick Features

1) chassis mounted recovery points
2) Front & under wing bash plates
3) Spot Light mounting holes laser cut
4) Removable mesh centre vents to access winch clutch.
5) 4x 30W Lights included
6) Full wiring Harness to control 4x 30W + 31.5inch LED bar ( all plug and play)
7) All black bolts zinc & powder coated.
8) Super Low profile 110mm from grill
9) Winch control Box Mounting bracket.
10) Flip up number plate.

Designed in Australia by Shoreline 4x4 is a WA company Family owned and operated business since 2008

Our bars meet & exceed the ADR design guidelines,  Shoreline 4x4 has completed impact testing in Adelaide passing with our unique ADR impact bracket, which is compatible with each models air bag system.

Complies with Australian standards such as

 AS4876.1 2002

Section 5 to ADR 92/00 External projections

Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions

Section 5 of ADR 93/00 Forward Field of View

Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions

Benefits

Designed with maximum airflow to all radiators and intercoolers

All bars are completely sensor & safety compatible with factory systems.

Features

Solid Manufacturing – 1 piece fully welded bar for maximum toughness

Low profile design- our frontal protection bars are only 80-120mm depending on the model from the front of the grill.

Loaded with features- our bars include recovery points, bash plates to cross member, under wing bash plates, winch cradles, LED bar provisions & LED lights.

Longevity – Our bars are made with premium 400SS grade steel, after manufacture they are acid washed zinc primed and powder coated in semi gloss matt black.

Protection – 3 bash plates included, front and side under wing.

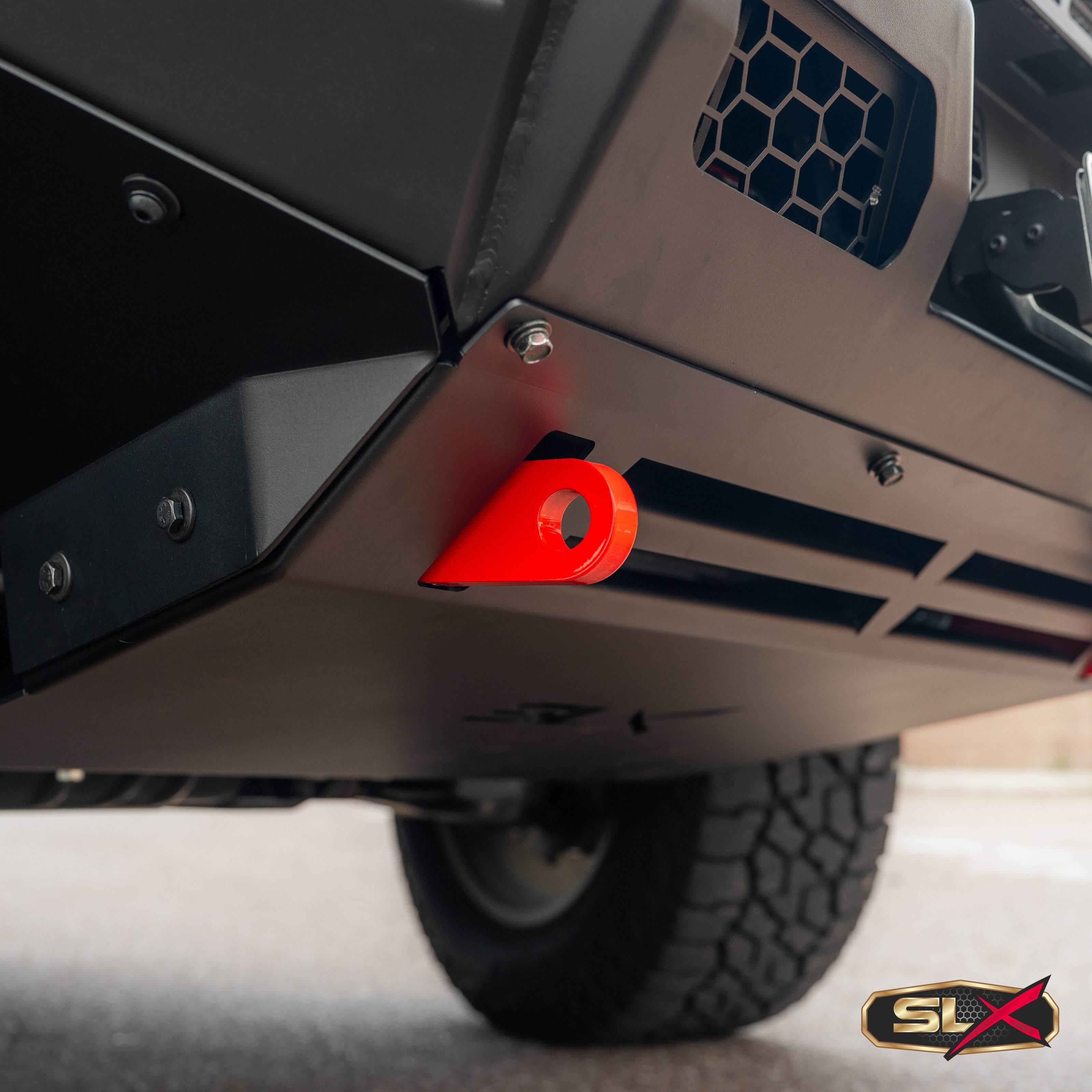

Recovery Points – Our recovery points are rated to  4500kg

Lighting

The SLX RECON bullbar incorporates a 31.5inch LED bar cutout, which equates to approximately 600m of LED lighting based on 6150 lumen LED bar.

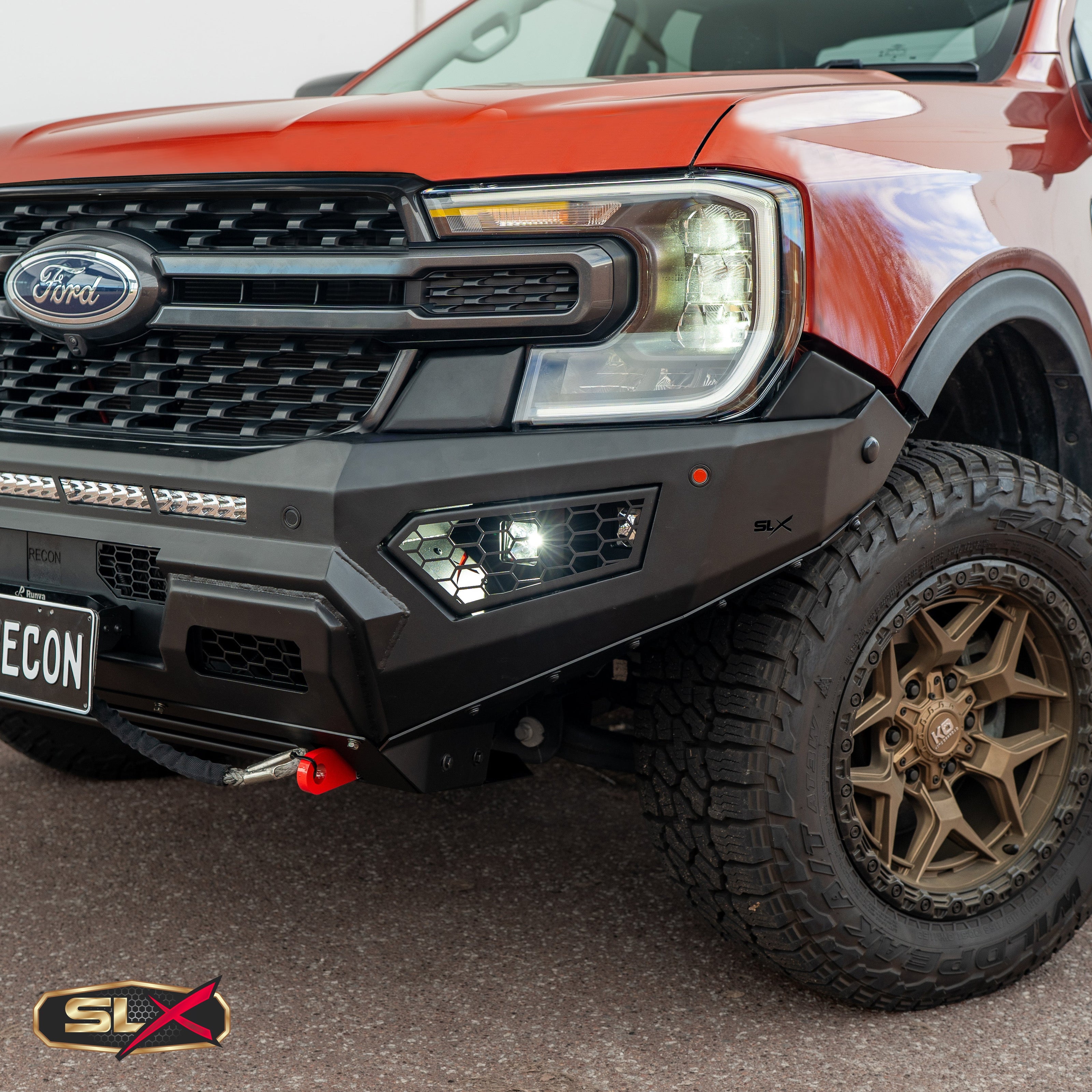

It also incorporates original Fog lights but with the ability to house additional Cube LED lights.

The SLX bar also caters for spot lights with standardise 3 point mounting system holes

Additionally the centre hole on the passengers side mounting has been increased to 16mm to cater for antenna if you choose to have the antenna on the bullbar.

Winch
Suits upto 12,000lb winches (not 13xp)

Normal flair lead is required

Lighting Setup ( See lighting tab on website for details)

Main LED bar : 31.5inch cutout Suits Stedi ST3K(separately sold)

LED behind Mesh (2 each side) : 30W aurora Square Driving LED Code :ALO-D3-2-P23H1 - 4 are included standard with wireharness and recessed switch)
