6/8 Gang LED Switch Panel, Off Road Light Controller

🔥Get 15% off on the ON-OFF control switch panel! Use code SW15 at checkout.

Specifications:

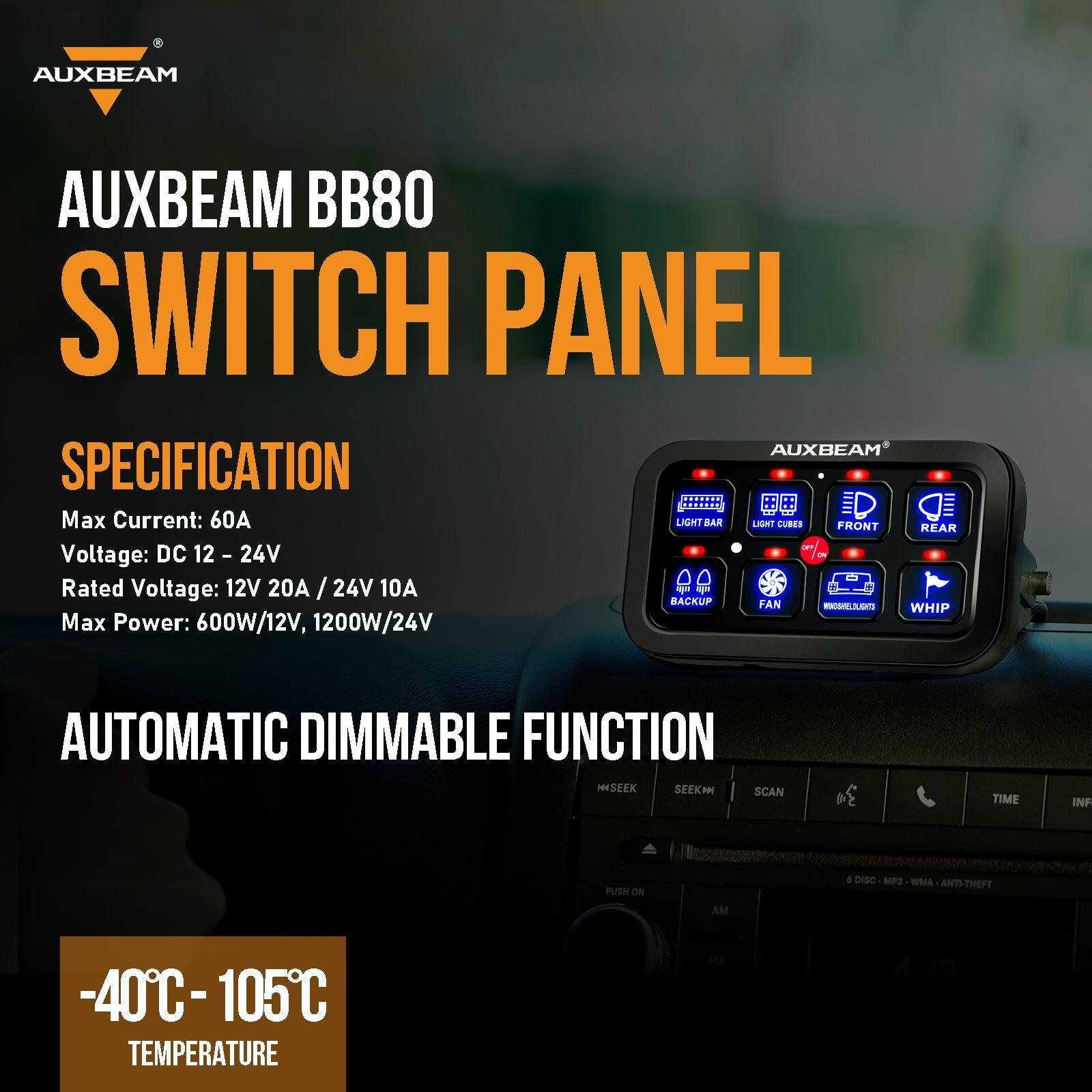

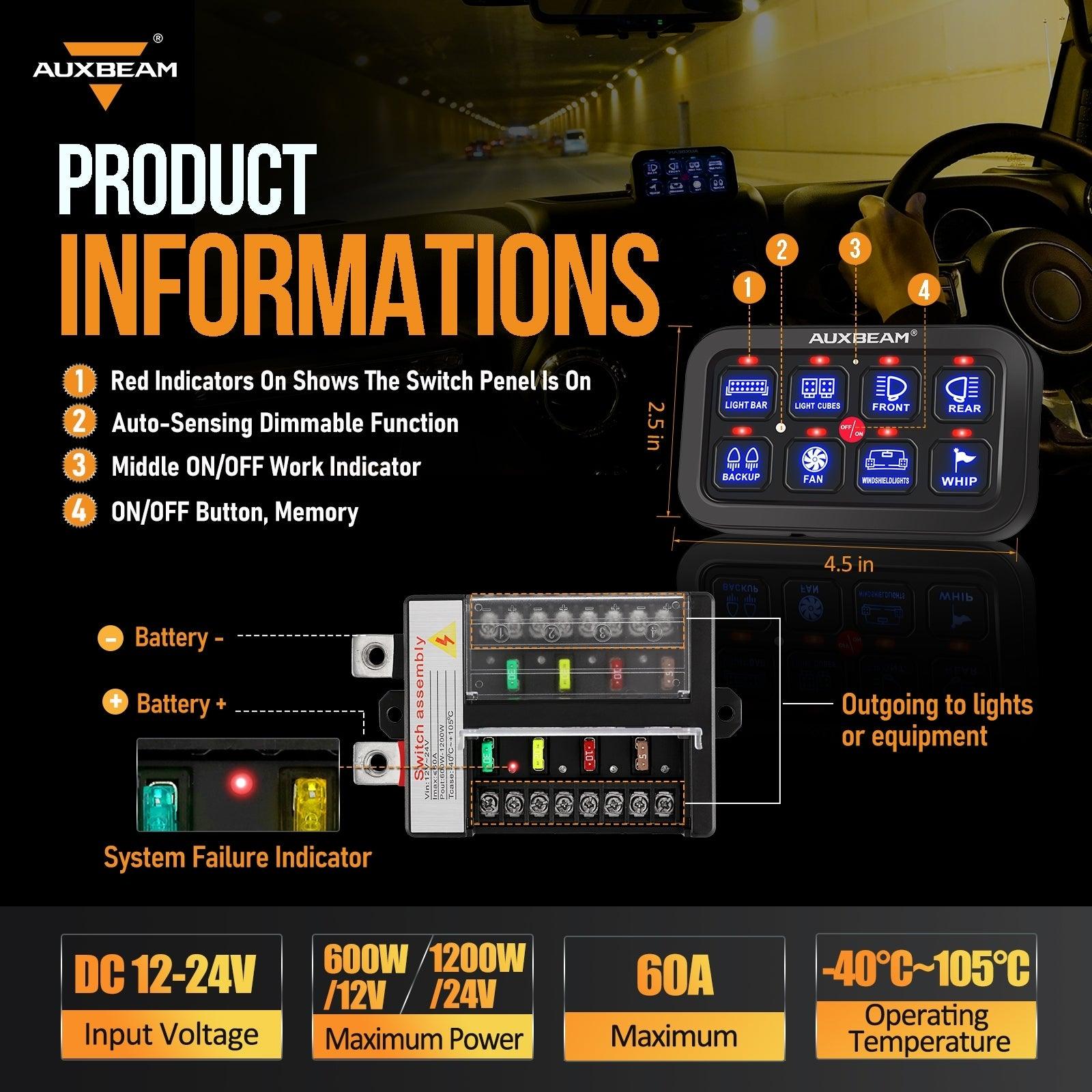

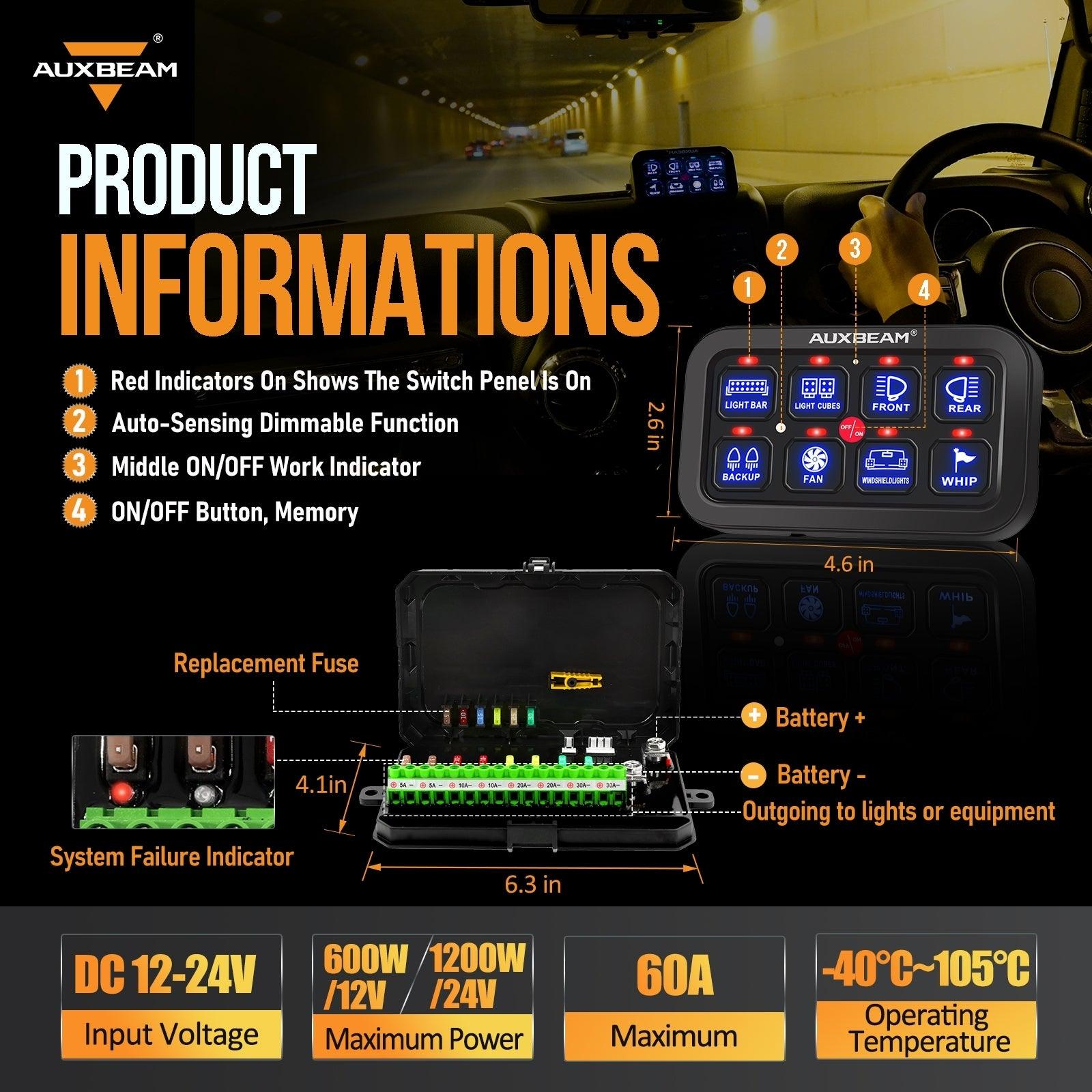

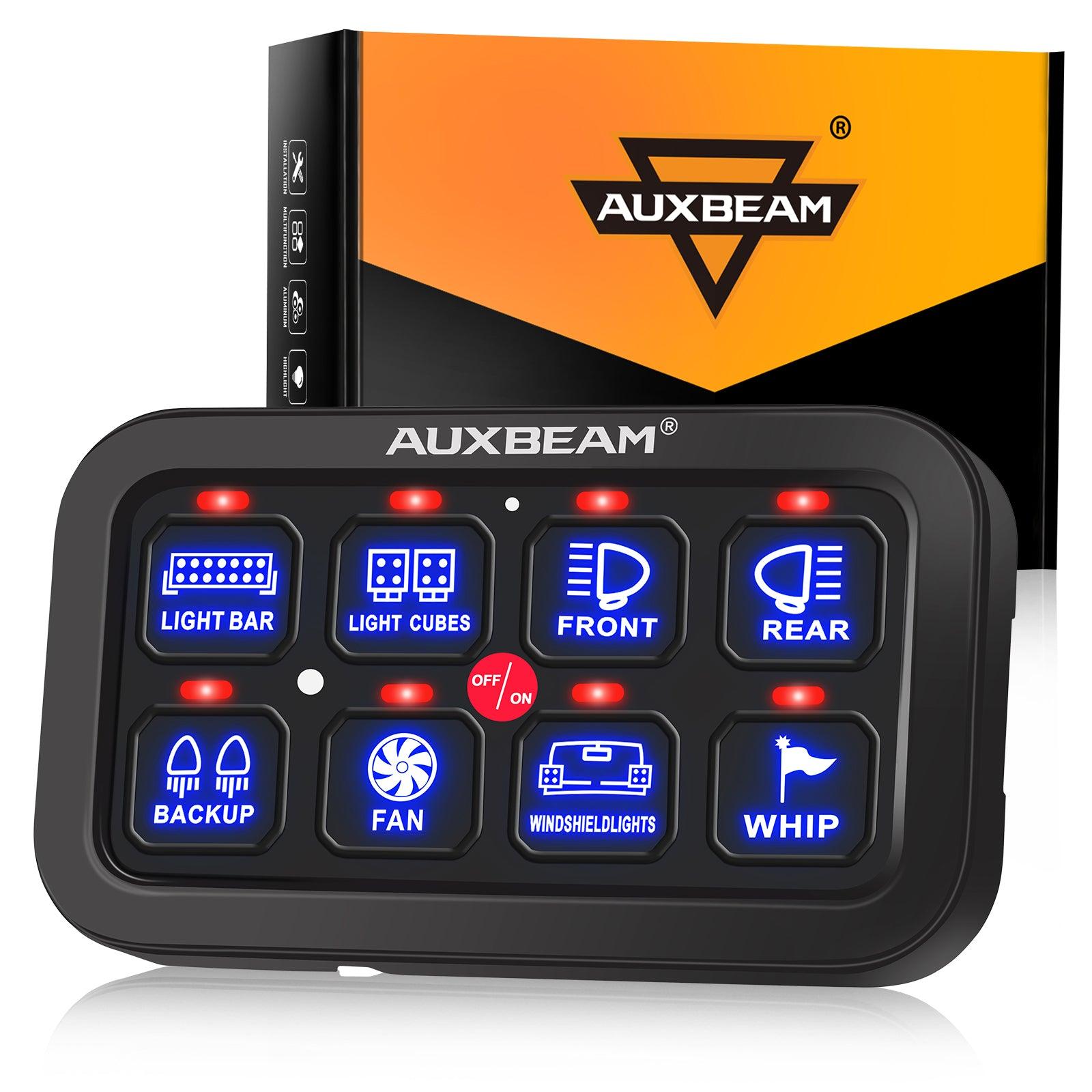

▶8 Gang Switch Panel
Panel Material: High-quality aluminum
Circuit Box Material: Die-casting aluminum
Working voltage: DC 12-24V
Rated voltage: 12V 20A / 24V 10A
Switch operation: On-Off
Operating at 12 Volts: max power rating of 600W
Operating at 24 Volts: max power rating of 1200W
Max current: 60A
Operating temperature: -40°C ~ +150°C
Waterproof rating: IP65

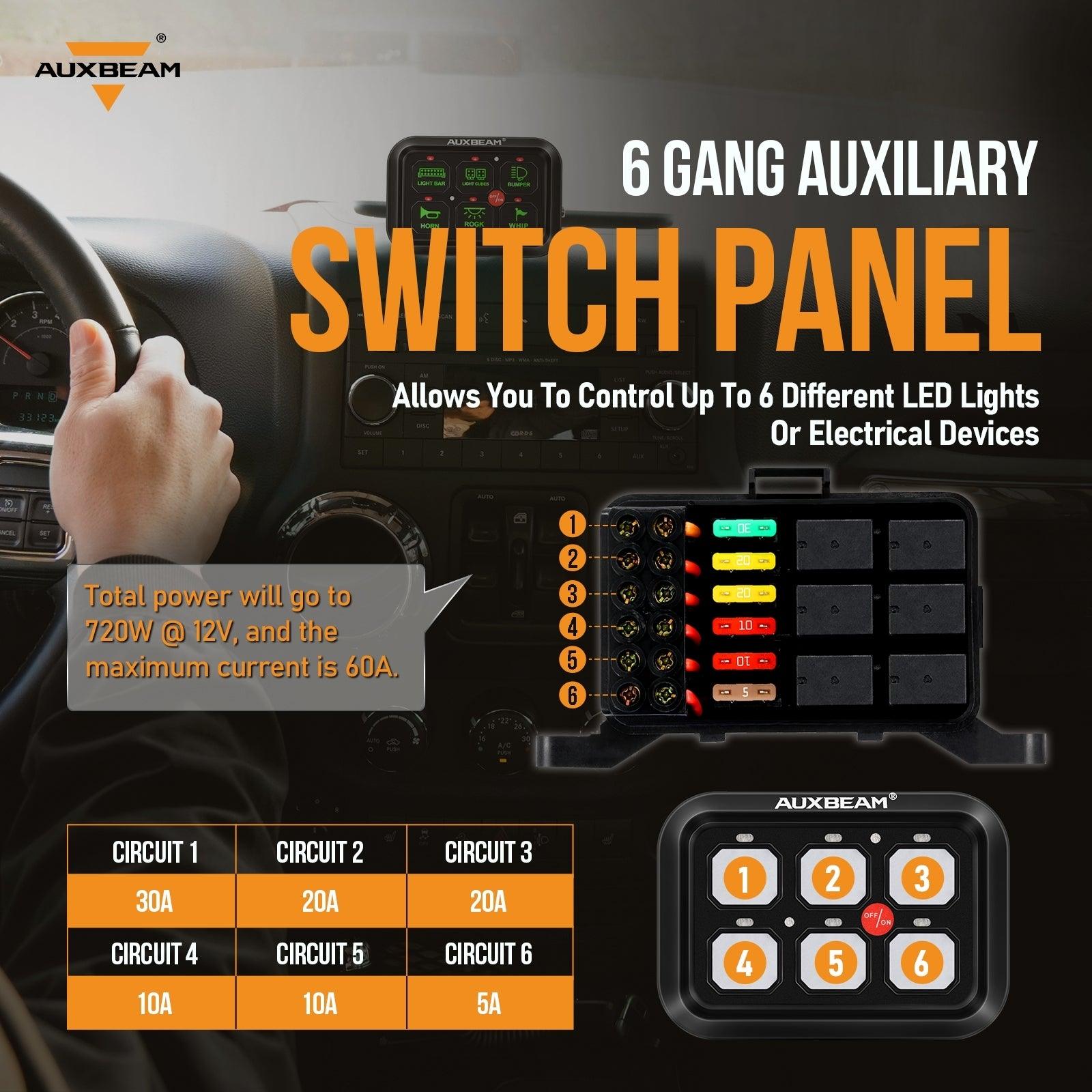

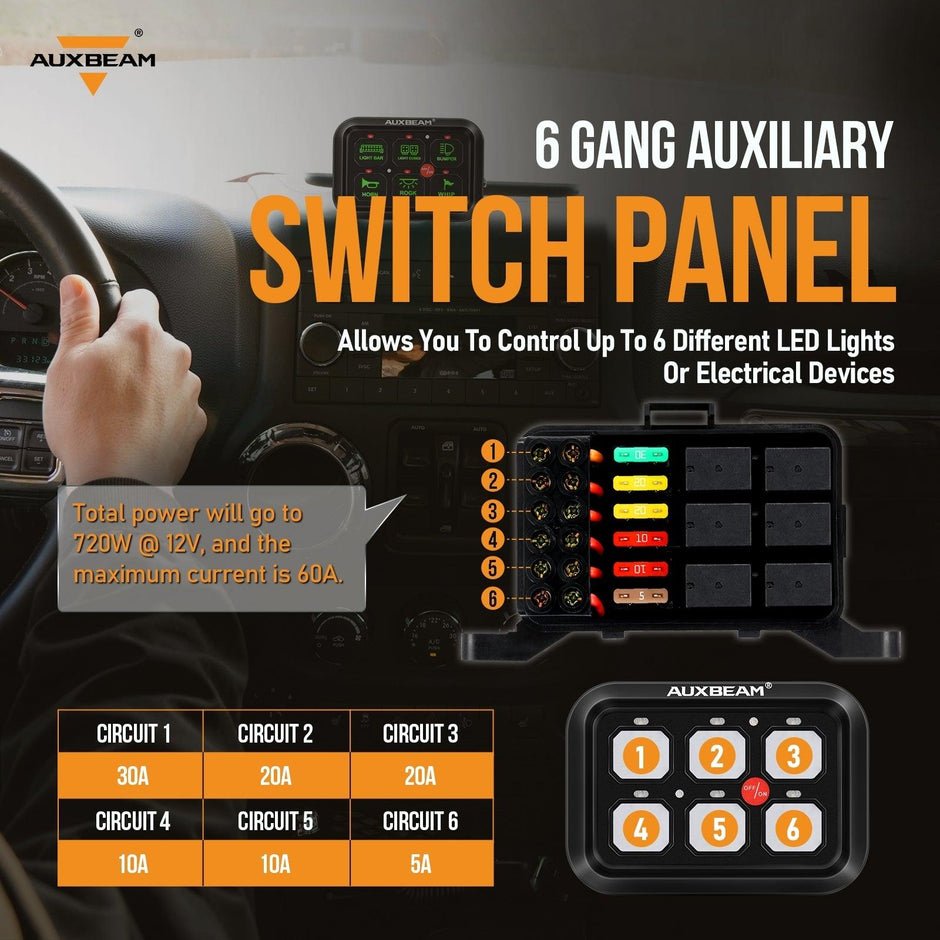

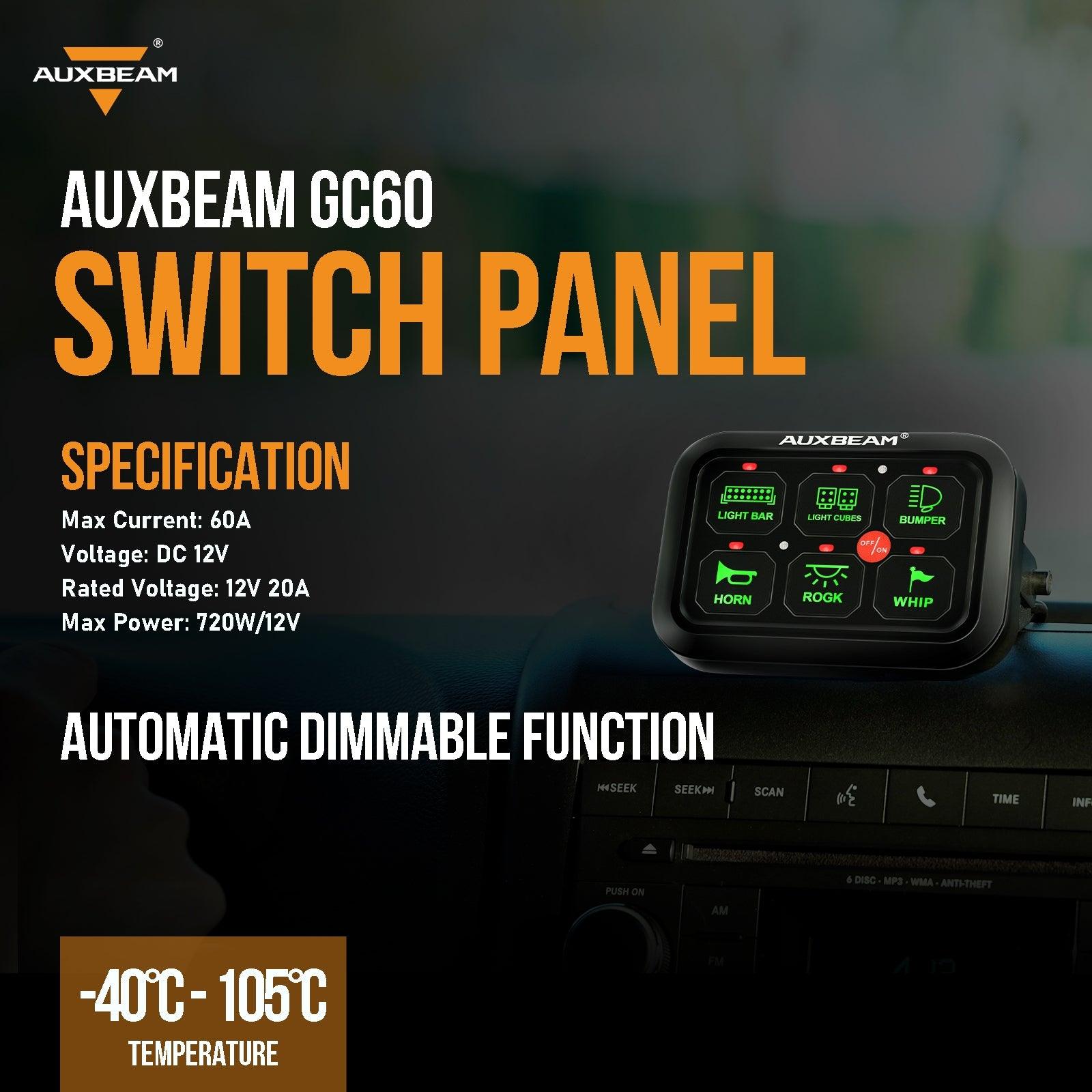

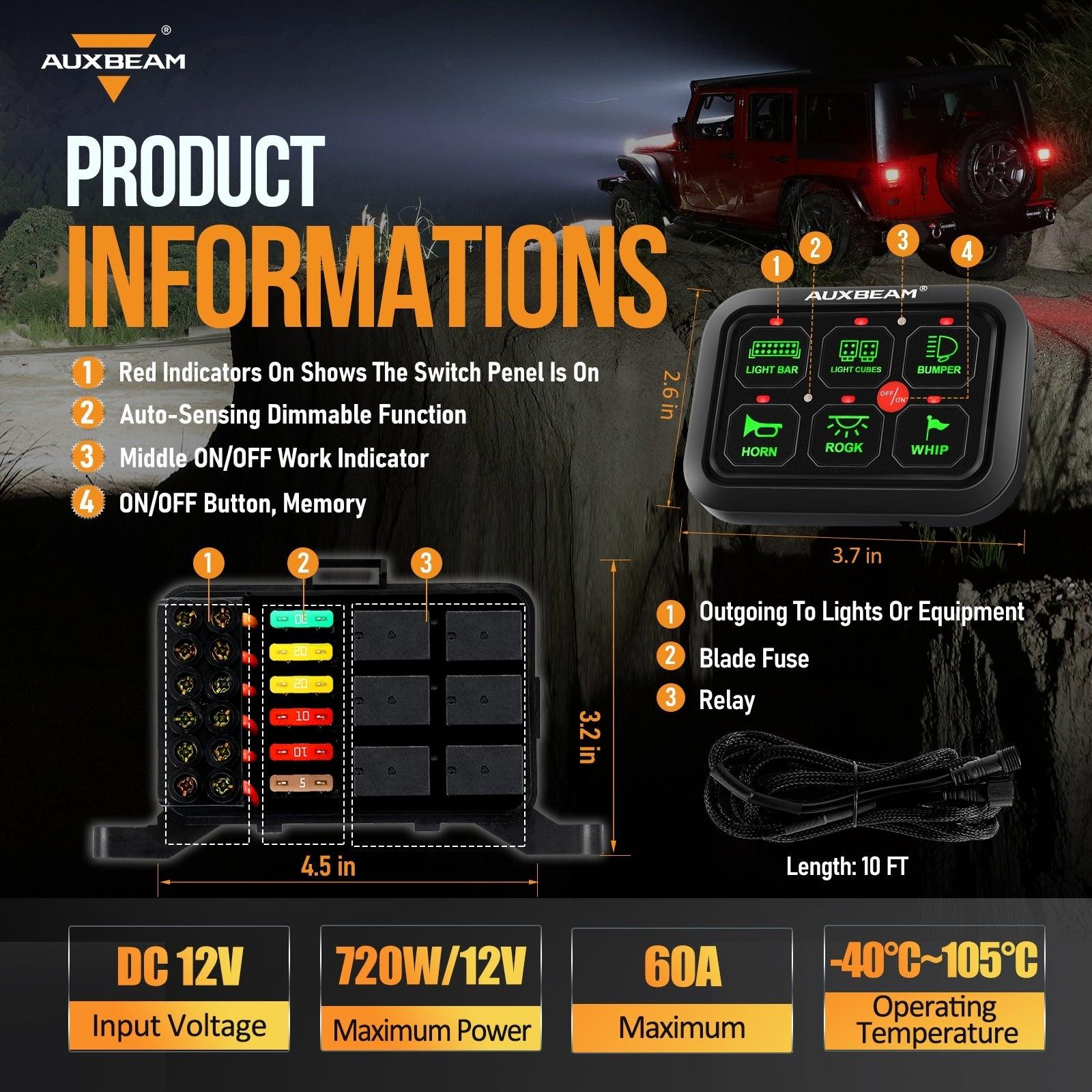

▶6 Gang Switch Panel
Panel Material: High-quality aluminum
Circuit Box Material: Die-casting aluminum
Input Voltage: 12V DC
Maximum Power: 720W
Maximum Current: 60A
Switch operation: On-Off
With/without light sensor: Yes
Operating Temperature: - 40° C ~ + 105° C
Waterproof: IP68

Features:

• Universal 6 Gang/8 Gang switch panel relay system. Power up to 6/8 lights & accessories from one convenient place. All in one design for your ultimate convenience, this kit has everything you need for installation and use, no need to by extra parts.

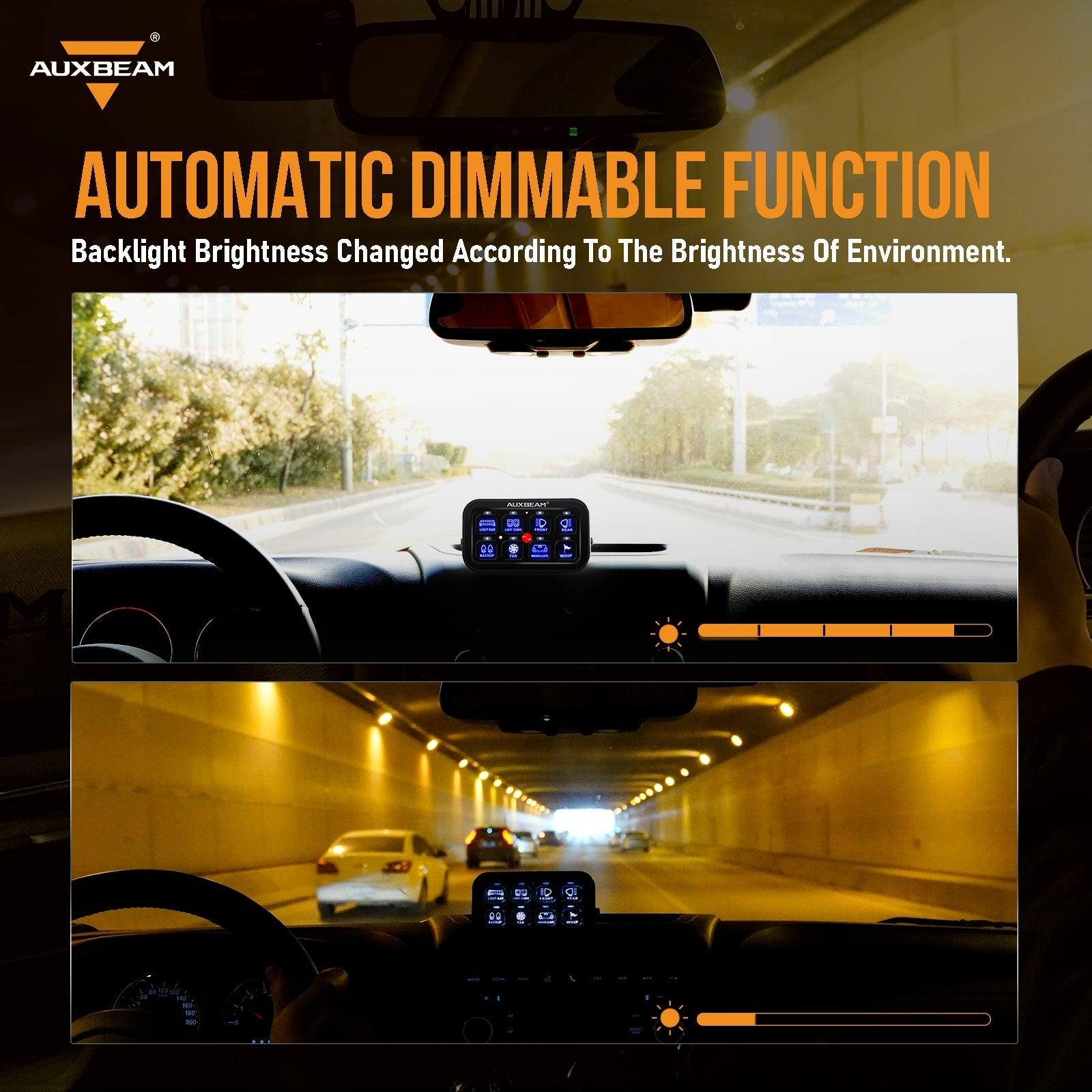

• Automatic Dimmable Function. The switch backlights will automatically be at full brightness in daylight and other bright places for easy visibility. At night or in tunnel, the switch panel backlights will automatically dim to reduce the impact on the driver's vision.

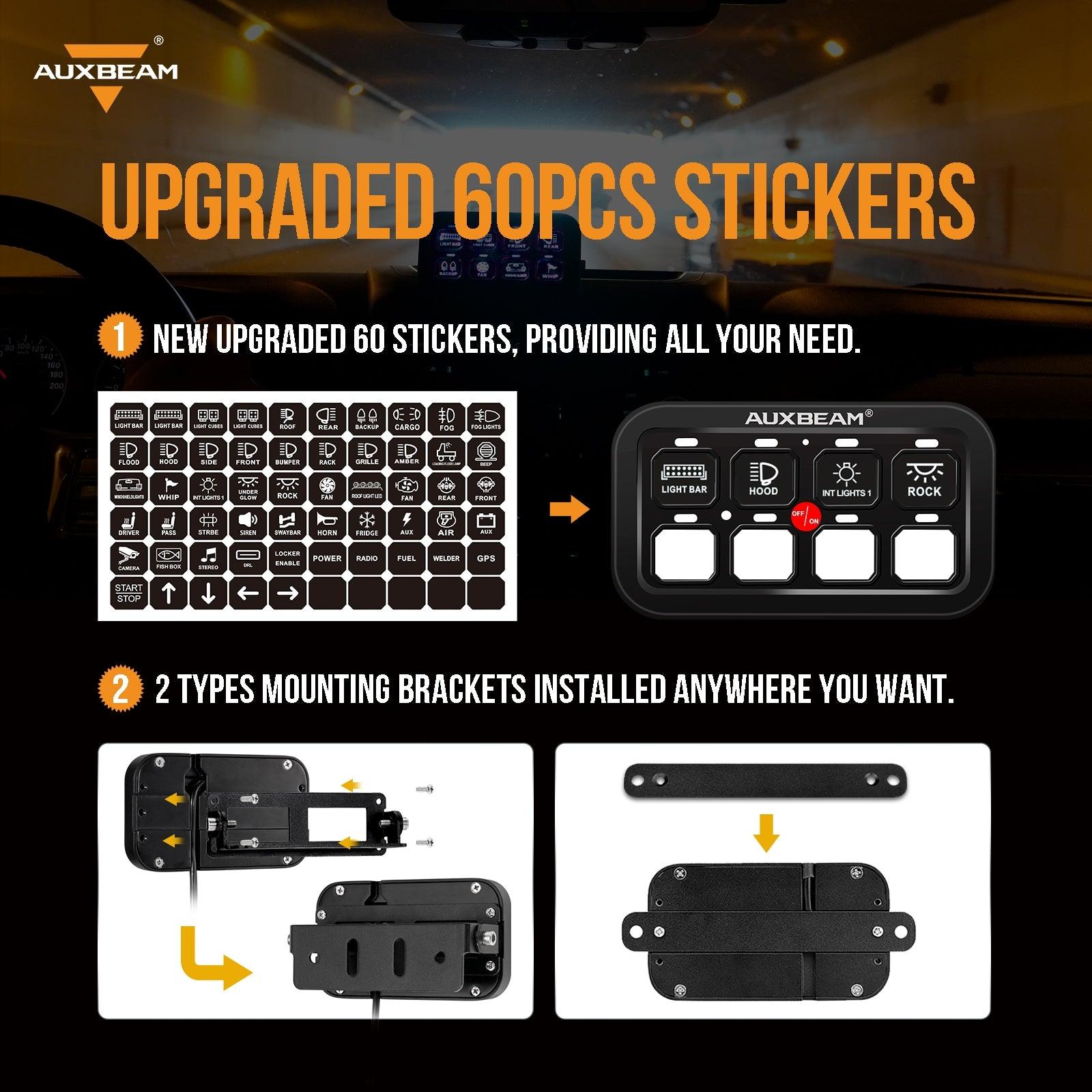

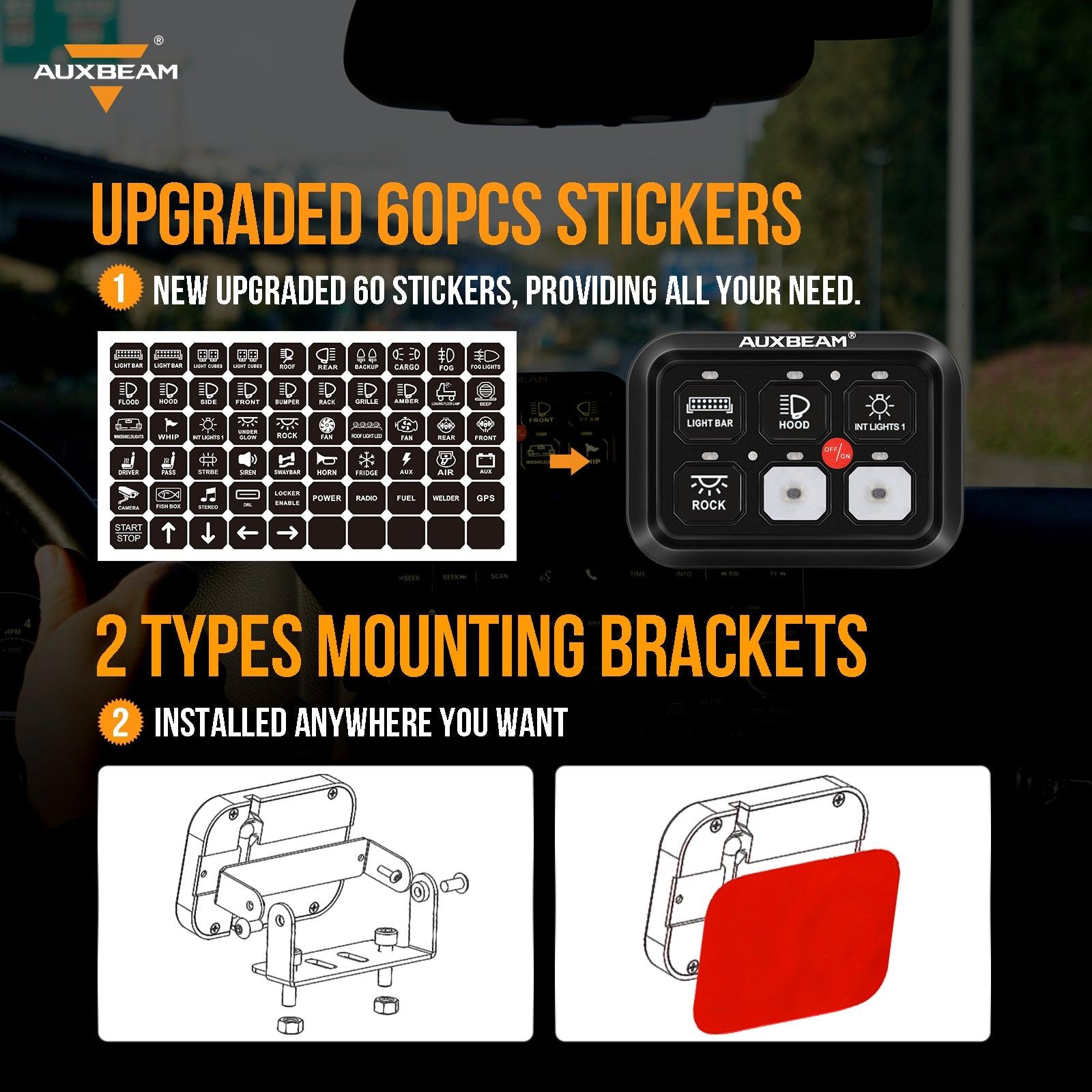

• With universal switch stickers, you can customize your unique personal switch panel according to certain needs.

• Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
• Easy Installation. No complicated wiring, no need to cut a big hole on your vehicle. Plug & play wiring harnesses ensure you connect the led lights or accessories easily. Two types of mounting brackets, you can install it anywhere you need. You can customize your personal switch panel with 50pcs self-adhesive labels. The best way to clean up all the wiring and add a single panel to control everything.
• Wide Application. Taking limited space on some vehicles into account, this more compact size switch panel control system is perfect for all situations. Multi-position installation with different brackets, it can be installed in any position you like.

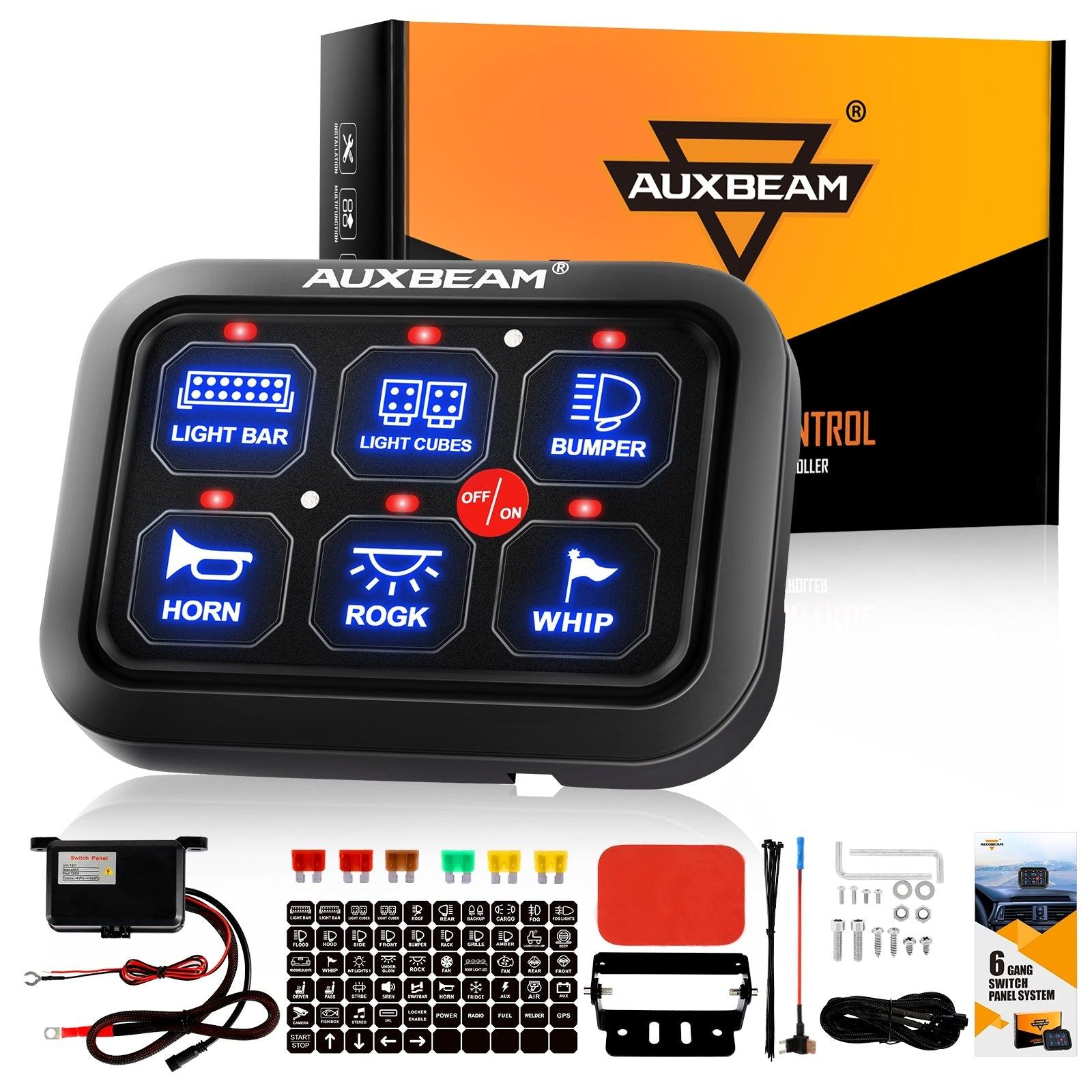

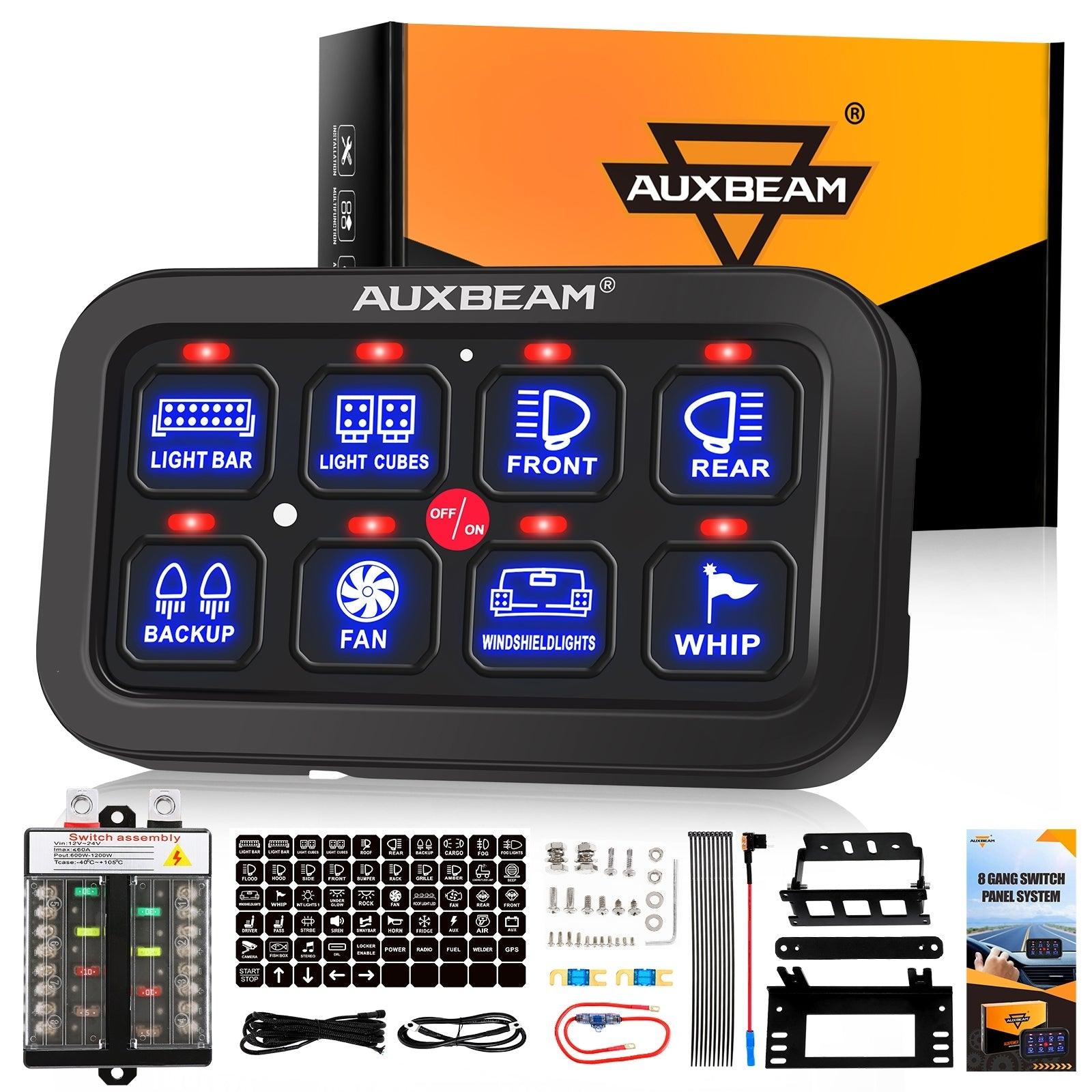

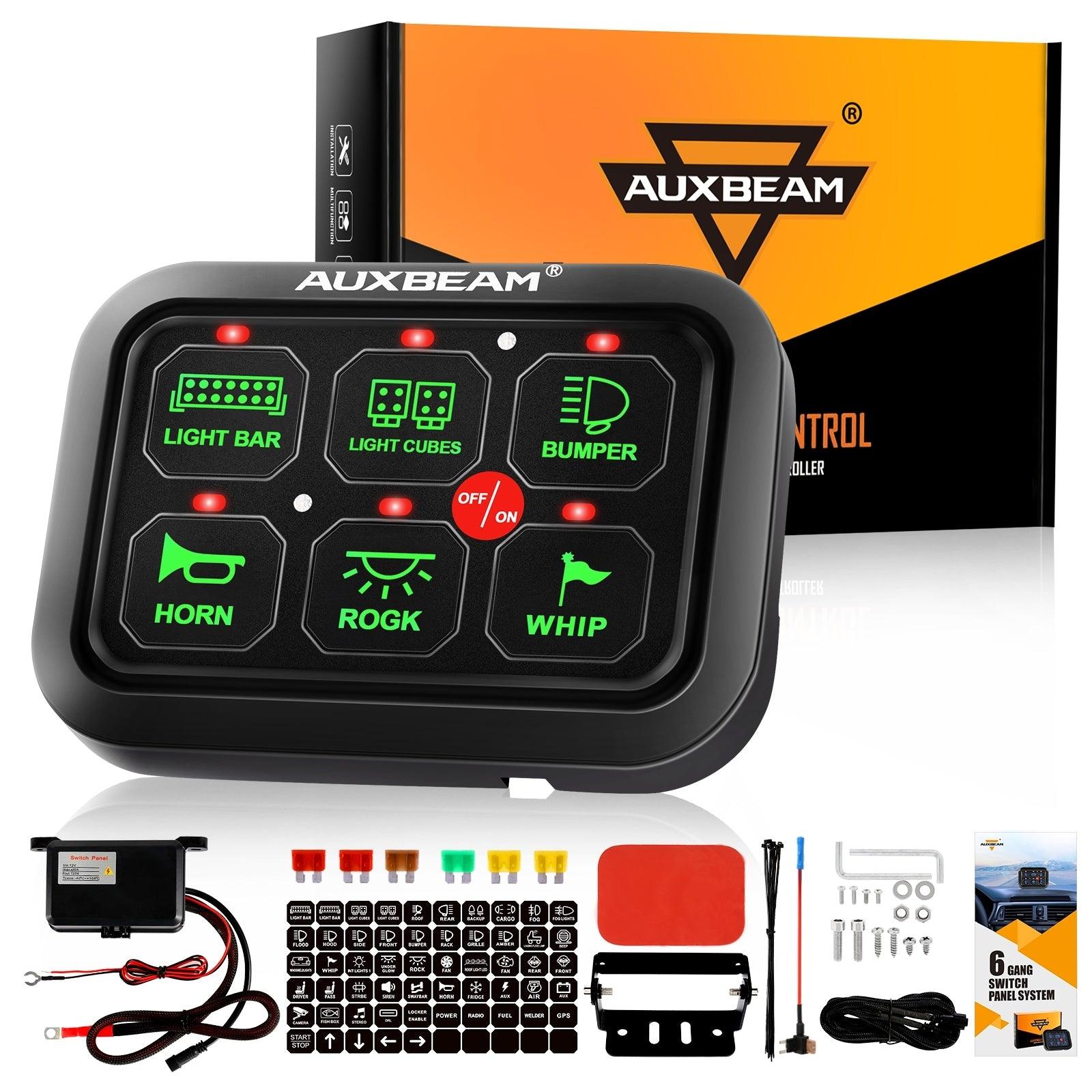

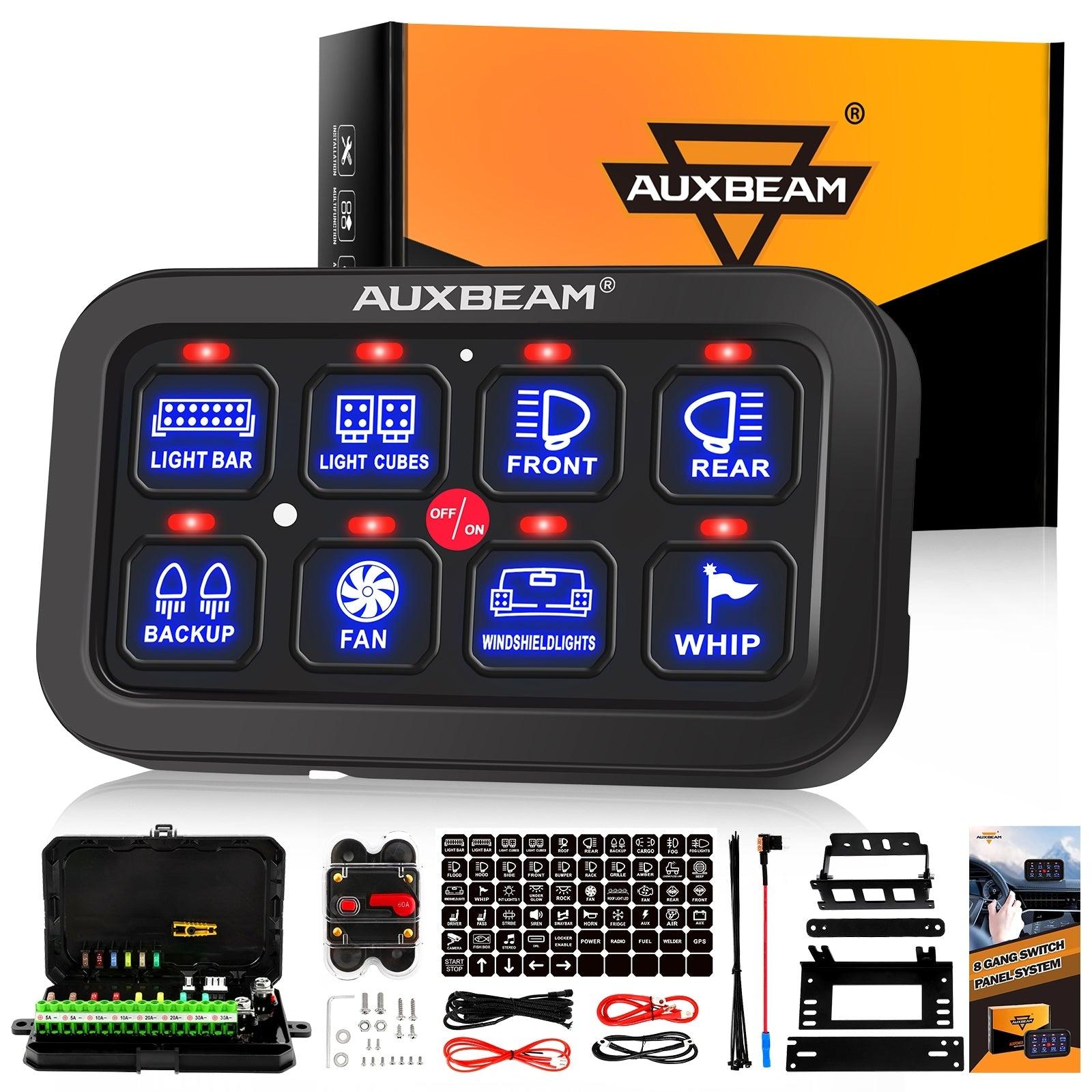

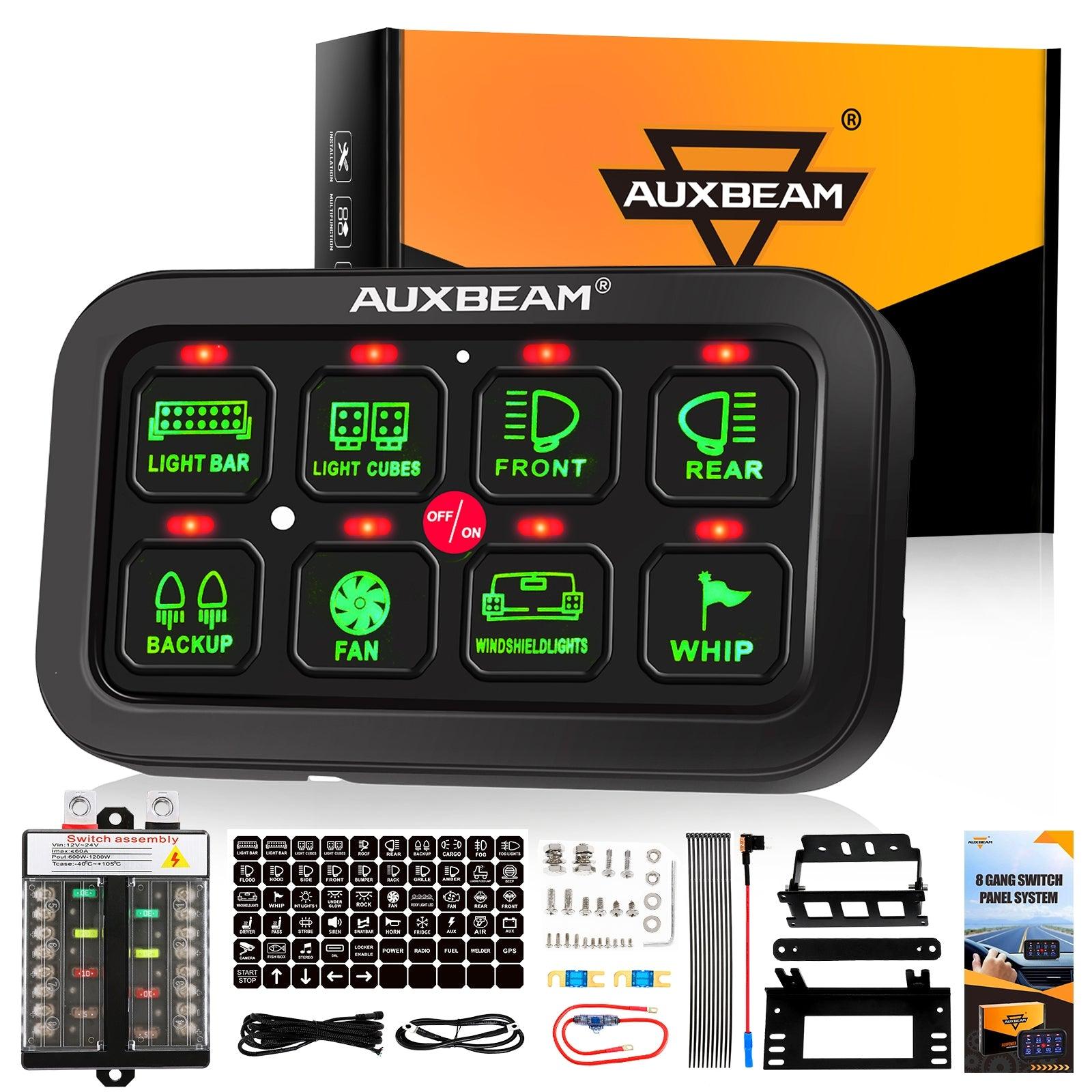

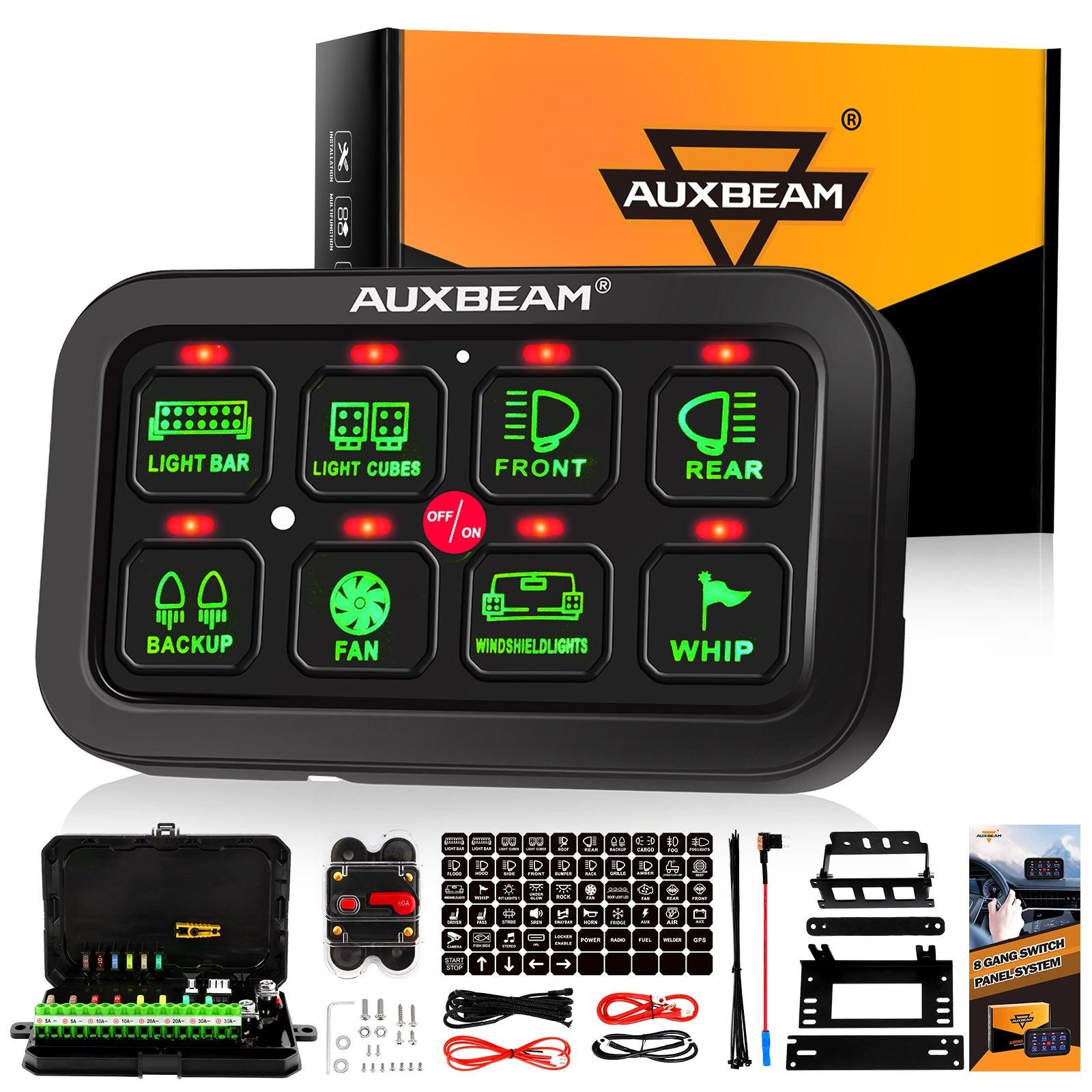

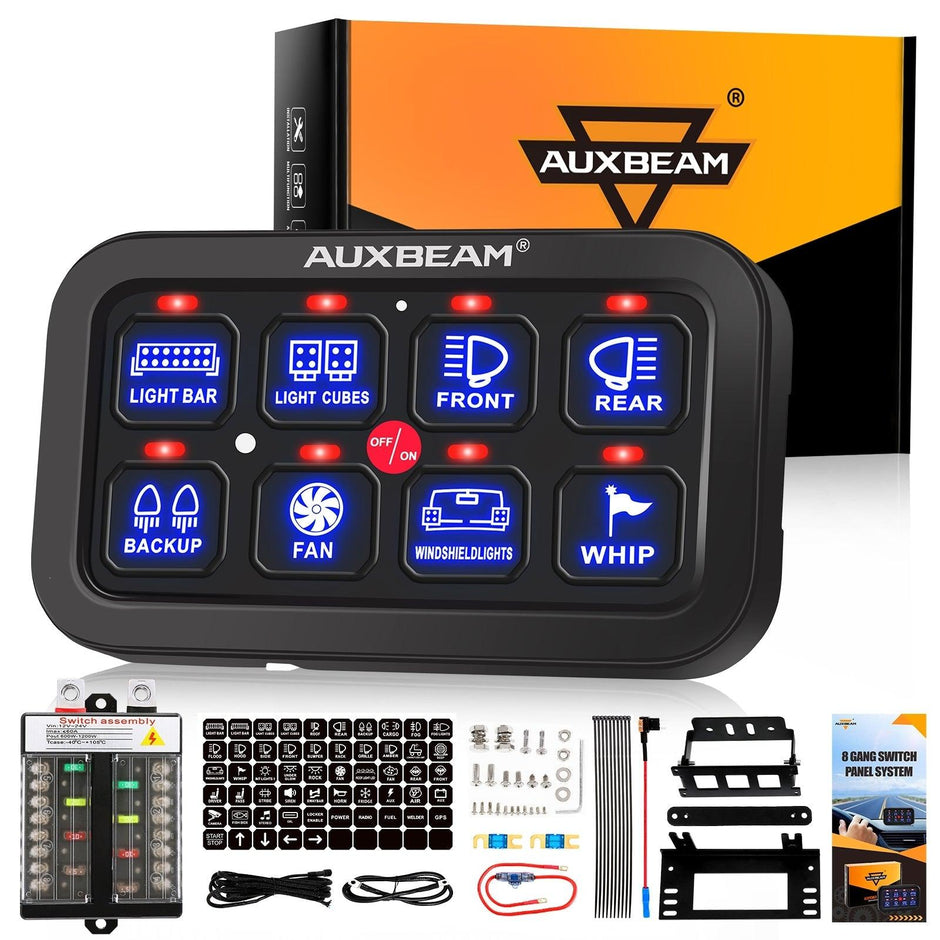

Package Included:

1 * Set of 6 Gang/8 Gang on-off Control Switch Panel

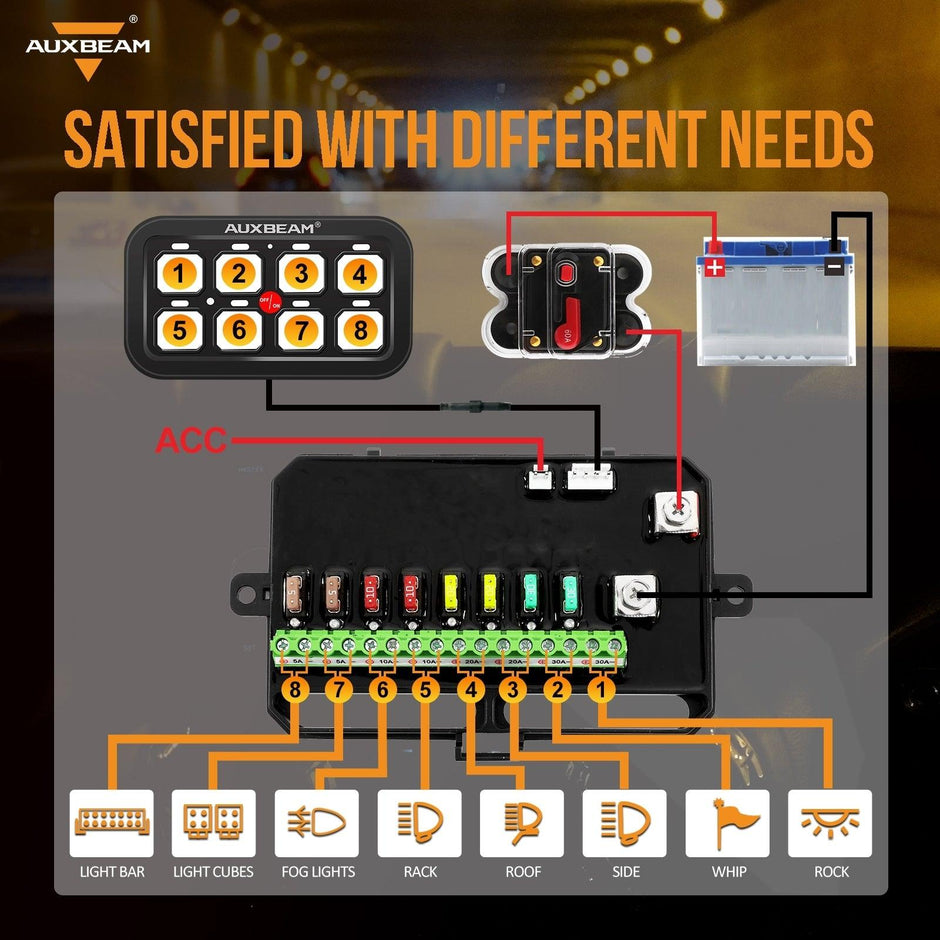

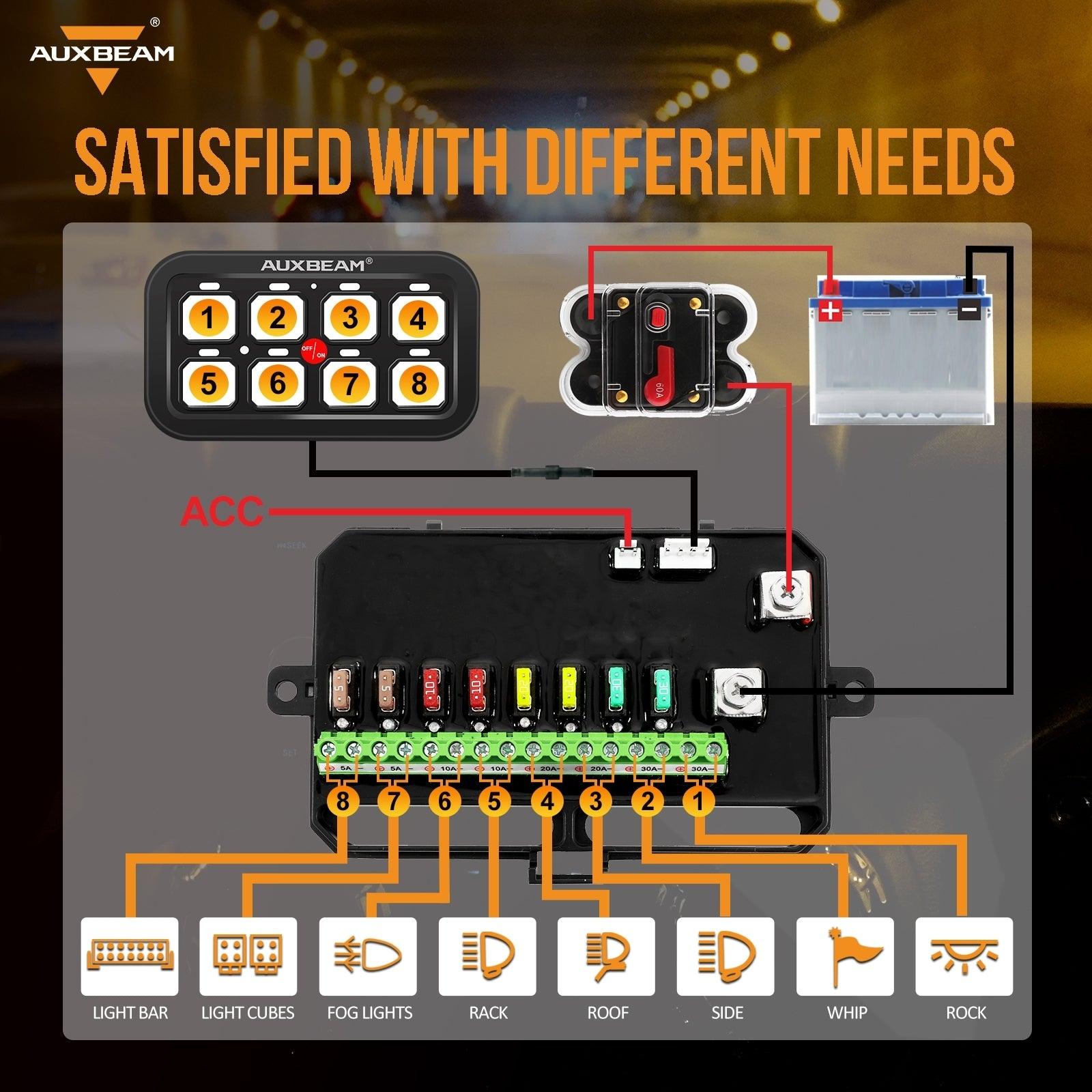

Installation Guideline

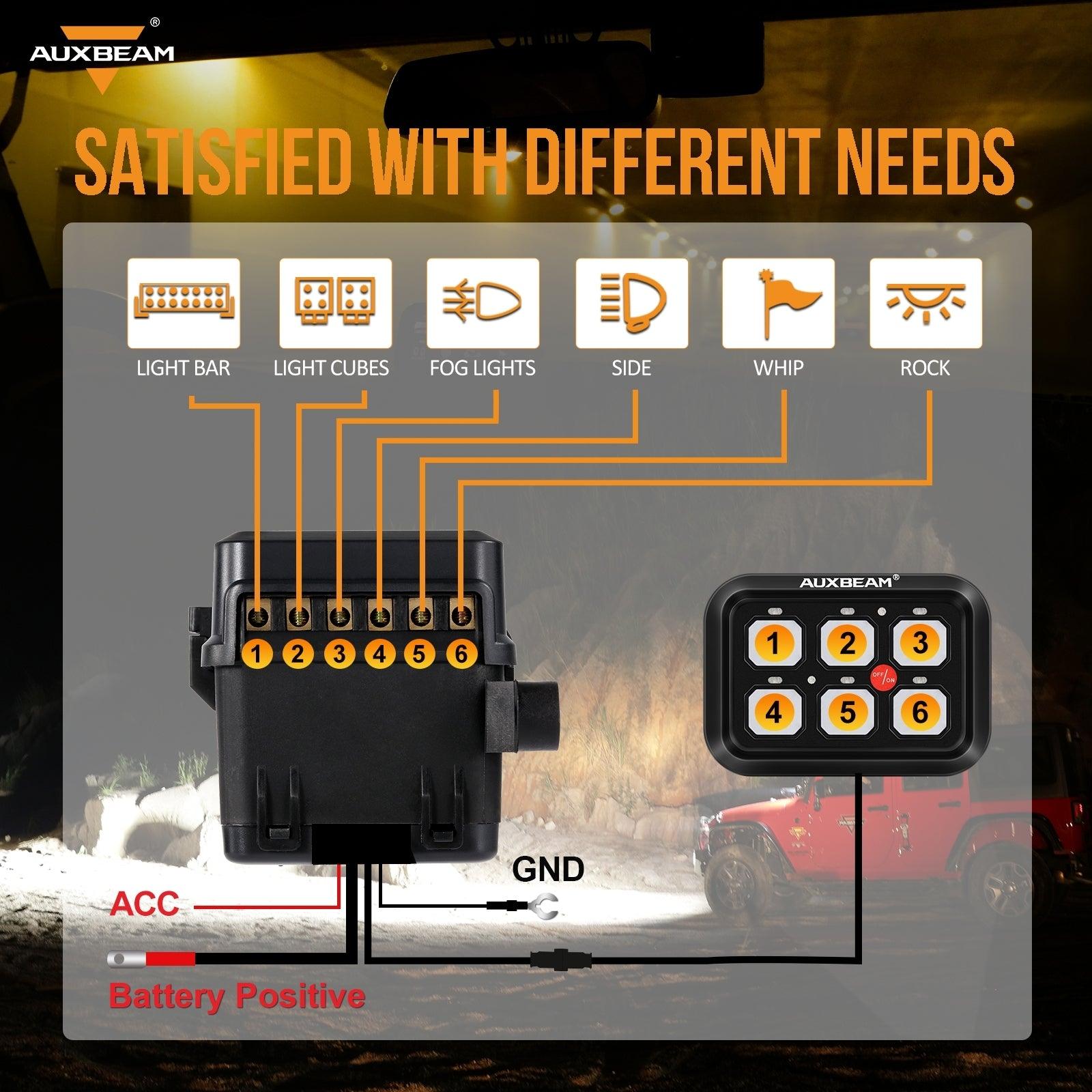

• The recommended connection method is to decrease the current gradually from 1 circuit to 6 circuits.
• Make sure all the lamps are connected before connecting the power cable.
• https://www.youtube.com/watch?v=er_vN7tXCDw

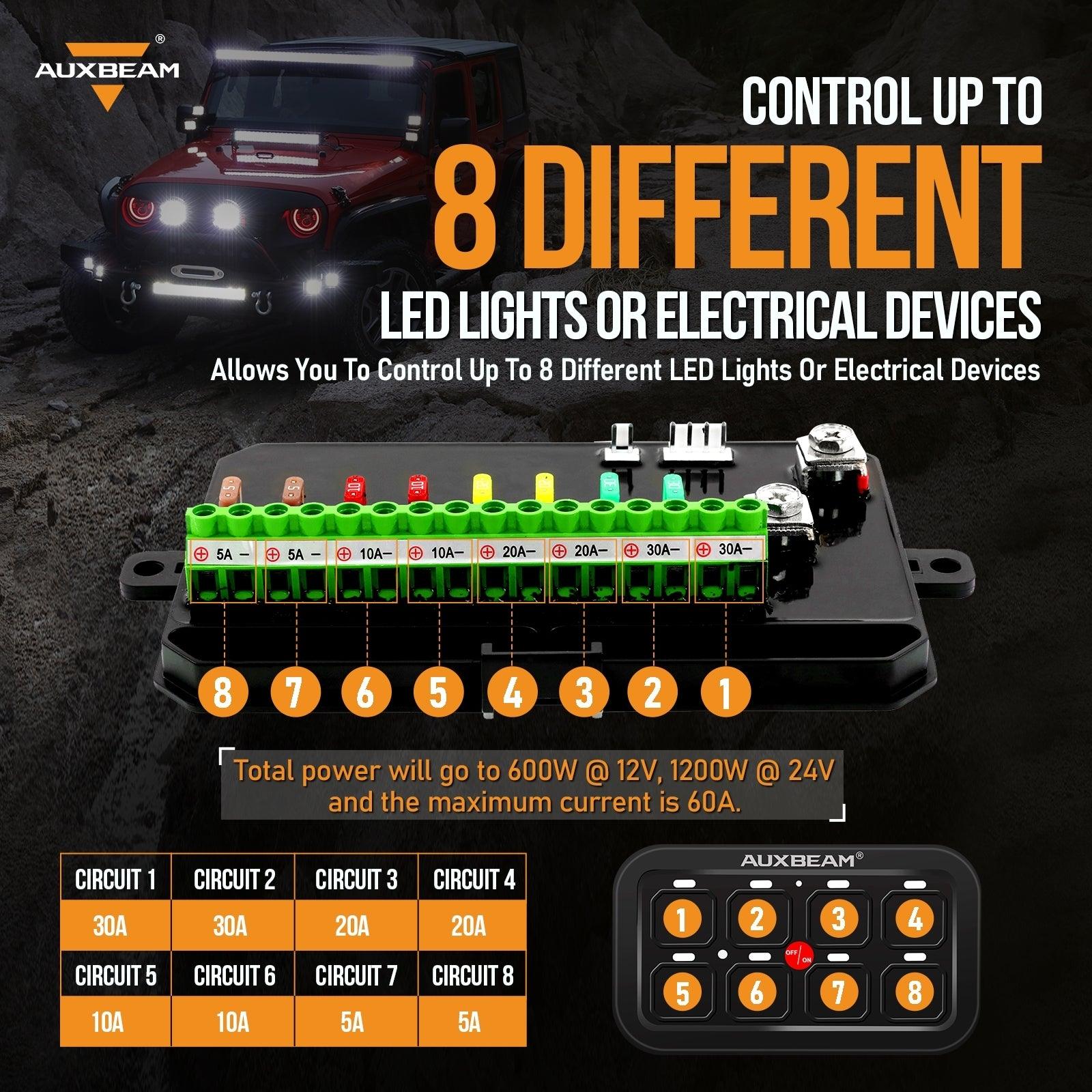

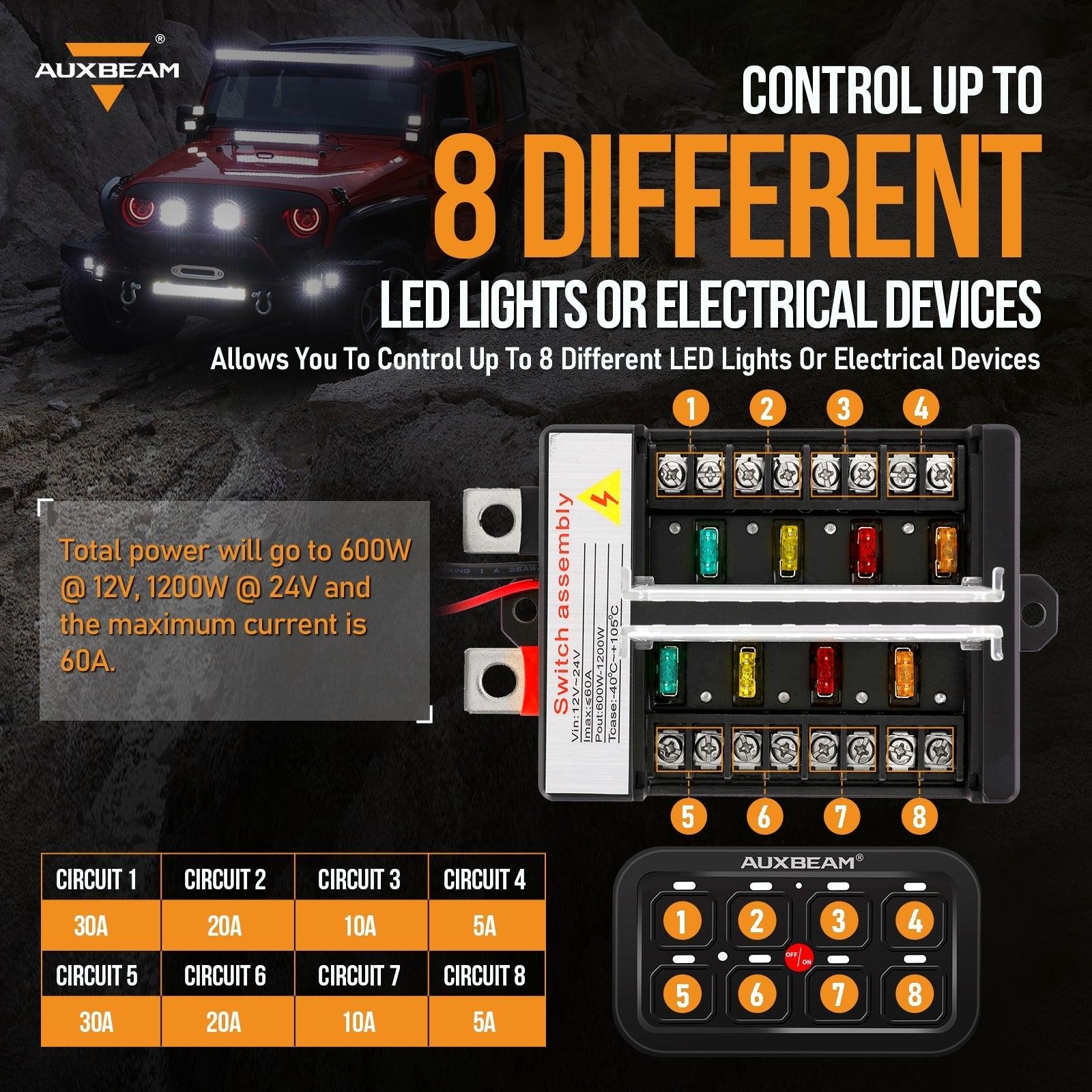

• Total power will go to 600w at 12V, 1200w at 24V and the maximum current is 60A.

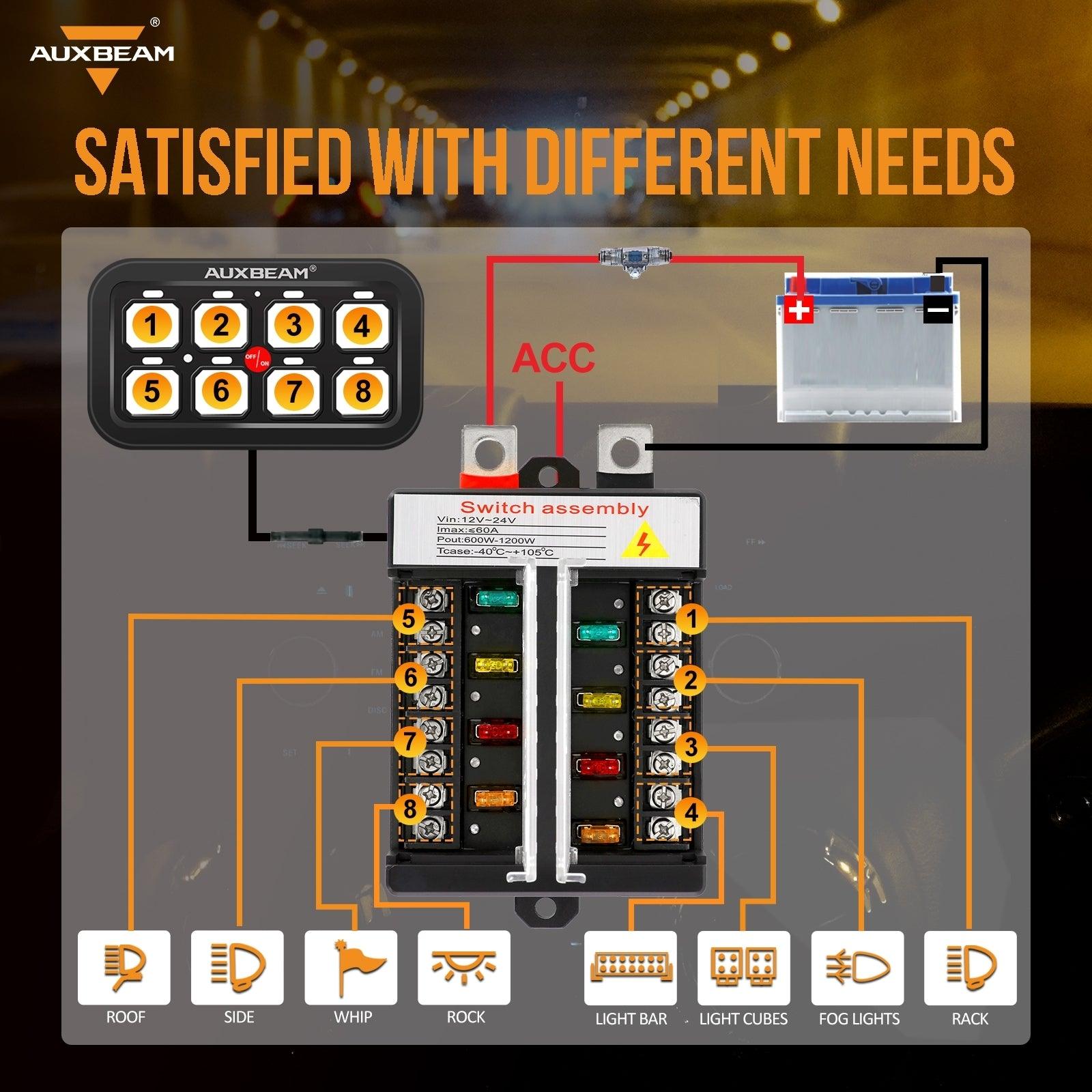

• The recommended connection method is to decrease the current gradually from 1 circuit to 8 circuit
• Make sure all the lamps are connected before connecting the power cable.
• One-sided Outlet: https://www.youtube.com/watch?v=BtSBGVcyHlQ
• Two-sided Outlet: https://www.youtube.com/watch?v=GFjcm7ZosC8
