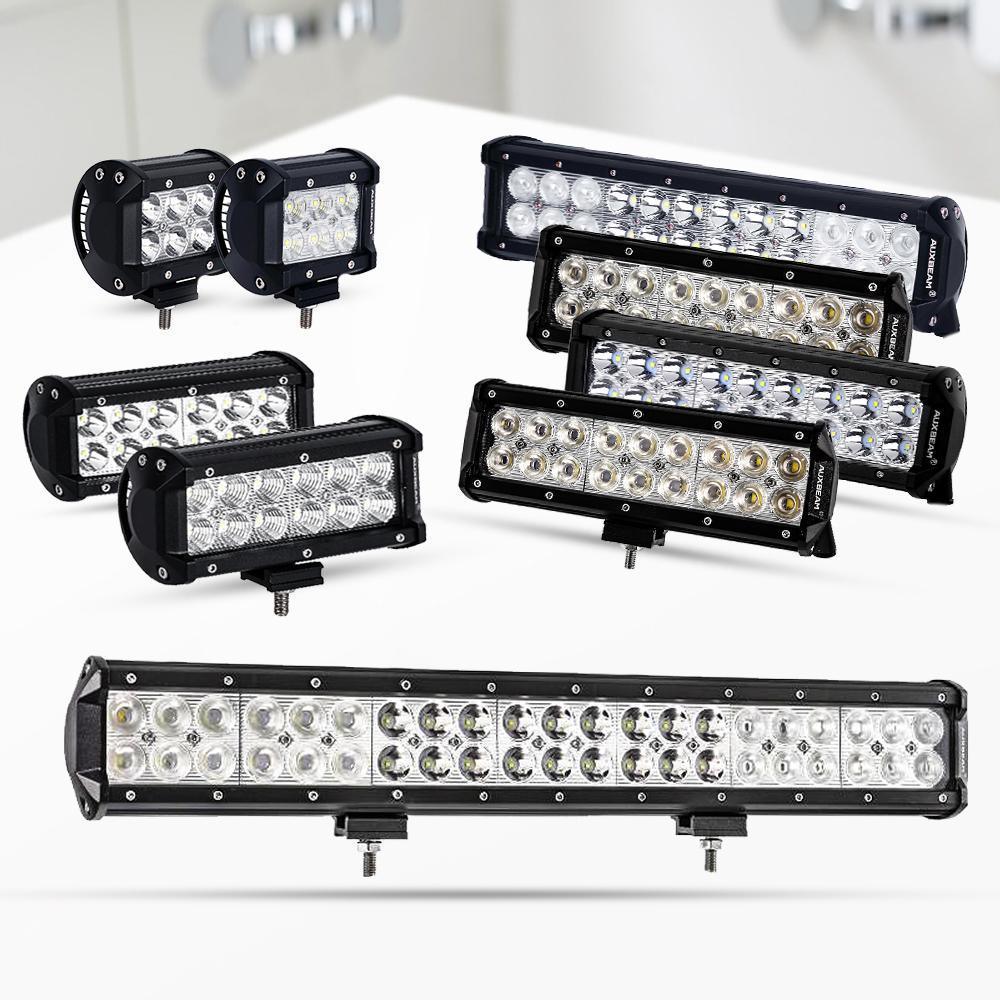

Classic-SM Series 4 Inch/6.5 Inch/9 Inch/12 Inch/20 Inch/32 Inch Dual Row LED Light Bar
Introduction:
Double Row LED chips design, the classic one of LED Light Bar. High Intensity LEDs stable performance satisfy a longer beam of light distance and width while consuming little power.
Specifications:
LED Type: High Intensity LEDs
Size/LED Power/Dimention(inch):

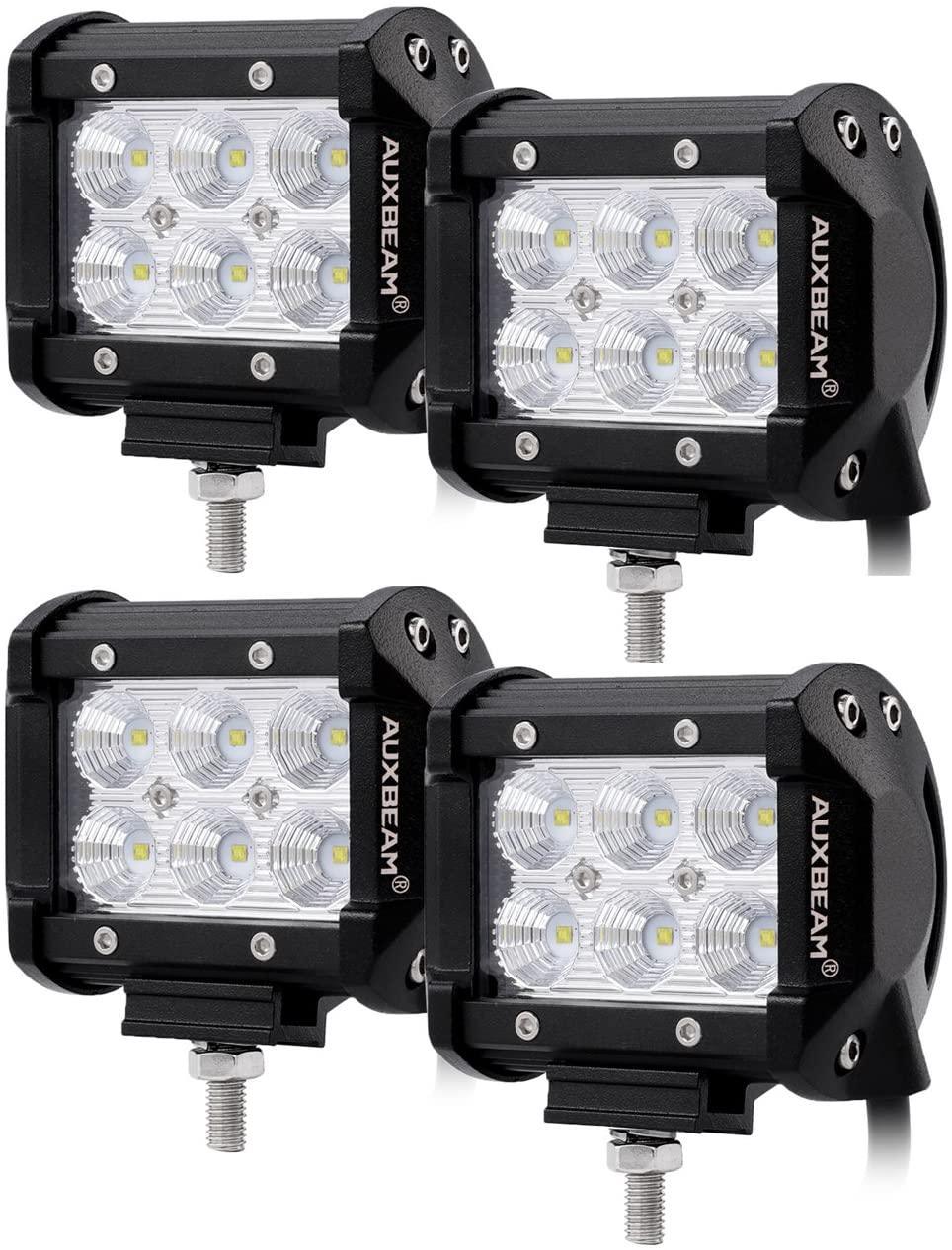

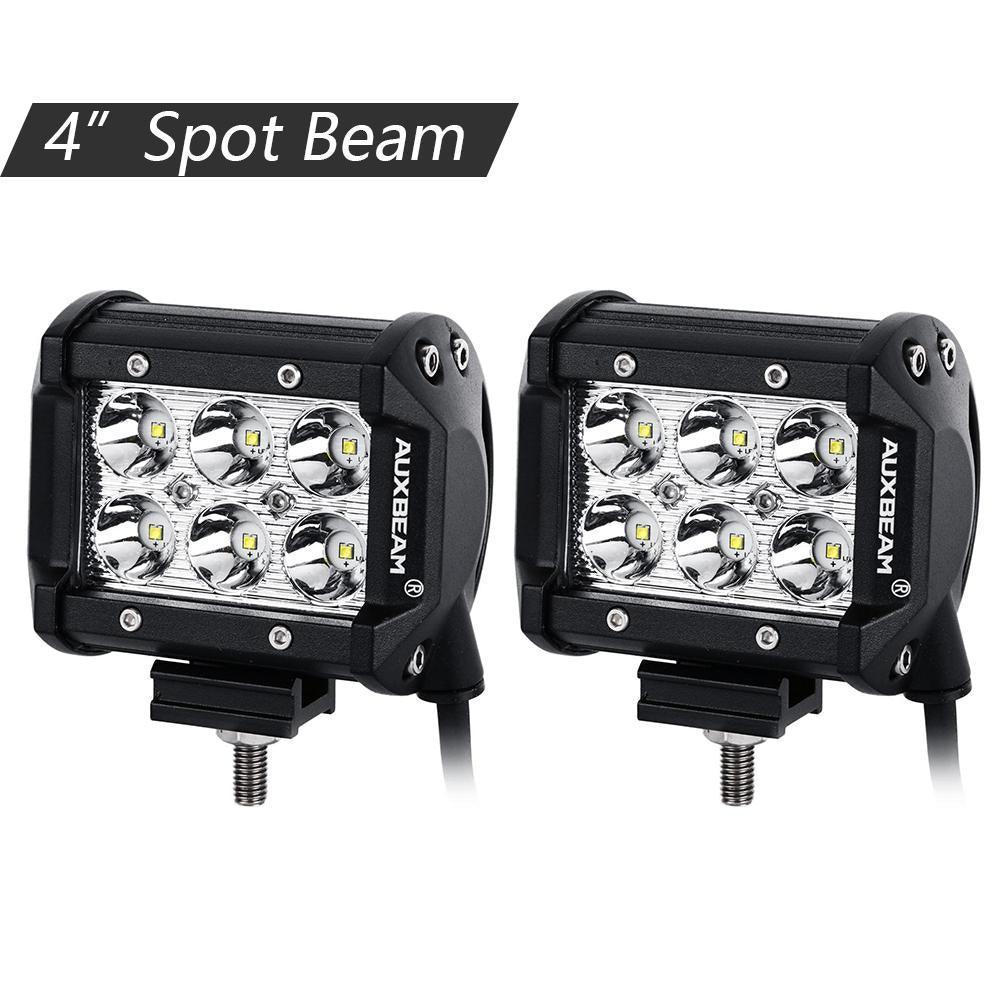

| 4" |
18W-6pcs*3W; 4*3.4*2.5 (with bracket) 4*3.15*2.5 (without bracket) |
Spot Beam ; 1800LM |

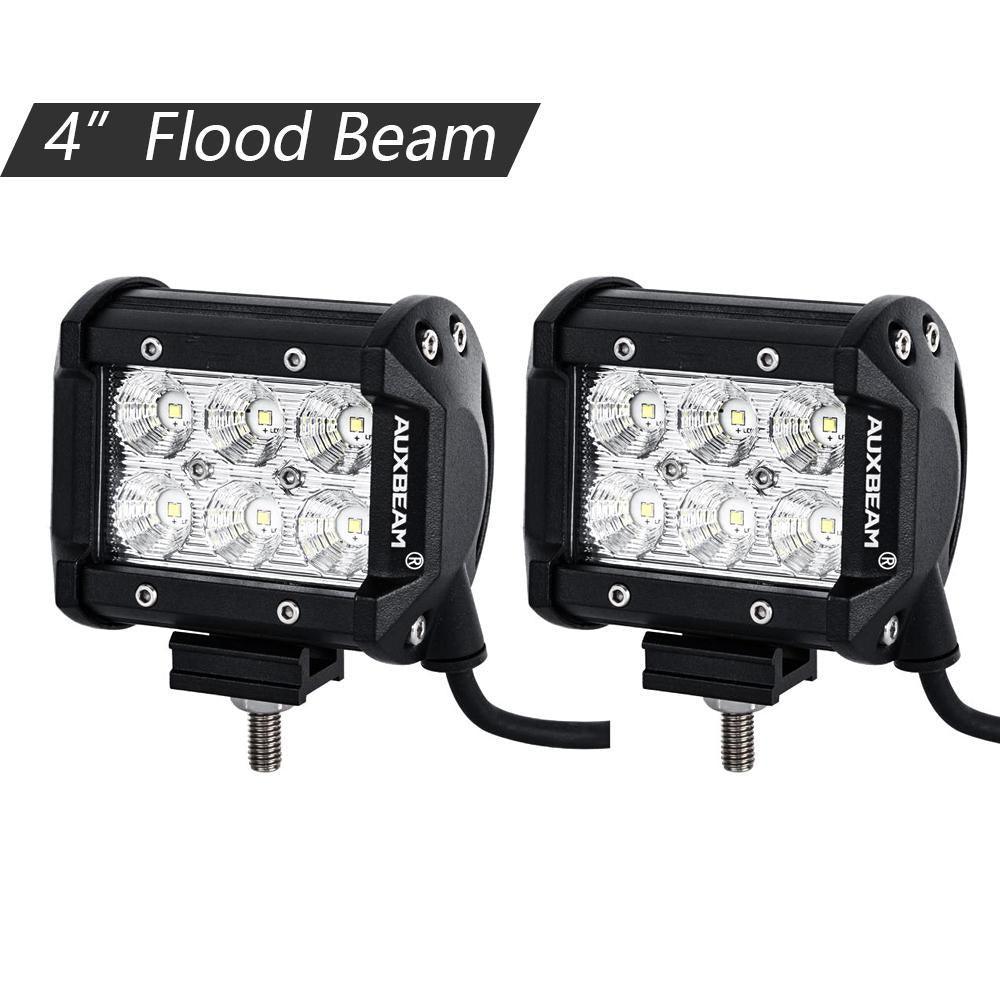

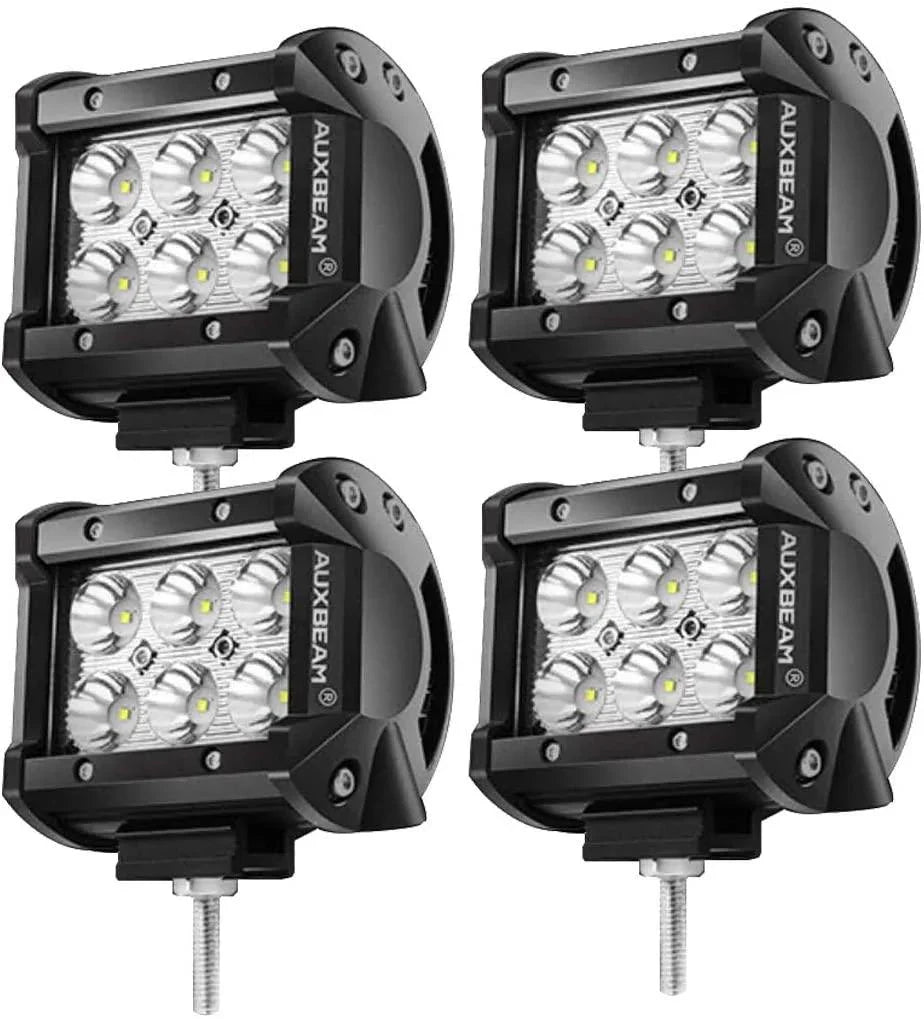

| 4" |
18W-6pcs*3W; 4*3.4*2.5 (with bracket) 4*3.15*2.5 (without bracket) |
Flood Beam ; 1800LM |

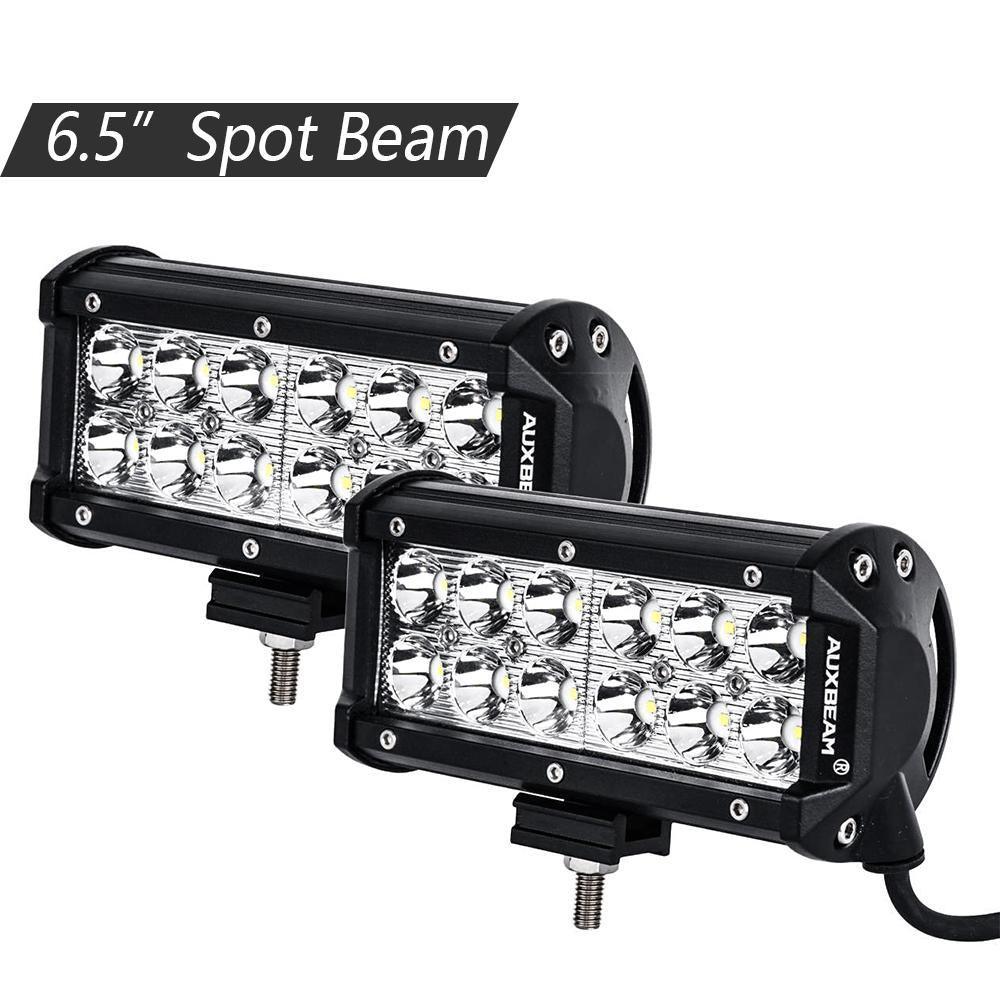

| 6.5" |
36W-12pcs*3W; 6.5*3.4*2.5 (with bracket) 6.5*3.15*2.5 (without bracket) |
Spot Beam ; 3600LM |

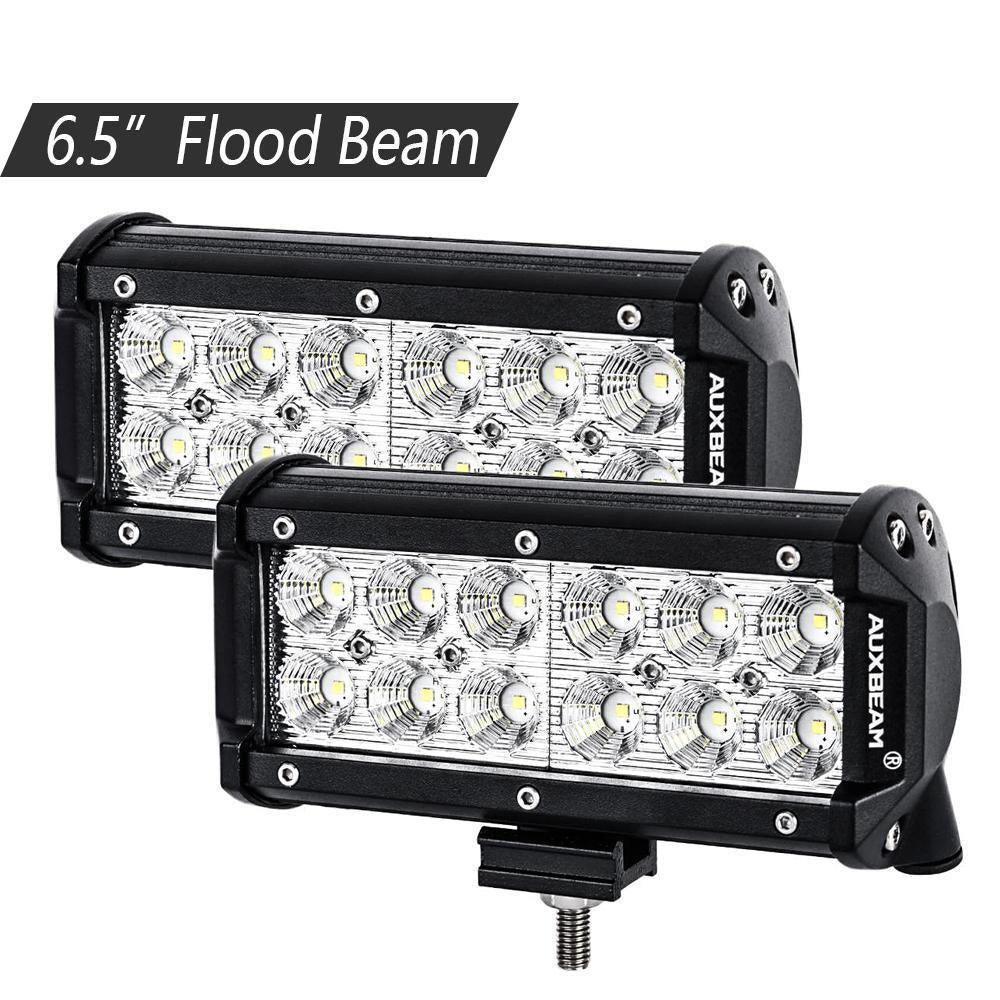

| 6.5" |
36W-12pcs*3W; 6.5*3.4*2.5 (with bracket) 6.5*3.15*2.5 (without bracket) |
Flood Beam; 3600LM |

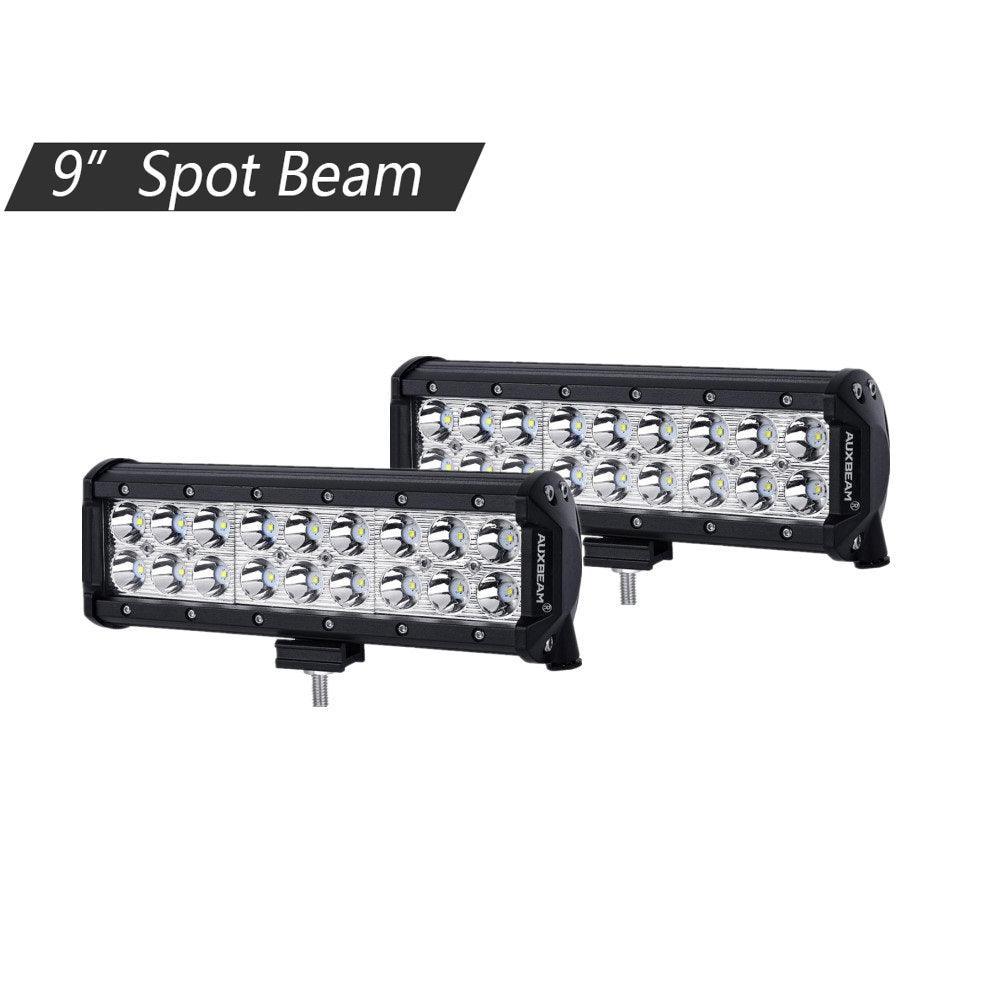

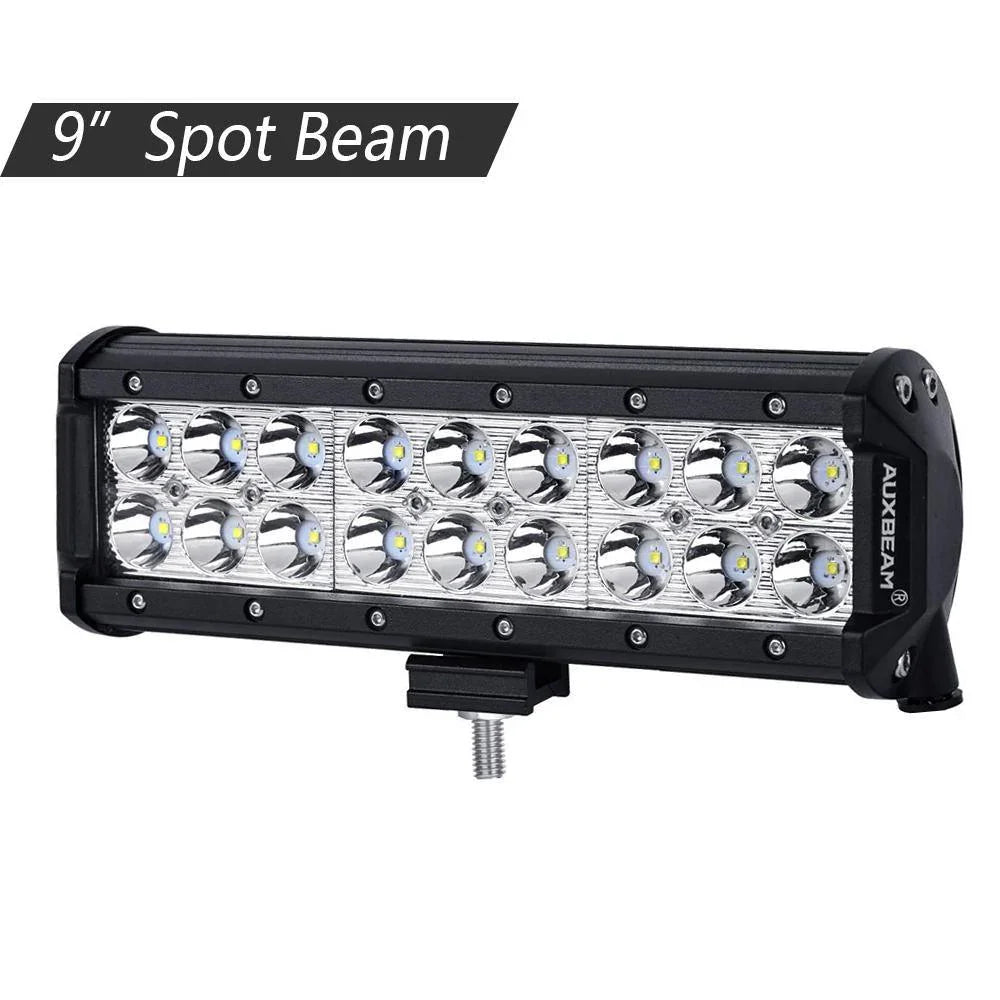

| 9" |
54W-18pcs*3W; 9*3.4*2.5 (with bracket) 9*3.15*2.5 (without bracket) |
Spot Beam ; 5400LM |

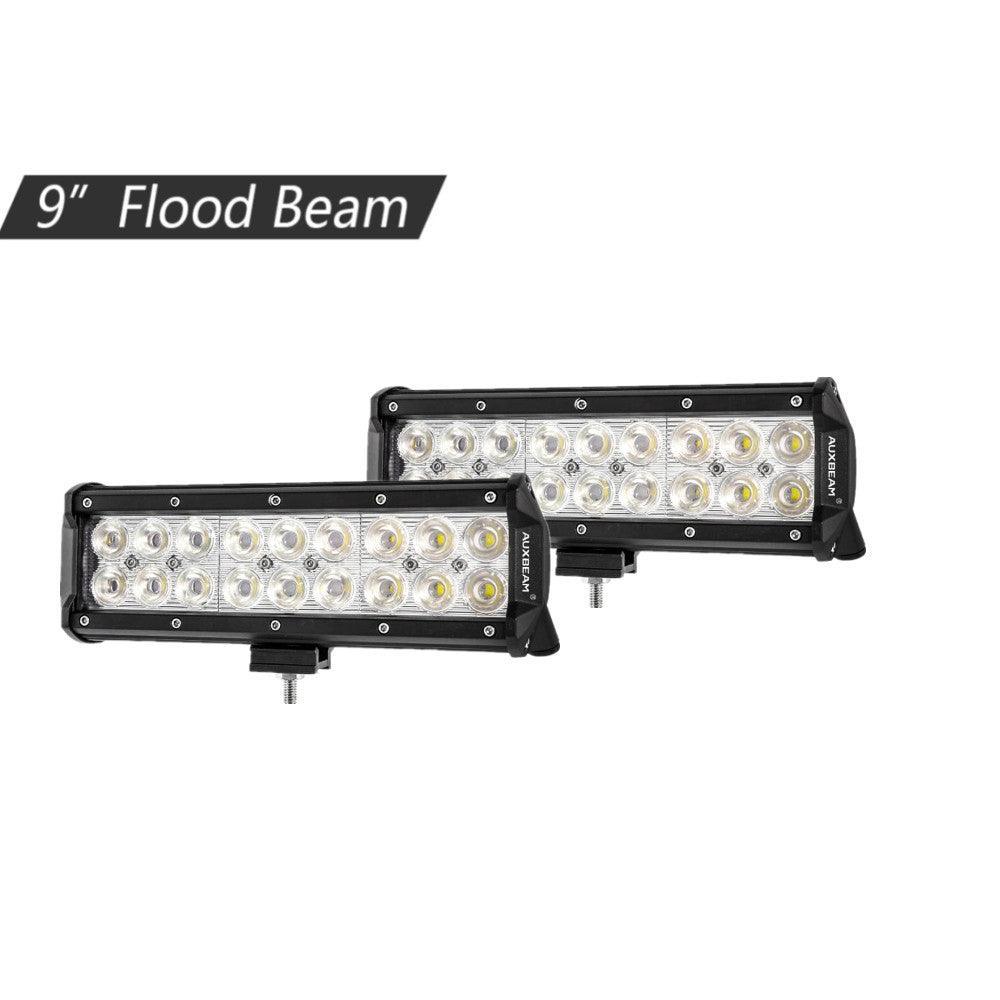

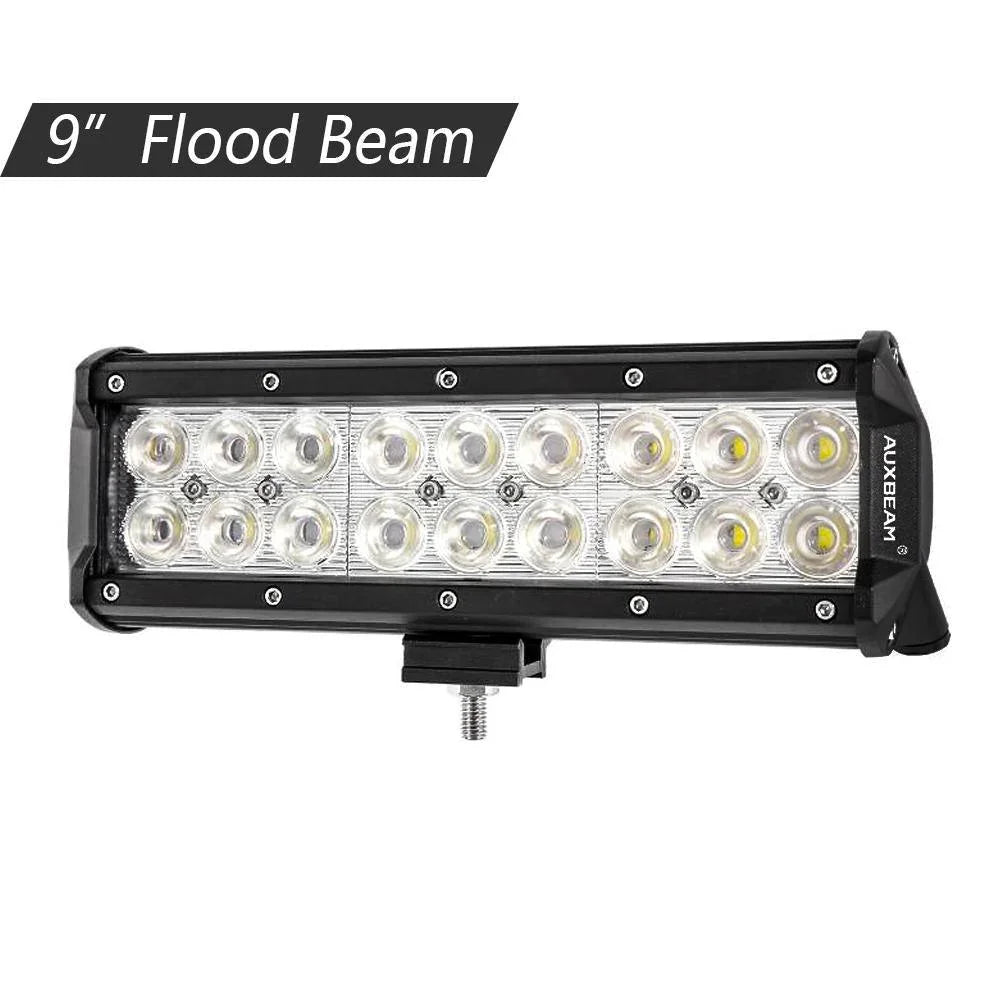

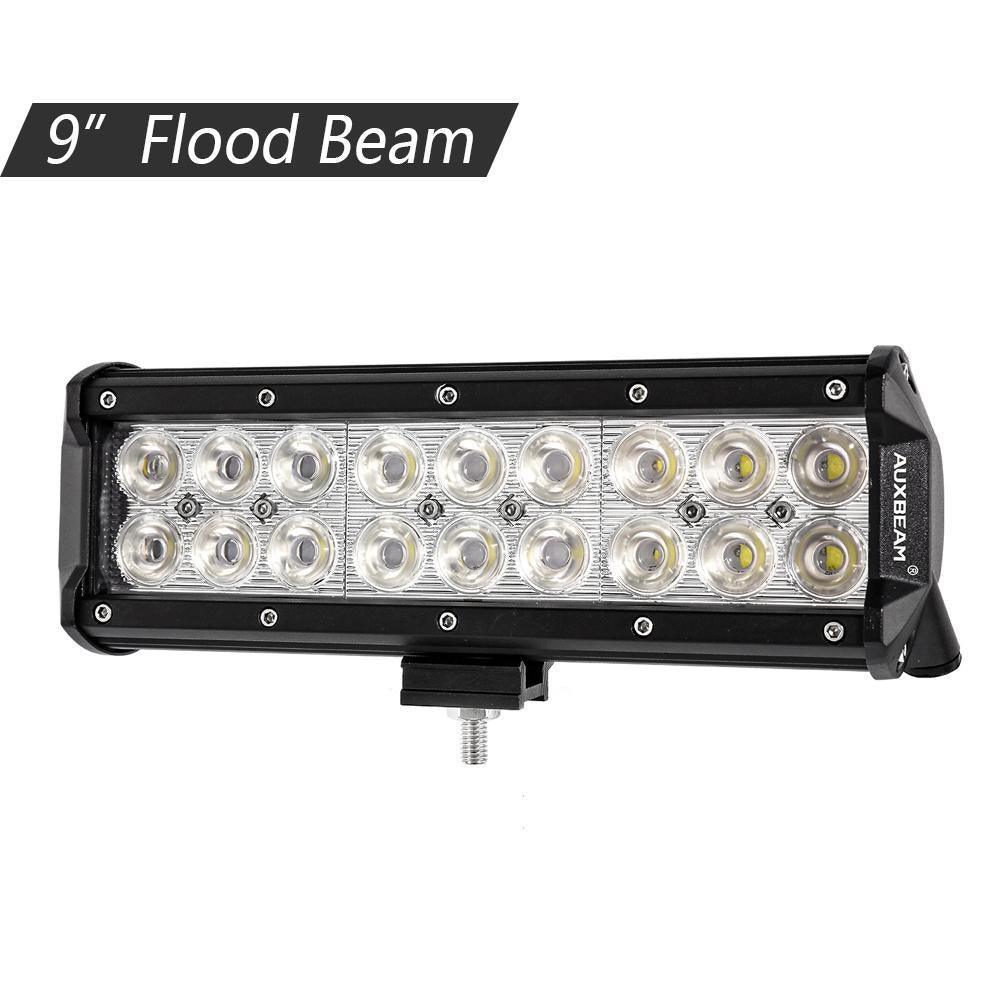

| 9" |
54W-18pcs*3W; 9*3.4*2.5 (with bracket) 9*3.15*2.5 (without bracket) |
Flood Beam ; 5400LM |

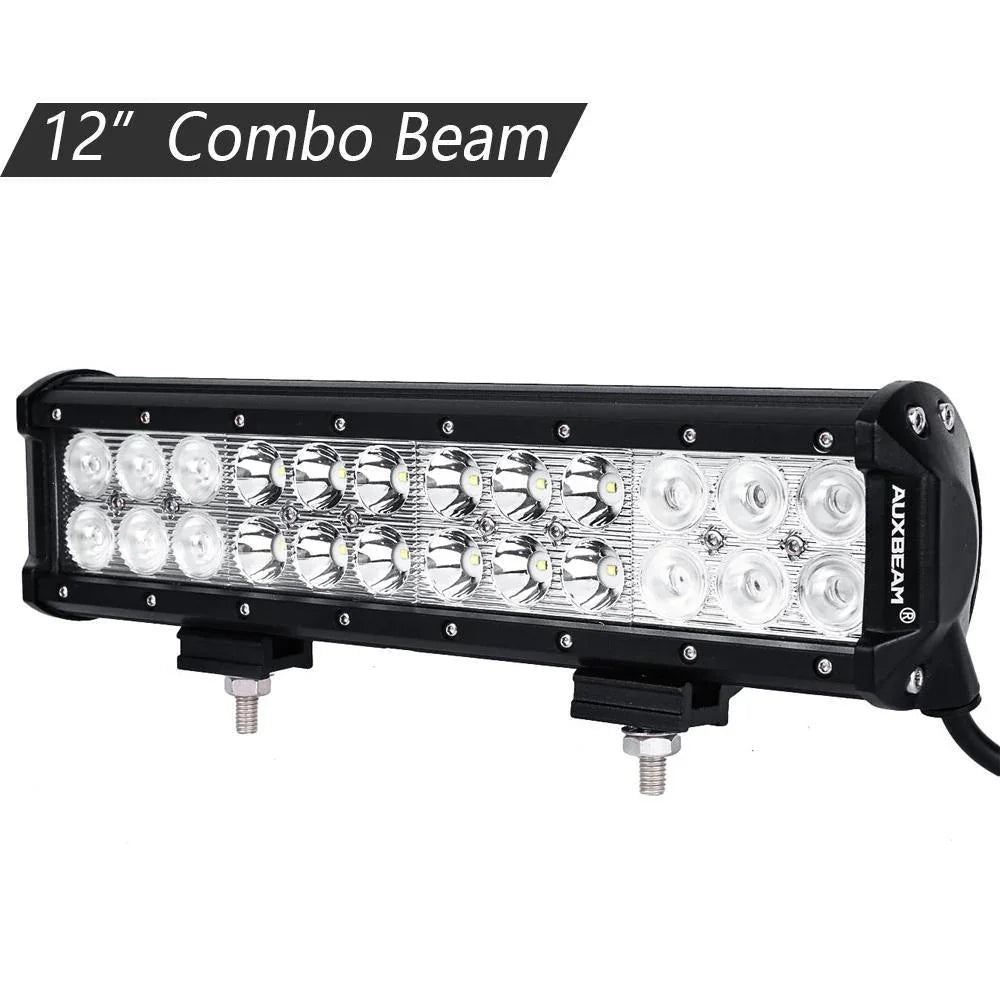

| 12" |
72W-24pcs*3W; 11.89*4.17*2.52 (with bracket) |
Combo Beam ; 7200LM |

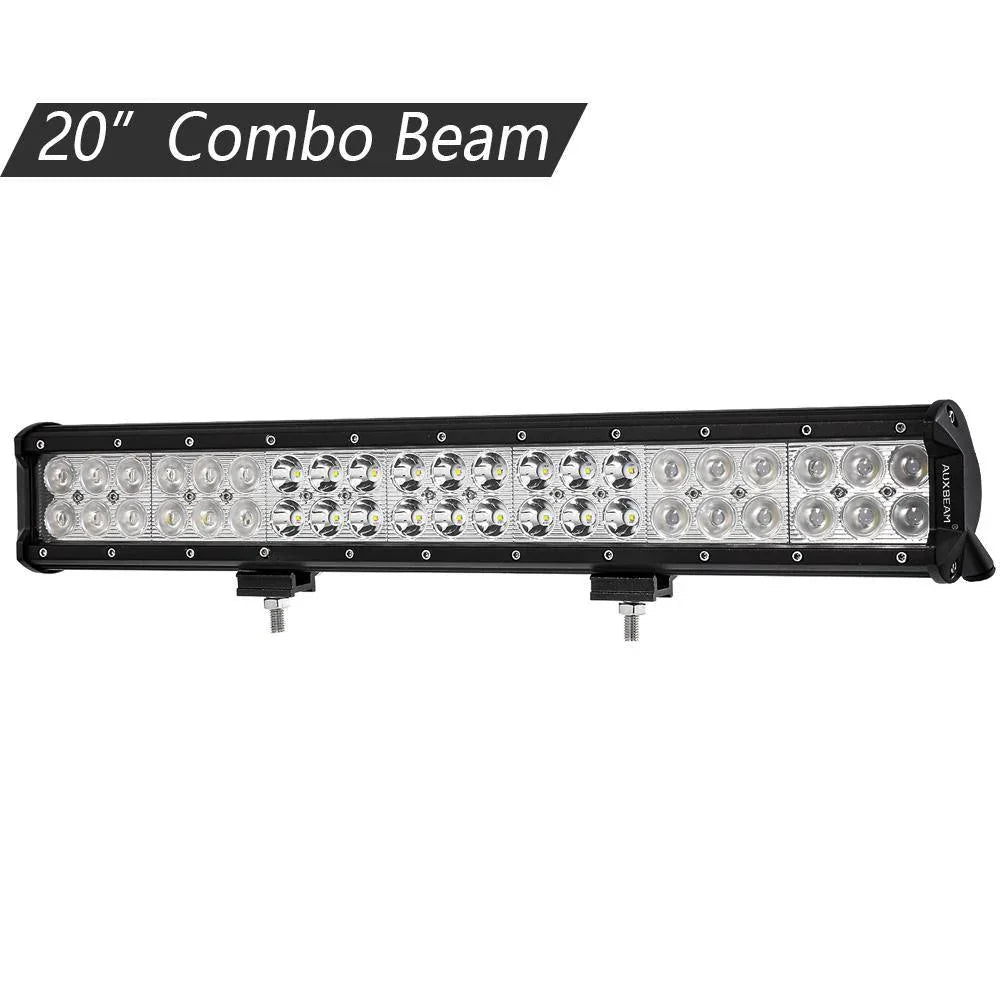

| 20" |
126W-42*3W; 20*2.9*4.2 (with bracket) |
Combo Beam ; 12600LM |

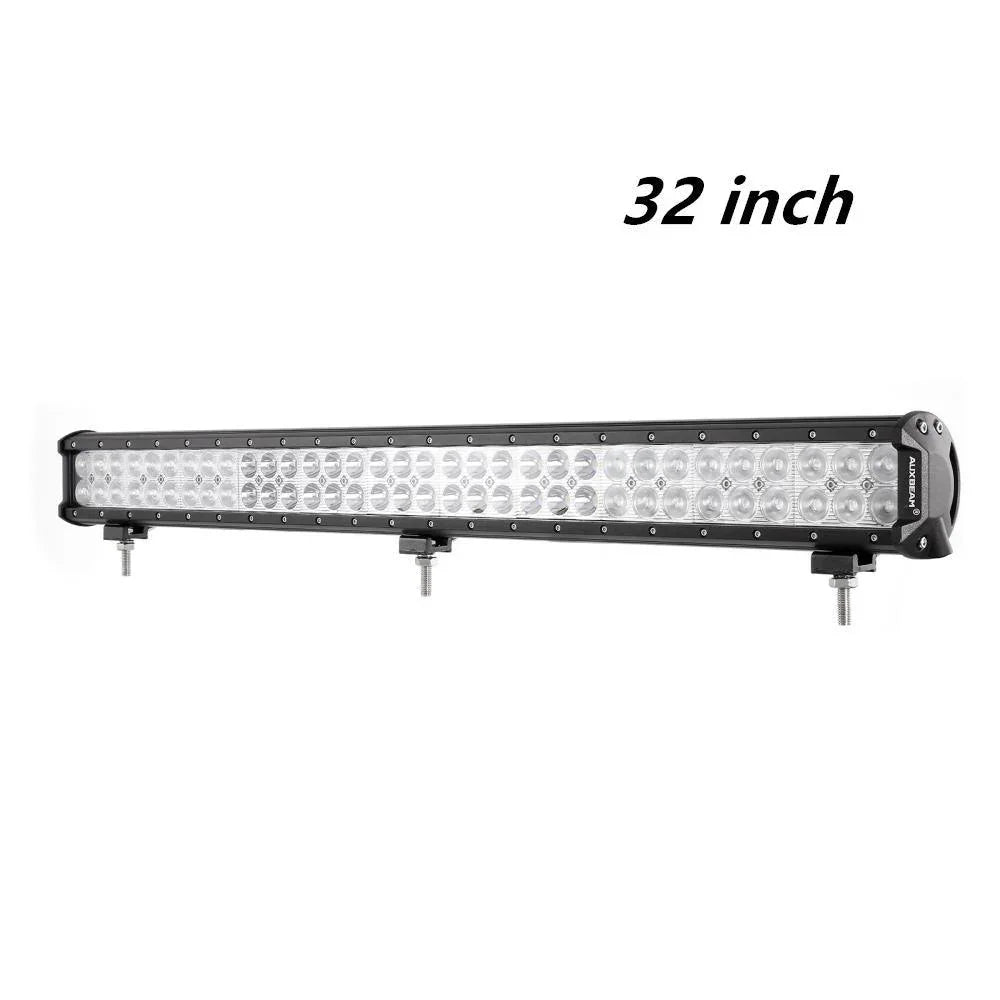

| 32" |
198W-66pcs*3W 30.5*3.15*2.5 (without bracket) |
Combo Beam ; 19800LM |
Note:
1. Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Beam Type: Spot Beam / Flood Beam / Combo Beam (as your choice)
Color temperature: 6000K
Operating Voltage: 9-32V
Material: Black Diecast aluminum alloy housing
Mounting Bracket: Diecast aluminum alloy
Waterproof rate: IP67
Working Temperature:-40~85 degree Celsius
Lifespan: 50,000 Hours
Features:
High quality 6063 aluminum body, durable to withstand any harsh condition
Low current draw- no harms to battery and save gas
Suitable vertical fins design for better cooling
Great performance of waterproof, dustproof, shockproof, Anti-corrosion
Wide operating voltage range:
It can apply to different types of trucks, Off-road vehicles, 4x4, Military
Mining, Boating, Farming and Heavy Equipment etc.
Maverick's Note: We recommend these lights for offroad use only. Many Auxbeam lighting harnesses do not have a high-beam trigger. To ensure legal operation, please have an auto electrician add a high beam trigger wire to the harness, and check your local Transport Agency for the requirements for your state.
