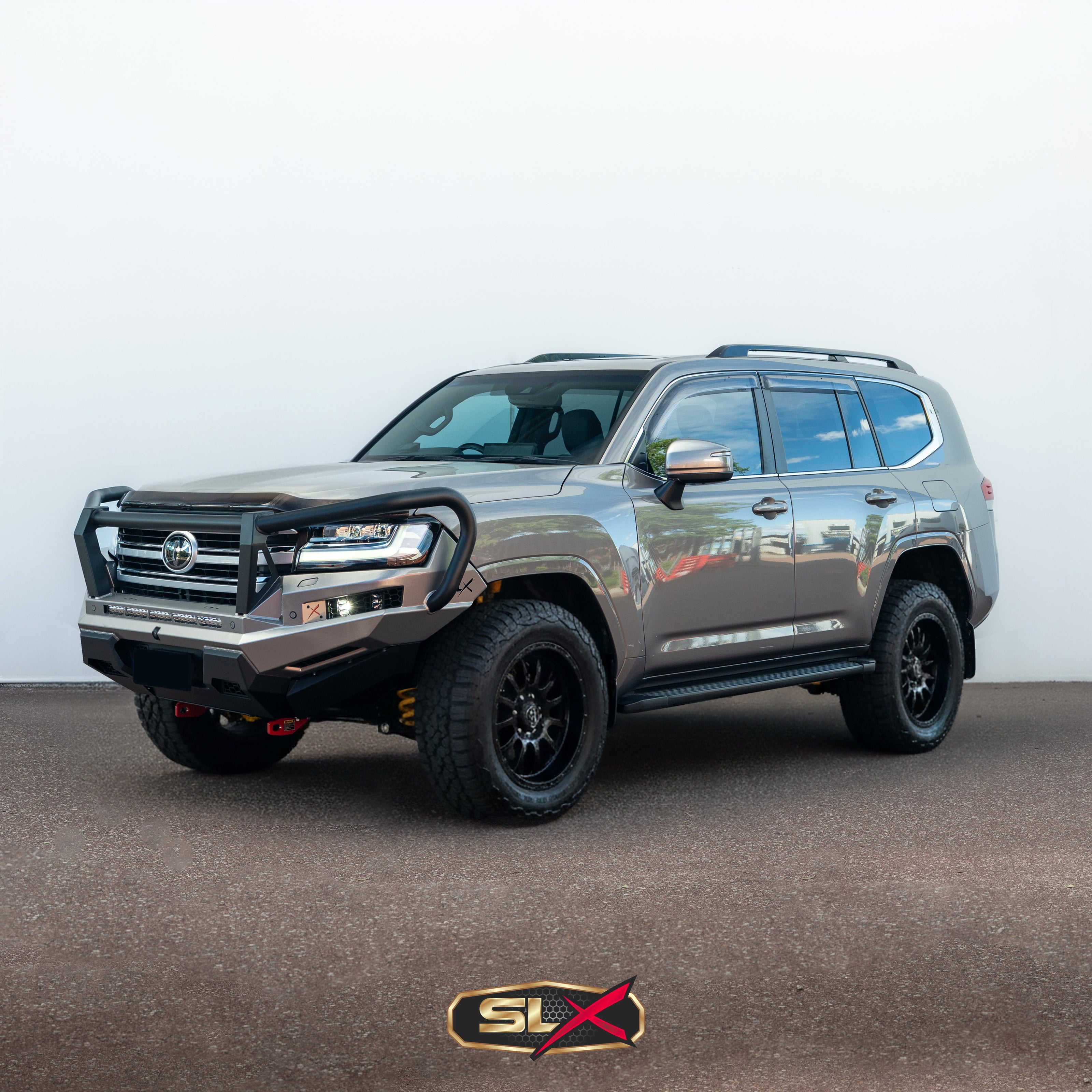

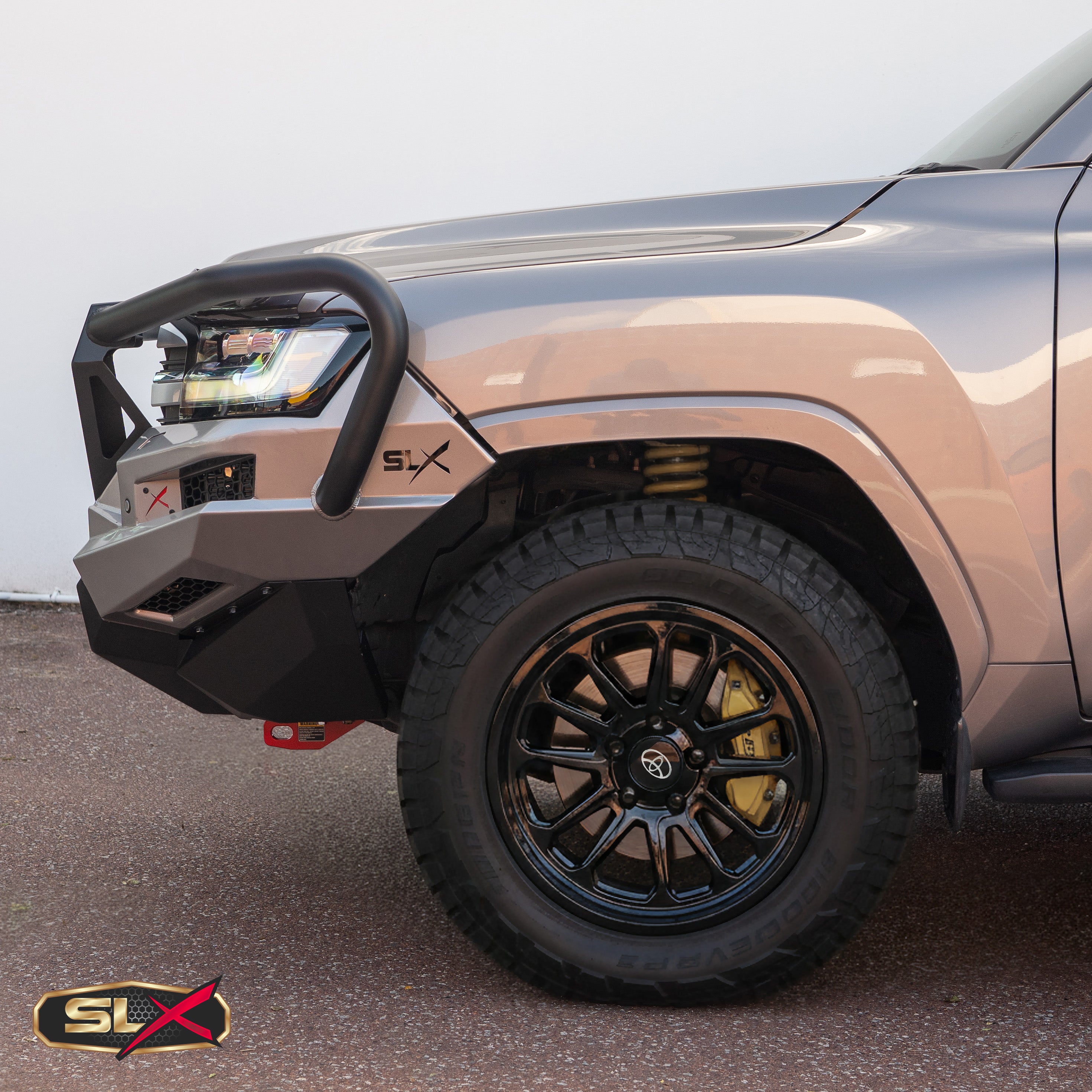

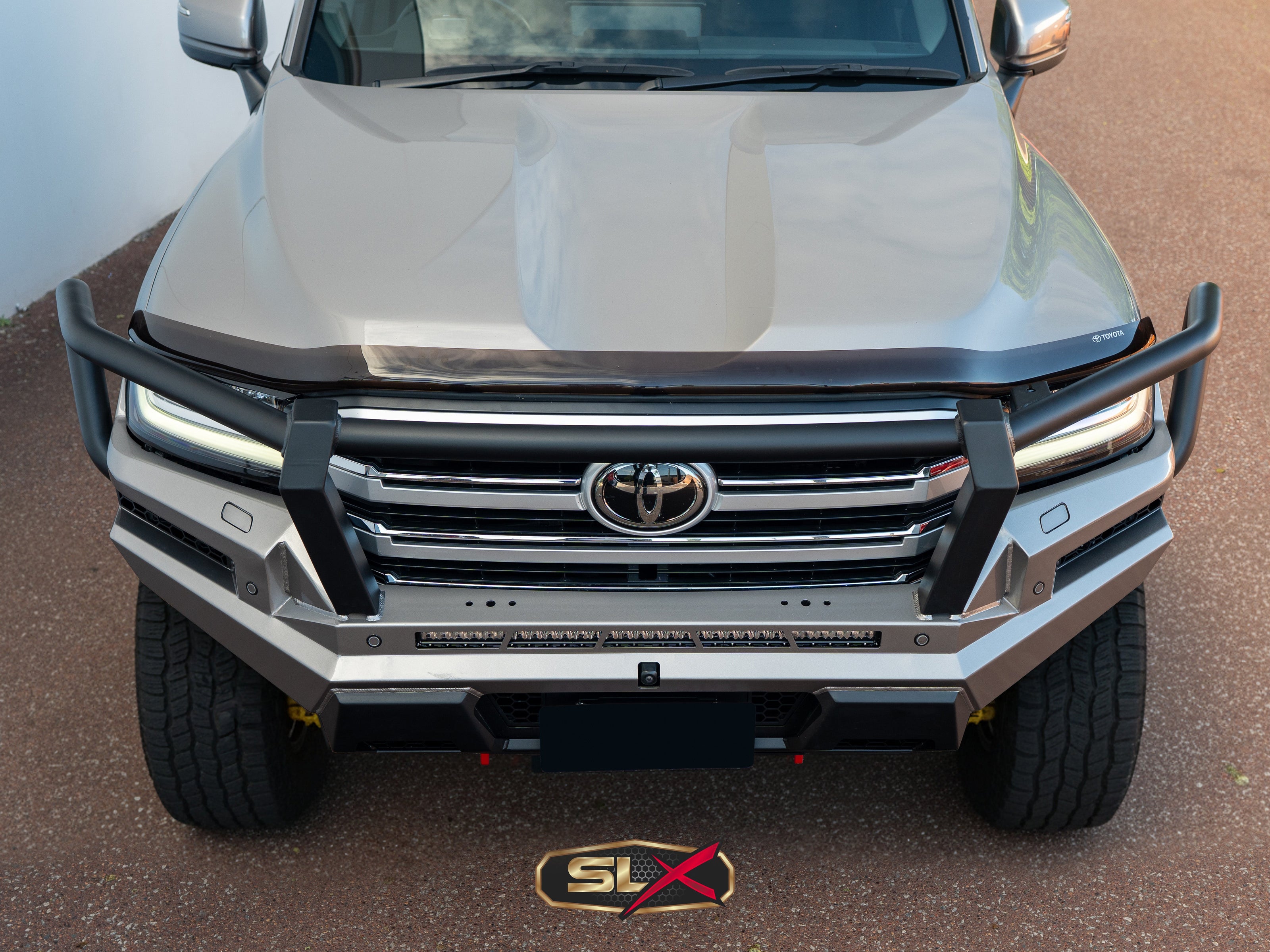

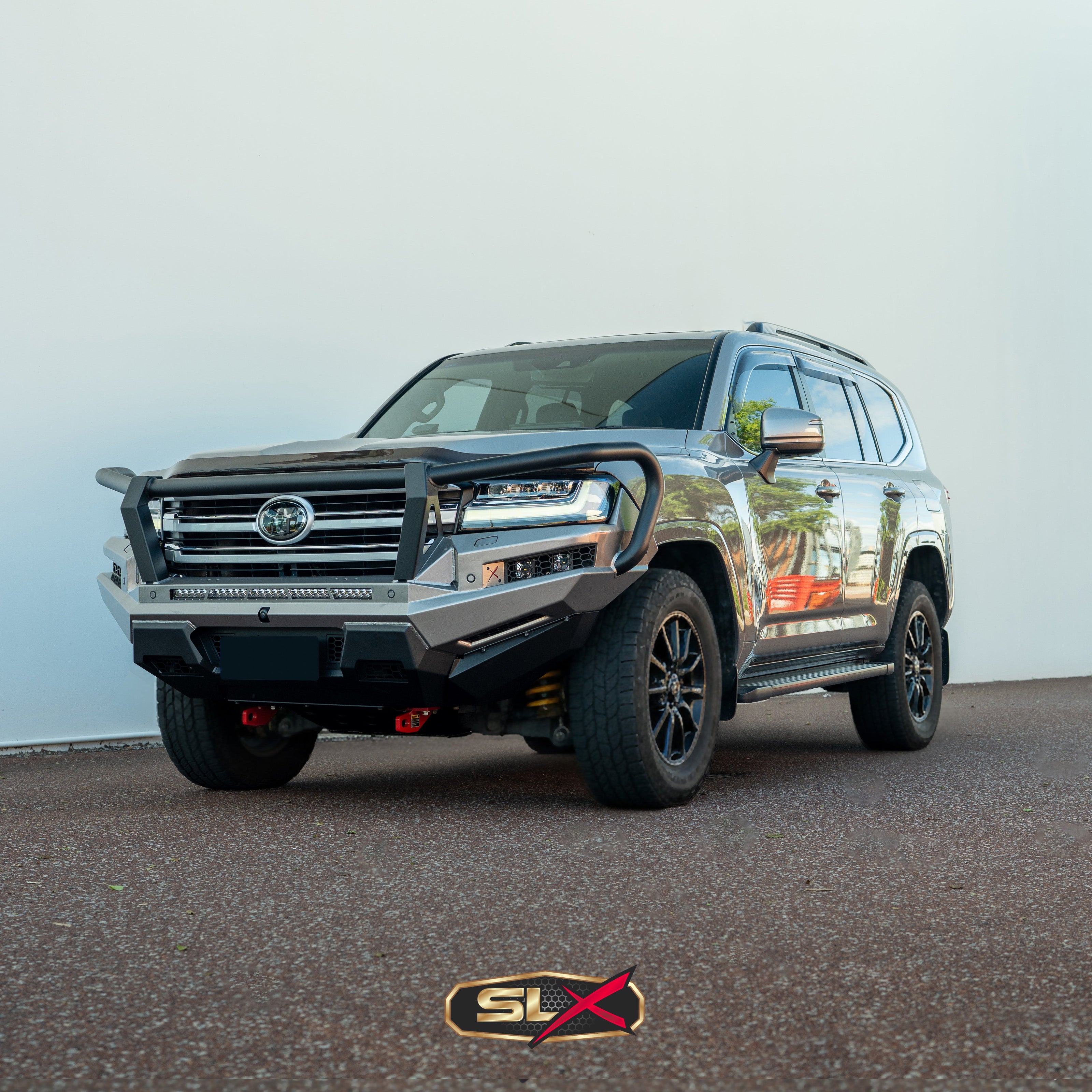

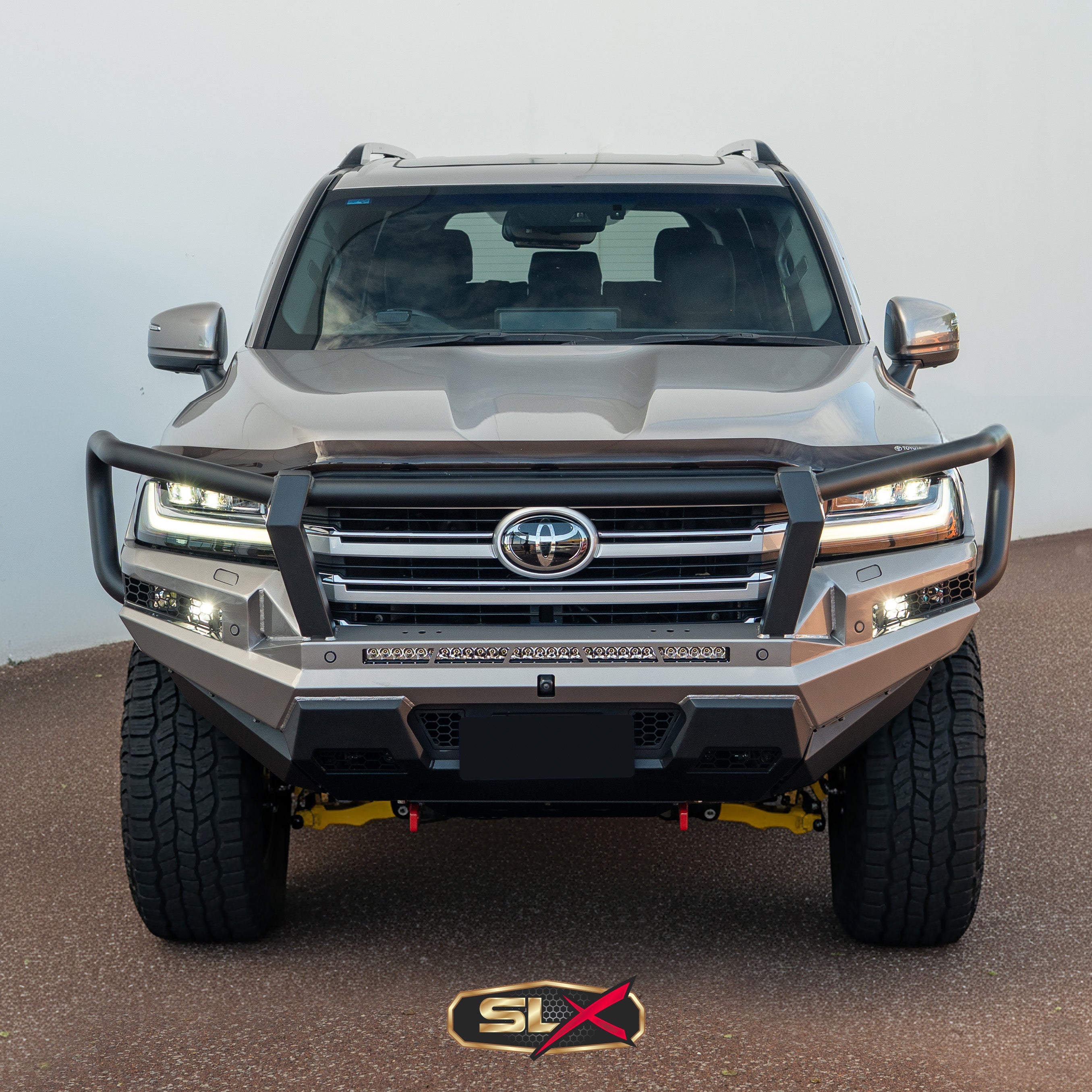

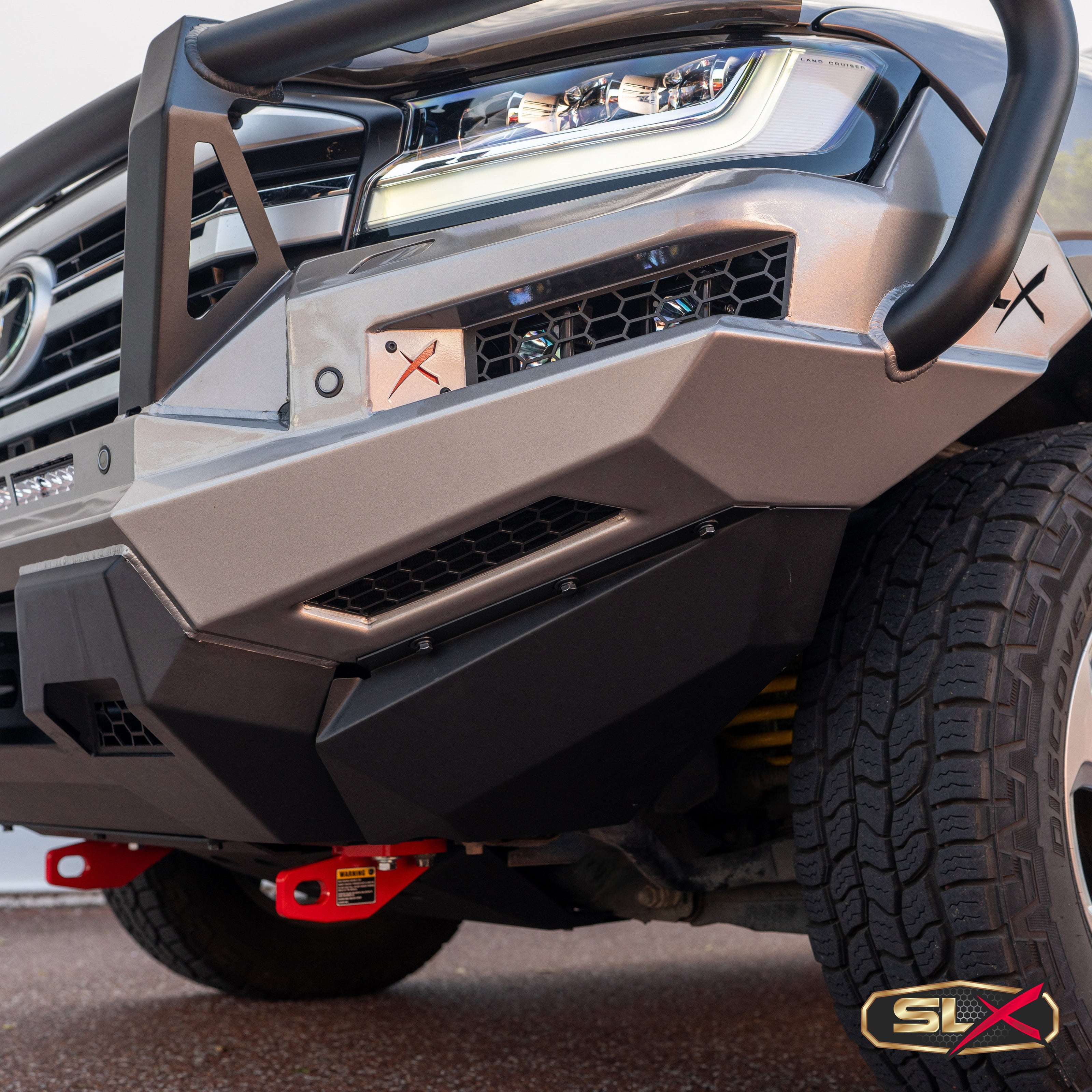

SLX Recon Bull Bar Suitable For Toyota LandCruiser 300 Series 2022 on - Triple Loop

Shoreline 4x4 presents the SLX RECON bull bar.

Lighting Setup ( See lighting tab on website for details)

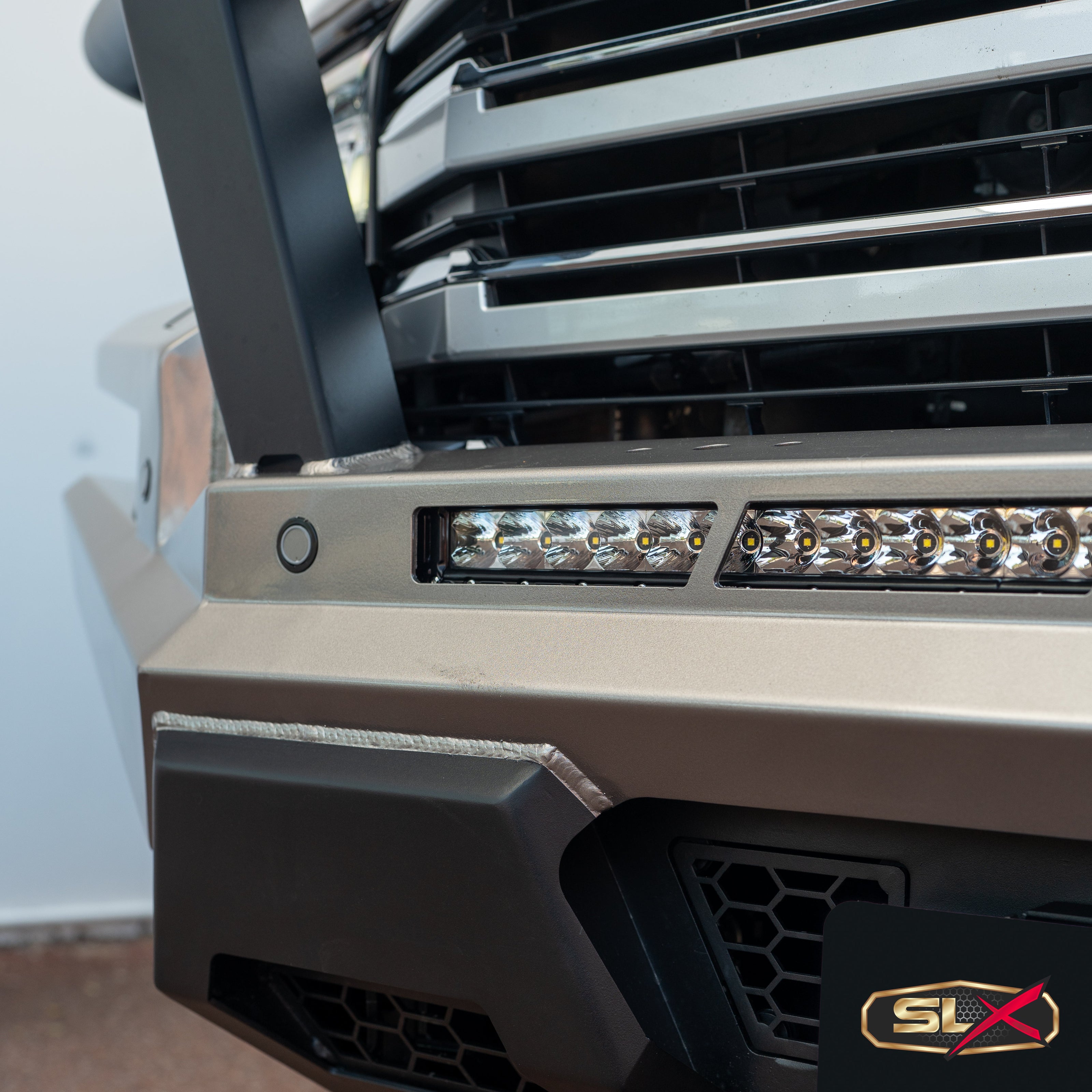

Main LED bar : 31.5inch cutout Suits Stedi ST3K(separately sold)

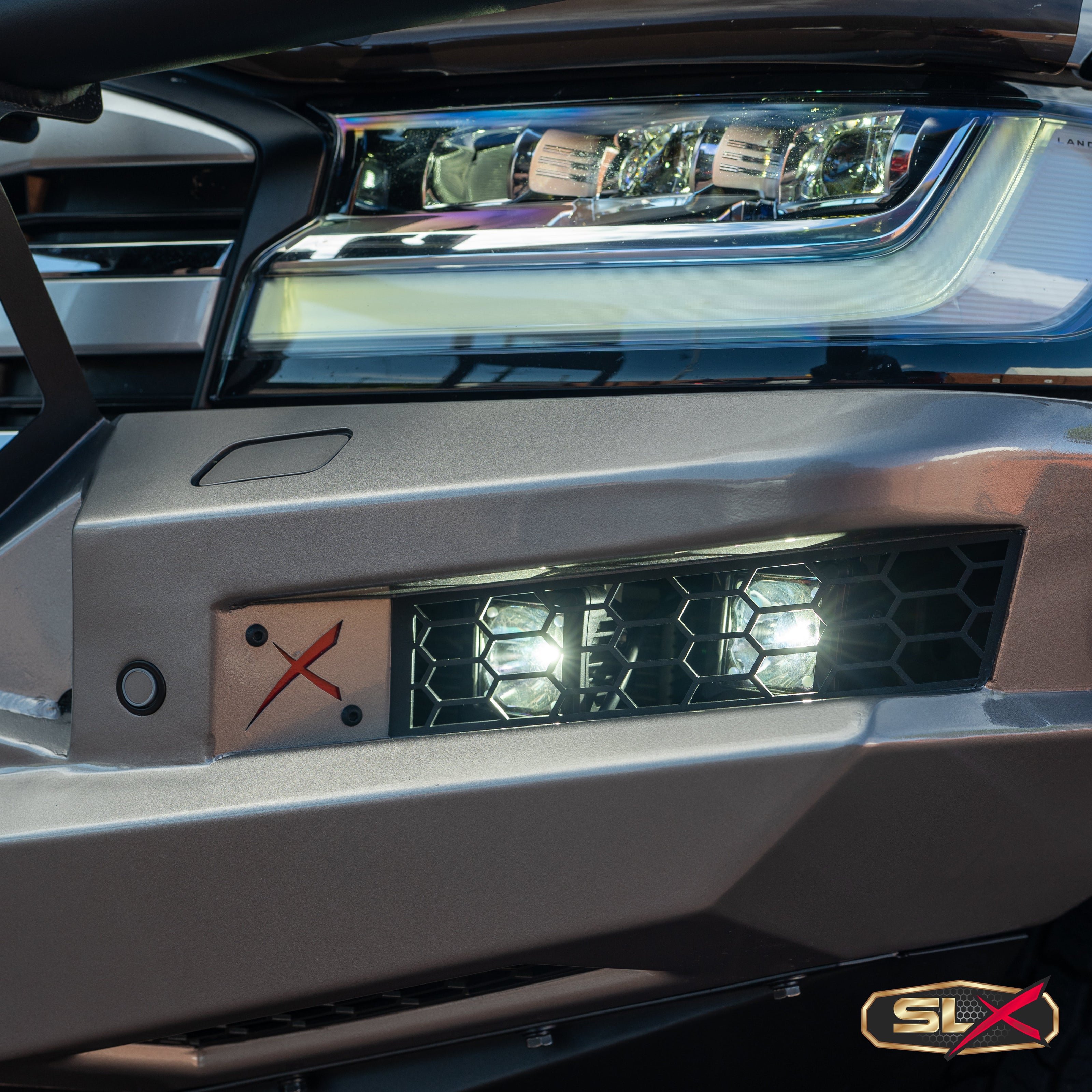

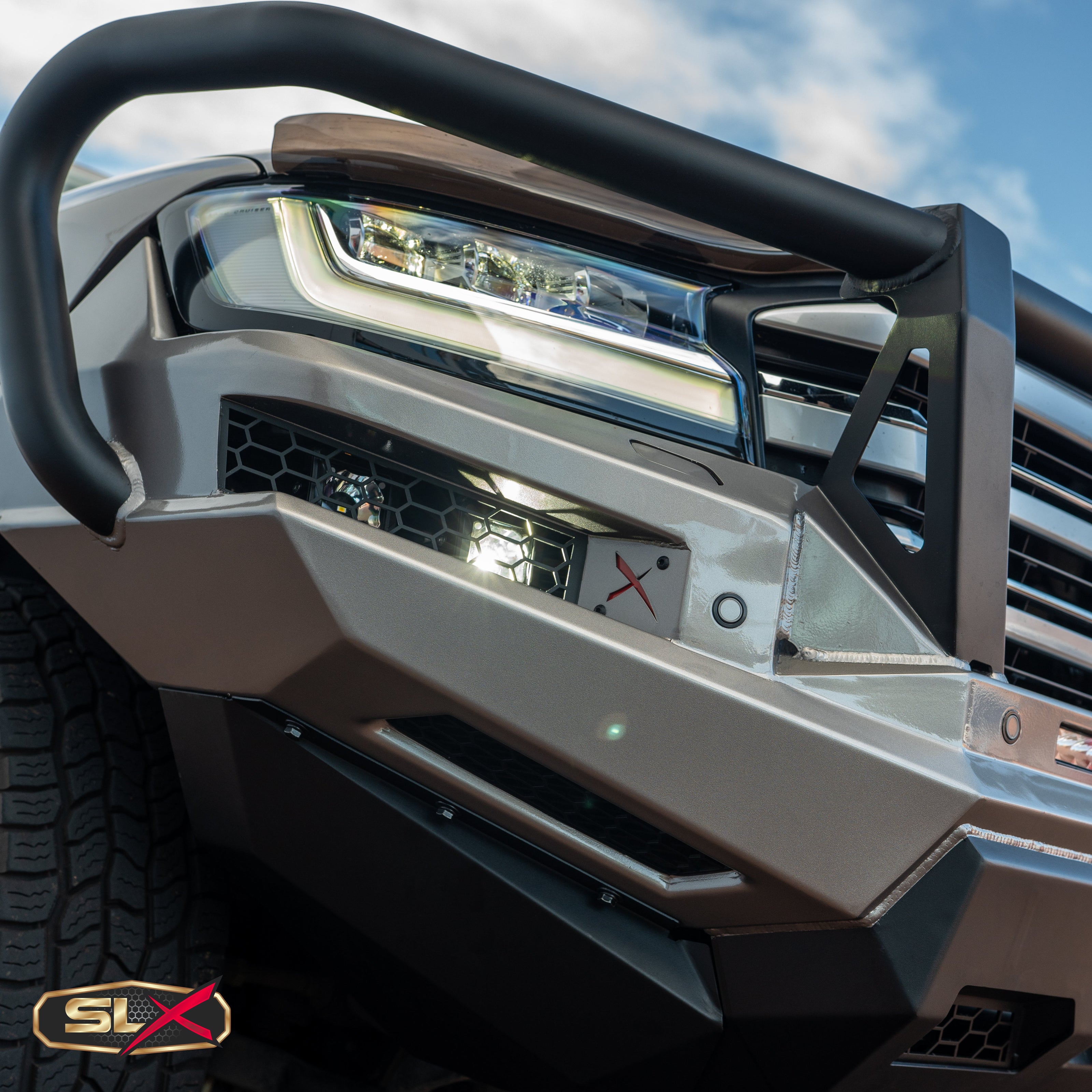

LED behind Mesh (2 each side) : 30W aurora Square Driving LED Code :ALO-D3-2-P23H1 - 4 are included standard with wireharness and recessed switch)

Designed in Australia by Shoreline 4x4 is a WA company Family owned and operated business since 2008

Air Flow

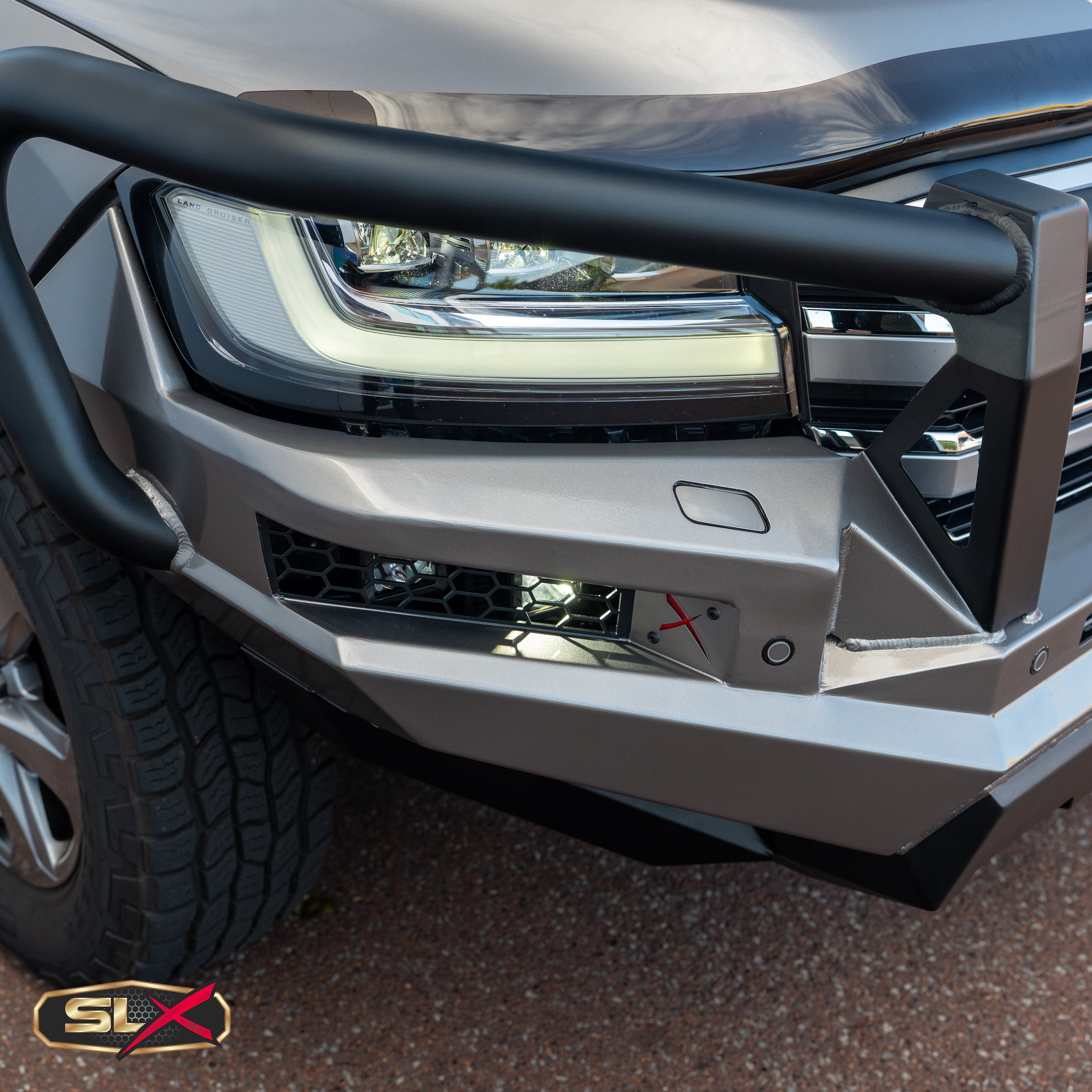

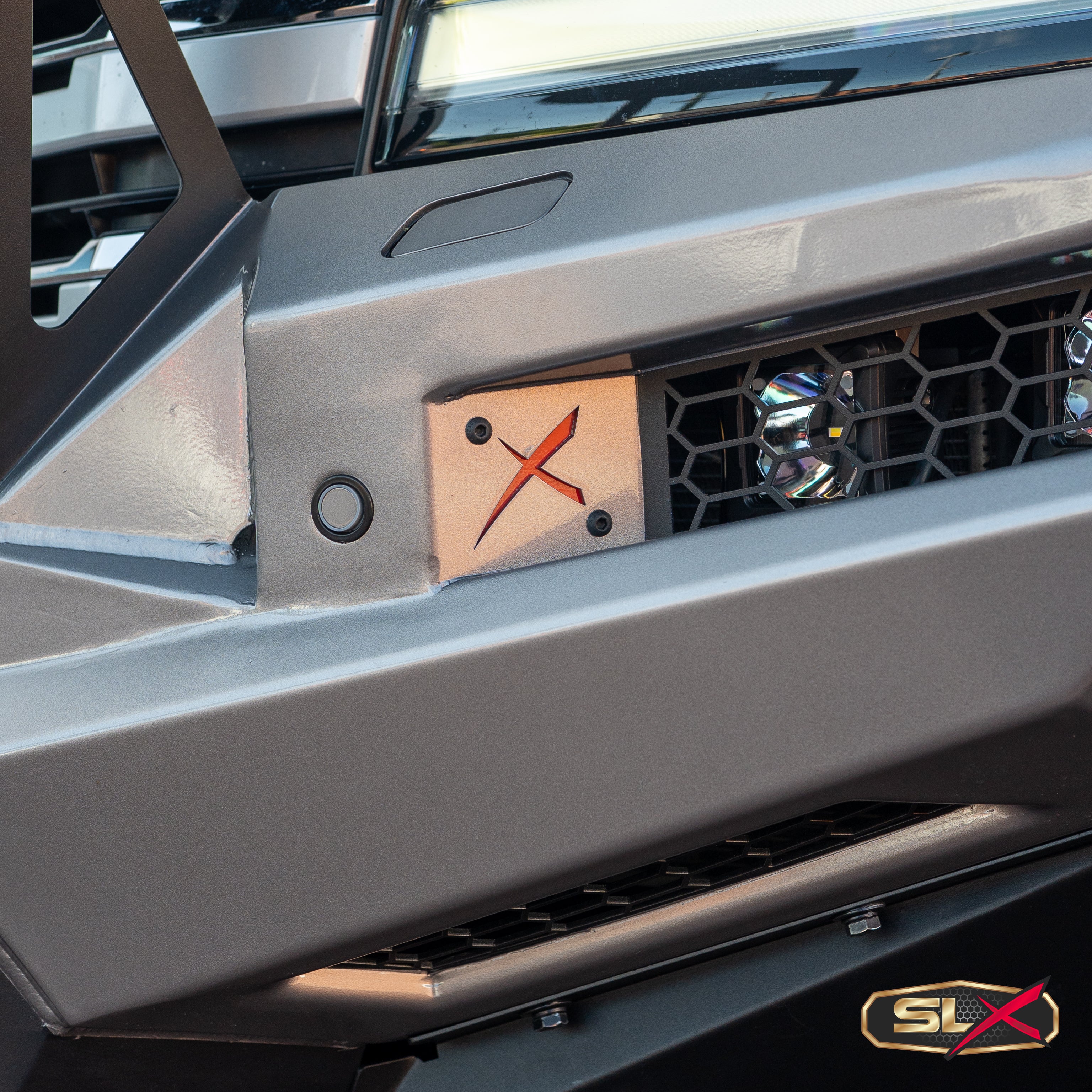

• High-flow mesh in front of LED Cubes lights to maintain airflow to intercoolers

• Removable front mesh panel for maximum airflow to the main radiator

• Additional hidden mesh opening under the wing to further improve cooling to the intercoolers

• Greater overall airflow than the standard plastic bumper, improving engine cooling performance

• We have 4 well placed hidden mesh openings each side of the bullbar for air flow to intercoolers and front radiator

Our bars meet & exceed the ADR design guidelines,  Shoreline 4x4 has completed impact testing in Adelaide passing with our unique ADR impact bracket, which is compatible with each models air bag system.

Complies with Australian standards such as

 AS4876.1 2002

Section 5 to ADR 92/00 External projections

Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions

Section 5 of ADR 93/00 Forward Field of View

Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions

Benefits

Designed with maximum airflow to all radiators and intercoolers

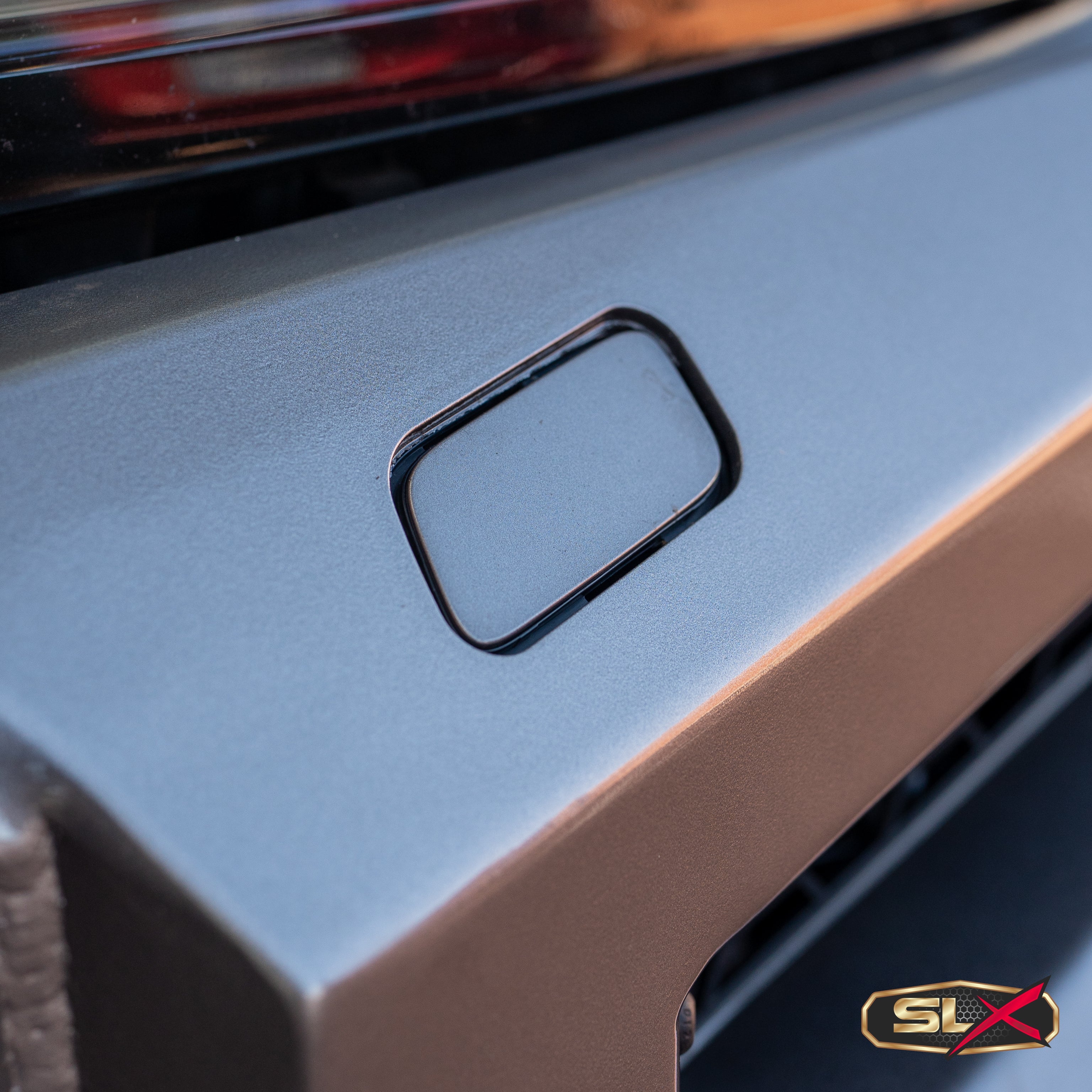

All bars are completely sensor & safety compatible with factory systems.

Features

Solid Manufacturing – 1 piece fully welded bar for maximum toughness

Low profile design- our frontal protection bars are only 80-120mm depending on the model from the front of the grill.

Loaded with features- our bars include recovery points, bash plates to cross member, under wing bash plates, winch cradles, LED bar provisions & LED lights.

Longevity – Our bars are made with premium 400SS grade steel, after manufacture they are acid washed zinc primed and powder coated in semi gloss matt black.

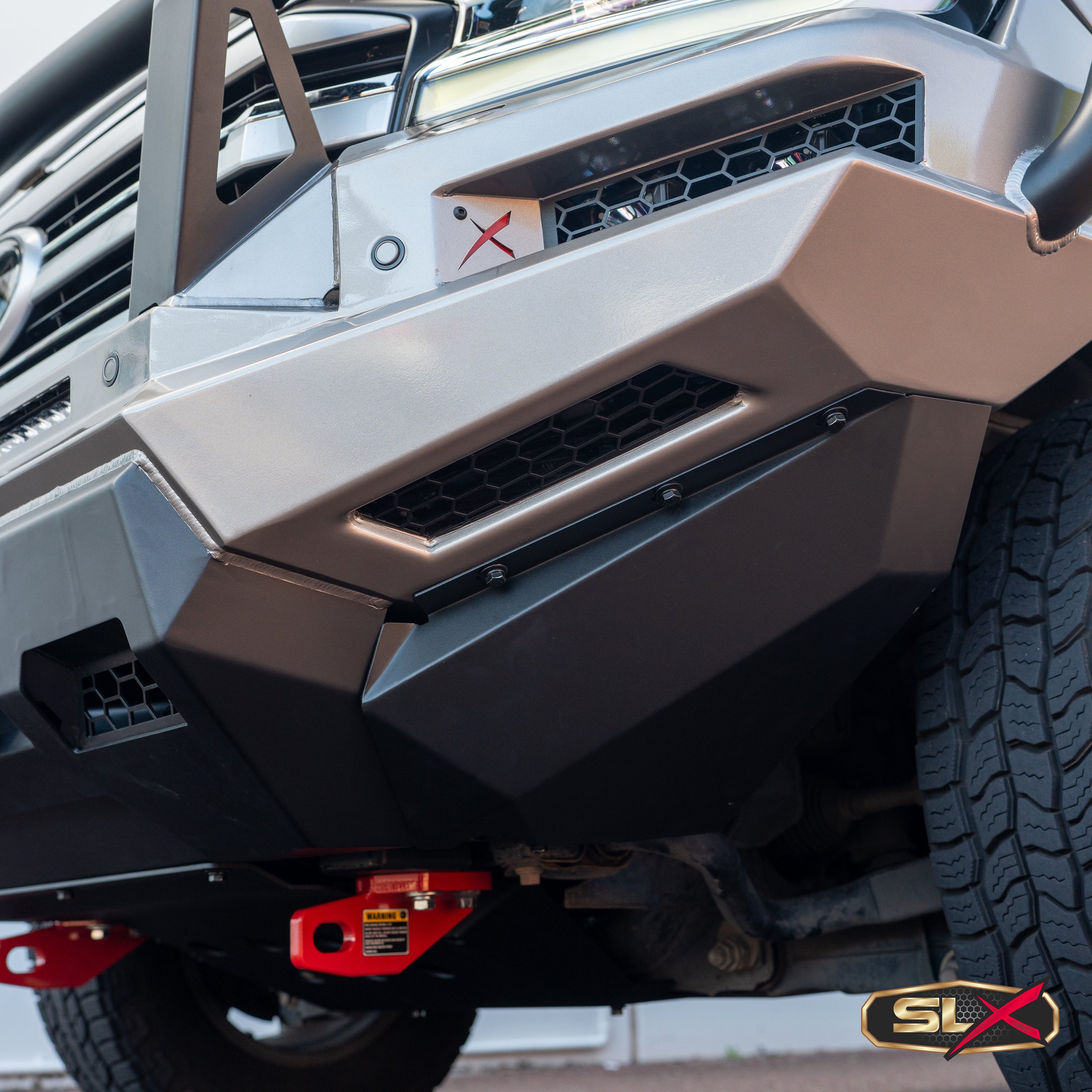

Protection – 3 bash plates included, front and side under wing.

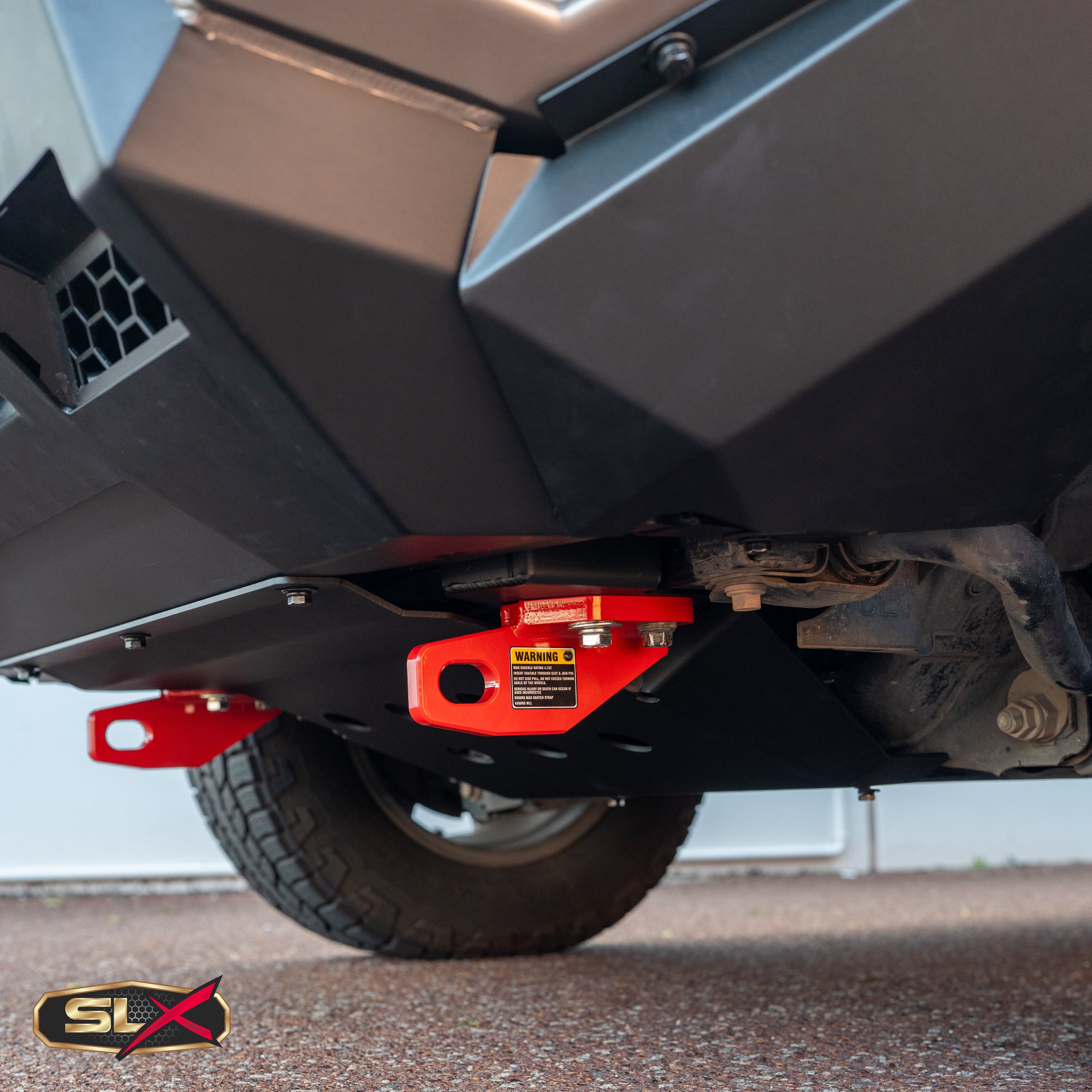

Recovery Points – Our recovery points are rated to  4500kg

Lighting

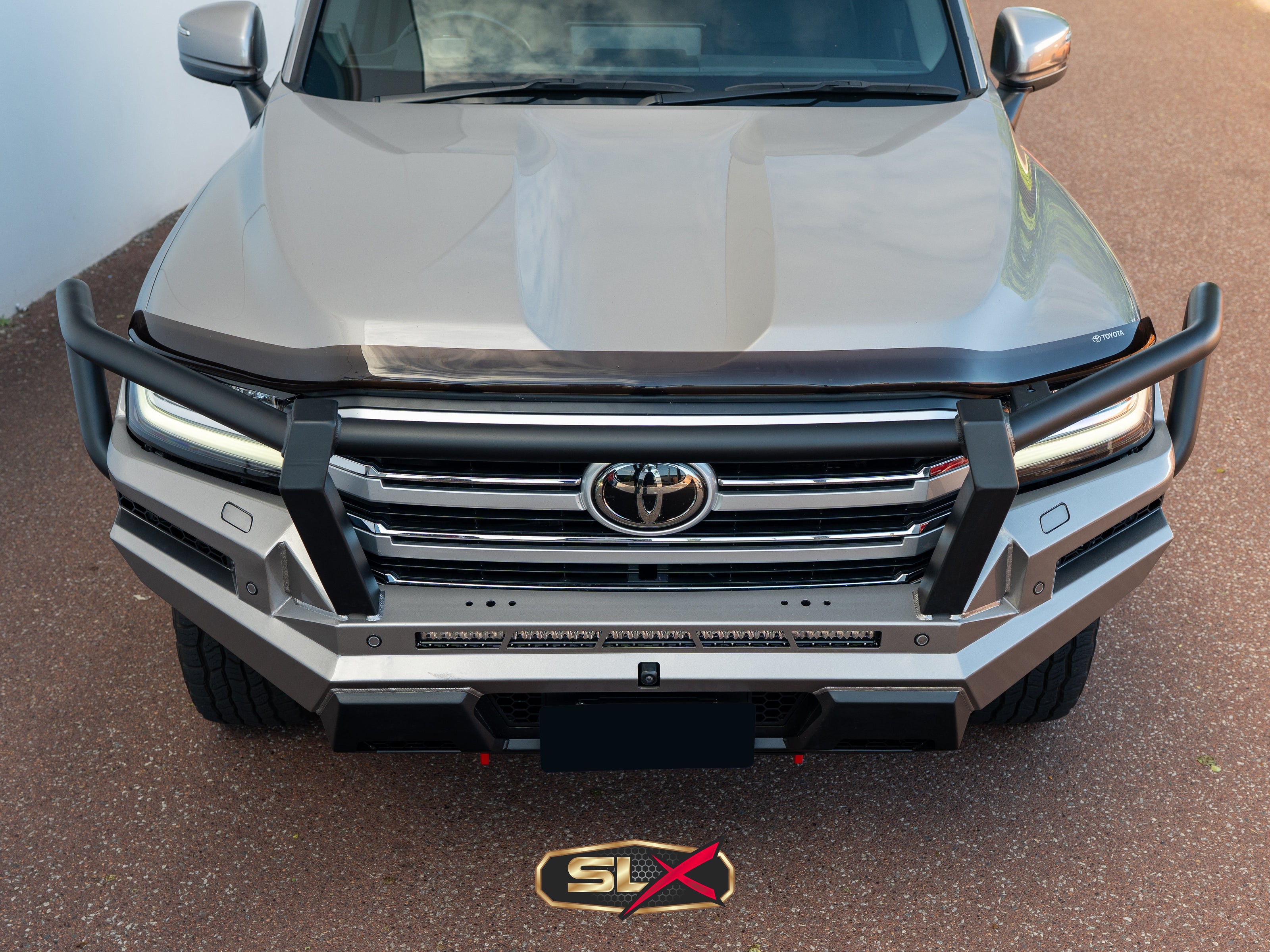

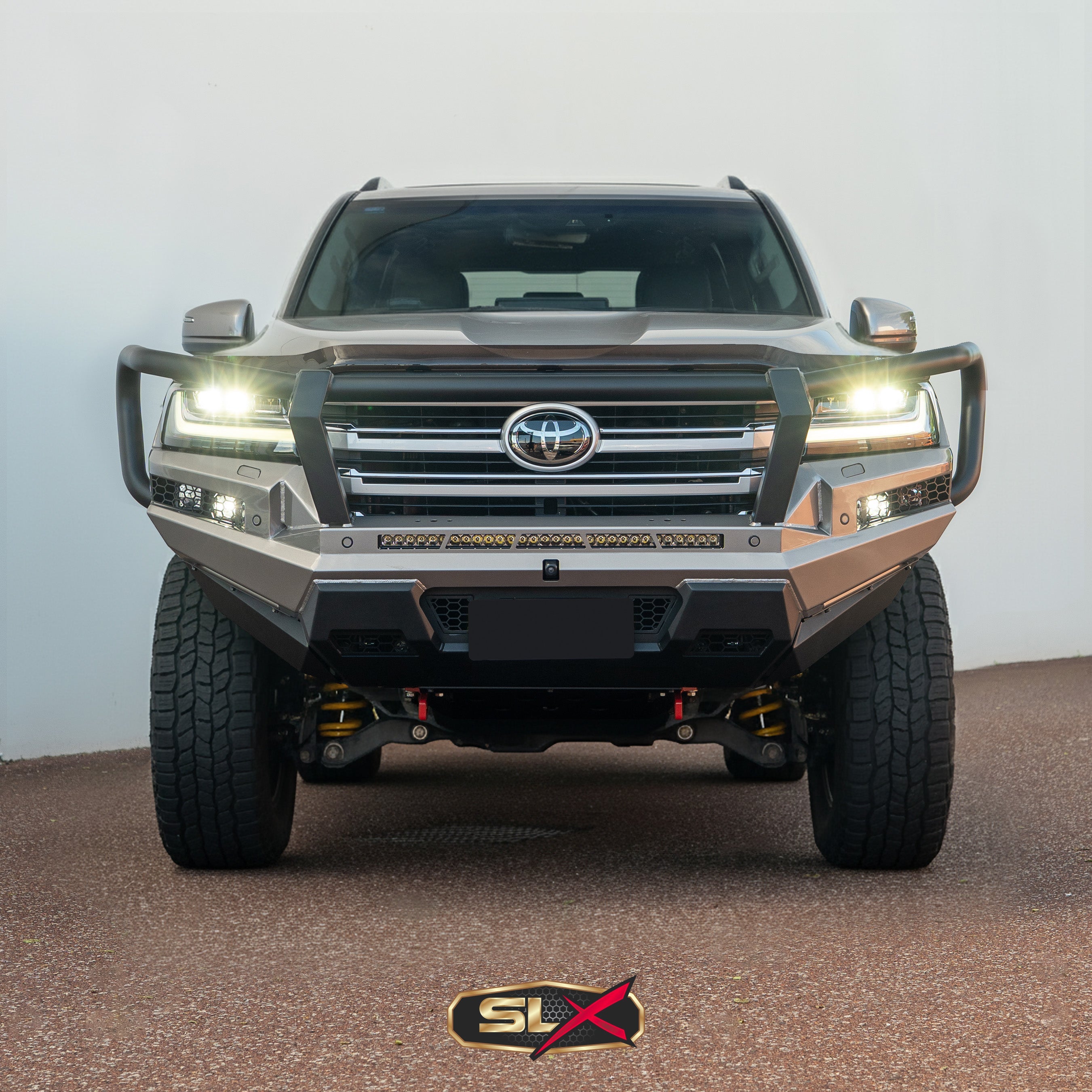

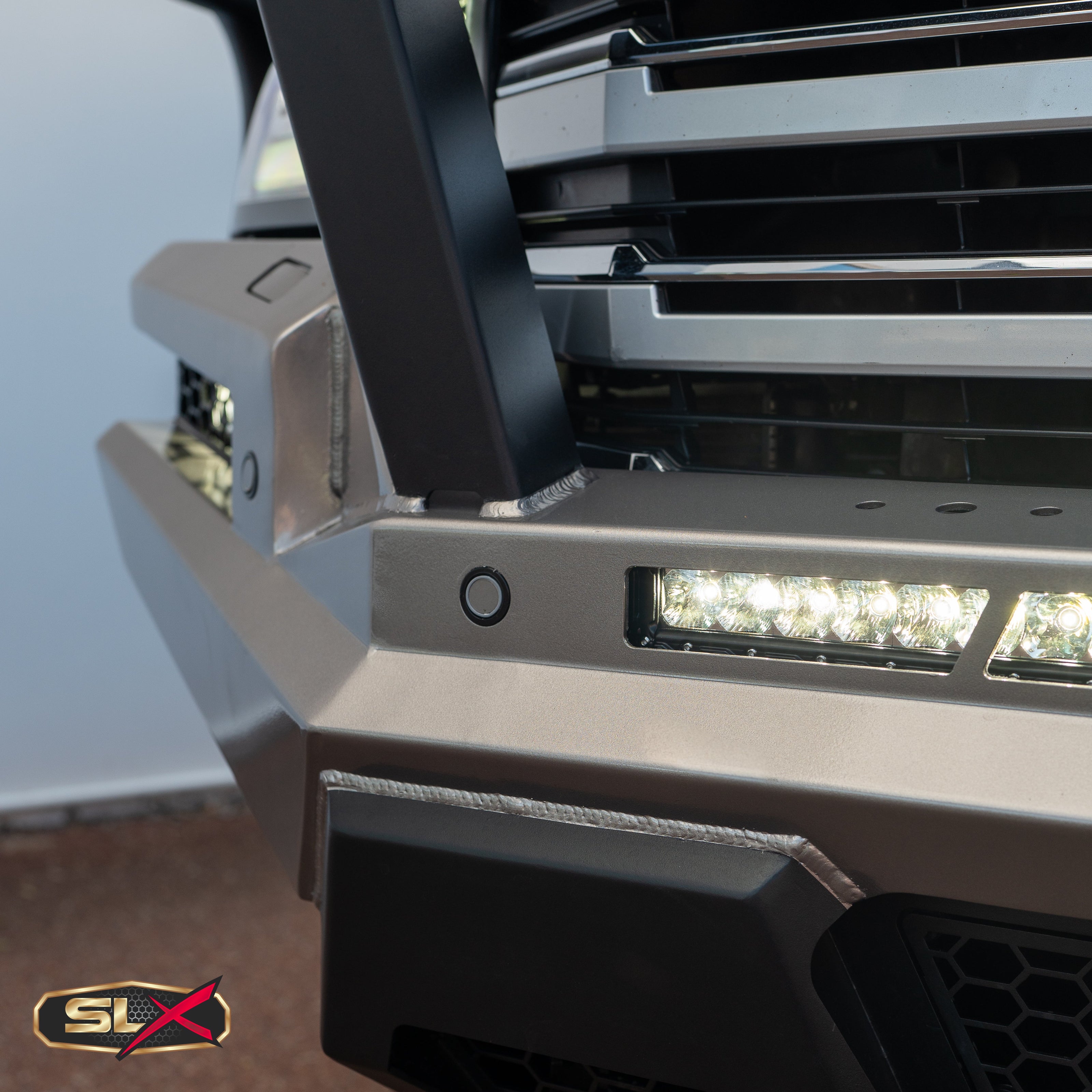

The SLX RECON bullbar incorporates a 31.5inch LED bar cutout, which equates to approximately 600m of LED lighting based on 6150 lumen LED bar.

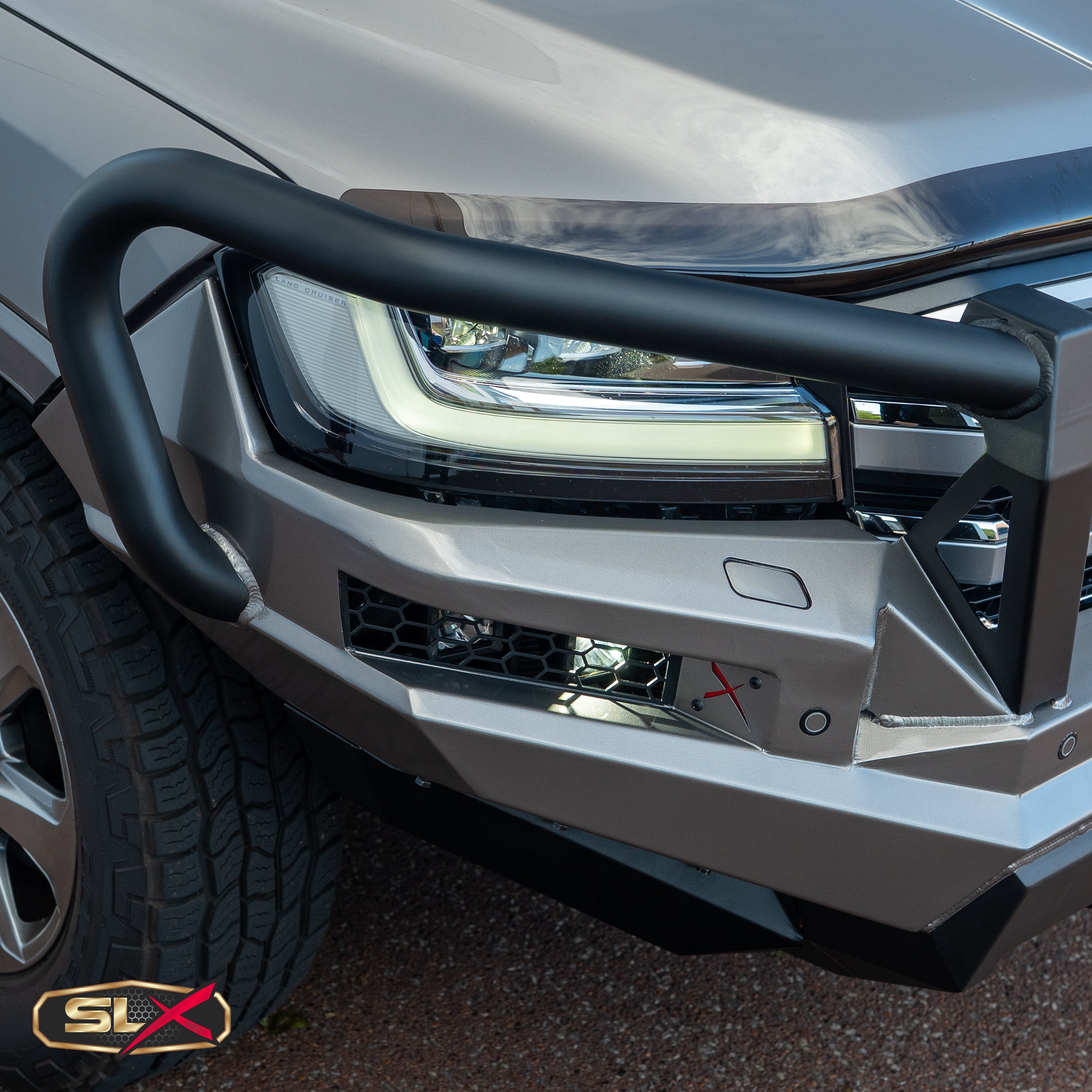

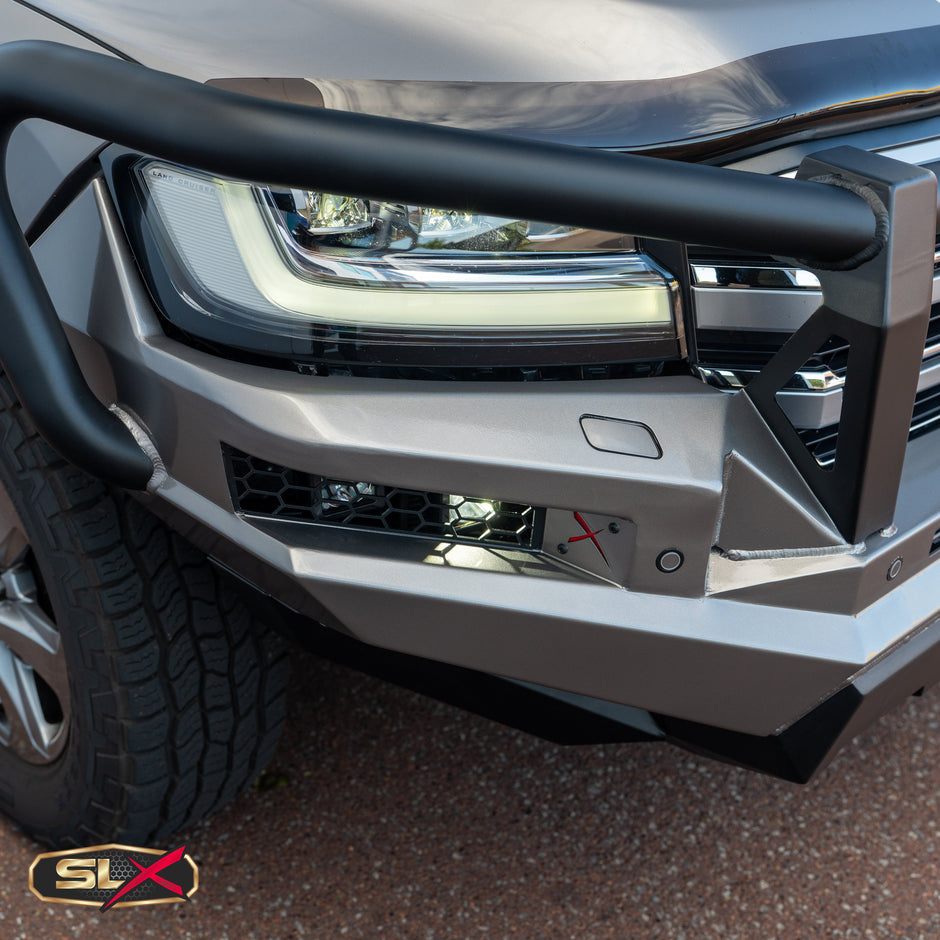

It also incorporates original Fog lights but with the ability to house additional Cube LED lights.

The SLX bar also caters for spot lights with standardise 3 point mounting system holes

Additionally the centre hole on the passengers side mounting has been increased to 16mm to cater for antenna if you choose to have the antenna on the bullbar.

Winch
Suits upto 12,000lb winches (not 13xp)

Normal flair lead is required
