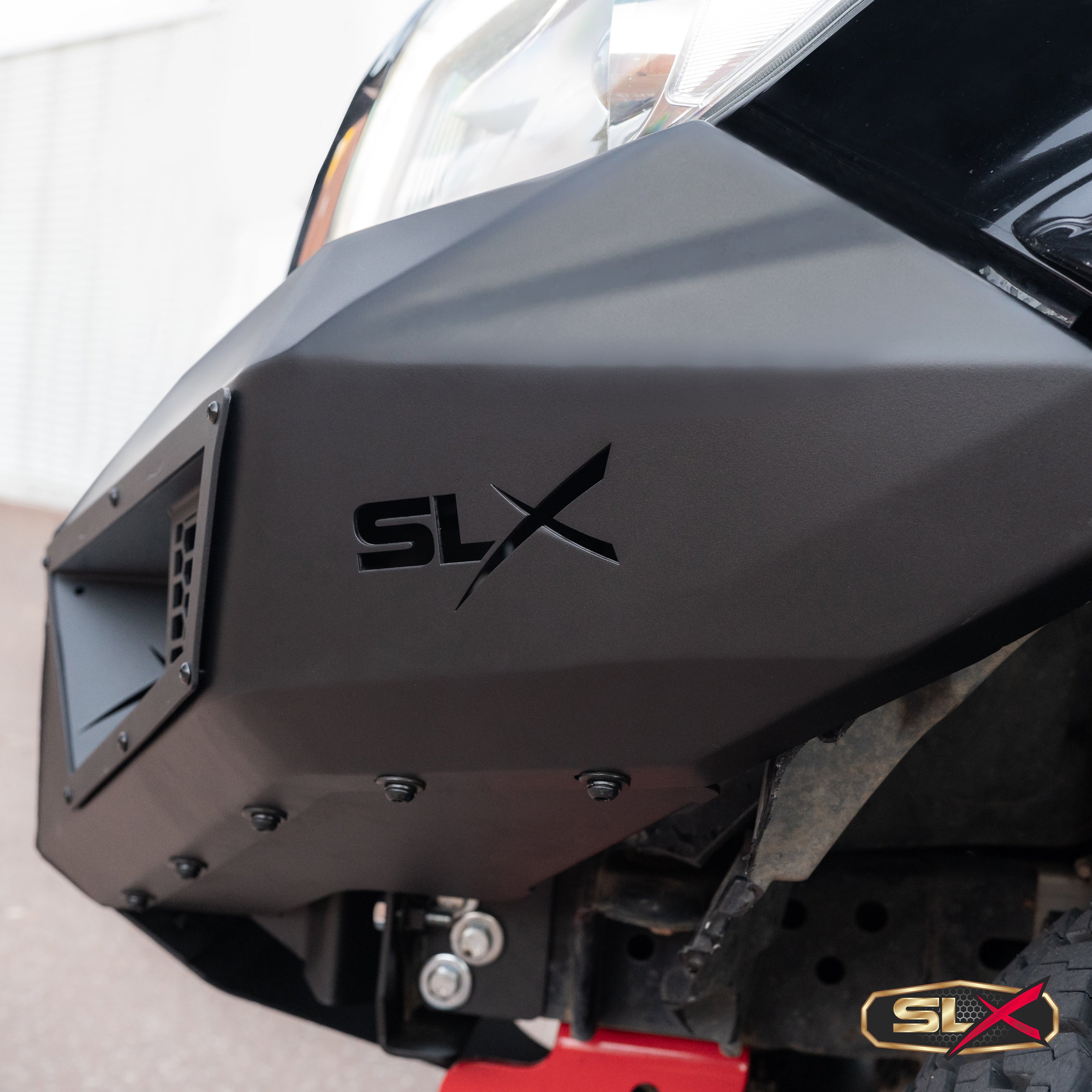

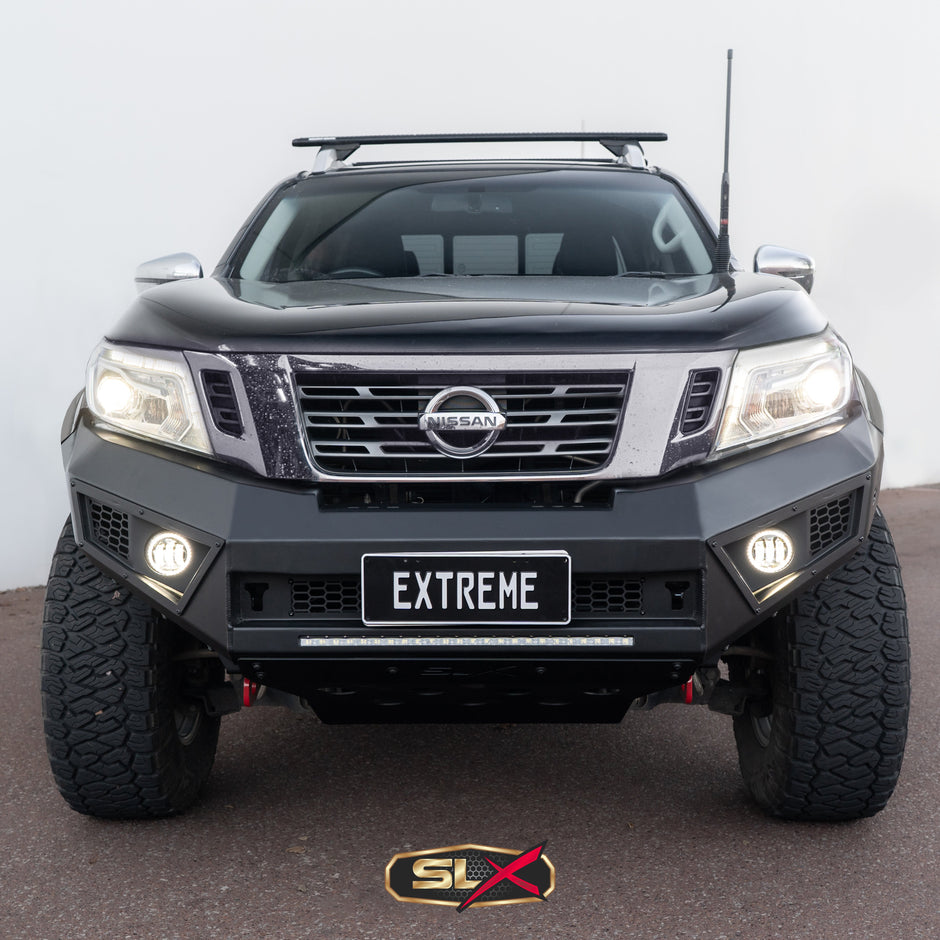

SLX Extreme Series Bullbar – Nissan Navara NP300 | Black GEN-X

INCLUDES BASH PLATE AND LED FOG LIGHTS (DRL )

• Chassis mounted 5T Recovery points included

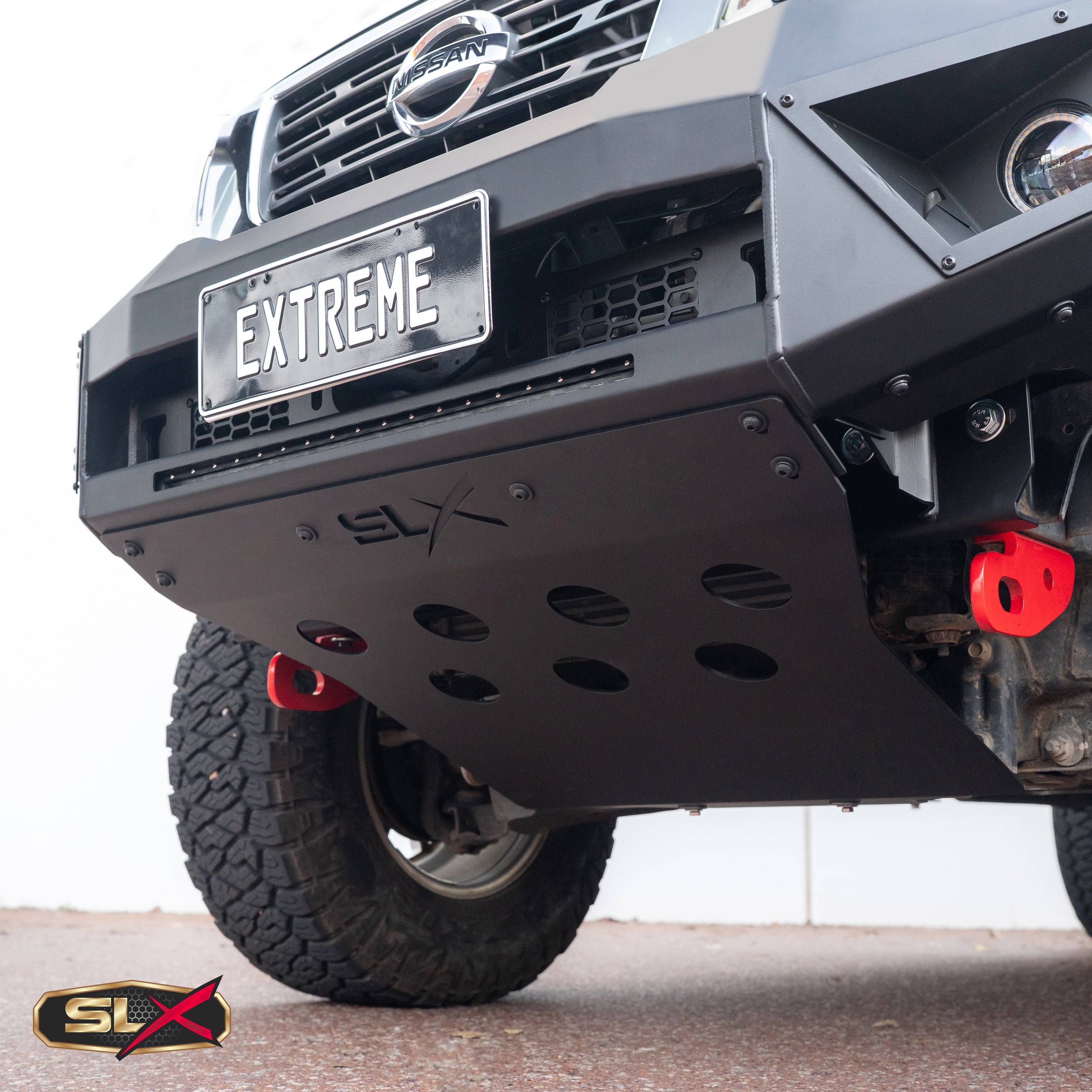

• 4mm bash plate steel
• Winch Cradle
• Under wing Side bash plates
• IP67 FOG LIGHT & intergrated indicator LED

• 25Inch LED bar cutout under number plate.  - See Lighting Category

• Removable mesh vents centre

Spot light allocation on top of bar for 3 hole mounting system spotlights.
Sensor cut outs

Extras can add but not included standard
21.5inch

Lighting Setup ( See lighting setup for details)

Main LED bar : 25inch 120W Ghost LED  Code -1R25(separately sold)

Circular LED: 30W 4inch Round with DRL (Included)

LED behind Mesh : Square Driving LED Code :ALO-D3-2-P23H1 (separately sold)

Key Advantages

1) Full Bumper Replacement
2) 1 piece fully welded design.
3) Low Profile 110mm From Badge to front of bar.
4) Extremely Low Weight

Complies with Australian standards such as

 AS4876.1 2002

Section 5 to ADR 92/00 External projections

Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions

Section 5 of ADR 93/00 Forward Field of View

Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions

COLOUR CODING-  The standard colour coding is as follows.

1) Main bullbar & Loop colour matched to 4WD.

2) Centre winch section Black Hammertone for durability.

3) Fog Lights - Black Hammertone for durability.

4) Bash Plate - Black Hammertone for durability.

Complete bar & Winch Cradle: 46kgs

Bash Plates : 10kg
Recovery Points: 7kgs
Total Weight of product (with recovery points): 63kgs
Removal of misc parts when fitting: 20kgs
Total weight added to vehicle: 43kgs

Optional LED bar Bracket 4kg
