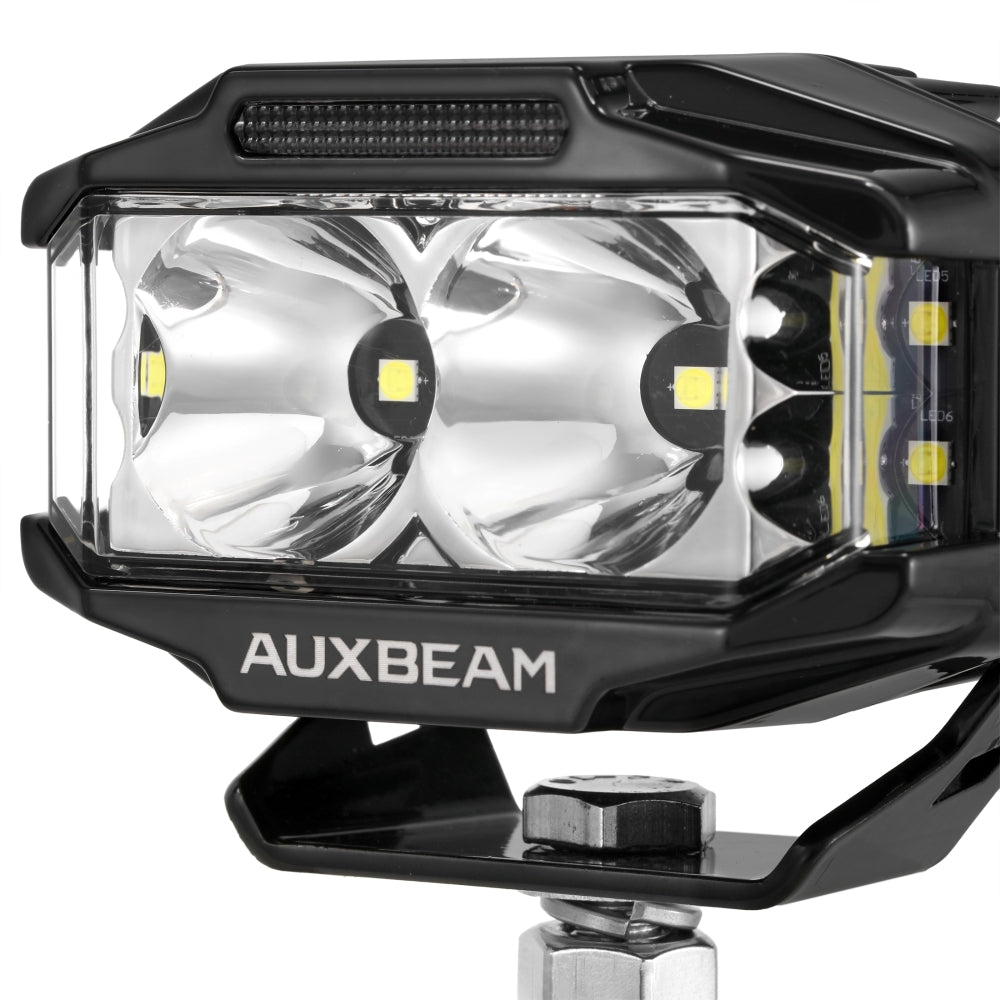

V-MAX Series | 4 Inch 72W 6960LM Combo Beam Side Shooter LED Rectangular Pod Lights with Amber DRL

▶4 Inch V-MAX Series Pod Lights

Features:

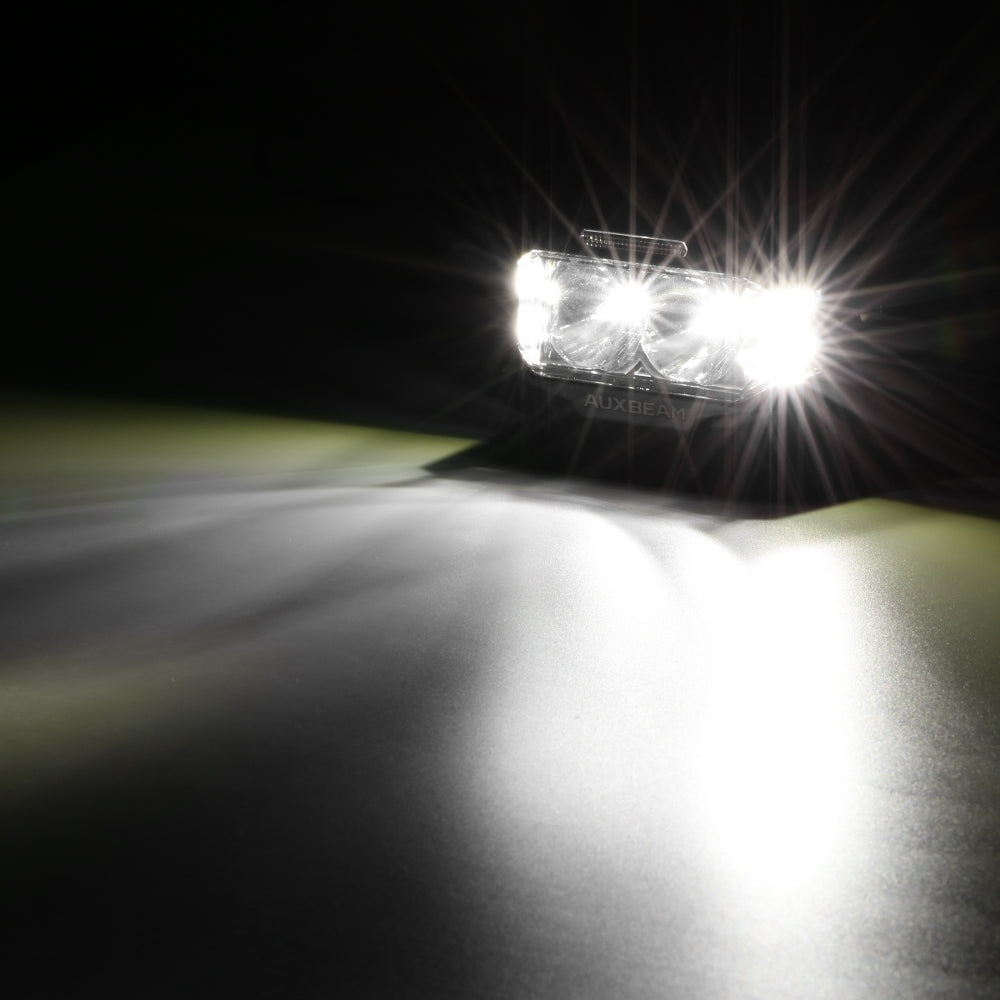

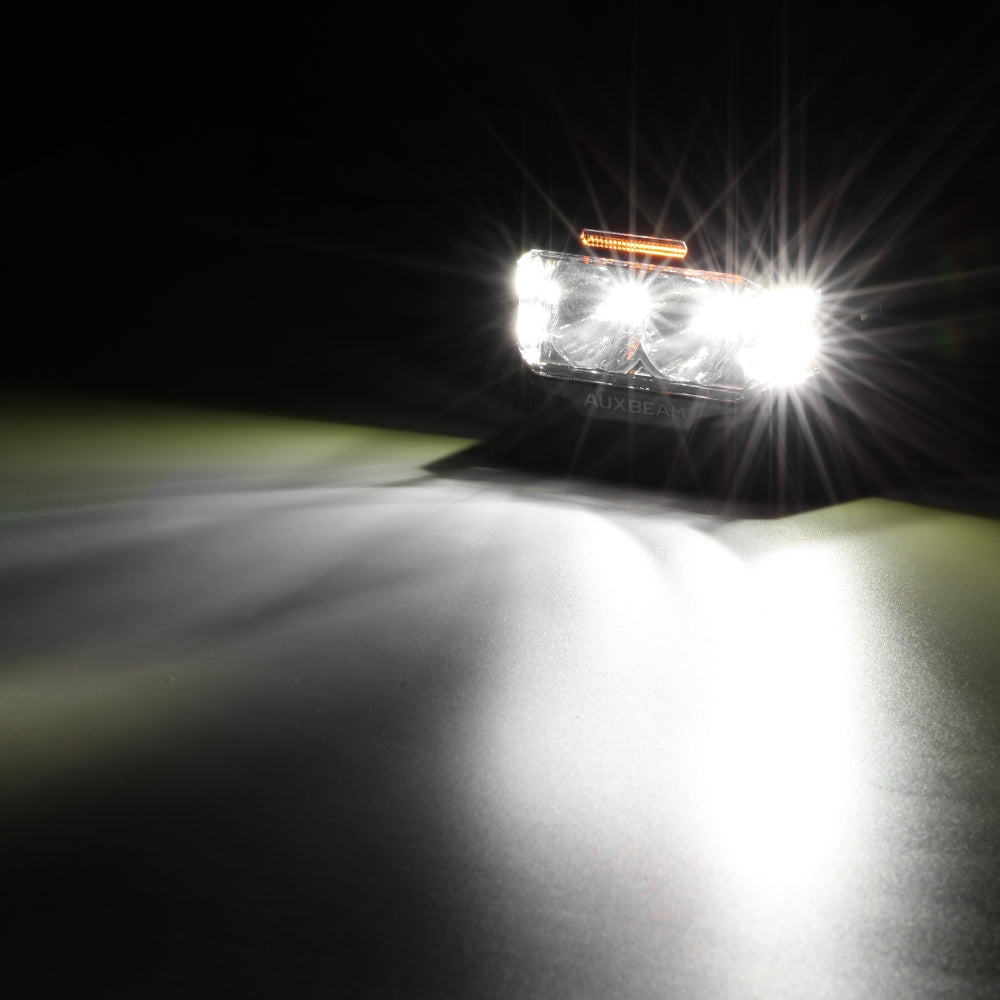

Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.
Trusted Brightness: Employ top-notch led chips, total 36 watts per light, with lighting performance 3480LM/PCS. Features a trusted brighter long-lasting light, and a clearer, wider, and further visual area. Lifespan extends over 50,000H.

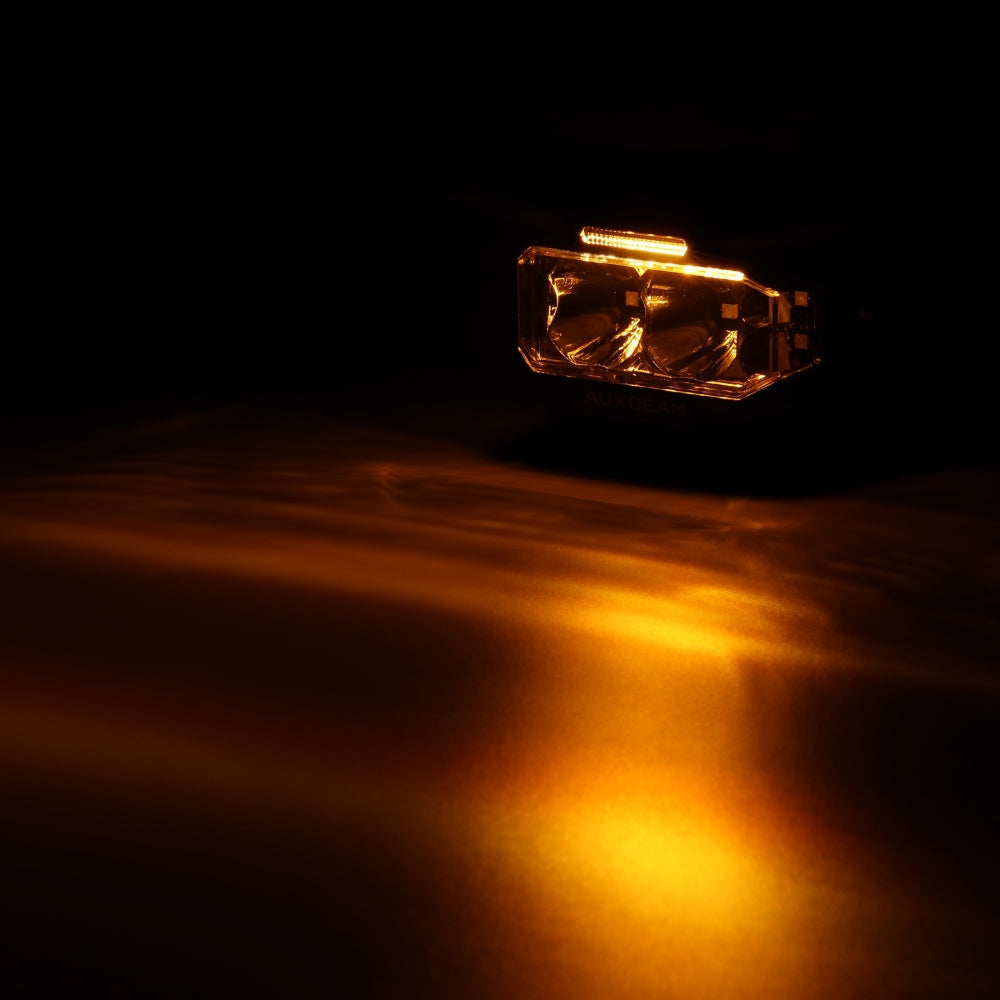

3 Light Modes: Side shooter light and front spot light together are main lighting mode to provide a clearer, wider and further visibility for your night time driving. While amber DRL is a daytime lighting mode to add extra safety by capturing other drivers' notices of your presence on the road. Both modes can be used simultaneously.Combining three modes, it’s the perfect light to ensure your safety throughout the whole day.
Easy Installation: Our LED lights come with a plug-and-play wiring harness kit.Say goodbye to the tedious installation process and hello to hassle-free lighting.
Wide Application: Side shooter LED Lights fits in most vehicles with 10-24V DC power,Such as Trucks Jeep Boat Trailer ATV Off road vehicles, 4x4, Toyota, SUV, Mining, Boating, Farming and Heavy Duty, motorcycle etc.

Specification:

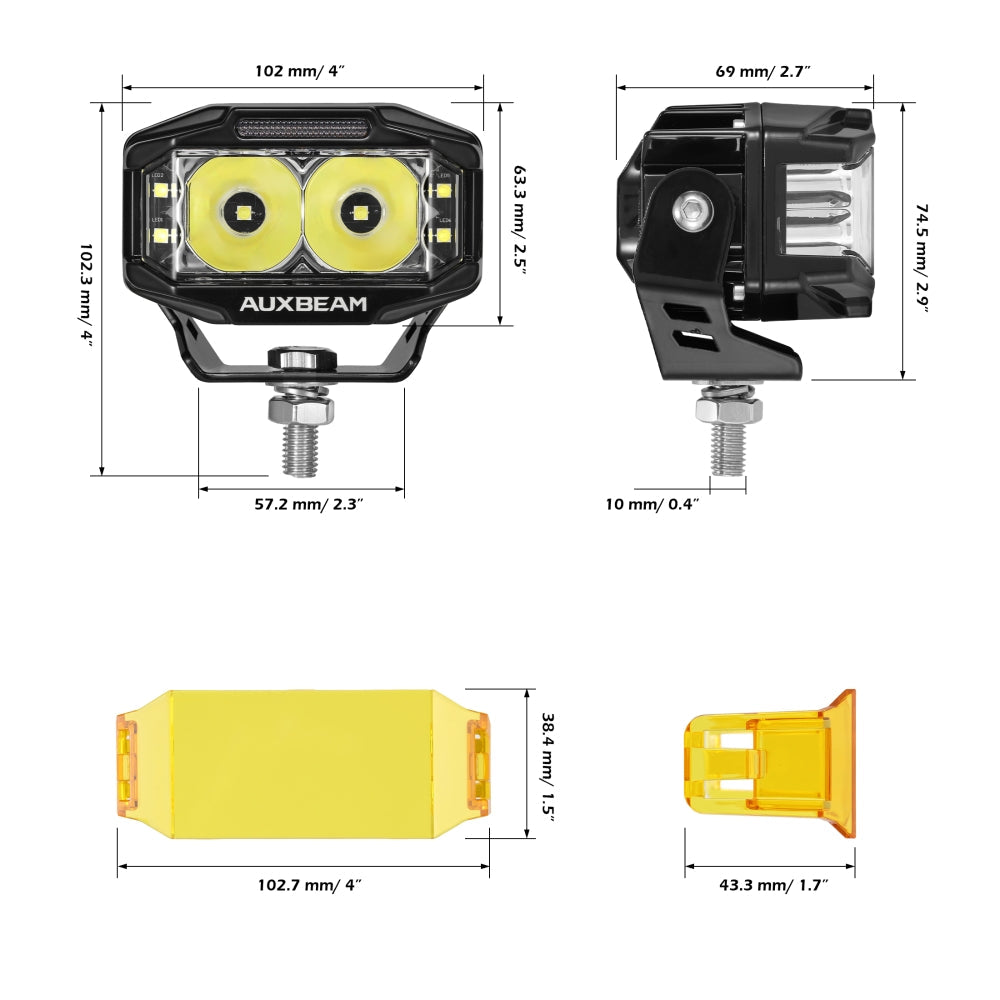

Shape Size: 4 Inch
Lamp Beads Model(Each): P8 5W/PCS*6+3030 SMD 6W
Power/Set: 36W * 2（Spotlights 30W+Amber DRL 6W）=72W
Total Lumens: 6960LM（6000LM+Amber DRL 960LM）
Beam Pattern: Spot Light+Double-Side Shooter Light
Color Temperature: 6500K White/3000K Amber
Light Distance: 1 LUX@198M
Light Color: White+Amber DRL
With EMC/EMI: Yes
Housing Material: Aluminum Alloy
Lens Material: PC
Life Time: 50000+ hours
Housing Color: Black
Waterproof Rate: IP68
Fit Model: Universal(M10 screw mounting)
Working Voltage: 12V-24V(Wiring harness Relay is 12V only, can be replaced with 24V)

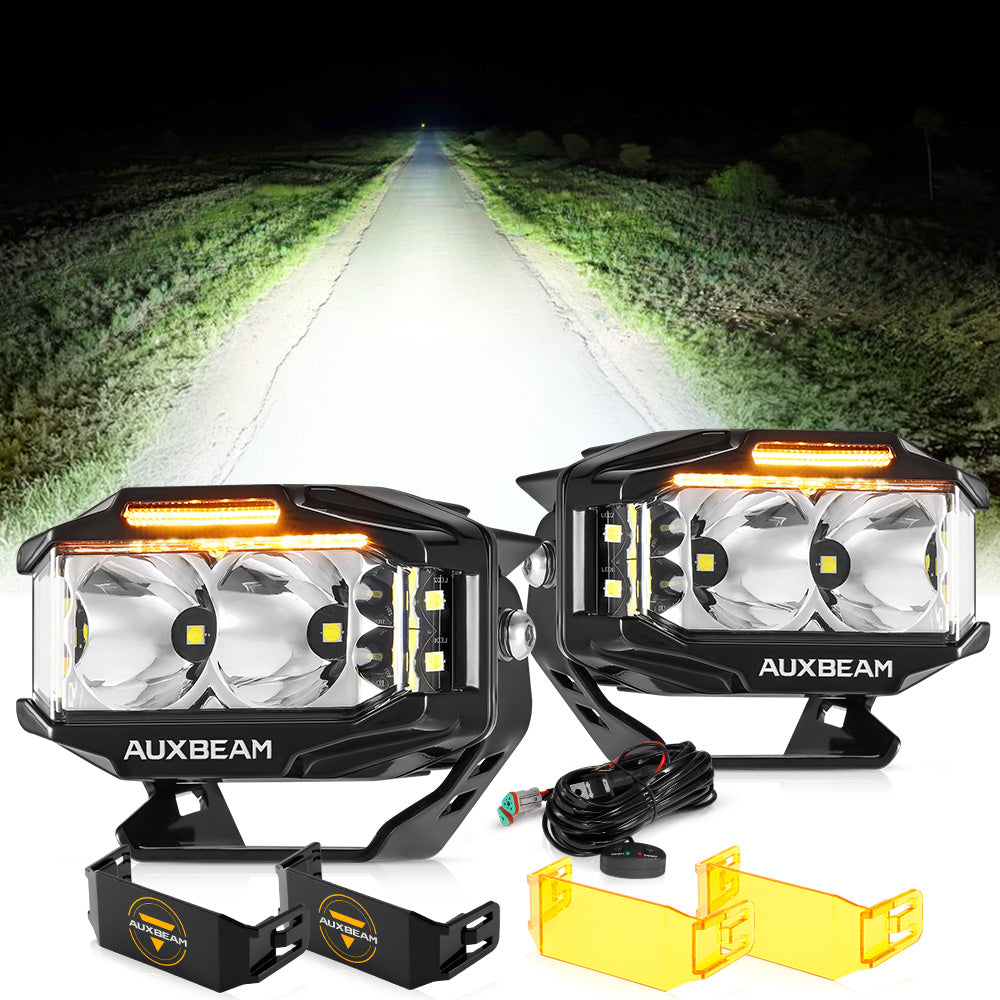

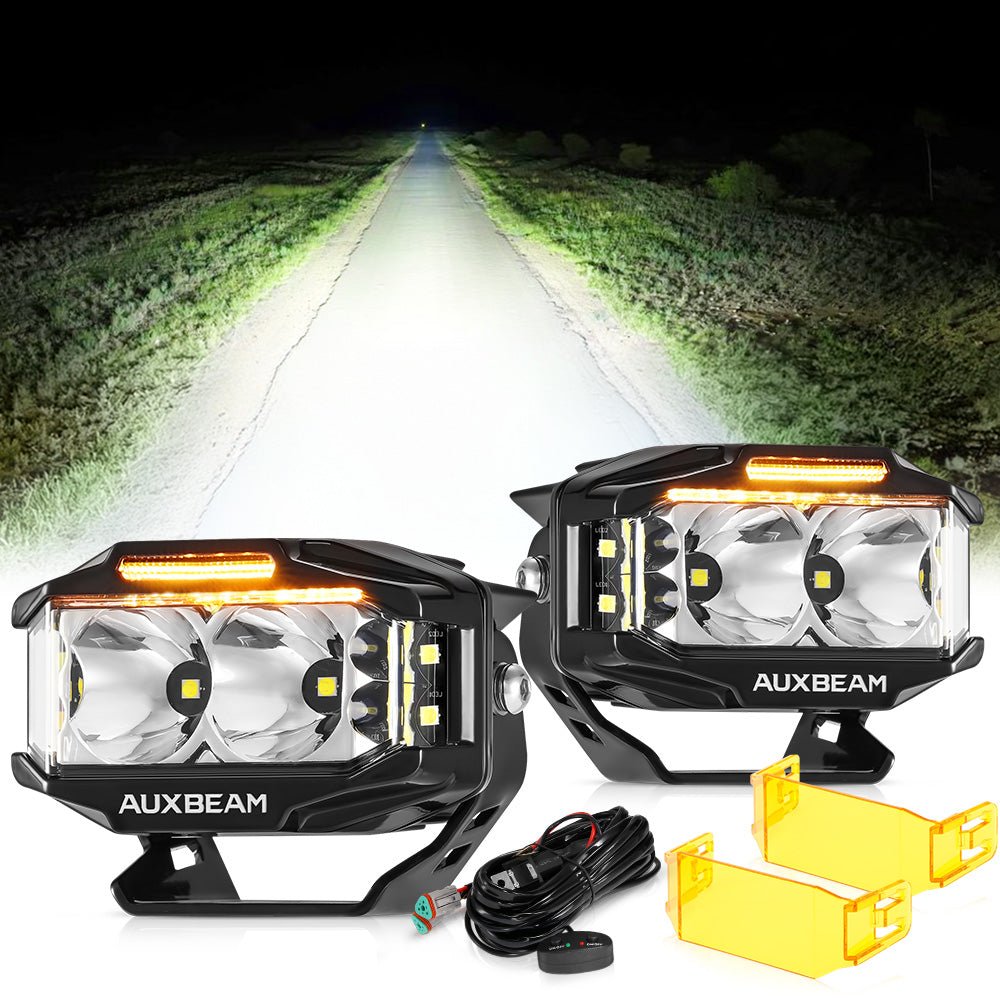

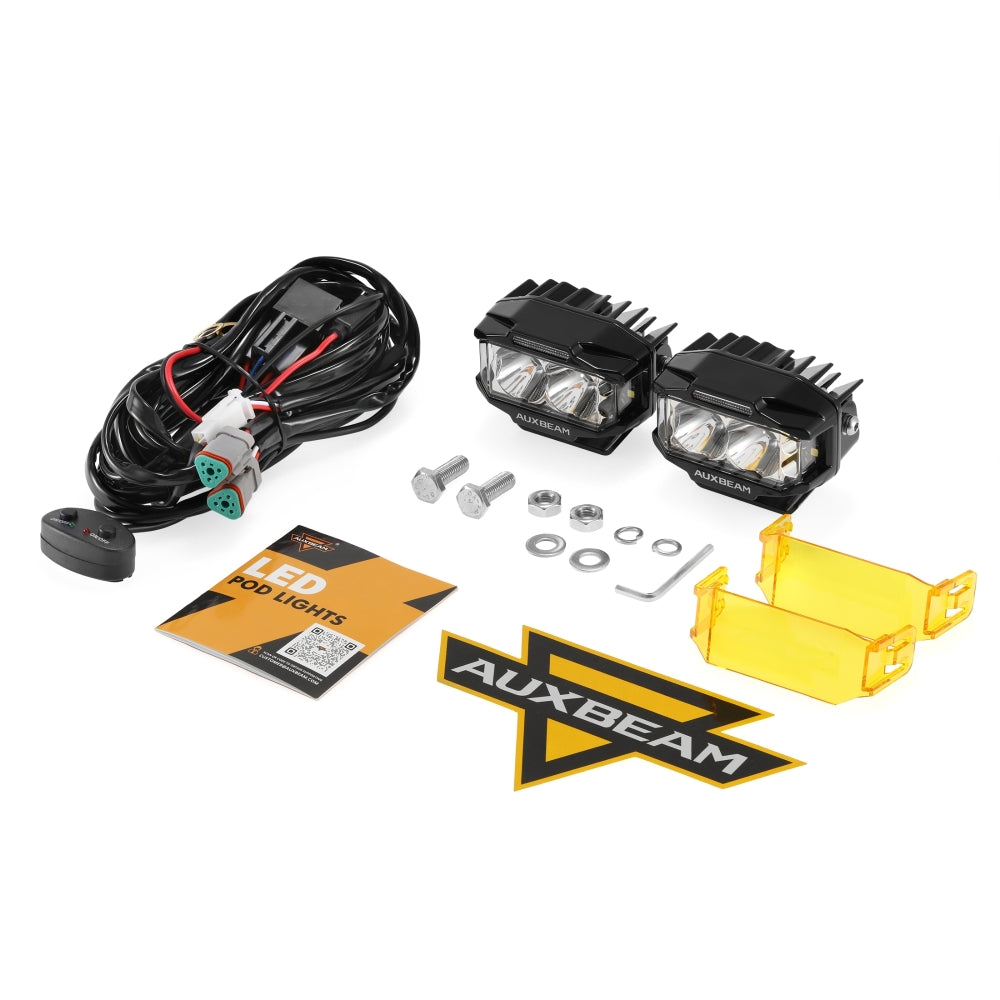

Packing Included:

2 X LED Pod Lights（With DT Plug）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

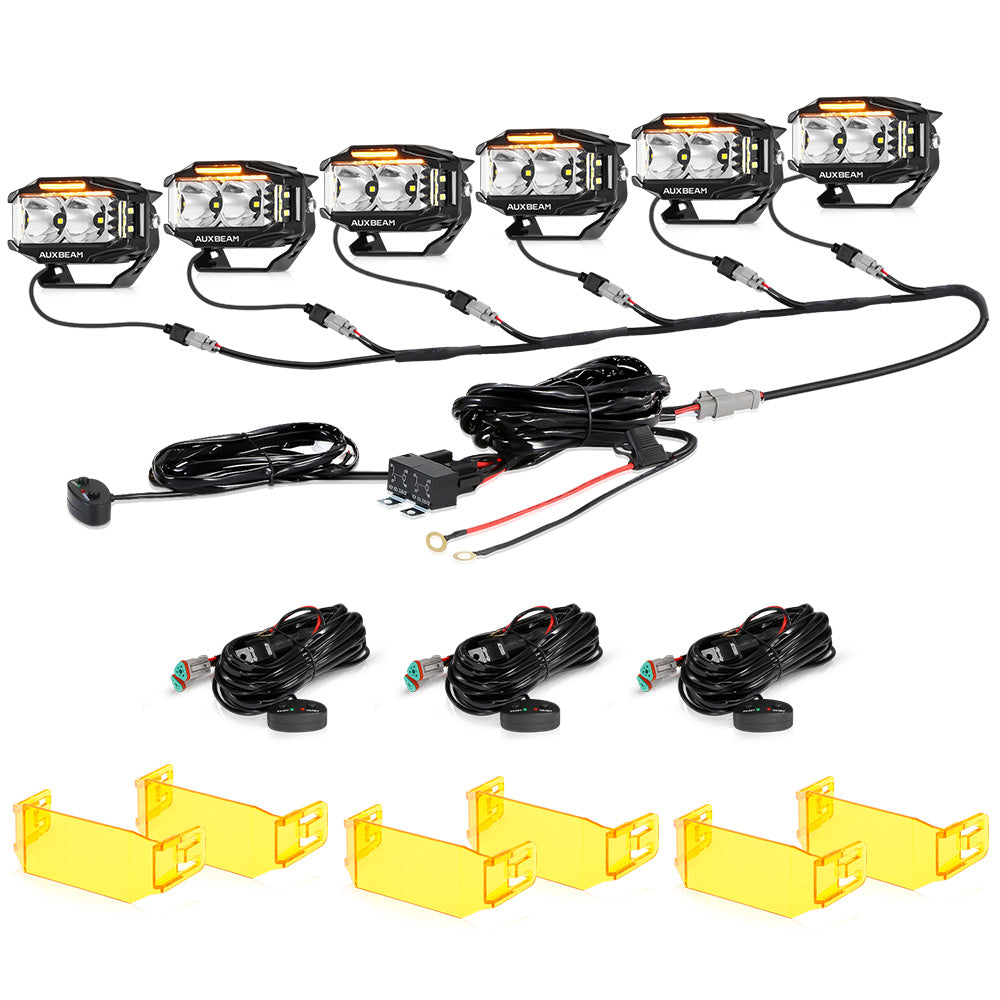

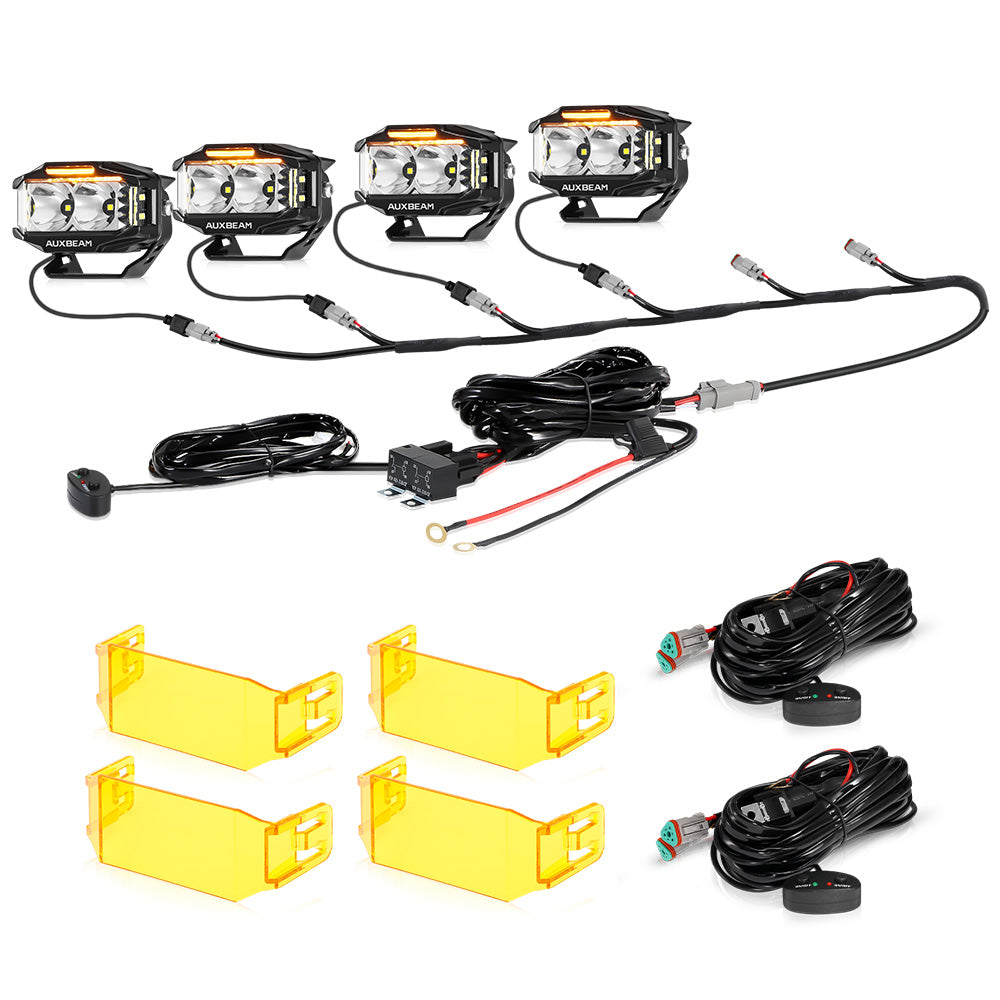

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850/ZD000897
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

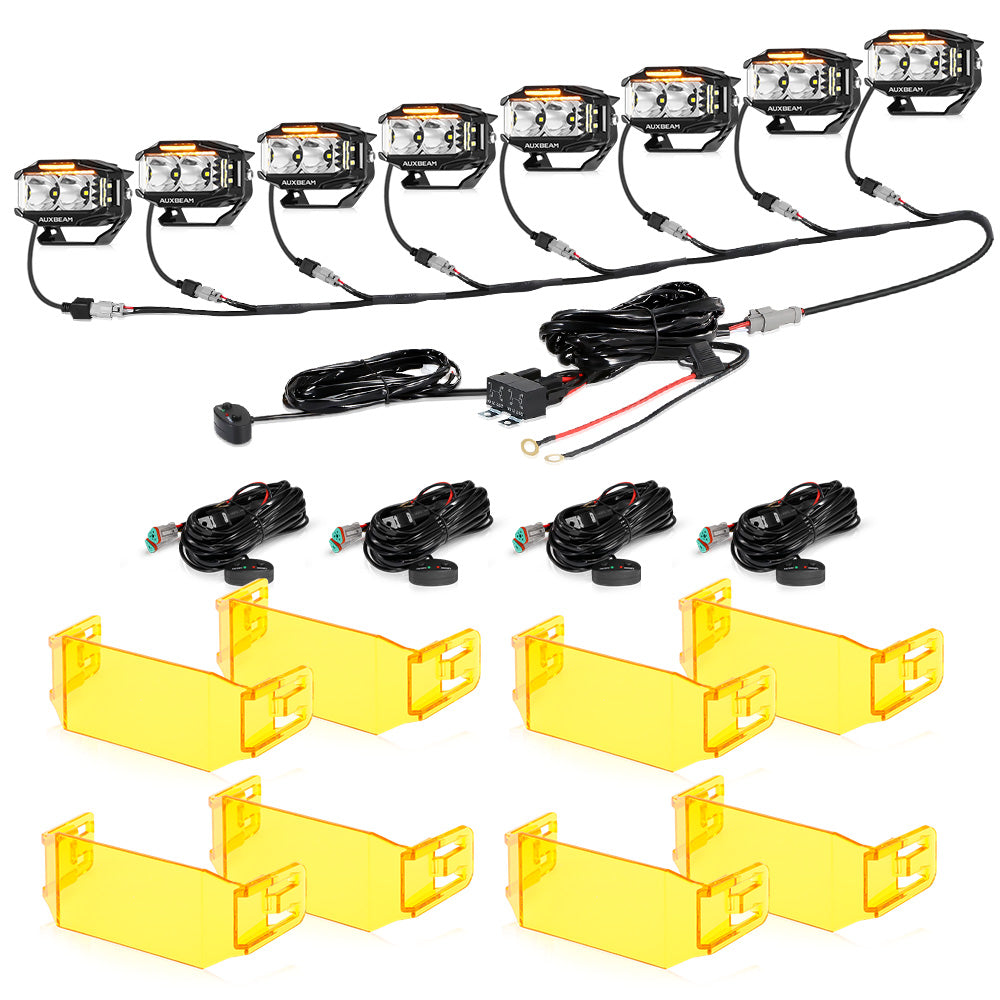

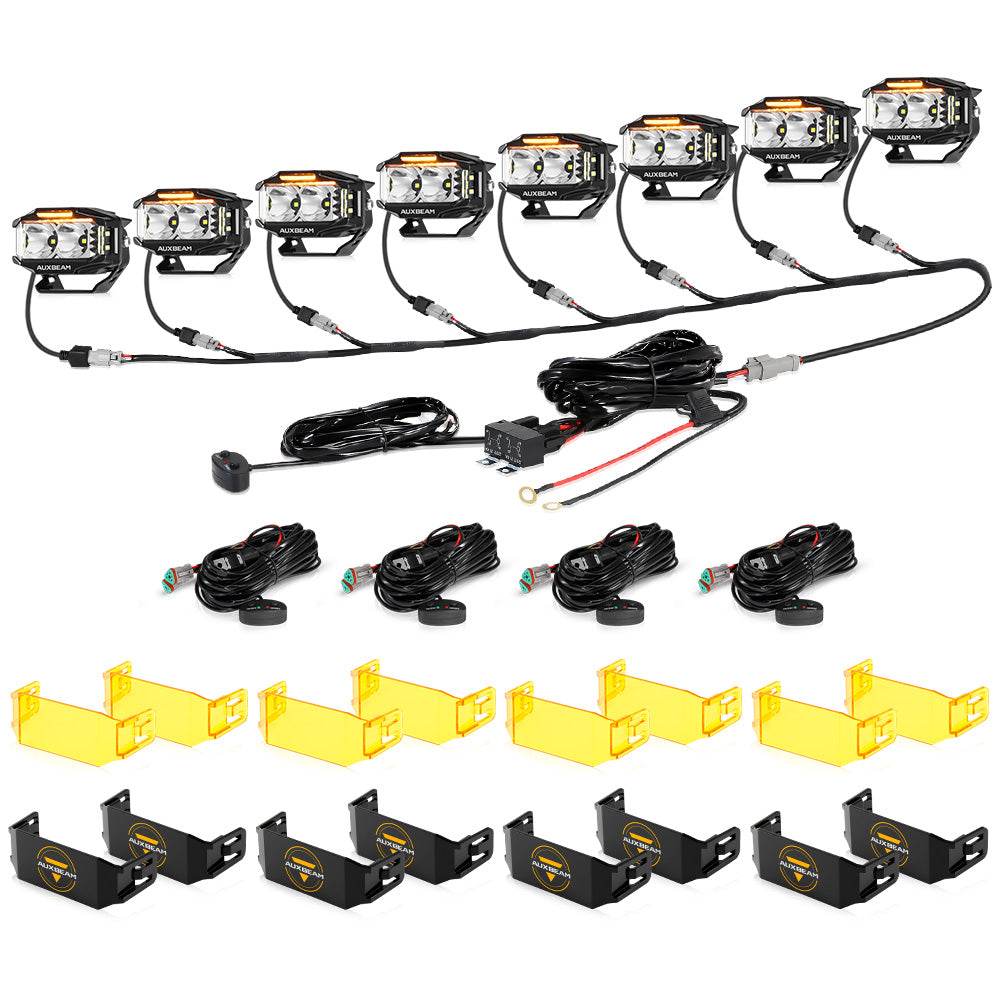

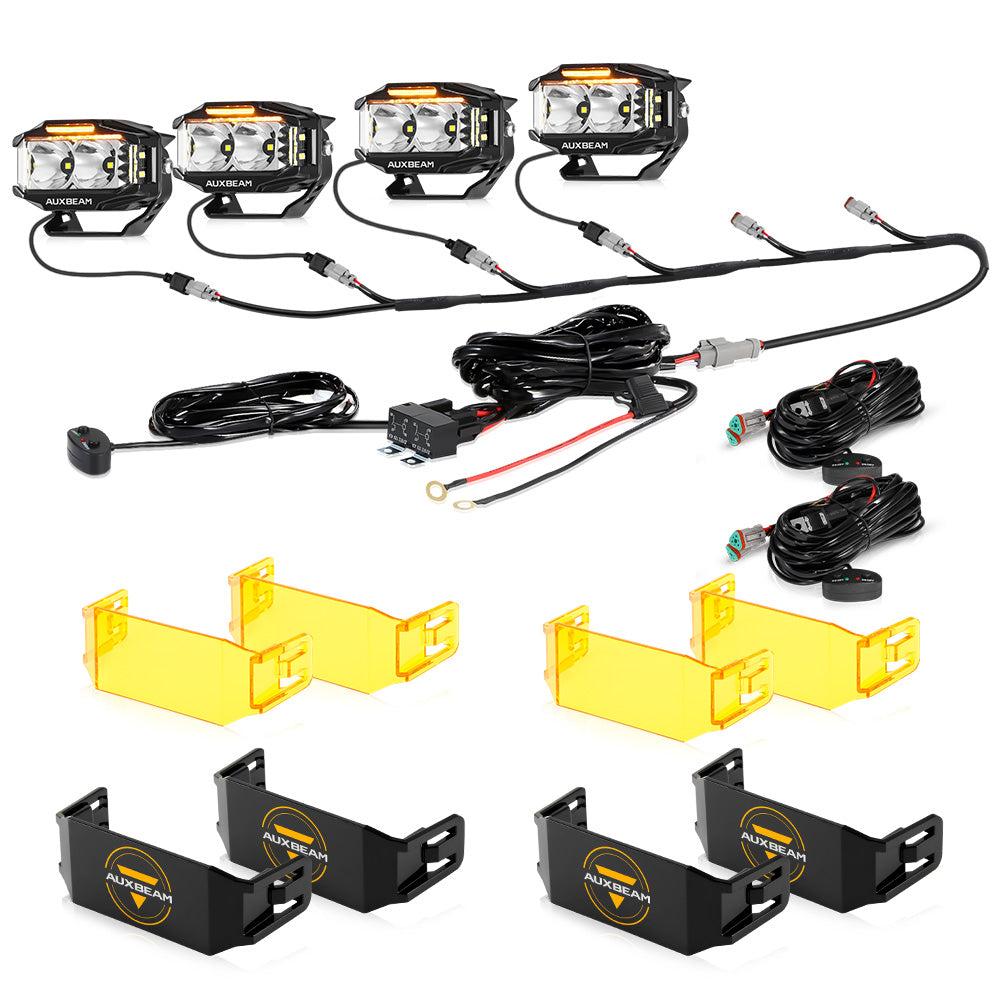

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850/ZD000897
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Delay: Double 12V delay

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
