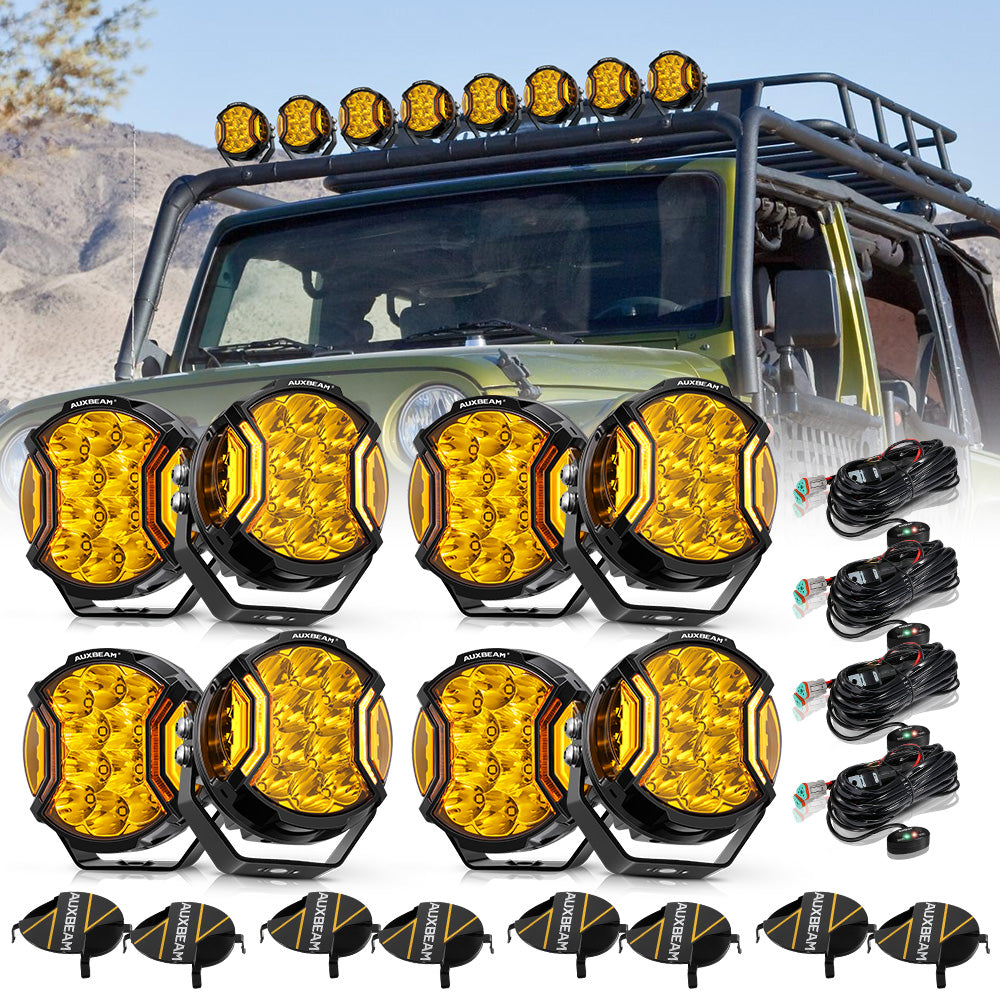

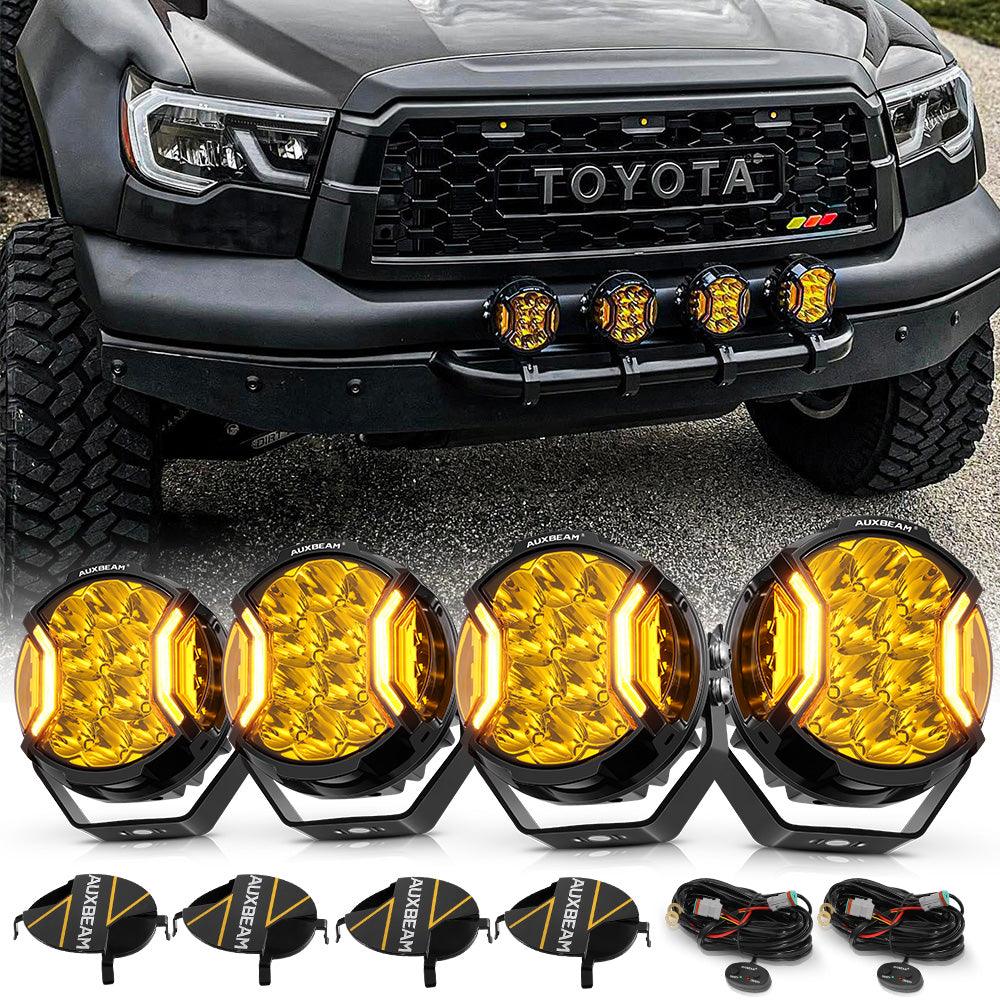

V-ULTRA Series | 5 Inch 172W LED Side Shooter Amber Pod Lights with Amber DRL

▶5 Inch LED Driving Lights

Features:

Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.
Amber DRL Light Feature: Our DRL design is truly one-of-a-kind. We've added an amber DRL light function that works in tandem with our ultra-bright amber light. Not only alerts other drivers in foggy or rainy conditions, but also complements other weak headlights on your vehicle. This feature also adds a touch of fashion style and elevates its overall appearance.
IP68 Waterproof Design: Our newest LED work light has IP68 waterproof rate, protective housing, and sturdy brackets. This ensures that rain, fog, moisture, or dust won't penetrate the bar and cause damage. With exceptional waterproof, dustproof, and shockproof performance, you can trust that our led driving light will withstand even the toughest conditions.
Easy to Installation: We understand that the installation process can be a hassle, which is why we've made it easy for you. Our LED lights come with installation instructions and a plug-and-play wiring harness kit, allowing you to replace your old dim filament lamps in just a few minutes. Say goodbye to the tedious installation process and hello to hassle-free lighting.

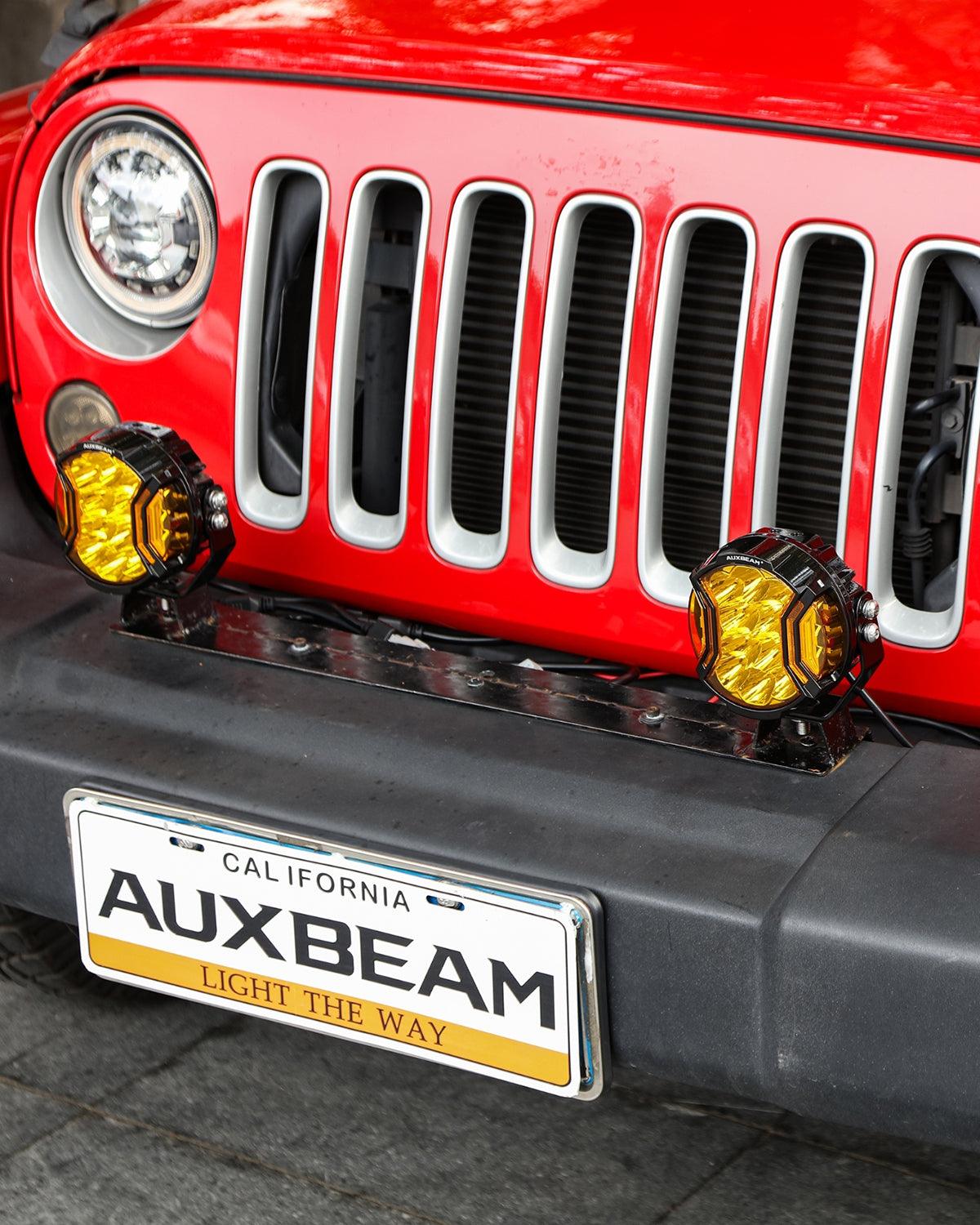

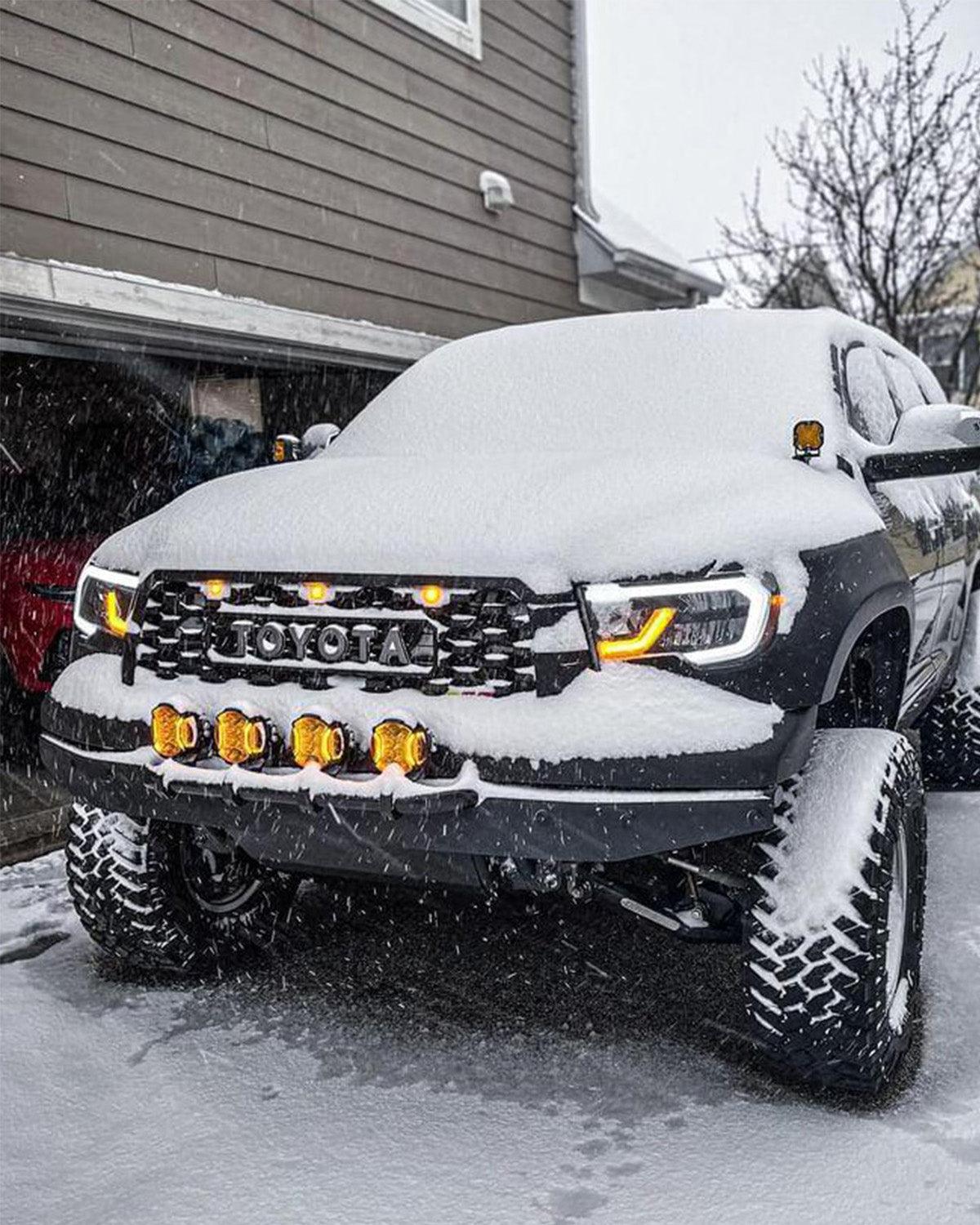

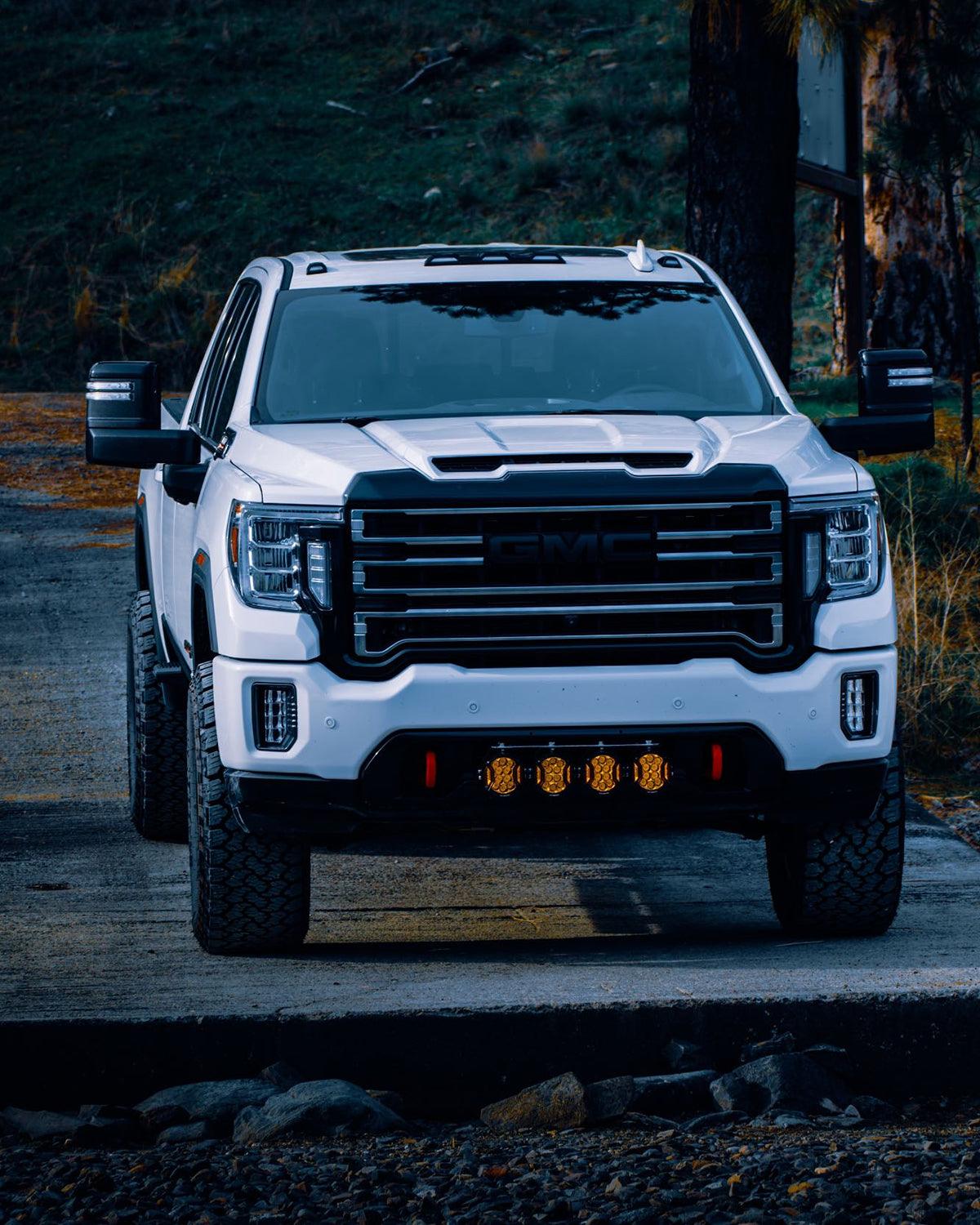

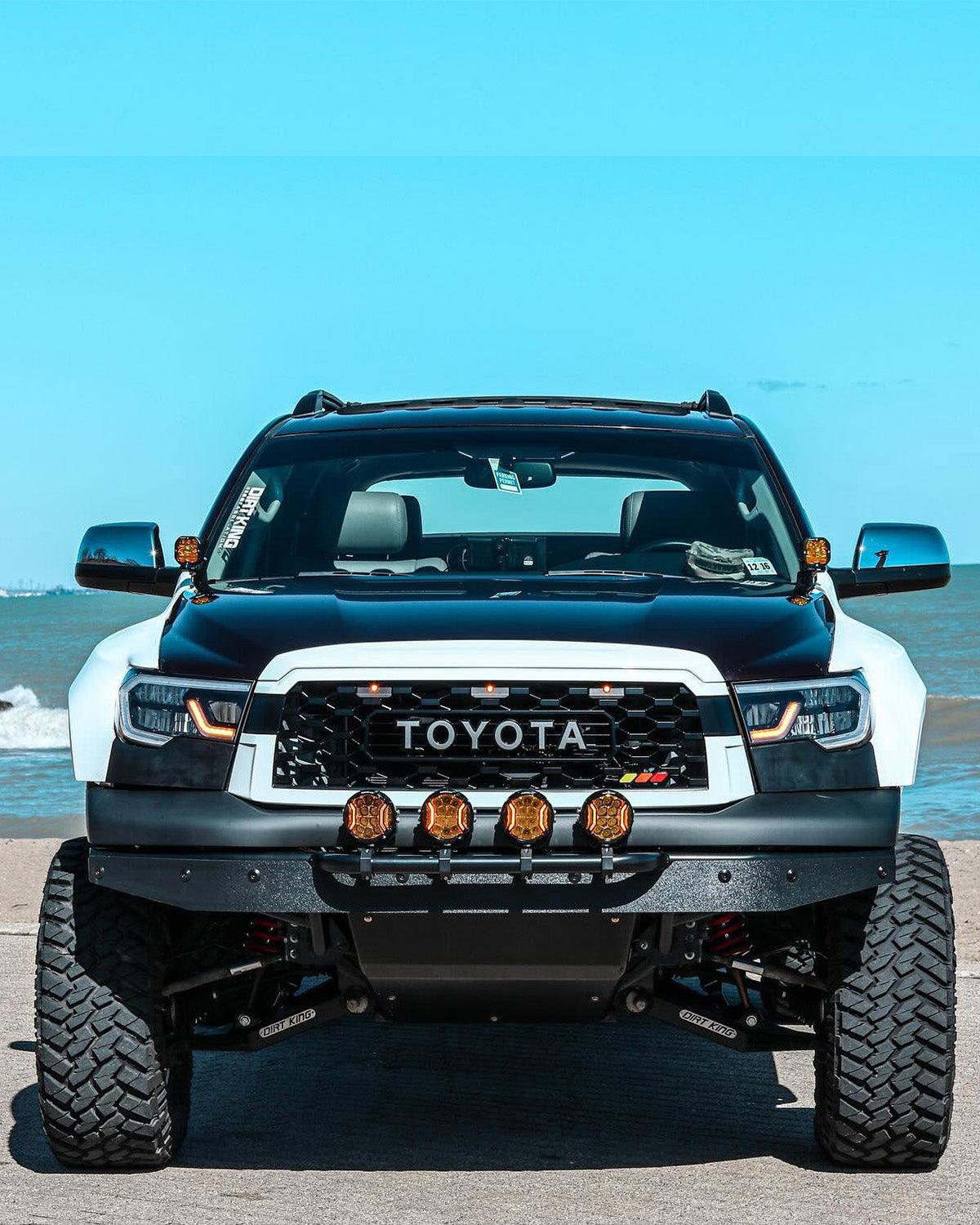

Wide Application: Our LED pod lights are incredibly versatile and can be mounted on a variety of surfaces, including the roof rack, bull bar, headache rack, and running bar. They're suitable for use with almost all off-road vehicles, motorcycles, ATVs, UTVs, SUVs, construction vehicles, trucks, buses, pick-ups, marine vessels, boats, and more. With an operating voltage of 9-24V, our LED pod lights are a reliable and efficient lighting solution for all your needs.

Specification:

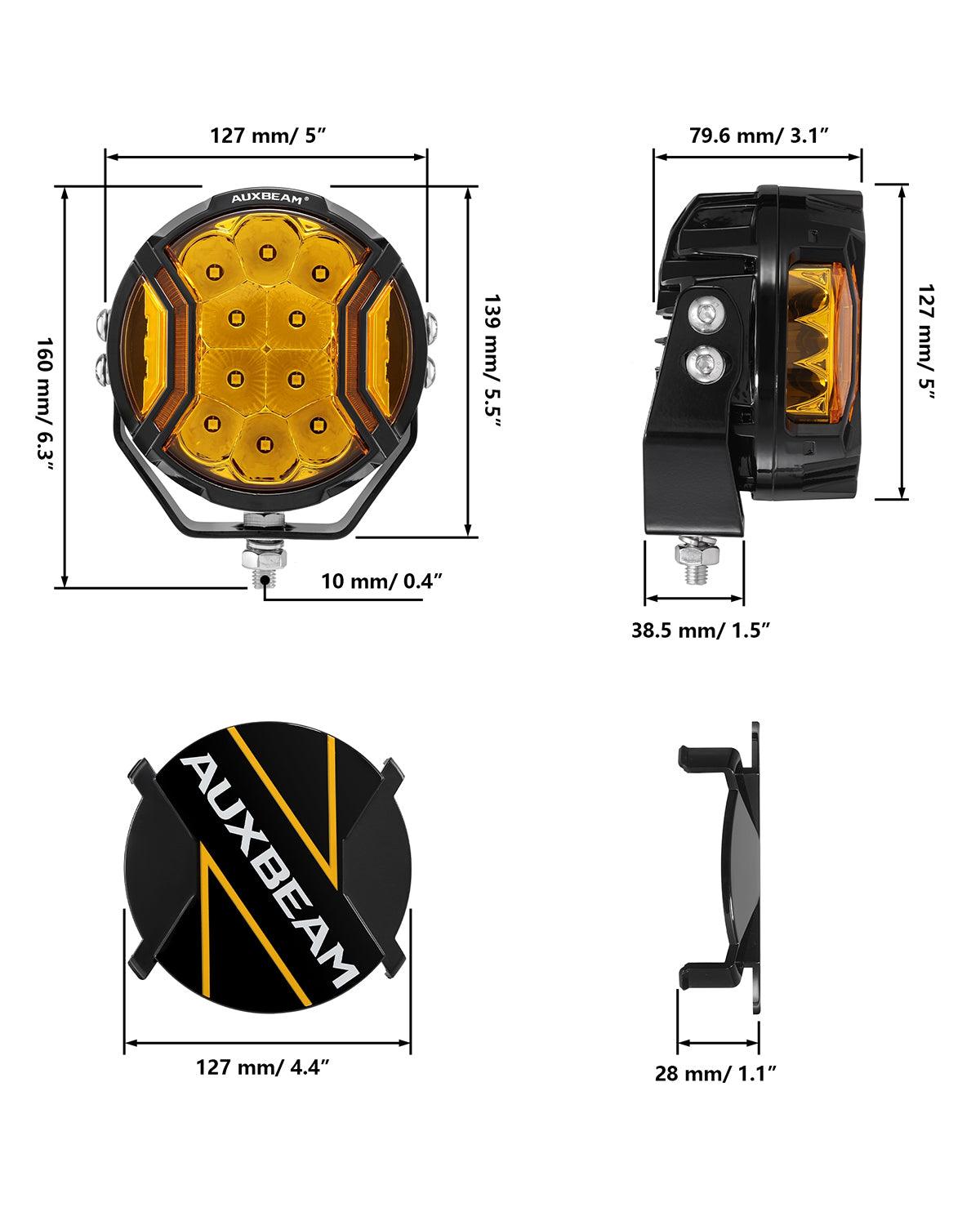

Size: 5 Inch
Quantity: 2Pcs
Power/Set: 86W*2 (Spotlights 80W+Amber DRL 6W)=172W
Total Lumens: 20400LM (19200LM+Amber DRL 1200LM)
Housing Material: Aluminum Alloy
Lens Material: PC
Lamp Beads Model(Each): P8 5W/PCS*16+2835 SMD 6W
Lighting Distance: 1 LUX@578M
Beam Pattern: (Spot+Hyper）Beam+Double-Side Shooter Light
Light Color: Amber
Color Temperature: 3000K
Light Cover: Black
Fit Model: Universal
Life Time: 50000+ hours
Housing Color: Black
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

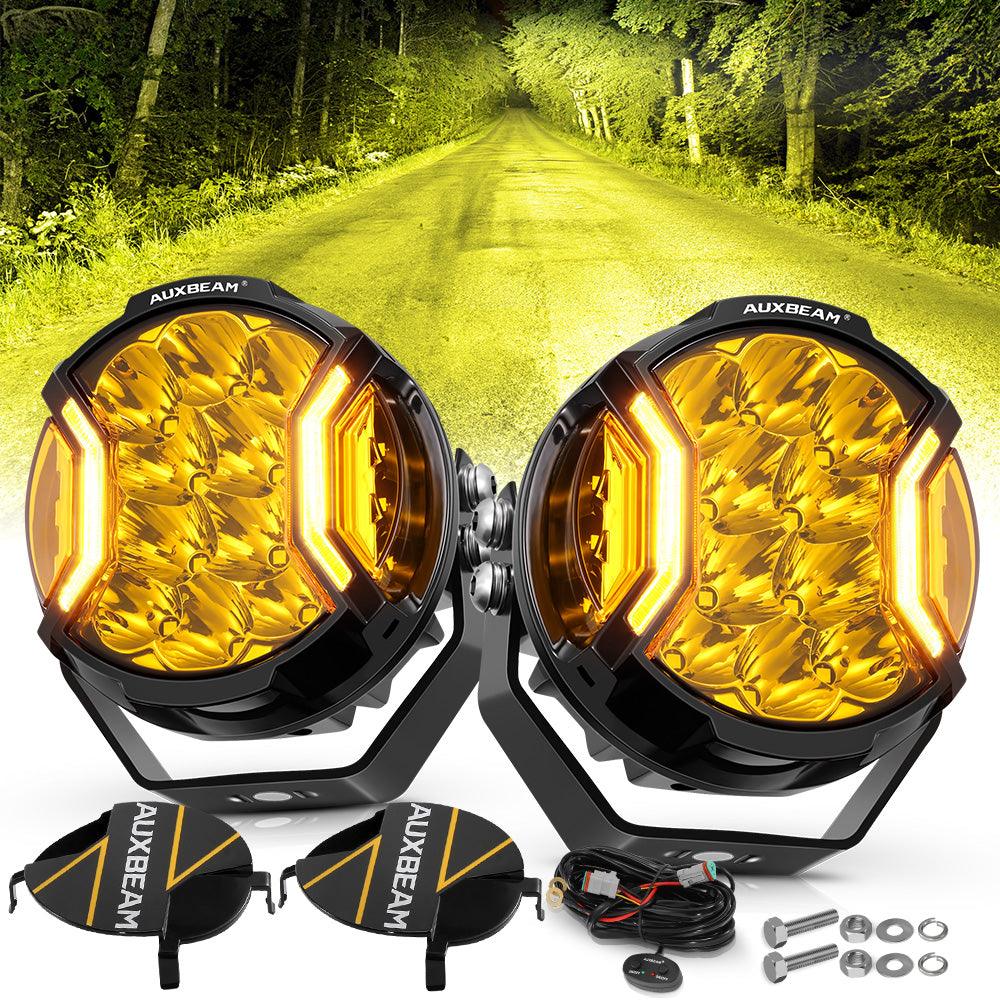

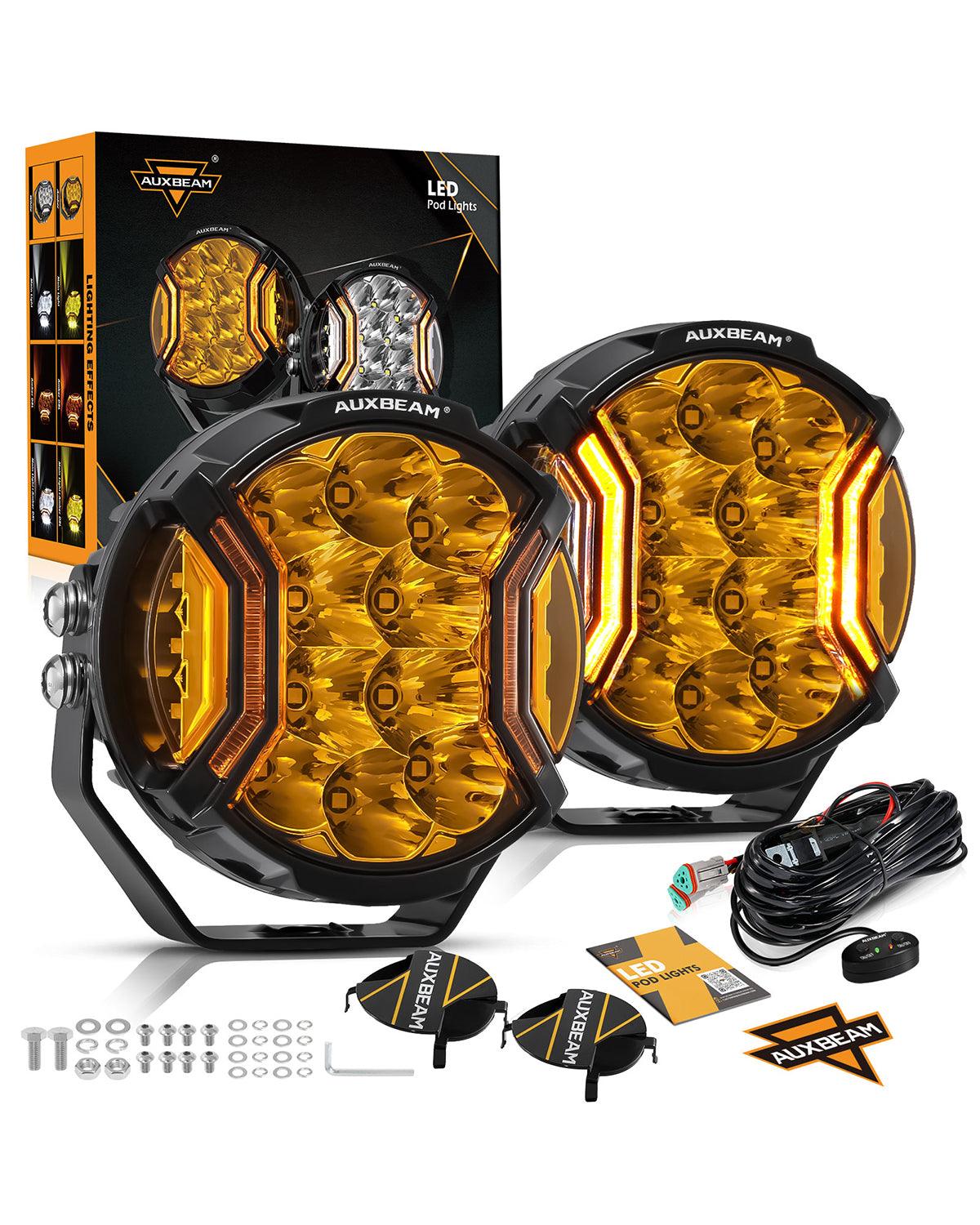

Packing Included:

2 X LED Driving Lights（With DT Plug）
2 X Light Cover（Black）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

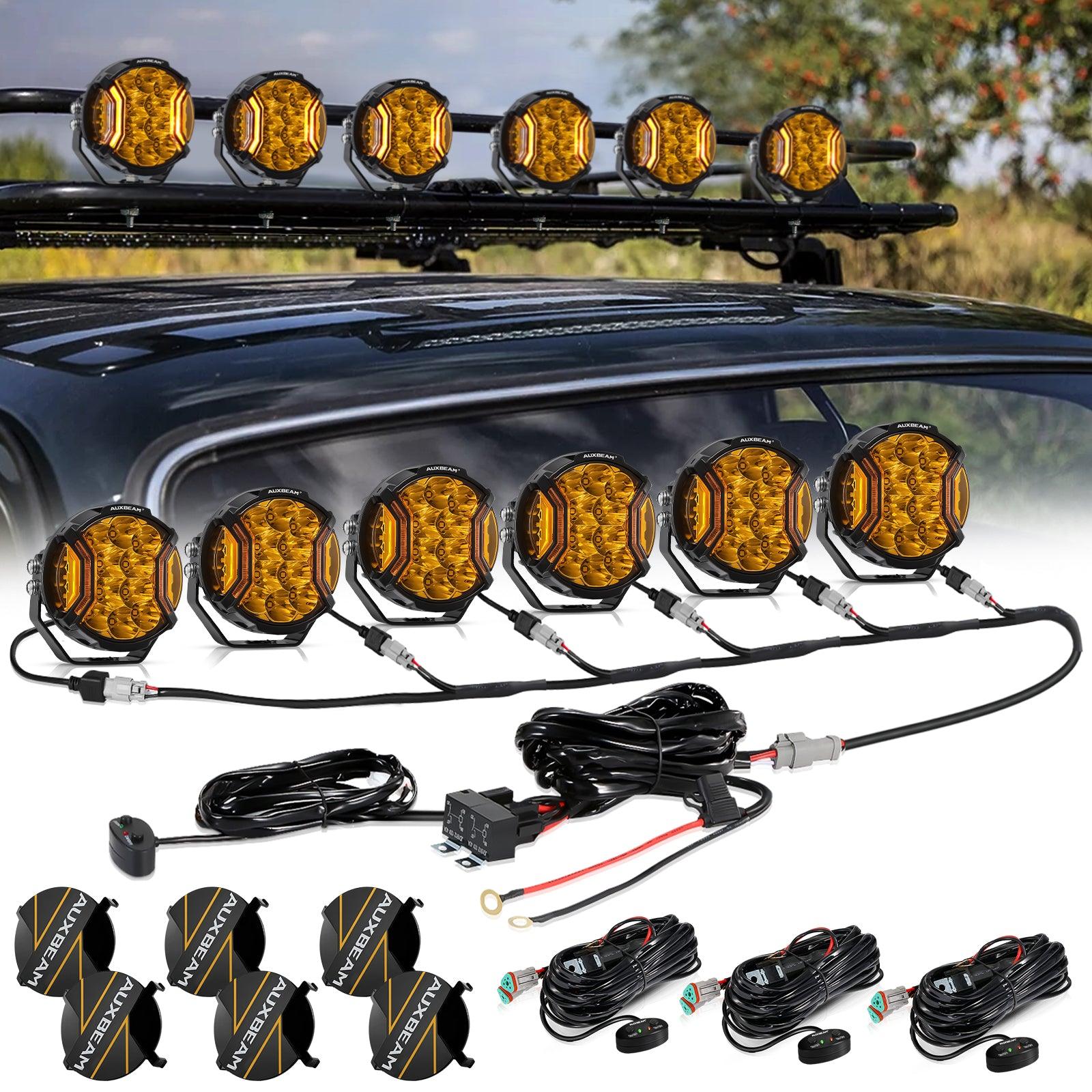

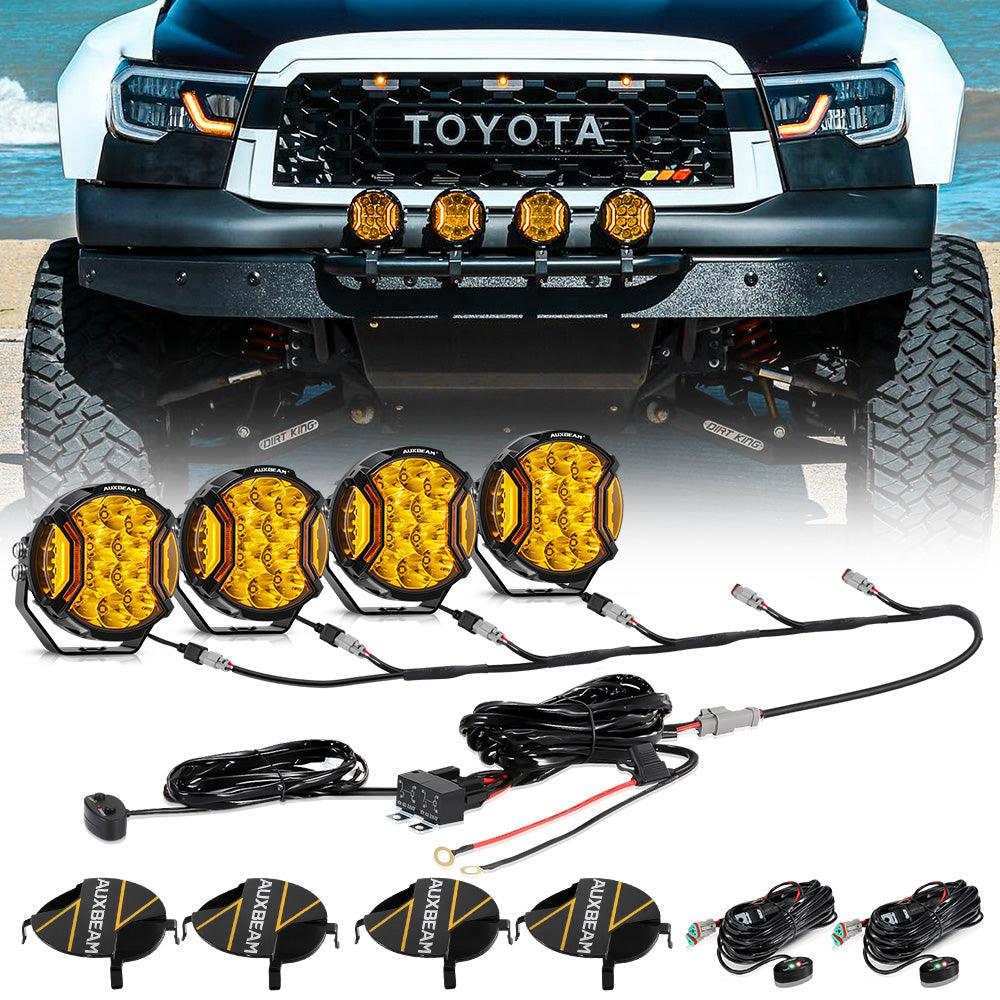

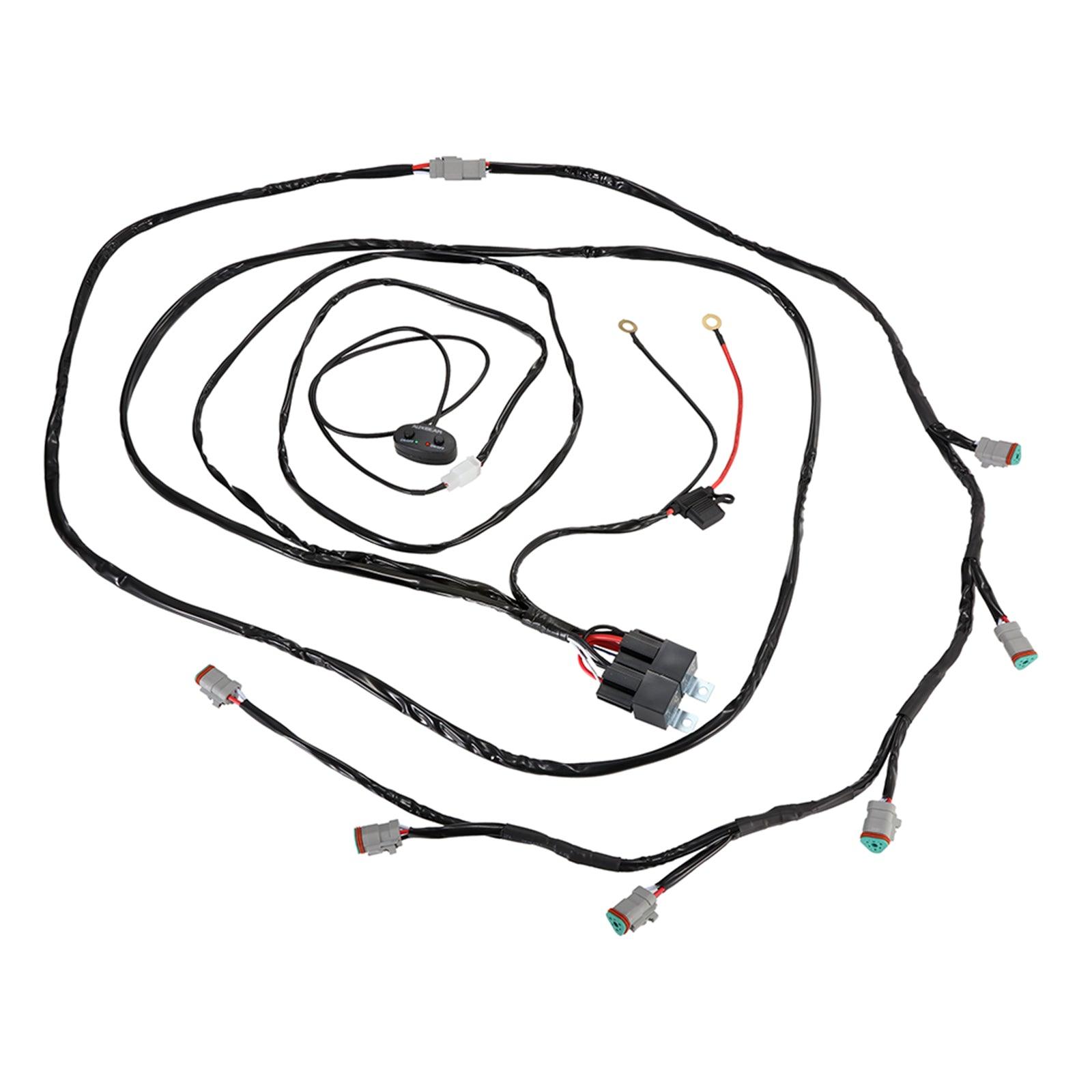

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753/ZD000879/ZD000880/ZD000881
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891
Other Product: ZD000752

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
V-ULTRA Series: ZD000889/ZD000890
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

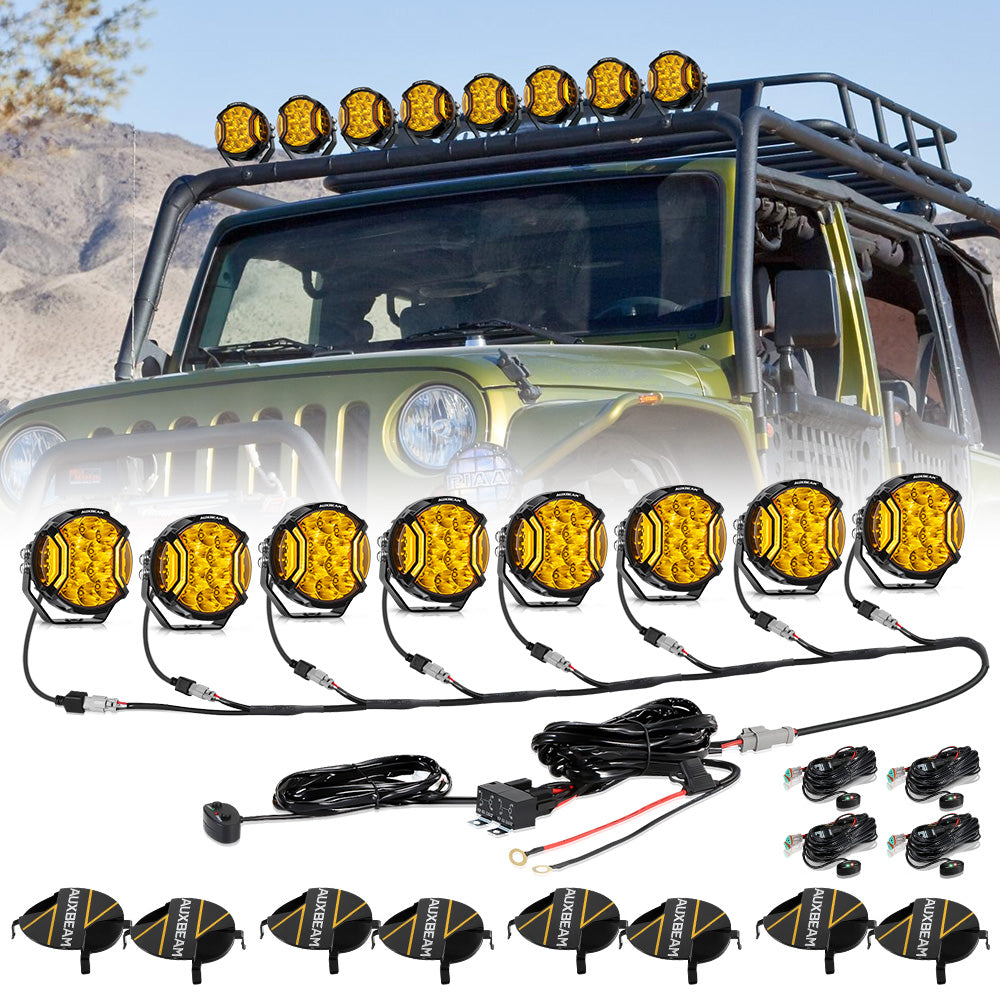

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753/ZD000879/ZD000880/ZD000881
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
V-ULTRA Series: ZD000889/ZD000890
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

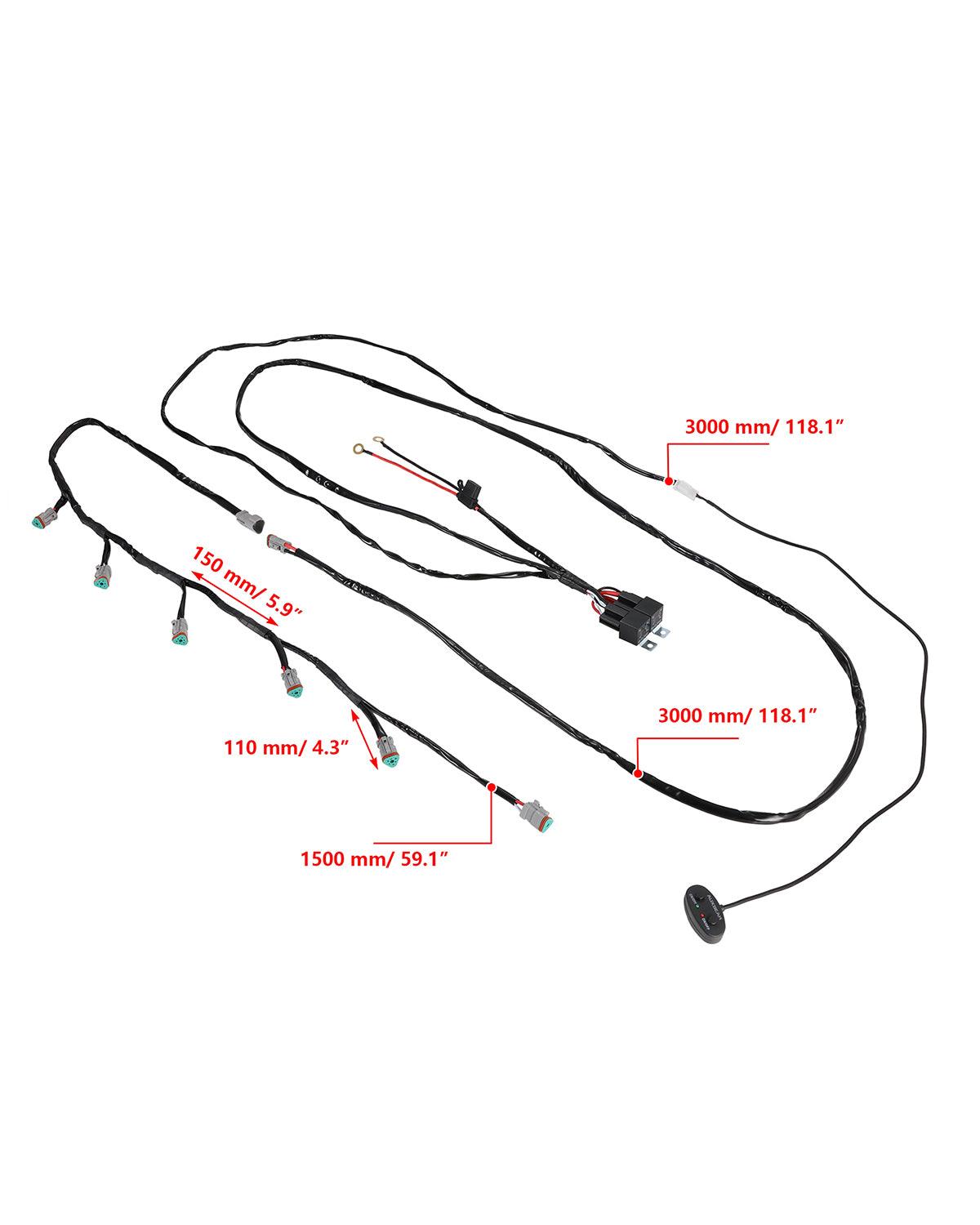

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Delay: Double 12V delay

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
