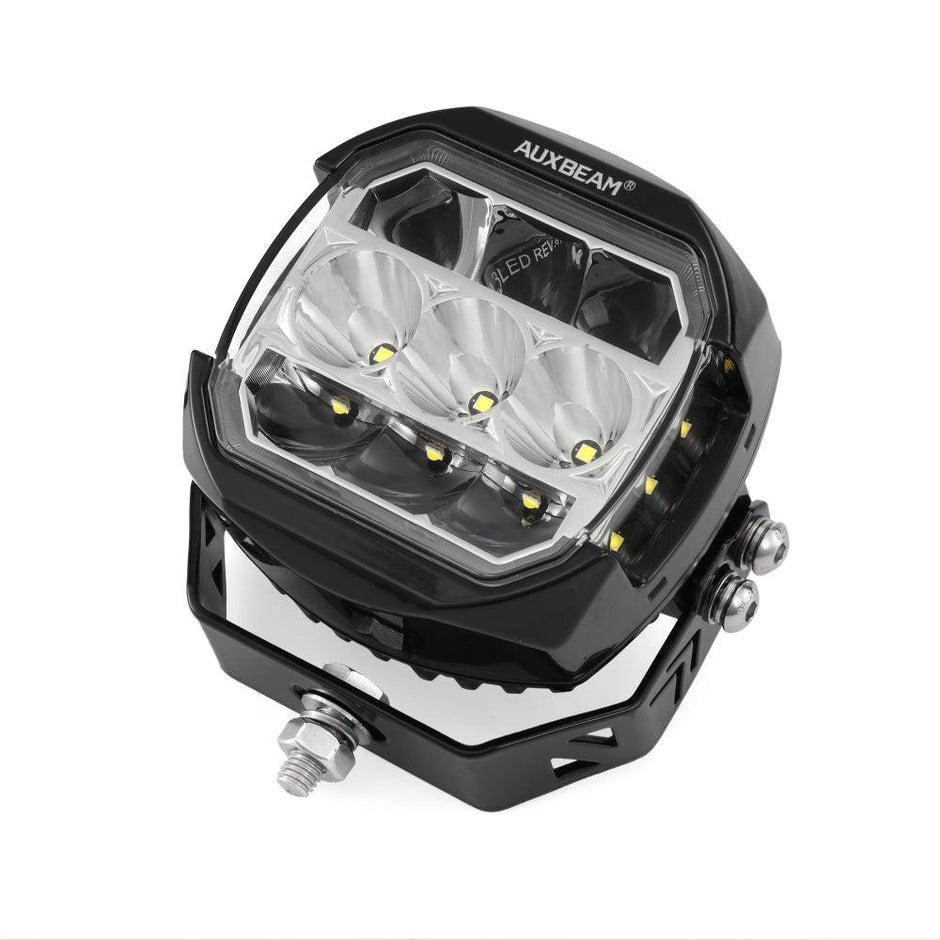

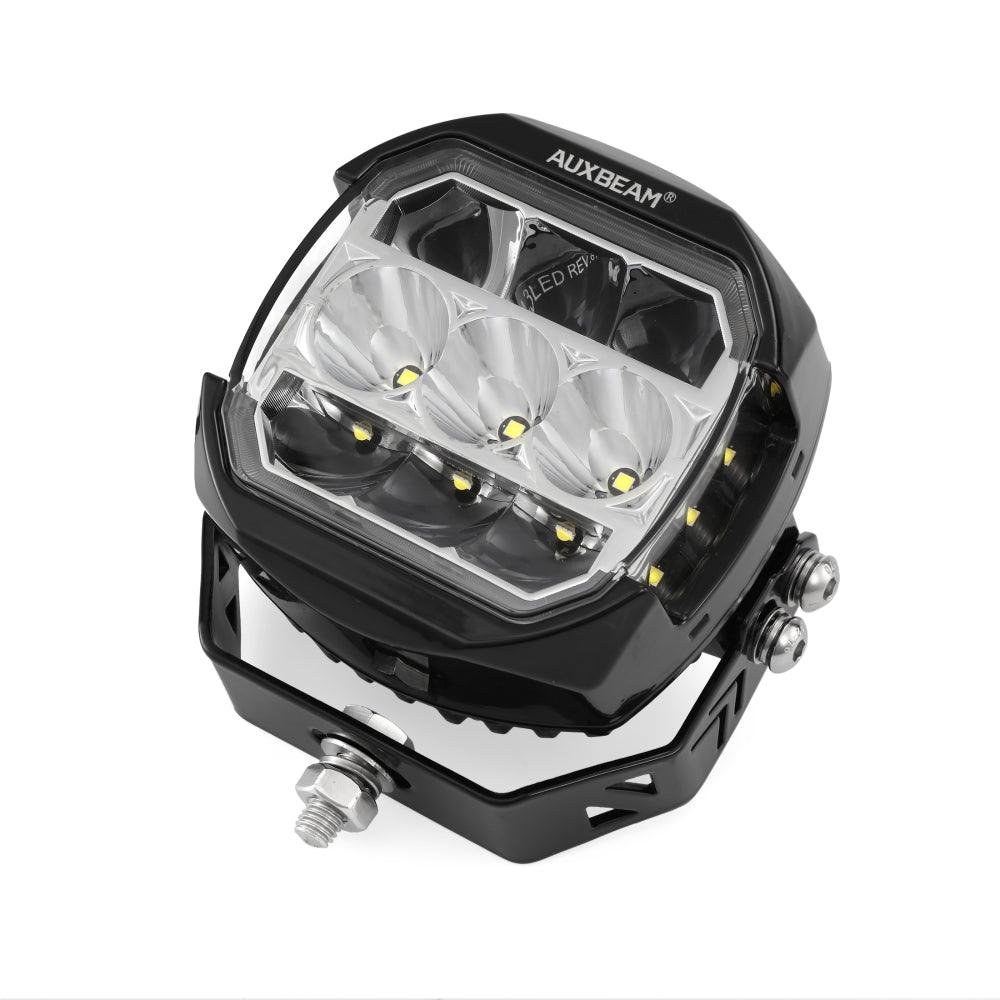

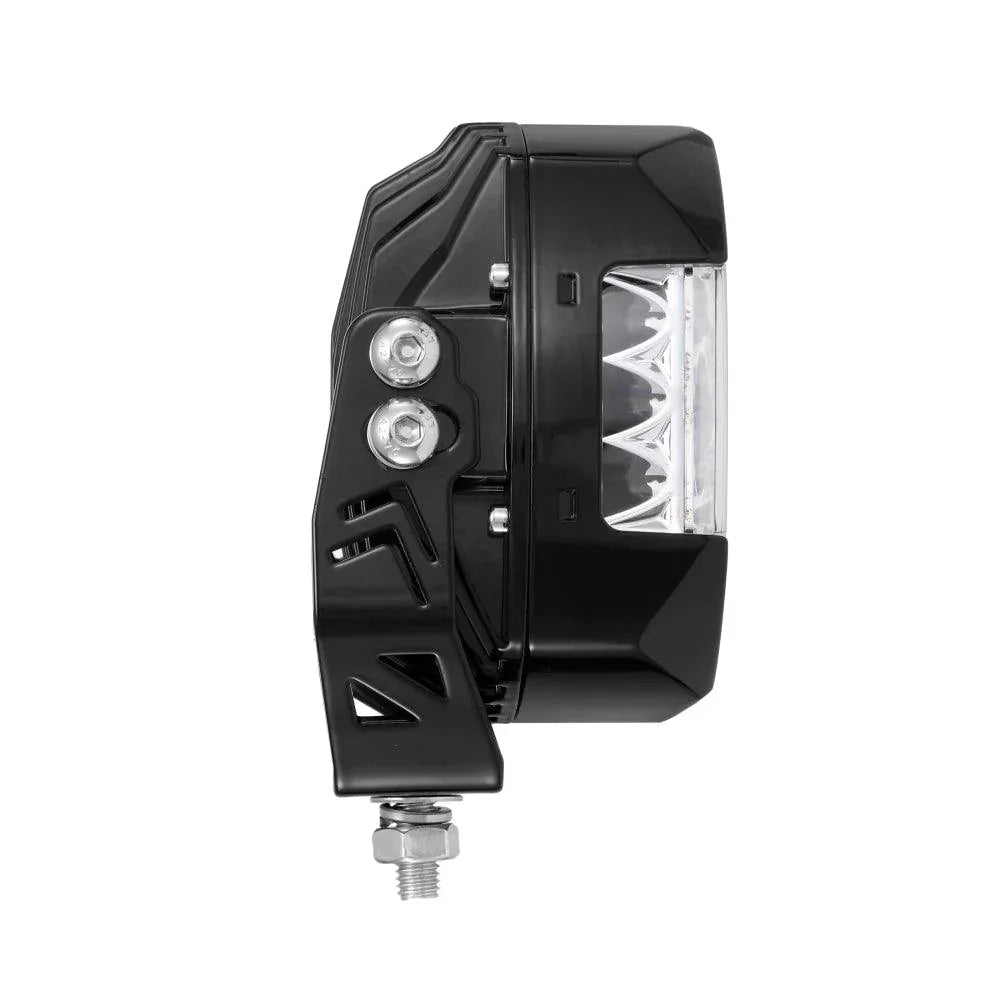

XP-ULTRA Series 5 Inch 174W LED Side Shooter Pod Lights with White DRL&Amber Turn Signal Light

Features:

Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.

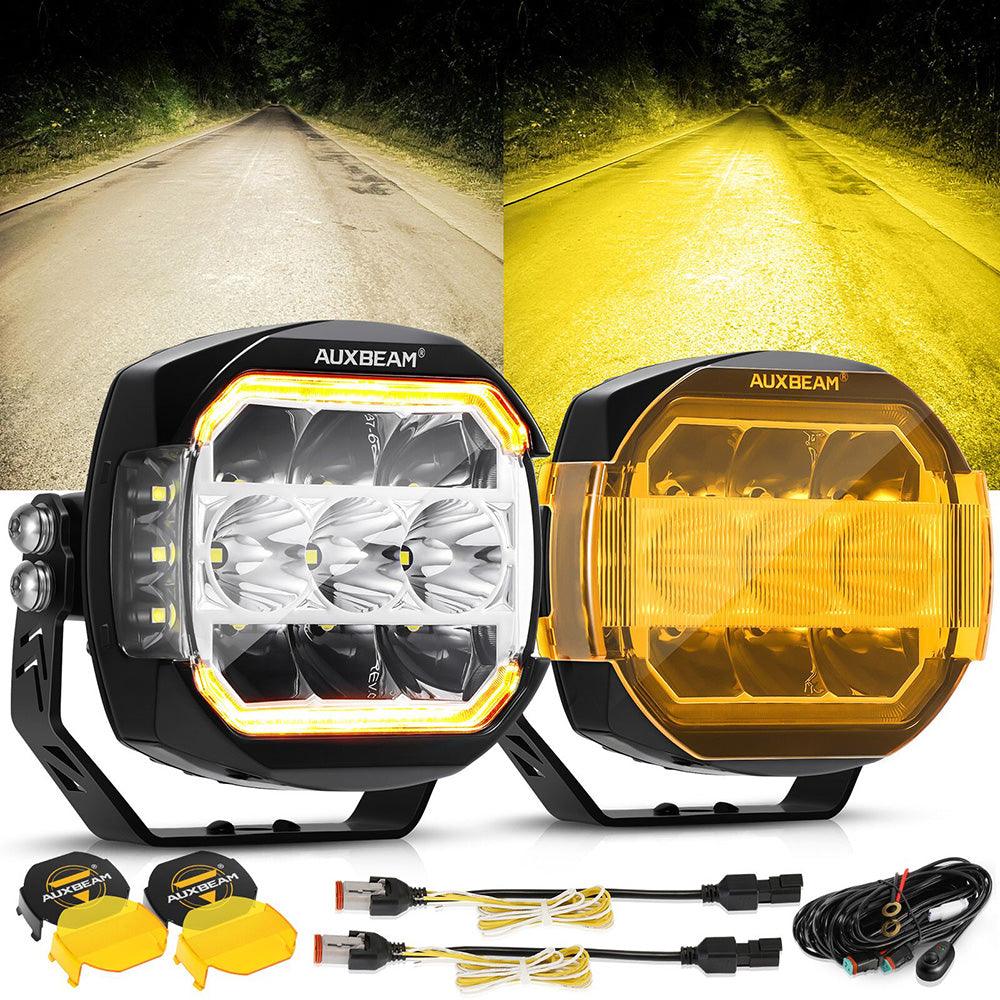

5 Types of Lighting Effects: Different ambient lighting you choose, included white daytime running light and amber turn signal light.And with Amber combo light covers and black covers to change the light type, color and avoid traffic laws.
Trusted Brightness: Employ top-notch P8 led chips, total 174 watts, with lighting performance 20400LM. Features a trusted brighter long-lasting light, and a clearer, wider, and further visual area. Lifespan extends over 50,000H.

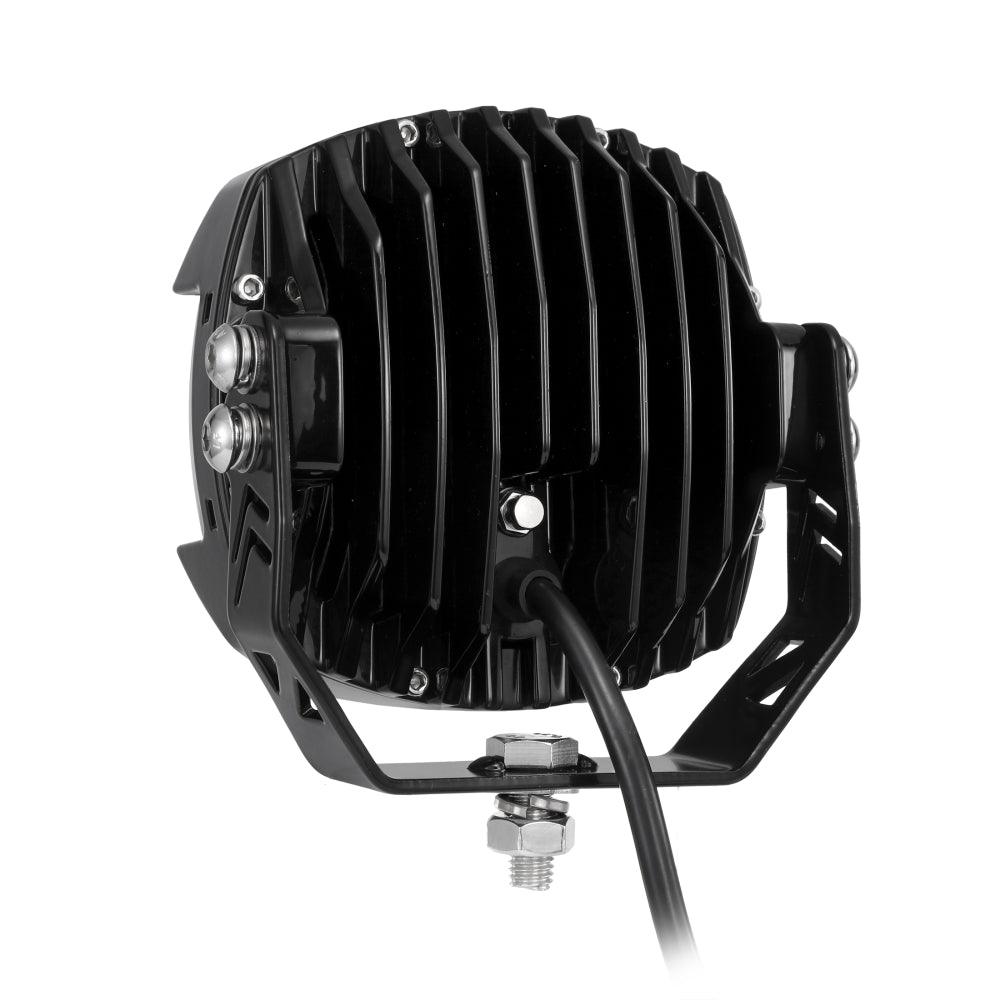

IP68 Waterproof Design: Auxbeam LED work light features IP68 waterproof rating, high quality housing and sturdy brackets. This ensures that rain, fog, moisture or dust cannot seep and cause damage. Rugged die-casting aluminum body designed for optimal heat removal, handles rough off-road environments and resists corrosion.

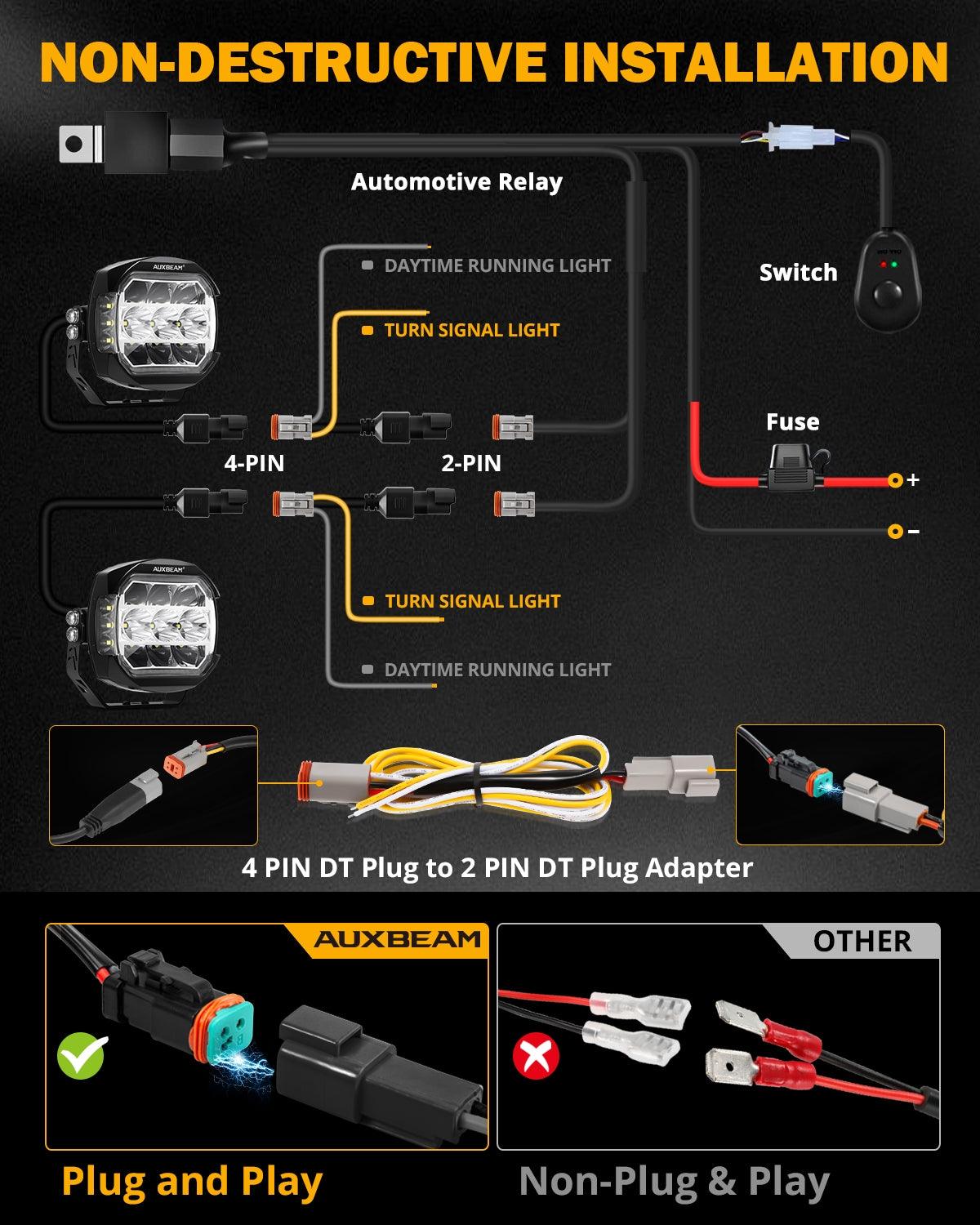

Quick Installation: Easy to connect and install with the included DT connector harness wiring kit, eliminating the hassle of redundant wiring. Durable wiring can meet your needs to install the lights anywhere in the vehicle.

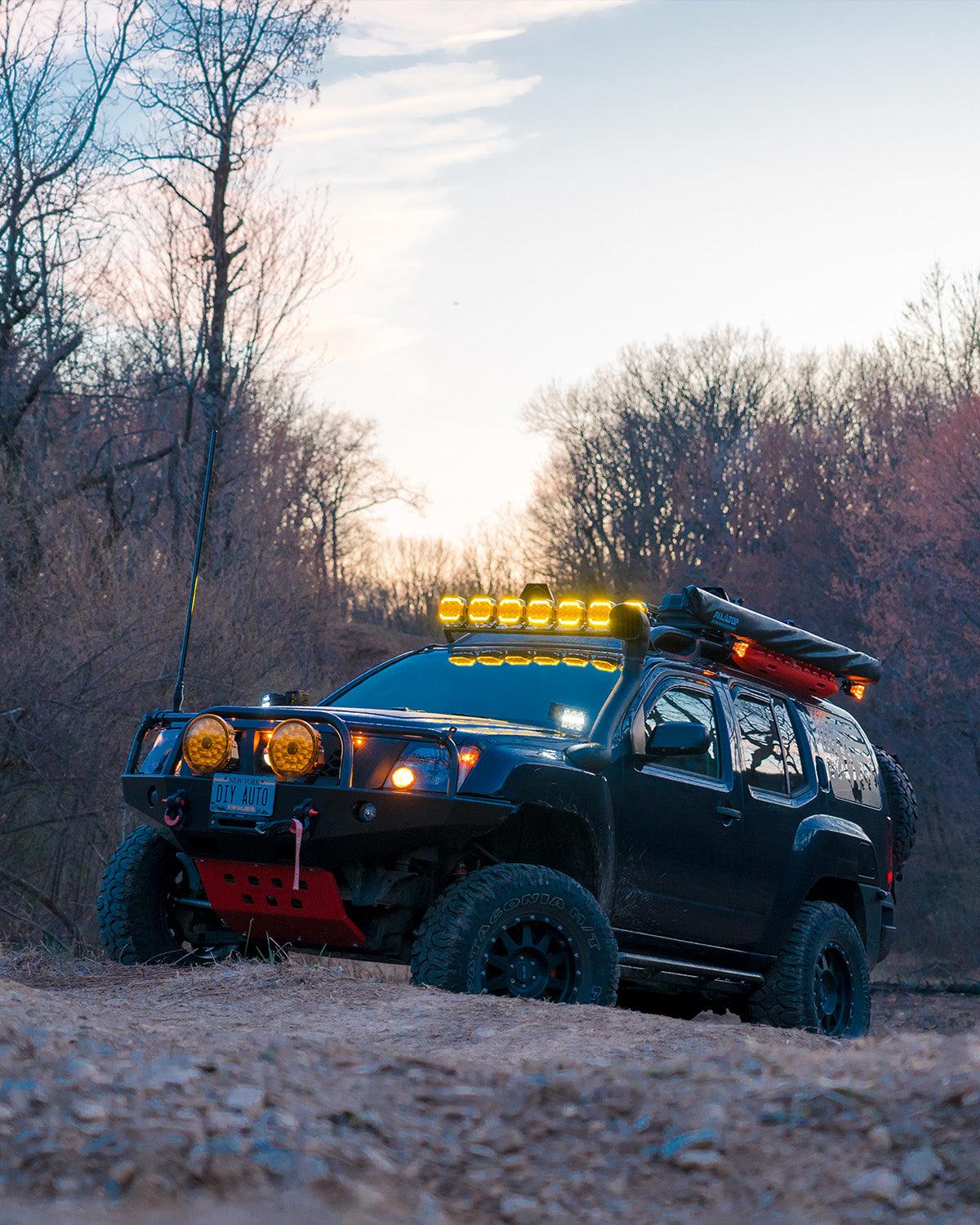

Wide Application: The led driving light fits for almost all Off Road Vehicles, ATVs, UTVs, SUVs, Construction Vehicles, Farm Vehicles, Trucks, Motorcycles, Buses, Pick-ups, marine, Boat, etc..

5 Types of Lighting Effects:

1. Main Light
2. DRL
3. Turn Signal Light
4. Main Light + DRL
5.Main Light + Turn Signal Light

Specification:

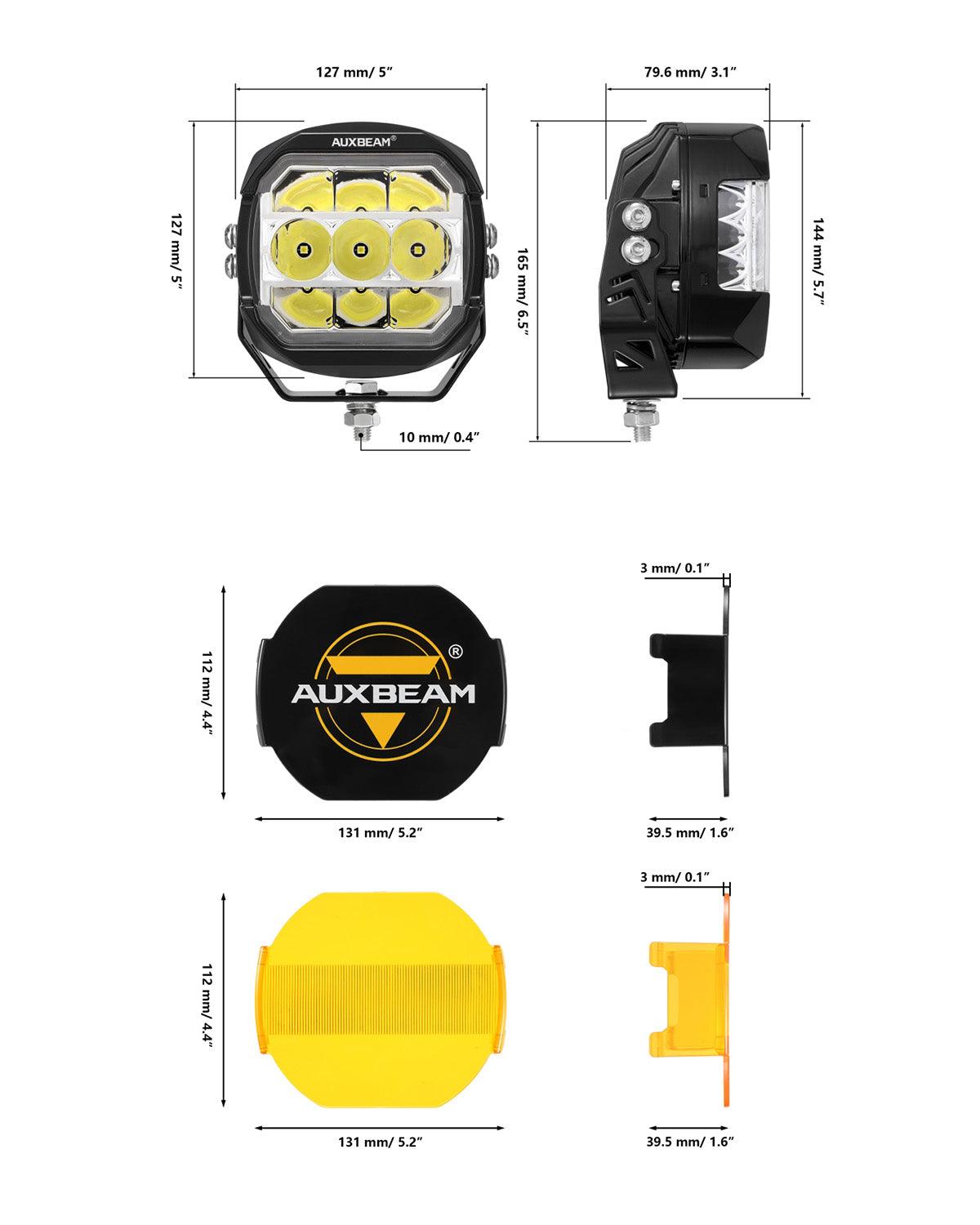

Size: 5 Inch
Quantity: 2PCS
Power/Set: 174W(Spotlights 75W+White DRL 6W+Amber Light 6W)*2
Total Lumens: 20400LM(18000LM+DRL 1200LM+Turn 1200LM)
Color Temperature: 6500K/3000K Lights+6500K White DRL+3000K Amber Turn Light
Lamp Beads Model: P8+3030 SMD(White&Amber)

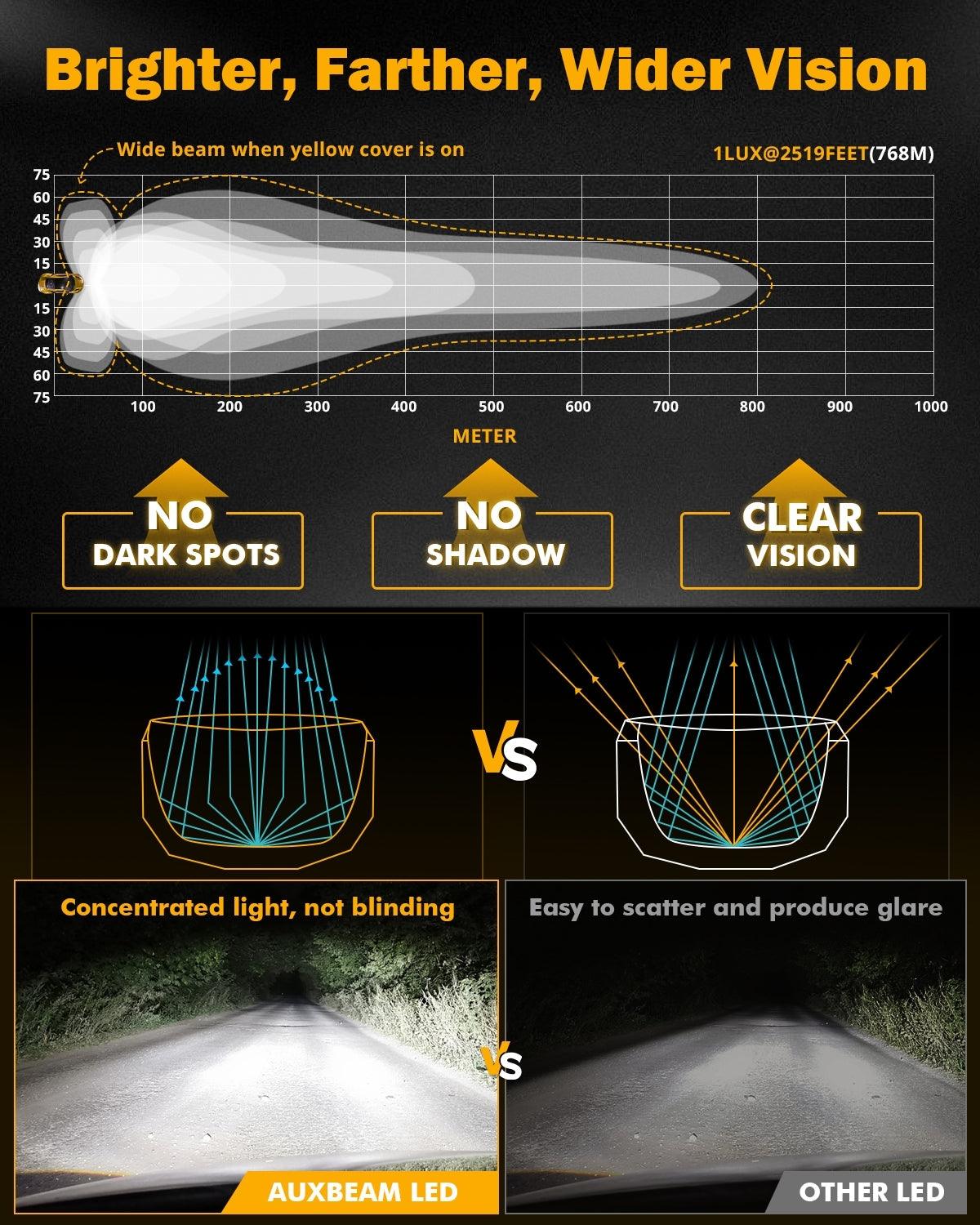

Lighting Distance: 768M
Beam Pattern: White Spot/Amber Combo
Light Color: White&Amber
Housing Material: Aluminum alloy
Lens Material: PC
Life Time: 50000+ hours
Housing Color: Bright Black
Waterproof Rate: IP68
Fit Model: Universal most SUV Pickup UTV/ATV Motorcycles or else
Working Voltage: 10V-30V(Wiring harness Relay is 12V Only，can be replaced with 24V)

Packing Included:

2 x LED Driving Pod Light（With 4 Pin DT Male Plug）
2 x 4 Pin DT Female Plug to 2 Pin DT Male Plug Adapter with White&Amber Light Cords

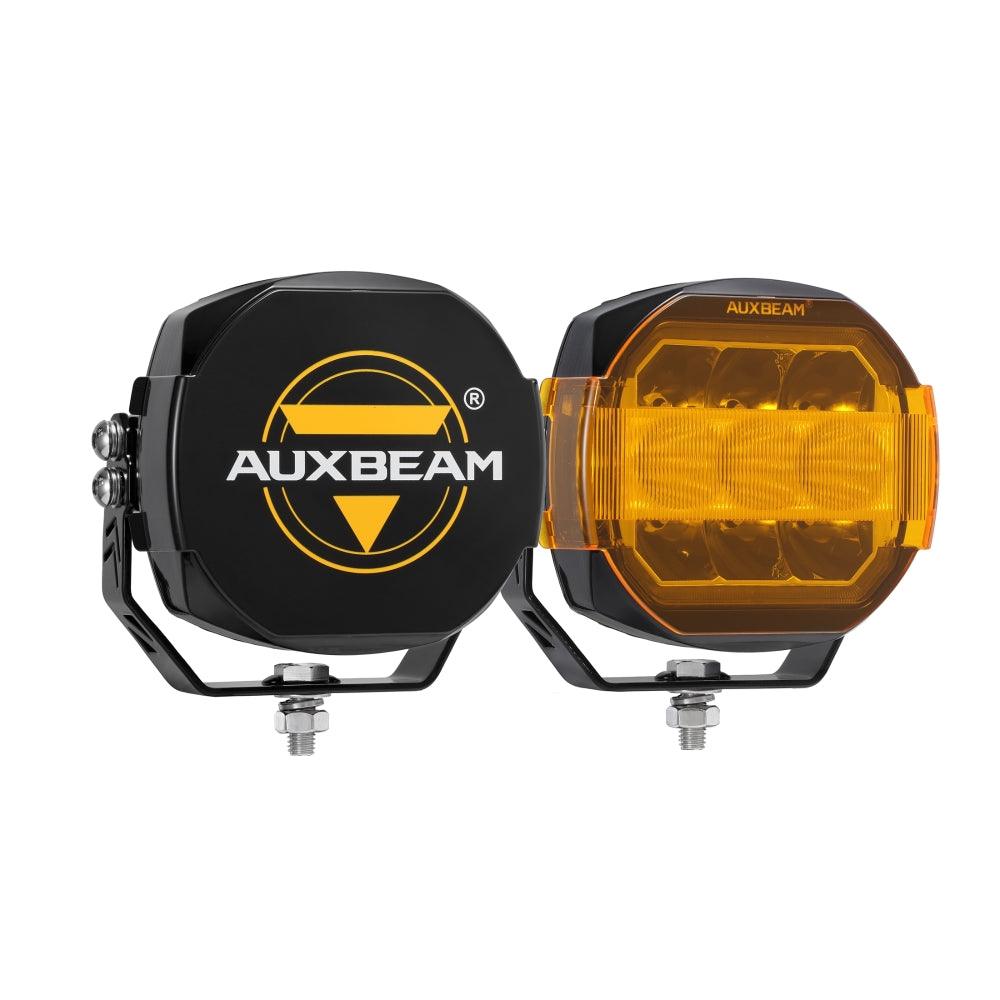

2 x Amber Light Cover
2 x Black Cover

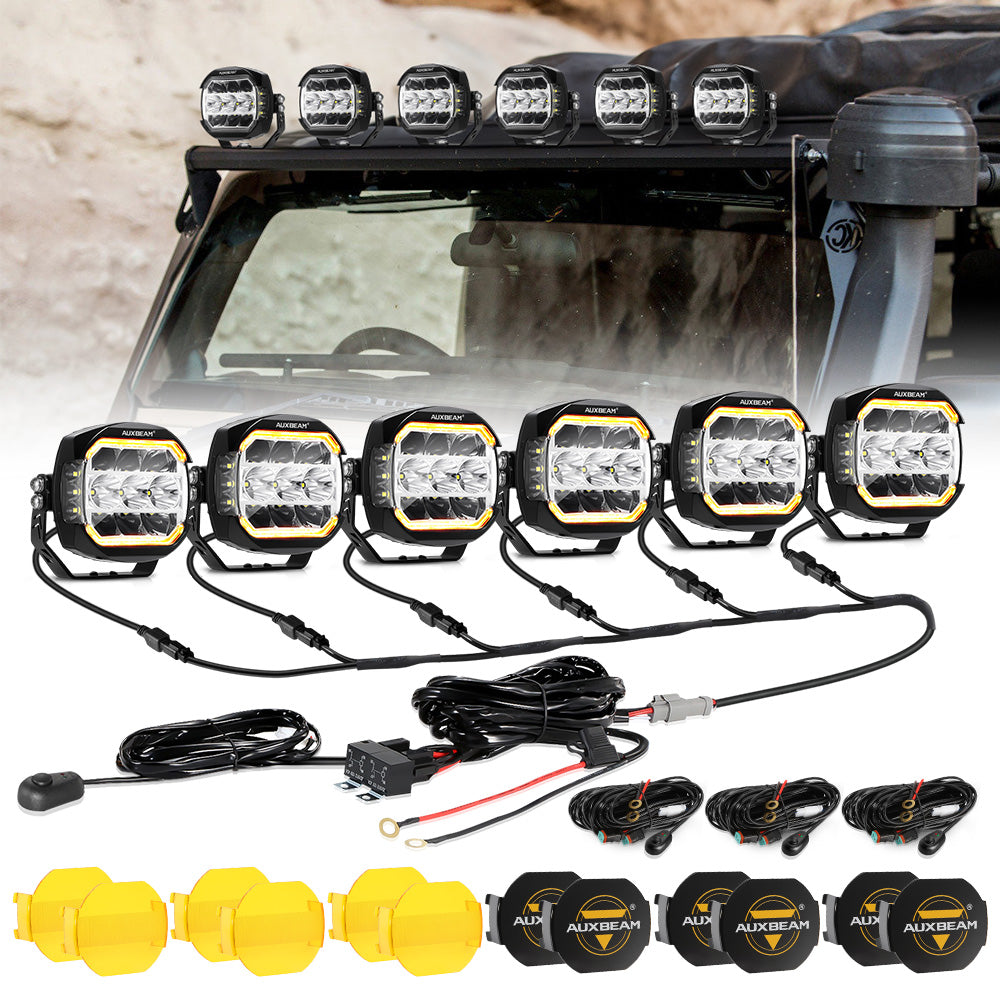

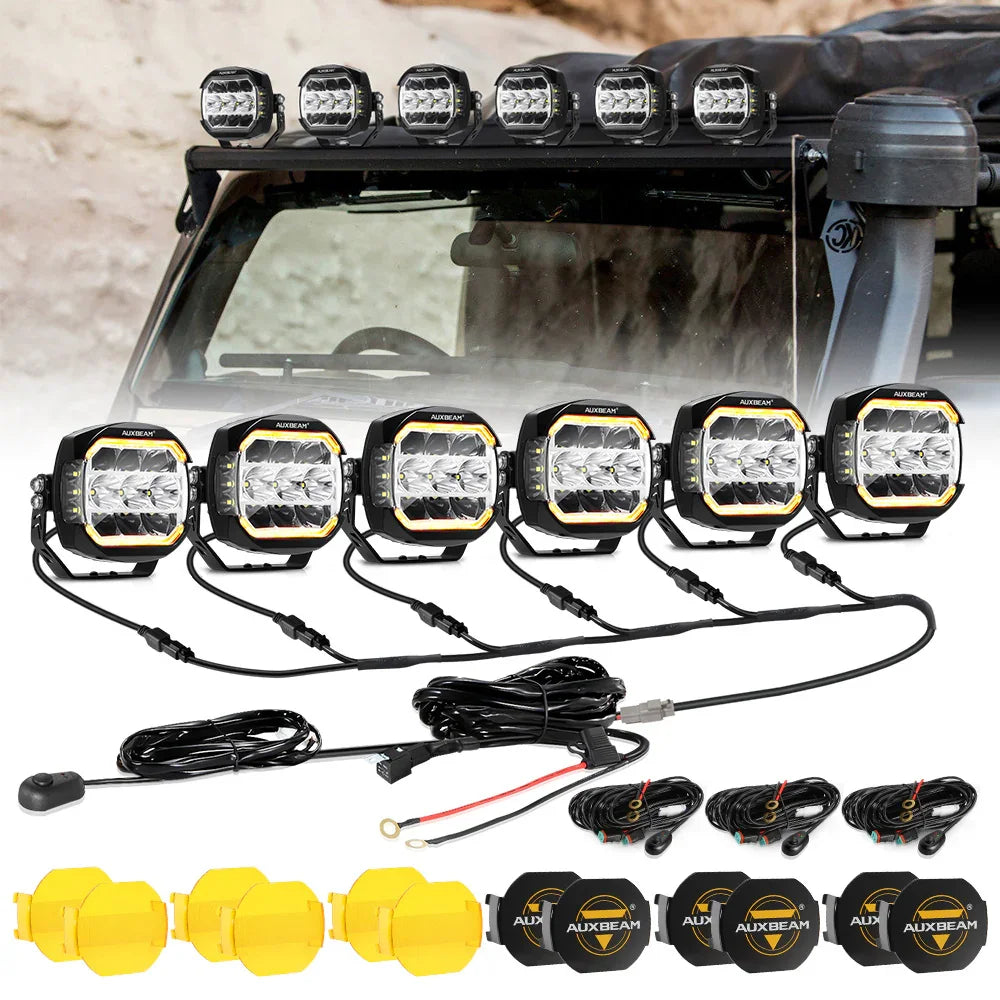

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

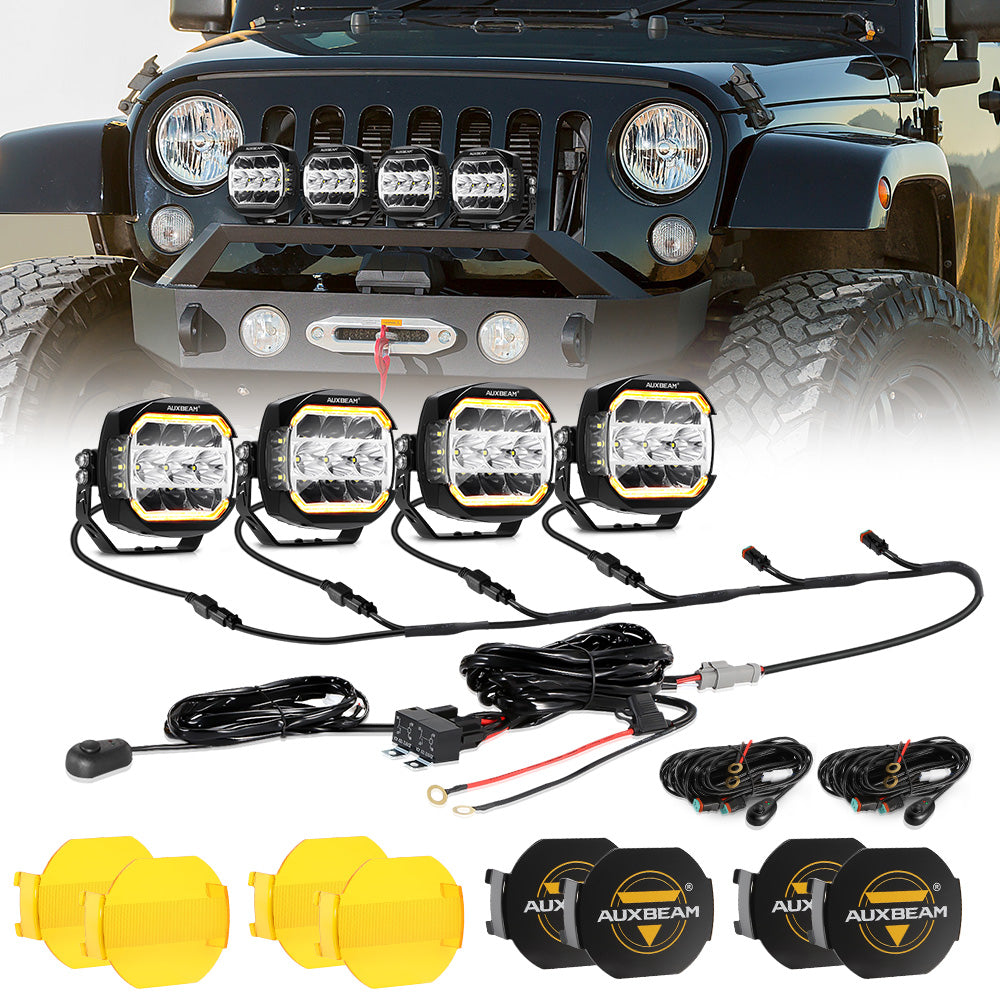

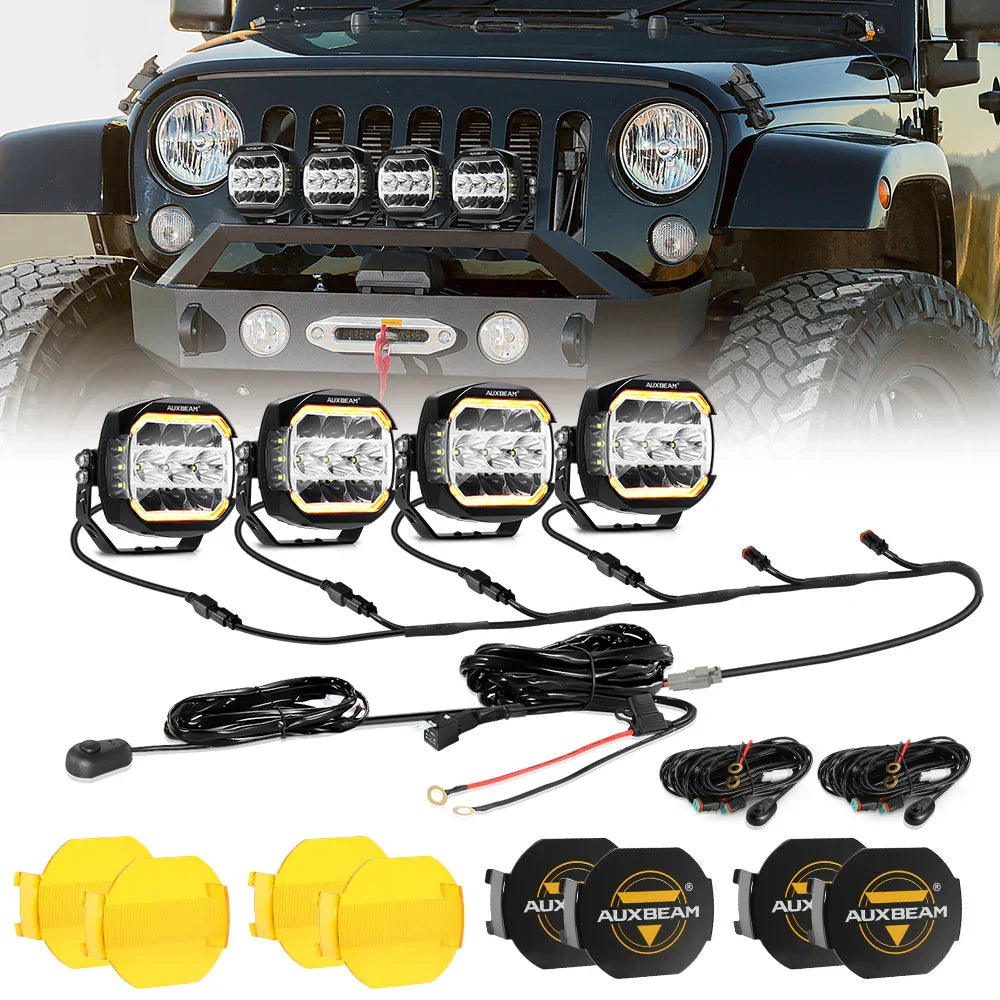

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

3-Pod Lights (A maximum of three pod lights can be installed):
ZD000675/ZD000858

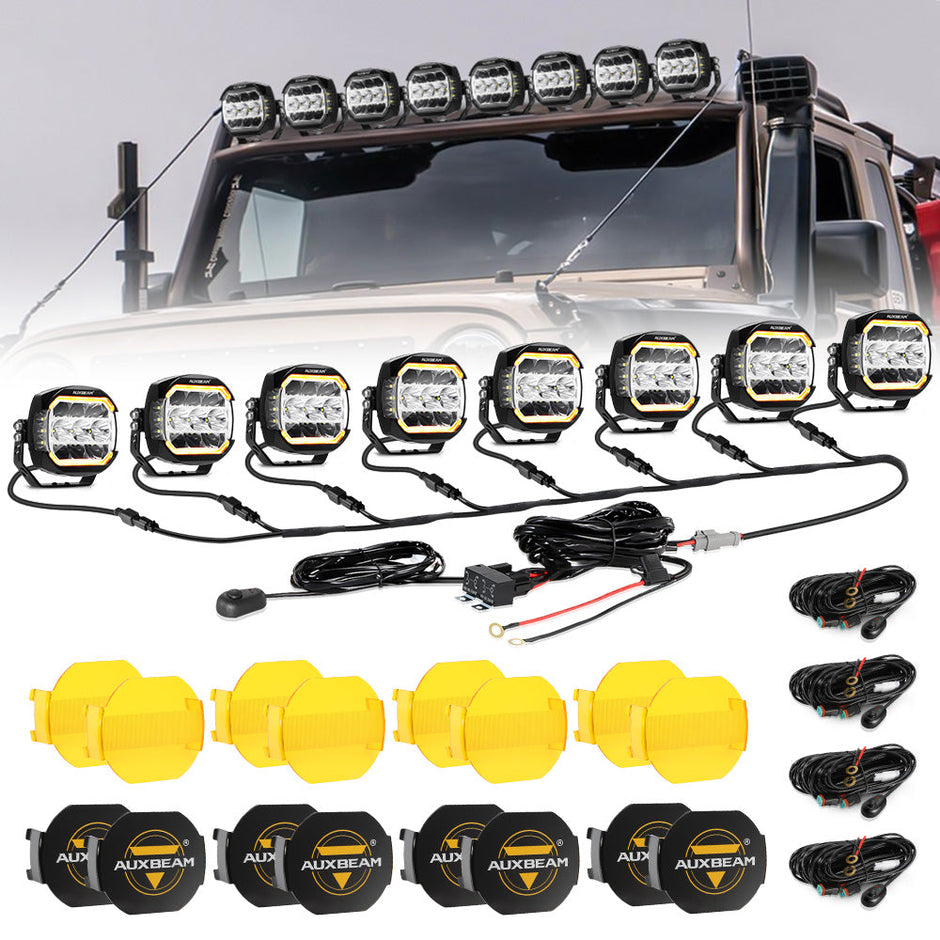

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

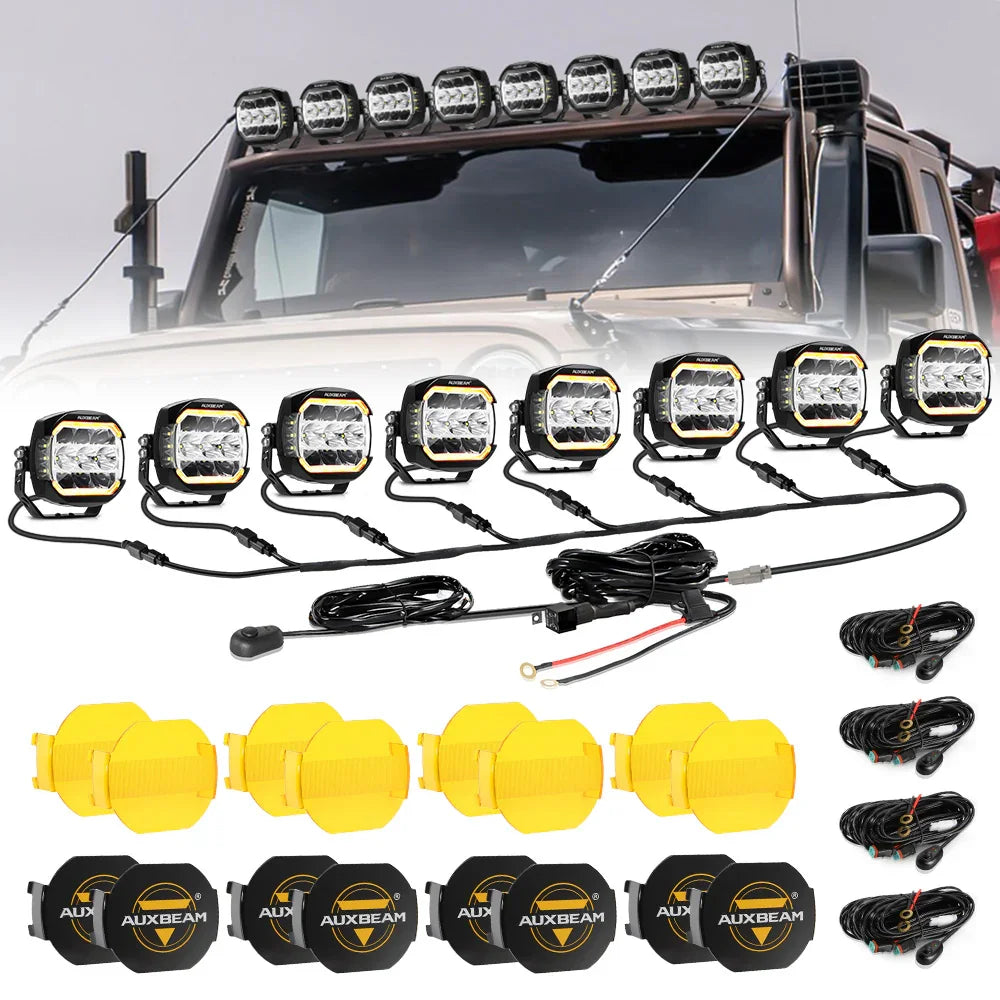

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

6-Pod Lights (A maximum of six pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000675/ZD000858

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 6 in 1 2PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire and a DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
