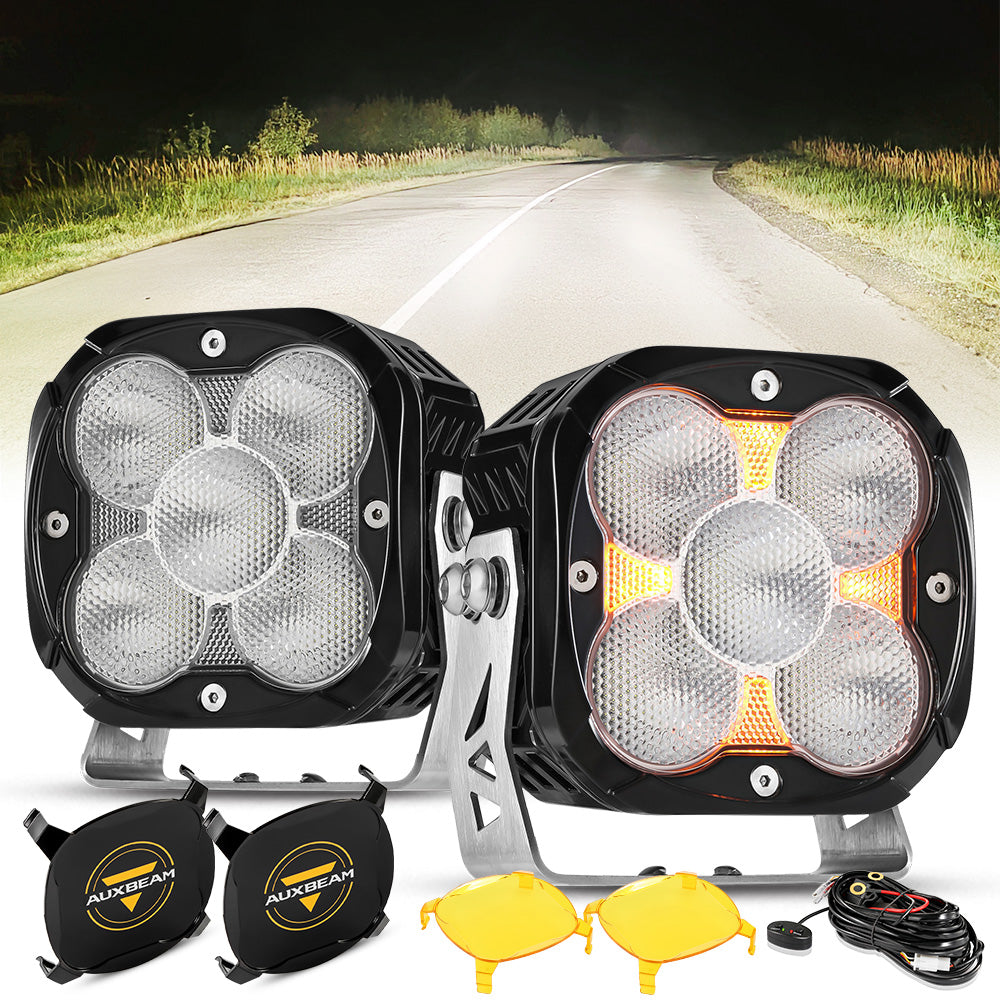

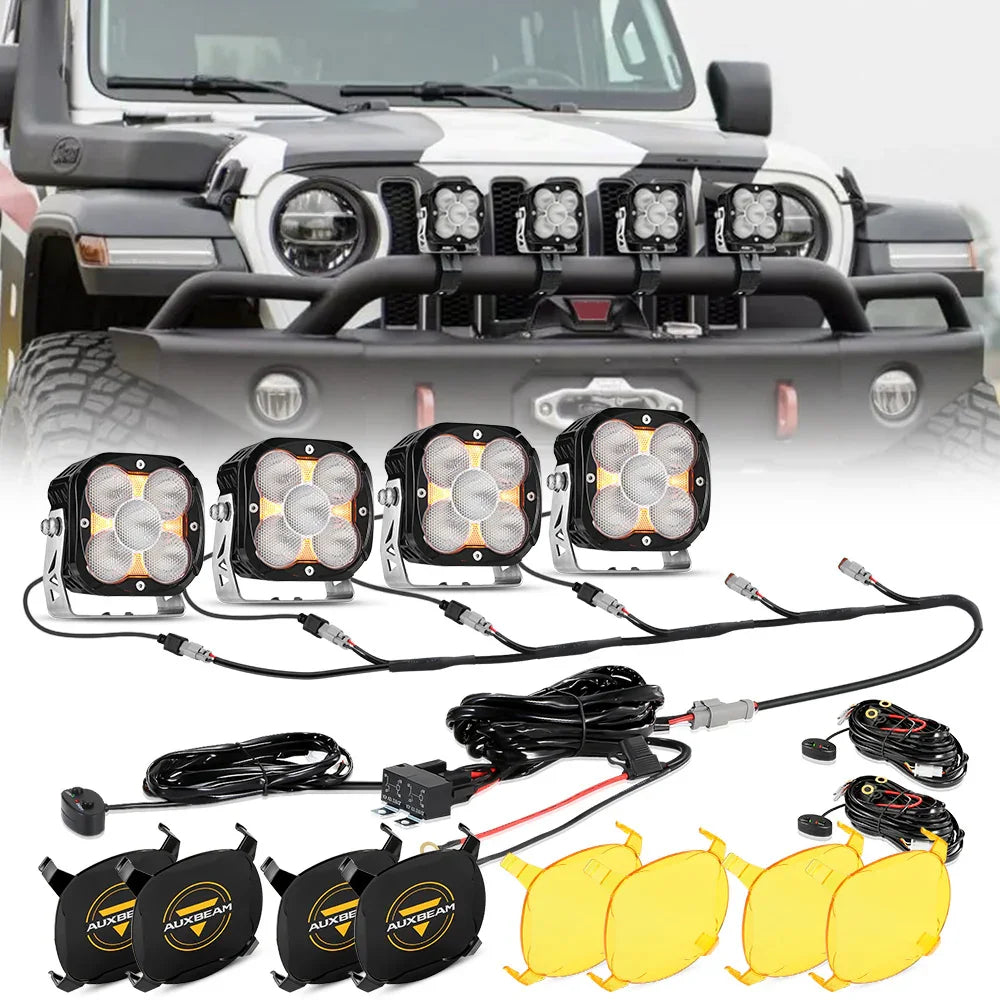

XP-ULTRA Series 4.5 Inch Flood Beam LED Pod Lights Off Road Lights with Amber DRL

Features:

TRUSTED DRIVING VISION: With a powerful 128W output, they deliver 15200 lumens and a lighting distance of 1lux@342M. The floodlight feature emits a wide, diffused beam that covers a larger area. This is perfect for low-speed driving, illuminating a broader field of vision, and enhancing peripheral visibility.
MULTI-MODEL INNOVATIVE DESIGN: In addition to white lights for daily driving, we've included amber DRL. With an Amber DRL that ensures visibility without glare during nighttime driving. We also offer yellow cover for a customizable, high-penetration color temperature, ideal for low-visibility conditions.

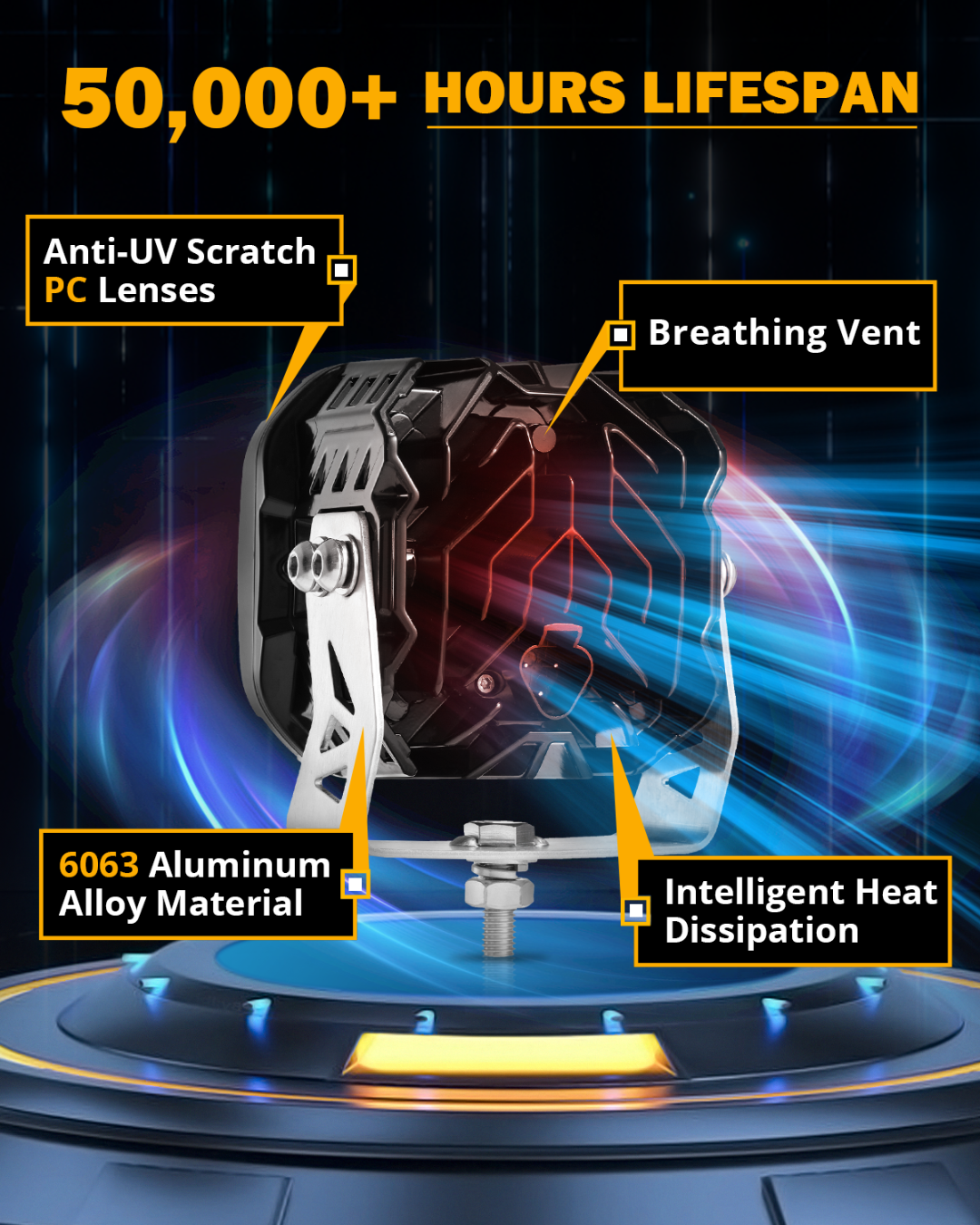

HIGH QUALITY DURABILITY: We meticulously select materials, using hardened PC lenses and aluminum alloy housings that offer anti-scratch and anti-corrosion properties, along with efficient heat dissipation. Additionally, our strips undergo rigorous testing before leaving the factory, are triple waterproof, meet international IP68 certification standards, and boast a service life of over 50,000 hours.

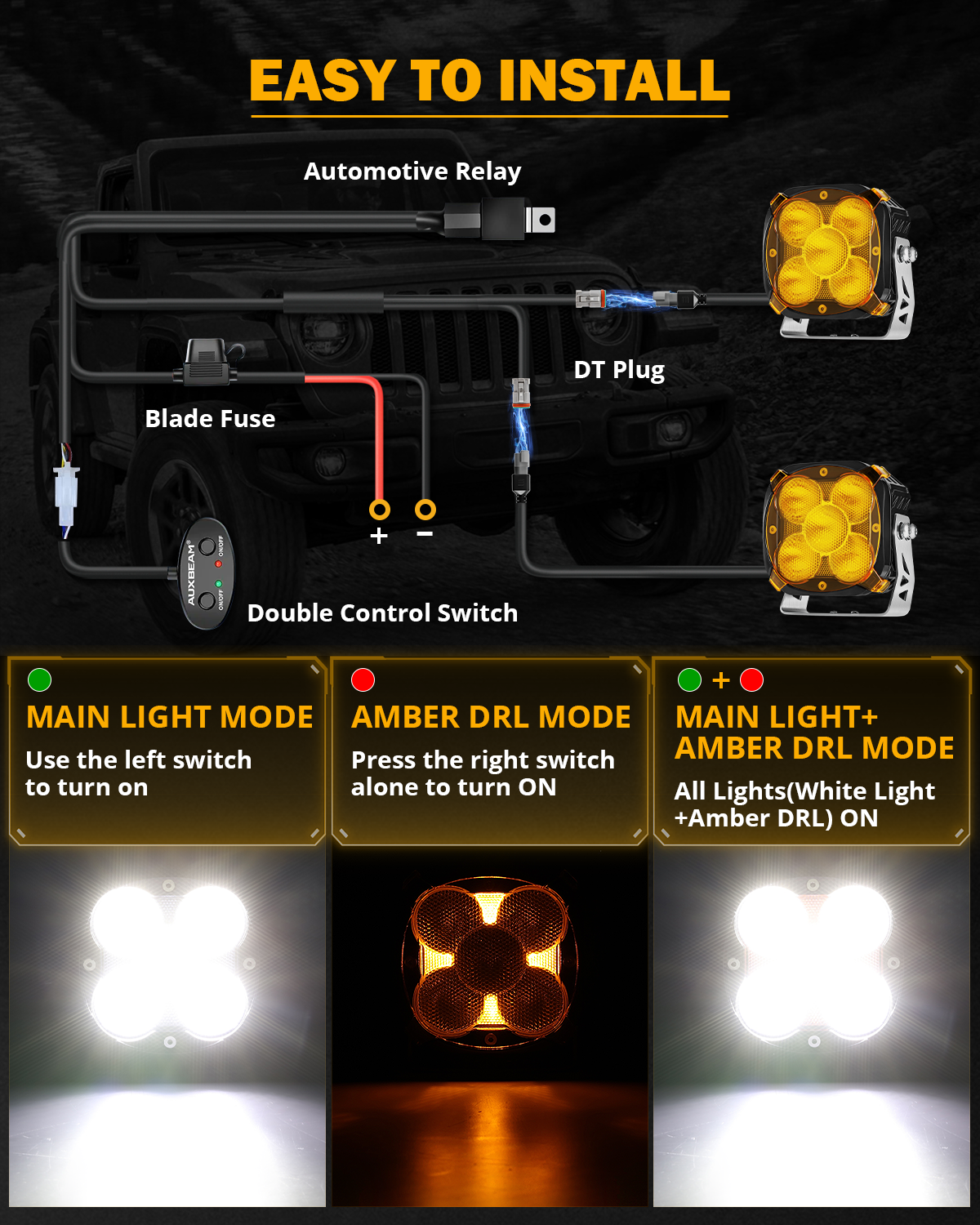

EASY TO INSTALLATION: Enjoy a hassle-free, plug-and-play installation. Say goodbye to tedious installation processes!

Specification

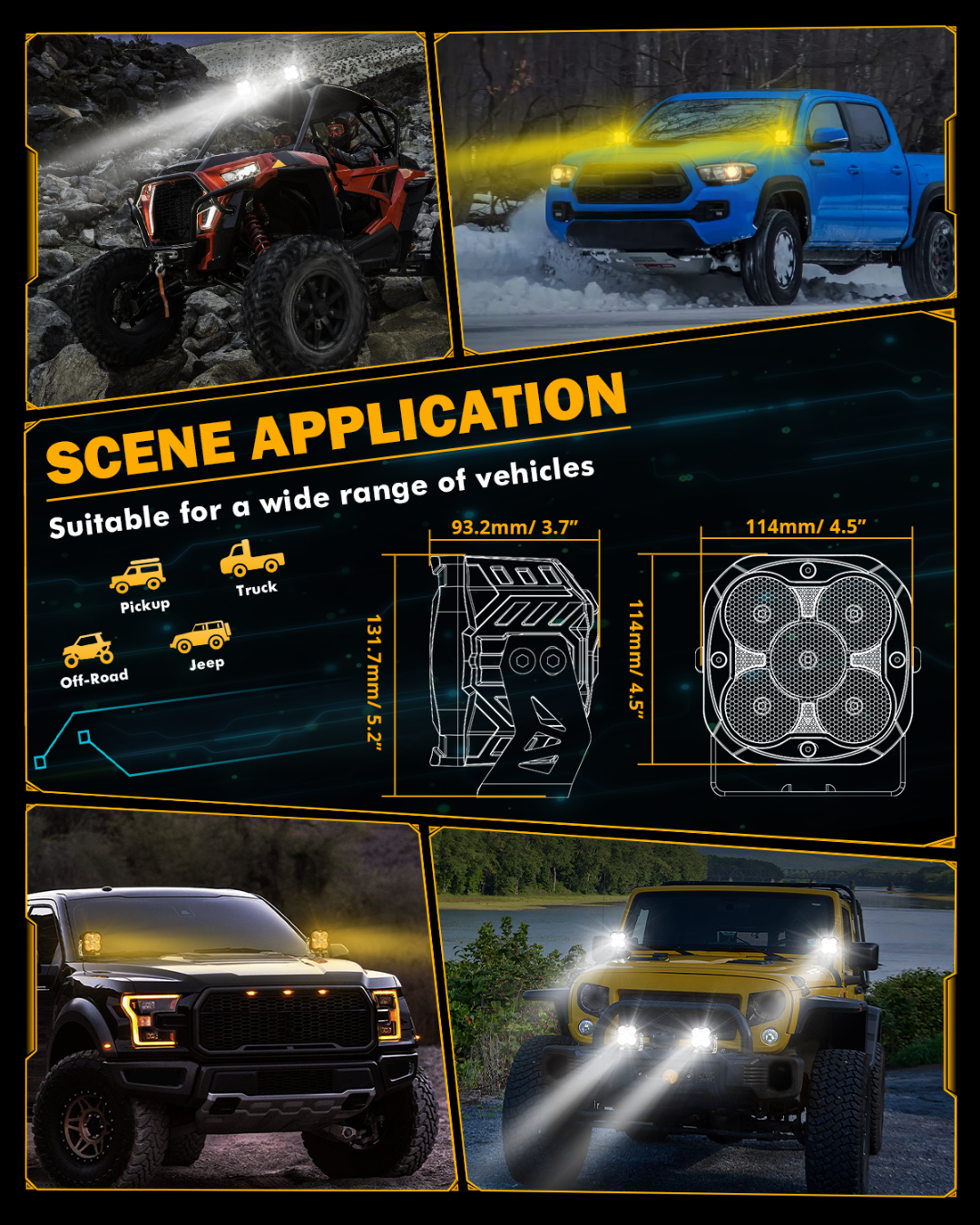

Size: 4.5 Inch
Power/Set: [64W*2(Spotlights 60W+Amber DRL 4W)]=128W
Total Lumens: 15200LM（14400LM+Amber DRL 800LM）
Housing Material: Aluminum Alloy
Lens Material: PC
Lamp Beads Model(Each): Luminus SST40*5(12W/pcs)+2835 SMD 4W

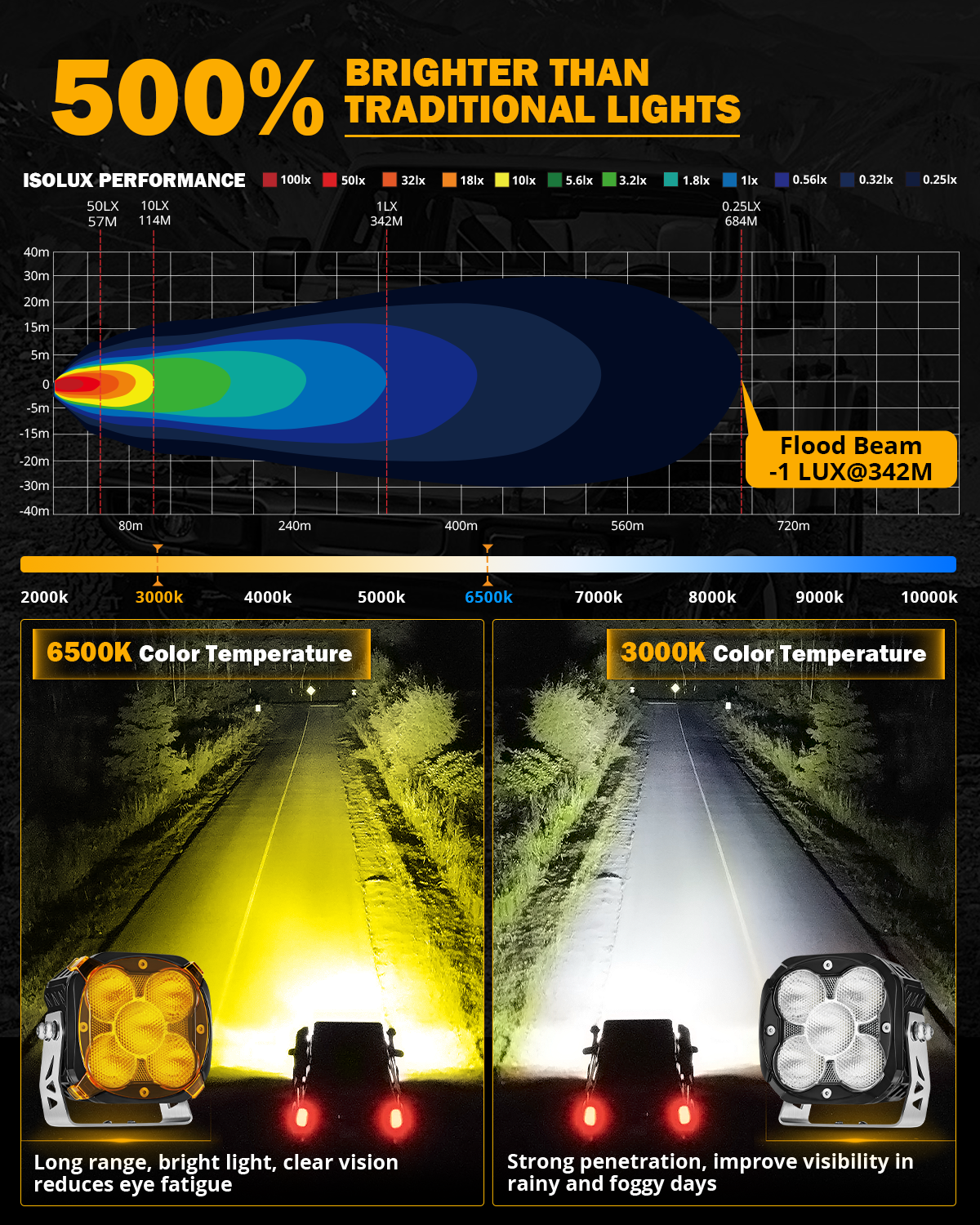

Lighting Distance:1 LUX@342M
Beam Pattern: Hyper Flood Beam（70 Degree）
Color Temperature: 6500K/3000K Main Light+3000K Amber DRL
Light Cover：Amber
With EMC/EMI：Yes
Fit Model: Universal
Life Time: 50000+ hours
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

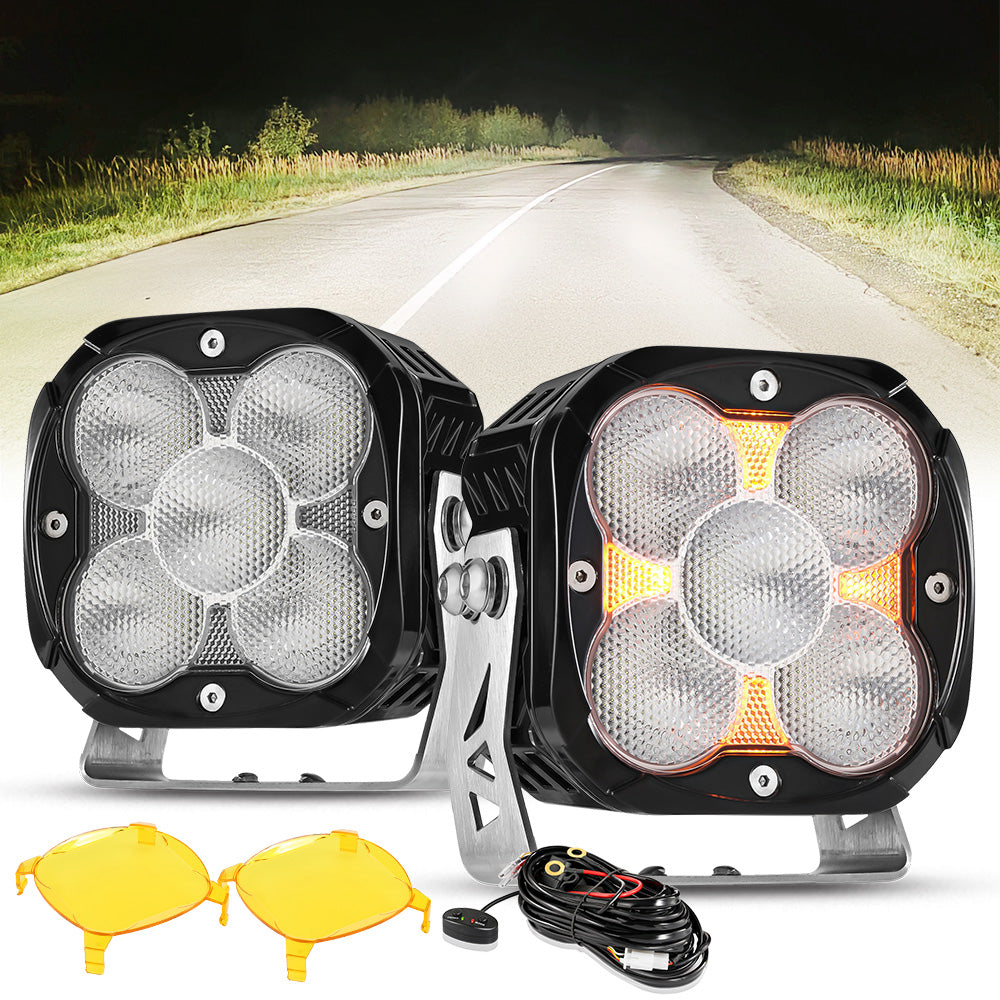

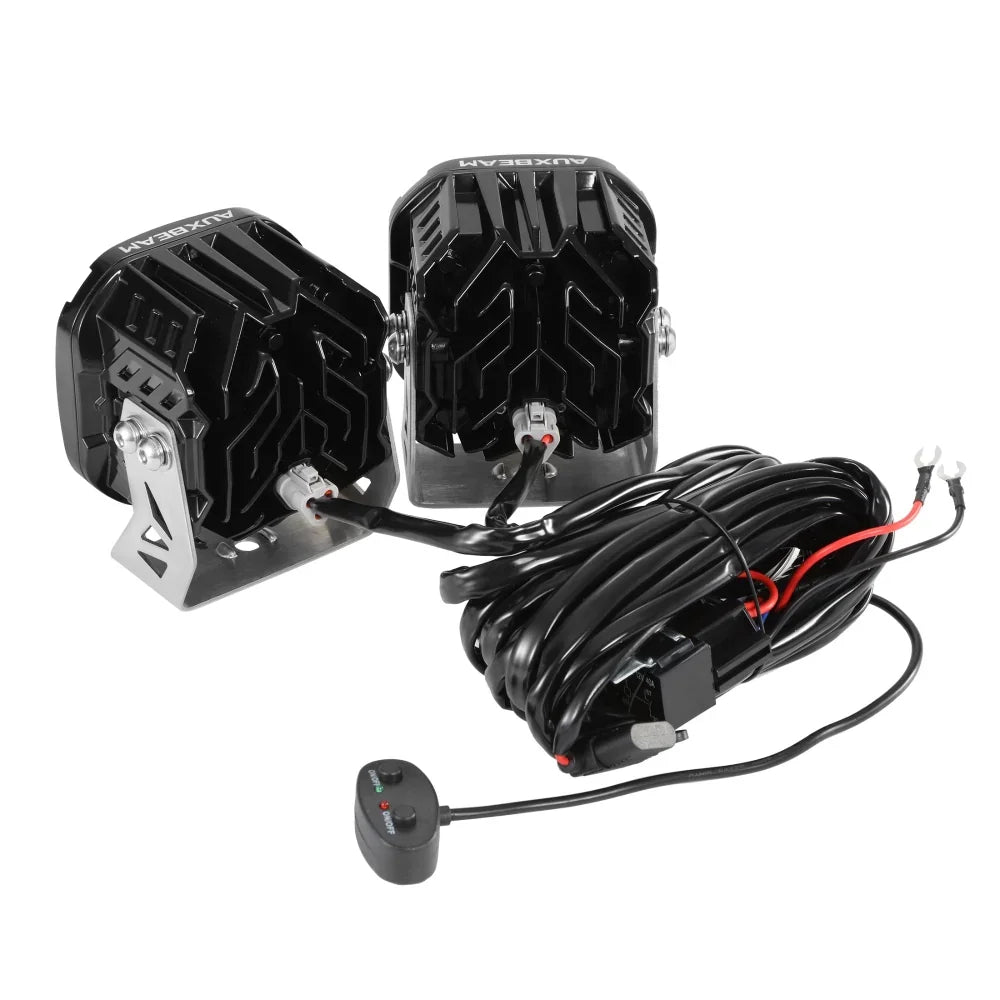

Packing Included:

2 X LED Pod Lights（With DT Plug）
2 X Light Covers（Amber）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

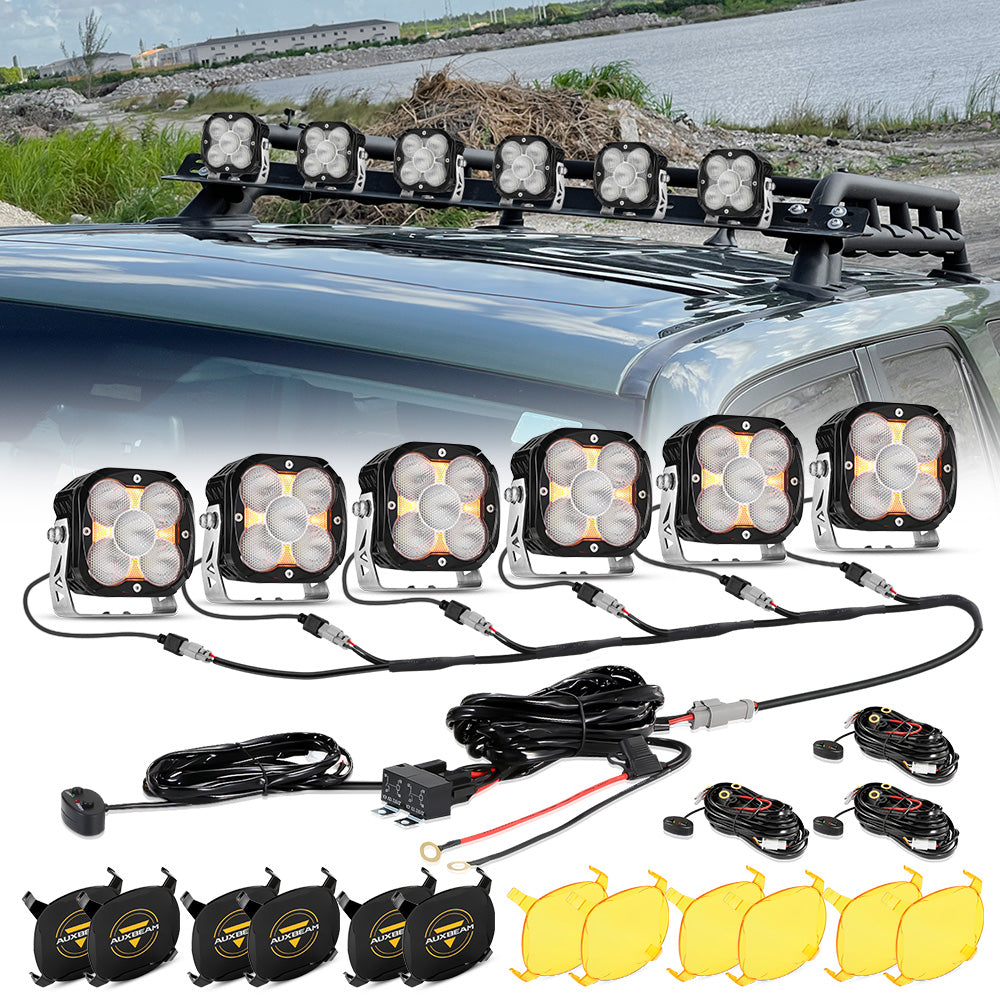

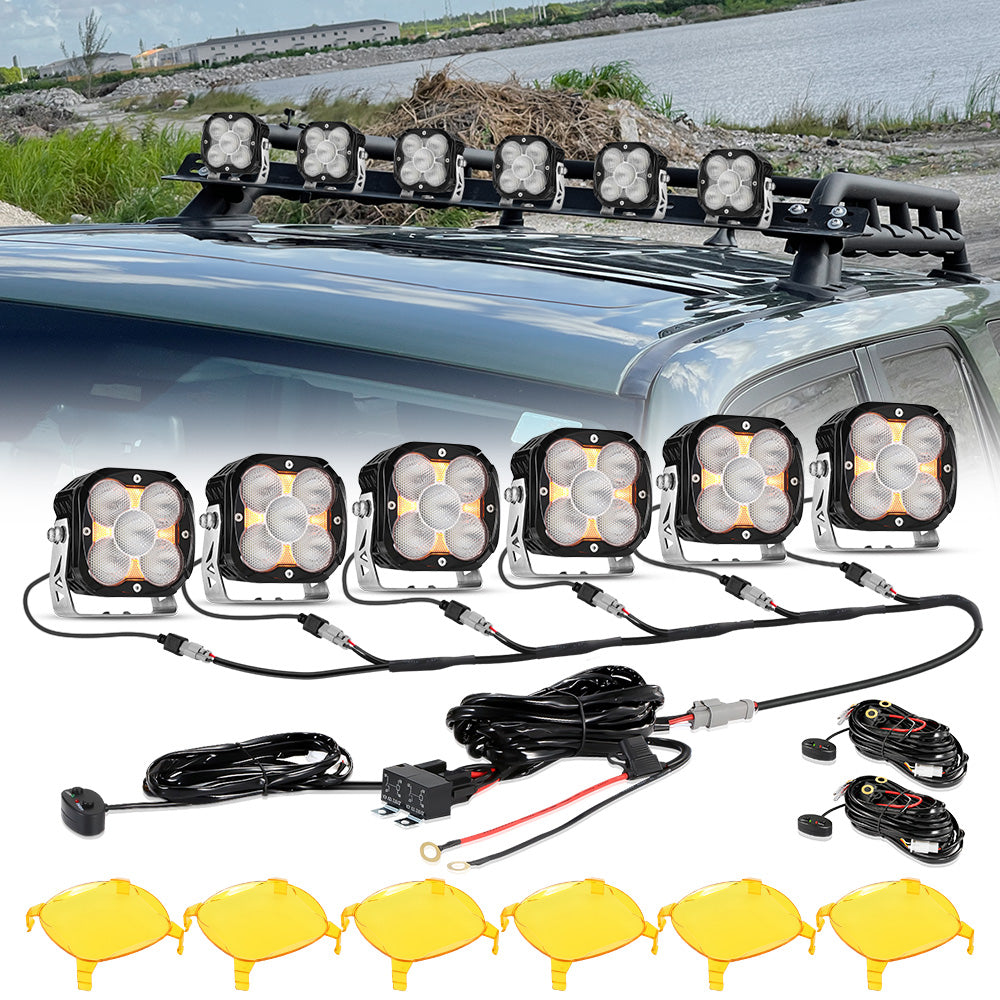

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

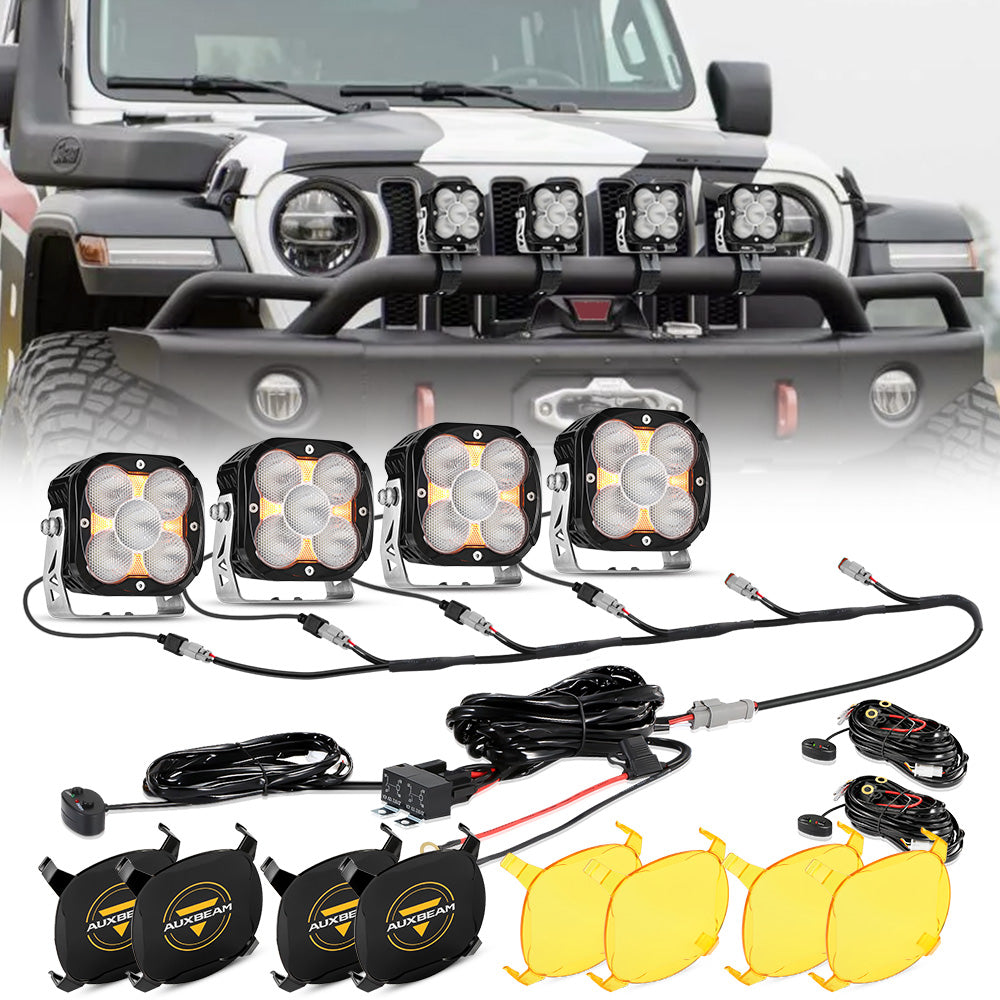

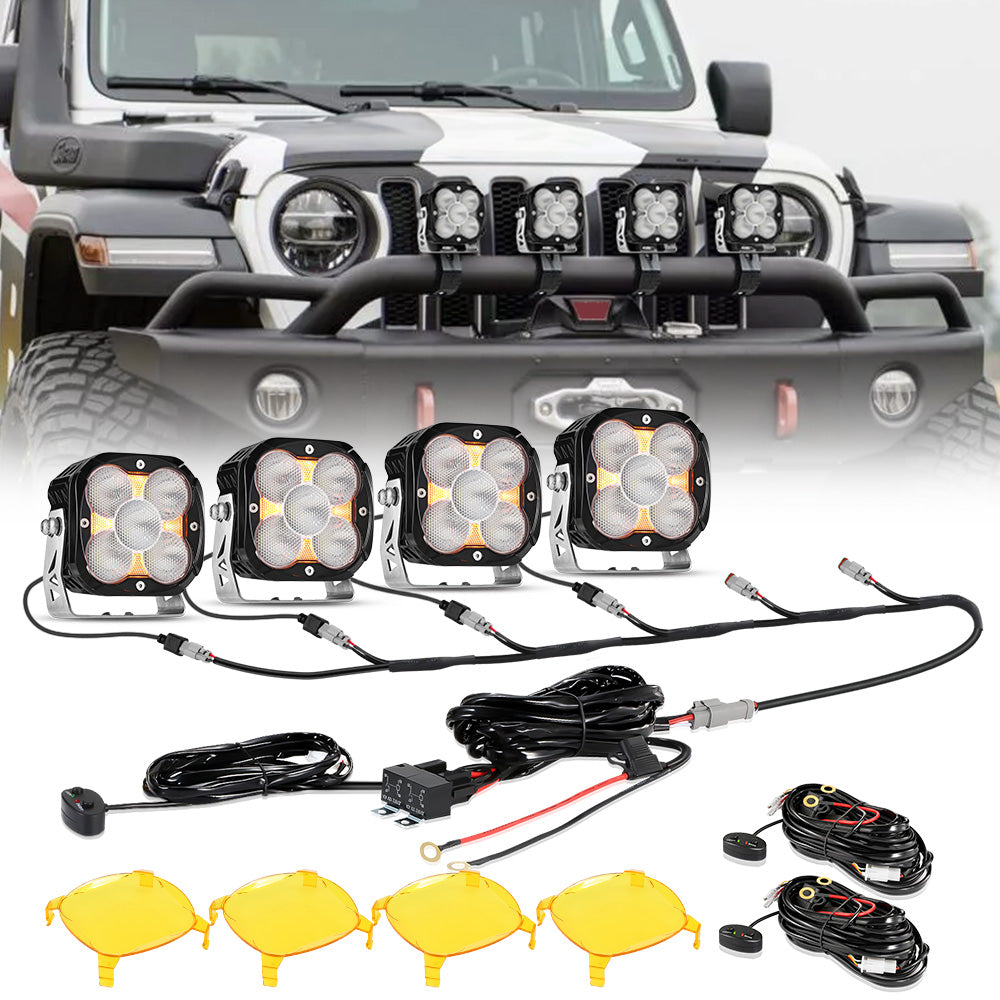

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

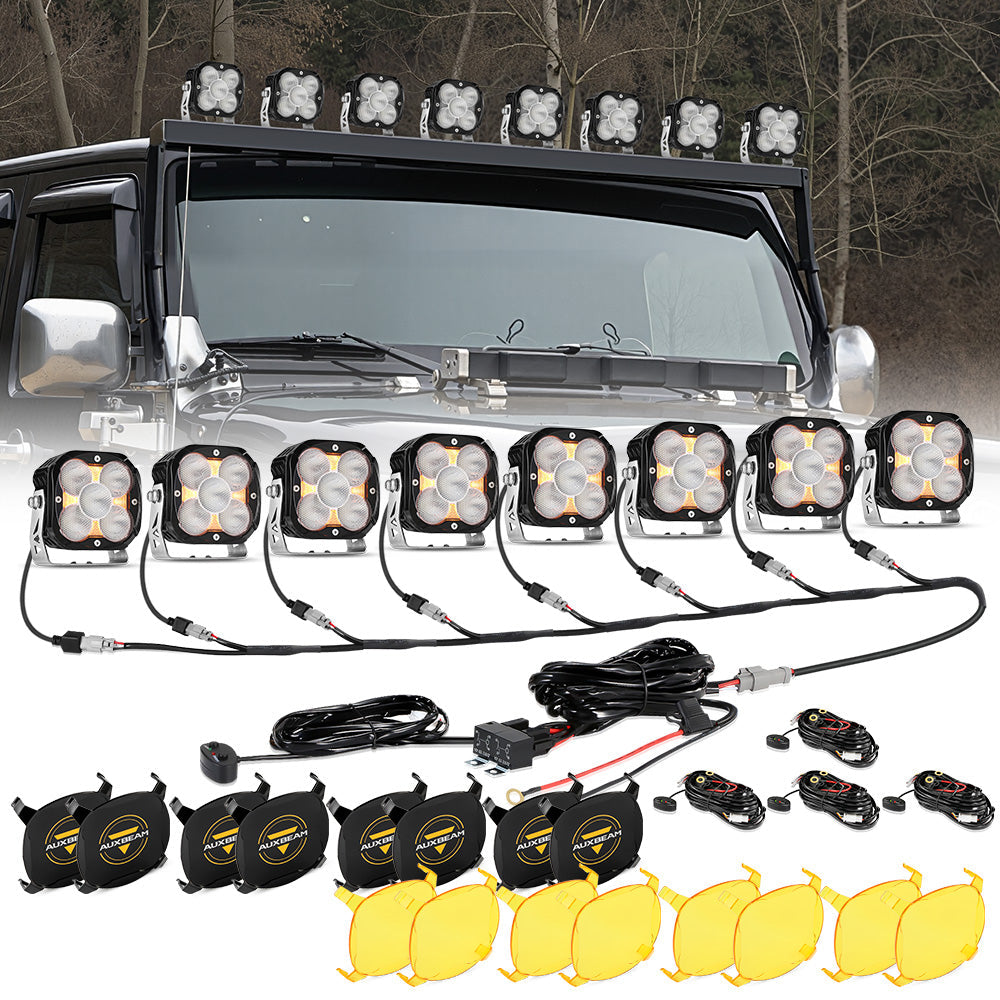

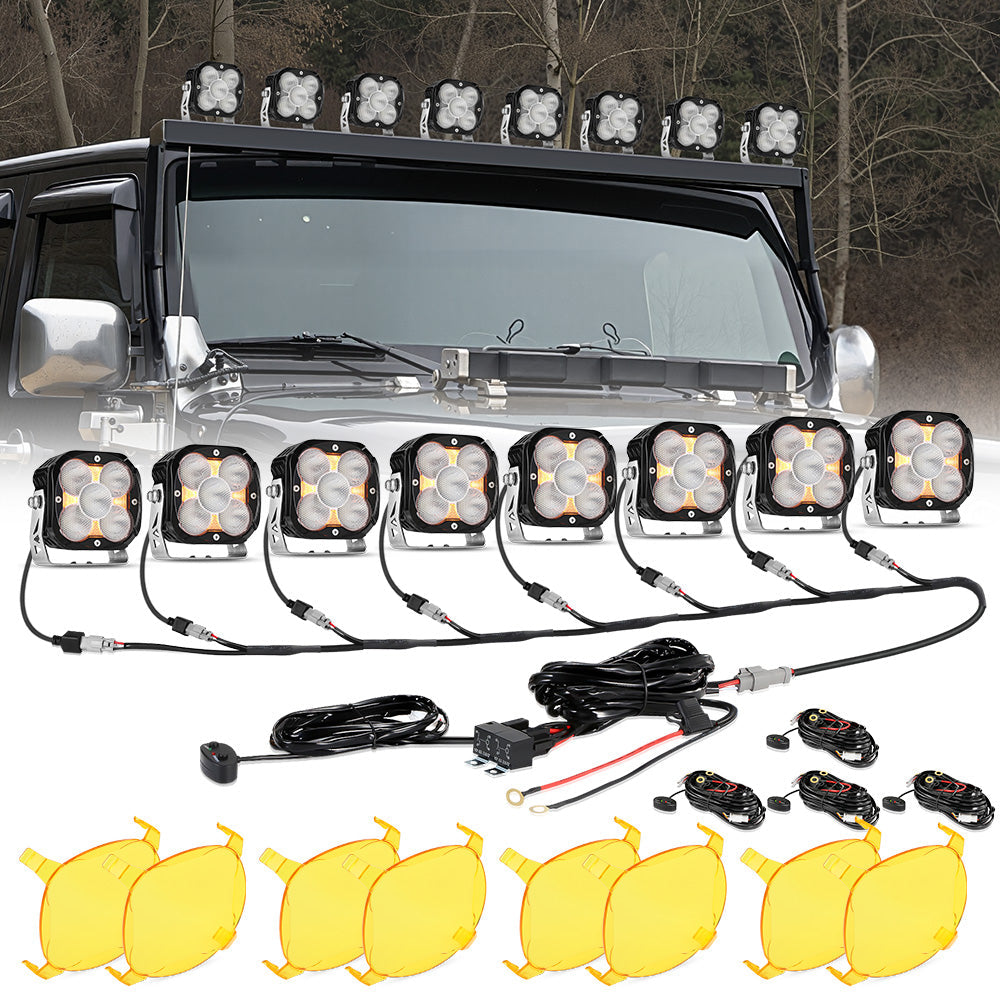

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Delay: Double 12V delay

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
