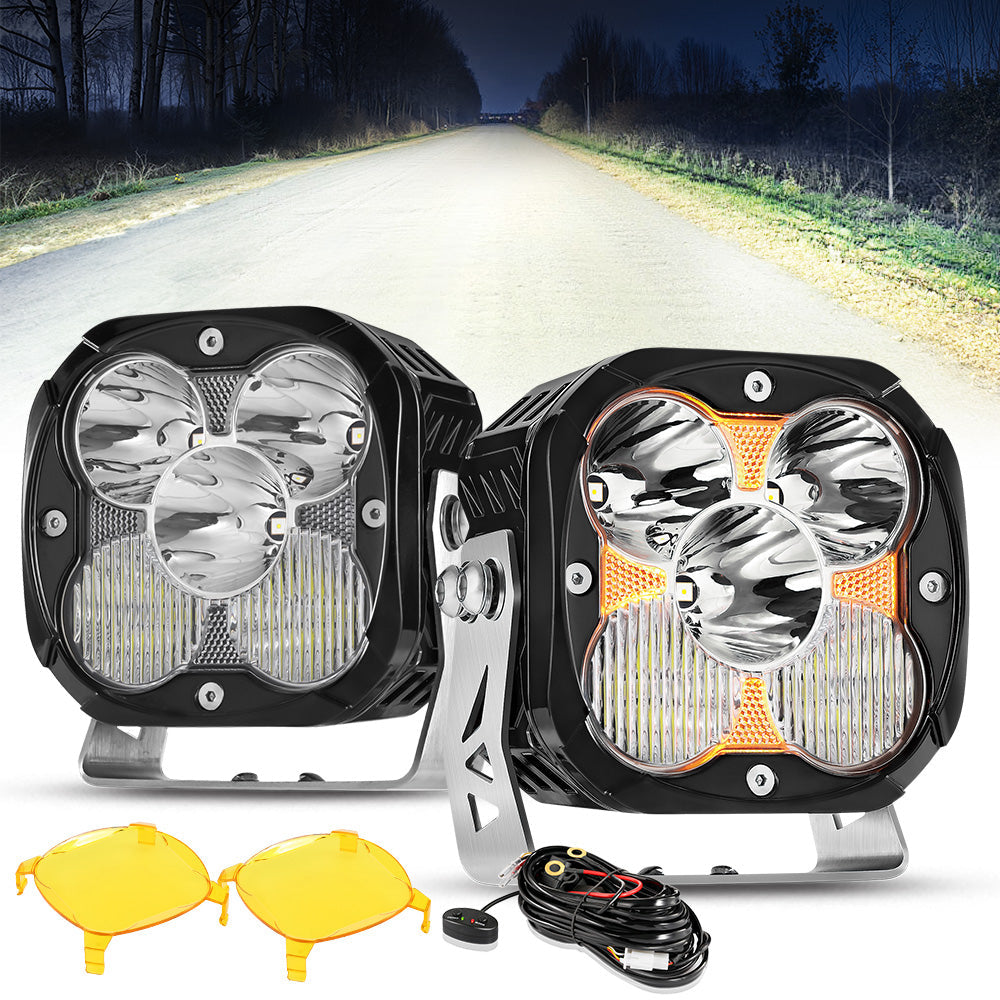

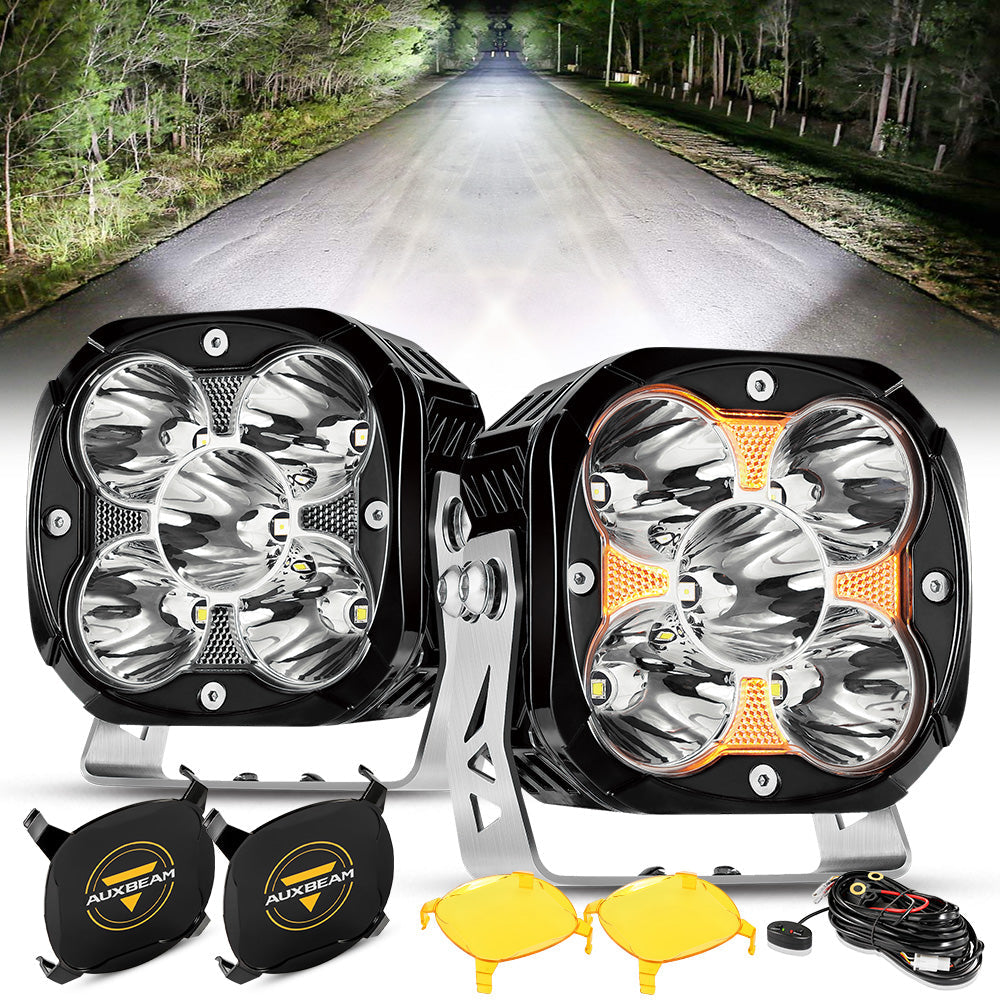

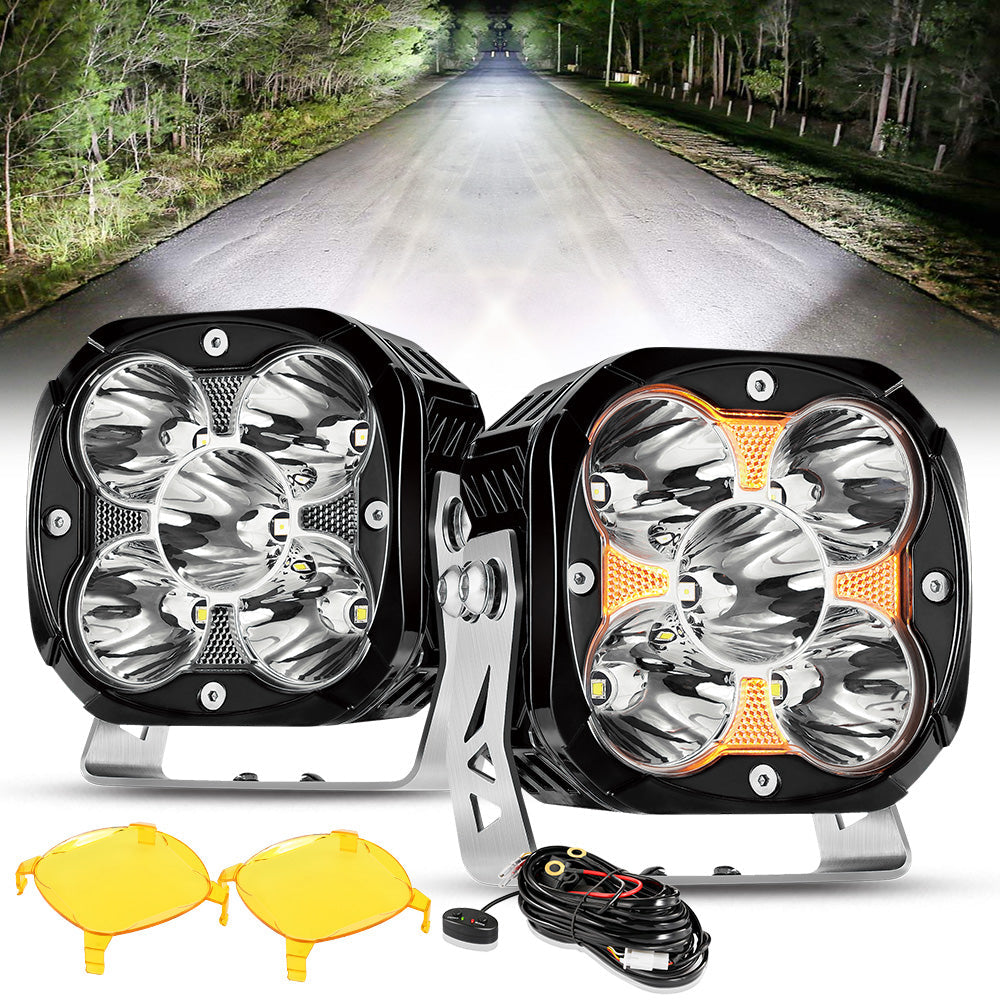

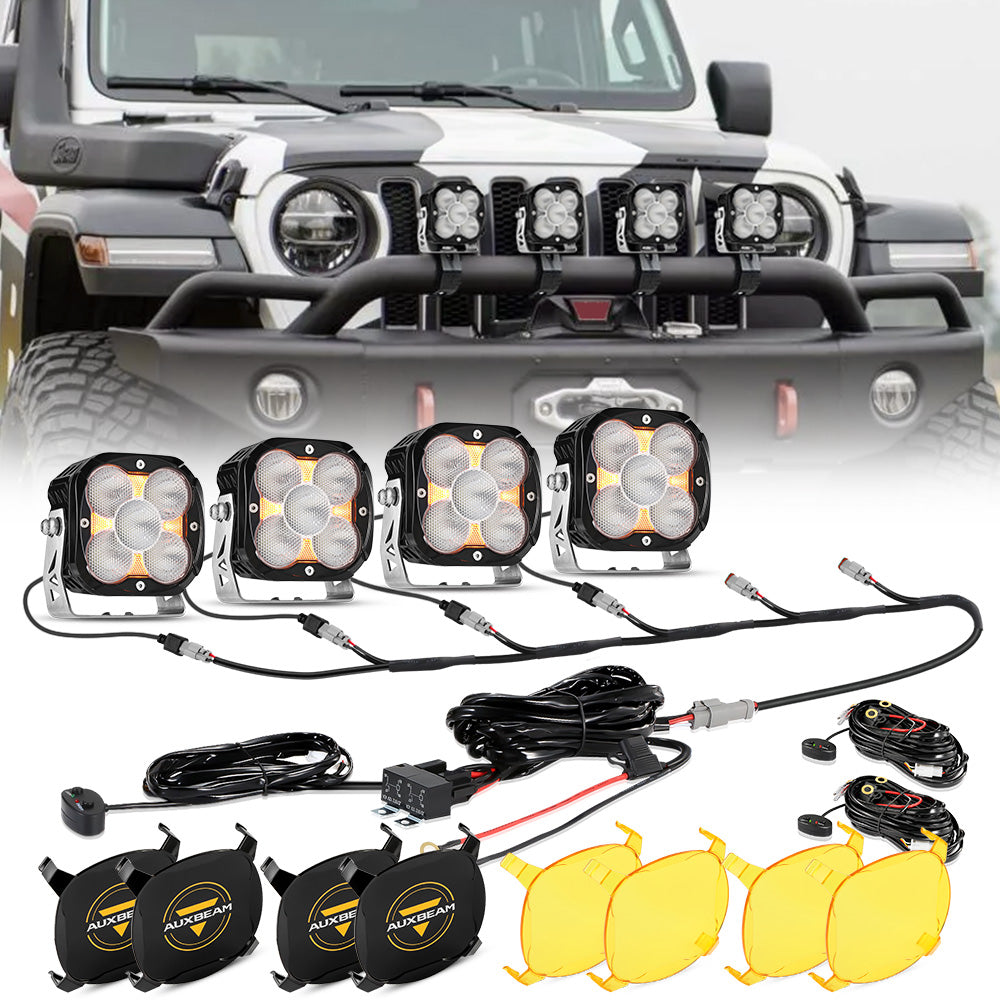

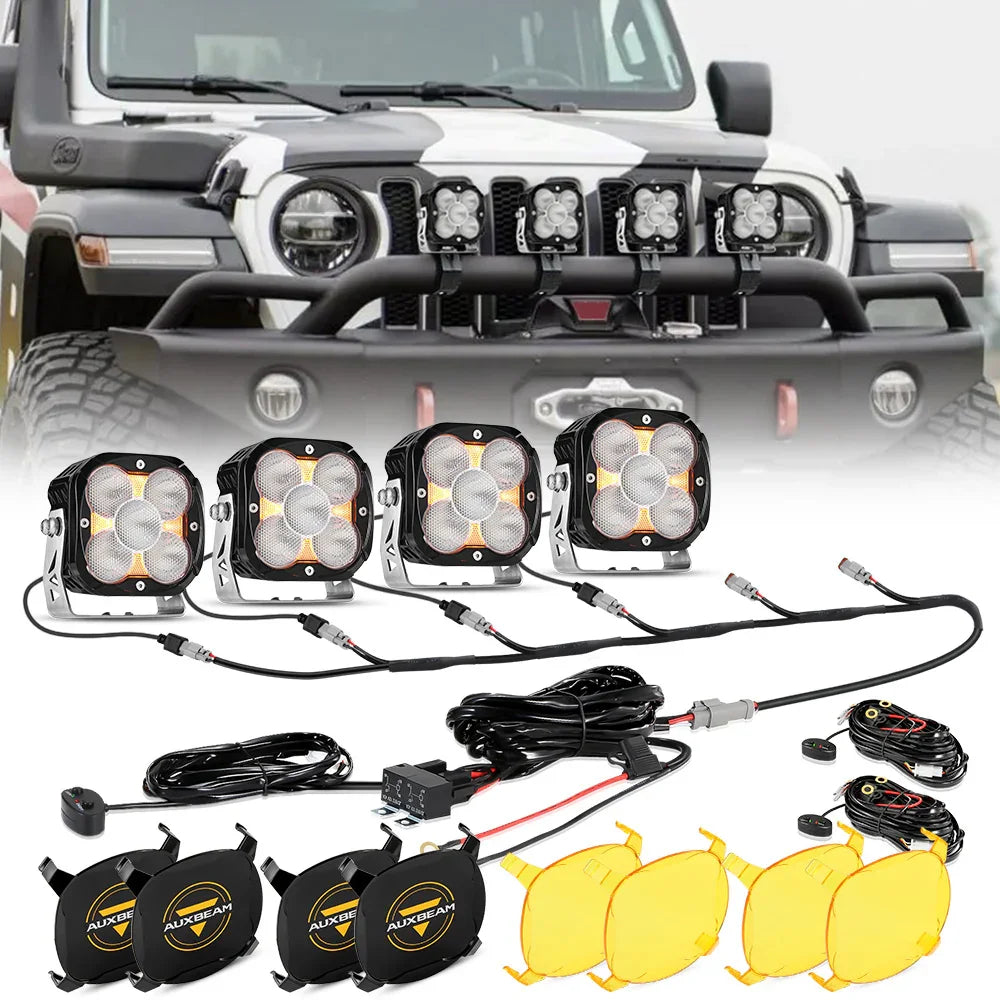

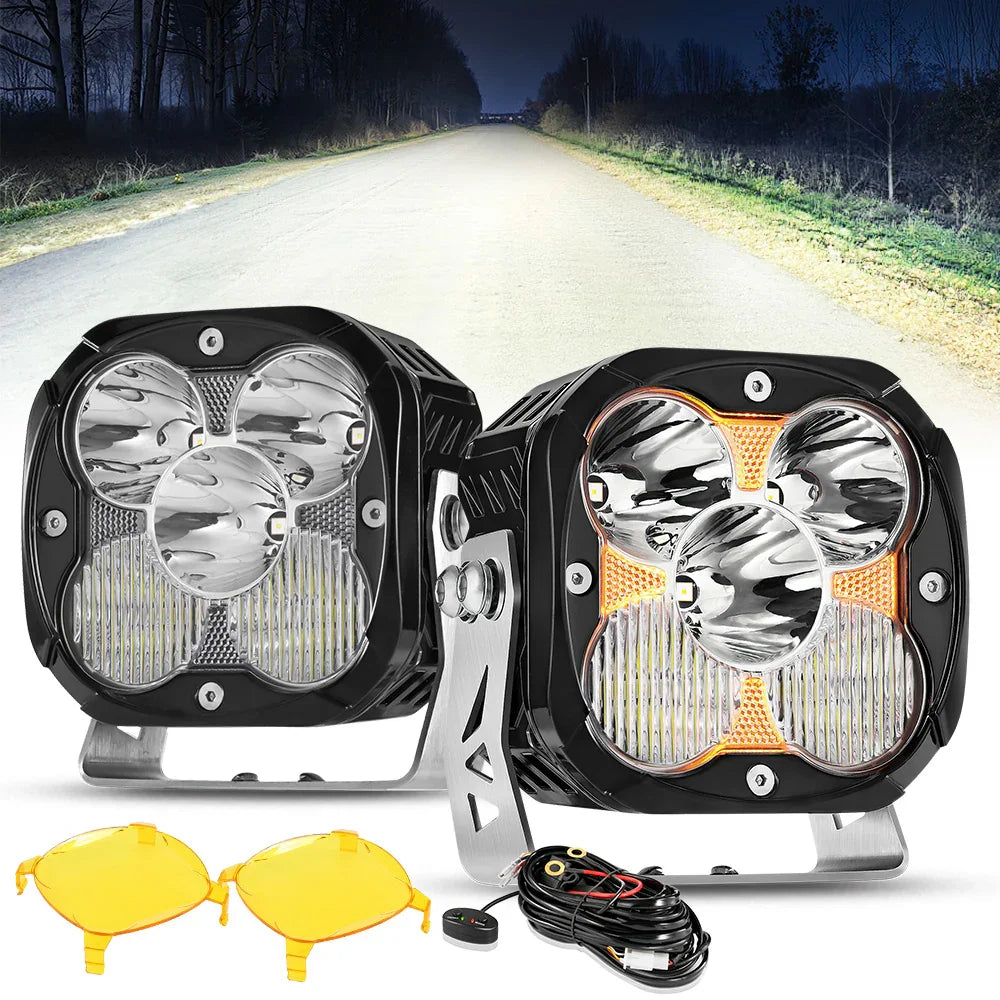

XP-ULTRA Series 4.5" LED Pod Lights with Amber DRL

▶XP-ULTRA Series 4.5 Inch Pod Lights

Features:

TRUSTED DRIVING VISION: Employ top-notch led chips. With a powerful 128W output, they deliver 15200 lumens. Features a trusted brighter long-lasting light, and a clearer, wider, and further visual area.

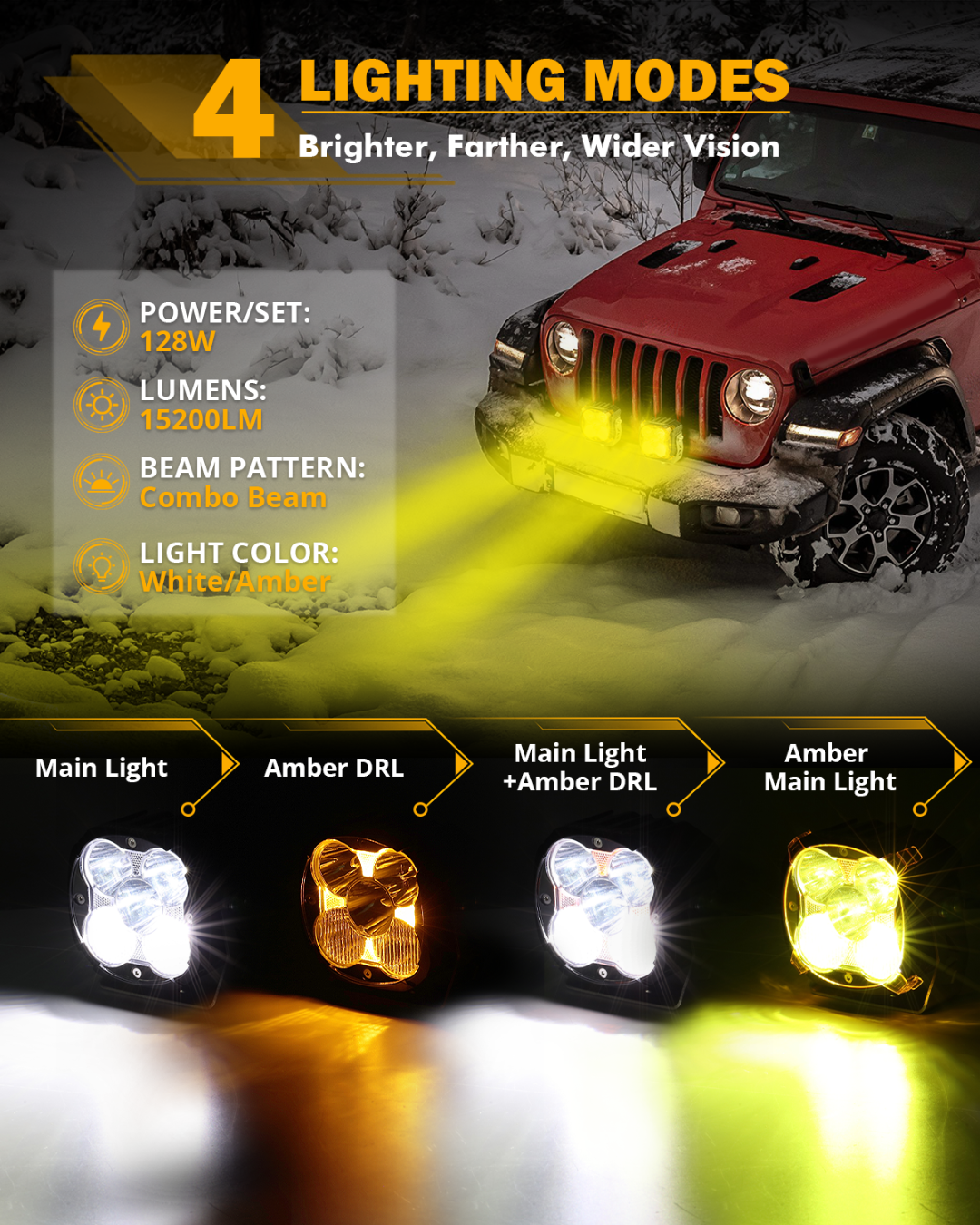

MULTI-MODEL INNOVATIVE DESIGN: In addition to white lights for daily driving, we've included amber DRL. With an Amber DRL that ensures visibility without glare during nighttime driving. We also offer yellow cover for a customizable, high-penetration color temperature, ideal for low-visibility conditions.

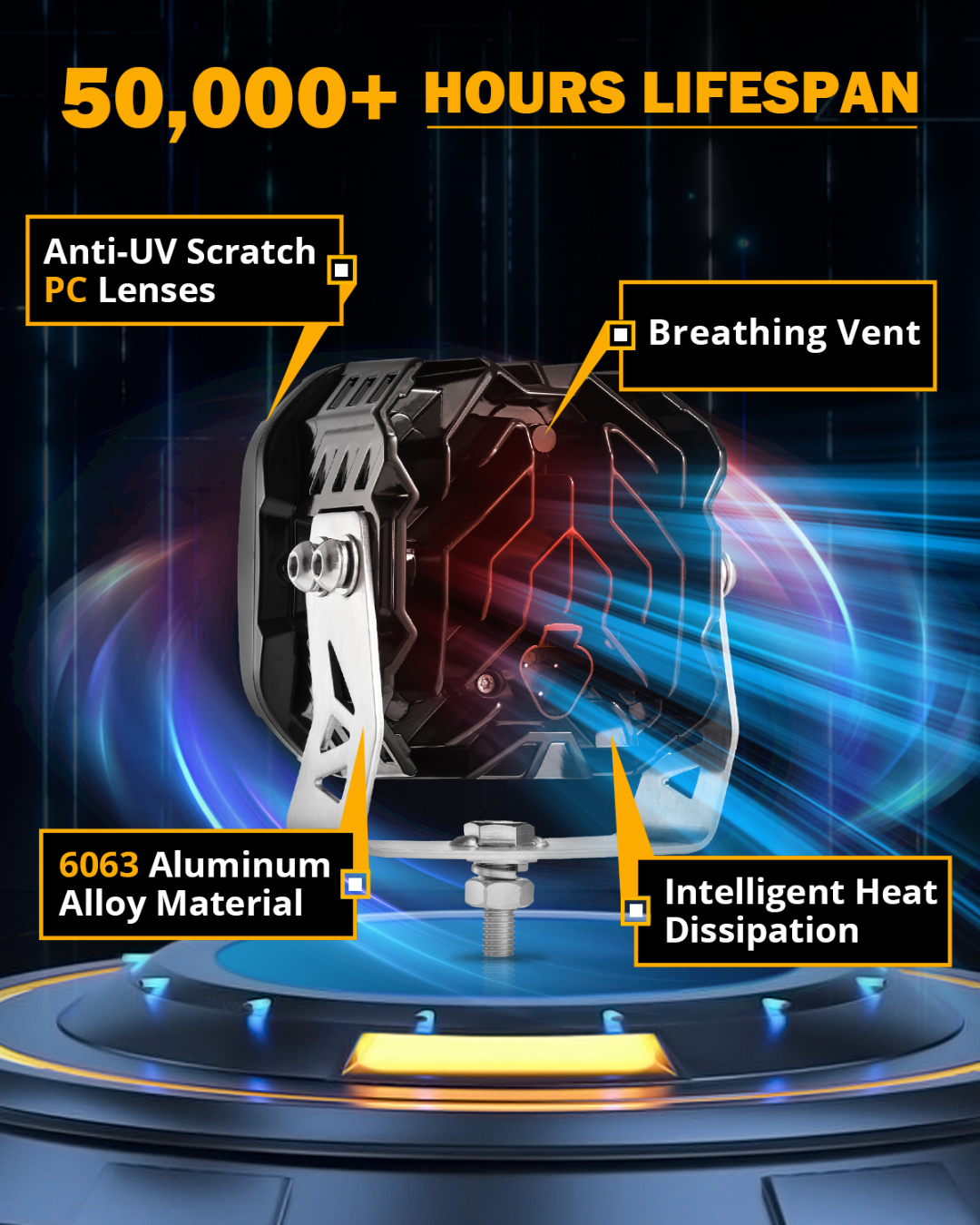

HIGH QUALITY DURABILITY: We meticulously select materials, using hardened PC lenses and aluminum alloy housings that offer anti-scratch and anti-corrosion properties, along with efficient heat dissipation. Additionally, our strips undergo rigorous testing before leaving the factory, are triple waterproof, meet international IP68 certification standards, and boast a service life of over 50,000 hours.

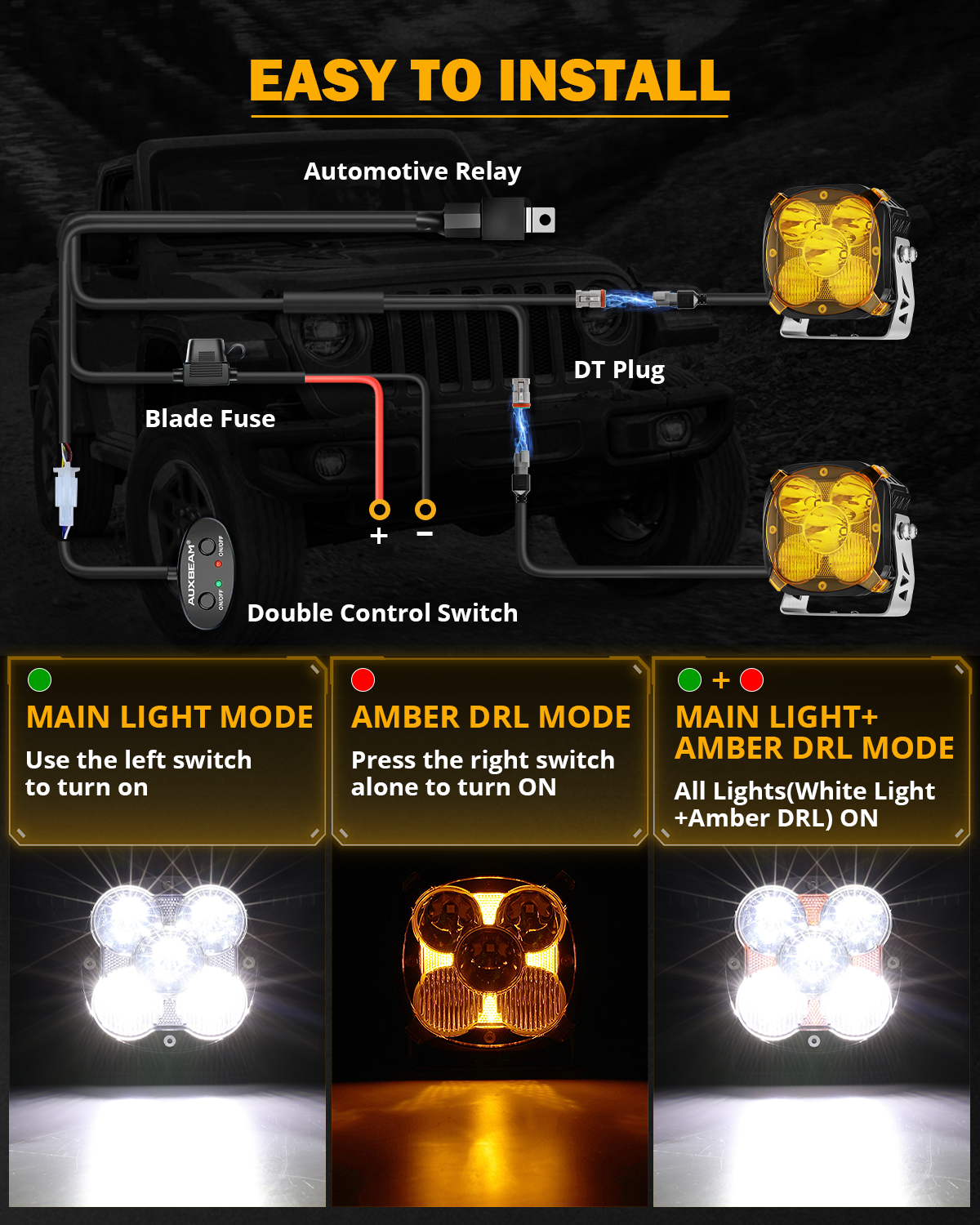

Quick Installation: Easy to connect and install with the included DT connector harness wiring kit, eliminating the hassle of redundant wiring. Durable wiring can meet your needs to install the lights anywhere in the vehicle.

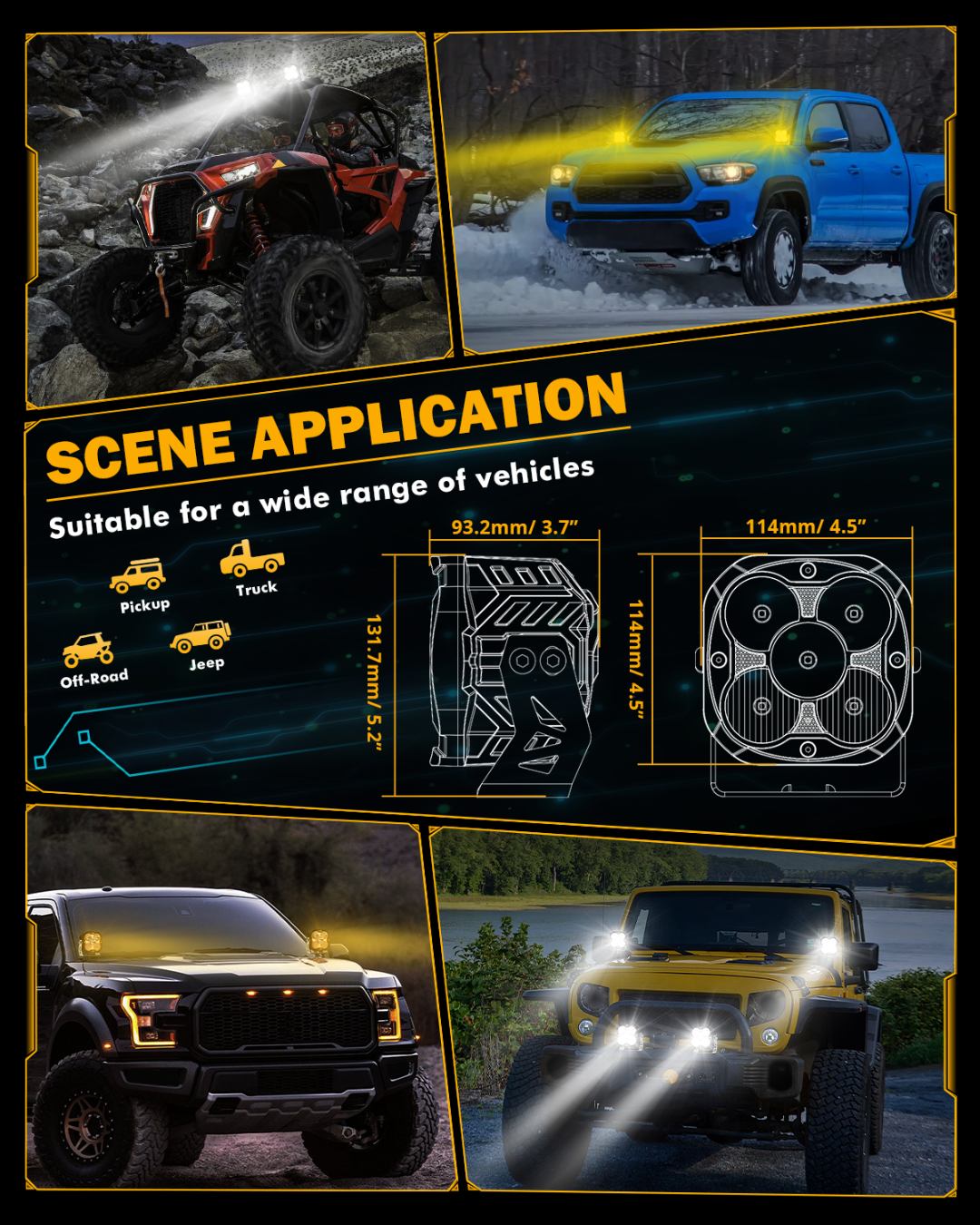

Wide Application: The led driving light fits for almost all Off Road Vehicles, ATVs, UTVs, SUVs, Construction Vehicles, Farm Vehicles, Trucks, Motorcycles, Buses, Pick-ups, marine, Boat, etc..

Specification:

Size: 4.5 Inch
Power/Set: [64W*2(Spotlights 60W+Amber DRL 4W)]=128W

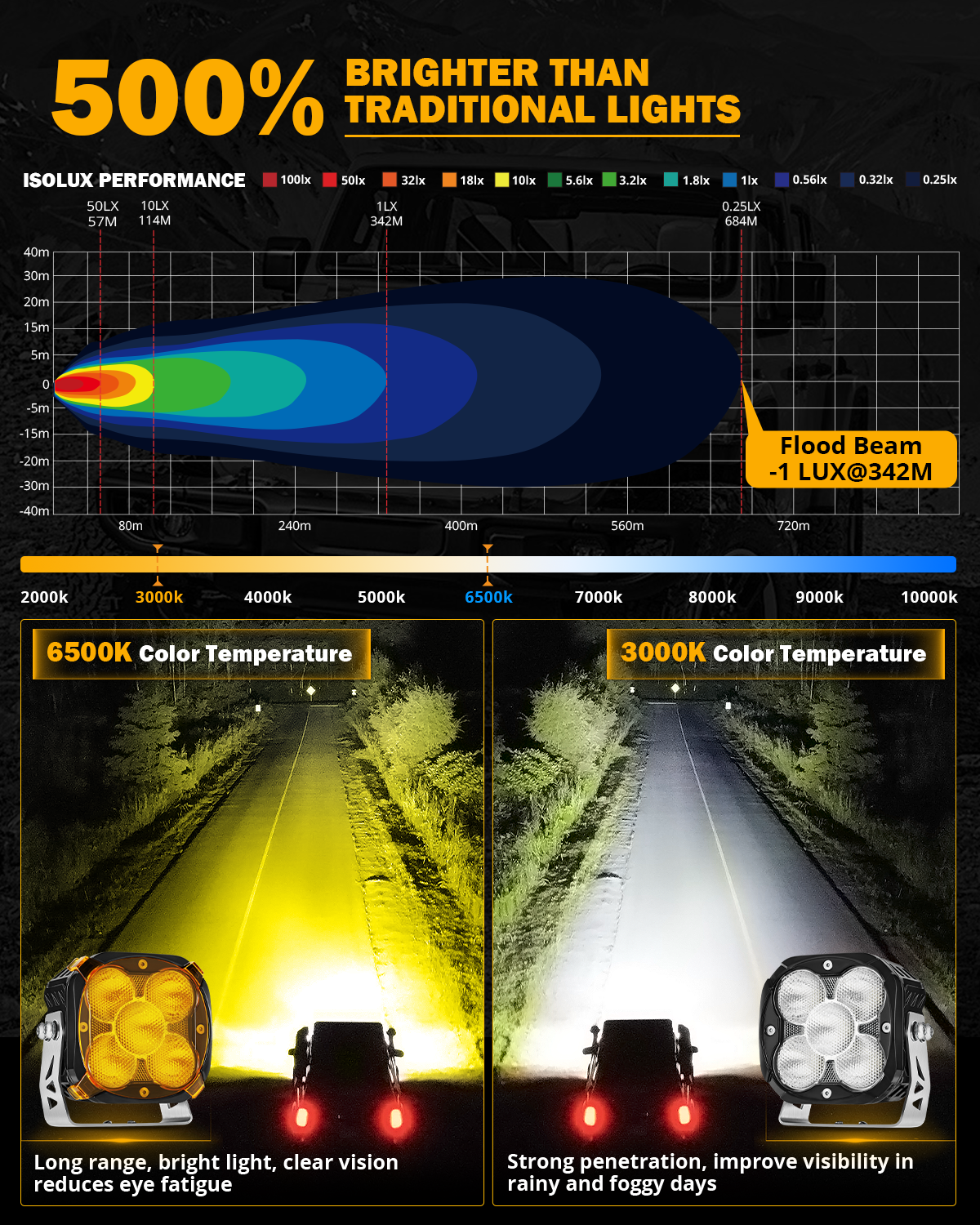

Total Lumens: 15200LM（14400LM+Amber DRL 800LM）
Housing Material: Aluminum Alloy
Lens Material: PC
Lamp Beads Model(Each): Luminus SST40*5(12W/pcs)+2835 SMD 4W

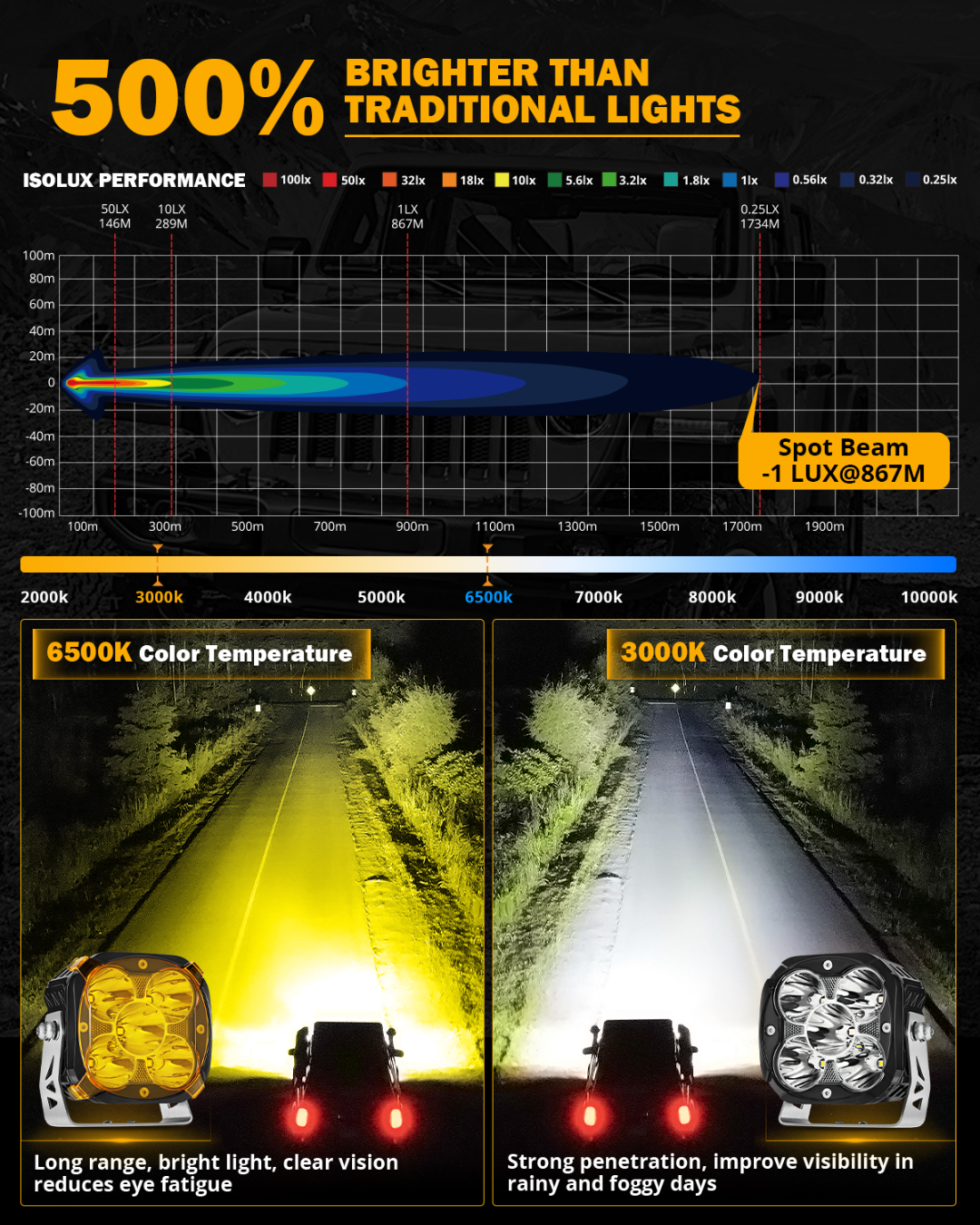

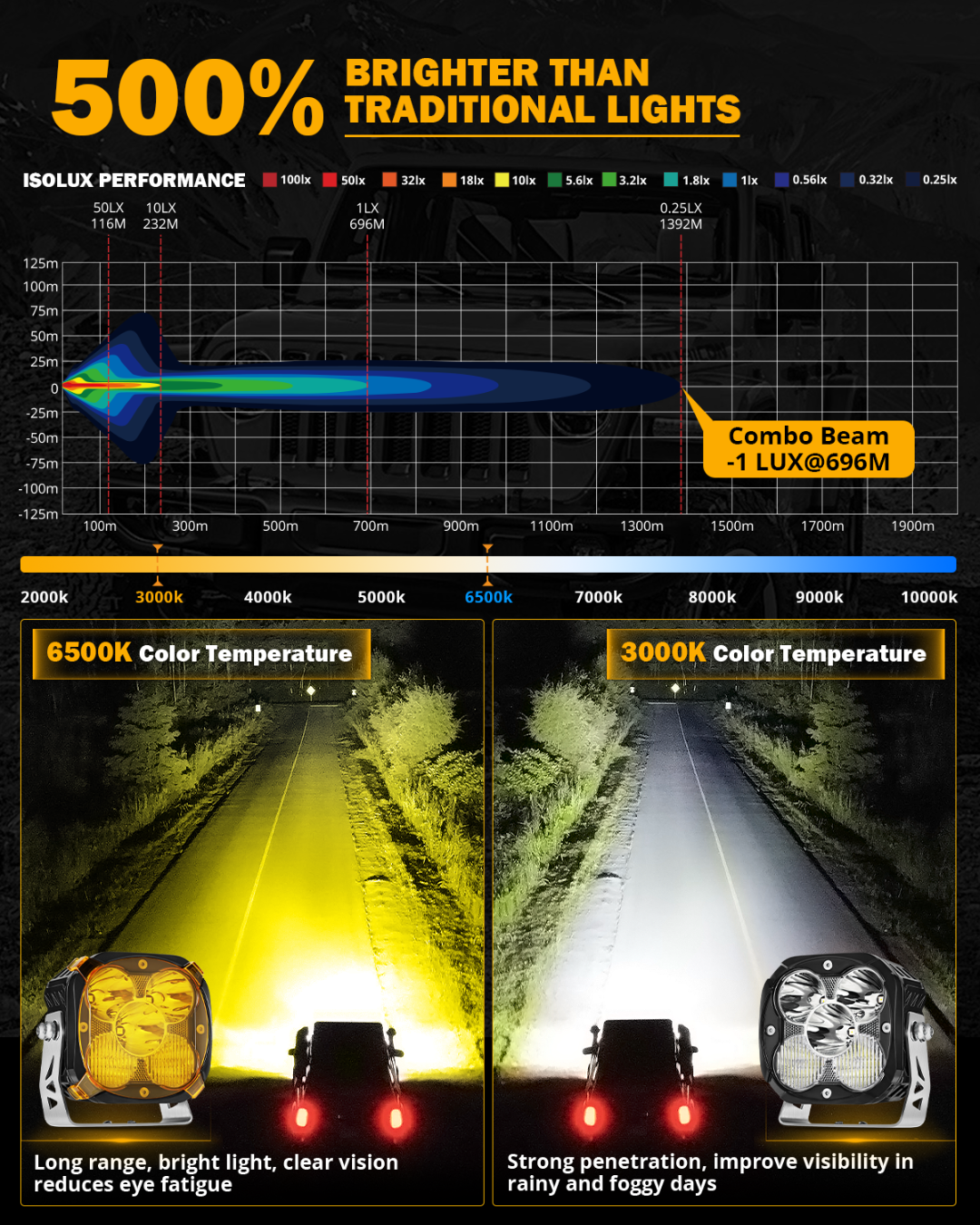

Color Temperature: 6500K/3000K Main Light+3000K Amber DRL
Light Cover：Amber
With EMC/EMI：Yes
Fit Model: Universal
Life Time: 50000+ hours
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

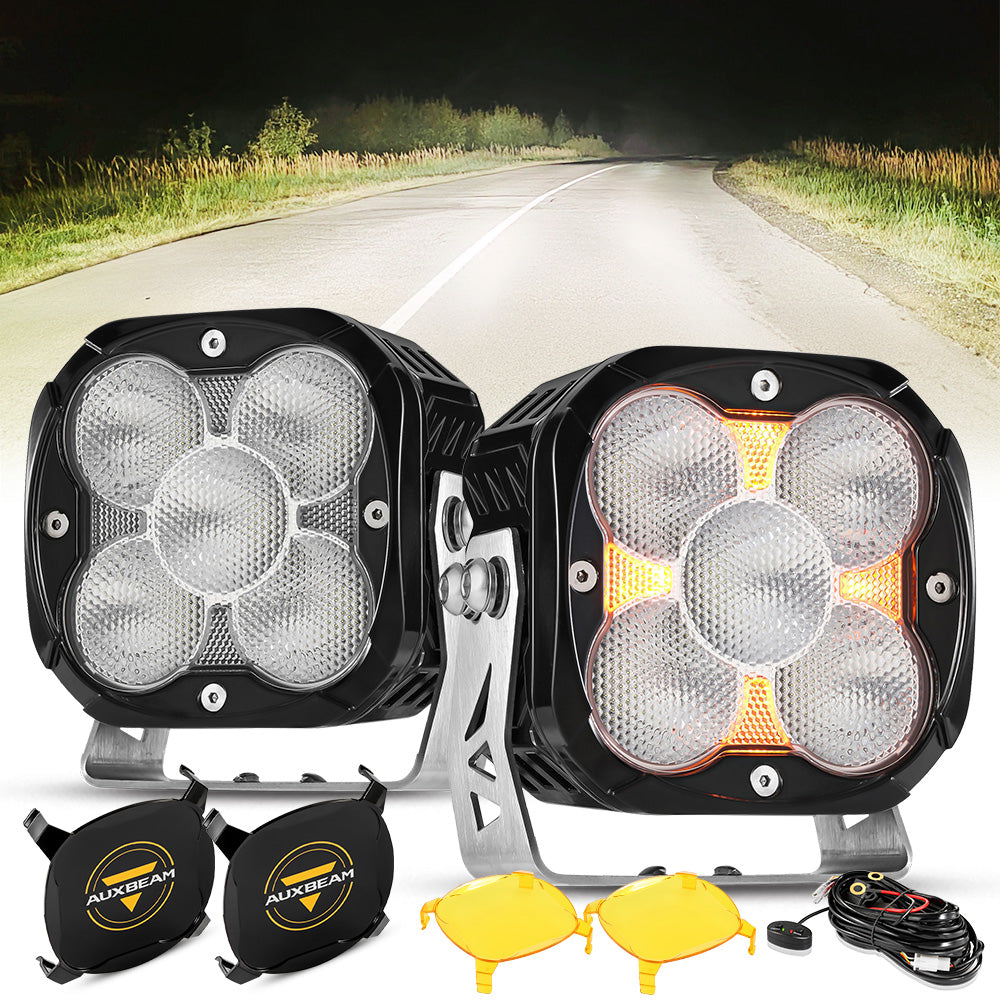

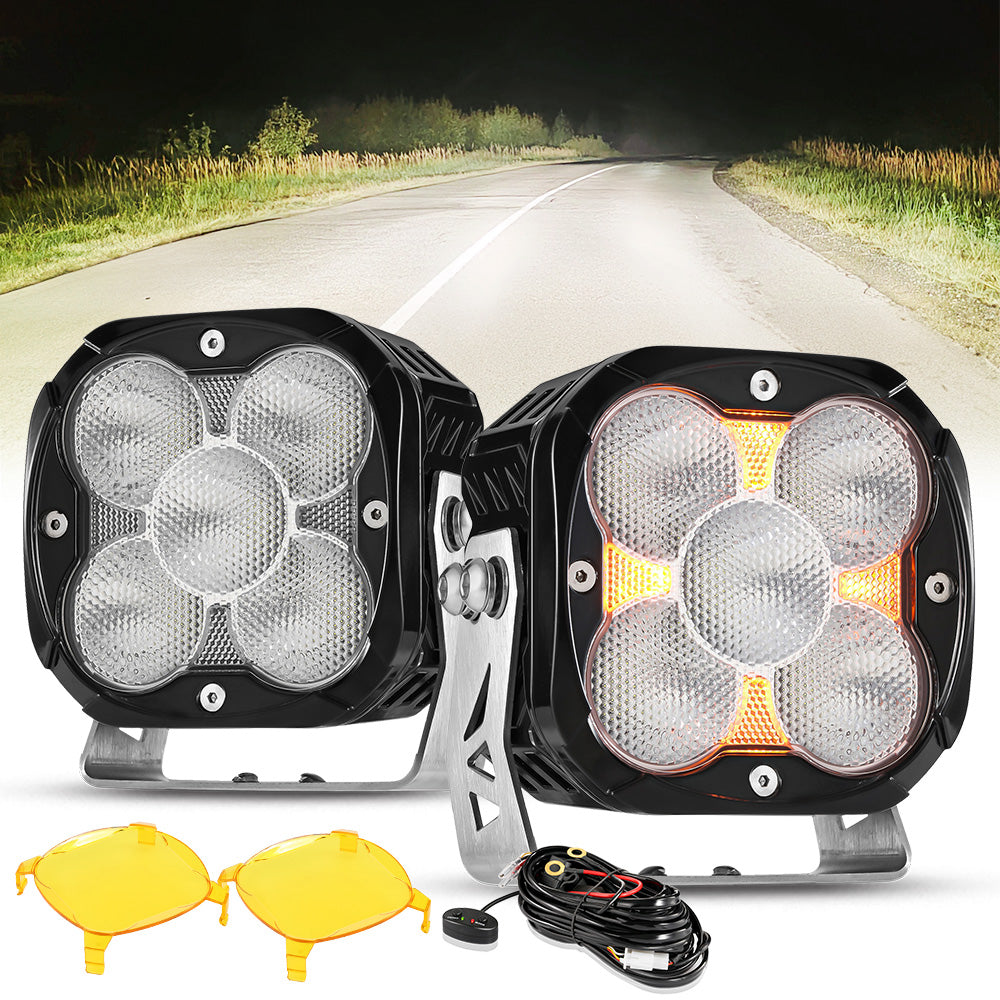

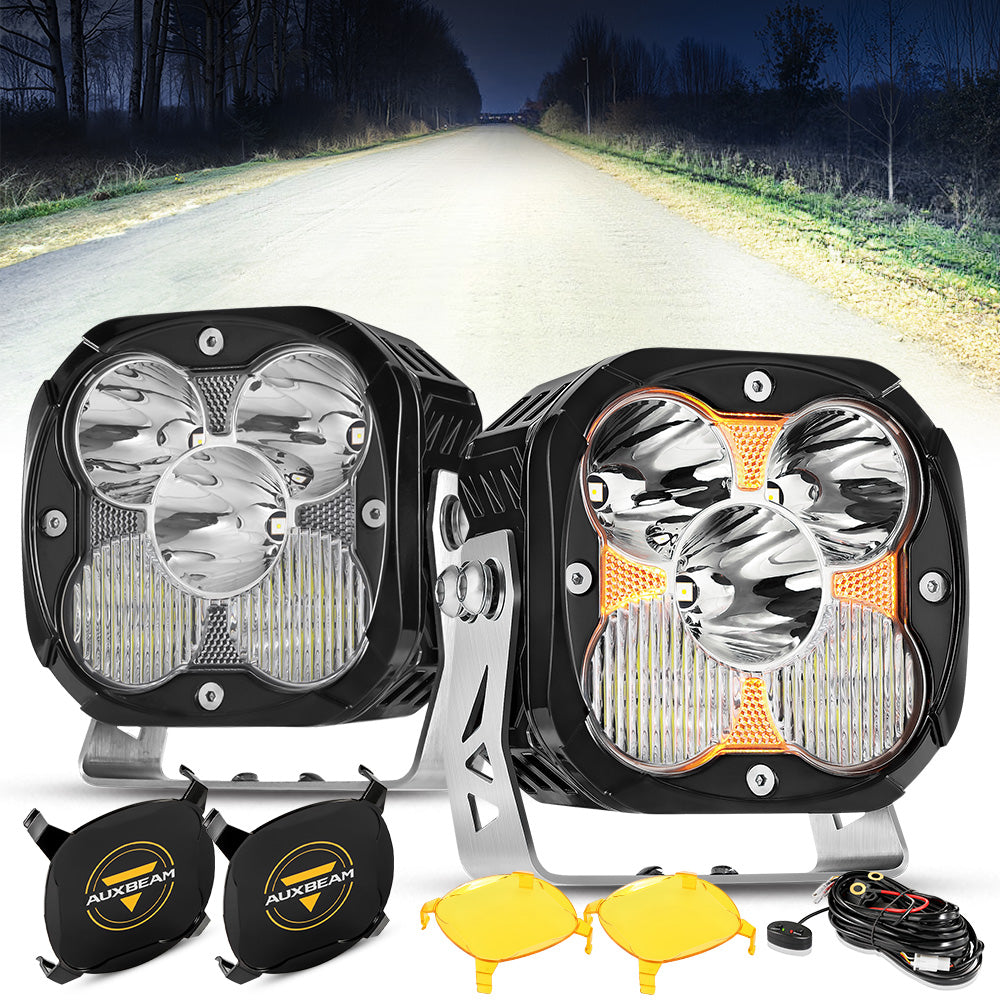

Packing Included:

2 X LED Pod Lights（With DT Plug）
2 X Light Covers（Amber）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

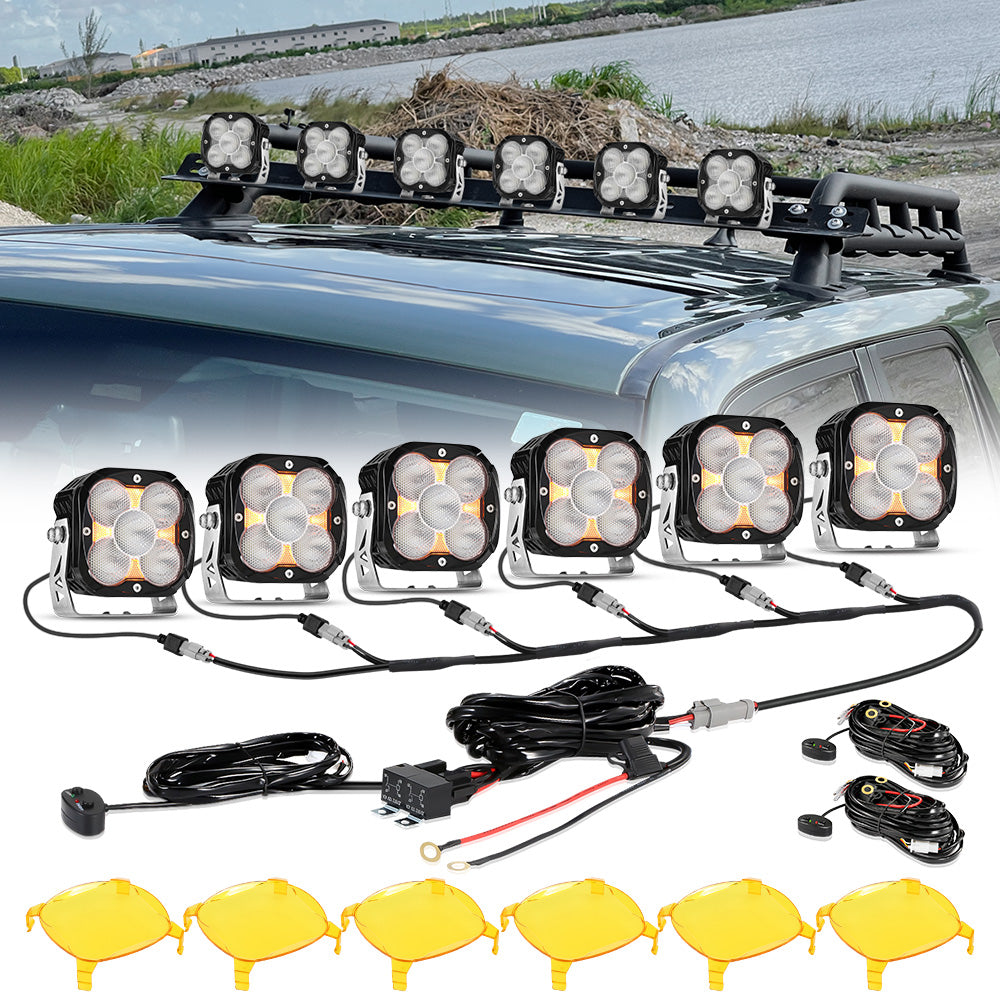

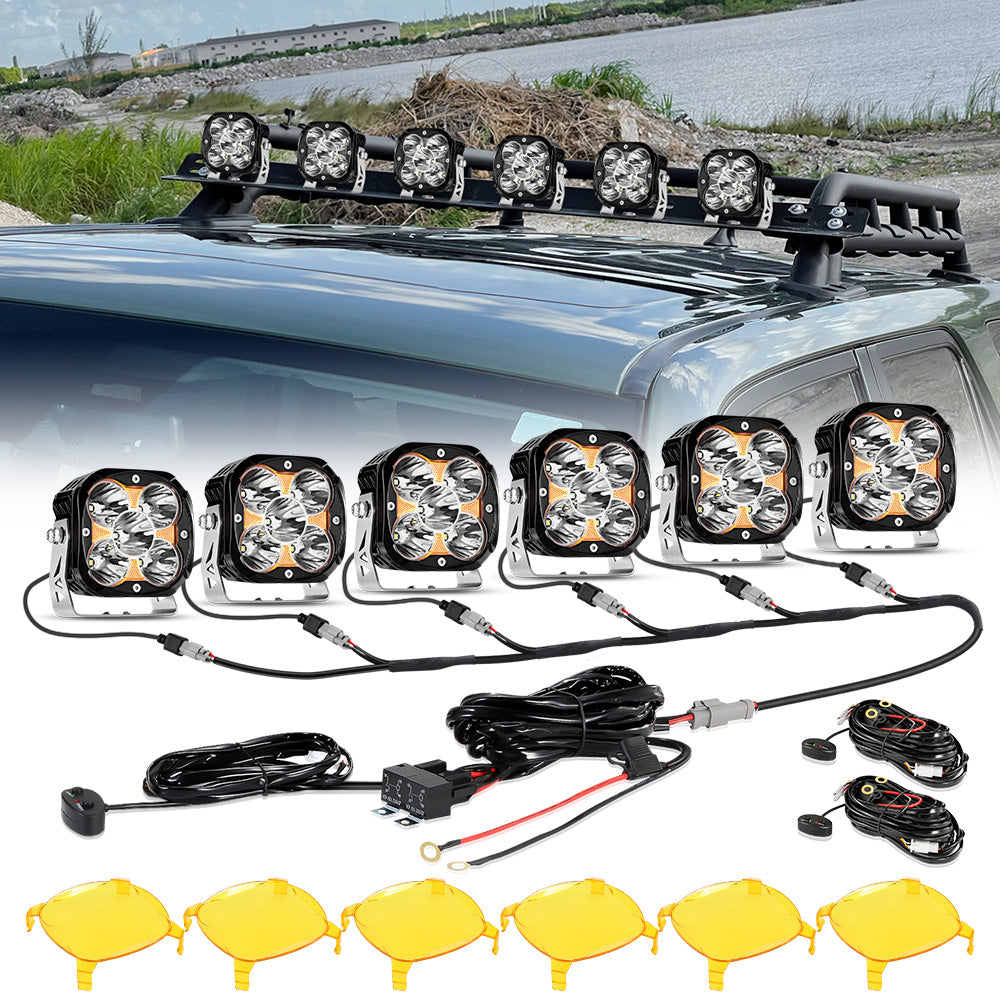

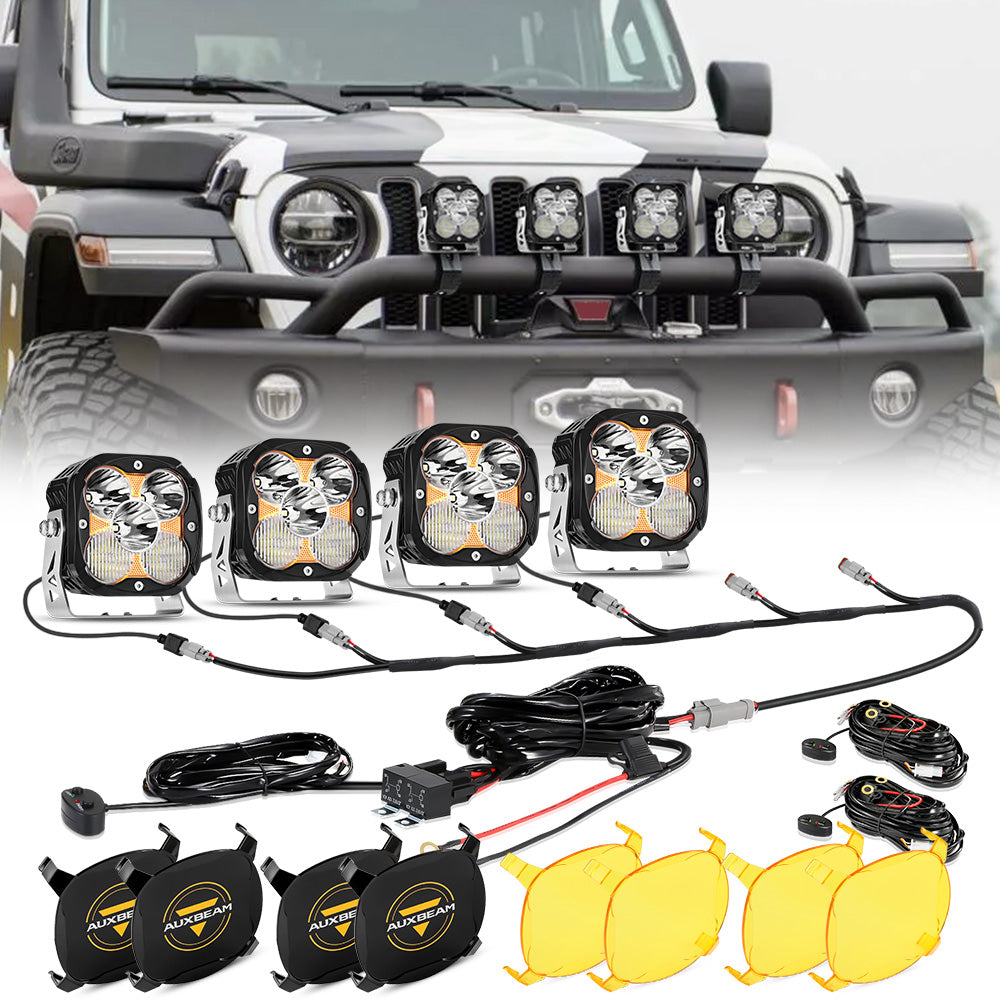

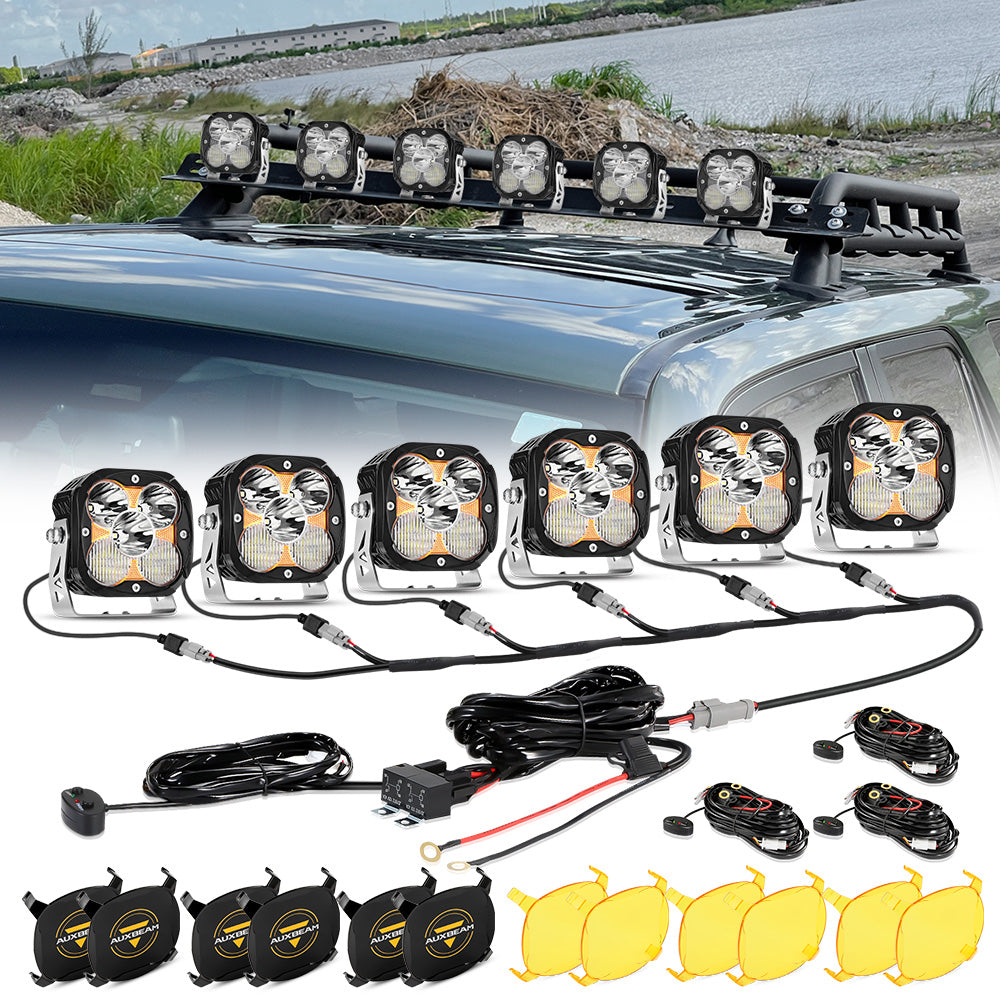

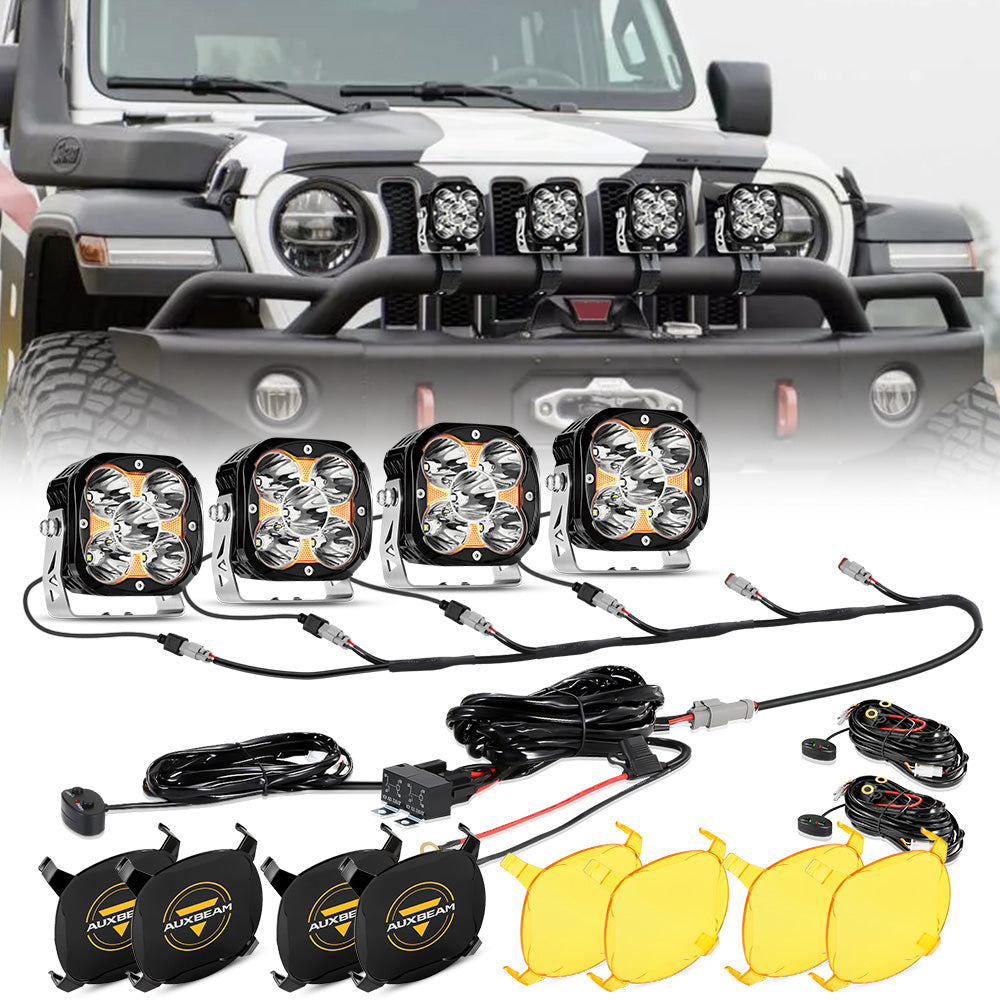

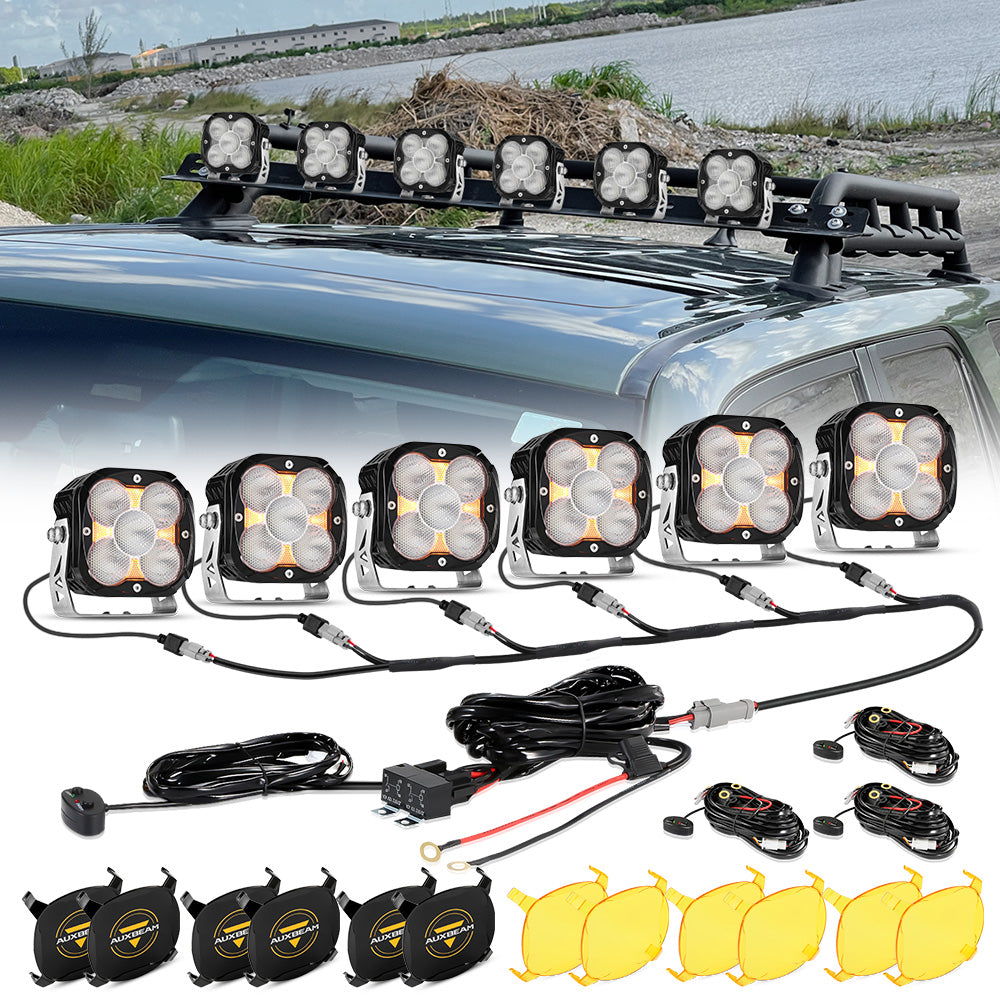

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

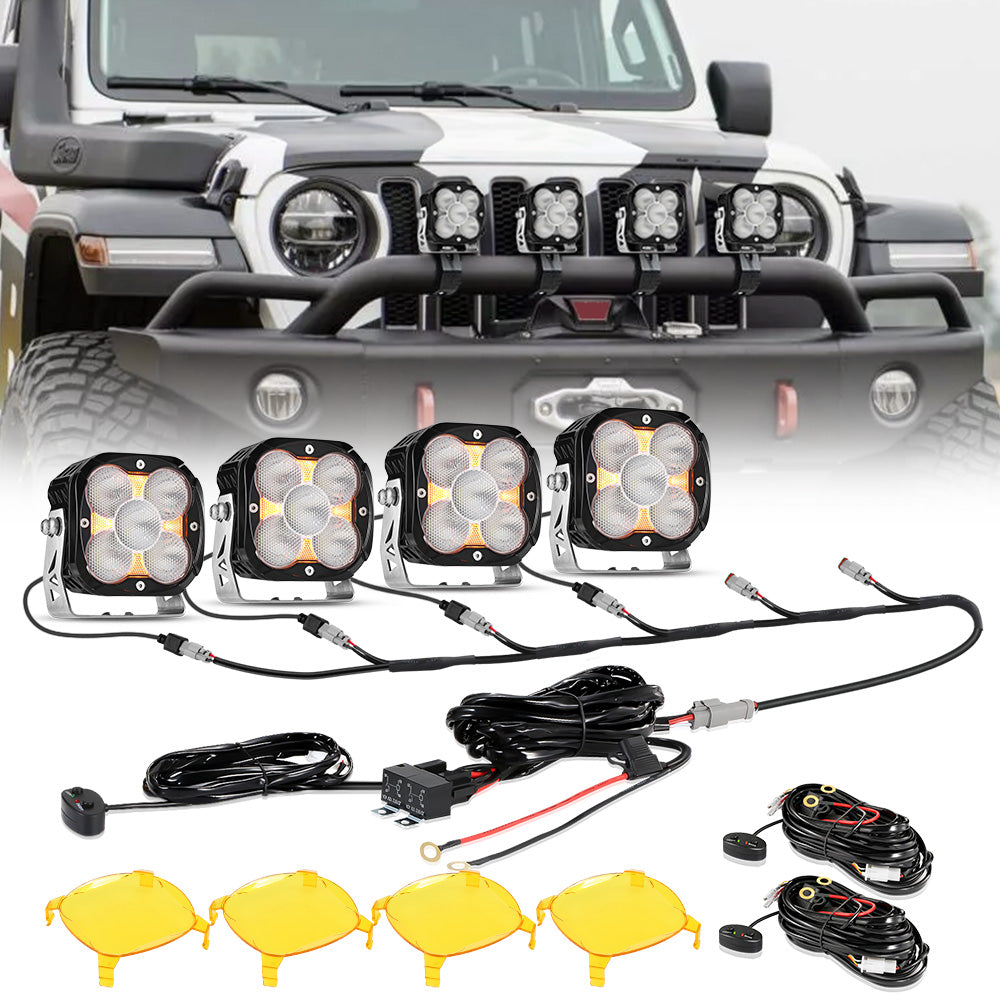

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

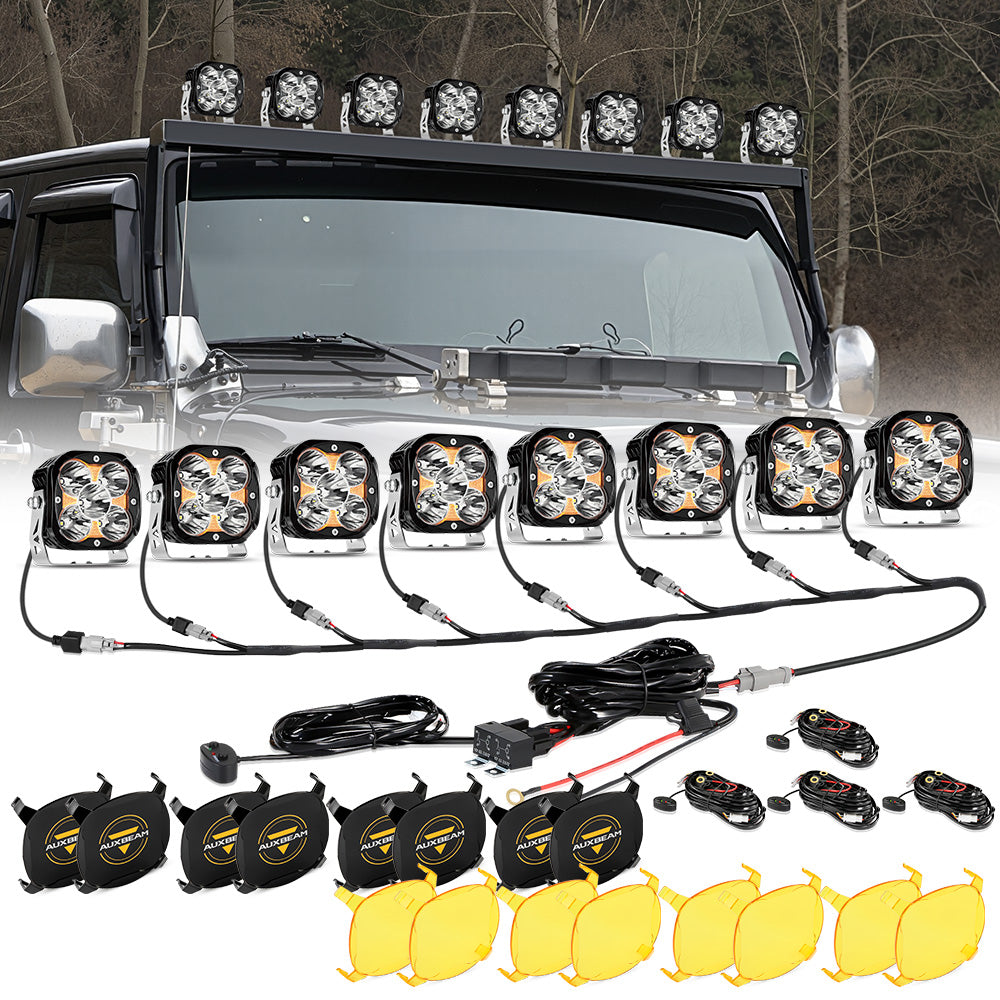

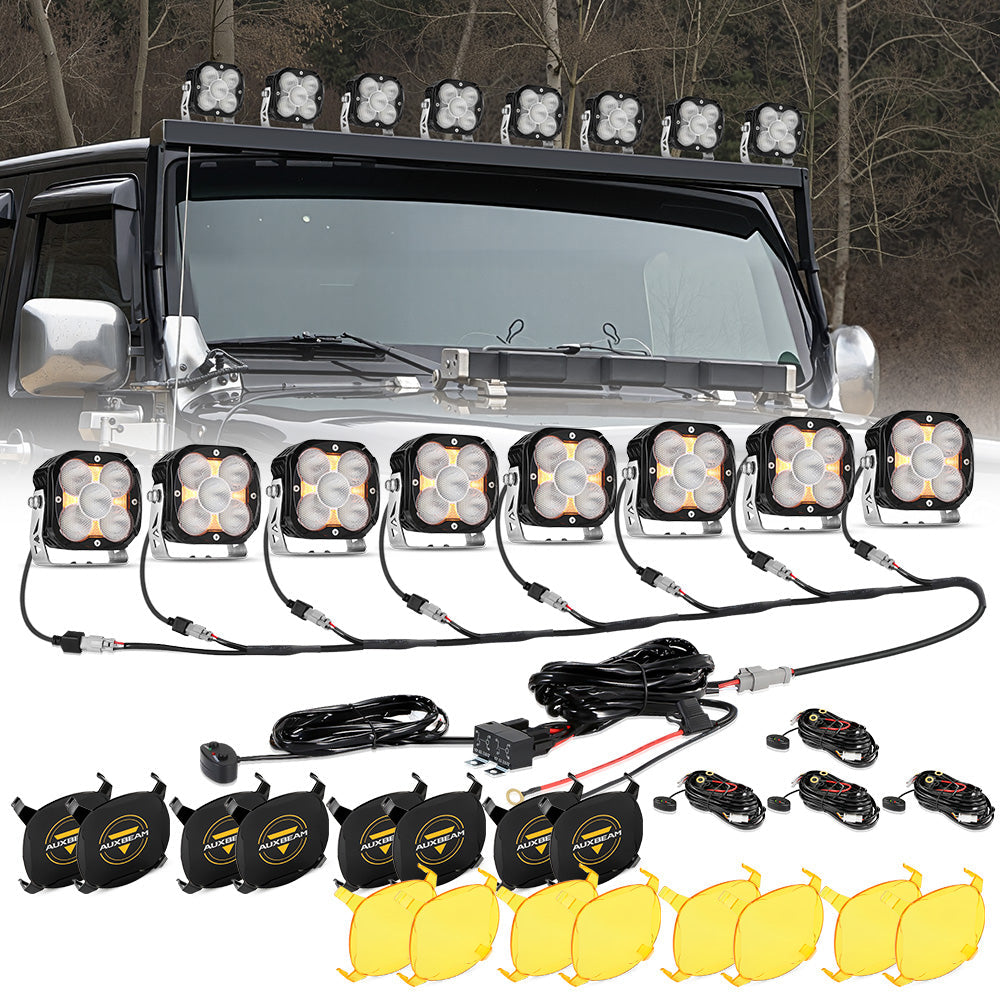

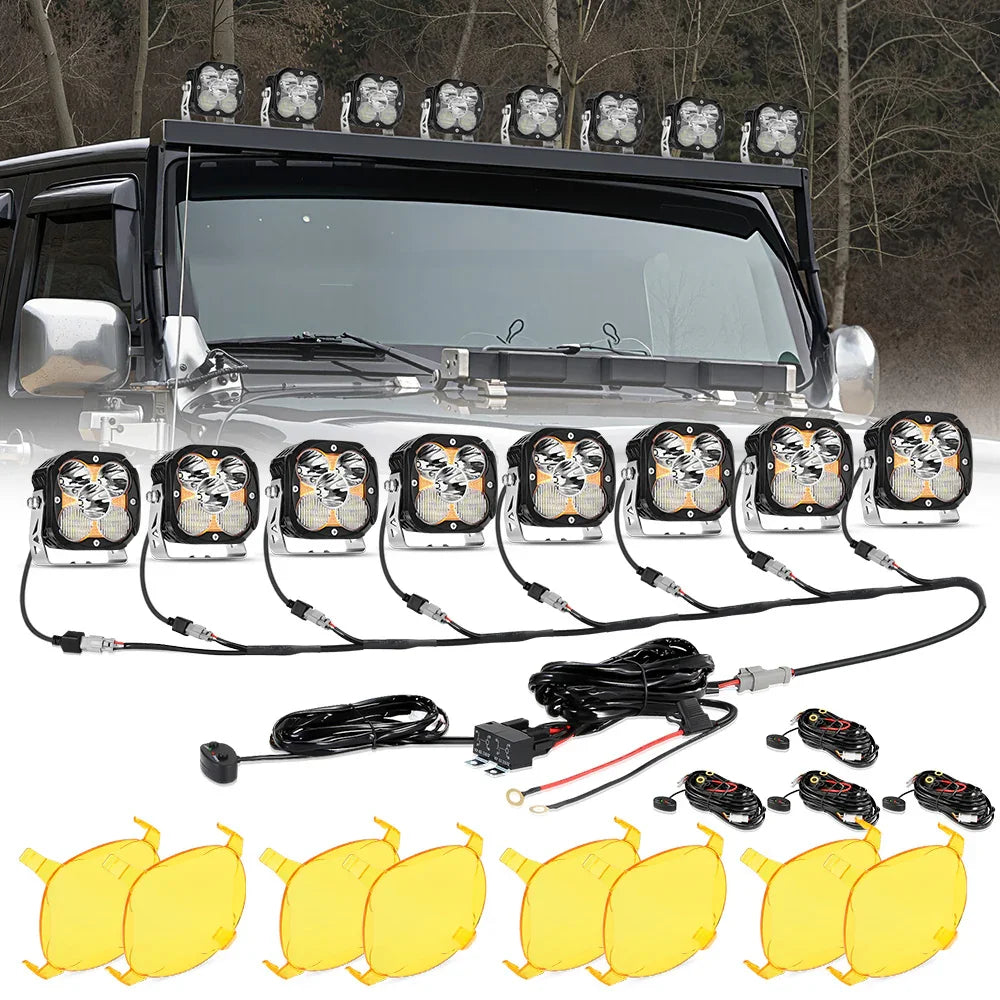

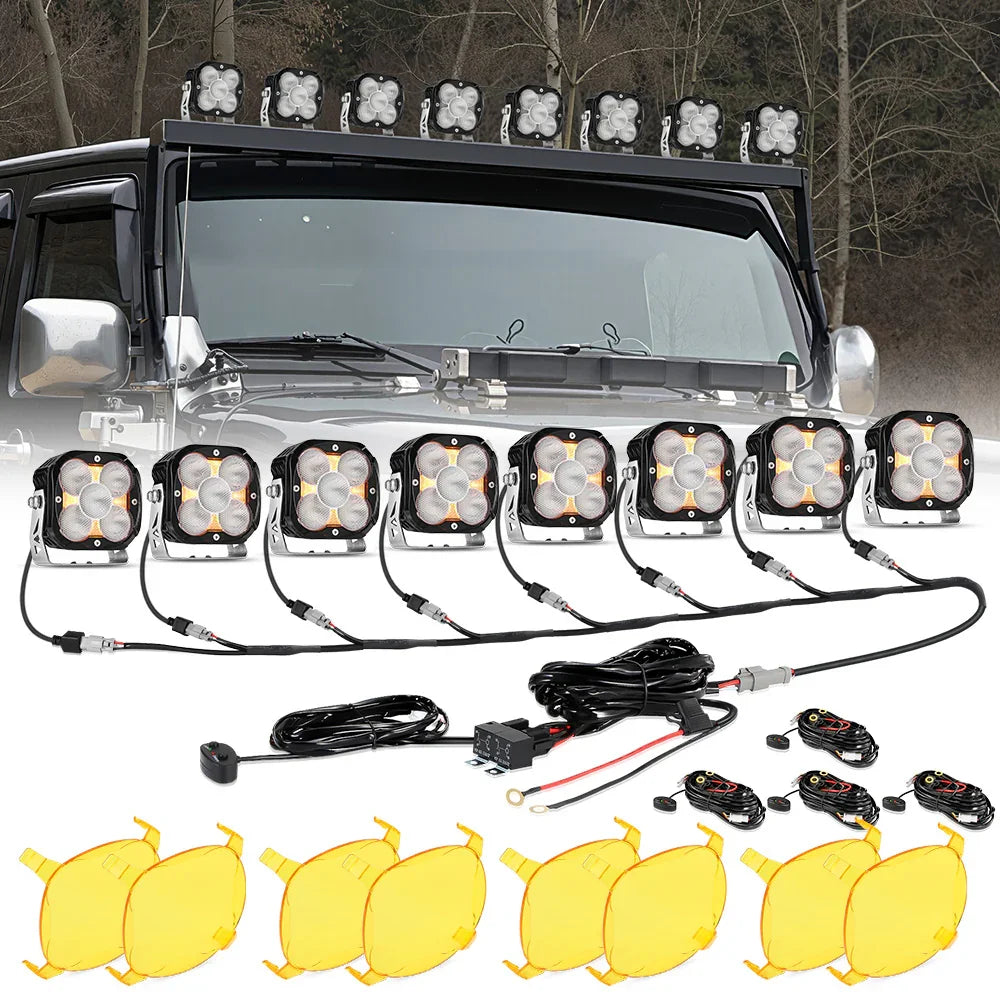

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

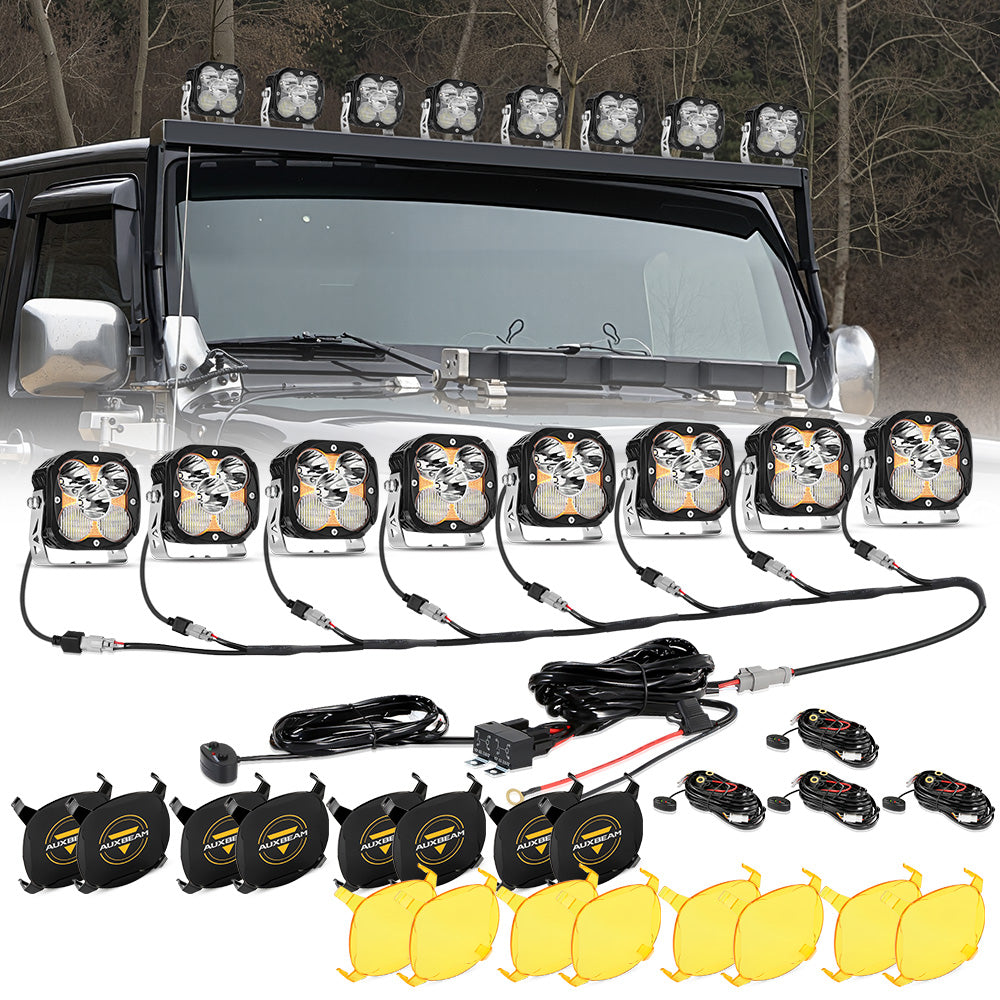

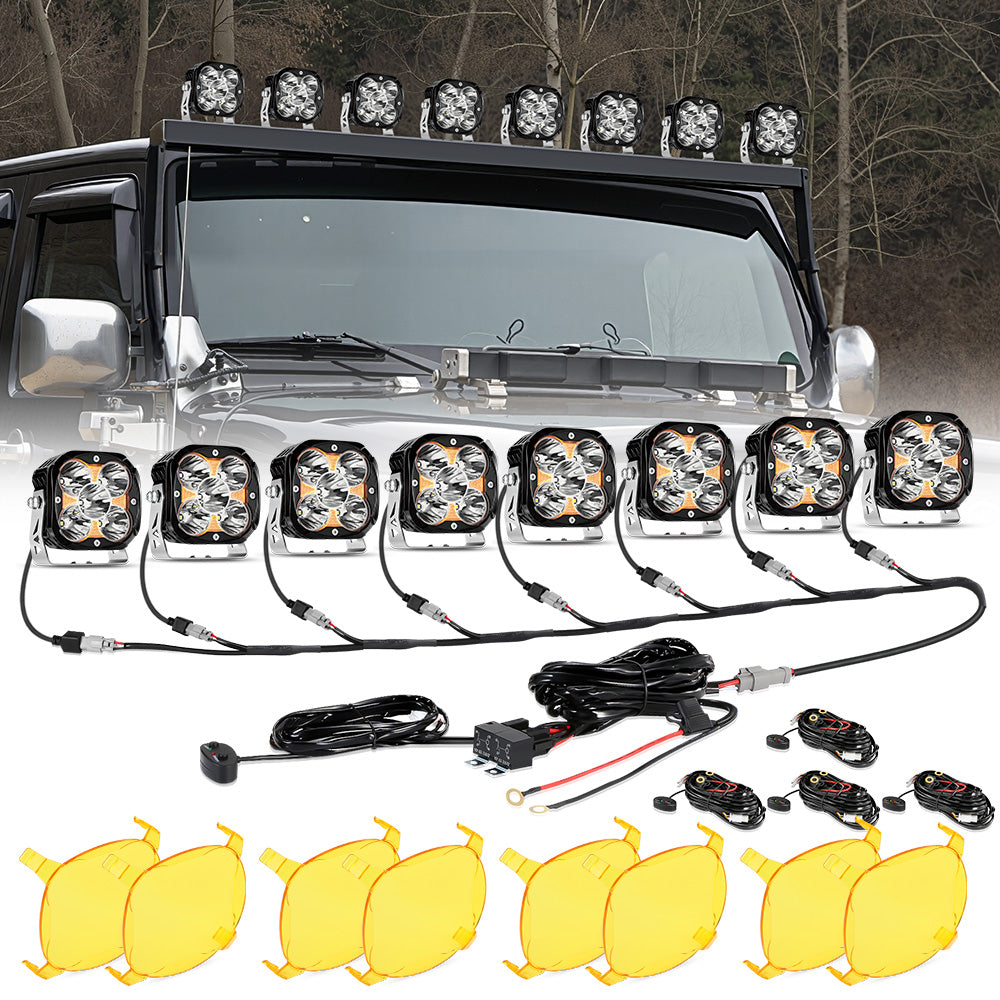

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Delay: Double 12V delay

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A

Maverick's Note: We recommend these lights for offroad use only. Many Auxbeam lighting harnesses do not have a high-beam trigger. To ensure legal operation, please have an auto electrician add a high beam trigger wire to the harness, and check your local Transport Agency for the requirements for your state.
