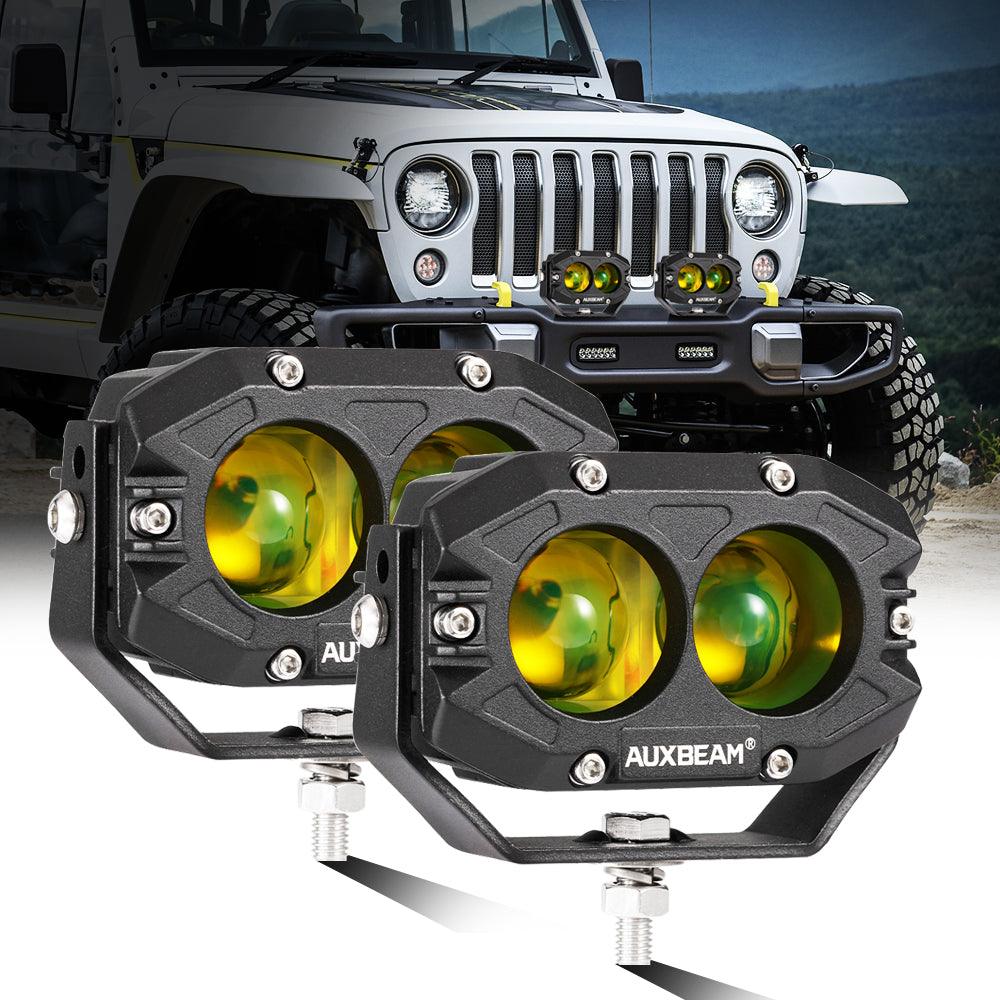

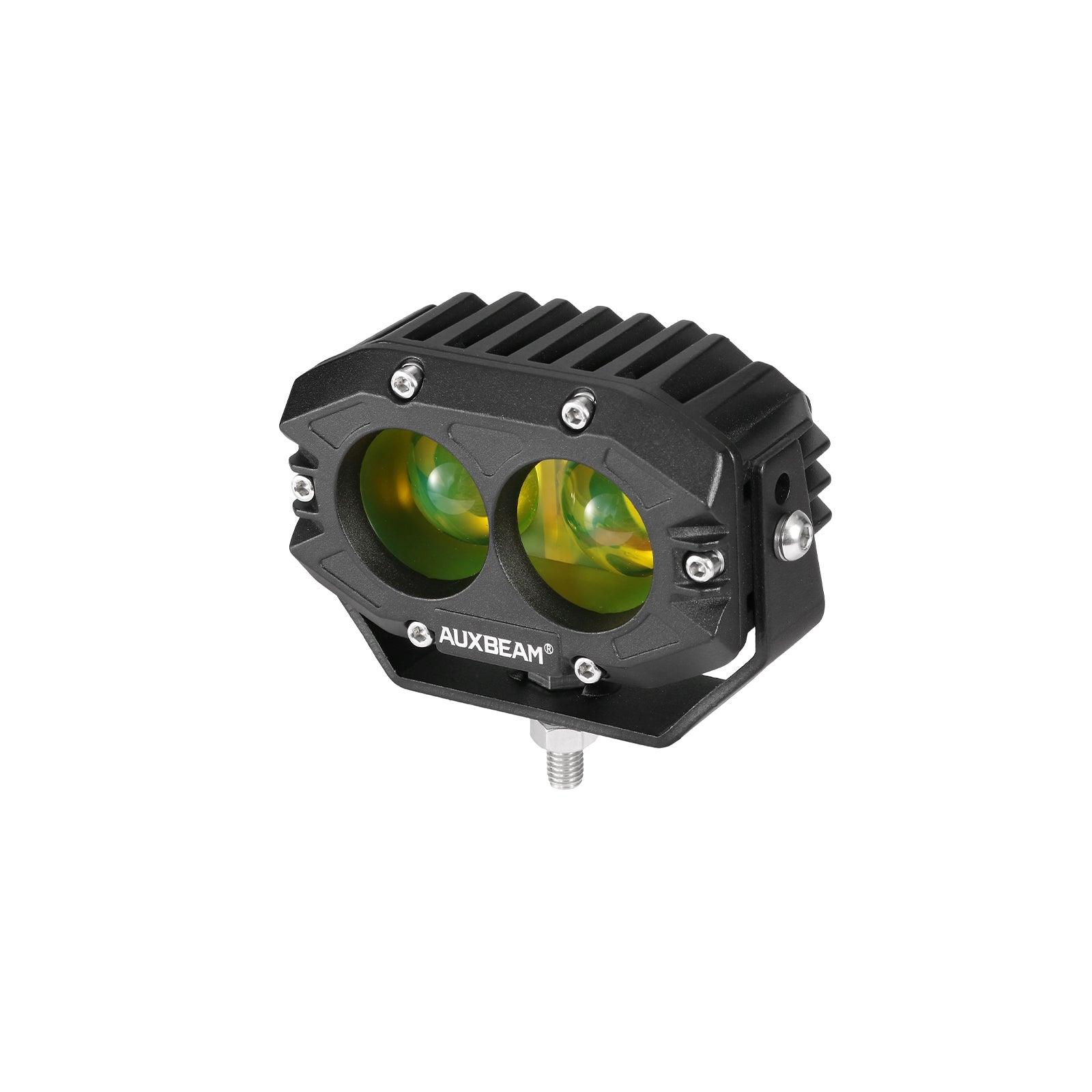

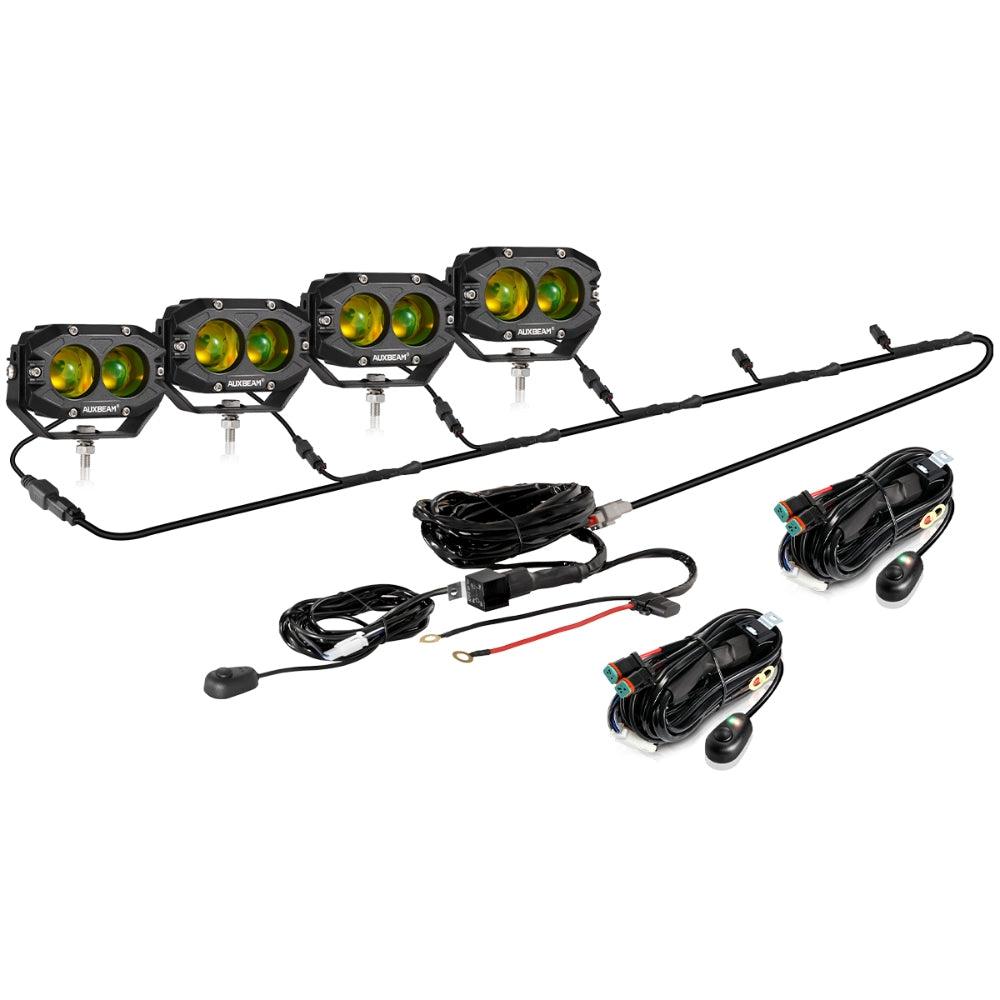

R4 Series | 4 Inch 60W LED Pods Amber Spot Driving Light

▶4 Inch LED Driving Lights

Features:

Auxbeam 4-inch led driving lights are composed of high-intensity 5050 LED chips and new designed industrial 12D optical lens. It can create 15W high-efficiency light output and 1795lm lumens for each pod, ensuring safe driving.
Focused spot beam. Unique optics lens creates more concentrated and powerful light for better penetration, which travels a far distance for better visibility.

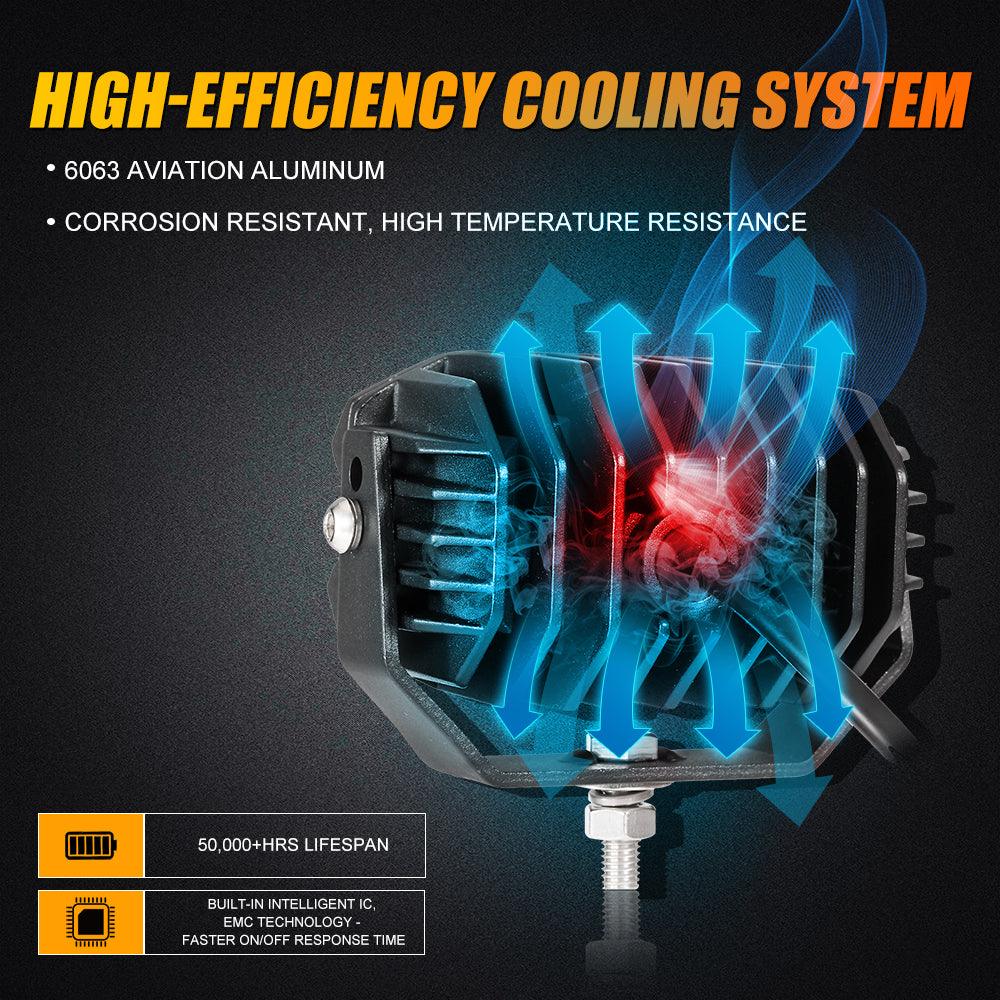

Adopt lower power consumption technical. All in aluminum profile and thick enough heat sinks housing, helps it speed up the heat dissipation and makes it durable and long-lasting.
Waterproof IP67 international standard, with strong ability to withstand harsh environments and weather.
Faster on/off response time and vibration resistance. Energy-saving, no UV and IR radiation, shock-proof and anti-corrosion.

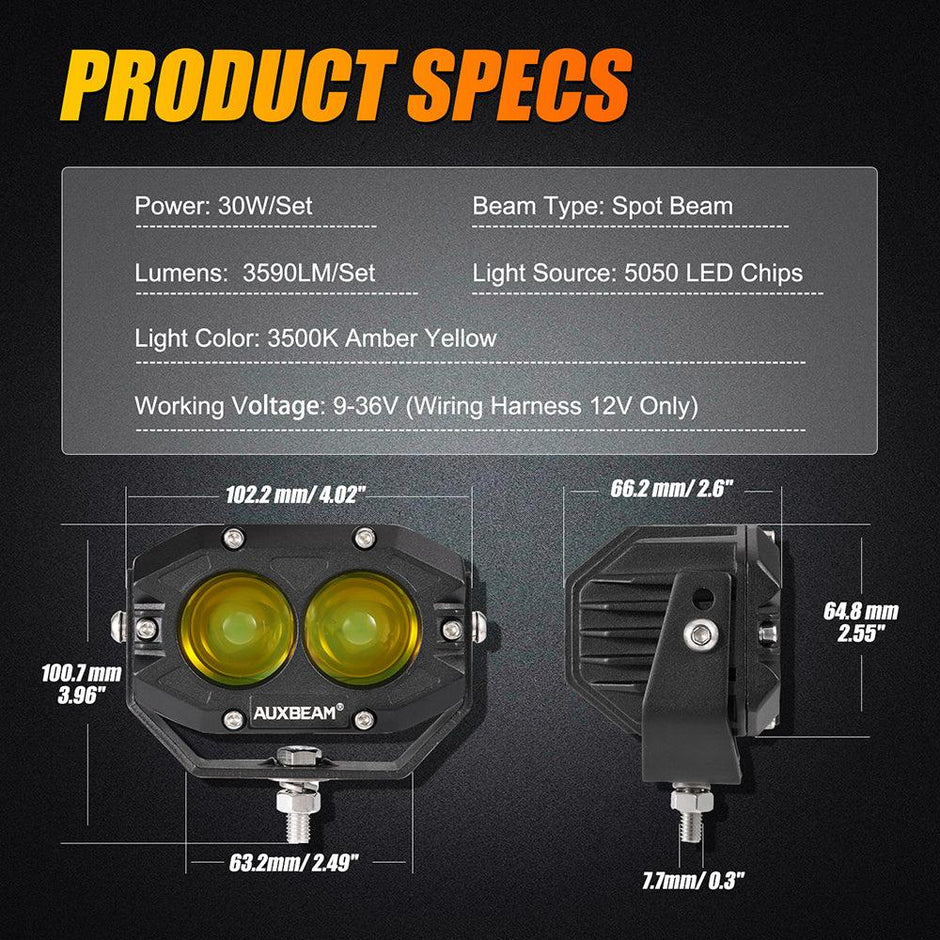

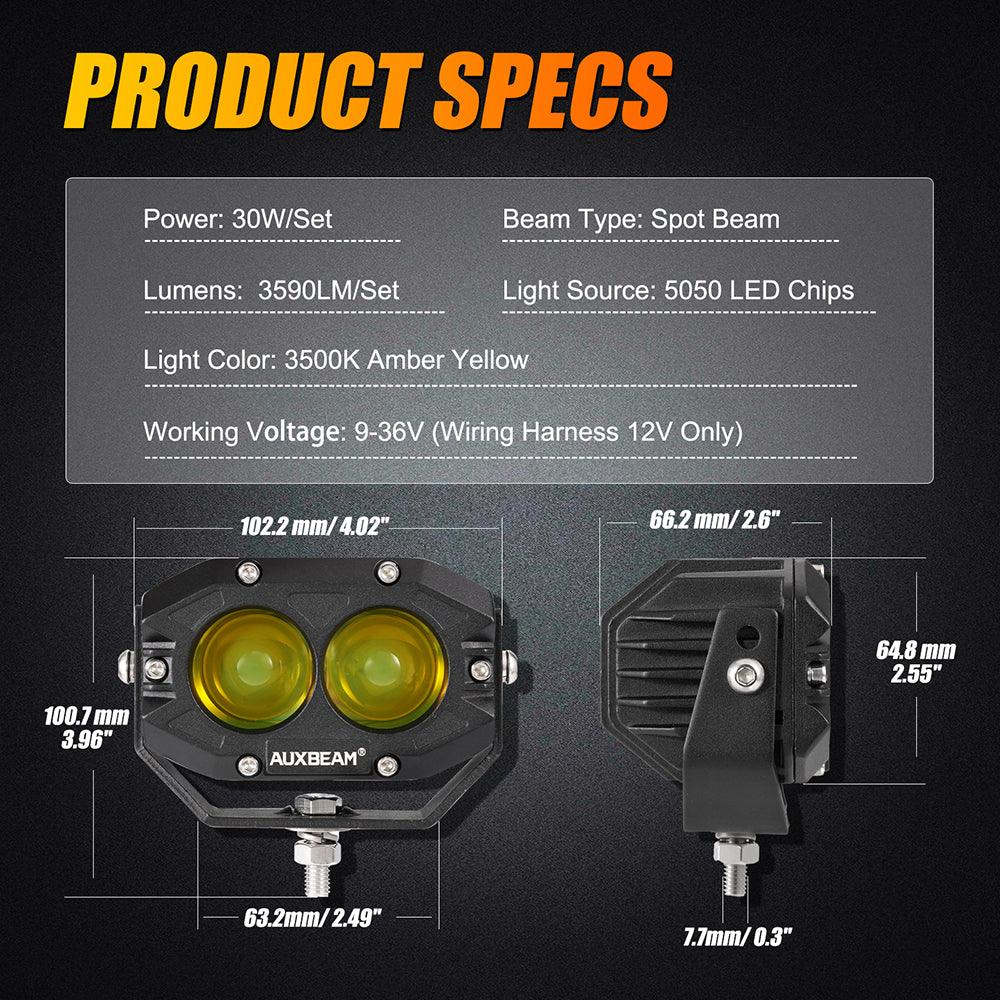

Specifications:

Size: 4 Inch
Power: 60W
Working Voltage: 9-36V (Wiring Harness 12V Only)
Lumens: 3590LM/set
Light Source: 5050 LED
Beam Type: spot beam
Housing Material: Aluminum alloy
Lens Material: PCB
Lifespan: 50,000 hours
Waterproof rate: IP67

Package Included:

2 X LED Work Light
1 X Wiring Harness

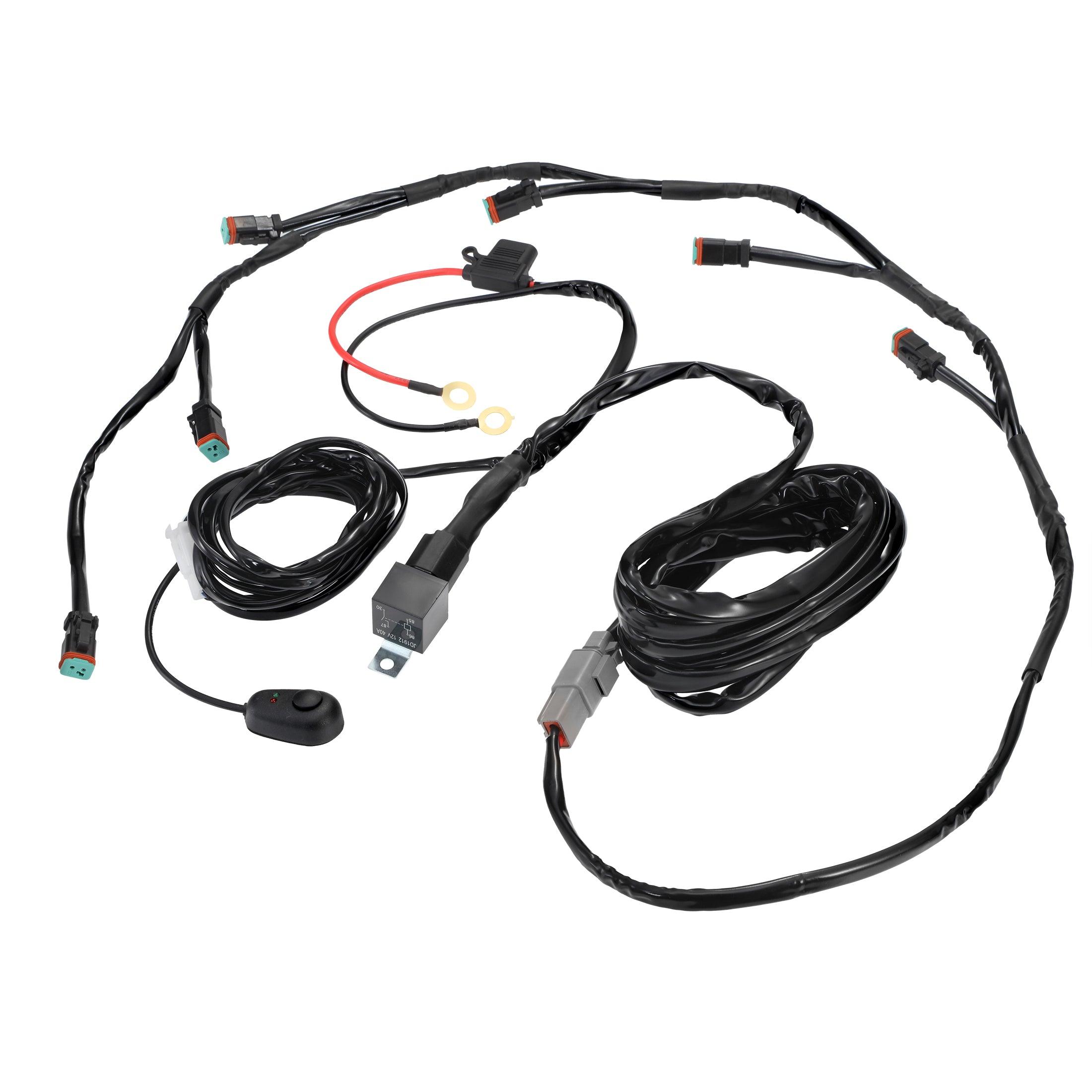

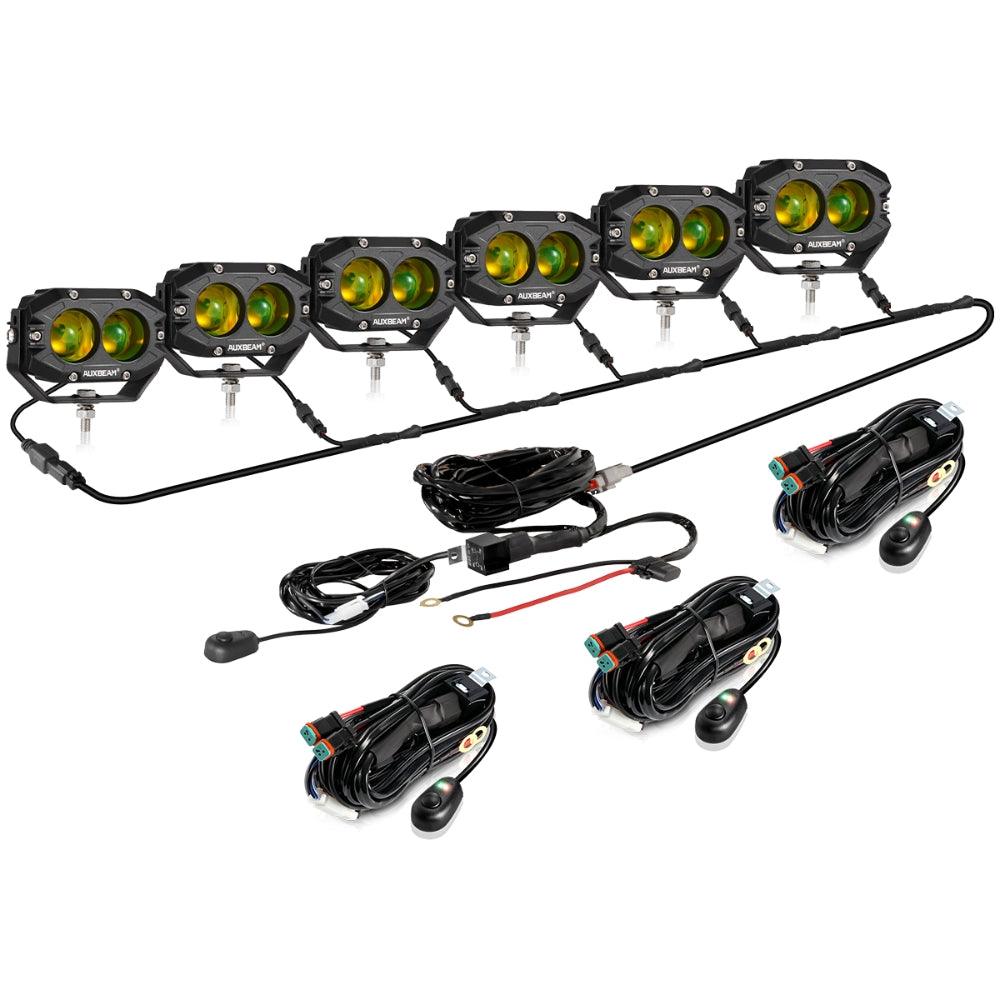

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

3-Pod Lights (A maximum of three pod lights can be installed):
ZD000675/ZD000858

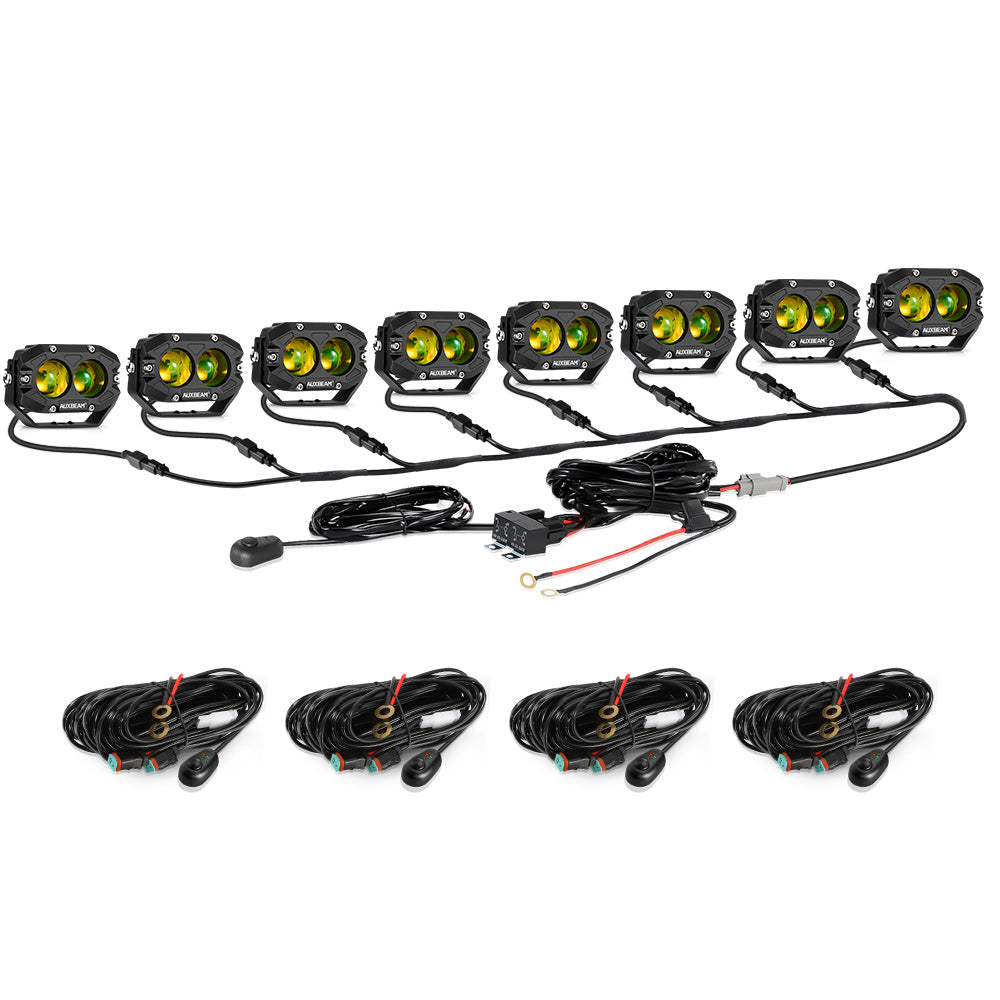

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

6-Pod Lights (A maximum of six pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000675/ZD000858

Features:

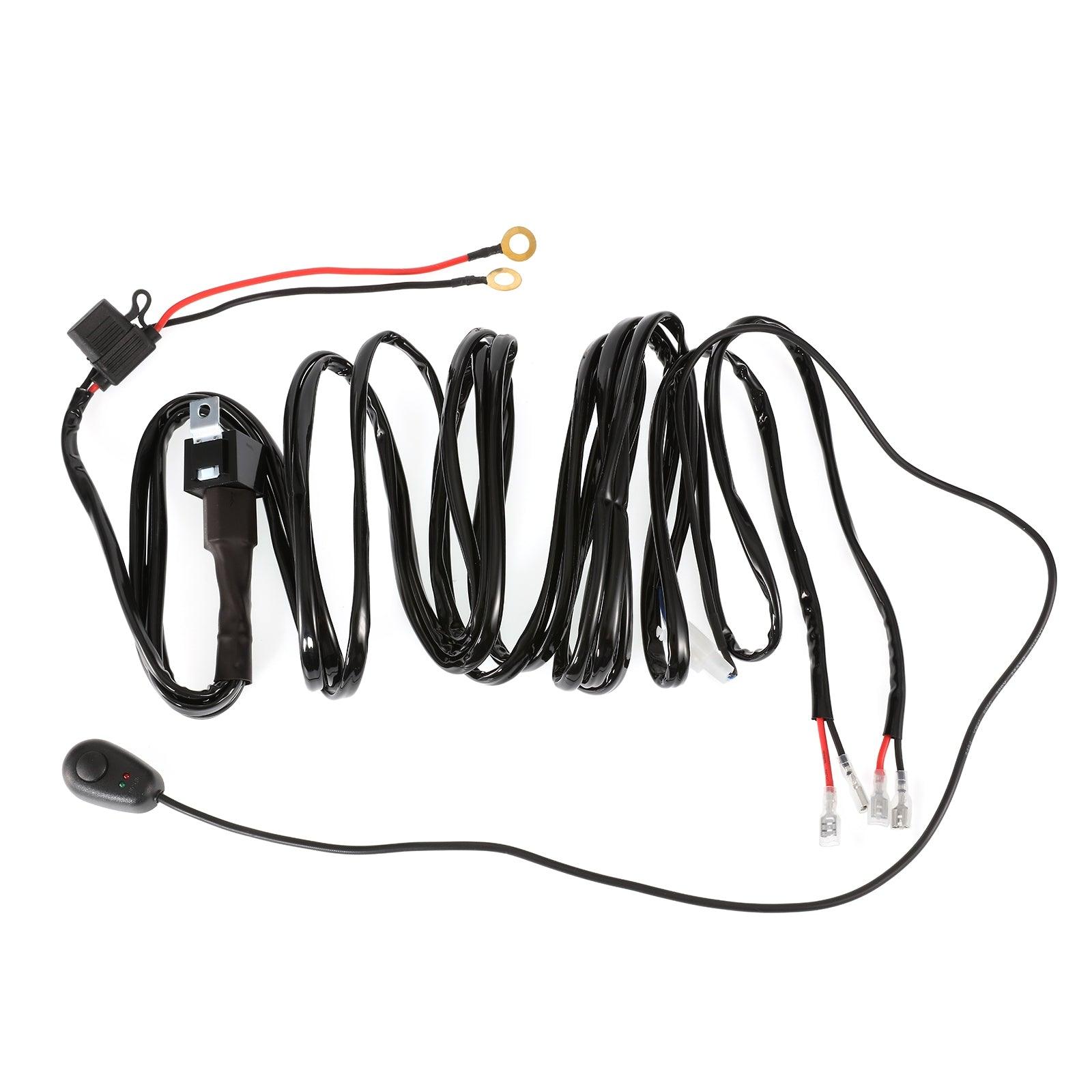

Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 6 in 1 2PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.

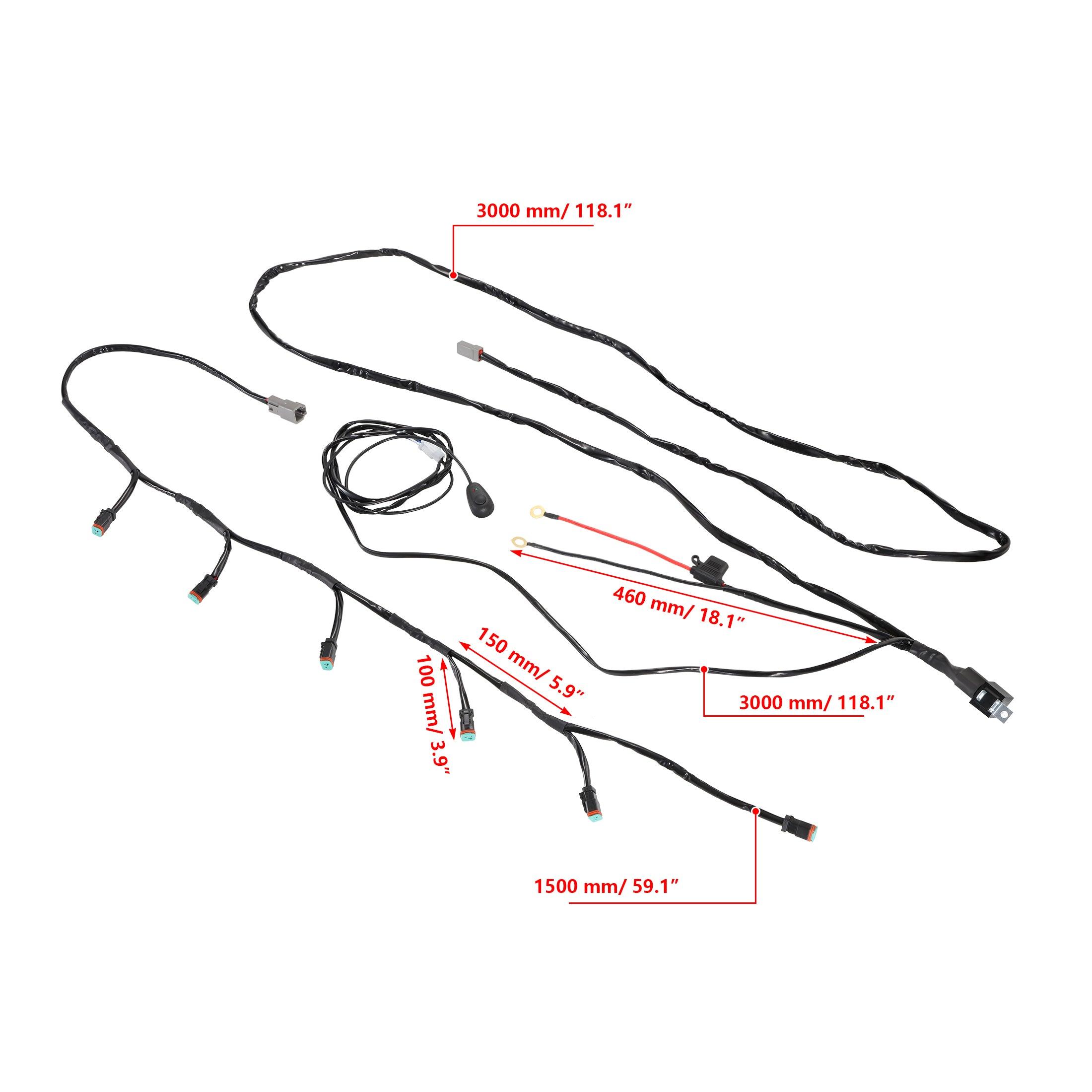

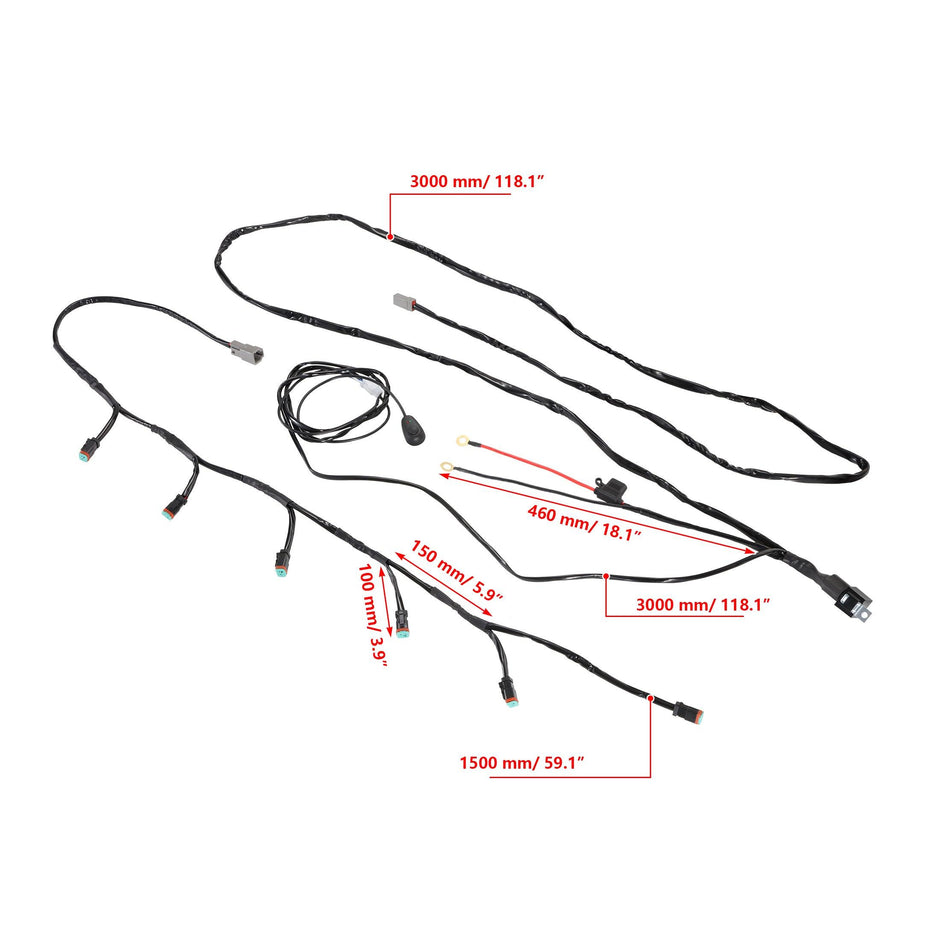

Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire and a DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
